Greentek EMF 990 User manual

Instruction Manual
EMF 990

CONTENT
1……………………………………….Warning
2……………………………………….Function and Feature
3……………………………………….Installation
4………………………………………..Maintenance
5…………………………………..……Exchange the lamp
6…………………………………………Energy data sheet

Warning
Keep your children from using the cooker hood.
Your cooker hood is for domestic use only, not suitable for barbecue, roast
shop and other commercial use.
Any installation work must be carried out by a qualified electrician or
competent person.
The cooker hood and its filter mesh should be cleaned regularly in order to
keep in good working order.
Before cleaning, always ensure that you have switched your cooker hood
off.
Clean the cooker hood according to the instruction manual and keep the
cooker hood from the danger of burning.
No fire for drying your cooker hood.
If there is any fault with your cooker hood, please call the service
department appointed by agent for servicing.
Please keep the room draughty when your cooker hood and gas hob are
working.
Do not exhaust the gas from cooker hood through the same heated flue
which is for the gas from gas hob and other kitchen appliances.
Before installation and usage, read all the instructions and make sure that
the voltage (V) and the frequency (Hz) indicated on your cooker hood are
exactly the same as the voltage (V) and the frequency (Hz) in your home.
In order to get the most out of your cooker hood, please read the
instruction manual before installing & using, and keep it in a safe place.
Ensure that you could get our guarantee for your cooker hood, please
provide the warranty card and purchase receipt, or the guarantee will not
be offered.

Function and Feature
The cooker hood is made of high quality materials with streamlined design
accordingly to technical and physical engineering theory, high end and
luxury with age aesthetic feeling, also there are kinds of styles for your
option to perfect your kitchen.
Equipped with a large power low noise electric motor and centrifugal leaf, it
produces strong suction, low noise, non stick grease filter and easy to
clean.
With the isolated low voltage circuit board control, 12vAC input, the lights
are more concentrative and use is much safer.
The grease filter is easy to remove and clean, and only wipe lightly for the
motor and other interior parts.
Special wind tunnel construction and oil collector design, avoiding
redundant grease left in the flue.

Installation
1. The ceiling must can bear at least 120kgs weight, and the
thickness of the ceiling must be ≧30MM.
2. The cooker hood should be placed at a distance of
65-75cm from the cooking surface for the best effect. See
Pic 1.
3. Drill 1*170mm round hole in the ceiling. According to the
hanging board, drill 9 holes in the ceiling. 9pcs of
ST6*40mm big flat screws will be used to fix the hanging board on the
wood ceiling. (or drill 6 holes in the ceiling, 6pcs of 6mm*60mm explosion
screws will be used to fix the hanging board on the cement ceiling). See
pic.2
A: The height of B+C+32cm+X
B: The height of cabinet
C: The height is 65-75cm
X: The total height of angle iron

4. Be careful to turn the screws on grease filter and pick the grease filter out.
See pic.3.
5. Use the screwdriver turn out the 4pcs of M5*22mm round screws and the
ST3*12mm big flat on the connect wire box, take apart the lamp’s wire
from the box, then take out the small round body. See pic.4/5.
6. Take off the small round body, you should be careful to install the glass.
See pic.6.
7. After installed the glass and putted the small round body again, connect
the lamp wire with the screws and tight it. See pic.7/8.
8. Install the grease filter again and tight up the filter’s screws. See pic.9.

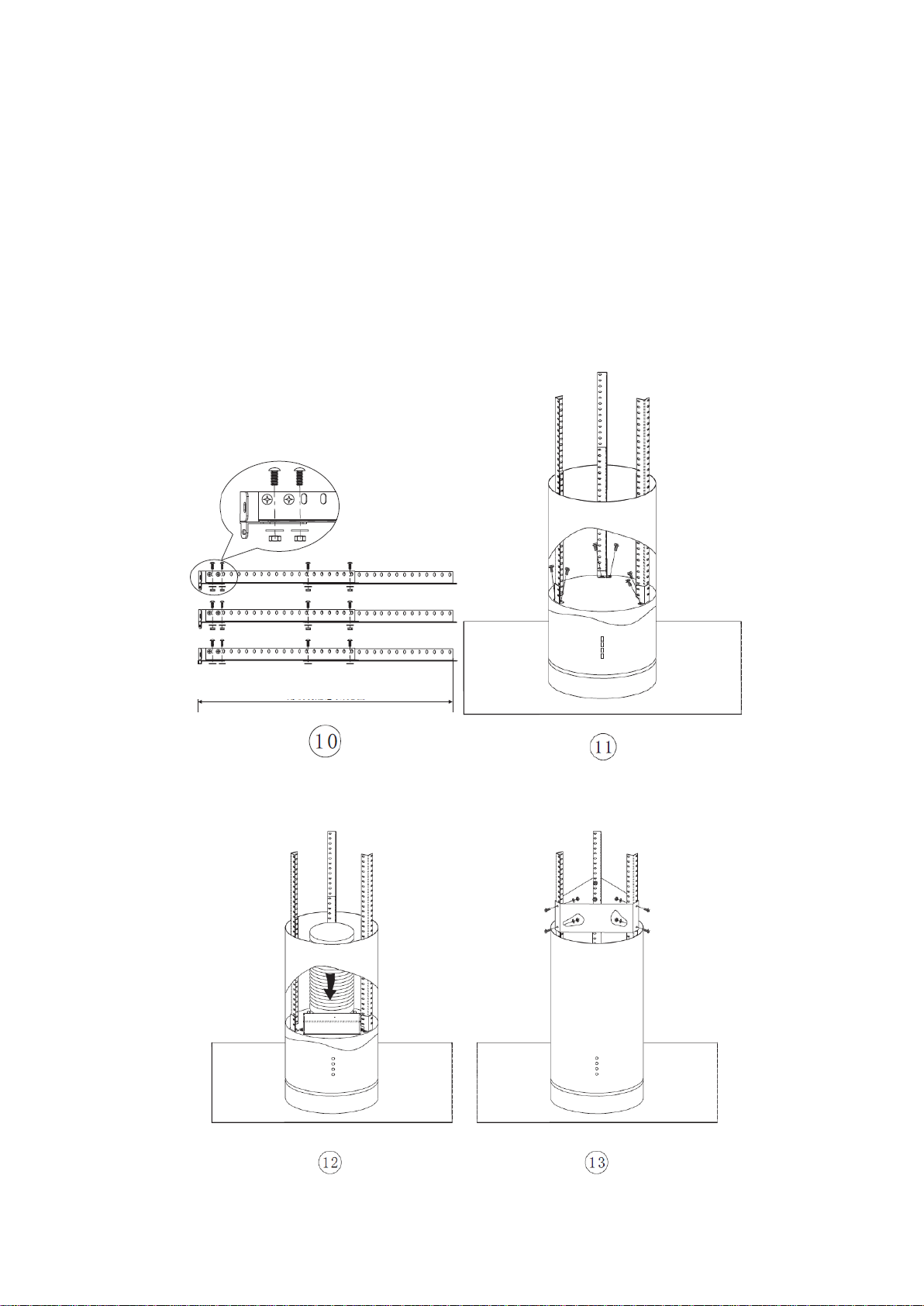

9. According pic.11, calculated the length of the angle iron, 24pcs M4*10 big
flat screws and M4 nut with gasket will be used to connect the angle iron
and another angle iron ( the overlap length of angle iron not less 100MM).
See pic.10.
10. Use 6pcs of M4* 10mm big flat screws to fix the angle iron on the hood
and install the extensible pipe. See pic.11/12.
11. Use the fixation board to put on the 3pcs of angle iron, 24pcs M4*10 big
flat screws and M4 nut with gasket will be used to connect the angle iron
and fixation board. See pic.13.
The total height of angle iron

12. See pic.14. Put the inner chimney into hood.
13. See pic.15. Hang on the hood, put the extensible pipe on the ceiling, after
that use 6pcs of M4*10mm big flat screws and M4 nut with gasket will be
used to connect the angle iron to the hanging board.
14. See pic.16. Drag the inner chimney to hanging board and fix with 3pcs of
ST4*8mm big flat tapping screws.

MAINTENANCE
The cleaning of the carbon grease filter mesh (PS: when you
clean the hood, please make sure the power is cut off)
The way of take off the hood’s grease filter: be careful to take off the
grease filter screws in the anticlockwise by hand, drag down and pick the
grease filter out. See pic.17.
Please strictly follow the guidelines below.
1: Put the mesh into 40-50 ℃clean water, pour on detergent, and soak for
2-3 mins. Wear gloves and clean with a soft brush. Please do not apply too
much pressure, as the mesh is delicate and will damage easy.
2: If instructed to do so, it can be put into a dishwasher, set the
temperature at around 60 degrees.
Please not use abrasive detergent for it will damage the hood.
Install the carbon filter into cooker hood, the specific install way can see
pic.18.

The way of changing lamp:
Make sure that the hood is shut off before changing.
The way of take off the hood’s grease filter: be careful to take off the
grease filter screws in the anticlockwise by hand, drag down and pick the
grease filter out. See pic.19.

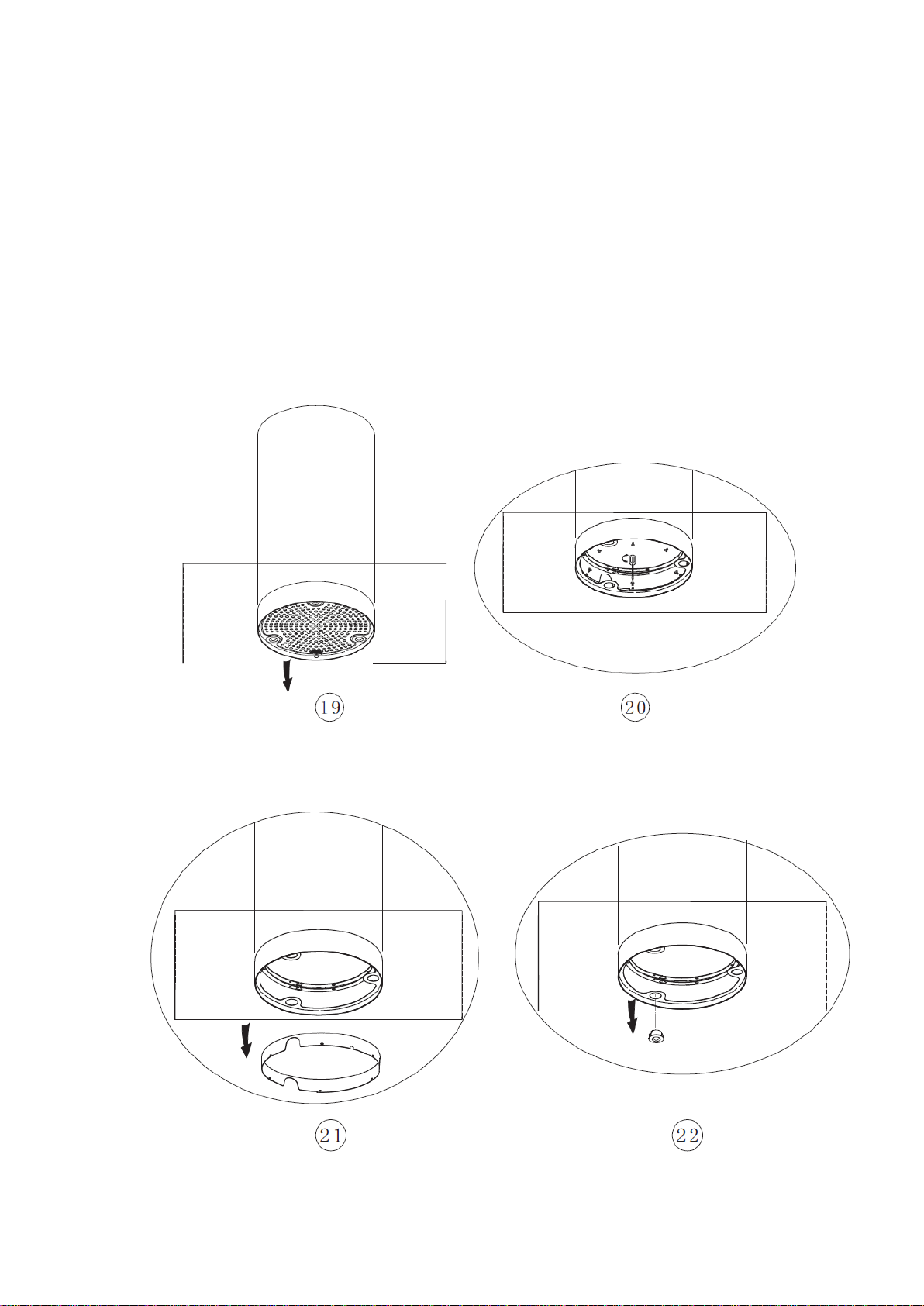

See pic.20/21, use screw driver to take off the shelter board 6pcs of
ST3*6mm screws and pick out the lamp’s shelter board.
See pic.22. Take off the lamp and change it.

Product data sheet for household cooker hoods accordingly
to regulation (EU). No. 65/2014 and 66/2014
Symbol
Value
Unit
Model identification
EMF 990
Annual Energy Consumption
AEChood
90,2
kWh/a
Time increase factor
f
1,4
Fluid Dynamic Efficiency
FDEhood
17,7
Energy Efficiency Index
EEIhood
78,9
Measured airflow rate at the best
efficiency
QBEP
375,0
m3/h
Measured air pressure at best
efficiency point
PBEP
302
Pa
Maximum airflow
Qmax
636,5
m3/h
Measured electric power input at best
efficiency point
WBEP
177,2
W
Nominal power of the lighting system
WL
3,0
W
Average illumination of the lighting
system on the cooking surface
Emiddle
302
lux
Measured power consumption on
standby mode
PS
0,45
W
Measured power consumption on off
mode
PO
--
W
Sound power level
LWA
71
