GreenWorks LC-220-T User manual

40V Cordless Lawn Cart
LC-220-T
Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
TOLL-FREE HELPLINE: 1-833-493-5483
www.greenworkselite.com

2
Contents .............................................................................................................................. 2
Product Specications ......................................................................................................... 2
Important Safety Information ............................................................................................... 3
Symbols ............................................................................................................................... 7
Know Your Lawn cart........................................................................................................... 9
Assembly Instruction ..........................................................................................................11
Operation Instruction ......................................................................................................... 13
Maintenance ...................................................................................................................... 17
Environmentally safe battery disposal ............................................................................... 19
Troubleshooting ................................................................................................................. 20
Limited Warranty................................................................................................................ 21
Exploded View ................................................................................................................... 22
Parts List............................................................................................................................ 23
PRODUCT SPECIFICATIONS
LAWN CART
Model................................................................................................................ LC-220-T
Rating..............................................................................................................40V 300W
Loading capacity............................................... 220 lbs (100kg) on level cement surfaces
Ination pressure................................................................................... 30PSI Maximum
Weight (with 3ah battery).....................................................................................70.6 lbs
Capacity (Volume) ...................................................................................106L / 3.74CUFT
Length ........................................................................................................52.6” (133.6cm)
Width ...............................................................................................................24.8” (63cm)
Height ............................................................................................................42.1” (107cm)
Speed ...................................................High: 3.5 Km/h (±0.5Km/h)/2.17 mph (±0.31 mph)
..................................................Low: 2.5 Km/h (±0.5Km/h)/1.55 mph (±0.31 mph)
...............................................Reverse: 2 Km/h (±0.5Km/h)/1.24 mph (±0.31 mph)
Battery ................................................................................................40V 3ah Lithium-ion
Front Tire .................................................................................10x3.5-4” Pneumatic wheel
Rear Tire ............................................................................................8” Solid caster wheel
Charge time (3Ah battery and standard charger) ......................................................90min
Oil type ................................................................................Automatic Transmission Fluid
Oil capacity ...............................................................................................................150ML
CONTENTS
TOOL WARRANTY
INSTRUMENT
YEAR/ANS/AN
GARANTIE DE
GARANTIE DU
CHARGEUR

3
IMPORTANT SAFETY INSTRUCTIONS
GENERAL SAFETY RULES
READ ALL INSTRUCTIONS CAREFULLY
WARNING
When using electric gardening appliances, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and personal injury, including the
following.
• Read, understand, and follow all instructions on your Lawn cart’s label and in this guide.
Be thoroughly familiar with the controls and the proper use of your Lawn cart before starting.
• Only allow responsible individuals who have a thorough understanding of these
instructions to operate your Lawn cart. Never allow children to operate your Lawn cart.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that may
obscure your vision.
• Wear shoes with non-slip treads. If you have safety shoes, wear them. Do not use your
Lawn cart while barefoot or wearing open sandals.
• If you are ever unsure about an action you are about to take, please don’t do it.
• Thoroughly inspect the area where your Lawn cart is to be used, and remove all
stones, sticks, wire, pet supplies or lawn toys, and any other foreign objects that you
could run over. Also note the location of holes, ruts, bumps, stumps, and other possible
hazards.
• Use your Lawn cart only in daylight or in an area well lit by articial light.
• Keep a rm hold on the handle, and walk — never run.
• Do not put your hands or feet near or under the rotating wheels.
• Never operate your Lawn cart in the rain or in tall wet grass. Remember, this is an
electric Lawn cart.
• Do not move in reverse unless absolutely necessary. When maneuvering in reverse,
use extreme caution. Always look down and behind you before moving backwards.
• Do not operate your Lawn cart if it does not start or stop normally.
• Stay alert and watch what you are doing.
• Always be sure of your footing.
• Do not operate your Lawn cart when you are tired or under the inuence of drugs or
alcohol.
• Do not use your Lawn cart for any job other than those for which it is intended.
• Use only manufacturer-recommended replacement parts and accessories.
• Do not modify your Lawn cart in any way. Modications void your warranty.
• When operating over uneven terrain and slopes, use extreme caution to ensure solid
and rm footing.
• Do not pull your Lawn cart backwards while running in forward gear. This can damage
the motor and ruin the gears.
• Prevent damage to the motor and gears – do not tow anything behind your Lawn cart
or overload it.

4
IMPORTANT SAFETY INSTRUCTIONS
• Evenly disperse the load in your Lawn cart’s bucket.
• Use caution when travelling on slopes.
WARNING
Do not operate the Lawn cart on the road.
• Do not operate across steep slopes; always travel up and down slopes.
• Do not use on slopes over 15 degrees.
• Park on level surfaces for stability when loading or unloading.
• Weight limit: 220 lbs (100kg) on level cement surfaces — overloading may cause injury
and could permanently damage unit.
• Only load with as much weight as you can control when machine is moving.
• Never carry passengers.
• Use only Greenworks Elite batteries.
• Do not use if forward/backward button or power switch or safety button is not working
properly.
• Use caution when operating in wet conditions.
• Do not operate in explosive atmospheres such as in the presence of ammable liquids,
gasses or ammable dust. If in doubt, wait for dust to settle before using.
• Be sure the area is clear of other people before moving. Do not allow children,
bystanders, or pets in your work area when your Lawn cart is being moved.
• Do not charge appliance in rain, or in wet locations.
• Do not use battery-operated appliance in rain.
• Remove or disconnect battery before servicing, cleaning or removing material from
the Lawning appliance.
• Use only with Greenworks Elite batteries: L-300, L-600.
• Use only with Greenworks Elite Chargers: C-220, C-400.
• Do not dispose of the battery(ies) in a re. The cell may explode. Check with local codes
for possible special disposal instructions.
• Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if swallowed.
• Exercise care in handling batteries in order not to short the battery with conducting
materials such as rings, bracelets, and keys. The battery or conductor may overheat and
cause burns.
• Dress Properly - Do not wear loose clothing or jewelry. They can be caught in moving
parts. Use of rubber gloves and substantial footwear is recommended when working outdoors.
Wear protective hair covering to contain long hair.
• Use Safety Glasses - Always use face or dust mask if operation is dusty.
• Don't Force Appliance - It will do the job better and with less likelihood of a risk of
injury at the rate for which it was designed.
• Store Idle Appliance Indoors - When not in use, appliances should be stored indoors
in dry, and high or locked-up place - out of reach of children.
• Check Damaged Parts - Before further use of the appliance, a guard or other part that

5
IMPORTANT SAFETY INSTRUCTIONS
is damaged should be carefully checked to determine that it will operate properly and
perform its intended function. Check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other condition that may affect its operation. A
guard or other part that is damaged should be properly repaired or replaced by an authorized
service center unless indicated elsewhere in this manual.
WARNING
Never stand in the bucket to activate the Lawn cart.
MOVING ON SLOPES
WARNING
Slopes are a major factor related to slip-and-fall accidents, which can result in severe
injury. All slopes require caution. If you feel uneasy on a slope, do not drive on it.
• Use caution on slopes. Whenever possible, move up and down the slope at an angle.
• Exercise caution when changing directions on slopes.
• Remove obstacles such as rocks, tree limbs, or any other potential object that your
Lawn cart could hit.
• Watch for holes, ruts, or bumps. Be careful on uneven terrain to avoid overturning your
Lawn cart. Tall grass can hide obstacles.
• When moving down slopes, always keep your Lawn cart in low gear and moving. The
friction of the motor helps you keep better control of your Lawn cart.
• Use caution when carrying heavy loads up slopes. If your Lawn cart is overloaded, the
safety fuse may trip and allow the Lawn cart to rollback toward you, which may cause severe
injury.
• Do not turn on slopes unless necessary, and then, turn slowly and gradually.
• Do not move near drop-offs, ditches, or embankments. The Lawn cart could suddenly
turnover if a wheel is over the edge of a cliff or ditch or if an edge caves in.
• Do not park your Lawn cart on hills or steep slopes.
CHILDREN
WARNING
This is not a toy. Children under 14 years of age are not allowed to operate it.
• Tragic accidents can occur if the operator is not aware of the presence of children. Keep
children out of the work area and under the watchful care of a responsible adult. Stay alert,
and turn the Lawn cart off if a child enters the work area. Look behind and down for small
children before and while driving backwards. Use extreme care when approaching blind
corners, doorways, shrubs, trees, or other objects that may obscure your view of a child who
may run into the work area.
• Do not allow children under the age of 14 to operate this Lawn cart. Children who are 14 years
of age and older must read and understand the operating instructions and safety rules in this
manual, and must be trained and supervised by a parent.

6
IMPORTANT SAFETY INSTRUCTIONS
SERVICE
WARNING
Altering the electrical system could cause a re resulting in serious injury. Don’t do it.
• Using components other than those supplied could cause overheating, re, or explosion.
• Never make adjustments or repairs with the motor running.
• Keep all nuts and bolts tight, and keep the equipment in good condition.
• Keep your Lawn cart’s wheels free of grass, leaves, or other debris build-up.
• Keep your Lawn cart clean and dry. Use a damp cloth or sponge with a mild soap or detergent
when cleaning your Lawn cart. Never use gasoline, solvents, or other petroleumbased or
solvent-based products when cleaning.
• When not in use, store your Lawn cart indoors in a dry place
WARNING(PROPOSITION 65)
Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to the state of California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products,
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies depending on how often you do this type of work. To
reduce your exposure to these chemical: work in a well ventilated area, and work with approved
safety equipment, such as those dust masks that are specially designed to lter out microscopic
particles.

7
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and
safer.
SYMBOLS
7
SYMBOL DESIGNATION/EXPLANATION
V Voltage
A Current
W Power
min Time
Type or a characteristic of current
Indicates a potential personal injury hazard.
Do not expose to rain or use in damp locations
To reduce the risk of injury user must read and understand operator’s
manual before using this product.
Do not operate on inclines greater than 15°.
Wear eye protection with side shields that are marked to comply with
ANSIZ87.1 when operating this equipment.
Pay attention that bystanders are not injured through foreign objects
thrown from the Lawn cart.

8
SYMBOLS
SAVE THESE INSTRUCTIONS
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualied
service technician. For service we suggest you return the product to your nearest AUTHORIZED
SERVICE CENTER for repair. When servicing, use only identical replacement parts.
WARNING
To avoid serious personal injury, do not attempt to use this product until you have read this Owner’s
Manual thoroughly and understand it completely. If you do not understand the warnings and
instructions in this Owner’s Manual, do not use this product. Call the Toll-free Helpline (1-833-493-
5483) for assistance.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may
result in property damage.

9
KNOW YOUR LAWN CART
Fig. 1
Read this operator's manual and safety rules before operating your lawn mower. Compare the
illustration in Figure 1 to your lawn mower in order to familiarize yourself with the location of
various controls and adjustments. Save this manual for future reference.
Throttle
Battery cover
Upper handle
Caster wheel
Front wheel
Bucket
Bucket release
lever
High/Low speed button
Power switch
Forward/Reverse
button
Safety button
LED light

10
ASSEMBLY INSTRUCTIONS
PART NAME FIGURE PART NO.
Self propelled Lawn
cart 1
Handle assembly
1
Knobs and U-bolts
Manual
Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
TOLL-FREEHELPLINE:1-888-90WORKS
(888.909.6757)
www.GreenWorksTools.com
40V Garden Cart
7400000
1

11
UNPACKING
• Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and operated the
product.
• If any parts are damaged or missing, please call (1-833-493-5483) for assistance.
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced.
Using a product with damaged or missing parts could result in serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modication is misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING
Do not use this product if any parts on the packing list are already assembled to your product
when you unpack it. Parts on this list are not assembled to the product by the manufacturer and
require customer installation. Use of a product that may have been improperly assembled could
result in serious personal injury.
WARNING
Never operate the Lawn cart without the proper safety devices in place and working. Never
operate the mower with damaged safety devices. Operation of this product with damaged or
missing parts could result in serious personal injury.
ASSEMBLY INSTRUCTIONS

INSTALL THE UPPER HANDLE (See Figure 2)
• Slide the upper handle over the lower handle tubes on the bucket assembly. Make sure the
bolt holes align.
• Insert a U-bolt from the outside of the handle, passing through the bolt hole where the upper
and lower handles attach.
• Once the U-bolt is completely through the handle assembly, tighten the knob securely.
• Attach the other side of the handle the same way.
ASSEMBLY INSTRUCTIONS
Fig. 2
12

13
OPERATION INSTRUCTION
WARNING
You are responsible for controlling and steering the Lawn cart once it is moving. Grasp the handle
securely before moving. Make sure you are ready to move with the Lawn cart before pressing
the on-off button and safety button. Keep a rm grip on the handle once you are moving.
LOADING YOUR LAWN CART
Load your Lawn cart carefully; disperse the load evenly across the bucket. The bucket can take
up to 220 pounds (100 kilograms). When moving up and down hills, limit your load to no more
than 220 pounds (100 kilograms). If you think you are carrying too much, remove some material
from your Lawn cart.

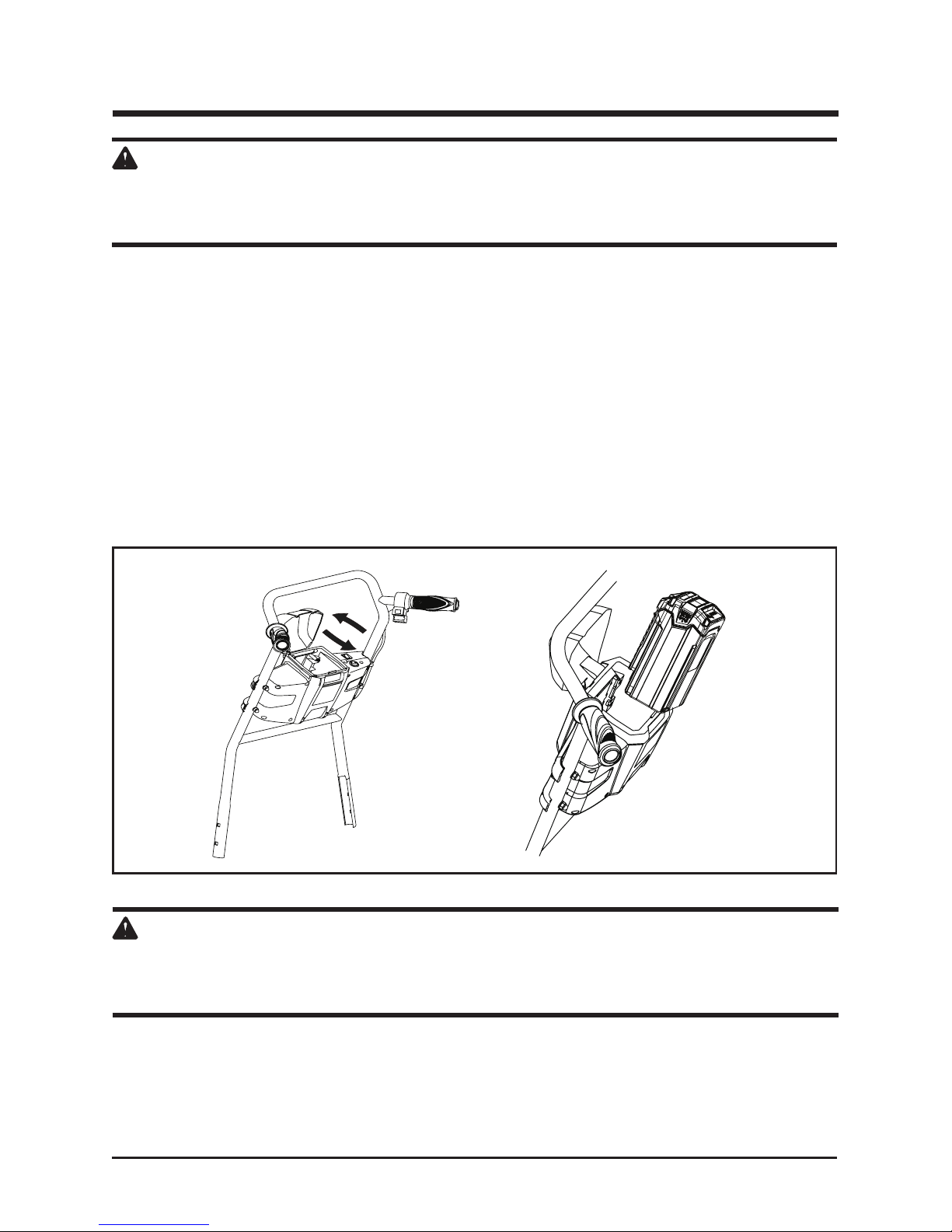

TO INSTALL BATTERY PACK (See Figure 3)
• Open the battery cover.
• Align the raised rib inside the panel with the groove on the battery pack.
• Ensure the battery pack is secured in place in the battery compartment.
• Close the battery cover.
Fig. 3
WARNING
When placing battery pack in the tool, be sure raised rib on battery pack aligns with the groove
inside the tool and latches into place properly. Improper installation of the battery pack can cause
damage to internal components.
TO REMOVE BATTERY PACK (See Figure 3)
• Depress the latch on the back of the battery pack to release the battery.
• Remove the battery pack.

14
LOCK/UNLOCK THE BRAKE (See Figure 4)
• Step on the brake, the brake will be locked, and the Lawn cart will stop.
• Step on the brake again, the brake will be unlocked.
OPERATION INSTRUCTION
Fig. 4
Brake
STARTING (See Figure 5)
• To utilize your Lawn cart set the power switch to the ON position.
• The LED light indicates the Lawn cart is in working condition.
Power switch
LED light
Fig. 5

15
WARNING
If you do not engage the throttle in 4 seconds after pressing the safety button, you have to press
the safety button again.
MOVING FORWARD/REVERSE (See Figure 6)
1. Select forward/reverse.
2. Select high/low speed.
3. Push safety button. (There is a 4-seconds lead time to engage step 4.) If the throttle is not
engaged within 4 seconds, the unit will not start and safety button needs to be engaged
again.
4. Engage the throttle to start the Lawn cart.
Note: Move in reverse only for short distances. If you have a long distance to travel, turn your Lawn cart
around and go forward.
OPERATION INSTRUCTION
Fig. 6
High/Low speed
button
F: Forward
R: Reverse Fast
Slow
12
Safety button
Throttle
Unlock
34

WARNING
When moving in reverse, be ready for the Lawn cart to lurch towards you and get immediately
up to speed. Be careful; step back and be prepared to walk backwards. Consider standing to the
side of the Lawn cart until you get used to moving backwards.
STOPPING (See Figure 7)
• Release the throttle.
• Press the power switch to the off position. Remove the battery and store in a safe place to
prohibit unauthorized use of the Lawn cart.
NOTE: The self-propelled Lawn cart does not have a braking system. Instead, to stop your Lawn cart, you
simply release the thrRelease leverThrottleottle. Because of its momentum, your Lawn cart might continue
to move a bit after you release the throttle. Don’t let go of the handle until your Lawn cart stops completely.
Park your Lawn cart in a level area so it doesn’t roll away.
UNLOADING YOUR LAWN CART (See Figure 8)
• Stop the Lawn cart.
• Squeeze the release lever on the bucket to release the bucket.
• Grasp the handles on the bucket to raise and unload the bucket.
OPERATION INSTRUCTION
Fig. 8
16
Throttle
Release lever
Fig. 7

17
MAINTENANCE
Like any machine, maintaining your Lawn cart ensures its best performance and extends its life.
Follow these procedures to keep your Lawn cart working at peak efciency.
• Check all screws and nuts regularly; tighten them as needed. Regularly check the plastic
parts for cracks or broken pieces.
• Periodically check the tire pressure on all three tires. Keep the tire pressure between 28 and
30 pounds per square inch (psi). The Lawn cart’s tire valves work like those on bicycle tires.
To add air, remove the cap and push the air hose or pump tting onto the end of the valve
stem. To remove air, depress the pin in the center of the valve stem.
WARNING
Never over inate the tires. If you over inate the tires, you could cause them to explode resulting
in severe injury.
• Try not to use your Lawn cart when it’s wet or snowy. And do not spray the electrical areas
of your Lawn cart with a hose. Water and moisture in the motors and electrical switches
can cause them to corrode, which then causes them to fail. Remember, this is an electrical
machine!
• That said; you can still hose off your Lawn cart. Just be careful not to spray water directly on
the Control Panel or through the battery cover.
• Wash your Lawn cart using a mild automotive type detergent and water with a soft brush or
rag. Do not use any alkaline-based soaps or pressure wash your Lawn cart.
STORING YOUR LAWN CART
WARNING
When you store your Lawn cart, follow these important guidelines to help ensure your Lawn
cart’s best performance when you use it again.
• Store your Lawn cart inside or under a protective cover.
• Charge the battery before storing your Lawn cart. In temperatures lower then 40° F (5° C), the
battery maintains a charge for about 60 days. If you store your Lawn cart for extended periods
of time, periodically recharge the battery. Once a month is a good rule of thumb.
• Always store your Lawn cart in an environment where the temperature is between –10° F (–23°
C) and +85° F (+23° C). Make sure the storage temperatures will never be outside these limits.
• Store your Lawn cart in a dry environment. Water will damage your Lawn cart and the battery.
• Do not store your Lawn cart near chemicals (such as fertilizers), or organic or other solvents.
These products are often highly corrosive and may cause permanent damage to your Lawn
cart.
• Do not store your Lawn cart close to a source of heat, sparks, or open ames.

18
MAINTENANCE

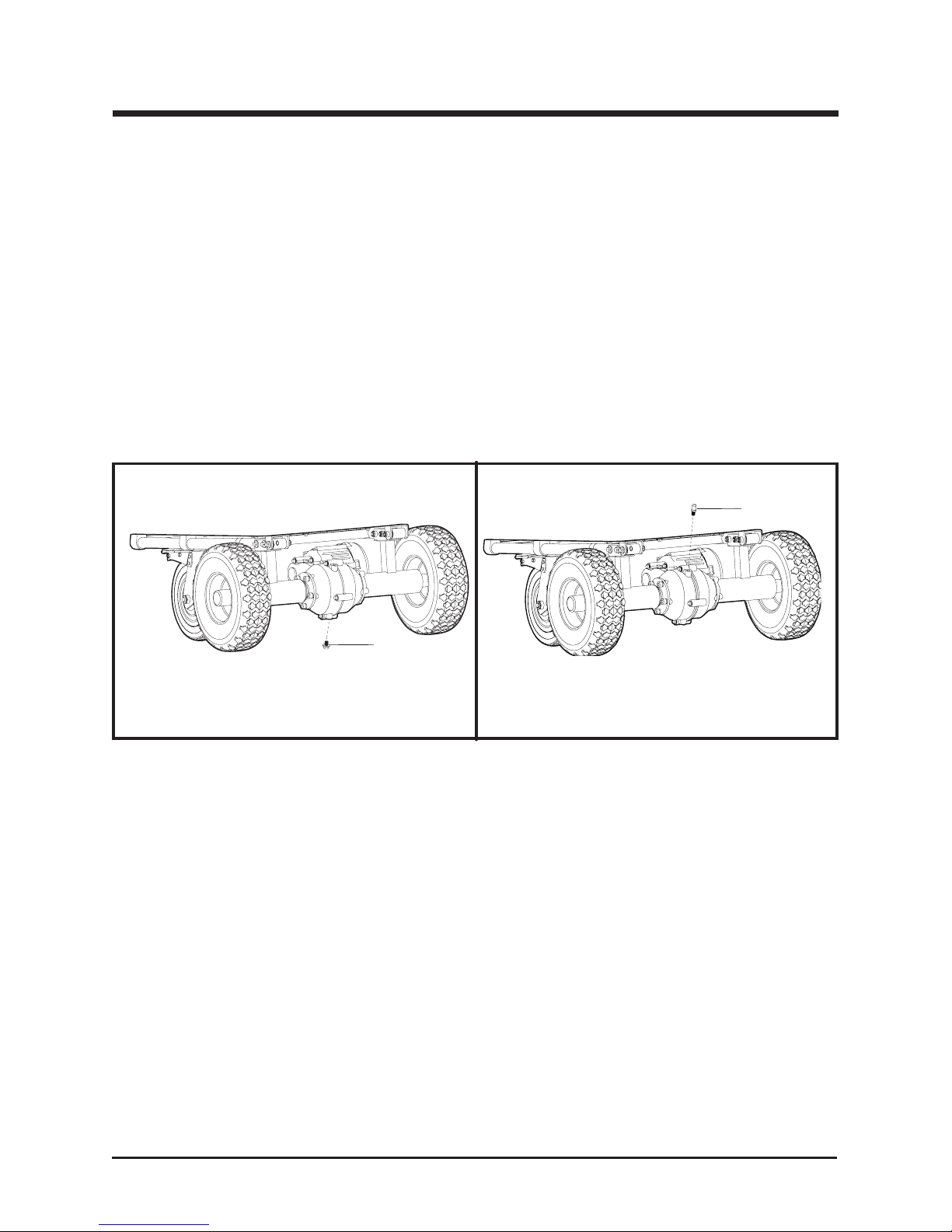

CHANGE THE OIL
To ensure this product’s best performance and extend its life, please change the oil every half
year in the rst working year and every year in the rest years.
Draining the oil (See Figure 9)
• Remove the drain plug with a wrench to drain the oil.
• After the oil is drained, screw the drain plug back in again.
Relling the oil (See Figure 10)
• Remove the oil plug with a wrench.
• Rell the oil from the oil hole. The oil capacilty is about 150 ml.
• Screw the oil plug back in again.
Drain
p
lu
g
O
il plug
Fig. 9 Fig. 10

19
ENVIRONMENTALLY SAFE BATTERY DISPOSAL
The following toxic and corrosive materials are in the batteries used in this Lawn Cart: Lithium-Ion,
a toxic material.
WARNING
All toxic materials must be disposed of in a specied manner to prevent contamination of the
environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your
local waste disposal agency, or the local Environmental Protection Agency for information and
specic instructions. Take the batteries to a local recycling and/or disposal center, certied for
lithium-ion disposal.
WARNING
If the battery pack cracks or breaks, with or without leaks, do not recharge or use the battery.
Dispose of it and replace with a new battery pack. DO NOT ATTEMPT TO REPAIR IT!
To avoid injury and risk of explosion, or electric shock, and to avoid damage to the environment:
• Cover the battery's terminals with heavy-duty adhesive tape.
• DO NOT attempt to remove or destroy any of the battery pack components.
• DO NOT attempt to open the battery pack.
• If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the
solution in the eyes or on skin, and do not swallow it.
• DO NOT place these batteries in your regular household trash.
• DO NOT incinerate.
• DO NOT place them where they will become part of any waste landll or municipal solid
waste stream.
• Take them to a certied recycling or disposal center.

20
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The Lawn cart
does not run.
Battery is not secure.
To secure the battery pack, make sure the
latch on bottom of the battery pack snaps
into place.
Battery is not charged. Charger the battery pack according to the
instructions included with you model
The wire is loose. Check all the connectors and to see if any
part is loose or not.
The controller is damaged.
Replace the damaged one with specic
controller by strictly following up the
instructions.
The Lawn cart
runs sluggishly.
Battery volume is low.
See the battery indicator to check the
volume. Charger the battery pack according
to the instructions included with you model
The battery is old and does not
accept full charge.
Replace the battery with a new 40 Volt
Cramer battery
The conditions are too stressful
for your Lawn cart.
The Lawn cart is intended for residential
use. If slopes are too steep or the terrain too
bumpy, your Lawn cart might experience a
noticeable decrease in performance.
Sometimes the
Lawn cart runs,
but other times it
does not.
The electrical switches might
be damaged or corroded
because they were exposed
to water or moisture, or
they simply wore down from
extensive use.
Contact us at 1-833-493-5483 and we’ll help
you diagnose and repair the problem.
Loud clunking or
grinding noise
from the gearbox.
The motor’s gears are broken. Contact us at 1-833-493-5483 and we’ll help
you diagnose and repair the problem.
