GRIDFREE FREEDOM KIT User manual

1
FREEDOM KIT
INSTALLATION MANUAL
HYBRID ES -LITHIUM

2
x8
FREEDOM KIT - HYBRID
x4
Installation of this kit legally requires an electrician.
We are always happy to help guide you through the install, troubleshoot, and answer any questions.
You can contact us on 09 218 5533, or [email protected]e.
We recommend reading these instructions in full prior to starting your install.

3
2x Leader Fuse Holder
2x Leader Fuse
1x 6mm² Solar PV Cable pair 10m - MC4
(Female, Red + Male, Black)
1x Battery Communications Cable
1x DC Isolator
1x 200A MCCB Breaker
1x 35mm² Cable 3m Pre-Crimped (Red + Black)

4
1x Growatt 5KW ES Hybrid Inverter
4x Growatt ARK LiFePO4 y 2.56kWh Battery
x4
1x Growatt ARK Battery Base

5
8x PERC MONO Solar Panel
x8

6
000 000 000
0000 000 000
ON I
OFF O
PV ARRAY
DC ISOLATOR
SISO SWITCH
IP66
10X38 ZTPV-25X10X38 ZTPV-25X 10X38 ZTPV-25X10X38 ZTPV-25X
4
55
Generator/ Mains Input
Mains Distribution Box
DC Isolator
Communication Cable
200A MCCB Breaker
2x Leader Fuse
4
55
6
6

7
1Start by wiring all eight panels in a series. Connect the positive terminal of one panel to the
negative terminal of the next panel.

8
000 000 000
0000 000 000
ON I
PV ARRAY
DC ISOLATOR
SISO SWITCH
IP66
OFF O
2Run the 6mm²Solar Cables from the solar panels to the DC isolator, and cut it to length.
Run the solar cables to the DC
isolators, and cut it to length.

9
3Use wire strippers to strip the ends off the black and red 6mm²solar cables. Strip the cables to
approximately 7mm in length.
7mm
4Ensure you use the correct metal crimp conductor, with the correct housing. Above
demonstrates how each wire connects to its solar connector. The positive wire uses “Metal
conductor A” and “Solar connector housing A”, the negative wire uses “Metal conductor B”
and “Solar connector housing B”.
Metal conductor B.
Metal conductor A.
Solar connector
housing B.
Solar connector
housing A.
Gland nut (same
for both wires).
AB

10
6
Starting with the red solar cable, place the silicon gland and gland nut onto the cable.
Crimp “Metal Conductor A” onto the cable using the 4mm²crimping die.
Insert the crimped “Metal conductor A” into the “Solar connector housing A” until it clicks, then
tighten the gland nut using a spanner.
5
Pay extra attention to use the correct crimp
conductor, with the correct housing.
A A
A

11
8
Move onto the black solar cable. Place the silicon gland and gland nut on to the cable.
Crimp “Metal conductor B” onto the cable using the 4mm²crimping die.
Insert the crimped “Metal conductor B” into the “Solar connector housing B” until it clicks, then
tighten the gland nut using a spanner.
7
BB
B

12
9
10
ON I
OFF O
PV ARRAY
DC ISOLATOR
SISO SWITCH
IP66
Ensure the PV Array DC isolator is in the off position. Then, connect the PV cable run from the
solar panels. Ensure the other end of the cables stay disconnected from the solar panels.
Repeat the process of crimping MC4 connectors onto a new set of cables (refer to page
9-11), which will connect the PV Array DC isolator to the PV Array fuses.
ON I
OFF O
PV ARRAY
DC ISOLATOR
SISO SWITCH
IP66
ON I
OFF O
PV ARRAY
DC ISOLATOR
SISO SWITCH
IP66
Ensure the PV Array DC
isolator is in the off position.

13
11
10X38 ZTPV-25X10X38 ZTPV-25X 10X38 ZTPV-25X

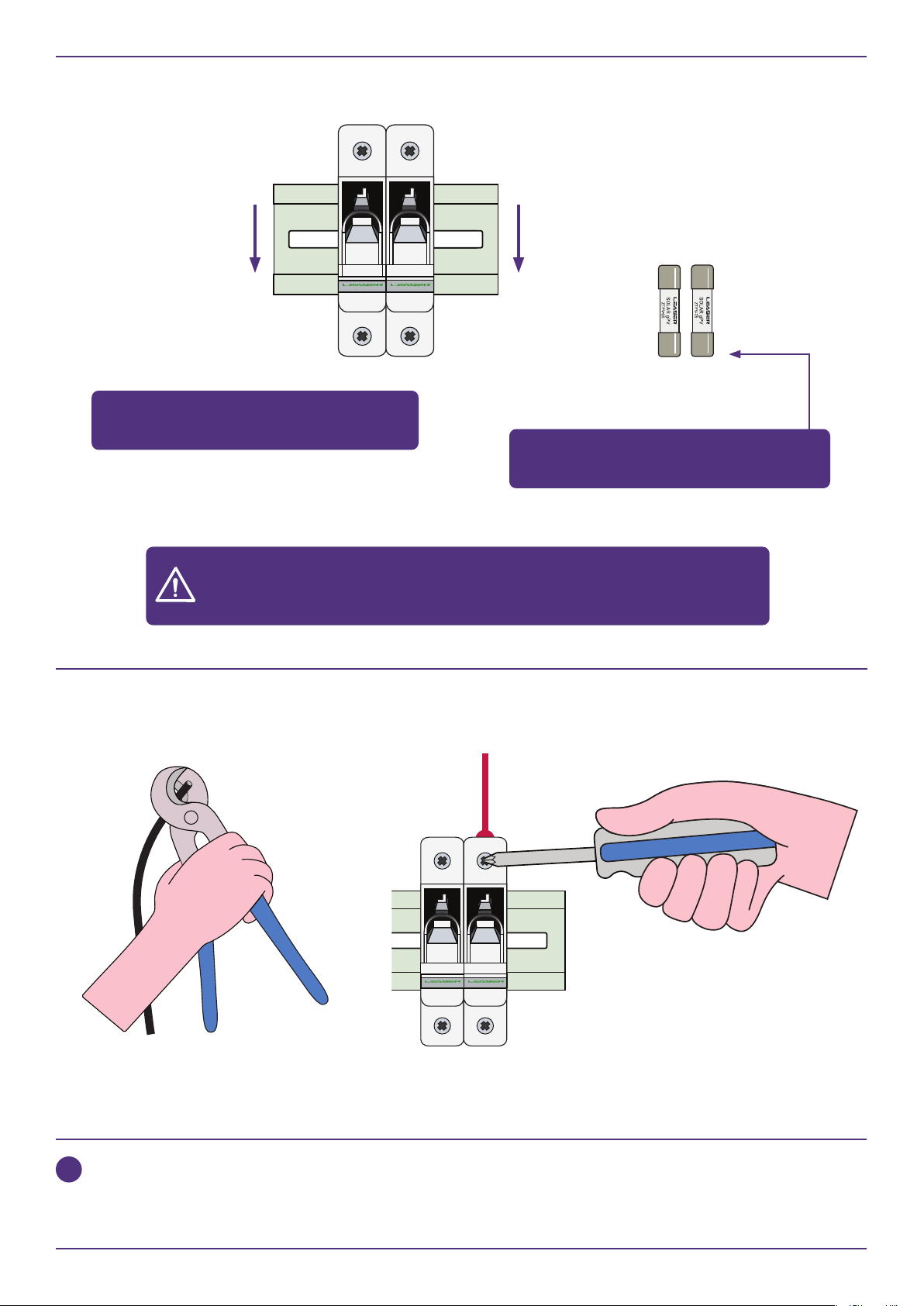

Ensure the solar cable run is NOT connected to the solar panels.
Keep the fuse holders disconnected by keeping them open with the
fuses OUT and the PV Array DC isolators are in the off position.
To disconnect the fuses, pull the front
tabs down to open the fuse holders. Keep the fuse holders open with the
fuses left out of the fuse holders.
10X38 ZTPV-25X 10X38 ZTPV-25X
Ensure the fuse holders are disconnected by keeping them open with the fuses OUT. Use wire
strippers to strip the ends of the solar cable, and terminate them in the fuse holders by inserting the
stripped end and tightening the screw clockwise. Make sure the clamp inside the fuse holders are
contacting the metal conductor, and NOT the insulation of the wire.

14
OFF O
SISO SWITCH
The PV Array DC isolator is now wired into the PV Array fuses.
12

15
000 000 000
0000 000 000
ON I
OFF O
PV ARRAY
DC ISOLATOR
SISO SWITCH
IP66
10X38 ZTPV-25X10X38 ZTPV-25X 10X38 ZTPV-25X10X38 ZTPV-25X
13 Run a section of 6mm² cable from the PV Array fuses to the hybrid inverter.

16
000 000 000
0000 000 000
ON I
OFF O
PV ARRAY
DC ISOLATOR
SISO SWITCH
IP66
10X38 ZTPV-25X10X38 ZTPV-25X 10X38 ZTPV-25X10X38 ZTPV-25X
14
Keep the fuse holders open, with the
fuses left out of the fuse holders.
When the cables have been terminated in the fuse holders, with the fuses disconnected by
keeping the fuse holders open with the fuses left out and the PV Array DC isolator switched
“OFF”, you can now connect the solar panels to the cable run. The fuses and DC isolator must be
disconnected when connecting or disconnecting the solar panels from the cable run.
For your safety, do not connect or disconnect any solar cables when there is current running
through them.

17
15
Keep the fuses disconnected by keeping the
fuse holders open with the fuses left out.
Ensure the 200A MCCB circuit breaker is switched “OFF” (switch in the down position, indicator
showing green). Keep the fuses disconnected by ensuring the fuse holders are open with the fuses left
out and the PV Array DC isolator is switched to the “OFF” position, before wiring.
ON I
OFF O
PV ARRAY
DC ISOLATOR
SISO SWITCH
IP66 Ensure the PV Array DC
isolator is in the off position.
10X38 ZTPV-25X 10X38 ZTPV-25X
Ensure the 200A breaker is switched off, in
the down position, showing a green indicator.

18
16 Before proceeding to connect the hybrid inverter to the 200A MCCB circuit breaker, align the 35mm²
x 1m cables between the components to ensure that the M6 ends (smaller holes) are inserted into the
hyrbid inverter and the M8 ends (larger holes) are inserted into the circuit breaker.
Ensure the M6 ends connect to
the hybrid inverter.
Ensure the M8 ends connect to
the 200A MCCB circuit breaker.

19
17
18
Wire the positive (+) 35mm²x 1m cable from the 200A MCCB circuit breaker to the hybrid inverter.
Wire the negative (-) 35mm²x 1m cable from the hybrid inverter to the 200A MCCB circuit breaker.
000 000 000
0000 000 000
000 000 000
0000 000 000

20
Please refer to the Battery Mount and Installation Guide for detailed installation instructions.
This manual is included in the ARK lithium battery box.
