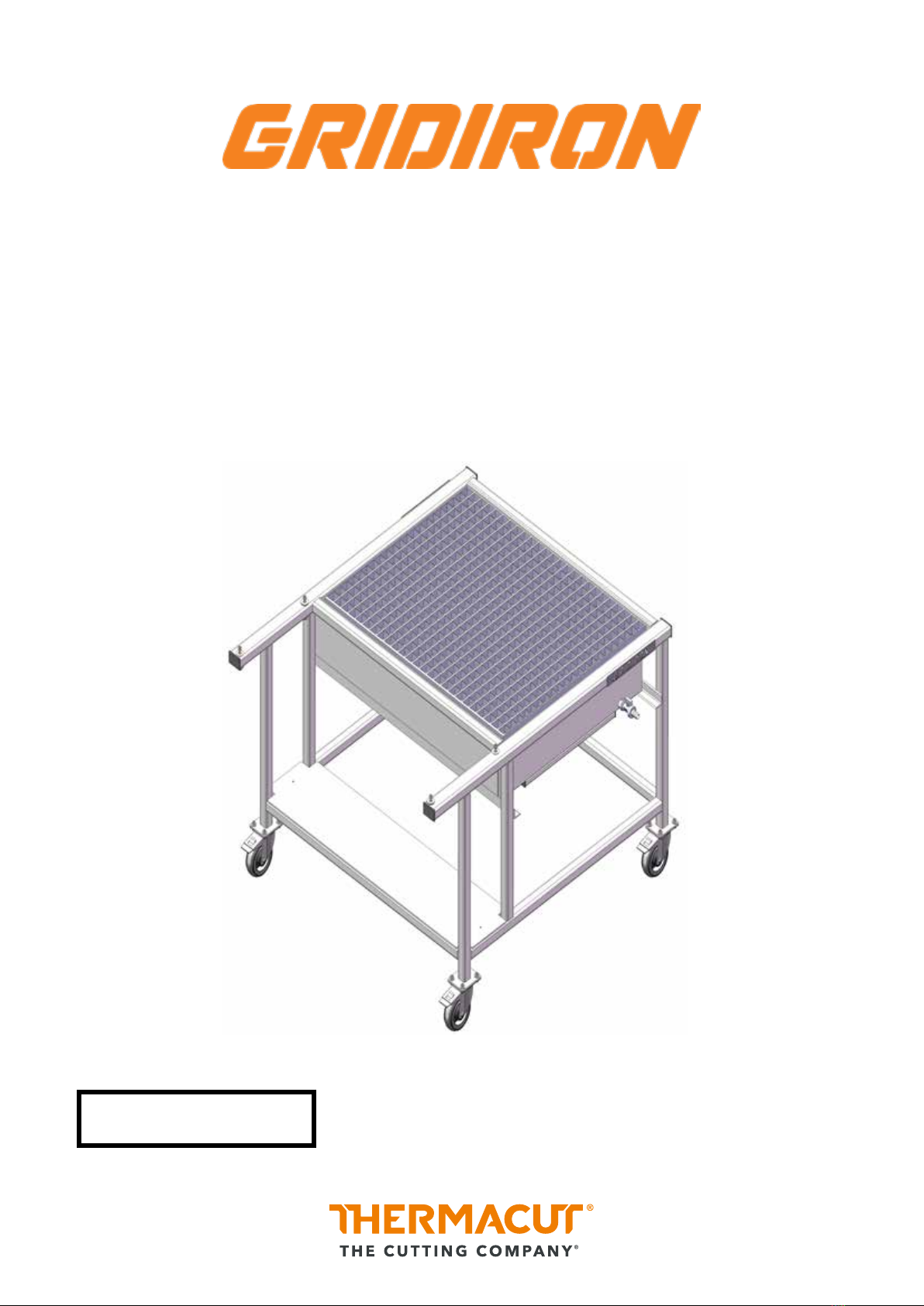

GRIDIRON MINI User manual

READ THE MANUAL CAREFULLY BEFORE INSTALLATION
AND OPERATION AND KEEP IT FOR FUTURE USE.
!ATTENTION!
EX-0-910-001
N-23042
MULTI-PURPOSE PORTABLE TABLE
Instruction Manual

GRIDIRON Multi-Purpose Portable Table
Instruction Manual2
SECTION 1: USE AND OPERATION ������������������������������������������������������������������� 3
Use and operation ����������������������������������������������������������������������������������������������������������������������3
Description of table parts����������������������������������������������������������������������������������������������������������3
Warning symbols and labels �����������������������������������������������������������������������������������������������������4
Important instructions ����������������������������������������������������������������������������������������������������������������5
Safety information�����������������������������������������������������������������������������������������������������������������������5
Maintenance instructions�����������������������������������������������������������������������������������������������������������5
SECTION 2: TAKING DELIVERY ������������������������������������������������������������������������� 8
SECTION 3:
INSTALLING THE TABLE AND RAIL OF THE EX-TRACK®CNC UNIT
���� 9
SECTION 4: MAINTENANCE���������������������������������������������������������������������������� 10
SECTION 5: TECHNICAL INFORMATION��������������������������������������������������������� 11
SECTION 6: SPARE PARTS AND CONSUMABLES �������������������������������������������� 12
SECTION 7: REMOVAL AND DISPOSAL ���������������������������������������������������������� 13
CONTENTS

GRIDIRON Multi-Purpose Portable Table
Instruction Manual 3
SECTION 1: USE AND OPERATION
Use and operation ����������������������������������������������������������������������������������������������������������������������3
Description of table parts����������������������������������������������������������������������������������������������������������3
Warning symbols and labels �����������������������������������������������������������������������������������������������������4
Important instructions ����������������������������������������������������������������������������������������������������������������5
Safety information�����������������������������������������������������������������������������������������������������������������������5
Maintenance instructions�����������������������������������������������������������������������������������������������������������5
SECTION 1�
USE AND OPERATION
Use and Operation
The GRIDIRON multi-purpose portable cutting table is designed primarily for the EX-TRACK®CNC
cutting system� It is suitable for cutting in the workshop, for small-scale metalworking, or for
presenting the cutting system at trade fairs and expos�
The table's small size and very low weight (only 108 kg) facilitate handling and transport� The table is
also fitted with brakable casters for safe transport around the workplace and beyond�
Underneath the table's removable grid (6) lies a water tank (1), which collects slag and waste from
cutting� The water tank is fitted with a G3/4“ drain valve (5)�
The table is delivered fully assembled�
Description of Table Parts
1� Water tank
2� Frame
3� Shelf
4� Casters
5� G¾“ drain valve
6� Grid
7� Rail holders for
EX-TRACK®CNC 600×600 mm

GRIDIRON Multi-Purpose Portable Table
Instruction Manual4

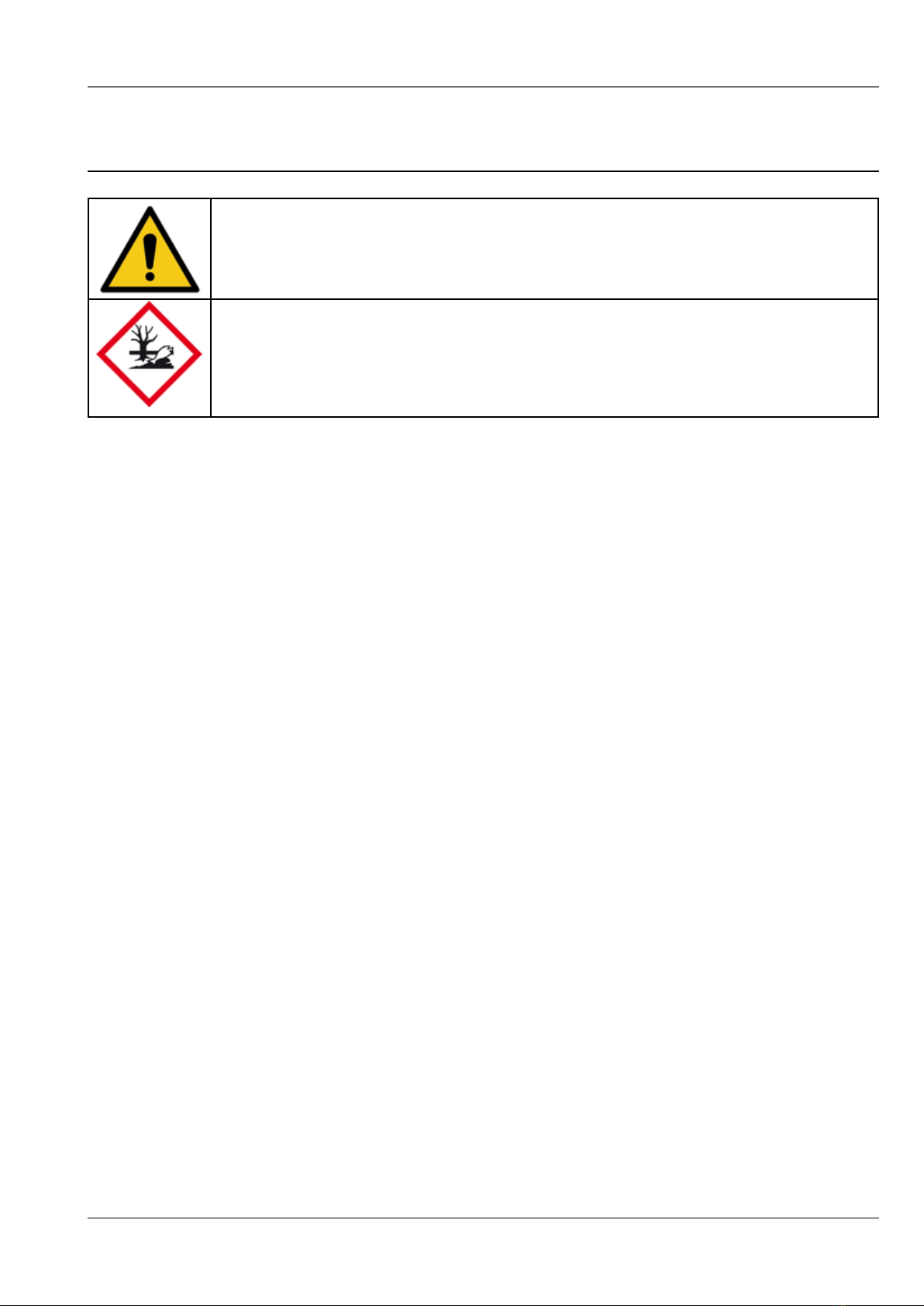

Warning Symbols and Labels
Symbol Description
Warning
Environmental hazard
Information
Wear a face mask

GRIDIRON Multi-Purpose Portable Table
Instruction Manual 5
Important Instructions
1� Follow safety instructions before transporting the table to another location� It is
important to remove all cutting material before transport to avoid injury� Always
drain the water tank before transporting or otherwise handling the table�
2� Before transporting the table, you can remove the water tank, grid, plasma power
supply/welder shelf and, if necessary, also the CNC unit with rail�

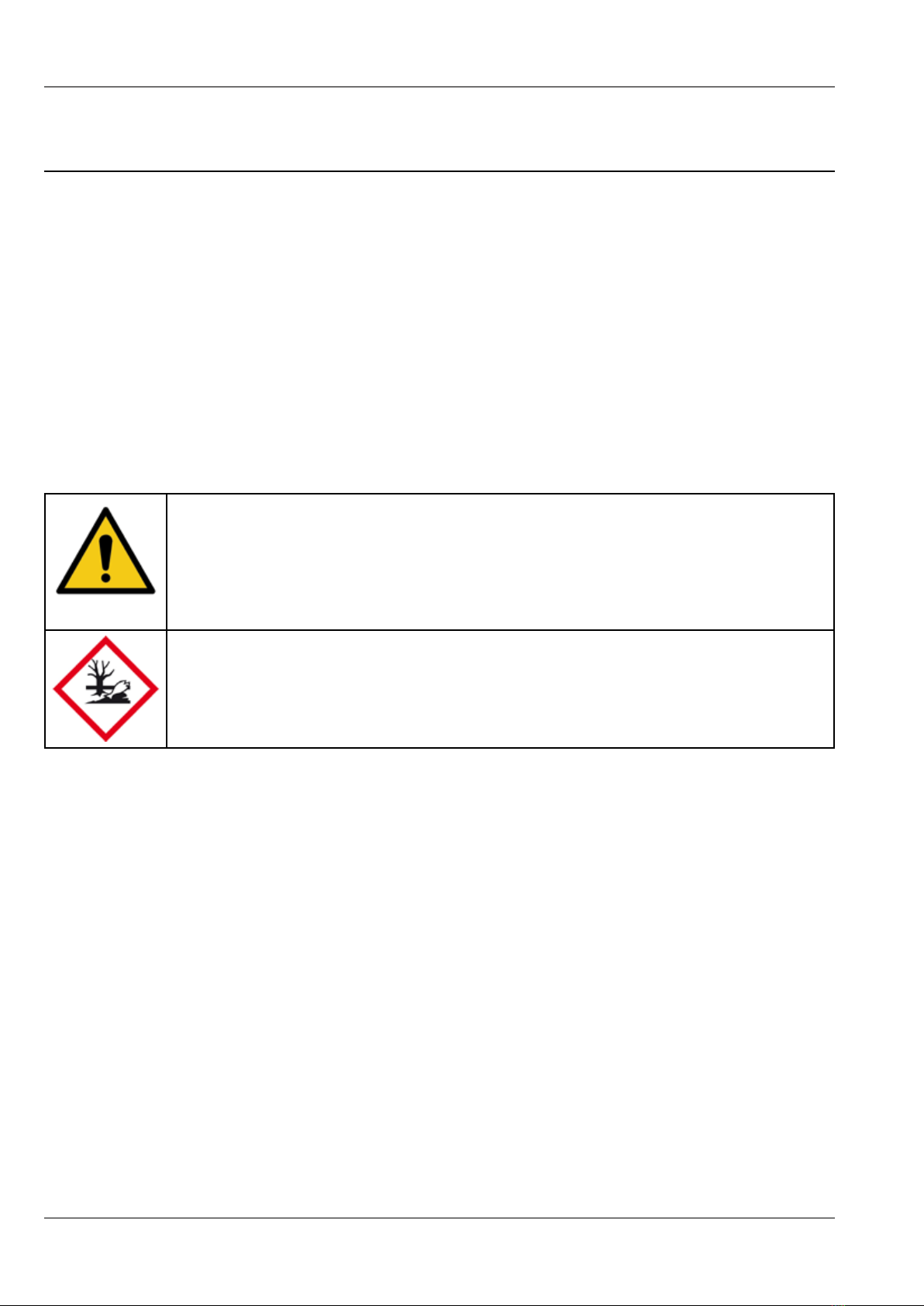

Safety Information
Servicing and maintenance of the installed device must only be performed by trained personnel�
Once the table is installed, you must check the proper functioning of its safety features� Make sure
that all persons working with the table are duly instructed and follow approved procedures and
specifications�
Read the following instructions carefully before using the table:
• Always keep the instruction manual on hand�
• Perform regular maintenance to ensure the table is fully functional�
• Ensure the water in the tank is changed regularly and dispose of contaminated water in
accordance with valid legislation on handling hazardous waste�
• Once the table is placed where you intend to use it, always secure it against movement using
the brakes on the casters�
Maintenance Instructions
Relocating the Table
Before relocating the table to the chosen spot, drain the water from the tank using the drain valve�
More details below� Extend the arm of the CNC unit so that the torch is as far from the CNC unit as
possible� Disconnect the plasma power supply from power and remove it from the shelf� Remove
the cut material from the grid�
Then release the caster brakes and move the table to the chosen spot�
Be mindful of personal safety during transport: secure the water tank, grid and shelf from sliding/
falling out�

GRIDIRON Multi-Purpose Portable Table
Instruction Manual6
Once the table is at the chosen spot, secure it in place using the brakes on the casters (4) and fill the
tank (1) with water by following the procedure below�
3� The water tank is loosely inserted in the table� It must be secured against falling
if you wish to transport the table� If needed, you can remove the tank before
transport� Keep the table in a horizontal position during transport�
Replacing the Grid
After a time, the grid will start showing signs of wear: burnt holes and cuts on the most frequently
used surfaces� Replace the grid once visible signs of wear start showing� Otherwise, the cut material
may not be placed properly on the grid�
Pull the damaged grid out of the table by pulling upwards and to the side� The grid weighs
ca�15kg� The grid may have sharp edges�
4� Use personal protective equipment� Wear work gloves during handling�
Filling and Draining the Tank
The water tank is used to collect slag and waste created during cutting� The water must be replaced
if it is turbid or polluted� Drain the water using the drain valve� Once the water is drained, remove
solid particles and dirt from the tank and clean the drain valve of sediment�
To fill the tank with water, connect a hose to the drain valve and secure it with a screw-on collar to
prevent the hose from falling off or leaking� You can also fill the tank from above through the grid� If
you are filling the tank through the grid, secure the hose so that the water does not leak outside the
tank�
Maximum water level from the top of the tank is 3 cm�
Minimum water level is 5 cm from the bottom of the tank; otherwise, melted material might
damage the tank�

GRIDIRON Multi-Purpose Portable Table
Instruction Manual 7
5� Dispose of contaminated water in accordance with valid legislation on handling
hazardous waste�
6� Required tools: 3/4 water hose, screw-on collar that matches the hose diameter,
PH2 screwdriver�

GRIDIRON Multi-Purpose Portable Table
Instruction Manual8
SECTION 2�
SECTION 2: TAKING DELIVERY
TAKING DELIVERY
When taking delivery of the table, visually inspect the table for any visible damage from transport�
In particular, check for:
• Bending or damage on the frame�
• Damaged surface finish�
• Dents and signs of damage from transport�
Also check that the number of items on the delivery note matches the number of items actually
delivered�
Reporting and documenting damage from transport:
• Any damage found must be confirmed in writing on the delivery note�
• The carrier must confirm the damage by signing the delivery note�
• Damage from transport must be immediately reported to the manufacturer�
Packaging and cushioning must be disposed of in accordance with valid
legislation�

GRIDIRON Multi-Purpose Portable Table
Instruction Manual 9
SECTION 3: INSTALLING THE TABLE AND
RAIL OF THE EX-TRACK®CNC UNIT
SECTION 3�
INSTALLING THE TABLE AND RAIL OF THE EX-TRACK®CNC UNIT
Follow these steps:
1� Move the table to the chosen location using the casters, then secure it in place by pushing
the caster pedal brakes all the way down with your foot to prevent the casters from moving�
2� Remove the four M14 screws from the EX-TRACK®CNC rail holder using a 12 mm hex key�
3� Place the rail on the holder (the toothing on the rail must be on the grid side) and fasten it
with the enclosed four M14 screws using a 12 mm hex key�
4� Install the CNC unit according to the instructions provided in the manual for EX-TRACK®CNC�
5� Connect a hose to the drain valve or insert it into the tank from above through the grid and fill
the tank with water no higher than 3 cm from the top of the tank�
6� If you fill the tank through the valve, close the valve once the tank is filled�
7� Required tools: Hex key with 12 mm diameter�

GRIDIRON Multi-Purpose Portable Table
Instruction Manual10
SECTION 4�
SECTION 4: MAINTENANCE
MAINTENANCE
Wear protective work gloves during maintenance and cleaning�
Dispose of contaminated water in accordance with valid legislation on handling
hazardous waste�
When working at the table with a CNC machine, wear a face mask and use
personal protective equipment�

GRIDIRON Multi-Purpose Portable Table
Instruction Manual 11
SECTION 5�
SECTION 5: TECHNICAL INFORMATION
TECHNICAL INFORMATION
Name GRIDIRON MINI 600 x 600 mm
multi-purpose portable table
Order number EX-0-716-001
Dimensions (h x w x l) 870 x 1360 x 1200 mm
Max� load capacity for cut material 400 kg
Total load capacity of the table (static) 800 kg
Total load capacity of the table (dynamic) 400 kg
Table weight (without water and CNC unit) 108 kg
Usable work surface for machine cutting 600 x600 mm
Grid weight 15 kg
Water tank volume 150 l

GRIDIRON Multi-Purpose Portable Table
Instruction Manual12
SECTION 6�
SECTION 6: SPARE PARTS AND
CONSUMABLES
SPARE PARTS AND CONSUMABLES
Item Ord� no� Description
1� EX-0-713-011 Swivel caster with brake, 125 mm
2� EX-0-713-012 Grid 1000x800 (raw, soft steel) mm

GRIDIRON Multi-Purpose Portable Table
Instruction Manual 13
SECTION 7�
SECTION 7: REMOVAL AND DISPOSAL
REMOVAL AND DISPOSAL
Drain the water from the tank�
Dispose of contaminated water in accordance with valid legislation on handling
hazardous waste�

GRIDIRON Multi-Purpose Portable Table
Instruction Manual14

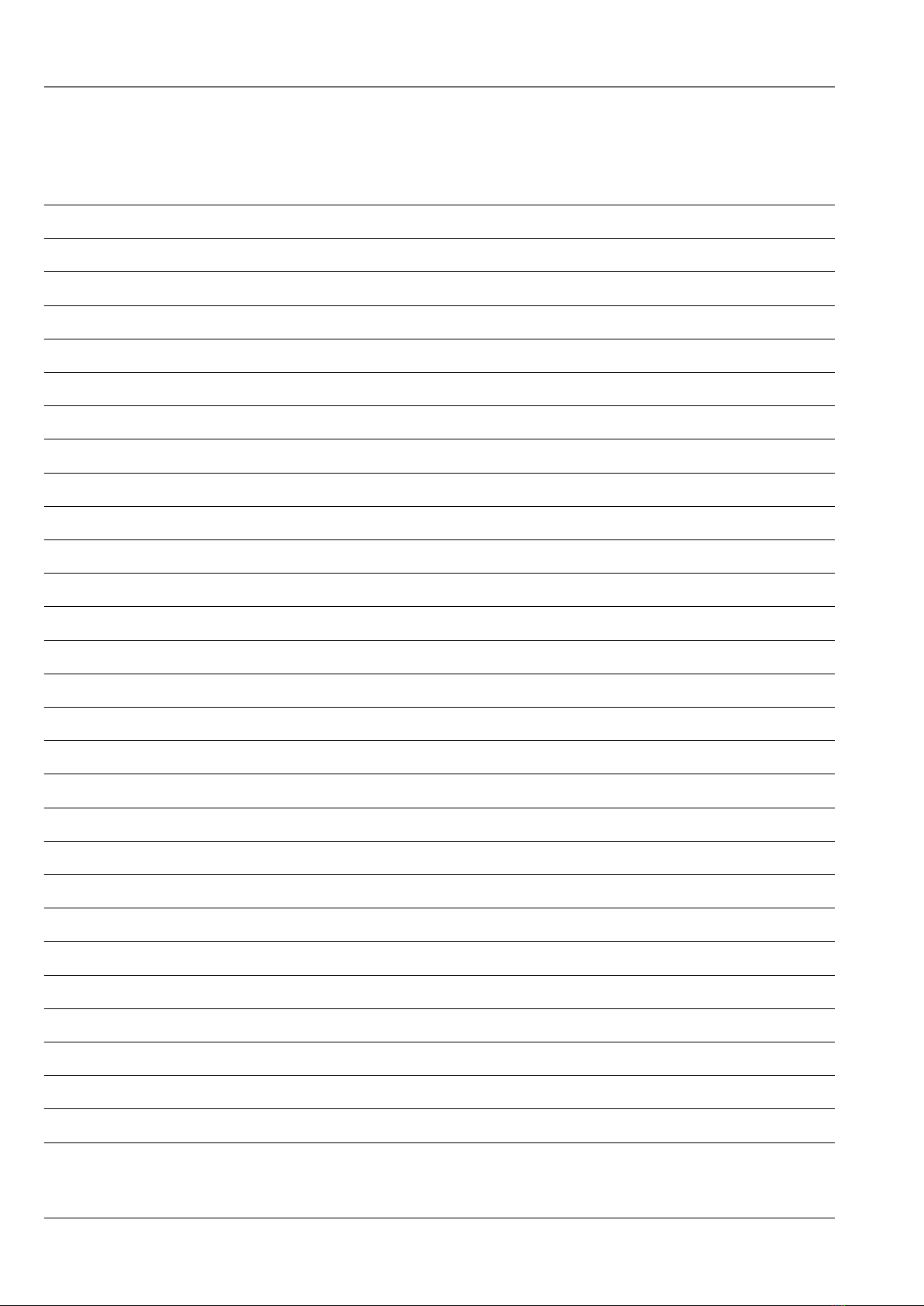

Notes:

GRIDIRON Multi-Purpose Portable Table
Instruction Manual 15
ADDRESS AND CONTACT
INFORMATION
THERMACUT, K�S�
BUSINESS ADDRESS AND PRODUCTION:
THERMACUT, k�s�
Sokolovská 574, Mařatice
686 01 Uherské Hradiště
CZECH REPUBLIC
Tel�: +420 572 420 411
Fax: +420 572 420 420
E-mail: info@thermacut�cz
reditelstvi@thermacut�cz
www�thermacut�cz
SALES DEPARTMENT:
Dukelská 76a,
742 42 Šenov u Nového Jičína
CZECH REPUBLIC
Tel�: +420 556 423 418, 440
Fax: +420 556 423 443, 444
E-mail: sales@thermacut�cz
obchod@thermacut�cz
www�thermacut�cz
CUSTOMER SUPPORT
E-mail: support@thermacut�de

Distributor:
THERMACUT, k�s�
Sokolovská 574, Mařatice
686 01, Uherské Hradiště
Czech Republic
www�thermacut�cz
obchod@thermacut�cz
THERMACUT®, THE CUTTING COMPANY® and EX-TRACK®are registered trademarks
of THERMACUT, k� s�, which are or may be registered in the Czech Republic or other
countries� All other trademarks used here are the property of their legal owners�
