Grifo DENS Reference manual

WINE MAKING MACHINES
MANUAL
OF INSTALLATION, USE AND MAINTENANCE
DESTONER BY ELECTRIC MOTOR
Art. DENS / DENI

Dear Customer,
We thank you for choosing a GRIFO product, whose brand has
always been synonymous with functionality, robustness and reliability.
We are pleased to make this manual available to you, which is
designed to allow you to operate the machine in maximum safety and
productivity.
We invite you to read this technical publication very carefully and to
make it available to the personnel who will use the machine, as well as
to the person who will be in charge of its installation and maintenance.
We are at your disposal to provide you with any further information
you may require as well as to consider improvement proposals in order
to make this manual more and more responsive to the security needs
for which it has been prepared
With best wishes for a good job.
GRIFO Macchine enologiche S.n.c.
Via Mantova, 1
26034 Piadena (CR), Italia
Tel. [phone]
Fax [phone]
e-mail: [email protected]
www. grifomarchetti.com

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
3 di 28
Nome File
Manual DENS - DENI
Revisione
0
Index
EC Declaration of Conformity.................................................................................................................4
1. INTRODUCTION................................................................................................................................5
1.1 Contents of the manual.................................................................................................................. 5
1.2 Consegnes and conservation of the manual................................................................................... 6
1.3 Responsability ............................................................................................................................... 6
1.4 Manual update ............................................................................................................................... 7
1.5 Guarantee....................................................................................................................................... 7
2. GENERAL INFORMATION ON THE MACHINE...........................................................................9
2.1 Description of the mechine and operation..................................................................................... 9
2.2 Correct use................................................................................................................................... 13
2.3 Directives and standards.............................................................................................................. 14
2.4 Technical informations................................................................................................................ 15
3. SAFETY AND ACCIDENT PREVENTION....................................................................................16
3.1 General informations................................................................................................................... 16
3.2 Risks and preventive measures.................................................................................................... 17
4. INSTALLATION...............................................................................................................................20
4.1 Preparation for installation .......................................................................................................... 20
4.2 Transportation, unloading and installation.................................................................................. 20
4.3 Positioning................................................................................................................................... 21
4.4 Electrical connections.................................................................................................................. 23
4.5 Lubrication................................................................................................................................... 23
5. USE....................................................................................................................................................24
5.1 Preliminary operations................................................................................................................. 24
5.2 Starting up.................................................................................................................................... 25
5.3 Instructions in case of blocking................................................................................................... 26
5.4 Put out of service......................................................................................................................... 27
6. MAINTENANCE AND DISMISSION.............................................................................................27
6.1 Maintenance, inspections and controls........................................................................................ 27
6.1.1 Lubrication and controls........................................................................................................... 28
6.1.2 Cleaning the machine ............................................................................................................... 29
6.1.3 Replacement parts..................................................................................................................... 29
6.2 Demolition and suddivision of materilas..................................................................................... 29

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
4 di 28
Nome File
Manual DENS - DENI
Revisione
0
EC Declaration of Conformity
(Directive 2006/42 CE, Annex II, A)
GRIFO MACCHINE ENOLOGICHE S.n.c.
di Marchetti Giordano & C.
Via Mantova, 1
26034 Piadena (CR)
Italia
DECLARES THAT
The machine DESTONER BY ELECTRIC MOTOR
Model DENS, DENI
Conforms to Directives 2006/42/EC (Machines), 2006/95/EC (Low-voltage) and 2004/108/EEC
(Electromagnetic Compatibility);
Conforms to the standards EN 953, EN 13850, EN 60204-1.
Name and address of the person authorized to compile the technical file:
Giordano Marchetti
Via Mantova, 1
26034 Piadena (CR)
Italia
Identity and signature of the person empowered to draw up the declaration on behalf of the manufacturer
Rosa Busi
Place and date of the declaration
Piadena (CR), 02 January 2016

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
5 di 28
Nome File
Manual DENS - DENI
Revisione
0
1. INTRODUCTION
1.1 Contents of the manual
This manual contains the description of the technical and functional characteristics of
the DESTONER BY ELECTRIC MOTOR, art. DENS, DENI, as well as instructions for
installation, use and maintenance.
The manufacturer reserves all intellectual and editorial rights related to the present
technical publication of which it claims all the properties prohibiting the duplication and
the transfer to third parties without the prior written consent.
The instructions in the manual are accompanied by the following symbols.
Pay the utmost attention to the instructions accompanied by this symbol,
scrupulously observing the indications.
Indications and useful advice for handling, assembly and installation, use
and maintenance.
Operation or behavior expressly prohibited.

Proceed in the indicated operating sequence.
The manual is an integral part of the machine and must be kept with care, so that it
can always be consulted, in the best state of conservation. Any additions to the
manual that the manufacturer deems appropriate to send to users must be kept
together with the manual, which will be considered an integral part.
Before starting to use the machine, it is mandatory to read the
instructions in the manual.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
6 di 28
Nome File
Manual DENS - DENI
Revisione
0
1.2 Recipients and conservation of the manual
This manual is intended for machine operators, understood as the persons in charge
of installing, operating, adjusting, performing maintenance, cleaning and transporting
the machine.
The manual must be kept with care, in a suitable place, so that it is always available
for consultation in the best state of conservation.
The manual is an integral part of the machine and as such should be kept
for the whole life of the same and transmitted to any other user or
subsequent owner.
1.3 Responsibility
The guarantee of good operation and full performance compliance of the machine for
the intended service is strictly dependent on the correct application of all the
instructions contained in the manual.
Before starting any operation, it is mandatory to read the instructions in
the manual.
With reference to the instructions in this manual the company GRIFO Macchine
Enologiche S.n.c. declines all responsibility in case of:
failure to comply with the installation, use and maintenance instructions in the
manual;
Inadequacy of the plant and environmental conditions in which the machine is
operating;
Unauthorized modifications to the machine;
tampering with guards and protection devices;
tampering with the control system;

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
7 di 28
Nome File
Manual DENS - DENI
Revisione
0
use for purposes other than those indicated in the use and maintenance
manual;
use and maintenance of the machine by unskilled and unauthorized personnel;
use by children or persons with reduced physical, sensory or mental abilities;
use of non-original spare parts.
The only configurations and intended use allowed by the manufacturer
are those expressly indicated in the manual.
1.4 Updating the manual
This manual is an integral part of the machine DESTONER BY ELECTRIC MOTOR,
art. DENS, DENI
Any additions to the manual that the manufacturer deems appropriate to send to users
must be kept together with the manual of which they will be an integral part.
1.5 Warranty
The machine warranty covers the first twelve months of
commissioning. In case of non-immediate use, the warranty
expires at the eighteenth month from delivery.
The warranty does not apply to the transport of the machine, which
is the responsibility of the purchaser, and is forfeited in the event
of use that does not comply with the instructions in this manual.
Any obvious discrepancy of the product must be communicated to GRIFO Macchine
Enologiche s.n.c. within 8 days of receipt of goods. The buyer will only have the right
to request the repair or replacement of the goods, with the absolute exclusion of any
right to compensation for any damage, direct or indirect, of any nature.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
8 di 28
Nome File
Manual DENS - DENI
Revisione
0
The repair or replacement of defective materials will take place in the factory of the
manufacturer or of the authorized service center, where the returned materials must
be shipped carriage paid.
In order to ensure that the machine works properly, GRIFO Macchine Enologiche
S.n.c or the authorized service center can, at their discretion, repair or replace parts
that are considered defective with new ones. The replaced parts become the property
of GRIFO Macchine Enologiche S.n.c.
The repaired or replaced parts are guaranteed only if the duration of the same is still
valid.
The guarantee does not apply
if the fault / damage is caused by incorrect use of the machine, compared to
what is indicated in the instruction manual;
if the fault / damage is caused by accidental breakage as a result of collisions,
falls, etc., even during transport of the machine.
if the machine has been modified without authorization by GRIFO Macchine
Enologiche s.n.c .;
to parts subject to wear and tear.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
9 di 28
Nome File
Manual DENS - DENI
Revisione
0
2. GENERAL INFORMATION ON THE MACHINE
2.1Description of the machine and operation
More and more people in recent years have approached the natural products and the
packaging of homemade jams or fruit processing for subsequent distillation; for them
Grifo has created a very functional semi-professional pitting machine that allows the
user to quickly drip different types of fruit, such as cherries, apricots and plums using
the special grids provided.
The models referred to in this manual differ only for the material used, enamelled steel
or stainless steel; the catalog names of the models are as follows:
DESTONER BY ELECTRIC MOTOR WITH 2 S/STEEL BASKET (DENS)

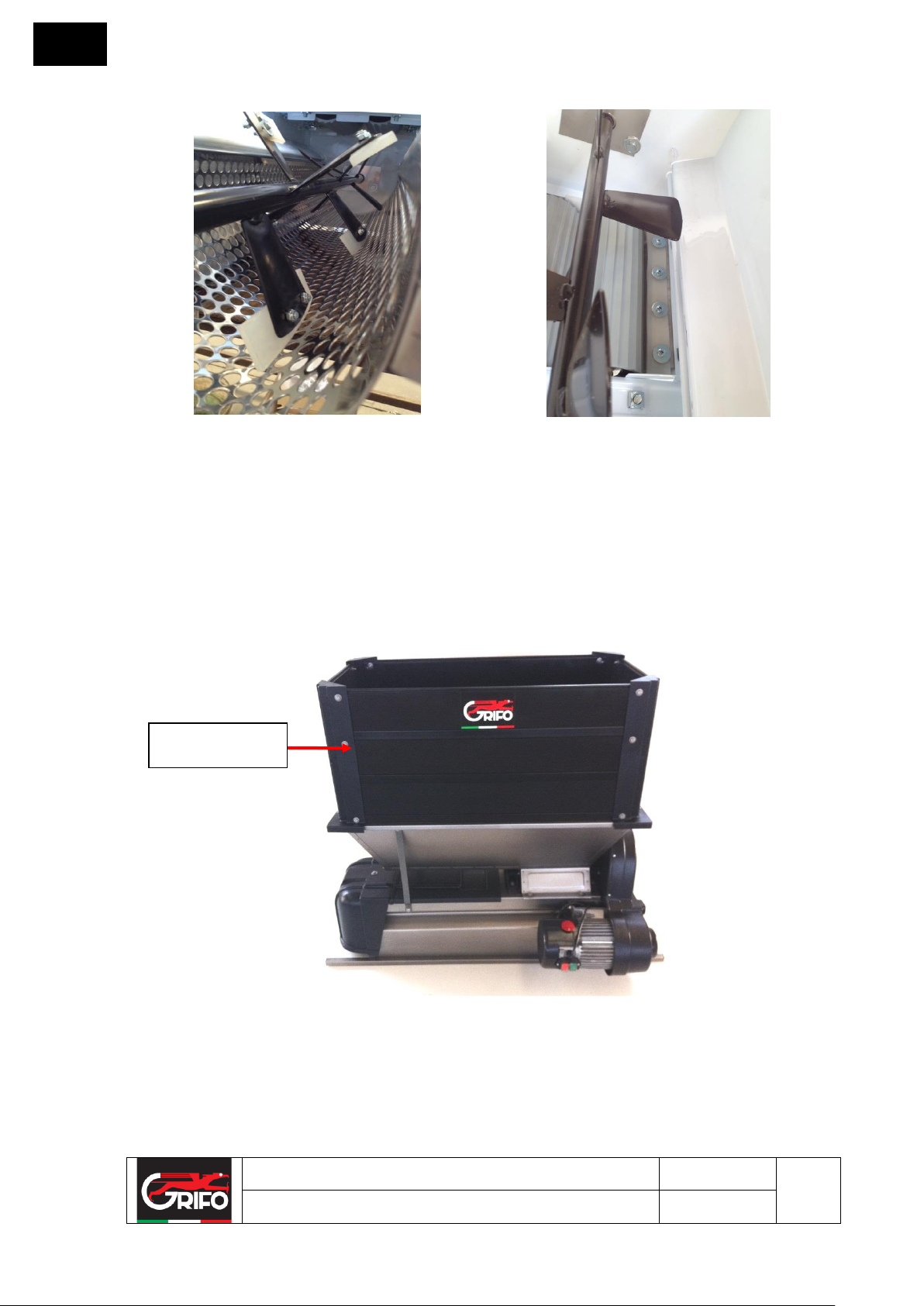

The machine allows to separate the pulp from the stones, completely crushing the
fruit, creating a mush that can be used for jams, fruit jams, distillations or
fermentations. Composed of a funneled hopper and a case all in enameled steel and
thanks to an electric motor mounted on the machine, which allows all the
mechanisms present to be activated, the products pass through the rollers for a first
crushing and then arrive in the separation basket , where a beater with rubber
spatulas squeezes the fruit against the stainless steel grid dividing the pulp and the
juice from the pits. The removable grill is made of stainless steel while gears and
rollers are completely made of nylon. The rollers are also adjustable by a few
millimeters thanks to special supports. Robustness and long life are guaranteed by
the high quality materials used in the construction.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
10 di 28
Nome File
Manual DENS - DENI
Revisione
0
S/STEEL DESTONER BY ELECTRIC MOTOR WITH 2 S/STEEL BASKET
(DENI)
It is the version built completely in stainless steel. Grifo has created a very functional
and practical pitting machine that allows the user to quickly drip different types of fruit.
The possibility to install screens of various holes allows the use of the machine with
many types of product, and in particular: cherries, prunes, apricots (to extract the pulp).
The machine performs a complete separation of the pulp from the inner core, and
simultaneously crushes the fruit, creating a final product suitable for fermentations, fruit
juices (carrying out multiple steps), and jams. Composed of a funneled hopper and a
case entirely in stainless steel like all the screws.
Thanks to an electric motor mounted on the machine, which allows all the mechanisms
present to be activated, the products pass through the rollers for a first crushing and
then arrive in the separation basket, where a flap mixer centrifuges the product and
leaves it underneath the machine the pulp andthe juices andfrom the front the kernels.
The removable grill is made of stainless steel while gears and rollers are completely
made of nylon. The rollers are also adjustable by a few millimeters thanks to special
supports. Robustness and long life are guaranteed by the high quality materials used
in the construction.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
11 di 28
Nome File
Manual DENS - DENI
Revisione
0
Fig. 1 Fundamental elements of the DESTONER BY ELECTRIC MOTOR
On the top of the hopper must be placed the protective box provided (in assembly kit),
to prevent access of the upper limbs to the area of action of the auger and rollers.
exhaust
Kernels
Pulp and
juice
output
Support
tubes
Engine
and
controls
Carter protection of
transmission organs
Loading
hopper

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
12 di 28
Nome File
Manual DENS - DENI
Revisione
0
Fig. 2 Detail of the basket and flap mixer
Fig. 3 Detail of the inside of the hopper and
the rollers
On the top of the hopper must be placed the protective box provided, to prevent
access of the upper limbs to the area of action of the cochlea and rollers.
Fig. 4 Protection box
Load protection
box

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
13 di 28
Nome File
Manual DENS - DENI
Revisione
0
2.2 Intended use
The DESTONER BY ELECTRIC MOTOR art. DENS, DENI it is a machine for fruit
processing. The operations performed by the machine are:
Crushing: by means of the two rollers placed inside the hopper;
Pitting: ie separation of pulp and juice from the stones through the flap mixer.
Any changes in the conditions of use of the machine, both in terms
of operations performed and materials processed, must be
considered as a new commissioning pursuant to the Machinery
Directive 2006/42 / EC and therefore relieve the manufacturer of any
responsibility.
In particular, they are prohibited:
Processing of materials other than fruits;
Use of hands or tools to push fruit into the hopper;
Use of the machine in environmental conditions other than those indicated in
the table showing the technical data;
Use of the machine in potentially explosive environments;
Use of the motor to operate equipment other than those supplied with the
machine;
Use of the machine by children or persons with reduced physical, sensory or
mental capabilities;
Tampering or removal of security devices;
Any cleaning, maintenance, assembly or disassembly operation without first
disconnecting the plug from the power socket;
in general, use the machine in a manner that is not described in this manual.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
14 di 28
Nome File
Manual DENS - DENI
Revisione
0
2.3 Reference legislation
The DESTONER BY ELECTRIC MOTOR art. DENS, DENI it has been designed and
built in compliance with the European directives 2006/42 CE (Machines), 2006/95 / EC
(Low Voltage), 2004/108 / EC (Electromagnetic Compatibility) and in compliance with
EN 953, EN 13850 , EN 60204-1
2.4 Technical information and machine identification
The basic characteristics of the machine and those required for the environment for
correct operation are shown below.
Max overall dimensions
Alt. 600 mm
Larg. 600 mm
Lung. 1200 mm
Weight
57 kg
Power supply
230 V 50 Hz
Hopper dimensions
900x500 mm
Roller diameter
220 mm
Motor speed
1400 giri/min
Roller speed
110 giri/min
Speed of stemmer
550 giri/min
Hourly production
500 kg
Operating temperature
5°C ÷ 45°C
Noise level
Inferiore a 70 dBA
Power supply
230 V 50 Hz monofase
Current consumption
5,5 A
Power
0, 75 kW
Degree of protection
IP 54
Tab. 2 Technical data of the DESTONER BY ELECTRIC MOTOR
Each machine is identified by an adhesive plate showing the serial number and the
year of manufacture.
It is forbidden to remove the machine label.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
15 di 28
Nome File
Manual DENS - DENI
Revisione
0
3. SAFETY AND ACCIDENT PREVENTION
3.1 General informations
In the context of the information and training obligations for workers provided for by the
legislation in force, the employer, the managers and the persons in charge of the
company using the DESTONER BY ELECTRIC MOTOR art. DENS, DENI they must
provide all the necessary information to ensure that they are safely carried out by the
personnel performing the installation, use and maintenance operations.
In particular, they will have to request and verify that:
Do not leave the packaging elements (box, cardboard, etc.) within reach of
children.
Move the machine using the support tubes.
Position the machine on a surface that guarantees stability.
Before using the machine, carry out the checks indicated in this manual.
When operating the machine, do not allow children or persons with reduced
physical, sensory or mental capabilities to approach the work area, to touch
the machine or the power supply cable.
Do not wear rings, bracelets, necklaces, scarves or other items of clothing that
may get caught during operation of the machine. Keep long hair collected.
Do not leave the machine unattended, in an unsafe position or with the plug
inserted in the power socket.
Do not leave the machine exposed to atmospheric agents (rain, sun, etc.).
Only use parts and spare parts listed in this manual or expressly
recommended by the manufacturer.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
16 di 28
Nome File
Manual DENS - DENI
Revisione
0
3.2 Present risks and prevention measures
The DESTONER BY ELECTRIC MOTOR art. DENS, DENI it has been designed and
constructed in such a way as to eliminate or reduce as far as possible the risks for
people who use it.
The preventive measures to be taken to ensure safe use of the machine are shown
below.
Risk of falling of the machine
-Make sure of the stability of the machine, in particular with reference to
the compatibility between the dimensions of the support tubes and
those of the container on which the machine is placed (section 4.3).
-Use antinfortu¬nistica shoes with reinforced toe cap.
Risk of contact with moving parts
-Do not place hands against moving parts under any circumstances. If
necessary, first stop the machine (see the following figure).
-Do not remove the protective covers (carter of the transmission parts,
carter of the stalk exit, upper casing).
Fig. 2 Location of moving organs

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
17 di 28
Nome File
Manual DENS - DENI
Revisione
0
Risks in lifting the machine
-The weight of the machine requires that it be lifted by at least two
people, to avoid back injury.
Risks of an electrical nature
-Check that the mains voltage is the same as that indicated on the
machine nameplate.
-Periodically check the integrity of the cables and replace them if
necessary.
-Protect cables and electrical panels from moisture.
-Perform maintenance operations with the machine disconnected.
-Authorize only personnel authorized to work on electrical
components.
-When using multiple sockets or extensions, check that their
power is respected to avoid overloading and consequent
overheating.
-Avoid leaving exposed connection cables, especially in transit
areas; they can be a cause for stumbling or damaging.
-Do not put your fingers near the power outlets. While inserting the
plug, keep your fingers on the insulating body of the plug, not
touching any metallic parts. Do not touch electrical components
with wet hands.
-Do not tamper with equipment, plugs or plugs, or force the plug
to be inserted if this fatigue enters the socket.
-Do not use damaged or worn plugs, sockets and cables; in
particular, do not make junctions with insulating tape, but replace
the cables.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
18 di 28
Nome File
Manual DENS - DENI
Revisione
0
The verification of the appropriateness of the place of use of the machine is the
responsibility of the user. Some useful indications in this regard are as follows.
Placement
The machine must be positioned so as not to constitute an
obstacle to the movement of people and equipment, and in
such a way as to ensure that all the points which may require
the presence of an operator are easily accessible.
Environment
The environmental conditions (temperature, humidity,
magnetic fields, etc.) must be such as to guarantee the
correct operation of the electrical components
Noise
The noise level of the machine is less than 70 dBA.
Any tampering of parts of the machine, and in particular of parts
connected with the safety of the same, relieves the manufacturer
from any civil and criminal liability in case of accidents.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
19 di 28
Nome File
Manual DENS - DENI
Revisione
0
4. INSTALLATION
4.1 Preparation for installation
Before installing the machine, it is necessary to evaluate the adequacy of the place
where it is to be positioned. Notwithstanding the fact that this assessment must
consider the specific conditions of the place in question, some important general
measures are as follows.
Check the overall dimensions of the machine, leaving a distance of at least 70
cm from any type of fixed obstacle (walls, columns, pedestrian crossings) to
allow the operator to move without obstacles.
Check that the intended positioning of the machine does not cause interference
with other machines.
Check the adequacy of the flooring in terms of stability, cleanliness and slope.
Ensure constant and homogeneous lighting to avoid risks due to shaded areas.
In the case of positioning the machine near transit areas, set up barriers around
it to protect it from accidental impacts.
If the positioning must be carried out on mezzanines, upper floors or raised
areas, check that the maximum capacity is greater than the total weight of the
parts to be supported and any accessory weights such as lifting means, etc.,
always considering an adequate safety factor .
4.2 Transportation, unloading and installation
The machine is supplied already assembled in the operating configuration so that the
risks due to the movement concern the whole assembly.
Transport must be carried out by qualified transporters able to guarantee the correct
handling of the transported material.
GRIFO Macchine Enologiche S.n.c. assumes no responsibility for
damage resulting from transport. The goods are intended to be
supplied ex works.

GB
Tipo Documento
Manual DENS - DENI
Anno
2016
Pagina
20 di 28
Nome File
Manual DENS - DENI
Revisione
0
Upon receipt, check the integrity of the different parts of the machine and that there
are no missing accessories necessary for installation.
Verify that the supply matches the order specifications.
Complaints concerning the goods supplied must be sent, in writing, to the company
GRIFO Macchine Enologiche S.n.c. within 15 days of receipt of the game.
Pay the utmost attention when handling the machine, respecting
the provisions of current regulations and any safety procedures.
The machine must be moved by two adults, gripping the four support tubes at the
end.
4.3 Placement
In positioning the machine, in addition to respecting the general indications of
paragraphs 3.2 and 4.1, particular attention must be paid to the dimensional
compatibility between the support tubes and the container above which the machine is
placed. The container must be placed so that the stalks, coming out of the machine,
fall out of them.
The containers used must have a shape and size such as to guarantee the stability of
the machine. The distance between the points of support must be not less than 850
mm (Fig. 3).When positioning the machine, the height must be chosen so as to
guarantee the inaccessibility of the auger and of the rollers placed on the bottom of the
hopper. In this regard, the use of a protection box to be fixed by screws to the hopper
is provided.
Considering that the box has a height of 450 mm, the upper end of the box must be at
a height of not less than 1600 mm.
