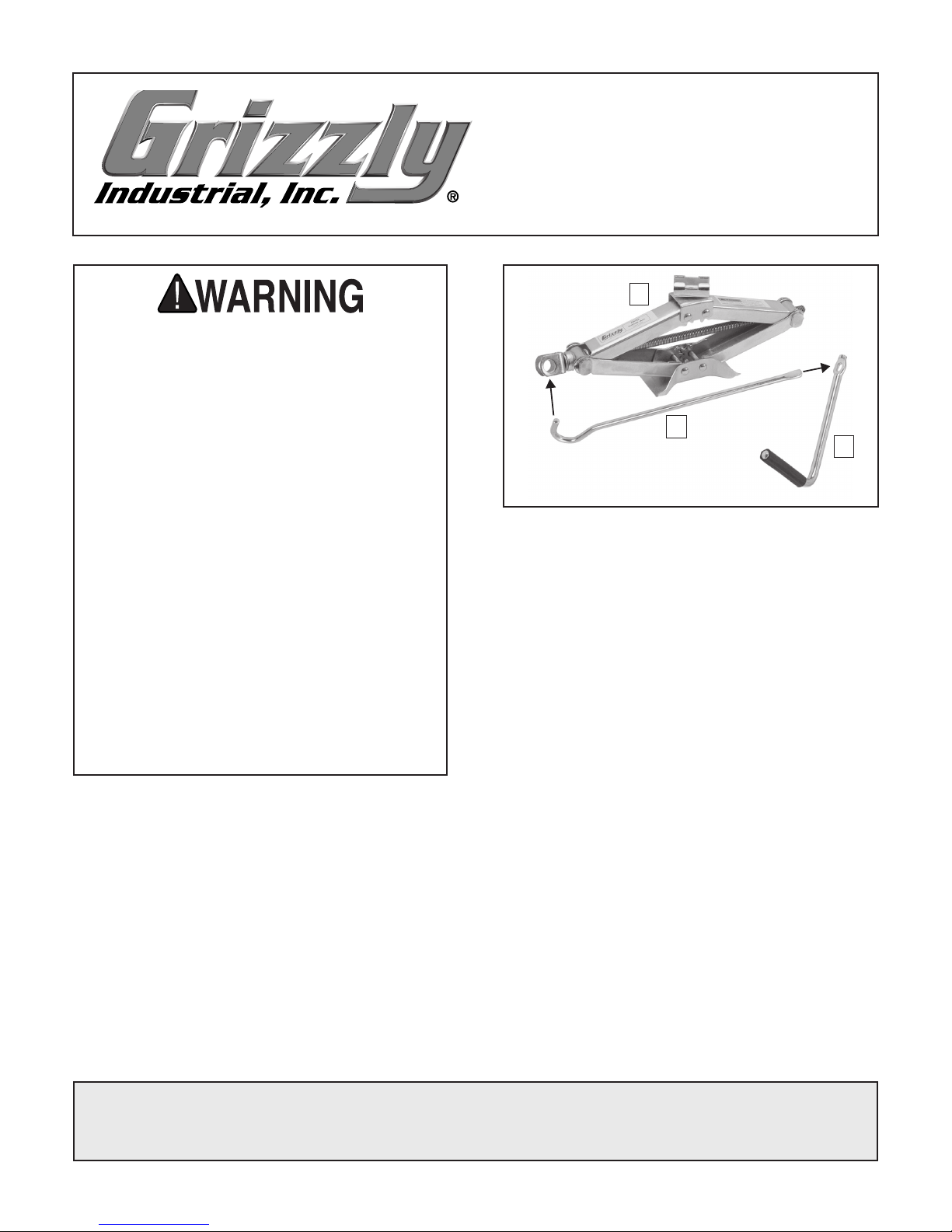

Figure 1. Model G8723.
A
C
MODEL G8723
11/2 Ton Scissor Jack
INSTRUCTION SHEET
COPYRIGHT © JULY, 2006 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TS8325 PRINTED IN CHINA
If you need help with your new scissor jack, call
our Tech Support at: [phone].
1. This jack is intended for emergency tire
changing ONLY.
2. DO NOT overload this jack beyond the rated
capacity of 11/2 tons. Overloading can cause
the jack to collapse and drop the load.
3. NEVER get under the vehicle when it is
supported only by this scissor jack.
4. DO NOT attempt to move the vehicle while
the jack is under it.
5. ONLY use this jack on a hard level surface
capable of sustaining the load being lifted.
6. ONLY lift the vehicle until one wheel is clear
of the ground.
7. ONLY lift the vehicle at locations designated
by the vehicle's owner manual.
Introduction
The Model G8723 compact steel Scissor Jack
gives a maximum 11" lift of a vehicle to a load of
up to 11/2 tons.
Inventory (Figure 1)
A. Jack Base ................................................... 1
B. Jack Handle ................................................ 1
C. Rocker Bar ................................................. 1
Operation Instructions
1. Before positioning the jack under the vehi-
cle:
a. Turn on the vehicle's hazard warning
flashers.
b. Make sure the engine is OFF.
c. Set the vehicle's emergency brake on.
d. Always block the remaining tires with
appropriate chocks.
d. Set the transmission in PARK (automatic)
or REVERSE (manual).
2. Connect the jack handle and rocker bar, and
insert the hooked end of the resulting assem-
bly into the jack base as shown in Figure 1.
3. Position the jack under the correct location as
directed by the vehicle's owner manual.
4. Rotate the jack handle clockwise to raise the
vehicle and counterclockwise to lower.
5. Keep the threads of the screw rod well oiled
and free of rust to avoid the jack binding dur-
ing operation.
B

G8723 Parts Breakdown and List
REF PART # DESCRIPTION
1 P8723001 BASE
2 P8723002 UNDER FORK
3 P8723003 ROCKER HEAD
4 P8723004 BEARING PAD
5 P8723005 BEARING PAD CAP
6 P8723006 SCREW ROD
7 P8723007 SUPPORTING AXLE
8 P8723008 UPPER FORK
9 P8723009 JACKING HEAD SEAT
10 P8723010 RIVET
11 P8723011 JACKING HEAD RIVET
12 P8723012 JACKING HEAD
13 P8723013 NUT SUPPORTING AXLE
14 P8723014 UNDER FORK GEAR
15 P8723015 ROCKER BAR
16 P8723016 JACK HANDLE
