36" JUNIOR GUITAR
w/BUILT-IN AMP
MODEL H7580/H7581
INSTRUCTION SHEET
A. TONE: This knob adjusts treble and bass levels in the built-in speaker and headphones.
B. POWER SWITCH: This switch turns the built-in amplifier ON and OFF.
C. VOLUME: This knob cont rols the volume of the built-in speaker and headphones.
D. HEADPHONE JACK: For connection to headphones using a mini-jack plug. The built-in speaker is
disabled when headphones are plugged in.
E. AC/DC JACK: For connecting the guitar to a 110V wall outlet using the included AC/DC adapter. The
adapter powers the built-in amp.
F. OUTPUT JACK: For connection to an external amplifier or a powered audio device using 1⁄4" instru-
ment cable.
Figure 2. Location for installing 9V battery (not
included) on back of the guitar.
Figure 1. Model H7580/H7581 controls.
Basic Guitar Care
Use a clean, lint-free cotton cloth to wipe your gui-
tar on a regular basis. Never use paper towels.
If you plan to store the guitar for several months,
remove the battery (Figure 2), loosen the strings
a little, and store in a place where the gui-
tar will not experience temperature or humidity
extremes.
Visit www.grizzly.com for guitar accessories or
see our current catalog.
C
B
A
D
E
F
Get other manuals https://www.bkmanuals.com

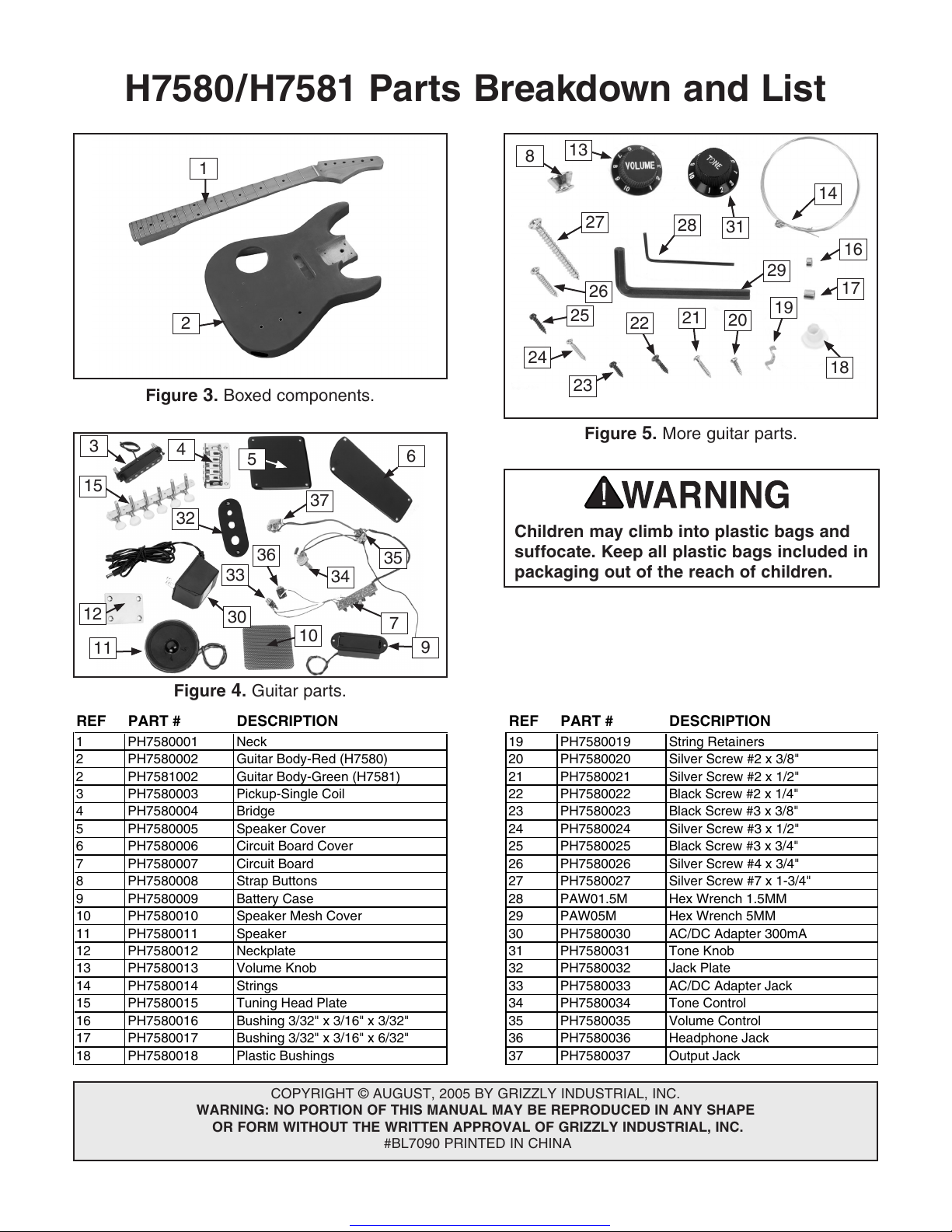

H7580/H7581 Parts Breakdown and List
COPYRIGHT © AUGUST, 2005 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BL7090 PRINTED IN CHINA
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH7580001 Neck 19 PH7580019 String Retainers
2 PH7580002 Guitar Body-Red (H7580) 20 PH7580020 Silver Screw #2 x 3/8"
2 PH7581002 Guitar Body-Green (H7581) 21 PH7580021 Silver Screw #2 x 1/2"
3 PH7580003 Pickup-Single Coil 22 PH7580022 Black Screw #2 x 1/4"
4 PH7580004 Bridge 23 PH7580023 Black Screw #3 x 3/8"
5 PH7580005 Speaker Cover 24 PH7580024 Silver Screw #3 x 1/2"
6 PH7580006 Circuit Board Cover 25 PH7580025 Black Screw #3 x 3/4"
7 PH7580007 Circuit Board 26 PH7580026 Silver Screw #4 x 3/4"
8 PH7580008 Strap Buttons 27 PH7580027 Silver Screw #7 x 1-3/4"
9 PH7580009 Battery Case 28 PAW01.5M Hex Wrench 1.5MM
10 PH7580010 Speaker Mesh Cover 29 PAW05M Hex Wrench 5MM
11 PH7580011 Speaker 30 PH7580030 AC/DC Adapter 300mA
12 PH7580012 Neckplate 31 PH7580031 Tone Knob
13 PH7580013 Volume Knob 32 PH7580032 Jack Plate
14 PH7580014 Strings 33 PH7580033 AC/DC Adapter Jack
15 PH7580015 Tuning Head Plate 34 PH7580034 Tone Control
16 PH7580016 Bushing 3/32" x 3/16" x 3/32" 35 PH7580035 Volume Control
17 PH7580017 Bushing 3/32" x 3/16" x 6/32" 36 PH7580036 Headphone Jack
18 PH7580018 Plastic Bushings 37 PH7580037 Output Jack
