Grizzly T23120 User manual
Specifications
Items Required for Assembly
MODEL T23120
STEEL FOLDING CART
INSTRUCTIONS
Figure 1.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
If you need help with your new item, call our Tech
Support at: (570) 546-9663.
Wear safety glasses dur-
ing the entire setup pro-
cess!
• Never carry people or animals in the
cart.
• Do not allow children to play on or
around the cart.
• Do not exceed the capacities listed for
the cart
• Do not attempt to modify the cart to
increase load capacity.
• Donotloadthecartinamannerwhere
the cart will become top heavy and fall
overwhenpulling/pushing.
• Donotusethecartonasteepincline.
• Regularly inspect the cart for loose
hardware,cracks,oranyothersignsof
damage. If any are found, remedy the
problem before using the cart again.
Inventory

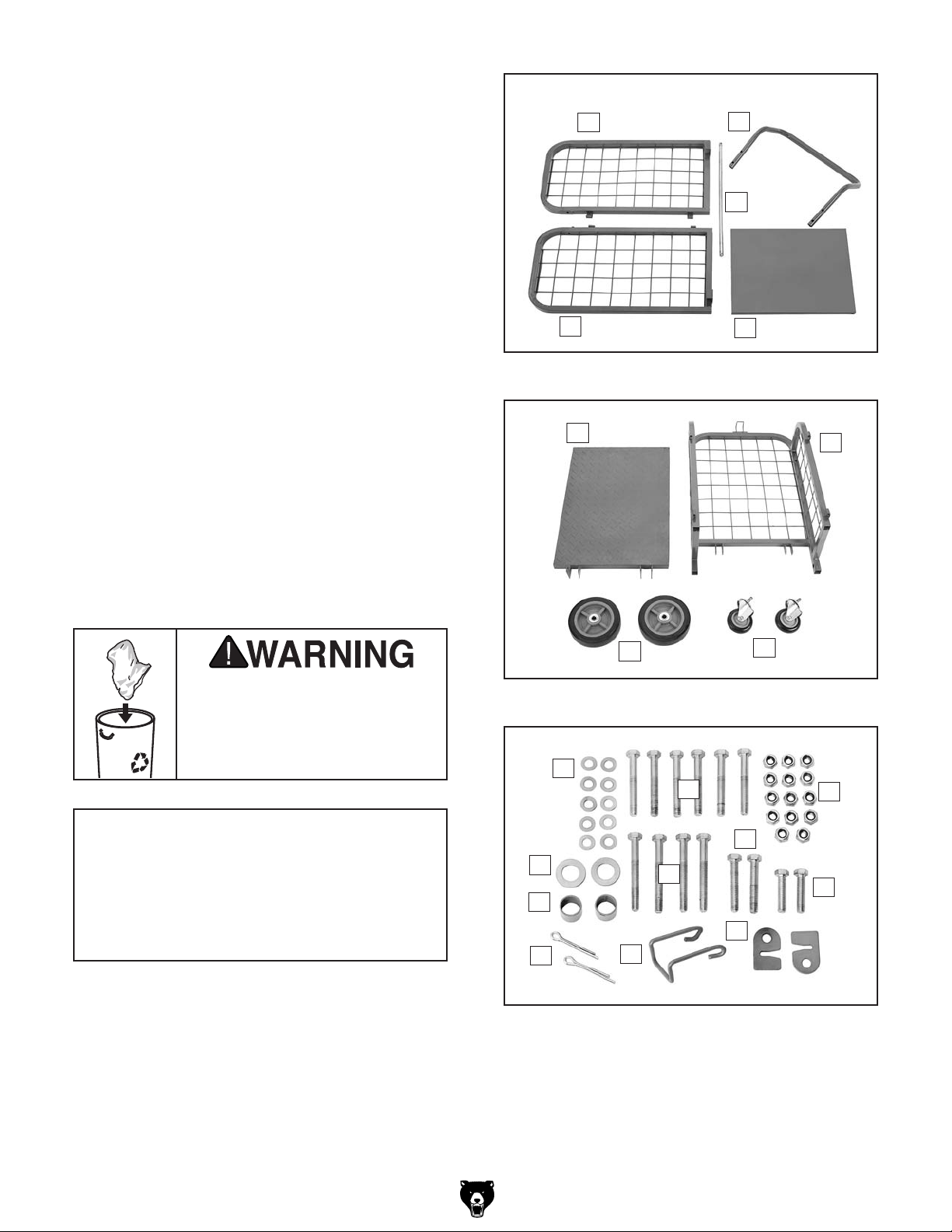

(Figure 2)
A.
B.
C.
D.
E.
(Figure 3)
F.
G.
H.
I.
(Figure 4)
J.
K.
L.
M.
N.
O.
P.
Q.
R.
S.
T.
Figure 2.
Figure 3.
Figure 4.
NOTICE
If you cannot find an item on this list, check
the mounting location on the machine or the
packaging materials. Sometimes parts are
pre-installed for shipping, or they become
hidden by packaging materials.
SUFFOCATION HAZARD!
Keep children and pets away
from plastic bags or packing
materials unpacked with this
machine. Discard immediately.
Assembly
To assemble the cart:
1.
Figure 5
2. Step 1
3.
Figure 6
4.
Figure 7
5.
Figure 8

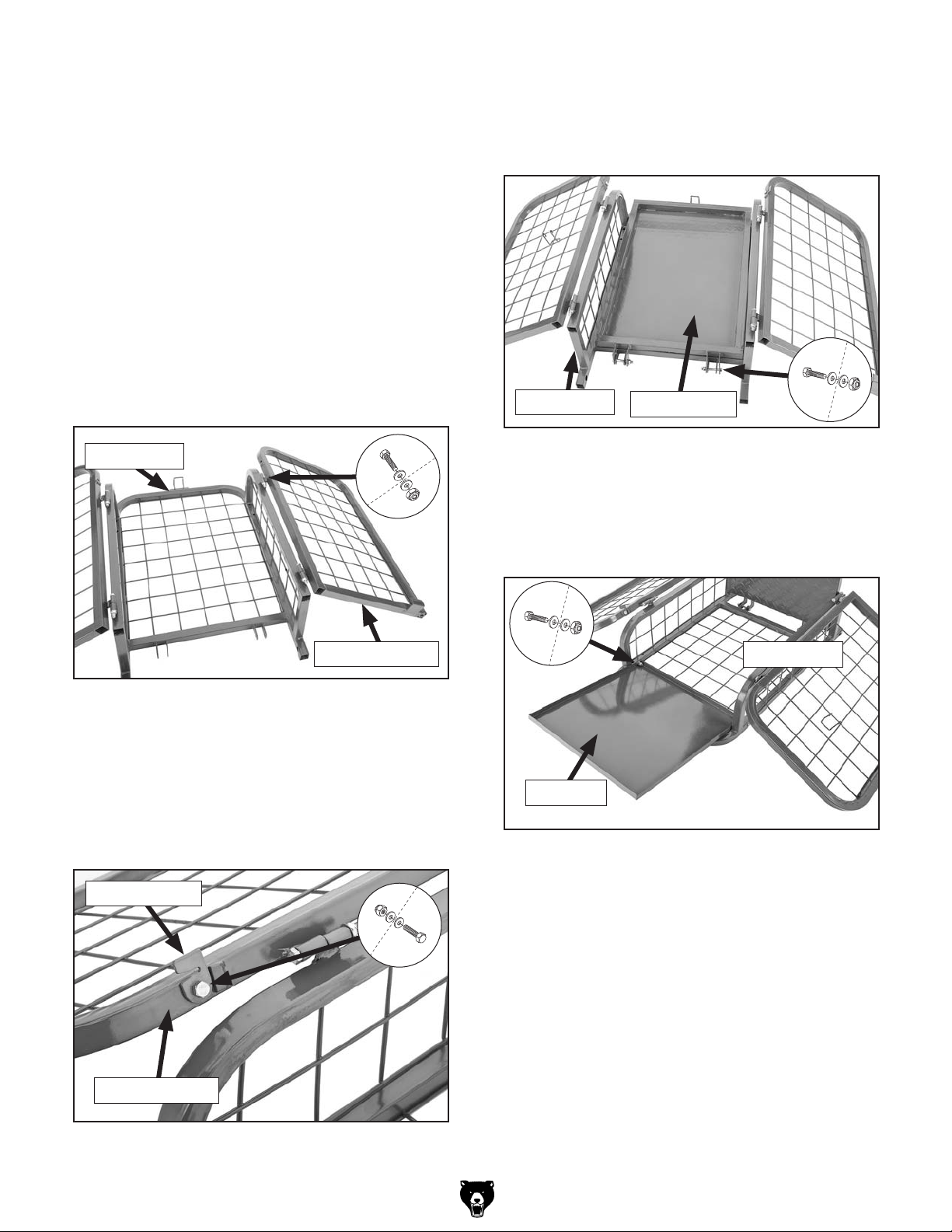

Figure 5. Side panel attached.
Figure 6. Top shelf tab attached.
Figure 7. Bottom shelf attached.
Figure 8. Top shelf attached.
Figure 9. Cart folded into position.
6.
Figure 9
7.
Figure
10
8.
Figure 11
9.
Step 8
10.
Figure 12
Figure 10. Installing caster.
Figure 11. Wheel and axle assembly.
Figure 12. Attaching the handle.
Figure 13. Installing the wire hook.
Figure 15. Cart folded for storage.
2.
Figure 13
11.
Figure 13
Storage
To fold the cart for storage:
1.
Figure 14
Figure 14. Converting cart for storage.
3.
Figure 15
Parts
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT23120001 CASTER 4" 12 PB126M HEX BOLT M8-1.25 X 40
2 PT23120002 HANDLE 13 PT23120013 COTTER PIN 3.5 X 45
3 PT23120003 AXLE 14 PW01M FLAT WASHER 8MM
4 PT23120004 WHEEL 8" 15 PLN04M LOCK NUT M8-1.25
5 PT23120005 MAIN FRAME 16 PT23120016 AXLE SPACER
6 PT23120006 LEFT SIDE PANEL 17 PB166M HEX BOLT M8-1.25 X 50
7 PT23120007 WIRE HOOK 18 PB28M HEX BOLT M8-1.25 X 60
8 PT23120008 TOP SHELF 19 PT23120019 RIGHT SIDE PANEL
9 PT23120009 BOTTOM SHELF 20 PW08M FLAT WASHER 16MM
10 PT23120010 SHELF RETAINING CLIP 21 PT23120021 TOP SHELF TAB
11 PB164M HEX BOLT M8-1.25 X 70
1
2
3
4
56
7
8
9
10
11
12
13
14
14
14
14
14
14 14
14
15
15
15
15
15
16
17
18
18
19
20
21
1
14
15
18
