Grizzly G0527 User manual

G0527 18" Wide Belt Sander -37-
27A, 7B
6
8
9
10, 11, 12
13
3

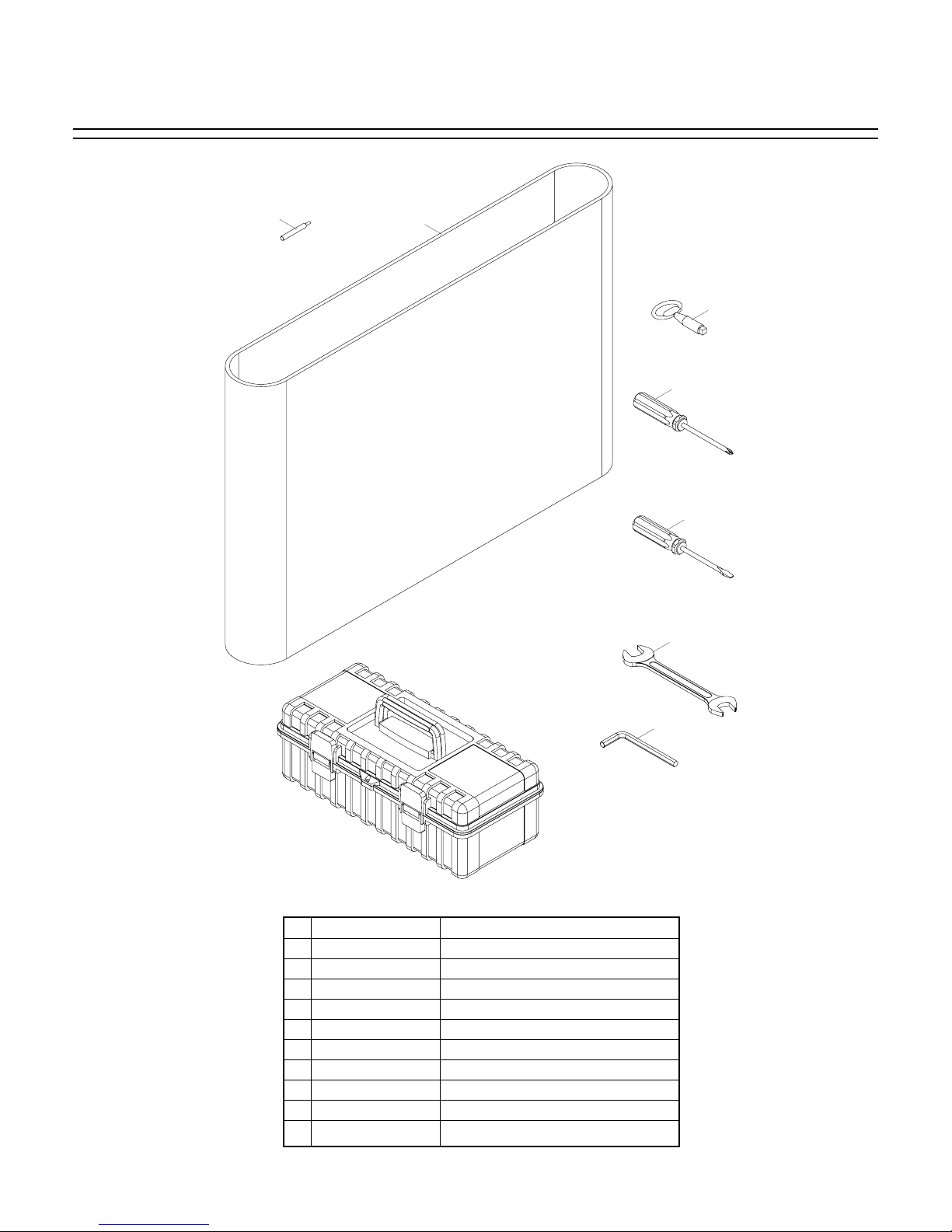

Parts Diagrams & Lists
2P05270002 LIMIT SWITCH TUBE
3P05270003 TOOL BOX
6P05270006 DOOR HANDLE
7P05270007A SANDING BELT (#100 GRIT)
7P05270007B SANDING BELT (#150 GRIT)
8P99620008 PHILLIP'S SCREWDRIVER
9P99620009 FLAT SCREWDRIVER
10 PWR810 8 x 10 WRENCH
11 PWR1214 12 x 14 WRENCH
12 PWR1719 17 x 19 WRENCH
13 P05270013 HEX WRENCH SET
REF PART # DESCRIPTION

-38- G0527 18" Wide Belt Sander
1128
1129
1126
1127
1101
1125
1124 1132
1133
1122
1123
1311
1310
1307
1121
1130
1131
1104
1105
1109
1114
1115
1116 1118
1113
1110 11121111
1119
1104
1108
1122
1107
1106
1312
1312
1302-2
1302-1
1301 1303
1304
1305
1313
1308
1301-1
1306
1103
1102

G0527 18" Wide Belt Sander -39-
1101 P05271101 MACHINE FRAME
1102 P05271102 MOTOR BASE
1103 P05271103 MOTOR BASE HINGE
1104 PN06 HEX NUT 1⁄2-12
1105 P05271105 ADJUSTMENT ROD
1106 PLW07 LOCK WASHER 1⁄2
1107 PB24 HEX BOLT 3⁄8-16 X 11⁄4"
1108 PW01 FLAT WASHER 1⁄2"
1109 P05271109 MOTOR 5 HP
1109-1 P05271109-1 FAN COVER
1109-2 P05071109-2 FAN
1109-3 PC600A CAPACITOR 600MFD 250V
1109-4 PC030A CAPACITOR 30UF 300W VAC
1109-5 P05271109-5 CAPACITOR COVER
1109-6 P05271109-6 WIRING COVER
1110 P05271110 PULLEY
1111 PSB11 CAP SCREW 5⁄16-18 X 11⁄4"
1112 PLW01 LOCK WASHER 5⁄16"
1113 P05271113 SLIDE
1114 PB03 HEX BOLT 5⁄16-18 X 1"
1115 PLW01 LOCK WASHER 5⁄16"
1116 P05271116 DISC BRAKE
1118 P05271118 PULLEY BUSHING
1119 PVA68 V-BELT A-68
1121 P05271121 BRAKE BRACKET
REF PART # DESCRIPTION
1122 PW02 FLAT WASHER 3⁄8"
1123 PB21 HEX BOLT 3⁄8-16 X 3⁄4"
1124 P05271124 ELEVATION SCREW RING
1125 PSB05 CAP SCREW 1⁄4-20 X 3⁄4"
1126 P05271126 LIMIT SWITCH
1127 P05271127 LIMIT SWITCH PLATE
1128 PB19 HEX BOLT 1⁄4-20 X 1⁄2"
1129 PW06 FLAT WASHER 1⁄4"
1130 PSS18 SETSCREW 5⁄16-18 X 3⁄4"
1131 P05271131 MOTOR BASE
1132 P05271132 COVER OF PULLEY
1133 PS04 PHLP HD SCR 1⁄4-20 X 1⁄2"
1301 P05271301 BRAKE BRACKET
1301-1 P05271301-1 BRACKET FRONT GUARD
1302-1 P05271302-1 BRAKE LINING
1302-2 P05271302-2 BRAKE LINING
1303 P05271303 BRAKE ARBOR
1304 P05271304 BRAKE LOCK
1305 P05271305 BRAKE INSIDE PIECE
1306 PFH12M FLAT HD SCR M6-1 X 25
1307 P05271307 BRAKE PIN
1308 PSB10M CAP SCREW M5-.8 X 15
1310 PLW04 LOCK WASHER 3⁄8"
1311 PN08 HEX NUT 3⁄8-16
1312 PSB26M CAP SCREW M6-1 x 12
1313 P05271313 BRAKE GASKET
REF PART # DESCRIPTION

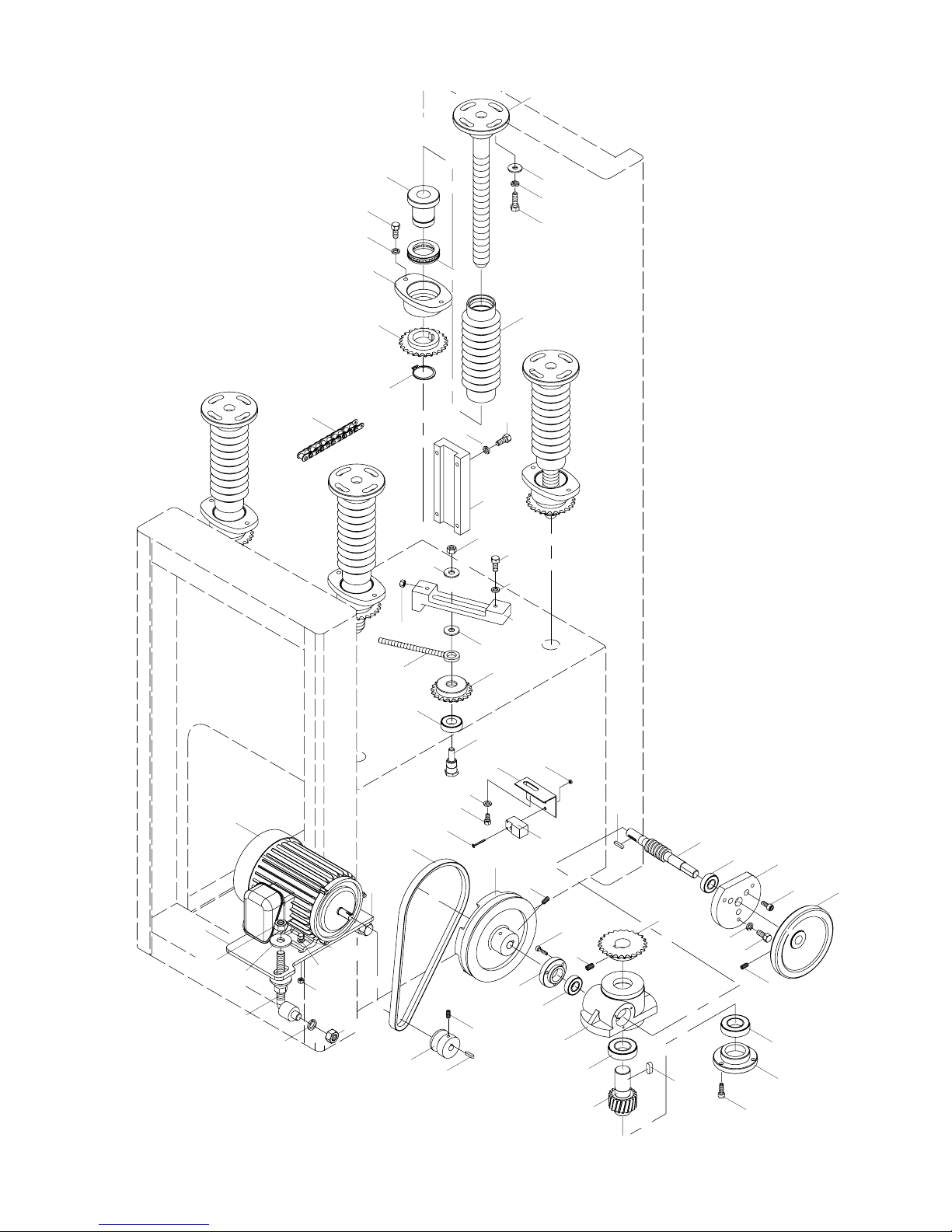

-40- G0527 18" Wide Belt Sander
2101
2103
2104
2102
2202
2203
2109
2110
2201
2206
2204
2108
2410
2409
2407
2406
2401
2406
2405 2404
2402
2328
2327
2325
2331
2327
2326
2316
2315
2321
2340
23062307 2310
2311
2319
2318
2312
2313
2309
2308
2307
2301
2303 2304
2305
2339
2303
2302
2334 2338
2336
2324
2335
2337
2106
2105
2107
2333
2332
2323
2324
2322
2341
2317
2317
2314
2111
2408
2403
2320

G0527 18" Wide Belt Sander -41-
2101 P052762101 ELEVATION SCREW
2102 PB03 HEX BOLT 5⁄16-18 x 1"
2103 PW07 FLAT WASHER 5⁄16"
2104 PLW01 LOCK WASHER 5⁄16"
2105 PLW04 LOCK WASHER 3⁄8"
2106 PB21 HEX BOLT 3⁄8-16 x 3⁄4"
2107 P052762107 ELEVATION SLIDE
2108 P052762108 DUST GUARD BELLOW
2109 PB07 HEX BOLT
5⁄16-18 x 3⁄4"
2110 PLW01 LOCK WASHER 5⁄16"
2111 P052762111 CHAIN
2201 P052762201 NUT HOUSUNG
2202 P052762202 NUT
2203 P51107 THRUST BEARING 51107
2204 PEC11M E-CLIP 35MM
2206 P052762206 SPROCKET WHEEL
2301 P052762301 ELEVATION GEAR BOX
2302 P052762302 WORM GEAR
2303 P6005 BEARING 6005Z
2304 P052762304 BEARING CAP
2305 PSB05 CAP SCREW 1⁄4-20 x 3⁄4"
2306 P052762306 WORM SHAFT
2307 P6002 BEARING 6002Z
2308 P052762308 BEARING CAP
2309 PSB31 CAP SCREW 10-24 x 5⁄8"
2310 P052762310 BEARING CAP
2311 PSB01 CAP SCREW 1⁄4-20 x 5⁄8"
2312 P052762312 SPROCKET WHEEL
2313 PSS08 SETSCREW 5⁄16-18 x 1⁄2"
2314 P052762314 PULLEY
2315 PVA28 V-BELT A-28 4L280
2316 P052762316 PULLEY
2317 PSS07 SETSCREW 1⁄4-20 x 1⁄2"
2318 PLW01 LOCK WASHER 5⁄16"
2319 PB32 HEX BOLT 5⁄16-18 x 5⁄8"
2320 PSS07 SETSCREW 1⁄4-20 x 1⁄2"
REF PART # DESCRIPTION
2321 P052762321 HAND WHEEL
2322 P052762322 MOTOR BASE
2323 PB31 HEX BOLT 1⁄4-20 x 1"
2324 PLW02 LOCK WASHER 1⁄4"
2325 P052762325 ADJUSTMENT ROD
2326 PW01 FLAT WASHER 1⁄2"
2327 PN06 HEX NUT 1⁄2-12
2328 PLW07 LOCK WASHER 1⁄2"
2331 P052762331 MOTOR 1⁄3HP
2331-1 P05272331-1 FAN COVER
2331-2 P05072331-2 FAN
2331-3 PC100A CAPACITOR 100 MFD 250V
2331-4 P05272331-4 CAPACITOR COVER
2331-5 P05272331-5 WIRING COVER
2332 PN05 HEX NUT 1⁄4-20
2333 PB89 HEX BOLT 1⁄2-12 x 41⁄2"
2334 P052762334 SWITCH FIXING PLATE
2335 PB19 HEX BOLT 1⁄4-20 x 1⁄2"
2336 P052762336 PROXIMITY SWITCH
2337 PS55M PHLP HD SCR M3-.5 x 35
2338 PN07M HEX NUT M3-.5
2339 PK14 KEY 5⁄16 x 5⁄16 x 3⁄4"
2340 PK48M KEY 4 x 4 x 20MM
2341 PK38M KEY 4 x 4 x 23MM
2401 P052762401 ADJUSTMENT PIECE
2402 P052762402 SPROCKET WHEEL SHAFT
2403 P6003 BALL BEARING 6003ZZ
2404 P052762404 SPROCKET WHEEL
2405 P052762405 WHEEL ADJUSTMENT ROD
2406 PW02 FLAT WASHER 3⁄8"
2407 PN08 HEX NUT 3⁄8-16
2408 PN02 HEX NUT 5⁄16-18
2409 PLW01 LOCK WASHER 5⁄16"
2410 PB07 HEX BOLT 5⁄16-18 x 3⁄4"
REF PART # DESCRIPTION

-42- G0527 18" Wide Belt Sander
3102
3101
3140
3205
3207
3208
31173116
3115
3114
3113
3112
3107 3119
3103
3110
3111 3110
3114
3130
3128
3108
3125
3104
3105
3106
3120
3118
3124
3123
3132
3135
3136
3138
3137
3204
3203
3144
3142
3143
3133
3202
3201
3141
3121
3206
3131

G0527 18" Wide Belt Sander -43-
3101 P05273101 CONVEYOR TABLE
3102 P05273102 CONVEYOR BELT
3103 P05273103 GEARBOX FIX PLATE
3104 PW10M FLAT WASHER 14MM
3105 PLW08M LOCK WASHER 14MM
3106 PB100M HEX BOLT M14-2 x 30
3107 P05273107 OUTFEED ROLLER
3108 PUCF205 BEARING UCF205
3110 PLW04 LOCK WASHER 3⁄8"
3111 PB18 HEX BOLT 3⁄8-16 x 1"
3112 PUCF205 BEARING UCF205
3113 PLW04 LOCK WASHER 3⁄8"
3114 PB18 HEX BOLT 3⁄8-16 x 1"
3115 P05273115 BEARING CAP
3116 PLW04 LOCK WASHER 3⁄8"
3117 PB24 HEX BOLT 3⁄8-16 x 11⁄4"
3118 P05273118 SPROCKET WHEEL
3119 PK11 KEY 5⁄16 x 5⁄16 X 13⁄16"
3120 PSS08 SETSCREW 5⁄16-18 x 1⁄2"
3121 P05273121 CHAIN
3123 P05273123 1/2 HP MOTOR
3123-1 P05273123-1 FAN COVER
3123-2 P05073123-2 FAN
3123-3 PC040A CAPACITOR 40UF 350V
3123-4 P05273123-4 CAPACITOR COVER
REF PART # DESCRIPTION
3123-5 P05273123-5 WIRING COVER
3124 P05273124 SPROCKET WHEEL
3125 PSS08 SETSCREW 5⁄16-18 x 1⁄2"
3128 P05273128 CHAIN GUARD
3130 PSB75 CAP SCREW 5⁄16-18 x 3"
3131 P05273131 INFEED ROLLER BRACKET
3132 PSB16 CAP SCREW 3⁄8-16 x 3⁄4"
3133 P05273133 INFEED ROLLER BRACKET
3135 P05273135 CONVEYOR BELT WHEEL
3136 PSB70 CAP SCREW 5⁄16-18 x 2"
3137 PLW01 LOCK WASHER 5⁄16"
3138 PN02 HEX NUT 5⁄16-18
3140 P05273140 FRONT BRAKE COVER
3141 PS19 PHLP HD SCR 1⁄4-20 x 1"
3142 P05273142 LIMIT SWITCH
3143 PS10 PHLP HD SCR 10-24 x 11⁄2"
3144 PB92 HEX BOLT 1⁄2-12 x 31⁄2"
3201 P05273201 INFEED ROLLER SHAFT
3202 P05273202 INFEED ROLLER
3203 P6205 BALL BEARING 6205
3204 P05273204 EXT. RETAINING RING 35MM
3205 P05273205 ELEVATION LIMITER
3206 PSB62 CAP SCREW 1⁄4-20 x 11⁄2"
3207 P05273207 HOST PATH OF TABLE
3208 PSB07 CAP SCREW 5⁄16-18 x 3⁄4"
REF PART # DESCRIPTION

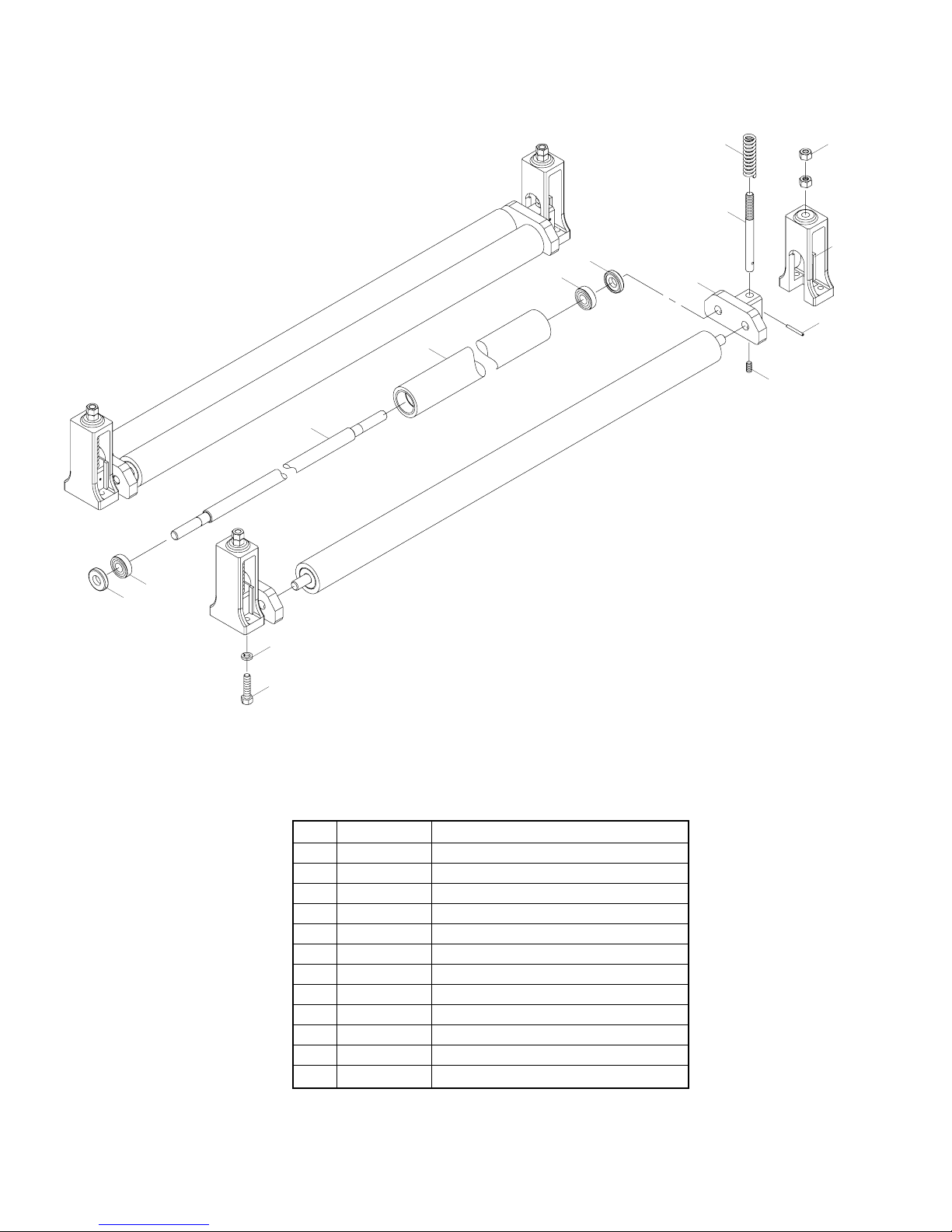

-44- G0527 18" Wide Belt Sander
4107
4302
4103
4301
4304
4204
4203
4204
4109
4108
4303
4205
4202
4201
4203
4103 P05274103 SPRING
4107 PN08 HEX NUT 3⁄8"-16
4108 PB07 HEX BOLT 5⁄16-18 x 3⁄4"
4109 PLW01 LOCK WASHER 5⁄16"
4201 P05274201 PISTON ROLLER SHAFT
4202 P05274202 PISTON ROLLER
4203 P6001 BALL BEARING 6001ZZ
4204 P05274204 SHAFT BEARING COLLAR
4205 PSS07 SETSCREW 1⁄4-20 x 1⁄2"
4301 P05274301 PISTON ROLLER ADJ. ROD
4302 P05274302 PISTON BRACKET
4303 PRP55M ROLL PIN 3 X 27MM
4304 P05274304 PISTON SLIDERAIL
REF PART # DESCRIPTION

G0527 18" Wide Belt Sander -45-
5406
5108
5405
5107
5403
5115
5104
5203
5111
5110
5401
5205
5206
5114
5112
5410
5409
5407
5408
5402
5411
5104 P05275104 BALL BEARING UCC206
5107 PK11 KEY 5⁄16 X 5⁄16 x 13⁄16"
5108 PLW01 LOCK WASHER 5⁄16"
5110 PLW07 LOCK WASHER 1⁄2"
5111 PB40 HEX BOLT 1⁄2-12 x 11⁄4"
5112 PSB04 CAP SCREW 1⁄4-20 x 1⁄2"
5114 P05275114 FILTER
5115 P05275115 PT 1⁄16" 90˚ GREASE FITTING
5203 PSB85M CAP SCREW M6-1 x 6
5205 P05275205 HANDLE
5206 P05275206 HOLD DOWN ROD
5401 P05275401 BEARING HOUSING
5402 P05275402 RUBBER ROLLER
5403 P05275403 FASTENING TUBE
5405 P05275405 PULLEY
5406 PSB11 CAP SCREW 5⁄16"-18 x 11⁄4"
5407 P05275407 BEARING HOUSING
5408 P05275408 BEARING BRACKET PAD
5409 P6205 BALL BEARING 6205-2RS
5410 P05275410 RING
5411 P05275411 BEARING CAP
REF PART # DESCRIPTION

-46- G0527 18" Wide Belt Sander
6205
6204
6207
6206
6213
6106
6211
6209
6110
6122
6210
6212
6106
6213
6108
6109
6109
6108
6205 6204
6207
6206
6203
6124
6105
6202
6201
6113 6111
6110
6112
6105
6124
6104
6107
6106
6116
6115
6124
6123
6120
6119
6118
6125
6121
6117
6116
6115
6208
6208
6127
G0527-6000
6212
6105
6101

G0527 18" Wide Belt Sander -47-
6101 P05276101 SQUARE FRAME
6104 P05276104 SQUARE FRAME SEAL (LEFT)
6105 PB193 HEX BOLT 1⁄4-20 x 1⁄2"
6106 PLW04 LOCK WASHER 3⁄8"
6107 PB18 HEX BOLT 3⁄8-16 x 1"
6108 PLW07 LOCK WASHER 1⁄2"
6109 PB53 HEX BOLT 1⁄2-12 x 1"
6110 PLW01 LOCK WASHER 5⁄16"
6111 PSB07 CAP SCREW 5⁄16-18 x 3⁄4"
6112 PB09M HEX BOLT M8-1.25 x 20
6113 P05276113 AIR CYLINDER
6115 P05276115 LIMIT SWITCH
6116 P05276116 LIMIT SWITCH TUBE
6117 P05276117 LIMIT SWITCH HOLDER
6118 P05276118 SENSOR
6119 P05276119 SENSOR PLATE
6120 P05276120 MIRROR OF SENSOR
6121 PW07 FLAT WASHER 5⁄16"
6122 PB09 HEX BOLT 5⁄16-18 x 1⁄2"
REF PART # DESCRIPTION
6123 P05276123 COVER OF AIR CYLINDER
6124 PLW02 LOCK WASHER 1⁄4"
6125 PB07 HEX BOLT 5⁄16-18 x 3⁄4"
6127 PS07M PHLP HD SCR M4-.7 x 8
6201 P05276201 UPPER ROLLER BRACKET
6202 P05276202 UPPER ROLLER
6203 P05276203 COVER UPPER ROLLER (LEFT)
6204 P05276204 BALL BEARING UCECH206
6205 PSS02M SETSCREW M6-1 x 6
6206 P05276206 CAP SCREW 3⁄4-16 x 1"
6207 P05276207 RING
6208 P05276208 FILTER
6209 P05276209 COVER UPPER ROLLER (RIGHT)
6210 P05276210 AIR CYLINDER
6211 P05276211 BALL BEARING PHS-10
6212 PN08 HEX NUT 3⁄8-16
6213 PB24 HEX BOLT 3⁄8-16 x 11⁄4"
REF PART # DESCRIPTION

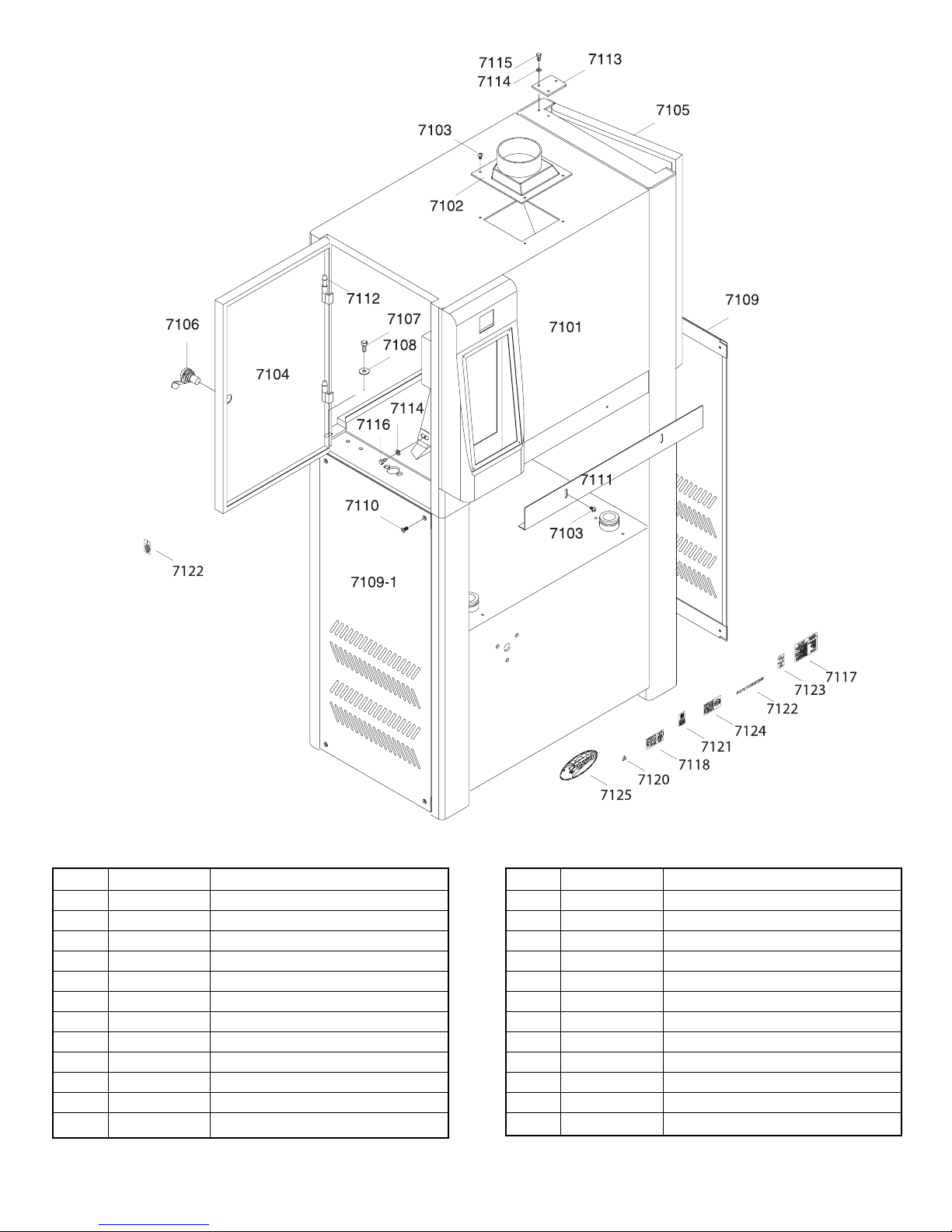

-48- G0527 18" Wide Belt Sander
7101 P05277101 UPPER FRAME COVER
7102 P05277102 DUST HOOD 4"
7103 PS24M PHLP HD SCR M6-1 x 10
7104 P05277104 LEFT DOOR, UPPER FRAME
7105 P05277105 RIGHT DOOR, UPPER FRAME
7106 P05277106 DOOR LOCK
7107 PB03 HEX BOLT 5⁄16-18 x 1"
7108 PW07 FLAT WASHER 5⁄16"
7109 P05277109 RIGHT DOOR, LOWER FRAME
7109-1 P05277109-1 LEFT DOOR, LOWER FRAME
7110 PS04 PHLP HD SCR 1⁄4-20 x 1⁄2"
7111 P05277111 PROTECTION AL PLATE
7112 P05277112 HINGE
REF PART # DESCRIPTION
7113 P05277113 PLATE
7114 PLW02 LOCK WASHER 1⁄4"
7115 PB19 HEX BOLT 1⁄4-20 x 1⁄2"
7116 PB02M HEX BOLT M6-1 x 12
7117 P05277117 MACHINE ID LABEL
7118 P05277118 FEED ONE PIECE LABEL
7119 PLABEL-13 UNPLUG LABEL (2)
7120 PLABEL-14 ELECTRICITY LABEL
7121 PLABEL-12 READ MANUAL LABEL
7122 P05277122 EMERGENCY STOP LABEL
7123 PLABEL-11 SAFETY GLASSES LABEL
7124 P05277124 NO STANDING LABEL
7125 G8589 CAST LOGO
REF PART # DESCRIPTION

G0527 18" Wide Belt Sander -49-

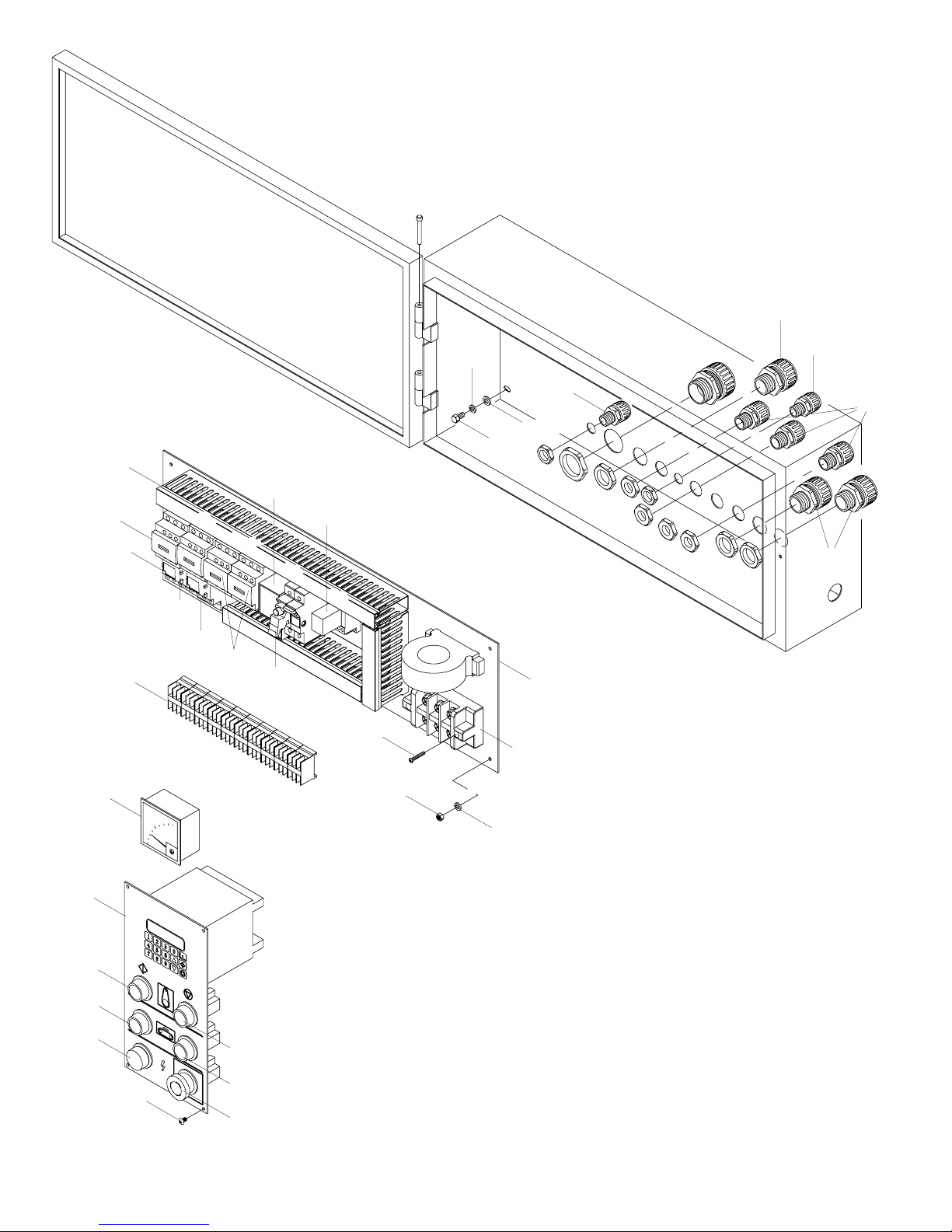

8126
8107 8133
8108
8131
8129-2
8129-1
8128-1
8128-2
8130
8132
8111
8112
8114
8115
8115-1
8135
8136
8113
8118 8109
8117
8116
8106
8105
8104
8101
8103
8102
8119
8120
8121
8125
8124
8123
8125
8122
8123

-50- G0527 18" Wide Belt Sander
8101 P05278101 ELECTRICAL CONTROL BOX
8102 P05278102 HINGE
8103 P05278103 CONTROL BOX OF DOOR
8104 P05278104 BASE PLATE
8105 PN05 HEX NUT 1⁄4-20
8106 PLW02 LOCK WASHER 1⁄4"
8107 P05278107 CONTROL PANEL
8108 PS07M PHLP HD SCR M4-.7 x 8
8109 P05278109 CURRENT DEVICE
8111 P05278111 CONTACTOR LC1D386M7
8112 P05278112 RELAY LRD356 (30-38A)
8113-1 P05278113 4A FUSE
8114 P05278114 RELAY LR3D-086 (2.5-4A)
8115 P05278115 CONTACTOR LC1D96M7
8116 P05278116 POWER WIRE TERMINAL
8117 PS51M PHLP HD SCR M4-.7 x 30
8118 P05278118 TERMINAL PLATE
8119 PW06 FLAT WASHER 1⁄4"
REF PART # DESCRIPTION
8120 PLW02 LOCK WASHER 1⁄4"
8121 PB19 HEX BOLT 1⁄4-20 x 1⁄2"
8122 P05278122 PU CONNECTOR 1⁄2"
8123 P05278123 PU CONNECTOR 3⁄4"
8124 P05278124 CABLE CONNECTOR 1"
8125 P05278125 PU CONNECTOR 3⁄8"
8126 P05278126 AMP METER
8128-1 P05278128-1 START SWITCH
8128-2 P05278128-2 START SWITCH
8129-1 P05278129-1 STOP SWITCH
8129-2 P05278129-2 STOP SWITCH
8130 P05278130 POWER INDICATION LIGHT
8131 P05278131 EMERGENCY STOP SWITCH
8132 P05278132 WIRE COLUMN
8133 P05278133 COMPUTER
8135 P05278135 CONTROLLER UNIT
8136 P05278136 RELAY
8137 P05278137 CNTAC. LC1D96M7 (W/LOCK)
REF PART # DESCRIPTION

G0527 18" Wide Belt Sander -51-

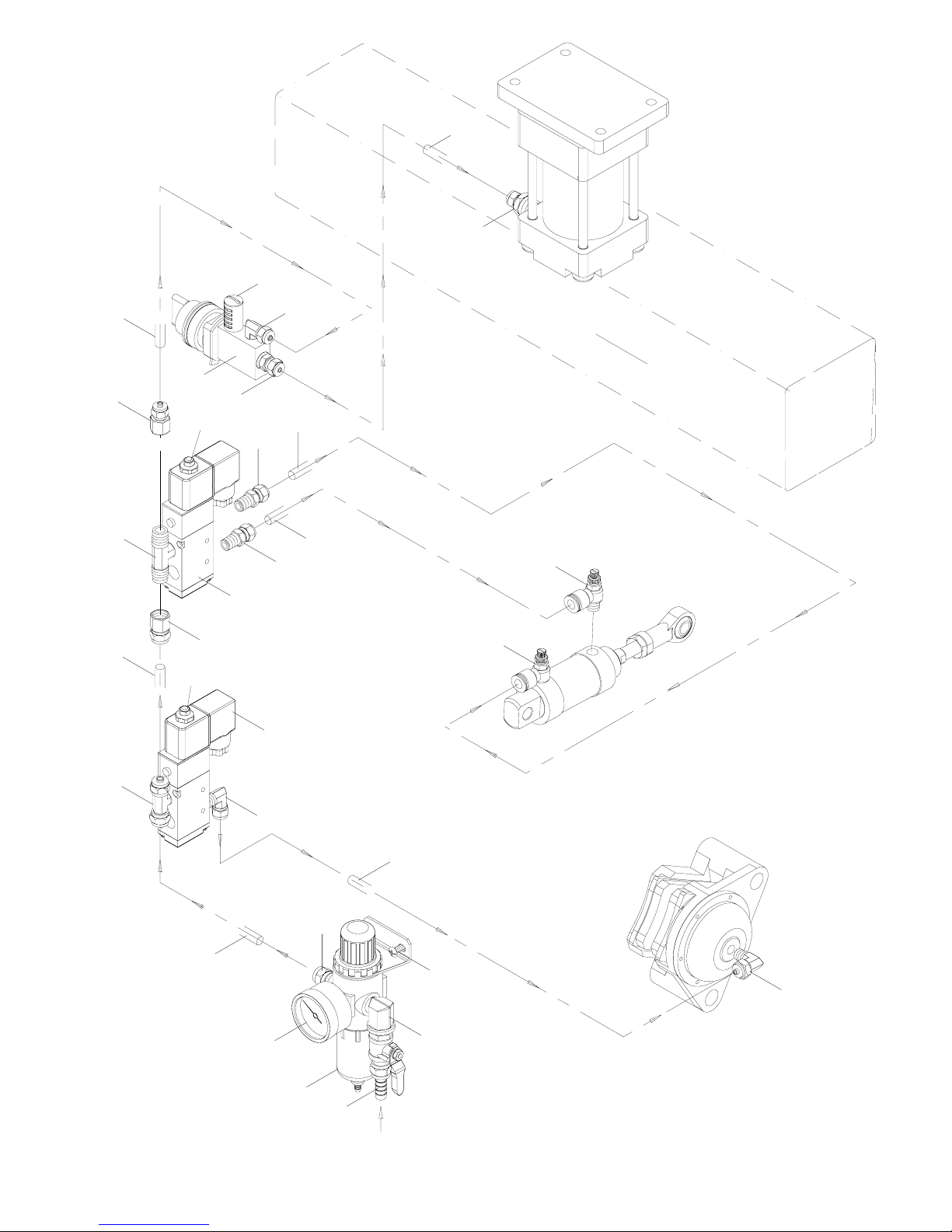

9127
9105
9102
9101
9103
9108
9110
9112
9111
9111
9122
9123
9124
9120
9117
9117
9132
9131
9125 9133
9133
9129
9104
9128
9114
9113
9126
9125
9109
9109
9106
9107
IN

-52- G0527 18" Wide Belt Sander
9101 P05279101 FILTER CUP 1⁄4"
9102 P05279102 PRESSURE REGULATOR 1⁄4"
9103 P05279103 BRONZE CONN. 1⁄4"T x 5⁄16"N
9104 P05279104 FLEXIBLE HOSE 8MM
9105 P05279105 AIR SWITCH 1⁄4"
9106 P05279106 ELBOW 1⁄4"T x 5⁄16"N
9107 PS22 PHLP HD SCR 10-24 x 5⁄8"
9108 P05279108 ELBOW 1⁄4"x
1⁄8"T
9109 P05279109 SOLENOID VALVE
9110 P05279110 T-JOINT 5⁄16"N x 1⁄8"T x 5⁄16"N
9111 P05279111 PLASTIC CONN. 1⁄4" N x 1⁄4"T
9112 P05279112 T-JOINT 1⁄4"T x 1⁄4"T x 1⁄4"T
9113 P05279113 PLASTIC CONN. 5⁄16"N x 1⁄4"T
9114 P05279114 PLASTIC CONN. 1⁄4"N x 1⁄4"T
REF PART # DESCRIPTION
9117 P05279117 THROTTLE VALVE 1⁄8"
9120 P05279120 PLASTIC CONN. 1⁄4"N x 3⁄8"T
9122 P05279122 AIR SWITCH 1⁄8"
9123 P05279123 PLASTIC CONN. 1⁄4"N x 1⁄8"T
9124 P05279124 PLASTIC CONN. 1⁄4"N x 1⁄8"T-90˚
9125 P05279125 BUFFER 1⁄8"
9126 P05279126 SILENCER 1⁄8"
9127 P05279127 PLASTIC CONN. 5⁄16"N x 1⁄8"T
9128 P05279128 FLEXIBLE HOSE 8MM
9129 P05279129 FLEXIBLE HOSE 8MM
9131 P05279131 FLEXIBLE HOSE 6MM
9132 P05279132 FLEXIBLE HOSE 6MM
9133 P05279133 FLEXIBLE HOSE 6MM
REF PART # DESCRIPTION
