Grizzly G9922 User manual

MODEL G9922
OSCILLATING SPINDLE SANDER
OWNER'S MANUAL
COPYRIGHT © 2000 BY GRIZZLY INDUSTRIAL, INC. REVISED MARCH, 2010 (JB)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
 #JB10570 PRINTED IN CHINA

This manual provides critical safety instructions on the proper setup,
operation, maintenance and service of this machine/equipment.
Failure to read, understand and follow the instructions given in this
manual may result in serious personal injury, including amputation,
electrocution or death.
The owner of this machine/equipment is solely responsible for its
safe use. This responsibility includes but is not limited to proper
installation in a safe environment, personnel training and usage
authorization, proper inspection and maintenance, manual availability
and comprehension, application of safety devices, blade/cutter integ-
rity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents
INTRODUCTION............................................................................................................................... 4
 
 
 
 
SECTION 1: SAFETY....................................................................................................................... 8
SECTION 2: CIRCUIT REQUIREMENTS ...................................................................................... 11
 
SECTION 3: SETUP ....................................................................................................................... 12
 
 
 
 
 
 
 
 
 
 
SECTION 4: OPERATIONS ........................................................................................................... 21
 
 
 
 
 
 
 
SECTION 5: ACCESSORIES......................................................................................................... 25
SECTION 6: MAINTENANCE......................................................................................................... 26
 
 
 
 
SECTION 7: SERVICE ................................................................................................................... 28
 
 
 
 
WARRANTY AND RETURNS ........................................................................................................ 35

-4- G9922 
INTRODUCTION
Foreword
We are proud to offer the Model G9922 Oscillating
Spindle Sander. This machine is part of a grow-
ing Grizzly family of fine woodworking machinery.
When used according to the guidelines set forth in
this manual, you can expect years of trouble-free,
enjoyable operation and proof of Grizzly’s com-
mitment to customer satisfaction.
The specifications, drawings, and photographs
illustrated in this manual represent the Model
G9922 when the manual was prepared. However,
owing to Grizzly’s policy of continuous improve-
ment, changes may be made at any time with no
obligation on the part of Grizzly. For your conve-
nience, we always keep current Grizzly manuals
available on our website at www.grizzly.com.
Any updates to your machine will be reflected
in these manuals as soon as they are complete.
Visit our site often to check for the latest updates
to this manual!
We stand behind our machines. If you have any
service questions, parts requests or general
questions about the machine, please call or write
us at the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
If you have any comments regarding this manual,
please write to us at the address below:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [e-mail]
Contact Info
An oscillating spindle sander is used to sand
the edges of contoured or irregularly shaped
workpieces.
The Model G9922 Oscillating Spindle Sander
uses 2" x 51⁄4" sanding sleeves and oscillates with
a 1" stroke at a rate of 64 strokes per minute.
The 141⁄2" square sanding table provides a solid
platform for supporting workpieces and can tilt up
to 45° for sanding beveled edges. The table also
features a miter gauge for sanding straight edges
on a miter-cut workpiece.
The integrated 2" dust collection port can be fitted
to a dust collection system to reduce the amount
of dust released by the machine.
During typical operation, the table is tilted to the
desired angle and locked in place with the lock
knobs. The machine is turned on and the spindle
is allowed to reach its full speed. With steady pres-
sure against both the table and the sanding drum,
the workpiece is fed past the drum. The amount
of material removed depends on the speed and
pressure with which the workpiece is fed and the
grit of the sanding sleeve.
Sanding sleeves are replaced by un-threading the
plastic cap and sliding the sleeve off the drum.
Functional Overview

G9922  -5-

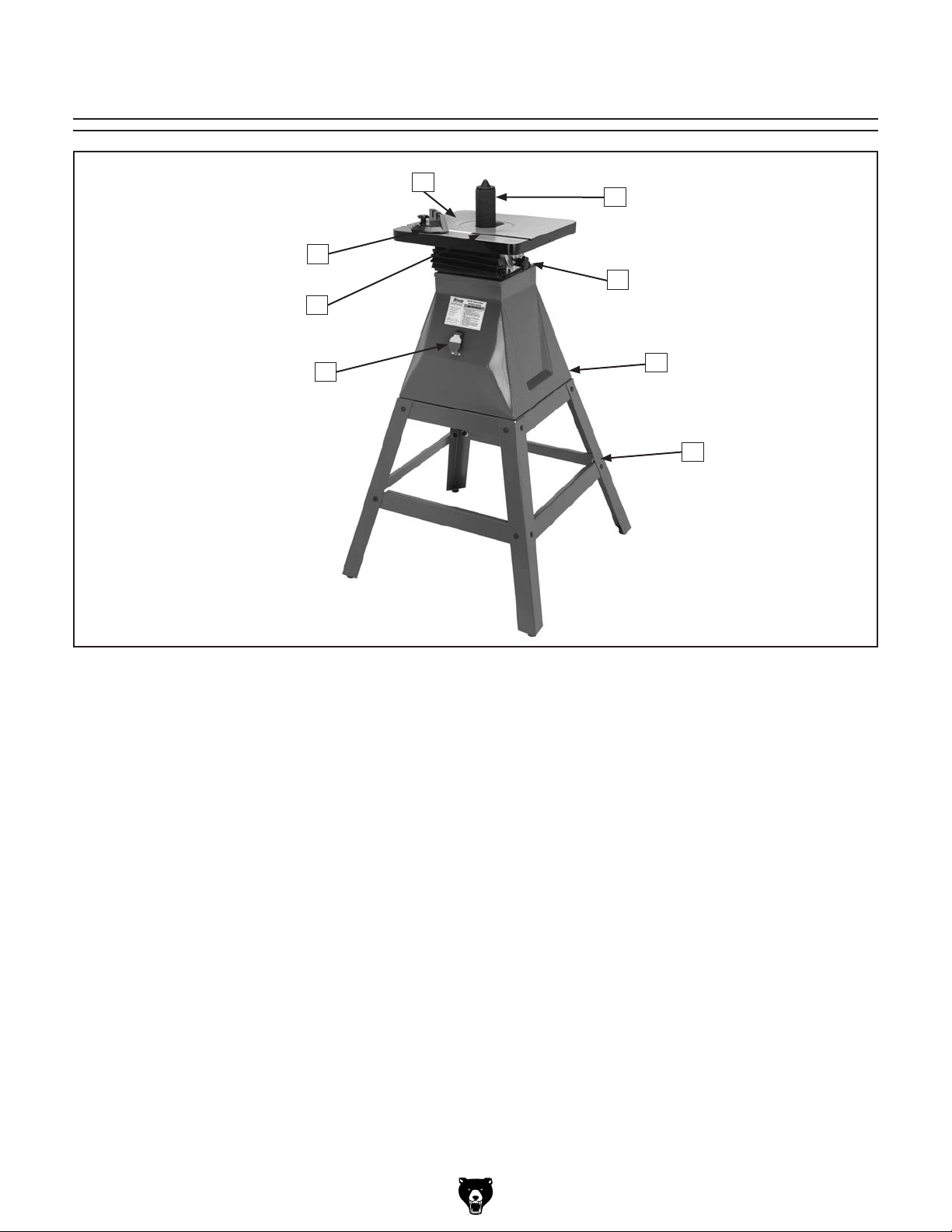

Figure 1. Identification.
A. Sanding Table
B. Sanding Drum
C. Table Angle Lock Knob
D. Machine Base
E. Machine Stand
F. ON/OFF Switch
G. Table Miter Slot
H. Miter Gauge
Identification
B
C
D
E
F
G
A
H

-6- G9922 
The information contained herein is deemed accurate as of 6/15/2008 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 1 OF 2Model G9922
MACHINE DATA
SHEET
Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]
MODEL G9922 OSCILLATING SPINDLE SANDER
Product Dimensions:
Weight................................................................................................................................................................ 86 lbs.
Length/Width/Height....................................................................................................................... 26 x 26 x 39-1/2 in.
Foot Print (Length/Width)....................................................................................................................... 25-1/2 x 25 in.
Shipping Dimensions:
Type............................................................................................................................................................. Cardboard
Content............................................................................................................................................................ Machine
Weight.............................................................................................................................................................. 102 lbs.
Length/Width/Height............................................................................................................................. 18 x 17 x 23 in.
Electrical:
Switch..............................................................................................................Toggle On/Off with Safety Locking Tab
Switch Voltage...................................................................................................................................................... 110V
Cord Length............................................................................................................................................................ 6 ft.
Cord Gauge....................................................................................................................................................18 gauge
Recommended Breaker Size............................................................................................................................ 15 amp
Plug.........................................................................................................................................................................Yes
Motors:
Main
Type.................................................................................................................. TEFC Capacitor Start Induction
Horsepower..............................................................................................................................................1/2 HP
Voltage........................................................................................................................................................110V
Prewired......................................................................................................................................................110V
Phase........................................................................................................................................................ Single
Amps............................................................................................................................................................4.6A
Speed.................................................................................................................................................3450 RPM
Cycle..........................................................................................................................................................60 Hz
Number Of Speeds........................................................................................................................................... 1
Power Transfer ................................................................................................................................Direct Drive
Bearings.....................................................................................................Sealed and Permanently Lubricated
Main Specifications:
Table Info
Table Width.......................................................................................................................................... 14-1/2 in.
Table Length........................................................................................................................................ 14-1/2 in.
Table Thickness........................................................................................................................................... 1 in.
Table Tilt................................................................................................................................................. 45 deg.
Table Opening........................................................................................................................................5-1/2 in.
Table Inserts.......................................................................................................................................... 2-3/8 in.
Floor To Table Height.......................................................................................................................... 39-1/2 in.
Miter Gauge Slot Width............................................................................................................................. 5/8 in.
Miter Gauge Slot Height............................................................................................................................ 1/4 in.

G9922  -7-
The information contained herein is deemed accurate as of 6/15/2008 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 2 OF 2Model G9922
Spindle Info
Spindle Diameters........................................................................................................................................ 2 in.
Spindle Lengths..................................................................................................................................... 5-1/2 in.
Spindle Speed....................................................................................................................................3450 RPM
Spindle Oscillations................................................................................................................................ 64 SPM
Stroke Length............................................................................................................................................... 1 in.
Arbor Size................................................................................................................................................ 15 mm
Total Arbor Length........................................................................................................................................5 in.
Construction
Base Construction......................................................................................................................... Formed Steel
Stand Construction..................................................................................................................................... Steel
Table Construction.................................................................................................................. Ground Cast Iron
Frame Construction.................................................................................................................................... Steel
Miter Gauge Construction.........................................................................................................................Plastic
Paint.......................................................................................................................................................... Epoxy
Other
No. Of Dust Ports.............................................................................................................................................. 1
Dust Port Size.............................................................................................................................................. 2 in.
Mobile Base..............................................................................................................................................G7314
Other Specifications:
Country Of Origin ................................................................................................................................................China
Warranty ............................................................................................................................................................ 1 Year
Serial Number Location ............................................................................................................................. Front Label
Assembly Time .................................................................................................................................................. 1 hour
Features:
Includes 80 Grit Sanding Sleeve, Miter Gauge and Wrench Set
Table Tilts to 45 deg. for Bevel Sanding
Steel Construction
Cast Iron Table
Paddle Safety Switch with Lock

-8- G9922 
4. ALWAYS USE HEARING PROTECTION
WHEN OPERATING MACHINERY.
Machinery noise can cause permanent
hearing loss.
5. WEAR PROPER APPAREL. DO NOT
wear loose clothing, gloves, neckties, rings,
or jewelry that can catch in moving parts.
Wear protective hair covering to contain
long hair and wear non-slip footwear.
6. NEVER OPERATE MACHINERY WHEN
TIRED OR UNDER THE INFLUENCE OF
DRUGS OR ALCOHOL. Be mentally alert
at all times when running machinery.
1. READ ENTIRE MANUAL BEFORE
STARTING. Operating machine before
reading the manual greatly increases the
risk of injury.
2. ALWAYS USE ANSI APPROVED
SAFETY GLASSES WHEN OPERATING
MACHINERY. Everyday eyeglasses only
have impact resistant lenses —they are
NOT safety glasses.
3. ALWAYS WEAR A NIOSH APPROVED
RESPIRATOR WHEN OPERATING
MACHINERY THAT PRODUCES DUST.
Most types of dust (wood, metal, etc.) can
cause severe respiratory illnesses.
For Your Own Safety, Read Instruction
Manual Before Operating this Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words intended to convey the level of importance
of the safety messages. The progression of symbols is described below. Remember that safety
messages by themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the machine.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY

G9922  -9-
7. ONLY ALLOW TRAINED AND PROP-
ERLY SUPERVISED PERSONNEL TO
OPERATE MACHINERY. Make sure
operation instructions are safe and clearly
understood.
8. KEEP CHILDREN/VISITORS AWAY.
Keep all children and visitors away from
machinery. When machine is not in use,
disconnect it from power, lock it out, or
disable the switch to make it difficult for
unauthorized people to start the machine.
9. UNATTENDED OPERATION. Leaving
machine unattended while its running
greatly increases the risk of an accident or
property damage. Turn machine Off and
allow all moving parts to come to a com-
plete stop before walking away.
10. DO NOT USE IN DANGEROUS
ENVIRONMENTS. DO NOT use machin-
ery in damp, wet locations, or where any
flammable or noxious fumes may exist.
11. KEEP WORK AREA CLEAN AND WELL
LIGHTED. Clutter and dark shadows may
cause accidents.
12. USE A GROUNDED POWER SUPPLY
RATED FOR THE MACHINE AMPERAGE.
Grounded cords minimize shock hazards.
Operating machine on an incorrect size of
circuit increases risk of fire.
13.
ALWAYS DISCONNECT FROM POWER
SOURCE BEFORE SERVICING
MACHINERY. Make sure switch is in
OFF
position before reconnecting.
14. MAINTAIN MACHINERY WITH CARE.
Keep blades sharp and clean for best and
safest performance. Follow instructions for
lubricating and changing accessories.
15. MAKE SURE GUARDS ARE IN PLACE
AND WORK CORRECTLY BEFORE
USING MACHINERY.
Safety Instructions for Machinery
16. REMOVE CHUCK KEYS OR ADJUSTING
TOOLS. Make a habit of never leaving
chuck keys or other adjustment tools in/on
the machine—especially near spindles!
17. DAMAGED MACHINERY. Check for bind-
ing or misaligned parts, broken parts,
loose bolts, other conditions that may
impair machine operation. Always repair or
replace damaged parts before operation.
18. DO NOT FORCE MACHINERY. Work at
the speed for which the machine or acces-
sory was designed.
19. SECURE WORKPIECE. Use clamps or
a vise to hold the workpiece when practi-
cal. A secured workpiece protects your
hands and frees both hands to operate the
machine.
20. DO NOT OVERREACH. Maintain stability
and balance at all times when operating
machine.
21. MANY MACHINES CAN EJECT
WORKPIECES TOWARD OPERATOR.
Know and avoid conditions that cause the
workpiece to "kickback."
22. STABLE MACHINE. Machines that move
during operations greatly increase the
risk of injury and loss of control. Verify
machines are stable/secure and mobile
bases (if used) are locked before starting.
23. CERTAIN DUST MAY BE HAzARDOUS
to the respiratory systems of people and
animals, especially fine dust. Be aware of
the type of dust you are exposed to and
always wear a respirator designed to filter
that type of dust.
24. EXPERIENCING DIFFICULTIES. If at
any time you are experiencing difficulties
performing the intended operation, stop
using the machine! Contact our Technical
Support Department at [phone].

-10- G9922 
Additional Safety Instructions For
Spindle Sanders
1. BE AWARE OF SPINDLE rotation when
sanding.
2. KEEP FINGERTIPS AWAY from the mov-
ing spindle. Serious injury could result if
skin contacts abrasives or moving parts.
3. NEVER USE EXCESSIVE FORCE when
sanding. Doing this greatly increases the
chances of personal injury and motor over-
load.
4. ALWAYS FEED THE WORK against the
direction of rotation.
5. EVEN IF YOU HAVE A RELIABLE
METHOD OF DUST COLLECTION, use a
dust mask or respirator when sanding, as
well as eye and ear protection.
6. IF THERE IS ANY doubt as to the stability
or integrity of the material to be sanded,
don’t sand it.
7. DO NOT OPERATE SANDER with a dam-
aged or badly worn sanding sleeve.
8. TIE BACK LONG HAIR and remove any
loose-fitting clothing or jewelry that could be
caught up in the sander’s spindle or other
moving machine parts.
9. HABITS — GOOD OR BAD — are hard to
break. Develop good habits and safety will
become second nature to you.
Like all power tools, there is danger asso-
ciated with the Model G9922 Oscillating
Spindle Sander. Accidents are frequently
caused by lack of familiarity or failure to
pay attention. Use this tool with respect and
caution to lessen the possibility of opera-
tor injury. If normal safety precautions are
overlooked or ignored, serious personal
injury may occur.
No list of safety guidelines can be com-
plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to follow guidelines could
result in serious personal injury, damage to
equipment or poor work results.
Operation of this equipment has the poten-
tial to propel debris into the air which can
cause eye injury. Always wear safety glass-
es or goggles when operating equipment.
Everyday glasses or reading glasses only
have impact resistant lenses, they are not
safety glasses. Be certain the safety glass-
es you wear meet the appropriate stan-
dards of the American National Standards
Institute (ANSI).

G9922  -11-

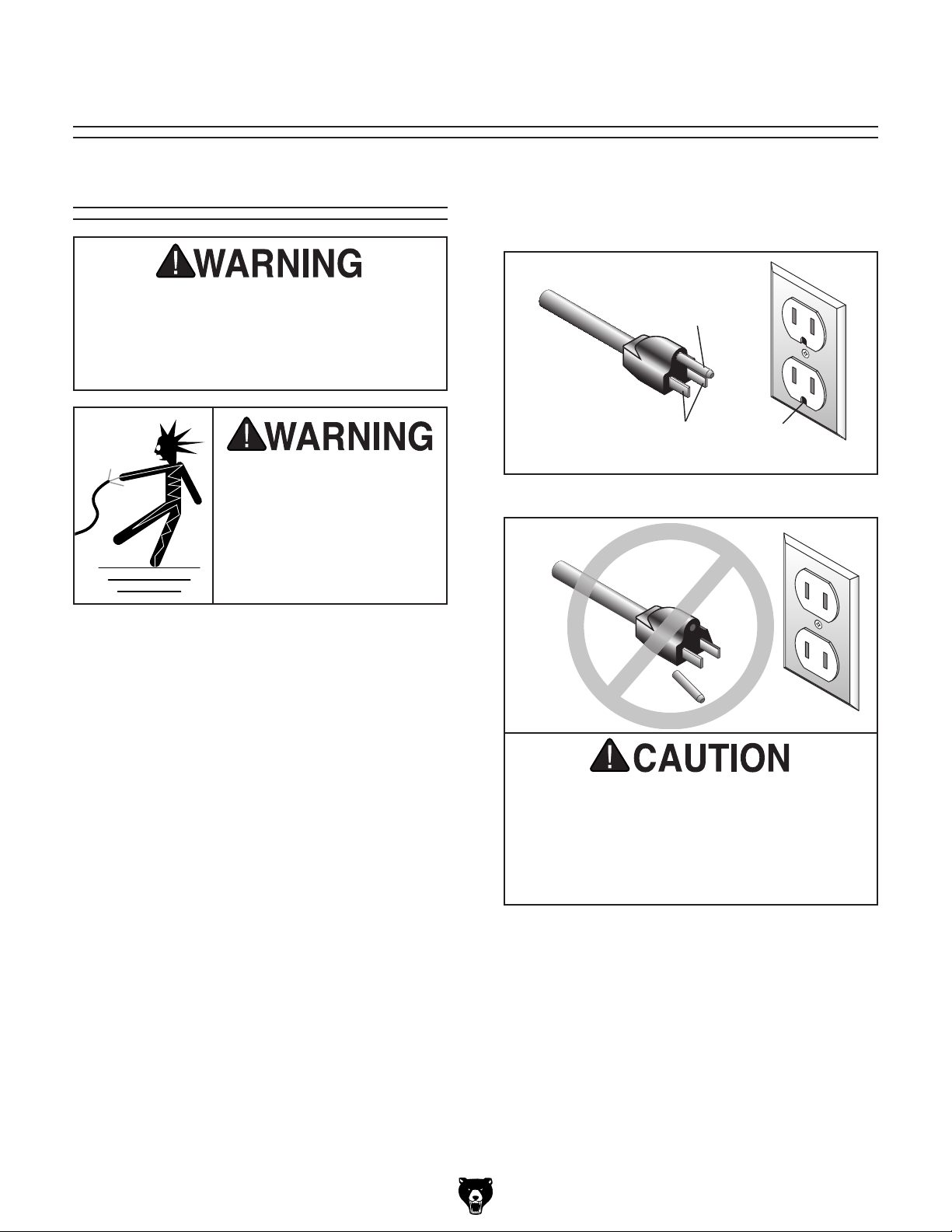

Figure 2. Typical 5-15 plug and receptacle.
Grounding Prong is
Longest of the Three
Prongs
Current
Carrying Prongs Grounded
Outlet
110V Operation
Full Load Amperage Draw
This machine draws the following amps under
maximum load:
Amp Draw............................................. 4.6 Amps
Power Supply Circuit Requirements
You MUST connect your machine to a grounded
circuit that is rated for the amperage given below.
Never replace a circuit breaker on an existing cir-
cuit with one of higher amperage without consult-
ing a qualied electrician to ensure compliance
with wiring codes. If you are unsure about the
wiring codes in your area or you plan to con-
nect your machine to a shared circuit, consult
a qualified electrician.
Minimum Circuit Size............................. 15 Amps
This machine MUST have a ground prong in
the plug to help ensure that it is grounded.
DO NOT remove ground prong from plug
to fit into a two-pronged outlet! If the plug
will not fit the outlet, have the proper outlet
installed by a qualified electrician.
Extension Cords
We do not recommend using extension cords, but
if you find it absolutely necessary:
• Use at least a 16 gauge cord that does not
exceed 50 feet in length!
• The extension cord must have a ground wire
and plug pin.
• A qualified electrician MUST size cords over
50 feet long to prevent motor damage.
SECTION 2: CIRCUIT REQUIREMENTS
Serious personal injury could occur if you
connect the machine to power before com-
pleting the setup process. DO NOT connect
the machine to the power until instructed
later in this manual.
Electrocution or fire could
result if machine is not
grounded and installed in
compliance with electrical
codes. Compliance MUST
be verified by a qualified
electrician!
Power Connection Device
The Model G9922 comes with a 5-15 plug, similar
to Figure 2, to connect the machine to power.

-12- G9922 
Wear safety glasses dur-
ing the entire setup pro-
cess!
This machine presents
serious injury hazards
to untrained users. Read
through this entire manu-
al to become familiar with
the controls and opera-
tions before starting the
machine!
Setup Safety
SECTION 3: SETUP
This machine and its
components are heavy.
Get lifting help or use
power lifting equipment
such as a forklift to move
heavy items.
Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If you
discover the machine is damaged, please imme-
diately call Customer Service at [phone]
for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condi-
tion of your shipment, inventory the contents.
Unpacking
SUFFOCATION HAZARD!
Immediately discard all plas-
tic bags and packing materi-
als to eliminate choking/suf-
focation hazards for children
and animals.
The following items are needed to complete the
setup process, but are not included with your
machine:
Description Qty
• Assistant..................................................... 1
• Safety Glasses (for each person)............... 1
• Wrench or Socket 10, 14mm ................1 Ea.
• Phillips Screwdriver .................................... 1
• Level ........................................................... 1
Items Needed for
Setup

G9922  -13-
Inventory
The following is a description of the main compo-
nents shipped with your machine. Lay the compo-
nents out to inventory them.
Note: If you can't find an item on this list, check
the mounting location on the machine or examine
the packaging materials carefully. Occasionally
we pre-install certain components for shipping
purposes.
Box Contents: (Figures 3 & 4) Qty
A. Miter Gauge................................................ 1
B. Open End Wrench 14/17mm ...................... 1
C. Open End Wrench 17/19mm ...................... 1
D. Hex Wrench 5mm....................................... 1
E. Carriage Bolts M8-1.25 x 16..................... 20
F. Flat Washers 10mm ................................. 20
G. Lock Washers 8mm ................................. 20
H. Hex Nuts M8-1.25..................................... 20
I. Hex Nuts M6-1 ........................................... 4
J. Lock Washers 6mm ................................... 4
K. Rubber Feet ............................................... 4
L. Phillips Head Screw M6-1 x 30 .................. 4
M. Sanding Drum w/Sleeve............................. 1
N. Spare Sanding Sleeve................................ 1
O. Upper Braces 14" ....................................... 4
P. Lower Braces 20" ....................................... 4
Q. Legs............................................................ 4
Figure 3. Inventory 1
If any nonproprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Figure 4. Inventory 2
AB
C
D
E
F
G
H
I
J
K
L
M
N
O
PQ

-14- G9922 
Hardware Recognition Chart

G9922  -15-
Floor Load
Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some residential floors may require additional
reinforcement to support both the machine and
operator.
Placement Location
Consider existing and anticipated needs, size of
material to be processed through each machine,
and space for auxiliary stands, work tables or
other machinery when establishing a location for
your new machine. See Figure 6 for the minimum
working clearances.
Children and visitors may be
seriously injured if unsuper-
vised around this machine.
Lock entrances to the shop
or disable start switch or
power connection to prevent
unsupervised use.
Site Considerations
Figure 6. Minimum working clearances.
The unpainted surfaces are coated with a waxy
oil to prevent corrosion during shipment. Remove
this protective coating with a solvent cleaner or
degreaser, such as shown in Figure 5. For thor-
ough cleaning, some parts must be removed. For
optimum performance from your machine,
clean all moving parts or sliding contact sur-
faces. Avoid chlorine-based solvents, such as
acetone or brake parts cleaner that may damage
painted surfaces. Always follow the manufactur-
er’s instructions when using any type of cleaning
product.
Clean Up
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. DO
NOT use these products
to clean the machinery.
Many cleaning solvents
are toxic if inhaled.
Minimize your risk by only
using these products in a
well ventilated area.
G2544—Solvent Cleaner & Degreaser
A great product for removing the waxy shipping
grease from your machine during clean up.
Figure 5. Cleaner/degreaser available from
Grizzly.
25"
25"

-16- G9922 
Although not required, you may choose to mount
your new machine to the floor. Because this is an
optional step and floor materials may vary, floor
mounting hardware is not included. Generally, you
can either bolt your machine to the floor or mount
it on machine mounts. Both options are described
below. Whichever option you choose, it is neces-
sary to level your machine with a precision level.
Bolting to Concrete Floors
Lag shield anchors with lag bolts and anchor
studs (Figure 7) are two popular methods for
anchoring an object to a concrete floor. We sug-
gest you research the many options and methods
for mounting your machine and choose the best
that fits your specific application.
Mounting to Shop
Floor
Figure 8. Machine mount example.
Using Machine Mounts
Using machine mounts, shown in Figure 8, gives
the advantage of fast leveling and vibration reduc-
tion. The large size of the foot pads distributes
the weight of the machine to reduce strain on the
floor.
NOTICE
Anchor studs are stronger and more per-
manent alternatives to lag shield anchors;
however, they will stick out of the floor,
which may cause a tripping hazard if you
decide to move your machine.
Figure 7. Typical fasteners for mounting to
concrete floors.
NOTICE
We strongly recommend securing your
machine to the floor if it is hardwired to the
power source. Consult with your electrician
to ensure compliance with local codes.

G9922  -17-
Assembly
Assembly for the Model G9922 consists of put-
ting together the machine stand, attaching the
machine to the stand, then inserting the sanding
spindle.
To assemble the machine:
1. Lay out two legs, one upper brace and one
lower brace, then connect them using four
M8-1.25 x 16 carriage bolts, four 10mm flat
washers, four 8mm lock washers, and four
M8-1.25 hex nuts, as shown in Figure 9. Do
not yet fully tighten the nuts.
Figure 11. Completing stand.
Figure 9. Leg assembly.
Upper Brace
Lower Brace
Legs
2. Repeat Step 1 to create a second assembly.
3. Connect the two assemblies together with
one lower and one upper brace, using four
M8-1.25 x 16 carriage bolts, four 10mm flat
washers, four 8mm lock washers, and four
M8-1.25 hex nuts, as shown in Figure 10. Do
not yet fully tighten the nuts.
Figure 10. Connecting leg assemblies.
Lower Brace
Upper Brace
4. Carefully turn the assembly over and attach
the remaining upper and lower braces. Again,
use four M8-1.25 x 16 carriage bolts, four
10mm flat washers, four 8mm lock wash-
ers, and four M8-1.25 hex nuts, as shown in
Figure 11. Do not yet fully tighten the nuts.
Lower Brace
Upper Brace




-18- G9922 
7. In each corner of the sander base, line up the
holes in the sander and both upper braces,
then insert one M8-1.25 x 16 carriage bolt, as
shown in Figure 14. Secure it with a 10mm
washer, 8mm lock washer, and one M8-1.25
hex nut. Do not yet fully tighten the hard-
ware.
Figure 14. Mounting hardware.
8. Repeat Step 6 for each corner of the sander,
using the remaining three M8-1.25 x 16 car-
riage bolts, 10mm flat washers, 8mm lock
washers and M8-1.25 hex nuts.
9. With the help of an assistant, turn the entire
assembly right-side-up and place it in the
location where it will be used. Level the
machine as you fully tighten all 20 hex nuts
(Figure 15).
Note: The next step involves mounting feet
on the machine. If you plan to mount your
machine to the floor, skip ahead to Step 6.
Otherwise, continue with Step 5, below.
5. On each of the four legs, install a rubber foot
by removing the hex nut and washers from
the foot assembly, inserting the foot into the
hole at the bottom of the leg, then securing
the foot with the removed washers and nut,
as shown in Figure 12.
Figure 15. Tightening hardware.
Tighten (x20)
6. With the help of an assistant, carefully turn
the sander upside-down. To protect the table
surface, place a piece of clean cardboard
beneath the sander. Place the stand upside
down on top of the sander, as shown in
Figure 13.
Figure 13. Placing stand on machine.
Figure 12. Foot attachment.
Foot
Leg
Stand
Sander Unit
Upper Braces



G9922  -19-
10. Place the sanding drum into the spindle
and thread it by turning it counterclockwise
(Figure 16).
11. To easily access the spindle nut, move the
dust cover out of the way by removing the
two hex bolts that secure it to the machine
base (Figure 17).
Figure 16. Inserting sanding drum.
12. Secure the sanding drum into the spindle by
holding the spindle stationary with a 17mm
wrench while tightening the drum with a
19mm wrench, as shown in Figure 18.
Figure 18. Securing sanding drum.
Figure 17. Removing dust cover.


-20- G9922 
5. Turn the machine OFF.
6. Remove the switch disabling key, as shown
in Figure 19.
Test Run
Once the assembly is complete, test run your
machine to make sure it runs properly and is
ready for regular operation.
The test run consists of verifying the following:
1) The motor powers up and runs correctly, and
2) the safety disabling mechanism on the switch
works correctly.
If, during the test run, you cannot easily locate
the source of an unusual noise or vibration,
stop using the machine immediately, then review
Troubleshooting on Page 29.
If you still cannot remedy a problem, contact our
Tech Support at [phone] for assistance.
To test run the machine:
1. Make sure you have read the safety instruc-
tions at the beginning of the manual and that
the machine is setup properly.
2. Make sure all tools and objects used during
setup are cleared away from the machine.
3. Connect the machine to the power source.
4. Verify that the machine is operating correctly
by turning the machine ON.
—When operating correctly, the machine
runs smoothly with little or no vibration or
rubbing noises.
—Investigate and correct strange or unusual
noises or vibrations before operating the
machine further. Always disconnect the
machine from power when investigating or
correcting potential problems.
7. Try to turn the start the machine with the
paddle switch.
—If the machine does not start, the switch
disabling feature is working as designed.
—If the machine starts, immediately stop the
machine. The switch disabling feature is
not working correctly. This safety feature
must work properly before proceeding with
regular operations. Call Tech Support for
help.
Figure 19. Removing switch key from paddle
switch.
