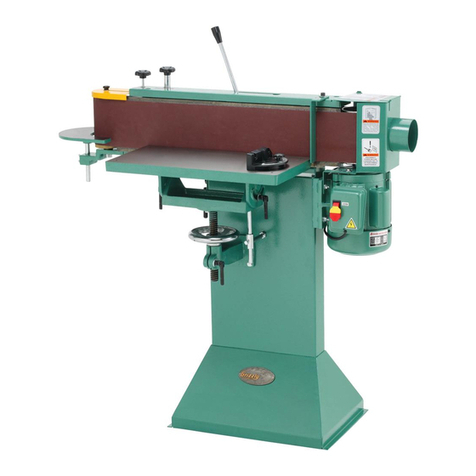

-24- G1140 Edge Sander
1
16
64
102
101
19 18
22
25 35A 4
27
32
72
98
74
81
91
97
97
69
71
73
66
65
74
41 42
17
23
26
38
39
29 30
35A
24
76
6
7
75
95
8
5
104
78 100
47 48
79
92
51
68
67
51 55
103 63
60
76
56
52
57
58
78
50
78
80
50
63
103
49A
49
46A
44A
45
99
36
83
81
5
28
40
43 33
3
4
2
52
62
91
63
59
61
9
10
11
13
12
84
7624
14 15
20A
21
20B
20C
20D
20E
23
105

G1140 Edge Sander -25-
1P1531001 PLATEN
2P1140002 PLATEN COVER
3PB24 HEX BOLT 3/8''-16 x 11/4''
4PLW04 LOCK WASHER 3/8''
5PSB14 CAP SCREW 3/8''-16 x 1''
6P1531006 DRIVER ROLLER
7PN09 HEX NUT 5/8''-18
8PLW06 LOCK WASHER 5/8''
9PR02 EXT RETAINING RING 20mm
10 P6204 BEARING 6204
11 P1531011 RUBBER IDLER ROLLER
12 P1531012 ROLLER AXLE
13 P6205 BEARING 6205
14 PLW06 LOCK WASHER 5⁄8''
15 PN04 HEX NUT 5⁄8''-11
16 P1531016 AUXILIARY TABLE
17 PB03 HEX BOLT 5⁄16''-18 x 1''
18 P1140018 THUMB SCREW
19 P1531019 AUXILIARY TABLE POST
20A P1531020A ROLLER SUPPORT BRACKET
20B P1531020B ROLLER BLOCK BRACKET
20C PW02 FLAT WASHER 3⁄8"
20D PSB26 CAP SCREW 3⁄8-16 x 11⁄2"
20E PSS03 SETSCREW 1⁄4-20 x 3⁄8"
21 P1531021 SPECIAL SCREW
22 P1531022 BELT ADJUST SHAFT
23 P1531023 ADJUST SHAFT SLIDE
24 PSB03 CAP SCREW 5⁄16''-18 x 1''
25 P1531025 SPRING
26 PB03 HEX BOLT 5⁄16''-18 x 1''
27 P1531027 ARM CONTROL CASTING
28 P1531028 SLEEVE
29 P1531029 CONTROL SHAFT
30 P1531030 SPRING
32 PN22 HEX NUT 1'' x 8
33 P1531033 TILT KNOB
35A PN08 HEX NUT 3⁄8''-16
36 P1531036 LOCK KNOB
38 PB21 HEX BOLT 3⁄8''-16 x 3⁄4''
39 P1531039 COLLAR
40 P1531040 LEVER
41 P1531041 SWIVEL ASSEMBLY
42 P1531042 PLATE
43 P1531043 KNOB
44A P1023201 MITER GAUGE BODY
45 P1019Z016 KNOB
REF PART # DESCRIPTION
46A P1531046A TABLE
47 PW07 FLAT WASHER 5⁄16''
48 PB03 HEX BOLT 5⁄16''-18 x 1''
49 P1531049 TRUNNION, LEFT
49A P1531049A TRUNNION, RIGHT
50 PSS01 SET SCREW 5⁄16''-18 x 1''
51 P1531051 TABLE SUPPORT BRACKET
52 P1531052 LEVER SCREW
55 PB07 HEX BOLT 5⁄16''-18 x 3⁄4''
56 P1531056 HAND WHEEL
57 P1531057 LEVER SCREW
58 P1531058 SPLIT CASTING
59 PB18 HEX BOLT 3⁄8''-16 x 1''
60 P1531060 TABLE ADJ SHAFT
61 PLW04 LOCK WASHER 3⁄8"
62 P1531062 LEVELING ARM SHAFT
63 PN13 HEX NUT 1⁄2''-13
64 P1140064 STAND
65 PS08 PHILLIPS®SCRW 10-24 x 3⁄4''
66 P1531066 FEET
67 PS23 PHILLIPS®HD SCR 8-32 x 1⁄4''
68 P1531068 POINTER
69 P1140069 MOTOR BRACKET
71 P1531071 MOTOR
72 PB12 HEX BOLT 5⁄16''-18 x 11⁄4''
73 PN02 HEX NUT 5⁄16''-18
74 PW07 FLAT WASHER 5⁄16''
75 PSW06 SWITCH
76 PLW01 LOCK WASHER 5⁄16''
78 PW02 FLAT WASHER 3⁄8''
79 P1531079 DUST COLLECTION HOOD
80 P1531081 LEFT BRACKET
81 P1531082 TRACKING SCALE
82 P1531049B ANGLE SCALE
83 P1531083 LABEL
84 P1531084 SPECIAL WASHER
91 PB09 HEX BOLT 5⁄16''-18 x 1⁄2''
92 P1531080 GRAPHITE PAD
95 PWRCRD220L POWER CORD
97 P1140097 SPECIAL SCREW
98 P1140098 BRACKET
99 P1140099 BACK STOP
100 PSB14 CAP SCREW 3⁄8-16 x 1"
101 P1140101 SPECIAL WASHER
102 P1140102 LOCK BOLT
103 PW01 FLAT WASHER 1⁄2''
104 P1140104 WARNING LABEL
105 PLABEL7 GRIZZLY LOGO LABEL
REF PART # DESCRIPTION
