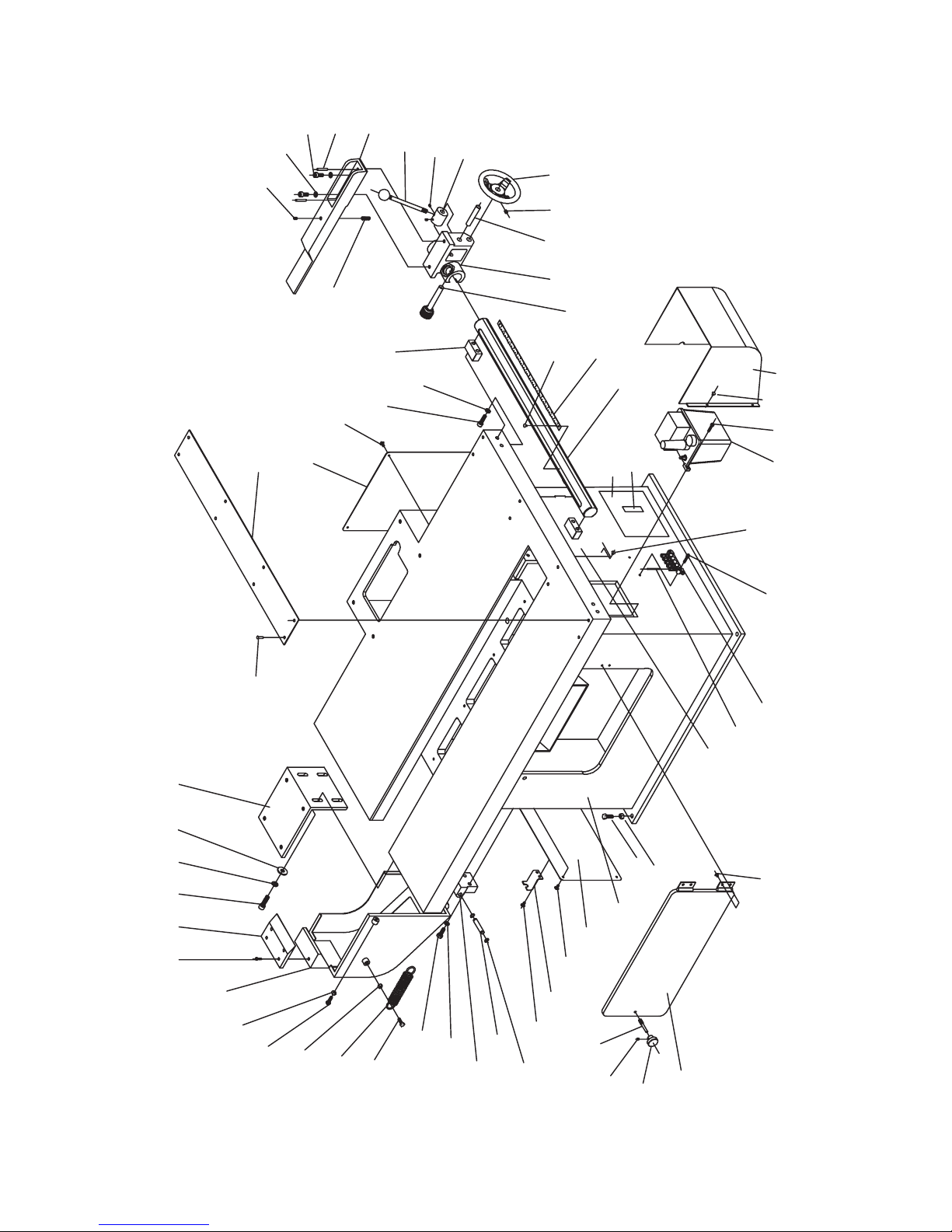

Grizzly G0524 User manual

-36- G0524 Rip Saw
17
18
16
19 20
21 22
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
64
65
61 60 58
48
63 62
45
44
31
41
40
39 32
31
30
6
38
34 12
46
47
6
37
49 52
51 54
53
50
55
56
57
37
59
22
7
29
28
27
26
36
25
24
23
42
43
35
15
14
66
19
51
19
44
33

G0524 Rip Saw -37-
1PSB24M CAP SCREW M5-.8 X 16
2P0524002 COVER, GEAR BOX
3P0524003 SPANNER LOCK NUT M20-1.0
4PTLW09M EXT TOOTH WASHER 20MM
5P51104 THRUST BEARING 51104
6PSB07M CAP SCREW M6-1 X 30
7PLW03M LOCK WASHER 6MM
8P0524008 GEAR BOX
9PK82M KEY 7 X 7 X 18
10 P0524010 LEAD SCREW
11 P0524011 LOCK SEAT
12 PSS06M SET SCREW M8-1.25 X 16
13 P0524013 HANDLE
14 PLW04M LOCK WASHER 8MM
15 PSB40M CAP SCREW M8-1.25 X 35
16 P0524016 SHAFT
17 P0524017 KNOB LEVER M10-1.5 X 135
18 P0524018 BLOCK
19 PSS01M SET SCREW M6-1 X 10
20 P0524020 SHAFT
21 P0524021 ANTI-KICKBACK FINGER
22 PSB01M CAP SCREW M6-1 X 16
23 P0524023 FIXED PLATE
24 P0524024 SEAT
25 P0524025 BLOCK
26 PW06M FLAT WASHER 12MM
27 PLW05M LOCK WASHER 12MM
28 PSB119M CAP SCREW M12-1.75 X 55
29 P0524029 SPECIAL TAPER PIN
30 P0524030 LOCKING STOPPER
31 P0524031 SPECIAL RING
32 P0524032 LIFTING EYE BOLT M12-1.75 X 22
33 P0524033 SPECIAL RING
34 P0524034 SHAFT
REF PART # DESCRIPTION
35 PW01M FLAT WASHER 8MM
36 P0524036 HANDWHEEL
37 PS05M PHLP HD SCR M5-.8 X 8
38 P0524038 COVER
39 P0524039 BEVEL GEAR, SMALL
40 PRP49M ROLL PIN 5 X 25
41 P0524041 LEAD SCREW
42 P0524042 ARM, CONTROL BOX
43 P0524043 BEVEL GEAR, BIG
44 P0524044 SPACER
45 P0524045 BUSHING
46 P0524046 SPECIAL PIN
47 P0524047 COVER
48 P0524048 SWITCH BOX
49 PSS16M SET SCREW M8-1.25 X 10
50 P0524050 HANDWHEEL
51 PSS15 SET SCREW 3/8-16 X 3/8
52 P0524052 INFEED BUTTON, ON
53 P0524052 SAW BLADE BUTTON, ON
54 P0524054 EMERGENCY BUTTON
55 P0524055 INFEED BUTTON, OFF
56 P0524055 SAW BLADE BUTTON, OFF
57 P0524057 ELECTRIC POWER BUTTON
58 P0524058 ARM, CONTROL BOX
59 P0524059 PANEL
60 P0524060 ROTATION SEAT
61 PN03M HEX NUT M8-1.25
62 P0524062 HANDLE
63 P0524063 ROTATION SEAT
64 PSB14M CAP SCREW M8-1.25 X 20
65 PSS09M SET SCREW M8-1.25 X 20
66 P0524066 BRACKET
67 P0524067 440V CONVERSION KIT
REF PART # DESCRIPTION

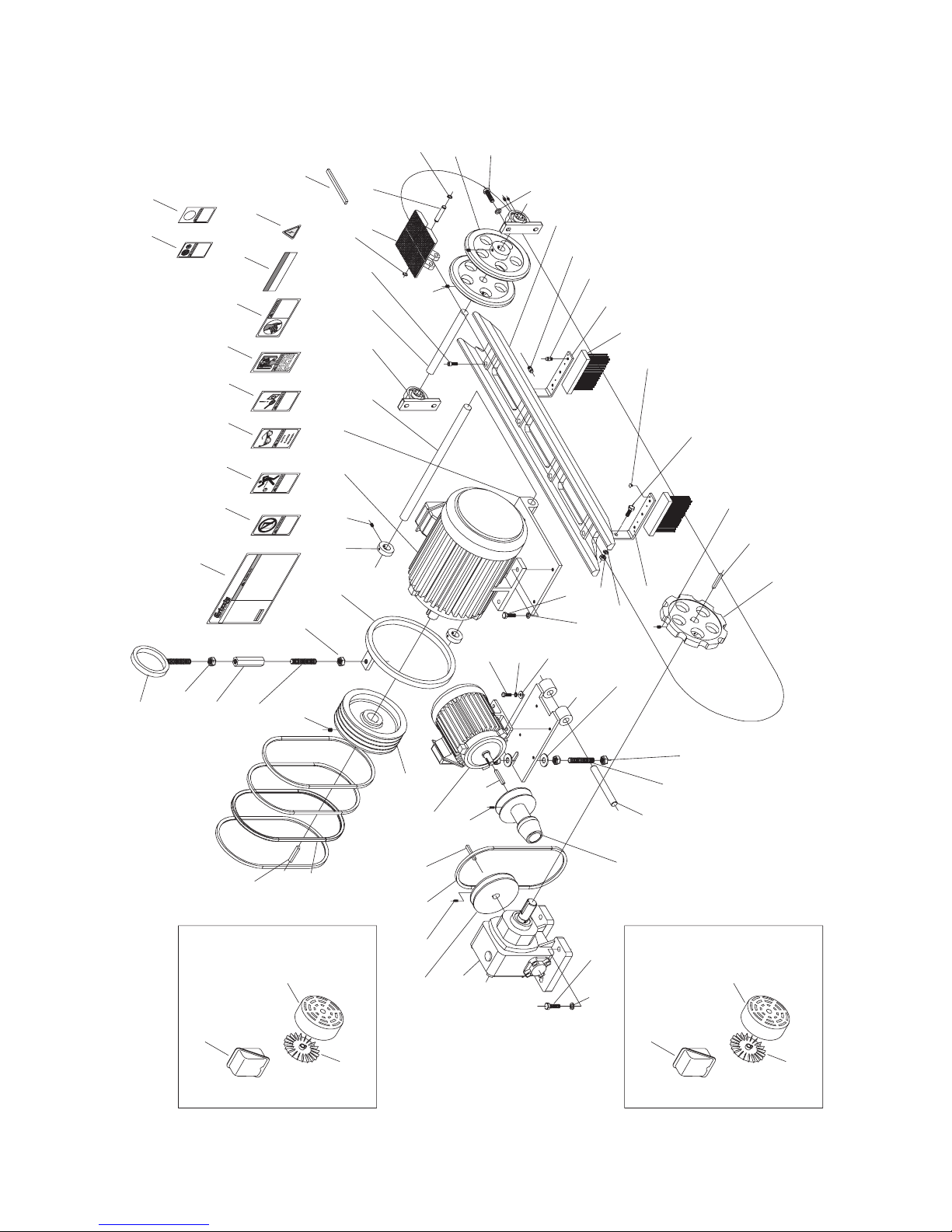

-38- G0524 Rip Saw
101
102
103
104
108
106 151 108 152 130
150 142 148 149 146 145
144
141
143
115
138
140
140
139
134
137
129
136
131
108
133
132
113
120
122 121
123
124 129 128
125
126
127
107
111
108 112
114
119
108
118
117
116
115
110
109
108
SPECIFICATIONS
G0524 STRAIGHT LINE
RIP SAW
TABLESIZE:53
1
⁄
8
"x37
3
⁄
8
"
MOTOR:15 HP, 220V, 3-PHASE MOTORSPEED: 1725 RPM
ARBORSPEED: 4500 RPM MAXIMUMBLADESIZE:12"
MAXIMUMWIDTH OF CUT:18
1
⁄
16
"
MAXIMUMDEPTH OF CUT:3
7
⁄
8
"
ARBORSIZE:1" TABLEHEIGHT:32
1
⁄
4
"
WEIGHT:1980LBS.
FAILURETOFOLLOW THESE WARNINGS WILLRESULT IN SERIOUS
PERSONAL INJURY:
1. READANDUNDERSTANDMANUAL BEFORE STARTING
MACHINE.
2.DO NOTREMOVEBLADEGUARD,SPLITTER,OR ANTI-
KICKBACK DEVICES!
3. ALWAYSWEARANSIAPPROVED EYE,EAR,ANDDUST
PROTECTIONWHENUSINGTHIS SAW.
4.NEVERPLACEHANDSNEARANY OPENINGONMACHINE
WHERE THEYCOULDBE DRAWN IN.
5.NEVERPLACEHANDS OR ARMSIN THE PATHOFTHE
BLADE.
6. KNOW HOWTOAVOIDRISKOFKICKBACK.
7. DO NOTWEAR LOOSE CLOTHING, GLOVESOR JEWELRY.
SECURELONGHAIRANDBUTTONALL
LONGSLEEVE SHIRTS.
8. PLUGPOWERCORDINTO GROUNDEDOUTLET ONLY.
9. DISCONNECTPOWERPRIORTOSERVICING,CHANGING
BLADESOR
ADJUSTINGFENCEANDMITERGAUGE.
10.MAKESUREBLADE HASCOMETO A COMPLETE STOPPRIORTO
MAKINGANYADJUSTMENTS.
Date SerialNumber
ManufacturedforGrizzlyinTaiwan
Disconnect
Power Before
Changing Blades
or Performing
Maintenance
Kickback hazard.
Avoid standing
directlyin frontor
behind machine.
KEEP COVER
CLOSED
WHILE IN USE
NOTICE
Onlyqualified personnel shouldoperate
machine. See supervisorfor training.
DO NOT PLACE
HANDS NEAR
INFEEDDURING
OPERATION!
153
154 155 156 157 158 159 160 161
111-1
111-3
111-2
152-1
152-3
152-2
105
144
135
147
Beforestarting the
conveyortrack,make
surethe arbor rotates
counterclockwiseas
viewedthroughthe side
accessdoor!
(Note—Sawblademust
beremoved!)
DONOTTURNON THE
CONVEYORTRACK
UNTILTHECORRECT
ARBORROTATION HAS
BEENVERIFIED!
162
163

G0524 Rip Saw -39-
101 P0524101 SPEC. EYE-BOLT M16-2 X 90LH
102 P0524102 HEX NUT M16-2LH
103 P0524103 SPECIAL NUT M16-2 LH/RH
104 P0524104 SPECIAL BOLT M16-2 X 110
105 PN13M HEX NUT M16-2.0
106 P0524106 ADJUSTING RING
107 P0524107 PULLEY
108 PSS06M SET SCREW M8-1.25 X 16
109 PVA55 V-BELT A-55 4L550
110 PK83M KEY 10 X 8 X 70
111 P0524111 MOTOR 2 HP
111-1 P0524111-1 MOTOR COVER 2 HP
111-2 P0524111-2 MOTOR FAN 2 HP
111-3 P0524111-3 MOTOR WIRE COVER 2 HP
112 PK41M KEY 8 X 8 X 40
113 P0524113 REDUCER PULLEY
114 PK62M KEY 7 X 7 X 45
115 PLW05M LOCK WASHER 12MM
116 PB35M HEX BOLT M12-1.75 X 40
117 P0524117 REDUCER, WORM GEAR
118 P0524118 REDUCER PULLEY
119 P0524119 COG TOOTH BELT 1922V30-22
120 P0524120 SHAFT
121 PN09M HEX NUT M12-1.75
122 P0524122 STUD BOLT M12-1.75 X 100
123 PW06M FLAT WASHER 12MM
124 P0524124 MOTOR SEAT
125 PW06M FLAT WASHER 12MM
126 PLW04M LOCK WASHER 8MM
127 PB07M HEX BOLT M8-1.25 X 25
128 PB14M HEX BOLT M10-1.5 X 35
129 PLW06M LOCK WASHER 10MM
130 P0524130 MOTOR SEAT
131 PN02M HEX NUT M10-1.5
REF PART # DESCRIPTION
132 P0524132 SPROCKET (10T)
133 PK84M KEY 10 X 8 X 30
134 P0524134 BRUSH
135 P0524135 BRACE
136 PB01M HEX BOLT M10-1.5 X 30
137 PS21 PHLP HD SCR #8 X 3/4"
138 P0524138 RAIL BODY
139 P0524139 BRACE
140 P0524140 OIL NOZZLE 1/8"PT X 4MM
141 P0524141 IDLE WHEEL
142 P0524142 BALL BEARING ASSEMBLY
143 PB27M HEX BOLT M12-1.75 X 30
144 PR03M EXT RETAINING RING 12MM
145 P0524145 SHAFT
146 P0524146 CATERPILLAR BLOCK
147 P0524147 BAKELITE
148 P0524148 SHAFT
149 PSB31M CAP SCREW M8-1.25 X 25
150 P0524150 SHAFT
151 P0524151 SPACER
152 P0524152 MOTOR 15 HP
152-1 P0524152-1 MOTOR COVER 15 HP
152-2 P0524152-2 MOTOR FAN 15 HP
152-3 P0524152-3 MOTOR WIRE COVER 15 HP
153 P0524153 MACHINE ID LABEL
154 P0524154 KEEP COVER CLOSED LABEL
155 P0524155 KICKBACK LABEL
156 PLABEL-11 SAFETY GLASSES LABEL
157 P0524157 UNPLUG LABEL 220V
158 PLABEL-12 READ MANUAL LABEL
159 P0524159 INFEED HAND LABEL
160 P0524160 TRAINING LABEL
161 PLABEL-14 ELECTRICITY LABEL
162 P0524162 HANGING BUTTON LABEL
163 P0524163 ARBOR ROTATION LABEL
REF PART # DESCRIPTION

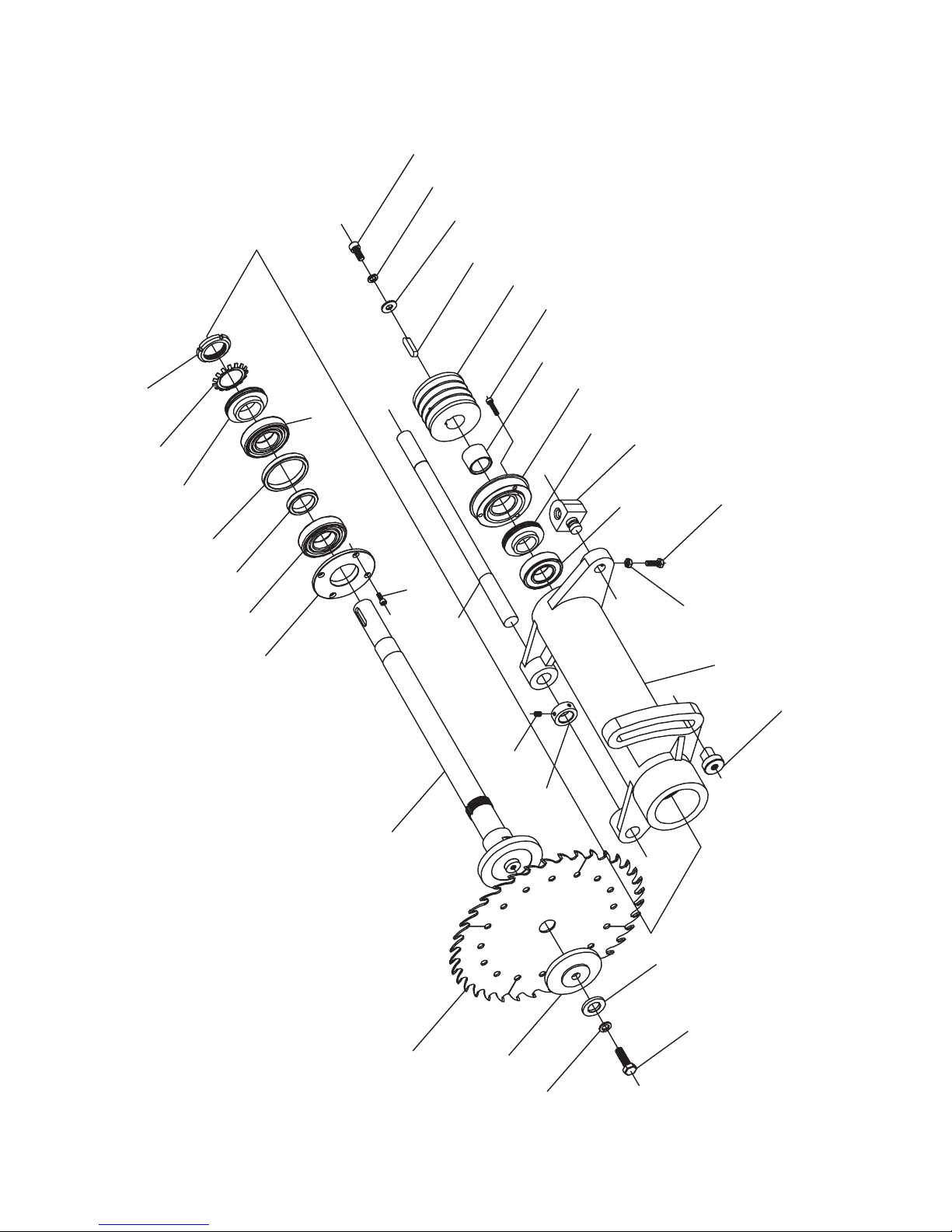

-40- G0524 Rip Saw
201
203
202
204
232
205
219
218
214
215
216
217
222 221
223
220
206
208
207 208 209
210
211
212 213
231
230
229
228
227
225
226
224

G0524 Rip Saw -41-
201 PB35M HEX BOLT M12-1.75 X 40
202 PLW05M LOCK WASHER 12MM
203 P0524203 SPECIAL WASHER 12 X 30 X 5MM
204 P0524204 PRESS PLATE
205 P0524205 MAIN SPINDLE
206 PSB01M CAP SCREW M6-1 X 16
207 P0524207 COVER, FRONT
208 P7208 BALL BEARING 7208
209 P0524209 RING
210 P0524210 RING
211 P0524211 STOPPER, FRONT
212 PTLW10M EXT TOOTH WASHER 40MM
213 P0524213 SPANNER LOCK NUT M40-1.5LH
214 P0524214 SPECIAL NUT M12-1.75
215 P0524215 SPINDLE SHAFT BOX
216 PN03M HEX NUT M8-1.25
REF PART # DESCRIPTION
217 PB20M HEX BOLT M8-1.25 X 35
218 P0524218 LOCK COLLAR
219 PSS16M SET SCREW M8-1.25 X 10
220 P0524220 SHAFT
221 P0524221 SPECIAL NUT TW22-P5
222 P6207 BALL BEARING 6207ZZ
223 P0524223 STOPPER, REAR
224 P0524224 COVER, SPINDLE
225 PSB07M CAP SCREW M6-1 X 30
226 P0524226 SPACER
227 P0524227 PULLEY, SPINDLE
228 PK85M KEY 10 X 8 X 40
229 PW04M FLAT WASHER 10MM
230 PLW06M LOCK WASHER 10MM
231 PSB64M CAP SCREW M10-1.5 X 25
232 P0524232 SAW BLADE 12" X 48T X 4W
REF PART # DESCRIPTION

-42- G0524 Rip Saw
303304
305
306
307
302
308
316
301
317
318
321
322
323
320
319
308
324
325
326
327
328
329330
331
332
333
334
335
336
337
338 339 340 341
325342
343
344
345 346
304
347 339
335
345
344
333
343
340
346
339 330
329
327 348
349 350
339
352
351
354
355
356
357
323
358
360
364
361
359
362
363
359
358
365
314
313
312
311 310 309 308
315
339
353

G0524 Rip Saw -43-
301 P0524301 KNOB SCREW M10-1.5 X 20
302 PSS02M SET SCREW M6-1 X 6
303 P0524303 CHIP FUNNEL
304 PS32M PHLP HD SCR M8-1.25 X 25
305 PLW04M LOCK WASHER 8MM
306 P0524306 SHAFT
307 P0524307 HINGE (BIG)
308 PS11M PHLP HD SCR M6-1 X 16
309 P0524309 BUSHING 6 X 10 X 10T
310 P696 BALL BEARING 696
311 PS47M PHLP HD SCR M6-1 X 25
312 P0524312 WOBBLE ARM
313 P0524313 BUSHING 6 X 10 X 6T
314 P0524314 SIDE GUARD
315 PN01M HEX NUT M6-1
316 P0524316 STEEL KNOB (FEMALE 7MM)
317 PB13M HEX BOLT M10-1.5 X 80
318 PN02M HEX NUT M10-1.5
319 P0524319 BRACKET
320 P0524320 LIMIT SWITCH
321 PS08M PHLP HD SCR M5-.8 X 12
322 P0524322 COVER
323 PS05M PHLP HD SCR M5-.8 X 8
324 P0524324 BACK SAFETY GUARD
325 PW03M FLAT WASHER 6MM
326 P0524326 SHAFT
327 P0524327 BEARING COVER, RIGHT
328 P6204 BALL BEARING 6204ZZ
329 P0524329 ROLLER
330 P0524330 BEARING COVER, LEFT
331 P0524331 SPRING
332 P0524332 SPRING SEAT
333 P0524333 ARM
REF PART # DESCRIPTION
334 P0524334 SPRING
335 P0524335 ARM
336 P0524336 SHAFT
337 P0524337 GREASE FITTING M6-1 X 6
338 P0524338 SHAFT
339 PSS01M SET SCREW M6-1 X 10
340 P0524340 BEARING COVER, LEFT
341 P6302 BALL BEARING 6302
342 PS14M PHLP HD SCR M6-1 X 12
343 P0524343 ROLLER, LEFT
344 P0524344 ROLLER, RIGHT
345 P0524345 BEARING COVER, RIGHT
346 P0524346 ARM, LEFT
347 P0524347 HINGE (SMALL)
348 PSS19M SET SCREW M8-1.25 X 30
349 P0524349 HANDLE M12-30
350 P0524350 SHAFT
351 P0524351 FINGERS
352 P0524352 BLOCK
353 P0524353 BRACKET
354 P0524354 SHAFT
355 P0524355 SLIDE PLATE
356 P0524356 LOCK BAR
357 P0524357 NEEDLE
358 PLW06M LOCK WASHER 10MM
359 PB01M HEX BOLT M10-1.5 X 30
360 PLW05M LOCK WASHER 12MM
361 PB35M HEX BOLT M12-1.75 X 40
362 P0524362 BRACKET
363 P0524363 LOCK BAR
364 PN03M HEX NUT M8-1.25
365 P0524365 ROLLER SEAT
366 G8589 LARGE CAST LOGO
REF PART # DESCRIPTION

-44- G0524 Rip Saw
425
428
427 426
420
424
421
420
419
418
415
416
417
414
413
412
411
410
409
408 407
406 405 404 403 402 401
440
431
432 433
420 430429
436 433
457 458
456
420
441
414
442
451
454 414
453
452
455
450
449
448
447
446
445
444
443
438
435
422
423
437
434
439

G0524 Rip Saw -45-
401 P0524401 BRACKET
402 PW06M FLAT WASHER 12MM
403 PLW05M LOCK WASHER 12MM
404 PSB92M CAP SCREW M12-1.75 X 40
405 P0524405 COVER PLATE
406 PSB24M CAP SCREW M5-.8 X 16
407 P0524407 COVER
408 PN03M HEX NUT M8-1.25
409 PB20M HEX BOLT M8-1.25 X 35
410 PN08M HEX NUT M10-1.25
411 P0524411 SPRING
412 PSB89M CAP SCREW M10-1.25 X 35
413 PB116M HEX BOLT M10-1.5 X 45
414 PLW06M LOCK WASHER 10MM
415 PR03M EXT RETAINING RING 12MM
416 P0524416 SHAFT
417 P0524417 BRACKET
418 PSB04M CAP SCREW M6-1 X 10
419 P0524419 BRACKET
420 PS14M PHLP HD SCR M6-1 X 12
421 P0524421 COVER
422 PB114M HEX BOLT M10-1.5 X 45
423 PN05M HEX NUT M16-1.5
424 P0524424 STAND
425 P0524425 COVER
426 P0524426 LOCK SCREW
427 PSS02M SET SCREW M6-1 X 6
428 P0524428 STEEL KNOB (FEMALE 7MM)
429 P0524429 COVER
REF PART # DESCRIPTION
430 PS05M PHLP HD SCR M5-.8 X 8
431 P0524431 OIL TUBE
432 P0524432 CONTACTOR, LUBRICATION
433 PSB02M CAP SCREW M6-1 X 20
434 P0524434 COVER
435 P0524435 COLUMN, GEAR
436 P0524436 LUBRICATOR
437 PS79M PHLP HD SCR M3-0.5 X 8
438 P0524438 SCALE 480MM
439 P0524439 ACRYLIC PIECE
440 P0524440 COVER
441 PSB71M CAP SCREW M10-1.5 X 60
442 P0524442 BRACKET
443 P0524443 GEAR
444 P0524444 GEAR BOX
445 P0524445 SHAFT
446 PSS16M SET SCREW M8-1.25 X 10
447 P0524447 HANDWHEEL
448 P0524448 SETTING BLOCK
449 PSS01M SET SCREW M6-1 X 10
450 P0524450 KNOB LEVER M12-1.75 X 140
451 P0524451 SPECIAL SCREW M10-1.5 X 28
452 P0524452 TAPER PIN #7 X 1-1/2"
453 PSB89M CAP SCREW M10-1.25 X 35
454 PSS75M SET SCREW M10-1.5 X 16
455 P0524455 FENCE
456 P0524456 COVER
457 PFH06M FLAT HD SCR M6-1 X 20
458 P0524458 SAFE COVER
REF PART # DESCRIPTION

-46- G0524 Rip Saw

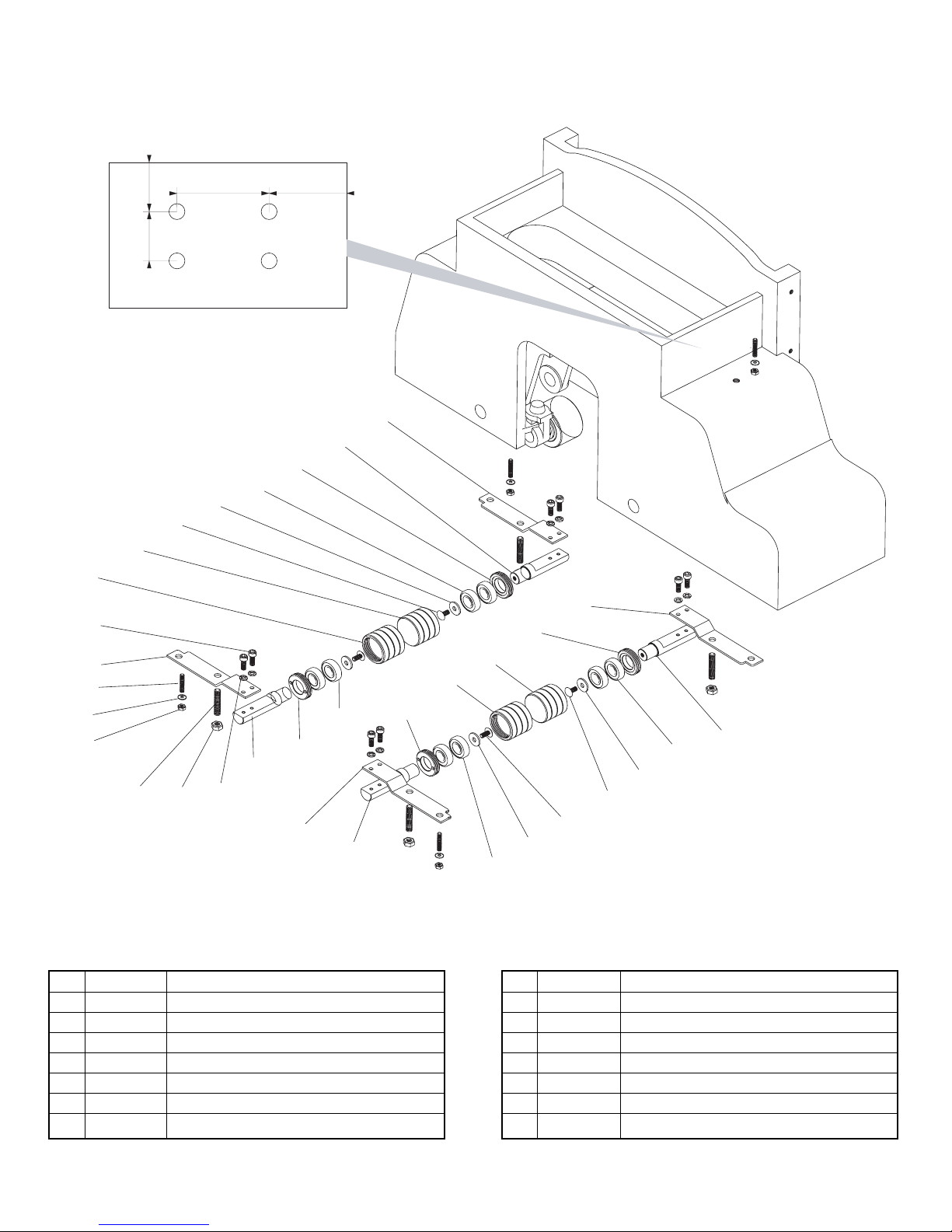

501 P0524501 SPRING PLANK
502 P0524502 SHAFT
503 P0524503 BEARING COVER, RIGHT
504 P6003 BALL BEARING 6003
505 PW03M FLAT WASHER 6MM
506 PS14M PHLP HD SCR M6-1.0 X 12
507 P0524507 ROLLER, RIGHT
508 P0524508 ROLLER, LEFT
REF PART # DESCRIPTION
509 PSB01M CAP SCREW M6-1.0 X 16
510 P0524510 SPRING PLANK
511 PSS28M SETSCREW M6-1.0 X 30
512 PN01M HEX NUT M6-1.0
513 PSS28M SETSCREW M8-1.25 X 30
514 PN03M HEX NUT M8-1.25
515 PLW03M LOCK WASHER 6MM
516 P0524516 BEARING COVER, LEFT
REF PART # DESCRIPTION
501
502
503
504
505
506
507
508
509
510
511
505
512
513 514 515
502 516
504 516
508
507
503
510
502
504
505
506
506
505
502
501
504
Hole Pattern For
Arm Attachment
55mm
60mm
30mm 30mm

G0524 Rip Saw -47-

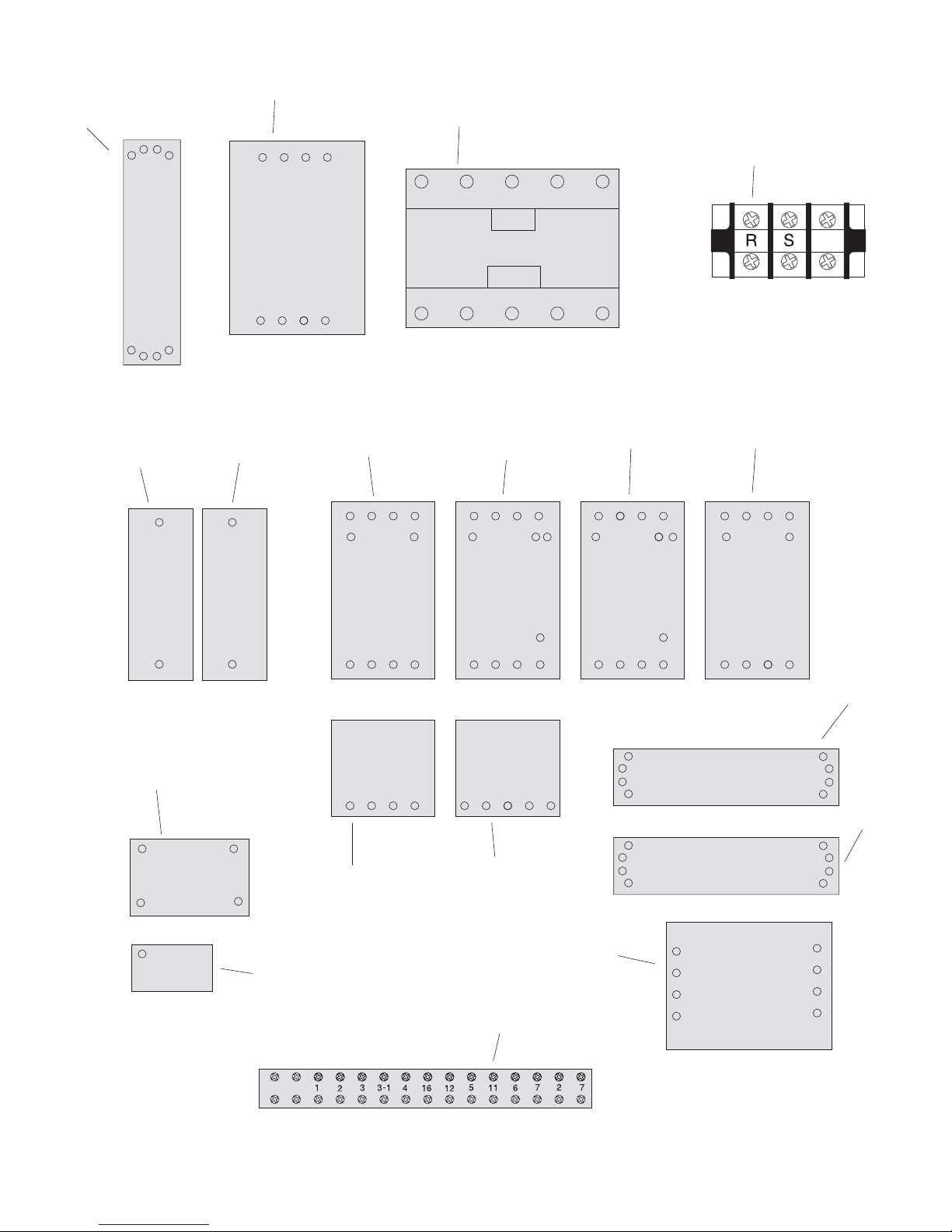

T1R1
T
Timer
Fuse
10*38-4A
Fuse
10*38-4A
Switch
CN-11
Switch
CN-18
Switch
CN-18
Switch
CN-16
Overload
RH10E/7C
5.5-8.5A
Overload
RH10E/20C
16-24A
Timer
Terminal
Commutator
S2506
Ground
Control Relay
MY2NJ-200/220VAC
Control Relay
MY2NJ-200/220VAC
Control Relay
MY2NJ-200/220VAC
Input
Output
0V 220V 380V 415V 440V
220V 24V 0V 0V E
Transfromer - OV-440V/DC24V
601 603
604
602
605 606 607
608
609
610
611 612
613
614
615
616
617
618

-48- G0524 Rip Saw
601 P0524601 RELAY MY2NJ-200/220VAC
602 P0524602 TIMER
603 P0524603 TRANSFORMER 0V-440V/DC24V
604 P0524604 TERMINAL PLATE
605 P0524605 FUSE 10*38-4A
606 P0524606 FUSE 10*38-4A
607 P0524607 SWITCH CN-11
608 P0524608 OVERLOAD RH10E/7C 5.5-8.5A
609 P0524609 SWITCH CN-18
REF PART # DESCRIPTION
610 P0524610 OVERLOAD RH10E/20C 16-24A
611 P0524611 SWITCH CN-16
612 P0524612 SWITCH CN-11
613 P0524613 TERMINAL
614 P0524614 GROUND
615 P0524615 RELAY MY2NJ-200/220VAC
616 P0524616 TIMER
617 P0524617 RELAY MY2NJ-200/220VAC
618 P0524618 COMMUTATOR S2506
REF PART # DESCRIPTION

G0524 Rip Saw -49-
701 PSB48M CAP SCREW M6-1.0 X 35
702 PH5749702 LASER CLAMP ASSEMBLY
702-1 PH5749702-1 LASER CLAMP (TOP)
702-2 PH5749702-2 LASER CLAMP (BOTTOM)
703 PH5749703 LASER
704 PSB01M CAP SCREW M6-1.0 X 16
705 PH5749705 LASER BRACKET ASSEMBLY
705-1 PSB18M CAP SCREW M4-0.7 X 8
705-2 PW05M FLAT WASHER 4MM
705-3 PH5749705-3 LASER BRACKET (TOP)
REF PART # DESCRIPTION
705-4 PH5749705-4 LASER BRACKET (BOTTOM)
706 PH5749706 STEEL ARM
707 PSB31M CAP SCREW M8-1.25 X 25
708 PS05M PHLP HD SCR M5-0.8 X 8
709 PH5749709 POWER BOX
710 PH5749710 FUSE T1AL250V
711 PH5749711 FUSE COVER
712 PLW04M LOCK WASHER 8MM
713 PW01M FLAT WASHER 8MM
714 PW03M FLAT WASHER 6MM
REF PART # DESCRIPTION
706
707
713
712
704
714
702
701
703
708
711
709
710
705
705-3
705-1
705-1
705-2
705-4
702-1
702-2
