Growonix BP-1000 User manual

1
www.growonix.com toll free 888.406.8521, oce 818.510.0264, [e-mail]
BP-1000
Booster Pump
Owners Manual
www.growonix.com
Built in the U.S.A.

2
OUR MISSION
Durability, Reliability, Eciency, Purity, and Conservation form the foundation on which we design and build
all of our products. Consistent and superior quality sets us apart from other manufacturers and increases
our value to you - our customer. Whether you are a hydroponics hobbyist, serious enthusiast, or large-scale
gardener, GrowoniX is committed to bringing you the best solution for water purication systems.
WHAT IS REVERSE OSMOSIS?
Reverse osmosis (RO) is a ltration method that removes many types of large molecules and ions from
solutions by applying pressure to the solution when it is on one side of a selective membrane. This ltering
process ensures that the solute (waste water) is contained within the pressurized chamber while the pure
solvent (RO water) is allowed to pass freely through the membrane.
TUNED FOR GROWING - IN TUNE WITH OUR CUSTOMERS

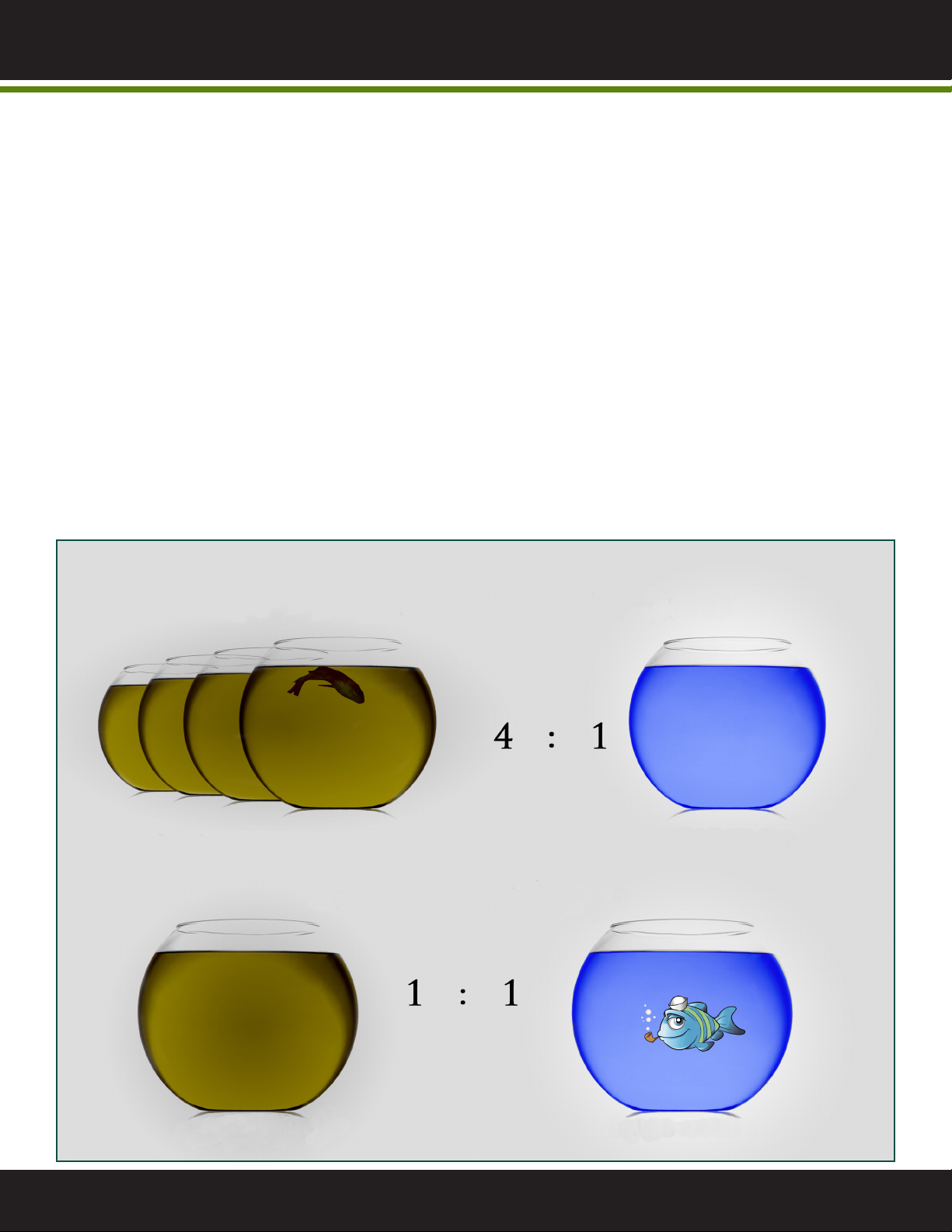

Traditional RO systems have waste ratios of approximately 4:1, which means there are 4 gallons of waste
water produced for every 1 gallon of puried water. GrowoniX line of water lters achieve waste ratios of 2:1
with all 200-400 GPD systems, and an astounding 1:1 ratio with the 600-1000 GPD systems.
GrowoniX has created a complete product line that will address the needs of hydroponic operations of all sizes.
Our lters will signicantly reduce your water use while dramatically increasing your yields.
THE TRADITIONAL WAY
takes 4 gallons of waste water to produce 1 gallon of pure water
THE GrowoniX WAY
2
INTRODUCTION

3
www.growonix.com toll free 888.406.8521, oce 818.510.0264, [e-mail]
Built in the U.S.A. 3
FEATURES
WHY USE A GROWONIX BP-1000 ?
Increases pure water production for all 600-1000 GPD RO systems.
Raises the input pressure to 80psi.
Can siphon from a rain barrel or tank and produce the full pump pressure.
Needs zero psi of incoming water pressure to produce the full ow rate.
High pressure cuto—automatically shuts the pump o when used with a
solenoid valve, ball valve, oat valve, or watering wand etc...
• To raise the water pressure on any 600-1000 GPD water lter.
• To supply a misting system.
• To raise the pressure on any water appliance that ows up to 1.4 GPM @ 80psi.
• To bilge out water from a tank or reservoir.
• To supply a faucet, shower, or hose bib (MAX 1.4 GPM).
CONNECT MULTIPLE IN PARALLEL AND DOUBLE THE FLOW RATE!

BASIC INFORMATION
• The BP-1000 Booster Pump is designed for use with all GrowoniX water lters 600-1000 GPD.
• The pump is designed to boost low water pressure to optimal pressure.
• Do not exceed 80 psi output pressure.
ABOUT
CAUTIONS
MOUNTING
• The pump is equipped with an adjustable bypass valve which controls the maximum operating pressure.
In addition, never subject the pump to pressures above 80 PSI.
• Never operate the pump in a harsh environment or hazardous atmosphere,
since motor brush and switch may cause electrical arcing.
• Pumphead materials are designed for use with water only. Do not use with petroleum products.
• Always consider electrical shock hazard when working with and handling electrical equipment.
If uncertain, consult an Electrician. Electrical wiring should only be done by a qualied Electrician per
Local and State Electrical Codes.
• The pump should be mounted in a dry place and away from any source of heat. If an enclosure is used,
special provisions for cooling the motor may be necessary. Consult the Factory.
• Do not subject the pump to extreme high or low (freezing) temperatures while in operation. (Operating
ambient temperature range is 32ºF to 115ºF).
• The pump may be mounted in any position. If “ceiling mounted”, however, with the pumphead upside
down, air entrapment may reduce the operational performance by up to 15%.
READ ENTIRE MANUAL THOROUGHLY
BEFORE INSTALLING THIS HIGH PRESSURE-BOOSTING PUMP.

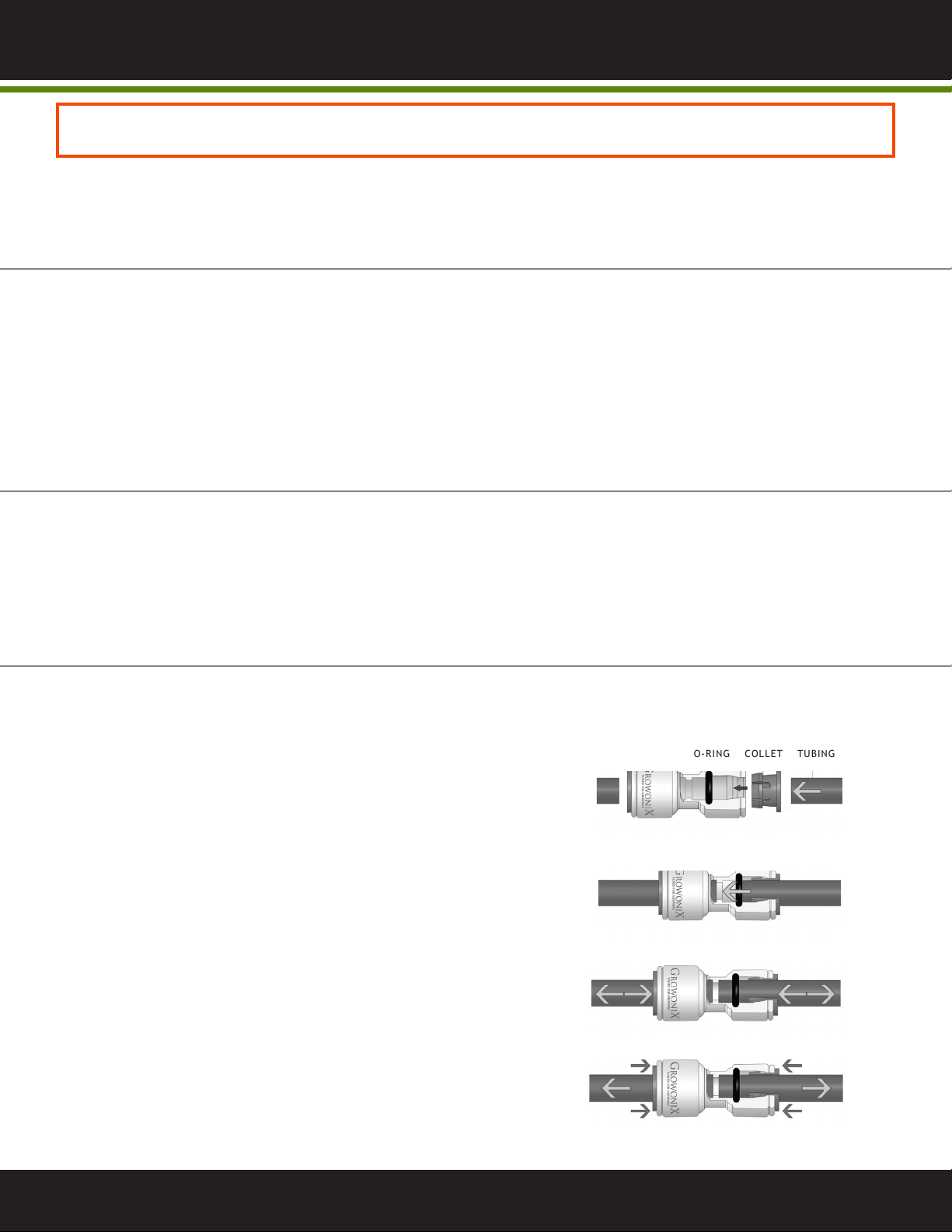

INSERT TUBE INTO FITTING
Push the tubing through the collet and dual o-rings until it
bottoms out against the tube stop.
The collet holds the tube in place and the dual o-rings provide
a leak resistant seal.
MAKE A CLEAN TUBE CUT
Cut the tube squarely and if using plastic tubing, ensure that the cut
has not made the tube out of round.
Also ensure that the tube has a smooth outside diameter without
any burrs or score marks prior to inserting it into the tting.
TEST AND INSPECT
Push and pull the tubing toward and away from the tting to
ensure that it has been installed properly.
Test and inspect the installation for any leaks.
TUBE REMOVAL
Relieve pressure from the tubing and tting. Push uniformly
around the collet ange against the tting body while pulling
the tubing away from the tting to release it.
O-RING
COLLET
TUBING
PUSH COLLET IN PULL TUBE OUT
GROWONIX WATER FILTERS USE QUICK CONNECT FITTINGS
THAT ALLOW FOR EASY MAINTENANCE.
4

The motor is available in 110 and 50/60 hertz 1 phase 3A. Please ensure that the electrical circuit supplying the
system is compatible with the requirements of the BP-1000 pump. Each BP-1000 pump is equipped with an 5”
electrical cord.
WE RECOMMEND THAT A LICENSED ELECTRICIAN WIRE YOUR SYSTEM IN ACCORDANCE WITH LOCAL
AND NATIONAL ELECTRICAL CODES (NEC).
TO REDUCE THE RISK OF ELECTRICAL SHOCK, THE INCOMING POWER SUPPLY MUST INCLUDE A
PROTECTIVE EARTH GROUND.
Pump will prime only if all pressure is relieved from the outlet port.
It is recommended that an in-line sediment lter (150 micron or 100 mesh) be installed at the inlet side to keep
foreign debris out of the system.
Avoid any sharp bends which may crimp tubing and restrict ow. Use 90º elbow ttings if necessary.
Carbon lters should be ushed prior to connectivity to prevent carbon particles from entering the pump
chambers, and possibly causing clogging.
• The input is 3/8” & 1/2” OD” quick connect tubing.
• The output is 3/8” & 1/2” OD quick connect tubing.
PLUMBING
CAUTION
ELECTRICAL
NOTE
WARNING
PLUMBING AND ELECTRICAL
Part # PLUMBING
In / Out Voltage Amps Flow Rate
High
Pressure
Cuto
Duty Cycle
BP-1000 3/8” & 1/2”
OD tube 120 VAC 3A 1.4 GPM Yes Intermittent
Any restrictions or blockage in the drain line of the RO system can cause back pressure, which will increase
the systems operating pressure. this can result in damage to the system’s membranes and components and
a potentially DANGEROUS OVERPRESSURIZATION CONDITION. We recommend use of exible tubing with
proper pressure rating.
Built in the U.S.A. 5

READ ENTIRE MANUAL THOROUGHLY
BEFORE INSTALLING THIS PRESSURE-BOOSTING PUMP
6
7
5
1. Motor
2. PuMP Inlet
3. PuMP outlet
4. AdjustAble InternAl byPAss
5. HeAt sInk
6. Pressure swItcH
7. Power trAnsforMer
2
3
1
4
COMPONENT DIAGRAM
6

Snap the Heat Sink into place.
ADDING THE HEAT SINK
7
Built in the U.S.A.

INTSTALLING THE PRESSURE SWITCH

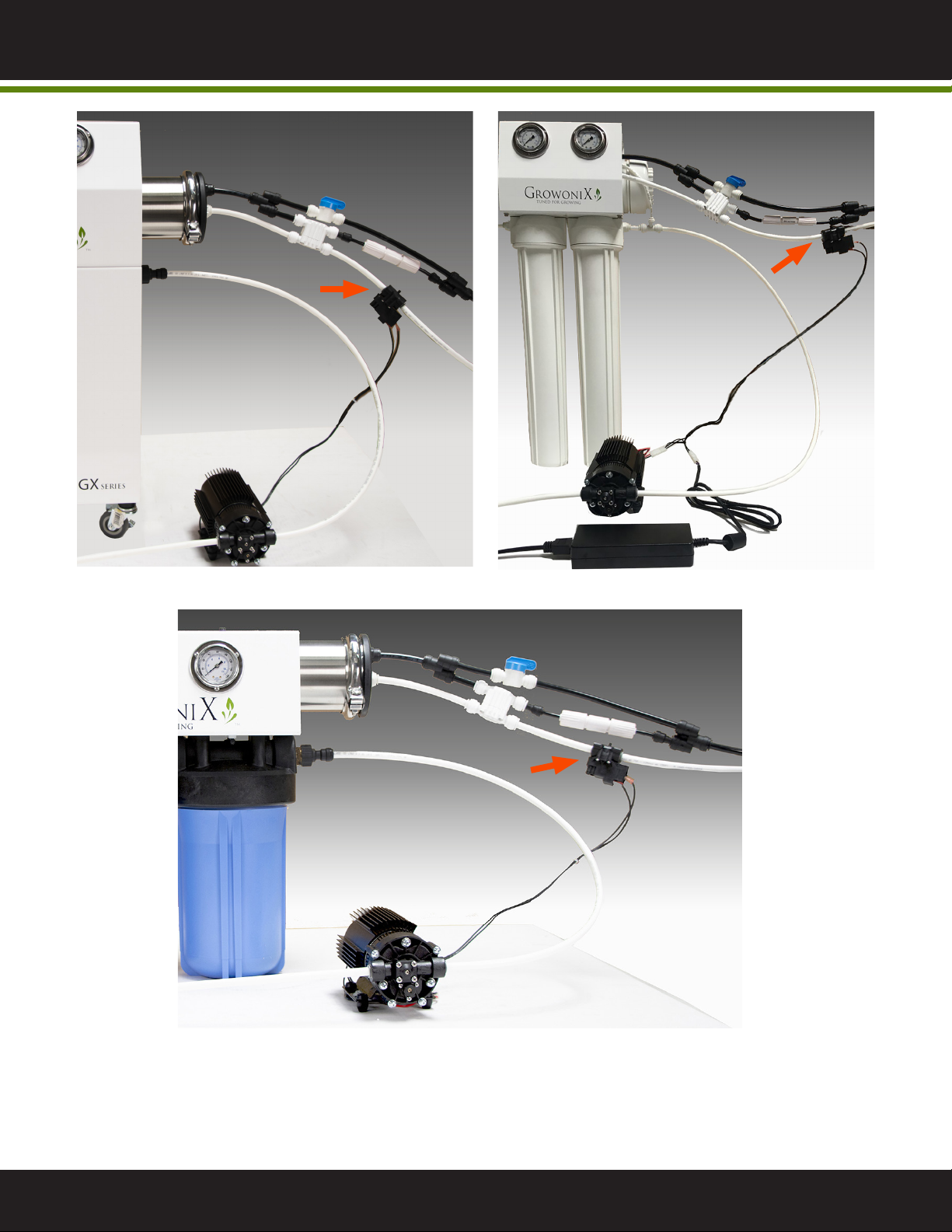

Install the pressure switch on the product water line (RO out tubing) after the auto-shuto valve. The switch can
be installed in any direction.
GX1000 EX800
EX1000
8

2
4
1
3
Make note of direction of ow prior to
installation.
Connect feed water tubing to pump input.
Insert output tubing into pump output.
Insert output tubing into RO
lter input.
Input
Input
Output
Output
PLUMBING INSTRUCTIONS
9
Built in the U.S.A.

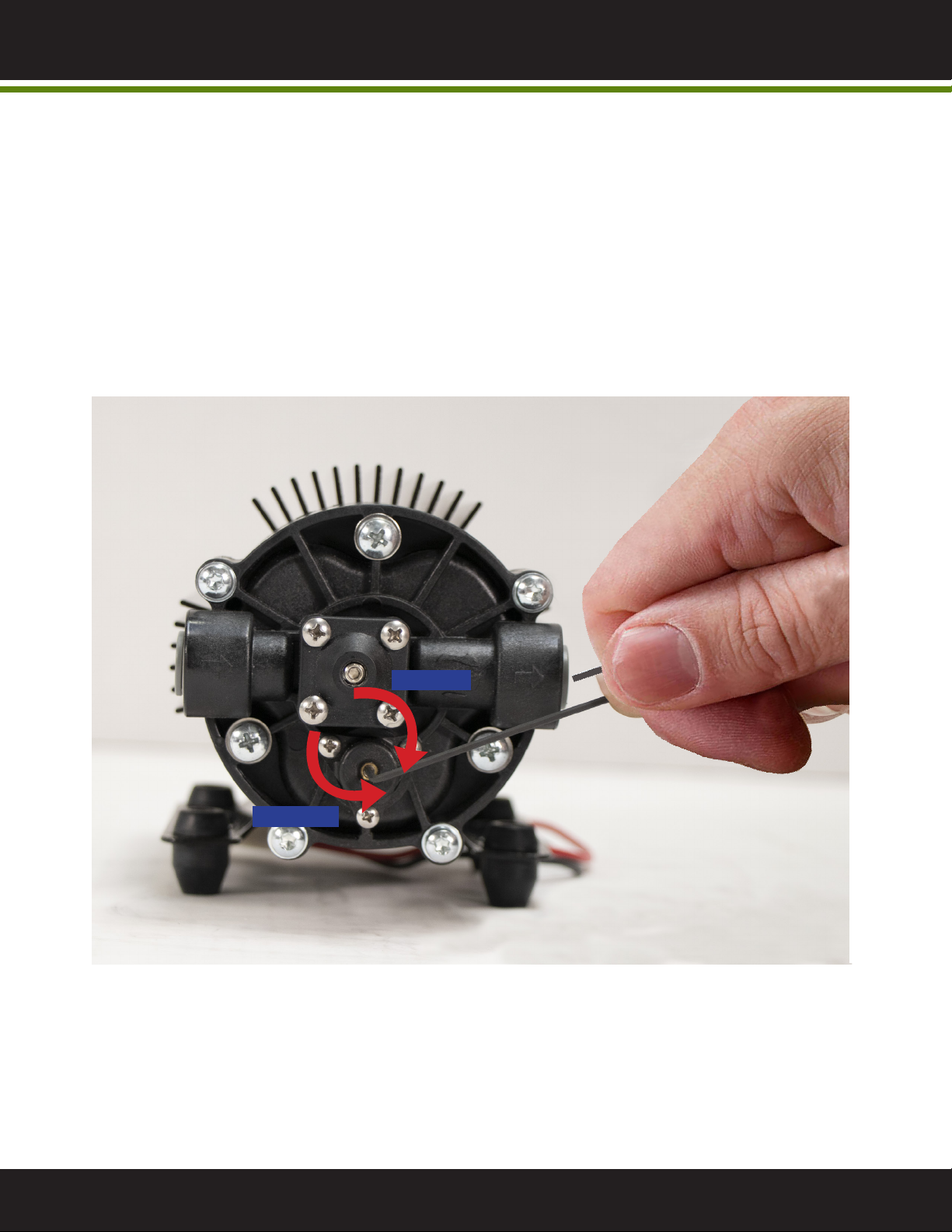

The BP-1000 Booster Pump is equipped with an adjustable internal bypass valve, which controls the maximum
operating pressure. The valve is located in the center of the triangular cap on the top of the pump head, between
the input and output ports. To adjust, insert the included 1/16” Allen Wrench into the chrome adjustment screw.
Turn clockwise to increase operating pressure. Turn counter-clockwise to decrease operating pressure. Do not
exceed 80 psi operating pressure.
Turn CLOCKWISE to increase operating pressure.
Turn counter-clockwise to DECREASE operating pressure
Increase
Reference the pressure guage on the front of RO lter while adjusting the pump pressure.
DECREASE
INCREASE
ADJUSTABLE INTERNAL BYPASS
10

11
www.growonix.com toll free 888.406.8521, oce 818.510.0264, [email protected]
For a period of one year from the date of original purchase, we will replace or repair any part of the GrowoniX
product that we nd to be defective in operation due to faulty materials or workmanship with the exception of
the replaceable lters and membranes.
GENERAL CONDITIONS
Damage to any part of this product because of misuse; misapplication; negligence; alteration; accident;
installation; or operation contrary to our instructions, incompatibility with accessories not installed by GrowoniX,
or damage caused by freezing, ood, re, or Act of God, is not covered by this warranty. In all such cases,
regular charges will apply. This limited warranty does not include service to diagnose a claimed malfunction in
this unit. This warranty is void if the claimer is not the original purchaser of the unit or if the unit is not operated
under normal municipal water or well water conditions.
GrowoniX assumes no liability in connection with this product. GrowoniX assumes no liability for any damages
incurred through the use of this product. It is the responsibility of the end user to gauge the safe use of this
product in the environment where it is applied. We do not authorize any person or representative to assume for
us any other obligations on the sale of this reverse osmosis system. The information given out in the manual
we believe to be true, but are oered to you in good faith without guarantee because each application of this
product is dierent and beyond our control.
GROWONIX RETURN POLICY
MERCHANDISE RETURN DETAILS AND PROCEDURE:
If any merchandise was defective —we will refund the full purchase price upon receiving and reviewing the
merchandise returned in undamaged condition.
RMA NUMBER:
You must rst obtain a Return Merchandise Authorization (RMA) number from GrowoniX.com. Any products
sent to GrowoniX without an RMA number will not receive a refund and may be returned to the sender at their
expense.
All refund amounts will be based on the manufacturer’s warranty and GrowoniX return policy. Refunds will be
issued back using the payment method you used when you placed your order. Refunds take up to 3-5 business
days to process once we receive the return.
PACKAGING:
Please kindly re-pack the product in its original box, or a box of equivalent strength. The unit should be packed
in the same manner as it came to prevent damage in shipping. Please return everything that was in the original
box, including any free items if applicable. Be sure to drain out all water from wet systems and parts and wrap
them in plastic bags before packing.
RETURN TO:
We will provide you with an GrowoniX warehouse address for return merchandise when we issue the RMA number.
GROWONIX SYSTEM WARRANTY

BP-1000
Booster Pump
Owners Manual
www.growonix.com
Built in the U.S.A.
