Grundfos SuperBrute XL User manual

Grundfos SuperBrute XL
Maintenance-free Circulators
GRUNDFOS INSTRUCTIONS
Installation and operating instructions
3191277 Conforms to UL STD 514C
Certified to CSA STD C22.2 No. 18.2

LIMITED WARRANTY
Products manufactured by GRUNDFOS PUMPS CORPORATION (Grundfos)
are warranted to the original user only to be free of defects in material and
workmanship for a period of 36 months from date of manufacture. Grundfos'
liability under this warranty shall be limited to repairing or replacing at
Grundfos' option, without charge, F.O.B. Grundfos' factory or authorized
service station, any product of Grundfos' manufacture. Grundfos will not be
liable for any costs of removal, installation, transportation, or any other
charges which may arise in connection with a warranty claim. Products which
are sold but not manufactured by Grundfos are subject to the warranty
provided by the manufacturer of said products and not by Grundfos' warranty.
Grundfos will not be liable for damage or wear to products caused by
abnormal operating conditions, accident, abuse, misuse, unauthorized
alteration or repair, or if the product was not installed in accordance with
Grundfos' printed installation and operating instructions.
To obtain service under this warranty, the defective product must be returned
to the distributor or dealer of Grundfos' products from which it was purchased
together with proof of purchase and installation date, failure date, and
supporting installation data. Unless otherwise provided, the distributor or
dealer will contact Grundfos or an authorized service station for instructions.
Any defective product to be returned to Grundfos or a service station must be
sent freight prepaid; documentation supporting the warranty claim and/or a
Return Material Authorization must be included if so instructed.
GRUNDFOS WILL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES, LOSSES, OR EXPENSES ARISING FROM
INSTALLATION, USE, OR ANY OTHER CAUSES. THERE ARE NO
EXPRESS OR IMPLIED WARRANTIES, INCLUDING MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, WHICH EXTEND BEYOND
THOSE WARRANTIES DESCRIBED OR REFERRED TO ABOVE.
Some jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages and some jurisdictions do not allow limit actions on
how long implied warranties may last. Therefore, the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights
and you may also have other rights which vary from jurisdiction to jurisdiction.
2

3
Grundfos SuperBrute XL
Maintenance-free Circulators
Installation and operating instructions 4
Notice d’installation et d’entretien 18
Instrucciones de instalación y funcionamiento 32

4

5
CONTENTS Page
1. Safety warning 5
1.1 Read this booklet 5
1 2 Electrical work 5
2. Pre-installation checklist 5
2.1 Confirm you have the correct pump 5
2 2 Check the condition of the pump 6
2 3 Verify electrical requirements 6
2.4 Pumped liquid requirements 6
3. Installation procedures 7
3.1 Piping considerations 7
3 2 Changing the terminal box position 7
3 3 Electrical connection 9
4. Starting the pump 10
4.1 Vent the piping system 10
4 2 Speed selection 10
5. Troubleshooting 11
5.1 Fault finding chart 11
5 2 Preliminary checks 12
5 3 Current measurement 12
5.4 Insulation resistance
(lead-to-ground) 13
5.5 Winding resistance (line-to-line) 13
5 6 Resistance charts 14
6. Replacing components 15
6.1 Removing the pump head 15
6 2 Fitting the pump head 15
6 3 Replacing the terminal
box or capacitor 16
7. Additional technical data 17
8. Disposal 17
1. Safety warning
1.1 Read this booklet
This booklet is designed to help a certified
installer to install, begin operation of, and
troubleshoot the Grundfos SuperBrute XL,
UP and UPS pumps.
Following the instructions will ensure safe,
trouble-free operation.
This booklet should be left with the owner of
the pump for future reference and information
regarding its operation. Should the owner
experience any problems with the pump, a
certified professional should be contacted.
1.2 Electrical work
All electrical work should be performed by a
qualified electrician in accordance with the
latest edition of the National Electrical Code,
local codes and regulations.
2. Pre-installation checklist
2.1 Confirm you have the correct
pump
• Read the pump nameplate to ensure it is
the one you ordered.
• Compare the pump's nameplate data and its
performance curve (for head, gpm, etc.)
with the application in which you plan to
install it.
• Will the pump do what you expect it to do?
2.1.1 Pump to system type
recommendations
•Open systems (i.e. potable water):
Stainless steel or bronze volute (pump
housing) only.
•Closed systems (i.e. airless, non-potable
water): Cast iron, stainless steel, or bronze
volute (pump housing).
Other considerations regarding Grundfos
SuperBrute XL, UP and UPS pumps:
• These pumps are intended for indoor use
only.
• If installed outdoors the pump must be
protected by an appropriate, well ventilated,
water-tight enclosure to keep out moisture
and dirt.
• Minimum ambient temperatures must be no
lower than 33 °F (1 °C).
• For ambient and fluid temperature see
sections 2.4 Pumped liquid requirements
and 7. Additional technical data.
Warning!
A faulty motor or wiring can
cause electrical shock that could
be fatal, whether touched directly
or conducted through standing
water. For this reason, proper
grounding of the pump to the
power supply's grounding
terminal is required for safe
installation and operation.
In all installations, the above-
ground metal plumbing should
be connected to the power
supply ground as described in
the National Electrical Code. All
wiring must comply with the
National Electrical Code, state,
and local regulations.

6
2.2 Check the condition of the pump
The pump’s shipping carton is specially
designed around the pump during production
to prevent damage.
As a precaution, it should remain in the carton
until you are ready to install it. At that point,
look at the pump and examine it for any
damage that may have occurred during
shipping.
Examine any other parts of the shipment as
well for any visible damage. Once the pump
has been removed from the box, care should
be taken NOT to drop or mishandle the pump.
Box contents:
• one pump
• two gaskets (flanged units only)
• one Installation and Operation Instruction
(I&O).
2.3 Verify electrical requirements
Verify the electrical supply to be certain the
voltage, phase and frequency match that of
the pump motor. The proper operating voltage
and other electrical information can be found
on the pump nameplate.
This pump’s motor is designed to run on
+ / - 10 % of the nameplate-rated voltage.
2.4 Pumped liquid requirements
The pump can be used to circulate:
• Potable hot water.
• Water containing glycol for hydronic heating
(see section 7. Additional technical data for
additional limitations).
• Cooling water.
In domestic hot-water systems it is advisable
to use stainless steel pump housing versions
of this pump.
All pump types (stainless, bronze or cast iron
pump housing) should not be used in water
with a degree of hardness lower than 14 grains
per gallon of hardness.
Fluids should be clean and should not contain
solid particles, fibers, or mineral oils.
If the pump is installed in a heating system, the
water should meet the requirements of
accepted standards on water quality in heating
systems. The fluid should not contain solid
particles, fibers, or mineral oils.
The pump is lubricated and cooled by the
liquid being pumped. Therefore, the pumped
liquid must always be allowed to circulate
through the pump.
Extended periods without circulation will cause
premature wear to the bearings and excessive
motor heat.
The pumped liquid must meet the temperature
requirements listed in the following charts.
Note: Fluid must never be allowed to freeze
during non-operational periods.
The Grundfos SuperBrute XL,
UP/UPS pump is intended for
use with water only. The pump
must not be used for the transfer
of flammable liquids such as
diesel oil, gasoline, and similar
liquids.
The pump is not for pool or
marine use.
Open systems
(domestic, potable hot water)
Fluid Ambient
Min. 36 °F (2 °C) 33 °F (1 °C)
Max. < 149 °F(65 °C) 100 °F (38°C)
In domestic hot-water systems,
it is recommended to keep the
liquid temperature below 149 °F
(65 °C) to eliminate the risk of lime
precipitation.
Closed systems
(non-potable heating or cooling airless fluid)
XL pump
models Fluid Ambient
Min. All 36 °F
(2 °C) 33 °F (1 °C)
Max.
UPS 26-150 230 °F
(110 °C) 100 °F (38°C)
UPS 43-100 230 °F
(110 °C) 100 °F (38°C)
UPS 50-60 212 °F
(100 °C) 100 °F (38°C)
Water and glycol mix
Max. 50 % glycol @ 15 °F (-9.5 °C) fluid
(Hydraulic performance change can be expected.)
Caution
Caution

7
3. Installation procedures
3.1 Piping considerations
When making piping connections, be sure
to follow the piping manufacturer’s
recommendations and all code requirements
for piping material.
Thoroughly clean and flush all dirt and
sediment from the system before attempting to
install the pump.
3.1.1 Location in the piping line
The pump should never be located at the
lowest point of the piping system (where dirt
and sediment collect), nor should it be located
at the highest point of the piping system
(where air accumulates).
When installing the pump into the piping
system, Grundfos recommends that pressure
gauges be installed in the inlet and discharge
flanges or pipes. This will allow the pump and
system performance to be checked.
Do not block the pipe plugs in the pump
housing flanges by locating the terminal box
over these plugs.
3.1.2 Mounting positions
The arrows on the pump housing indicate the
direction of water flow. The XL UP/UPS pump
may be installed in vertical or horizontal
piping, but the motor shaft must always
remain horizontal, as shown in fig. 1.

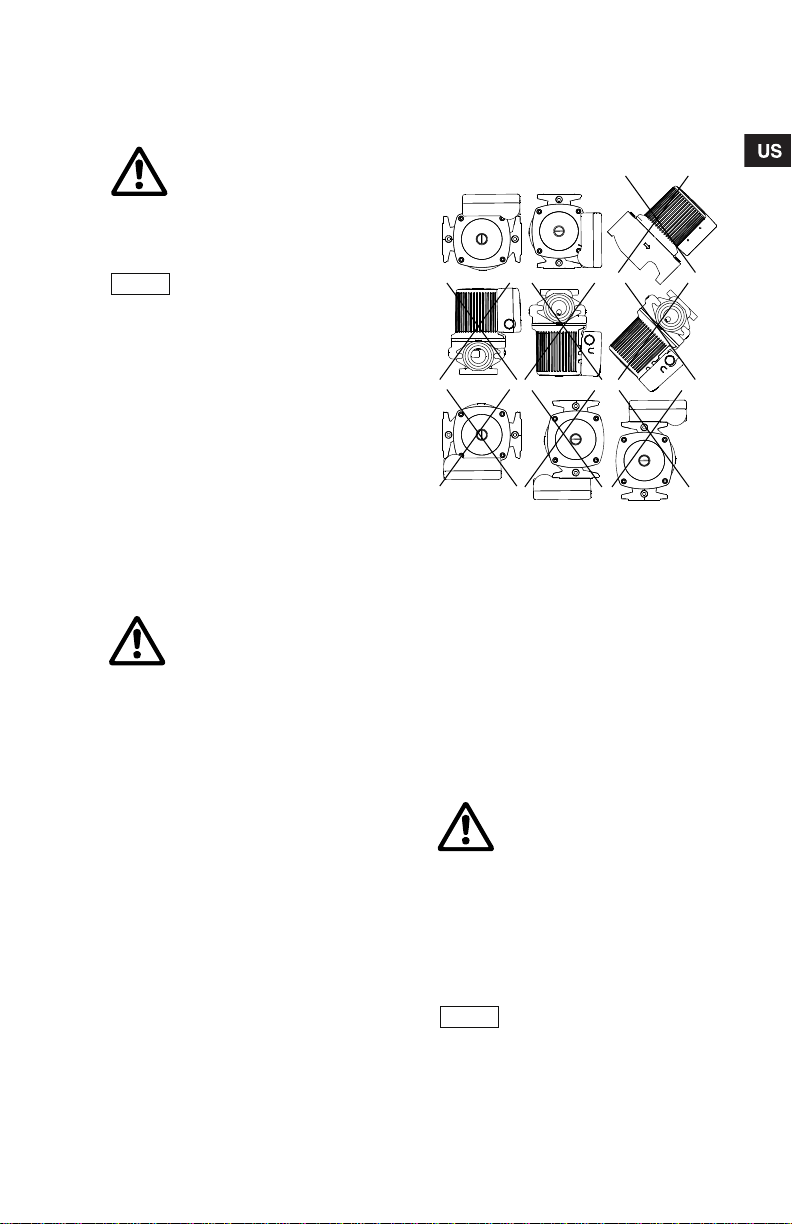

Fig. 1 Installation positions
3.1.3 Terminal box position
At the bottom of the stator, closest to the pump
housing, there are three drain holes to allow
condensed water to escape. The drain holes
shall not be blocked for any reason and one
drain hole must always point downward.
There is not a drain hole directly below the
terminal box; therefore the terminal box must
be positioned in one of the positions shown in
fig. 1 or fig. 2.

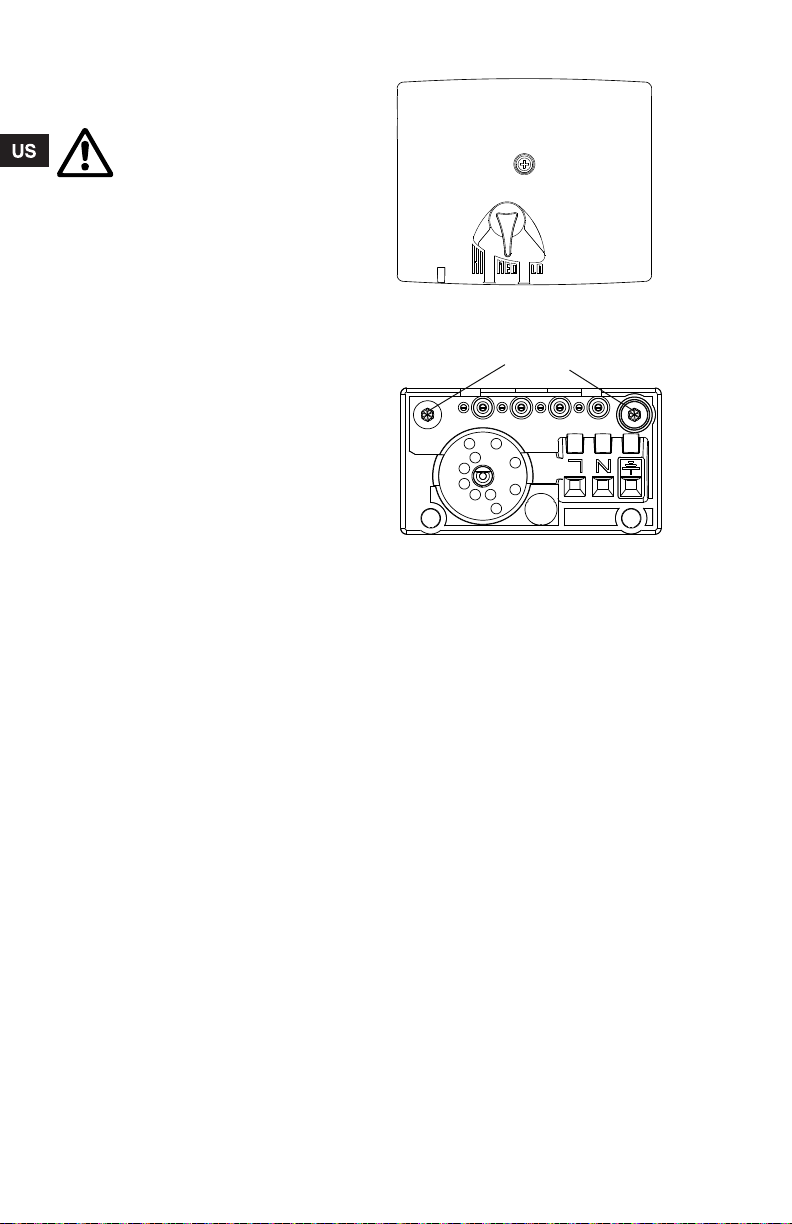

3.2 Changing the terminal box
position
If the pump is already installed in the system,
the system must be drained or the isolation
valves on both sides of the pump must be
closed and the pressure released/relieved by
removing the vent plug.
Only after the pressure has been relieved and
the pump drained should you proceed with the
next steps.
Warning!
Never make any connections in
the pump terminal box unless the
electrical supply has been
switched off.
The pump should not be
connected to the electrical
system until it has been properly
installed in the piping system.
Risk of electrical shock — this
pump has not been investigated
for use in swimming pool or
marine areas.
Warning!
The pump must be positioned
so that someone cannot
accidentally come into contact
with the hot surfaces of the pump.
Caution
TM04 5646 3609
Warning!
Before starting any work on this
circulator, be sure electrical
supply has been switched off
and it cannot be accidentally
switched on.
Exercise caution when draining
the system or removing the vent
plug as the fluid in the system
may be scalding hot and under
pressure.
Caution

8
3.2.1 Rotating the terminal box
To change the position of the terminal box,
follow these steps:
1. Remove the four (5 mm) allen-head screws
holding the pump head onto the pump
housing.
2. Carefully lift/slide the pump head out and
away from the pump housing. Next rotate
the pump head and locate the terminal box
in the desired position. The terminal box
can be rotated in steps of 90 °. Review
fig. 1 and fig. 2 for possible/permissible
positions. DO NOT locate the terminal box
beneath the pump.
3. Make sure the O-ring is properly seated in
the pump housing.
4. Replace the pump head onto the pump
housing.
5. Diagonally tighten the 5mm allen-head
screws evenly.
Torque to: 7 ft lbs. / 9.5 Nm.
6. Check to ensure the rotor turns freely. Do
this by removing the vent plug in the
middle of the pump nameplate. Insert a
medium-size, flat-blade screwdriver into
the slot at the exposed end of the shaft.
Gently turn the shaft. If it does not turn
easily, repeat steps 1 through 5 above.
If the rotor spins freely, proceed to step 7.
Do not put the vent plug back into the
pump until the end of step 9.
7. The position of the nameplate can be
changed by easing the outer edge of the
plate at the cutout with a screwdriver.
Turn the nameplate to the required position
and push into place.
8. Follow electrical instructions in section 3.3.
9. Refill the system, open the isolation valves
and vent the system. Also allow air to vent
out of the pump; once water flows out the
vent hole, replace the vent plug removed in
step 6. See additional instructions in
section 4.1.
10.Fig. 2 shows acceptable terminal box
positions along with recommended drip
loops (dashed lines) in the electrical wiring
harness based on entry point.
Fig. 2 Acceptable terminal box positions
Use caution as the rotor
assembly can fall out of the
pump head or pump housing if
the pump head is pulled too far
away from the pump housing.
Caution
TM04 5636 3609
Terminal box
position A
Terminal box
position B
Terminal box
position C

9
3.3 Electrical connection
Proper operating voltage and other electrical
information can be found on the pump name-
plate attached to the top of the motor.
• The motor is thermally protected on all three
speeds and no additional external
protection is needed.
• See fig. 3 for proper grounding and supply
power connection locations (115V and
208-230V).
• The terminal connections are toggle/lever
push design. Push the lever down and
insert the field wiring. Push the lever down
and pull to remove wires.
• Next, use care when installing the terminal
box cover with speed switch (rough
handling can damage the run light LED on
the printed circuit board (PCB)). Insert the
Phillips head screw through the cover and
tighten to a snug fit.
• An external "Drip Loop" is recommended in
the electrical wiring harness; see fig. 2.
• Where an external "Drip Loop" is not
possible, or if the wiring enters through the
upward facing (top) surface of the box, then
an internal "Drip Loop" is recommended;
see fig. 3.
Fig. 3 Examples of ground and power
supply connections (115V and
108-230 V) with internal drip loop
Warning!
Risk of electrical shock!
The electrical connection and
protection should be carried out in
accordance with the latest edition
of the National Electrical Code,
local codes and regulations by a
qualified electrician.
The safe operation of this pump
requires that it be grounded in
accordance with the National
Electrical Code and any state,
local governing codes and
regulations.
Ground wires should be copper
conductors of at least the size of
the circuit conductor supplying
power to the pump. Connect the
ground wire to the grounding
point in the terminal box and then
to an acceptable ground. Do not
ground to gas or water supply
line.
All wire sizes should be copper
and size-based on the ampacity
(current carrying properties of a
conductor) as required by the
National Electrical Code or local
regulations. Additionally UL
requires the following wire sizes
to be used: 18-12 Solid or 14-12
Stranded.
Both the power and grounding
wires must be suitable for at least
194 °F (90 °C).
TM04 5634 3609
CAPACITOR
Black
White
Green
SPEED SWITCH
CAPACITOR
Black
White
Green

10
4. Starting the pump
4.1 Vent the piping system
After the pump has been installed and the
electrical connections made, the piping system
must be vented.
NOTE: Do not vent the piping system through
the pump. Instead, follow these steps:
1. Fill and pressurize the system with liquid,
and vent all trapped air from the piping by
suitable means.
2. If any isolation valves are used, make sure
they are OPEN.
3. Vent the pump by removing the vent plug.
When water exists through the port, the
pump is fully vented / primed.
4. Reinstall the vent plug.
Fig. 4 Vent screw/plug removal for pump
venting
4.2 Speed selection
UPS models
Speeds can be changed via the speed switch
on the terminal box cover. Power must be
turned off before changing speeds. The speed
in the three positions appears in the following
table; also see fig. 6.
UP models
Speed is fixed on Speed 3 (High) and cover
does not have a switch (cover is solid).
Fig. 5 Terminal box cover/lid with speed
switch in medium speed (Speed 2)
Changing to lower speeds offers considerable
reduction in energy consumption and less
noise in the system.
Fig. 6 Pump performance at speed
settings
Never operate the pump dry —
the system must first be filled
with liquid and vented.
Warning!
If the vent screw/plug is to be
loosened, care should be taken
to ensure that the escaping
scalding hot liquid does not cause
personal injury or damage to
components.
TM04 5644 3609
Caution
TM04 5641 3609
Switch position Speed in % of max. speed
Low (Speed 1) approx. 60 %
Medium (Speed 2) approx. 80 %
High (Speed 3) 100%
TM04 5640 3609
Low
HHH
Medium High
QQ Q
H = Head and Q = Flow

11
5. Troubleshooting
5.1 Fault finding chart
Warning!
Before removing the terminal box cover, make sure that the electrical supply has
been switched off and that it cannot be accidentally switched on.
The pumped liquid may be scalding hot and under high pressure. Before any
removal or dismantling of the pump, the system must be drained or the isolation
valves on both sides of the pump must be closed.
Fault Cause Remedy
1. The pump does not
run. None of the
indicator lights are
on.
a) External circuit breaker
is switched off. Switch the circuit breaker on.
b) Current-/voltage-
operated ground fault
interrupter has tripped.
Repair the insulation defects and reset
the interrupter.
2. The pump does not
run. The green indi-
cator light is on.
a) Rotor is blocked. Switch off the electrical supply and
clean /repair the pump.
b) The speed switch is not
fully positioned (is
between speeds)
Switch off the electrical supply at the
external circuit breaker and change
speed switch into position.
c) The pump has been cut
out by the thermal
overload switch due to
high liquid temperature.
Check that the liquid temperature falls
within the specified range. The pump
will restart automatically when it has
cooled to normal temperature.
3. Noise in the system.
The green indicator
light is on.
a) Air in the system. Vent the system.
b) The pump flow is too
high. Reduce the pump performance.
c) The pressure is too
high. Reduce the pump performance.
4. Noise in the pump.
The green indicator
light is on.
a) Air in the pump. Vent the pump.
b) The inlet pressure is
too low. Increase the inlet pressure and/or check the air volume in the expansion tank
(if installed).
5. The pump runs, but
the indicator light is
off.
a) The LED diode was
damaged when
installing the terminal
box cover or is burned
out.
Switch off the power and change the
printed circuit board or replace the
complete terminal box.
6. Insufficient heat in
some places in the
heating system.
a) The pump performance
is too low. Increase the pump performance, if possible. Flow too fast through the
boiler/heat exchanger may not allow for
the proper BTU transfer to the fluid. If
fluid is too slow, fluid may be cooling too
much before returning from the system.
If changing speeds does not resolve the
problem, replacing the pump with a
properly sized pump may be required.
b) The performance is too
high.

12
5.2 Preliminary checks
Supply voltage
To check the voltage being supplied to the
motor, use a voltmeter.
Single-phase motors
Touch one voltmeter lead to each of the lines
supplying power to the pump as shown in
fig. 7:
• L and N for 115 V and 208-230V circuits
(L = L1and N = L2for 208 - 230V circuits
in the U.S.)
These tests should give a reading of full line
voltage.

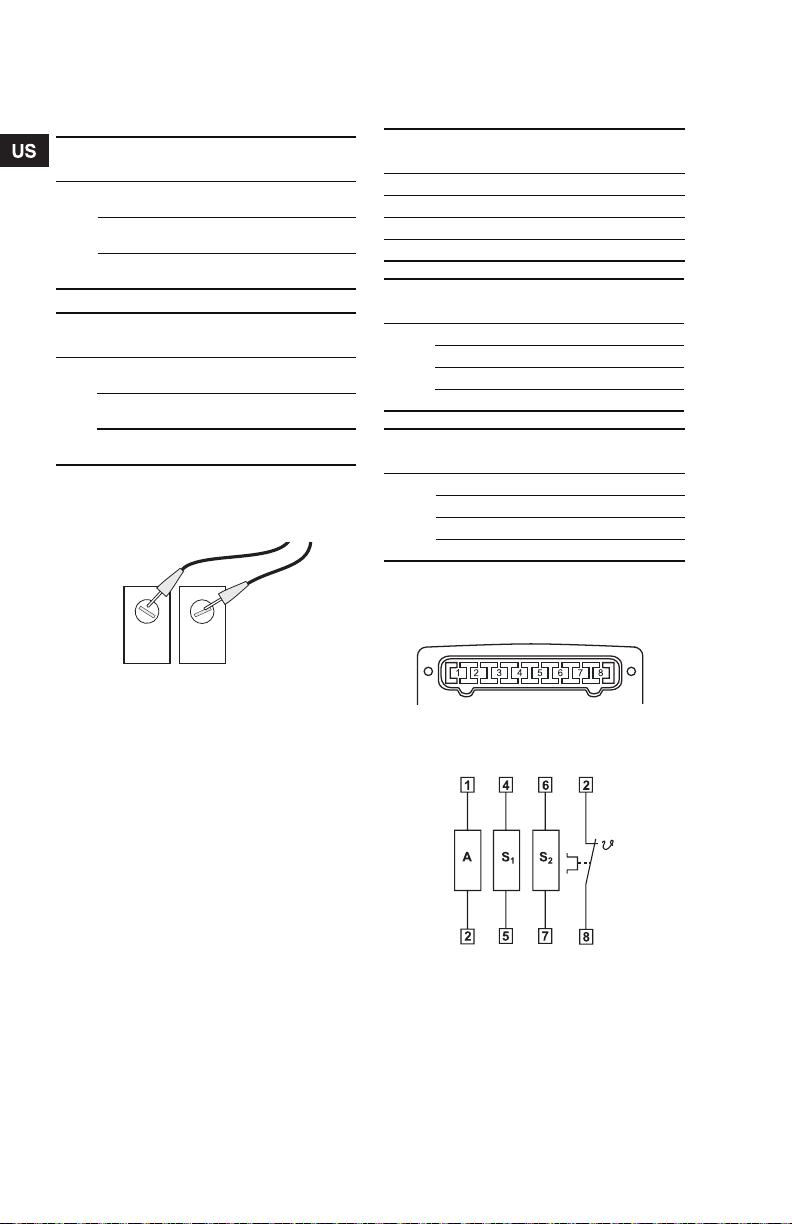

Fig. 7 Testing with voltmeter
Evaluation
When the motor is under load, the voltage
should be within 10% (+ or –) of the nameplate
voltage.
Any variation larger than this may indicate a
poor electrical supply and can cause damage
to the motor windings. The motor should not
be operated under these conditions. Contact
your power supplier to correct the problem or
change the motor to one requiring the voltage
you are receiving.
5.3 Current measurement
To check the current using an ammeter, follow
these steps:
1. Make sure the pump is operating.
2. Set the ammeter to the proper scale.
3. Place the tongs of the ammeter around the
leg to be measured.
4. Compare the results with the amp draw
information on the motor nameplate.
5. Repeat for the other legs.
Fig. 8 Current measurement
Evaluation
If the current draw exceeds the listed name-
plate amps, or if the current imbalance is
greater than 5 % between each leg, then
check the following:
• The voltage supplied to the pump may be
too high or too low.
• The terminals/wires in the terminal box or to
circuit breaker may be loose.
• The contacts on the motor starter may be
burned.
• The terminals in the starter or terminal box
may be loose.
• There may be a winding defect. Check the
winding and insulation resistance; see
section 5.6 Resistance charts.
• The motor windings may be shorted or
grounded.
• The pump may be damaged in some way
and may be causing a motor overload.
• A voltage supply problem may exist.
Warning!
Be careful, since power is still
being supplied to the pump. Do
not touch the voltmeter leads
together while they are in contact
with the power lines.
TM04 5645 3609
TM04 5639 3609

13
5.4 Insulation resistance
(lead-to-ground)
To check the insulation resistance (lead-to-
ground) of the motor and leads, use a
megohmmeter and follow these steps:
1. Turn the POWER OFF.
2. Disconnect all electrical leads to the motor.
3. Set the scale selector on the megohm-
meter to R x 100K, touch its leads
together, and adjust the indicator to zero.
4. Touch the leads of the megohmmeter
individually to each of the motor leads and
to ground (i.e. L to ground; N to ground,
etc.).
Fig. 9 Insulation resistance measurement
Evaluation
The resistance values for new motors must
exceed 1,000,000 ohms. If they do not,
replace power head.
5.5 Winding resistance (line-to-line)
To check the winding resistance of the motor
windings, use a megohmmeter and follow
these steps.
1. Turn the POWER OFF.
2. Disconnect all electrical leads to the motor.
3. Set the scale selector on the
megohmmeter to R x 1, touch its leads
together and adjust the indicator to zero.
4. Using the charts in section 5.6 for
reference, touch the leads of the
megohmmeter to the appropriate pair of
connectors. Check all pairs that are pres-
ent and write down and label (RA1, RS1,
RS2) all readings.
- In T-box at L & N: UP will = Speed 3/High
- In T-box at L & N: UPS value depends on
the selected speed (Speed 1, 2, or 3)
- For both UP and UPS: with the terminal
box removed, check all combinations RA,
S1, S2
5. Compare your readings to the matching
model, phase and voltage listed in the
charts in section 5.6.
Evaluation
The resistance values must fall within the
tolerances listed in section 5.6. If they do not,
replace the power head.
TM04 5638 3609

14
5.6 Resistance charts
Checking connections in the terminal box at
the power connections L and N; see fig. 10 for
115 V and 208 - 230 V.
*T can only be checked with the terminal box
removed; if the thermiks is open the pump will
not run.
Fig. 10
Checking at the pin connection behind the
terminal box (see section 6.3 Replacing the
terminal box or capacitor for terminal box
removal):
Fig. 11 shows terminal plug-in stator relation-
ship to the top / nameplate end of the stator.
Fig. 11 Terminal plug in stator
Fig. 12 Internal wiring
Connection OHMvalue
range Nominal
115V
L to N (Speed 3) = 6.9 to
8.01 7.55
L to N (Speed 2) = 9.7 to
11.38 10.54
L to N (Speed 1) = 12.97 to
15 23 14.10
Connection OHMvalue
range Nominal
208V
-
230V
L to N (Speed 3) = 34.63 to
40.66 37.65
L to N (Speed 2) = 41.57 to
48.81 45.19
L to N (Speed 1) = 56.67 to
66.53 61.60
TM04 5633 3609
LN
Stator
pin connection Winding groups
1 to 2 RA: Main winding
4 to 5 RS1: Auxiliary winding
6 to 7 RS2: Auxiliary winding
2 to 8 T: Thermiks
Connection OHM value
range Nomi- nal
115V
RA (1 to 2) = 6.7 to 7.9 7 3
RS1(4 to 5) = 3.0 to 3.6 3 3
RS2(6 to 7) 3.0 to 3.6 3 3
T (2 to 8) = 0
Connection OHM value
range Nomi- nal
208V
-
230V
RA (1 to 2) = 30.4 to 35 6 33
RS1(4 to 5) = 12 0 to 14 0 13
RS2(6 to 7) = 12 0 to 14 0 13
T (2 to 8) = 0
TM04 5643 3609TM04 5637 3609

15
6. Replacing components
6.1 Removing the pump head
1. Disconnect or TURN OFF the power
supply.
2. Close any isolation valves on either side of
the pump to avoid draining the system of
liquid.
3. Remove the vent plug to relieve any
system pressure retained in the pump.
Exercise caution as the fluid may be
scalding hot and under pressure. Only
after the pressure has been relieved and
the pump drained should you proceed with
the next steps.
4. Disconnect the electrical leads from the
terminal box.
5. Disconnect and remove the conduit from
the terminal box.
6. Loosen and remove the four 5 mm allen-
head screws which connect the pump head
housing to the pump housing.
7. Remove the pump head from the pump
housing. Exercise care as the rotor may
fall out of the stator or pump housing.
8. Clean the machined surfaces in the pump
housing of any foreign material.
6.2 Fitting the pump head
1. Carefully remove the new pump head
assembly from its packaging. Separate the
impeller/rotor assembly from the new pump
head.
2. While holding the thrust bearing plate,
carefully place the impeller/rotor assembly
into the pump housing. The bearing plate
should fit snugly into the lowest machined
surface in the pump housing.
3. Ensure that the impeller/rotor assembly
can rotate freely.
4. Place the O-ring over the rotor and locate it
into the inner diameter of the pump
housing.
5. Carefully place the pump head housing
over the rotor and rotate it so the terminal
box is in the position you wish; see section
3.2.1 Rotating the terminal box.
6. Ensure that the pump head housing is
properly seated on the pump housing. Do
not force the two together — if there is
binding, disassemble them and repeat
steps 2 to 6. Cross-tighten the allen-head
screws evenly.
Torque to: 7 ft lb / 9.5 Nm.
7. Check to make sure the rotor turns freely.
Do this by removing the vent plug in the
middle of the pump nameplate. Insert a
medium-size, flat-blade screwdriver into
the slot at the exposed end of the shaft.
Gently turn the shaft. If it does not turn
easily, repeat steps 1 through 6 above.
If the rotor spins freely, proceed to step 8.
Do not put the vent plug back into the
pump until the end of step 10.
8. The position of the nameplate can be
changed by easing the outer edge of the
plate at the cutout with a screwdriver. Turn
the nameplate to the required position and
push into place.
9. Follow electrical instructions in section
3.3 Electrical connection.
10.Refill the system, open the isolation valves
and vent the system. Also allow air to vent
out of the pump, once water flows out the
vent hole, replace the vent plug removed in
step 7. See additional instructions in
section 4.1 Vent the piping system.
Fig. 13 Removing and fitting the pump head
Warning!
Before starting any work on this
circulator, make sure electrical
supply has been switched off and
that it cannot be accidentally
switched on.
TM04 5642 3609
O-ring
Allen
screws
(4) 5 mm
Terminal box Bearing plate
Pump housing
Impeller
Rotor assembly
Thrust bearing
Pump head/stator housing

16
6.3 Replacing the terminal box
or capacitor
Removal
1. Before replacing the terminal box and
capacitor, make sure the power is OFF.
2. Remove the terminal box cover / lid by
completely loosening the Phillips head
screw in the center of the cover / lid.
3. Disconnect all wiring. Move the capacitor
to allow access to the screws.
4. Remove the two T15 Torx head screws
holding the terminal box in place.
5. Pull firmly and evenly on both sides of the
terminal box to free it from the stator /
pump head.
Installation
1. Carefully press the terminal box into the
stator socket.
2. Replace the two T15 Torx head screws and
torque to 1.5 ft.-lbs / 2 Nm.
3. Replace the wiring (refer to section
3.3 Electrical connection).
4. Use care when installing the terminal box
cover with speed switch (rough handling
can damage the run light LED on the
printed circuit board (PCB)). Next insert
the Phillips head screw through the cover
and tighten to a snug fit.
10. Restore power.
Fig. 14 Terminal box lid / cover
Fig. 15 Location of terminal box holding
screws
Warning!
Before starting any work on this
circulator, make sure electrical
supply has been switched off and
that it cannot be accidentally
switched on.
TM04 5641 3609
TM04 5642 3609
Terminal
box holding
screws

17
7. Additional technical data
8. Disposal
This product or part of it must be disposed of
in an environmentally sound way; please use
the public or private waste collection service.
Supply voltage: 1x115V +/-10 %, 60Hz
1 x 208 - 230V +/-10 %, 60Hz
Motor protection: Thermally protected
Enclosure class: CSA Type 2
Insulation class: H
Max. discharge
press.: 145 psi (10 bar)
Max. sound press.
level: 30 dB(A)
Water hardness: 14 dH
Open systems
(domestic, potable hot water)
Fluid Ambient
Min. 36 °F (2 °C) 33 °F (1 °C)
Max. < 149 °F (65 °C) 100 °F (38°C)
In domestic hot-water systems,
it is recommended to keep the
liquid temperature below +149 °F
(+65 °C) to eliminate the risk of lime
precipitation.
Closed systems
(non-potable heating or cooling airless fluid)
XL pump
models Fluid Ambient
Min. All 36 °F
(2 °C) 33 °F (1 °C)
Max.
UPS 26-150 230 °F
(110 °C) 100 °F (38°C)
UPS 43-100 230 °F
(110 °C) 100 °F (38°C)
UPS 50-60 212 °F
(100 °C) 100 °F (38°C)
Water and glycol mix
Max. 50 % glycol @ 15 °F (-9 5 °C) fluid
(Hydraulic performance change can be expected.)
Caution

18
GARANTIE LIMITÉE
Les produits fabriqués par GRUNDFOS PUMPS CORPORATION (Grundfos)
sont garantis à l'acheteur initial contre tous défauts de matériaux et vices de
fabrication pendant une période de 36 mois à compter de la date de
fabrication. La responsabilité de Grundfos au titre de la présente garantie est
limitée à la réparation ou au remplacement de tout produit fabriqué par
Grundfos, à la discrétion de ce dernier, sans frais, port payé de l'usine de
Grundfos ou d'un centre de service autorisé. Grundfos ne sera pas tenu
responsable des frais associés à l'enlèvement, à l'installation ou au
transport, ou de toute autre dépense relative à une demande au titre de la
garantie. Les produits vendus par Grundfos mais qui ne sont pas fabriqués
par ce dernier sont soumis à la garantie proposée par le fabricant et ne sont
pas couverts par la garantie de Grundfos. Grundfos ne sera pas tenu
responsable des dégâts ou de l'usure des produits causés par une utilisation
anormale, un accident, un abus, un mauvais emploi, une modification ou une
réparation non autorisée, ou si le produit n'a pas été installé conformément
aux instructions d'installation et d'utilisation de Grundfos.
Pour obtenir un service au titre de la présente garantie, le produit défectueux
doit être renvoyé au distributeur ou au détaillant des produits Grundfos
auprès duquel il a été acheté, et il doit être accompagné d'une preuve d'achat
et de la date de l'installation et de la défaillance, ainsi que des pièces
justificatives relatives à l'installation. Sauf indication contraire, le distributeur
ou le détaillant entrera en contact avec Grundfos ou avec un centre de
service autorisé pour connaître la marche à suivre. Tout produit défectueux
doit être renvoyé fret payé d'avance à Grundfos ou à un centre de service;
les documents justifiant la demande au titre de la garantie et l'autorisation de
renvoi du produit doivent être inclus suivant les instructions.
GRUNDFOS NE SERA PAS TENU RESPONSABLE DES DOMMAGES
ACCESSOIRES OU CONSÉCUTIFS, DES PERTES OU DES DÉPENSES
DÉCOULANT DE L'INSTALLATION OU DE L'UTILISATION DU PRODUIT
OU DE TOUTE AUTRE CAUSE. AUCUNE GARANTIE EXPRESSE OU
IMPLICITE, Y COMPRIS LES GARANTIES DE QUALITÉ MARCHANDE OU
D'ADAPTATION À UN USAGE PARTICULIER,N'ESTFORMULÉEAU-DELÀ
DES GARANTIES DÉCRITES OU MENTIONNÉES CI-DESSUS.
Certaines juridictions n'autorisent pas les exclusions ou les limitations des
dommages accessoires ou consécutifs, et d'autres juridictions ne permettent
pas de limitations relatives à la durée des garanties implicites. Par
conséquent, il se peut que les limitations ou les exclusions ci-dessus ne
s'appliquent pas à votre cas. La présente garantie vous accorde des droits
spécifiques, et il se peut que vous ayez d'autres droits pouvant varier d'une
juridiction à l'autre.

19
TABLE DES MATIÈRES Page
1. Avertissement de sécurité
1.1 Lire le présent livret
Le présent livret est conçu pour aider
l'installateur agréé à effectuer l'installation, à
amorcer le fonctionnement et à détecter les
défaillances des pompes SuperBrute XL, UP
et UPS de Grundfos.
Le respect des consignes figurant aux
présentes assurera un fonctionnement
sécuritaire et sans problème.
Le présent livret doit être confié au propriétaire
de la pompe pour consultation ultérieure et
comme source de renseignements au sujet du
fonctionnement de la pompe. Le propriétaire
qui éprouve des problèmes concernant sa
pompe doit contacter un professionnel agréé.
1.2 Travaux électriques
Tous les travaux électriques doivent être
effectués par un électricien qualifié
conformément à la plus récente édition du
Code national de l'électricité et aux codes et
règlements locaux.
2. Liste de vérification avant
installation
2.1 Confirmer qu'il s'agit de la bonne
pompe
• Lisez la plaque signalétique de la pompe
pour vous assurer qu'il s'agit bien de celle
que vous avez commandée.
• Comparez les données de la plaque
signalétique et la courbe de rendement de
la pompe (pour la hauteur d'élévation, les
g/m, etc.) aux caractéristiques de
l'application pour laquelle vous prévoyez
de l'installer.
• La pompe sera-t-elle à la hauteur de vos
attentes?
2.1.1 Recommandations de pompe
relativement aux types de systèmes
•Systèmes ouverts (d'eau potable): volute
(boîtier de pompe) en acier inoxydable ou
en bronze uniquement.
•Systèmes fermés (par ex., sans air, pour
eau non potable) : volute (boîtier de pompe)
en fonte, en acier inoxydable ou en bronze.
Autres considérations relatives aux pompes
SuperBrute XL, UP et UPS de Grundfos :
• Ces pompes sont conçues pour une
utilisation à l'intérieur uniquement.
• Si elle est installée à l'extérieur, la pompe
doit être protégée par une enceinte appro-
priée, bien aérée et étanche pour la mettre
à l'abri de l'humidité et de la saleté.
• La température ambiante ne doit jamais
descendre sous la barre de 1 °C (33 °F).
• Pour connaître les exigences concernant
les températures ambiantes et des liquides,
consultez les sections 2.4 Exigences quant
au liquide pompé et 7 Données techniques
supplémentaires.
1. Avertissement de sécurité 19
1.1 Lire le présent livret 19
1 2 Travaux électriques 19
2. Liste de vérification avant installation 19
2.1 Confirmer qu'il s'agit de la bonne pompe 19
2 2 Vérifier l'état de la pompe 20
2 3 Vérifier l'alimentation 20
2.4 Exigences quant au liquide pompé 20
3. Procédures d'installation 21
3.1 Considérations relatives aux
canalisations 21
3 2 Modification de la position de la boîte à
bornes 21
3 3 Raccordement électrique 23
4. Démarrage de la pompe 24
4.1 Aération du système de canalisations 24
4 2 Réglage de la vitesse 24
5. Dépannage 25
5.1 Tableau indicateur de défaillances 25
5 2 Vérifications préliminaires 26
5 3 Mesure du courant 26
5.4 Résistance d'isolement (entre
conducteur et terre) 26
5 5 Résistance à l'enroulement (phase à
phase) 27
5 6 Tableaux des résistances 28
6. Remplacement des composants 29
6.1 Retrait de la tête de pompe 29
6 2 Ajustement de la tête de pompe 29
6 3 Réinstallation de la boîte à bornes ou du
condensateur 30
7. Données techniques supplémentaires 31
8. Élimination 31
Avertissement!
La défaillance du moteur ou du
câblage peut causer un choc
électrique pouvant être fatal, que
ce soit par contact direct ou par
l'entremise d'eau stagnante.
Pour cette raison, une mise à la
terre appropriée de la pompe à la
borne de terre de l'alimentation
électrique est requise pour
assurer une installation et un
fonctionnement sécuritaires.
Dans le cadre de toutes les
installations, la tuyauterie en
métal hors terre doit être
raccordée à la mise à la terre de
l'alimentation, tel que cela est
stipulé dans le Code national de
l'électricité. Tous les éléments de
câblage doivent respecter le
Code national de l'électricité,
ainsi que les règlements locaux.

20
2.2 Vérifier l'état de la pompe
Le carton d'expédition de la pompe est
spécialement conçu autour de la pompe en
cours de production afin d'éviter les
dommages.
Par mesure de précaution, la pompe doit
rester dans son carton jusqu'à ce que vous
soyez prêt à l'installer. À ce moment,
examinez la pompe afin de détecter tout
dommage pouvant découler de l'expédition.
Examinez également toutes les autres pièces
comprises dans l'envoi à l'affût de dommages
visibles. Après avoir enlevé la pompe de sa
boîte, soyez prudent afin d'ÉVITER de
l'échapper ou de la manipuler de manière ina-
déquate.
Contenu de la boîte:
• une pompe
• deux joints d'étanchéité (unités à collerette
uniquement)
• Un manuel d'installation et de
fonctionnement.
2.3 Vérifier l'alimentation
Vérifiez l'alimentation électrique pour vous
assurer que la tension, la phase et la
fréquence correspondent à celles du moteur
de la pompe. La tension de fonctionnement
appropriée et d'autres renseignements de
nature électrique sont disponibles sur la
plaque signalétique de la pompe.
Le moteur de cette pompe est conçu pour
fonctionner à +/- 10 % de la tension nominale
indiquée sur la plaque signalétique.
2.4 Exigences quant au liquide pompé
La pompe peut faire circuler :
• De l'eau potable chaude.
• De l'eau contenant du glycol pour le
chauffage à eau chaude (pour connaître les
autres limitations, reportez-vous à la section
7. Données techniques supplémentaires).
• De l'eau de refroidissement.
Pour les systèmes d'eau chaude
domestiques, nous vous conseillons d'opter
pour les versions avec boîtier de pompe en
acier inoxydable.
Tous les types de pompe (boîtier de pompe en
acier inoxydable, en bronze ou en fonte) ne
doivent pas être utilisés avec de l'eau dont le
degré de dureté est inférieur à 14 grains par
gallon de dureté.
Les liquides doivent être propres et exempts
de particules solides, de fibres ou d'huiles
minérales.
Si la pompe est installée dans un système de
chauffage, l'eau doit être conforme aux
exigences des normes admises concernant la
qualité de l'eau des systèmes de chauffage.
Le liquide doit être exempt de particules sol-
ides, de fibres ou d'huiles minérales.
La pompe est lubrifiée et refroidie par le
liquide pompé. Par conséquent, le liquide
pompé doit toujours pouvoir circuler dans la
pompe.
Les périodes prolongées sans circulation
entraîneront l'usure prématurée des
roulements et une température excessive du
moteur.
Le liquide pompé doit satisfaire aux exigences
de température indiquées dans les tableaux
suivants.
Remarque: le liquide ne doit jamais
geler pendant les périodes de
non-fonctionnement.
La pompe SuperBrute XL, UP
et UPS de Grundfos est
uniquement conçue pour
fonctionner avec de l'eau. La
pompe ne doit pas être
utilisée pour transférer des
liquides inflammables tels
que le carburant diesel,
l'essence et les liquides
similaires.
La pompe n'est pas destinée à
une utilisation dans une
piscine ou en milieu marin.
Précaution
Systèmes ouverts
(domestiques, d'eau chaude potable)
Liquide Température
ambiante
Min. 2 °C (36 °F) 1 °C (33 °F)
Max. < 65 °C (149 °F) 38°C (100 °F)
Dans les systèmes de
distribution d'eau chaude
domestique, il est
recommandé de maintenir la
température du liquide sous la
barre des 65 °C (149 °F) afin
d'éviter le risque de
précipitation de chaux.
Systèmes fermés
(liquide sans air non potable de chauffage
ou de refroidissement)
Modèles
de XL Liquide Température ambiante
Min. Tous les
modèles 2 ° (36 °F) 1 °C (33 °F)
Max.
UPS 26-150 110 °C
(230 °F) 38°C (100 °F)UPS 43-100
UPS 50-60 100 °C
(212 °F)
Mélange eau-glycol
Max. Liquide 50 % glycol à -9 5 °C (15 °F)
(Des changements de la performance hydraulique
peuvent se produire.)
Précaution
