English (GB) Installation and operating instructions
Original installation and operating instructions.
CONTENTS
Page
1. Symbols used in this document
2. General information
These installation and operating instructions are a supplement to
installation and operating instructions for the corresponding
standard pumps TP, TPD. For instructions not mentioned
specifically here, please see installation and operating
instructions for the standard pump.
3. General description
Grundfos TPE, TPED Series 2000 pumps have standard motors
with integrated frequency converter. The pumps are for single-
phase or three-phase mains connection.
The pumps have a built-in PI controller and are set up with a
differential-pressure sensor enabling control of the differential
pressure across the pump.
The pumps are typically used as circulator pumps in large heating
or cooling water systems with variable demands.
3.1 Settings
The desired setpoint can be set in three different ways:
• directly on the pump control panel.
It is possible to choose between two different control modes,
i.e. proportional pressure and constant pressure.
• via an input for external setpoint signal
• by means of the Grundfos wireless remote control R100.
All other settings are made by means of the R100. Important
parameters such as actual value of control parameter, power
consumption, etc. can be read via the R100.
3.2 Twin-head pumps
Twin-head pumps do not require any external controller.
1. Symbols used in this document 5
2. General information 5
3. General description 5
3.1 Settings 5
3.2 Twin-head pumps 5
4. Mechanical installation 6
4.1 Motor cooling 6
4.2 Outdoor installation 6
5. Electrical connection 6
5.1 Cable requirements 6
5.2 Electrical connection - single-phase pumps 6
5.3 Electrical connection - three-phase pumps up to 7.5
kW 9
5.4 Electrical connection - three-phase pumps, 11-22 kW 11
5.5 Signal cables 14
5.6 Bus connection cable 14
5.7 Communication cable for TPED pumps 14
6. Modes 15
6.1 Overview of modes 15
6.2 Operating mode 15
6.3 Control mode 15
6.4 Factory setting 16
7. Setting by means of control panel, single-phase
pumps 17
7.1 Setting of head 17
7.2 Setting to max. curve duty 17
7.3 Setting to min. curve duty 17
7.4 Start/stop of pump 17
8. Setting by means of control panel, three-phase
pumps 18
8.1 Setting of control mode 18
8.2 Setting of head 18
8.3 Setting to max. curve duty 18
8.4 Setting to min. curve duty 19
8.5 Start/stop of pump 19
9. Setting by means of R100 19
9.1 Menu OPERATION 21
9.2 Menu STATUS 22
9.3 Menu INSTALLATION 23
10. Setting by means of PC Tool E-products 25
11. Priority of settings 25
12. External forced-control signals 25
12.1 Start/stop input 25
12.2 Digital input 25
13. External setpoint signal 26
14. Bus signal 26
15. Other bus standards 26
16. Indicator lights and signal relay 27
17. Insulation resistance 29
18. Emergency operation (only 11-22 kW) 29
19. Maintenance and service 30
19.1 Cleaning of the motor 30
19.2 Relubrication of motor bearings 30
19.3 Replacement of motor bearings 30
19.4 Replacement of varistor (only 11-22 kW) 30
19.5 Service parts and service kits 30
20. Technical data - single-phase pumps 31
20.1 Supply voltage 31
20.2 Overload protection 31
20.3 Leakage current 31
20.4 Inputs/outputs 31
21. Technical data - three-phase pumps up to 7.5 kW 31
21.1 Supply voltage 31
21.2 Overload protection 31
21.3 Leakage current 31
21.4 Inputs/output 31
22. Technical data - three-phase pumps, 11-22 kW 32
22.1 Supply voltage 32
22.2 Overload protection 32
22.3 Leakage current 32
22.4 Inputs/output 32
23. Other technical data 32
24. Disposal 34
Warning
Prior to installation, read these installation and
operating instructions. Installation and operation
must comply with local regulations and accepted
codes of good practice.
Warning
If these safety instructions are not observed, it may
result in personal injury!
Warning
The surface of the product may be so hot that it may
cause burns or personal injury.
Caution
If these safety instructions are not observed, it may
result in malfunction or damage to the equipment.
Note
Notes or instructions that make the job easier and
ensure safe operation.

English (GB)
6
4. Mechanical installation
4.1 Motor cooling
To ensure sufficient cooling of motor and electronics, observe the
following requirements:
• Make sure that sufficient cooling air is available.
• Keep the temperature of the cooling air below 40 °C.
• Keep cooling fins and fan blades clean.
4.2 Outdoor installation
When installed outdoors, the pump must be provided with a
suitable cover to avoid condensation on the electronic
components. See fig. 1.
Fig. 1 Example of cover
Remove the drain plug pointing downwards in order to avoid
moisture and water build-up inside the motor.
Vertically mounted pumps are IP55 after removal of the drain
plug. Horizontally mounted pumps change enclosure class to
IP54.
5. Electrical connection
For description of how to connect E-pumps electrically, see the
following pages:
5.2 Electrical connection - single-phase pumps on page 6
5.3 Electrical connection - three-phase pumps up to 7.5 kW on
page 9
5.4 Electrical connection - three-phase pumps, 11-22 kW on page
11.
5.1 Cable requirements
5.1.1 Cable size
Single-phase supply
1.5 mm2/ 12-14 AWG.
Three-phase supply
6-10 mm2/ 10-8 AWG.
5.1.2 Conductors
Type
Stranded copper conductors only.
Temperature rating
Temperature rating for conductor insulation: 60 °C (140 °F).
Temperature rating for outer cable sheath: 75 °C (167 °F).
5.2 Electrical connection - single-phase pumps
5.2.1 Preparation
Before connecting the E-pump to the mains, take the issues
illustrated in the figure below into consideration.
Fig. 2 Mains-connected pump with mains switch, backup
fuse, additional protection and protective earthing
5.2.2 Protection against electric shock - indirect contact
Protective earth conductors must always have a yellow/green
(PE) or yellow/green/blue (PEN) colour marking.
5.2.3 Backup fuses
For recommended fuse sizes, see section 20.1 Supply voltage.
5.2.4 Additional protection
If the pump is connected to an electric installation where an earth
leakage circuit breaker (ELCB) is used as additional protection,
the circuit breaker must be of a type marked with the following
symbol:
The total leakage current of all the electrical equipment in the
installation must be taken into account.
The leakage current of the motor in normal operation can be seen
in section 20.3 Leakage current.
During start and at asymmetrical supply systems, the leakage
current can be higher than normal and may cause the ELCB to
trip.
Note
In order to retain the UL/cURus approval, follow the
additional installation procedures on page 876.
TM02 8514 0304
Warning
The user or the installer is responsible for the
installation of correct earthing and protection
according to local standards. All operations must be
carried out by qualified staff.
Warning
Never make any connections in the pump terminal
box unless all electric supply circuits have been
switched off for at least 5 minutes.
Note for instance that the signal relay may be
connected to an external supply which is still
connected when the mains supply is disconnected.
The above warning is indicated on the motor
terminal box by this yellow label.
Warning
The surface of the terminal box may be above 70 °C
when the pump is operating.
TM02 0792 0101
Warning
The pump must be earthed and protected against
indirect contact in accordance with local regulations.
N
PE
L
N
L
PE
ELCB
ELCB

English (GB)
7
5.2.5 Motor protection
The pump requires no external motor protection. The motor
incorporates thermal protection against slow overloading and
blocking (IEC 34-11, TP 211).
5.2.6 Protection against mains voltage transients
The pump is protected against voltage transients by built-in
varistors between phase-neutral and phase-earth.
5.2.7 Supply voltage and mains
1 x 200-240 V - 10 %/+ 10 %, 50/60 Hz, PE.
The supply voltage and frequency are marked on the pump
nameplate. Make sure that the motor is suitable for the power
supply of the installation site.
The wires in the terminal box must be as short as possible.
Excepted from this is the protective earth conductor which must
be so long that it is the last one to be disconnected in case the
cable is inadvertently pulled out of the cable entry.
Fig. 3 Mains connection
Cable glands
Cable glands comply with EN 50626.
• 2 x M16 cable gland, cable diameter ∅4-∅10
• 1 x M20 cable gland, cable diameter ∅10-∅14
• 1 knock out for M16 cable gland.
Grid types
Single-phase E-pumps can be connected to all grid types.
5.2.8 Start/stop of pump
When the pump is switched on via the mains, it will start after
approx. 5 seconds.
If a higher number of starts and stops is desired, use the input for
external start/stop when starting/stopping the pump.
When the pump is switched on via an external on/off switch, it will
start immediately.
5.2.9 Connections
As a precaution, the wires to be connected to the following
connection groups must be separated from each other by
reinforced insulation in their entire lengths:
Group 1: Inputs
• start/stop, terminals 2 and 3
• digital input, terminals 1 and 9
• setpoint input, terminals 4, 5 and 6
• sensor input, terminals 7 and 8
• GENIbus, terminals B, Y and A
All inputs (group 1) are internally separated from the mains-
conducting parts by reinforced insulation and galvanically
separated from other circuits.
All control terminals are supplied with protective extra-low
voltage (PELV), thus ensuring protection against electric
shock.
Group 2: Output (relay signal, terminals NC, C, NO)
The output (group 2) is galvanically separated from other
circuits. Therefore, the supply voltage or protective extra-low
voltage can be connected to the output as desired.
Group 3: Mains supply (terminals N, PE, L)
Group 4: Communication cable (8-pin male socket) - only
TPED
The communication cable is connected to the socket in group
4. The cable ensures communication between the two pumps,
whether one or two pressure sensors are connected. See
section 5.7 Communication cable for TPED pumps.
The selector switch in group 4 enables changeover between
the operating modes "alternating operation" and "standby
operation". See the description in section 6.2.1 Additional
operating modes - TPED pumps.
TM02 0827 2107
Warning
If the supply cable is damaged, it must be replaced
by qualified staff.
Warning
Do not connect single-phase E-pumps to a mains
supply with a voltage between phase and earth of
more than 250 V.
PE
L
N
Caution
The number of starts and stops via the mains voltage
must not exceed four times per hour.
Note
If no external on/off switch is connected, connect
terminals 2 and 3 using a short wire.

English (GB)
8
Fig. 4 Connection terminals TPE Series 2000
Fig. 5 Connection terminals TPED Series 2000
A galvanic separation must fulfil the requirements for reinforced
insulation including creepage distances and clearances specified
in EN 60335.
TM02 0795 0904
0/1
10K
RUN
STOP
NC C NO N PE L
1987
65432
BYA
0-10 V
0/4-20 mA 4-20 mA
0/4-20 mA
0-10 V
1: Digital input
9: GND (frame)
8: +24 V
7: Sensor input
B: RS-485B
Y: Screen
A: RS-485A
6: GND (frame)
5: +10 V
4: Setpoint input
3: GND (frame)
2: Start/stop
Group 1
Group 3 Group 2
TM02 6009 0703
0/1
10K
RUN
STOP
NC CNO NP
EL
1987
65432
BYA
0-10V
0/4-20 mA 4-20 mA
0/4-20 mA 0-10V
Group 4
Group 2
Group 3
1: Digital input
9: GND (frame)
8: +24 V
7: Sensor input
B: RS-485B
Y: Screen
A: RS-485A
6: GND (frame)
5: +10 V
4: Setpoint input
3: GND (frame)
2: Start/stop
Group 1

English (GB)
9
5.3 Electrical connection - three-phase pumps up to
7.5 kW
5.3.1 Preparation
Before connecting the E-pump to the mains, take the issues
illustrated in the figure below into consideration.
Fig. 6 Mains-connected pump with mains switch, backup
fuses, additional protection and protective earthing
5.3.2 Protection against electric shock - indirect contact
EN 50178 and BS 7671 specify the following precautions when
the leakage current is greater than 3.5 mA:
• The pump must be stationary and installed permanently.
• The pump must be permanently connected to the power
supply.
• The earth connection must be carried out as duplicate
conductors.
Protective earth conductors must always have a yellow/green
(PE) or yellow/green/blue (PEN) colour marking.
5.3.3 Backup fuses
For recommended fuse sizes, see section 20.1 Supply voltage.
5.3.4 Additional protection
If the pump is connected to an electric installation where an earth
leakage circuit breaker (ELCB) is used as additional protection,
the circuit breaker must be of a type marked with the following
symbols:
This circuit breaker is type B.
The total leakage current of all the electrical equipment in the
installation must be taken into account.
The leakage current of the motor in normal operation can be seen
in section 21.3 Leakage current.
During start and at asymmetrical supply systems, the leakage
current can be higher than normal and may cause the ELCB to
trip.
5.3.5 Motor protection
The pump requires no external motor protection. The motor
incorporates thermal protection against slow overloading and
blocking (IEC 34-11, TP 211).
5.3.6 Protection against mains voltage transients
The pump is protected against voltage transients by built-in
varistors between the phases and between phases and earth.
5.3.7 Supply voltage and mains
3 x 380-480 V - 10 %/+ 10 %, 50/60 Hz, PE.
The supply voltage and frequency are marked on the pump
nameplate. Make sure that the pump is suitable for the power
supply of the installation site.
The wires in the terminal box must be as short as possible.
Excepted from this is the protective earth conductor which must
be so long that it is the last one to be disconnected in case the
cable is inadvertently pulled out of the cable entry.
Fig. 7 Mains connection
Cable glands
Cable glands comply with EN 50626.
• 2 x M16 cable gland, cable diameter ∅4-∅10
• 1 x M20 cable gland, cable diameter ∅9-∅17
• 2 x M16 knock-out cable entries.
Grid types
Three-phase E-pumps can be connected to all grid types.
Warning
The user or the installer is responsible for the
installation of correct earthing and protection
according to local standards. All operations must be
carried out by qualified staff.
Warning
Never make any connections in the pump terminal
box unless all electric supply circuits have been
switched off for at least 5 minutes.
Note for instance that the signal relay may be
connected to an external supply which is still
connected when the mains supply is disconnected.
The above warning is indicated on the motor
terminal box by this yellow label.
TM00 9270 4696
Warning
The pump must be earthed in accordance with local
regulations.
As the leakage current of 4 - 7.5 kW motors is
greater than 3.5 mA, take extra precautions when
earthing these motors.
L1
L2
L3
L2
L1
L3
PE
ELCB
ELCB
TM03 8600 2007
Warning
If the supply cable is damaged, it must be replaced
by qualified staff.
Warning
Do not connect three-phase E-pumps to a mains
supply with a voltage between phase and earth of
more than 440 V.
L1
L2
L3
L1
L2
L3

English (GB)
10
5.3.8 Start/stop of pump
When the pump is switched on via the mains, it will start after
approx. 5 seconds.
If a higher number of starts and stops is desired, use the input for
external start/stop when starting/stopping the pump.
When the pump is switched on via an external on/off switch, it will
start immediately.
Automatic restart
However, automatic restart only applies to fault types set up to
automatic restart. These faults could typically be one of these
faults:
• temporary overload
• fault in the power supply.
5.3.9 Connections
As a precaution, the wires to be connected to the following
connection groups must be separated from each other by
reinforced insulation in their entire lengths:
Group 1: Inputs
• start/stop, terminals 2 and 3
• digital input, terminals 1 and 9
• setpoint input, terminals 4, 5 and 6
• sensor input, terminals 7 and 8
• GENIbus, terminals B, Y and A
All inputs (group 1) are internally separated from the mains-
conducting parts by reinforced insulation and galvanically
separated from other circuits.
All control terminals are supplied with protective extra-low
voltage (PELV), thus ensuring protection against electric
shock.
Group 2: Output (relay signal, terminals NC, C, NO)
The output (group 2) is galvanically separated from other
circuits. Therefore, the supply voltage or protective extra-low
voltage can be connected to the output as desired.
Group 3: Mains supply (terminals N, PE, L)
Group 4: Communication cable (8-pin male socket) - only
TPED
The communication cable is connected to the socket in group
4. The cable ensures communication between the two pumps,
whether one or two pressure sensors are connected. See
section 5.7 Communication cable for TPED pumps.
The selector switch in group 4 enables changeover between
the operating modes "alternating operation" and "standby
operation". See the description in section 6.2.1 Additional
operating modes - TPED pumps.
Fig. 8 Connection terminals TPE Series 2000
Caution
The number of starts and stops via the mains voltage
must not exceed four times per hour.
Note
If a pump set up for automatic restart is stopped due
to a fault, it will restart automatically when the fault
has disappeared.
Note
If no external on/off switch is connected, connect
terminals 2 and 3 using a short wire.
TM02 8414 5103
1987 BYA
0-10V
0/4-20 mA 4-20 mA
1/0
NC CNO L1 L2 L3
10K
RUN
STOP
65432
0/4-20 mA
0-10V
1: Digital input
9: GND (frame)
8: +24 V
7: Sensor input
B: RS-485B
Y: Screen
A: RS-485A
6: GND (frame)
5: +10 V
4: Setpoint input
3: GND (frame)
2: Start/stop
Group 1
Group 3
Group 2

English (GB)
11
Fig. 9 Connection terminals TPED Series 2000
A galvanic separation must fulfil the requirements for reinforced
insulation including creepage distances and clearances specified
in EN 60335.
5.4 Electrical connection - three-phase pumps, 11-22
kW
5.4.1 Preparation
Before connecting the E-pump to the mains, take the issues
illustrated in the figure below into consideration.
Fig. 10 Mains-connected pump with mains switch, backup
fuses, additional protection and protective earthing
5.4.2 Protection against electric shock - indirect contact
EN 61800-5-1 specifies that the pump must be stationary and
installed permanently when the leakage current is greater than 10
mA.
One of the following requirements must be fulfilled:
• A single protective earth conductor having a cross-sectional
area of minimum 10 mm2.
Fig. 11 Connection of a single protective earth conductor
using one of the conductors of a 4-core mains cable
(with cross-sectional area of minimum 10 mm2)
TM03 0125 4104
0/1
10K
RUN
STOP
1987
65432
BYA
0-10V
0/4-20 mA 4-20 mA
0/4-20 mA 0-10V
L3L2L1
NOCNC
Group 4
Group 2
Group 3
1: Digital input
9: GND (frame)
8: +24 V
7: Sensor input
B: RS-485B
Y: Screen
A: RS-485A
6: GND (frame)
5: +10 V
4: Setpoint input
3: GND (frame)
2: Start/stop
Group 1
Warning
The user or the installer is responsible for the
installation of correct earthing and protection
according to local standards. All operations must be
carried out by qualified staff.
Warning
Never make any connections in the pump terminal
box unless all electric supply circuits have been
switched off for at least 5 minutes.
Note for instance that the signal relay may be
connected to an external supply which is still
connected when the mains supply is disconnected.
Warning
The surface of the terminal box may be above 70 °C
when the pump is operating.
TM00 9270 4696
Warning
The pump must be earthed in accordance with local
regulations.
As the leakage current of 11-22 kW motors is greater
than 10 mA, take extra precautions when earthing
these motors.
TM04 3021 3508
L1
L2
L3
L2
L1
L3
PE
ELCB

English (GB)
12
• Two protective earth conductors of the same cross-sectional
area as the mains conductors, with one conductor connected
to an additional earth terminal in the terminal box.
Fig. 12 Connection of two protective earth conductors using
two of the conductors of a 5-core mains cable
Protective earth conductors must always have a yellow/green
(PE) or yellow/green/blue (PEN) colour marking.
5.4.3 Backup fuses
For recommended fuse sizes, see section 20.1 Supply voltage.
5.4.4 Additional protection
If the pump is connected to an electric installation where an earth
leakage circuit breaker (ELCB) is used as additional protection,
the circuit breaker must be of a type marked with the following
symbols:
This circuit breaker is type B.
The total leakage current of all the electrical equipment in the
installation must be taken into account.
The leakage current of the motor in normal operation can be seen
in section 22.3 Leakage current.
During start and at asymmetrical supply systems, the leakage
current can be higher than normal and may cause the ELCB to
trip.
5.4.5 Motor protection
The pump requires no external motor protection. The motor
incorporates thermal protection against slow overloading and
blocking (IEC 34-11, TP 211).
5.4.6 Protection against mains voltage transients
The pump is protected against mains voltage transients in
accordance with EN 61800-3 and is capable of withstanding a
VDE 0160 pulse.
The pump has a replaceable varistor which is part of the transient
protection.
Over time this varistor will be worn and need to be replaced.
When the time for replacement has come, the R100 and PC Tool
E-products will indicate this as a warning. See section
19. Maintenance and service.
5.4.7 Supply voltage and mains
3 x 380-480 V - 10 %/+ 10 %, 50/60 Hz, PE.
The supply voltage and frequency are marked on the pump
nameplate. Make sure that the motor is suitable for the power
supply of the installation site.
The wires in the terminal box must be as short as possible.
Excepted from this is the protective earth conductor which must
be so long that it is the last one to be disconnected in case the
cable is inadvertently pulled out of the cable entry.
Fig. 13 Mains connection
Cable glands
Cable glands comply with EN 50626.
• 1 x M40 cable gland, cable diameter ∅16-∅28
• 1 x M20 cable gland, cable diameter ∅9-∅17
• 2 x M16 cable gland, cable diameter ∅4-∅10
• 2 x M16 knock-out cable entries.
Grid types
Three-phase E-pumps can be connected to all grid types.
5.4.8 Start/stop of pump
When the pump is switched on via the mains, it will start after
approx. 5 seconds.
If a higher number of starts and stops is desired, use the input for
external start/stop when starting/stopping the pump.
When the pump is switched on via an external on/off switch, it will
start immediately.
5.4.9 Connections
As a precaution, the wires to be connected to the following
connection groups must be separated from each other by
reinforced insulation in their entire lengths:
TM03 8606 2007
ELCB
TM03 8605 2007 - TM04 3048 3508
Warning
If the supply cable is damaged, it must be replaced
by qualified staff.
Warning
Do not connect three-phase E-pumps to a mains
supply with a voltage between phase and earth of
more than 440 V.
Caution
The number of starts and stops via the mains voltage
must not exceed four times per hour.
Note
If no external on/off switch is connected, connect
terminals 2 and 3 using a short wire.
Torques, terminals L1-L3:
Min. torque: 2.2 Nm
Max. torque: 2.8 Nm

English (GB)
13
Group 1: Inputs
• start/stop, terminals 2 and 3
• digital input, terminals 1 and 9
• setpoint input, terminals 4, 5 and 6
• sensor input, terminals 7 and 8
• GENIbus, terminals B, Y and A
All inputs (group 1) are internally separated from the mains-
conducting parts by reinforced insulation and galvanically
separated from other circuits.
All control terminals are supplied with protective extra-low
voltage (PELV), thus ensuring protection against electric
shock.
Group 2: Output (relay signal, terminals NC, C, NO)
The output (group 2) is galvanically separated from other
circuits. Therefore, the supply voltage or protective extra-low
voltage can be connected to the output as desired.
Group 3: Mains supply (terminals L1, L2, L3)
Group 4: Communication cable (8-pin male socket) - only
TPED
The communication cable is connected to the socket in group
4. The cable ensures communication between the two pumps,
whether one or two pressure sensors are connected. See
section 5.7 Communication cable for TPED pumps.
The selector switch in group 4 enables changeover between
the operating modes "alternating operation" and "standby
operation". See the description in section 6.2.1 Additional
operating modes - TPED pumps.
Fig. 14 Connection terminals TPE Series 2000
Fig. 15 Connection terminals TPED Series 2000
A galvanic separation must fulfil the requirements for reinforced
insulation including creepage distances and clearances specified
in EN 61800-5-1.
TM03 8608 2007
1: Digital input
9: GND (frame)
8: +24 V
7: Sensor input
B: RS-485B
Y: Screen
A: RS-485A
6: GND (frame)
5: +10 V
4: Setpoint input
3: GND (frame)
2: Start/stop
Group 1
Group 2
Group 3
TM03 9134 3407
Group 4Group 2 Group 3
1: Digital input
9: GND (frame)
8: +24 V
7: Sensor input
B: RS-485B
Y: Screen
A: RS-485A
6: GND (frame)
5: +10 V
4: Setpoint input
3: GND (frame)
2: Start/stop
Group 1

English (GB)
14
5.5 Signal cables
• Use screened cables with a cross-sectional area of minimum
0.5 mm2and maximum 1.5 mm2for external on/off switch,
digital input, setpoint and sensor signals.
• Connect the screens of the cables to frame at both ends with
good frame connection. The screens must be as close as
possible to the terminals. See fig. 16.
Fig. 16 Stripped cable with screen and wire connection
• Always tighten screws for frame connections whether a cable
is fitted or not.
• Make the wires in the pump terminal box as short as possible.
5.6 Bus connection cable
5.6.1 New installations
For the bus connection, use a screened 3-core cable with a
cross-sectional area of minimum 0.2 mm2and maximum 1.5 mm2.
• If the pump is connected to a unit with a cable clamp which is
identical to the one on the pump, connect the screen to this
cable clamp.
• If the unit has no cable clamp as shown in fig. 17, leave the
screen unconnected at this end.
Fig. 17 Connection with screened 3-core cable
5.6.2 Replacing an existing pump
• If a screened 2-core cable is used in the existing installation,
connect it as shown in fig. 18.
Fig. 18 Connection with screened 2-core cable
• If a screened 3-core cable is used in the existing installation,
follow the instructions in section 5.6.1 New installations.
5.7 Communication cable for TPED pumps
The communication cable is connected between the two terminal
boxes. The screen of the cable is connected to the frame at both
ends with a good frame connection.

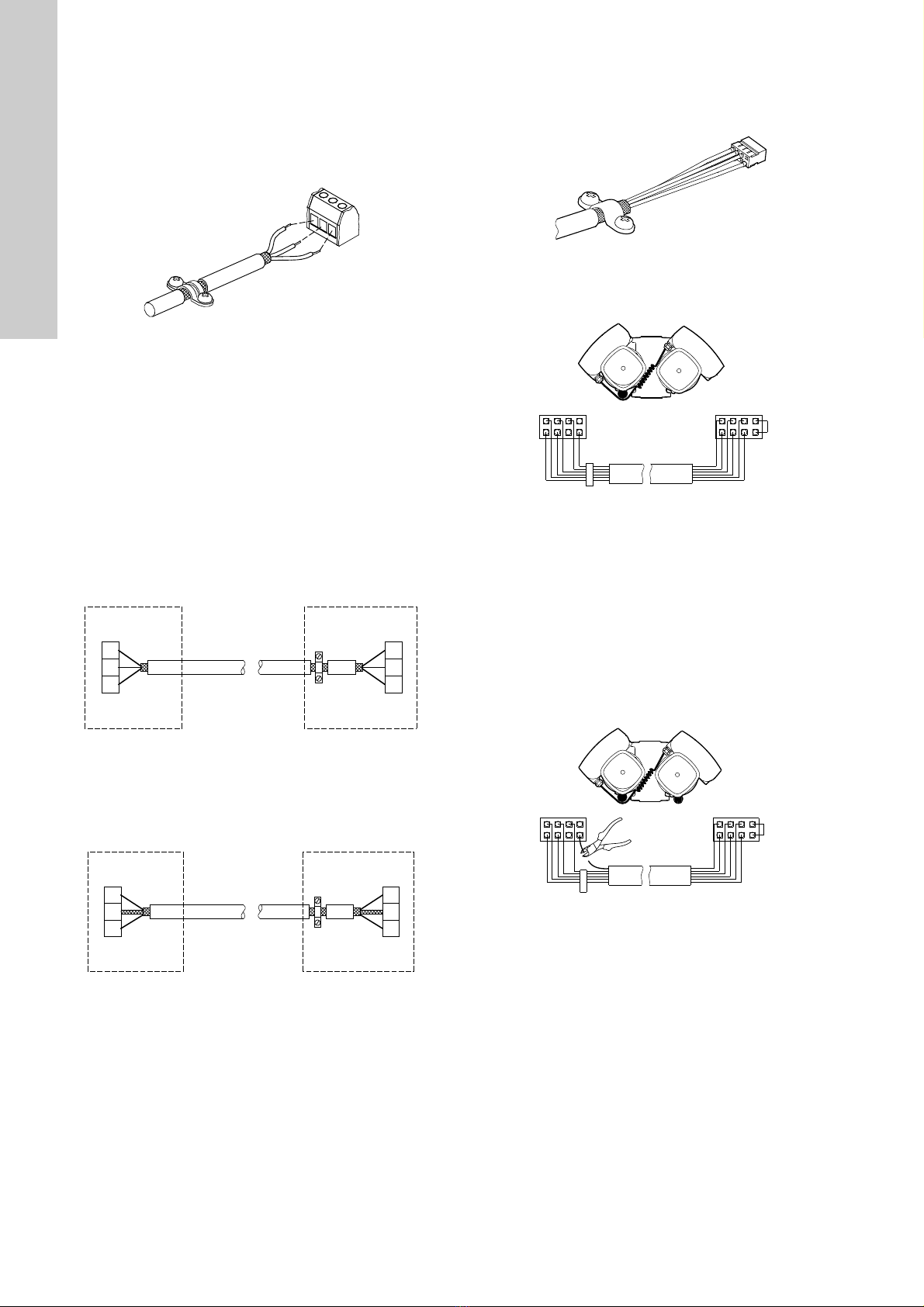

Fig. 19 Communication cable
The communication cable has a master end and a slave end as
shown in fig. 20.
Fig. 20 Master end and slave end
On pumps with factory-fitted sensor, the master end and the
sensor are connected to the same terminal box.
When the power supply to the two pumps has been switched off
for 40 seconds and switched on again, the pump connected to the
master end will start up first.
5.7.1 Connection of two sensors
The sensor signal is copied to the other pump through the red
wire of the communication cable.
If, optionally, two sensors are connected (one sensor to each
terminal box), cut the red wire. See fig. 21.
Fig. 21 Elimination of copied sensor signal
TM02 1325 0901TM02 8841 0904TM02 8842 0904
A
Y
B
A
Y
B
12
3
1
2
3
Pump
A
Y
B
A
Y
B
1
2
1
2
Pump
TM02 5991 4702TM04 5497 3309TM04 5495 3309
Jumper
White label
Master end Slave end
Jumper
White label
Master end Slave end

English (GB)
15
5.7.2 Elimination of alternating operation and standby
operation
If alternating operation and standby operation are not desired, but
the copied sensor signal (one sensor signal to two pumps) is
desired, cut the green wire. See fig. 22.
Fig. 22 Elimination of alternating operation and standby
operation
5.7.3 Elimination of TPED function
If alternating operation and standby operation as well as the
copied sensor signal are not desired, remove the communication
cable completely.
6. Modes
Grundfos E-pumps are set and controlled according to operating
and control modes.
6.1 Overview of modes
6.2 Operating mode
When the operating mode is set to Normal, the control mode can
be set to controlled or uncontrolled. See section 6.3 Control
mode.
The other operating modes that can be selected are Stop, Min. or
Max.
• Stop: The pump has been stopped.
• Min.: The pump is operating at its minimum speed.
• Max.: The pump is operating at ist maximum speed.
Figure 23 is a schematic illustration of min. and max. curves.
Fig. 23 Min. and max. curves
The max. curve can for instance be used in connection with the
venting procedure during installation.
The min. curve can be used in periods in which a minimum flow is
required.
If the power supply to the pump is disconnected, the mode setting
will be stored.
The remote control R100 offers additional possibilities of setting
and status displays. See section 9. Setting by means of R100.
6.2.1 Additional operating modes - TPED pumps
The TPED pumps offer the following additional operating modes:
•Alternating operation
Pump operation alternates every 24 hours. If the duty pump
stops due to a fault, the other pump will start.
•Standby operation
One pump is operating continuously. In order to prevent
seizing-up, the other pump is started for 10 seconds every 24
hours. If the duty pump stops due to a fault, the other pump
will start.
Select the operating mode by means of the selector switch in the
terminal box. See figures 5, 9and 15.
The selector switch enables changeover between the operating
modes "alternating operation" (left position) and "standby
operation" (right position).
The switches in the two terminal boxes of a twin-head pump must
be set to the same position. If the switches are positioned
differently, the pump will be in standby operation.
Twin-head pumps can be set and operated in the same way as
single-head pumps. The duty pump uses its setpoint setting,
whether it is made by means of the control panel, via the R100 or
via bus.
If the power supply to the pump is disconnected, the pump setting
will be stored.
The remote control R100 offers additional possibilities of setting
and status displays. See section 9. Setting by means of R100.
6.3 Control mode
The pump can be set to two primary control modes, i.e.
• proportional pressure
• constant pressure.
Furthermore, the pump can be set to constant curve.
Fig. 24 Controlled and uncontrolled operation
Proportional-pressure control
The head is reduced at falling water demand and increased at
rising water demand. See fig. 24.
Constant-pressure control
The pump maintains a constant pressure, irrespective of water
demand. See fig. 24.
Constant curve mode
The pump is not controlled. The curve can be set within the range
from min. curve to max. curve. See fig. 24.
The pumps have been factory-set to proportional pressure. See
section 6.4 Factory setting. In most cases, this is the optimum
control mode, and at the same time it consumes the least energy.
TM04 5496 3309
Operating modes Normal Stop Min. Max.
Control modes Uncontrolled Controlled
Constant
curve
Constant
pressure
Prop.
pressure
TM00 5547 0995
Jumper
White label
Master end Slave end
Q
H
Max.
Min.
Note
Both pumps should be set to the same setpoint and
control mode. Different settings will result in different
operation when changing between the two pumps.
TM00 7630 3604
2
set
H
set
H
H
Q
H
set
H
Q
H
Q
Controlled operation
Uncontrolled
operation
Proportional
pressure
Constant
pressure
Constant
curve

English (GB)
16
6.3.1 Guide to the selection of control mode based on system type
6.4 Factory setting
TPE pumps
The pumps have been factory-set to proportional pressure.
The head corresponds to 50 % of the maximum head. See the
data sheet for the pump.
Many systems will operate satisfactorily with the factory setting,
but most systems can be optimized by changing this setting.
In sections 9.1 Menu OPERATION and 9.3 Menu
INSTALLATION, the factory setting is marked with bold-faced
type under each individual display.
TPED pumps
The pumps have been factory-set to proportional pressure and
the additional operating mode "alternating operation".
The head corresponds to 50 % of the maximum head. See the
data sheet for the pump.
Many systems will operate satisfactorily with the factory setting,
but most systems can be optimized by changing this setting.
In sections 9.1 Menu OPERATION and 9.3 Menu
INSTALLATION, the factory setting is marked with bold-faced
type under each individual display.
System type System description Select this control mode
Relatively big pressure
losses in the boiler, chiller
or heat exchanger circuit
and the pipes.
1. Two-pipe
heating
systems with
thermostatic
valves
• with a dimensioned head higher than 4 metres
Proportional pressure
• very long distribution pipes
• strongly throttled pipe balancing valves
• differential pressure regulators
• big pressure losses in those parts of the system through
which the total quantity of water flows (e.g. boiler, chiller,
heat exchanger and pipes up to the first branching).
2. Primary circuit pumps in systems with big pressure losses in the primary
circuit.
Relatively small pressure
losses in the boiler, chiller
or heat exchanger circuit
and the pipes.
1. Two-pipe
heating or
cooling
systems with
thermostatic
valves
• with a dimensioned head lower than 2 metres
Constant pressure
• dimensioned for natural circulation
• with small head losses in those parts of the system
through which the total quantity of water flows (e.g.
boiler, chiller, heat exchanger and pipes up to the first
branching)
• modified to a high differential temperature between flow
pipe and return pipe (e.g. district heating).
2. Floor heating systems with thermostatic valves.
3. One-pipe heating systems with thermostatic valves or pipe balancing
valves.
4. Primary circuit pumps in systems with small pressure losses in the primary
circuit.

English (GB)
17
7. Setting by means of control panel, single-
phase pumps
The pump control panel, see fig. 25, incorporates the following
buttons and indicator lights:
• Buttons, and , for setpoint setting.
• Light fields, yellow, for indication of setpoint.
• Indicator lights, green (operation) and red (fault).
Fig. 25 Control panel, single-phase pumps
Setting of control mode
Description of function, see section 6.3 Control mode.
Change the control mode by pressing the two setting buttons
simultaneously for 5 seconds. The control mode will change from
constant pressure , to proportional pressure or vice versa.
7.1 Setting of head
Set the head by pressing the button or .
The light fields on the control panel will indicate the head set
(setpoint). See the following examples.
Proportional pressure
Figure 26 shows that the light fields 5 and 6 are activated,
indicating a desired head of 3.4 metres at maximum flow. The
setting range lies between 25 % to 90 % of maximum head.
Fig. 26 Pump in control mode proportional pressure
Constant pressure
Figure 27 shows that the light fields 5 and 6 are activated,
indicating a desired head of 3.4 metres. The setting range lies
between 1/8 (12.5 %) of maximum head and maximum head.
Fig. 27 Pump in control mode constant pressure
7.2 Setting to max. curve duty
Press continuously to change to the max. curve of the pump
(top light field flashes). See fig. 28.
To change back, press continuously until the desired head is
indicated.
Fig. 28 Max. curve duty
7.3 Setting to min. curve duty
Press continuously to change to the min. curve of the pump
(bottom light field flashes). See fig. 29.
To change back, press continuously until the desired head is
indicated.
Fig. 29 Min. curve duty
7.4 Start/stop of pump
Start the pump by continuously pressing until the desired head
is indicated.
Stop the pump by continuously pressing until none of the light
fields are activated and the green indicator light flashes.
Warning
At high system temperatures, the pump may be so
hot that only the buttons should be touched to avoid
burns.
TM00 7600 0304
Pos. Description
1 Buttons for setting.
2 Indicator lights for indication of operation and fault.
3 Light fields for indication of head and performance.
TM03 9133 3407TM03 5846 4006
31
2
TM03 5845 4006TM00 7345 1196TM00 7346 1196
H
Q
H
Q

English (GB)
18
8. Setting by means of control panel, three-
phase pumps
The pump control panel incorporates the following buttons and
indicator lights:
• Buttons, and , for setpoint setting.
• Light fields, yellow, for indication of setpoint.
• Indicator lights, green (operation) and red (fault).
Fig. 30 Control panel, three-phase pumps
8.1 Setting of control mode
Description of function, see section 6.3 Control mode.
Change the control mode by pressing (pos. 2) according to the
following cycle:
• constant pressure,
• proportional pressure, .
8.2 Setting of head
Set the head by pressing the button or .
The light fields on the control panel will indicate the head set
(setpoint). See the following examples.
Proportional pressure
Figure 31 shows that the light fields 5 and 6 are activated,
indicating a desired head of 3.4 metres at maximum flow. The
setting range lies between 25 % to 90 % of maximum head.
Fig. 31 Pump in control mode proportional pressure
Constant pressure
Figure 32 shows that the light fields 5 and 6 are activated,
indicating a desired head of 3.4 metres. The setting range lies
between 1/8 (12.5 %) of maximum head and maximum head.
Fig. 32 Pump in control mode constant-pressure
8.3 Setting to max. curve duty
Press continuously to change to the max. curve of the pump
(MAX illuminates). See fig. 33.
To change back, press continuously until the desired head is
indicated.
Fig. 33 Max. curve duty
Warning
At high system temperatures, the pump may be so
hot that only the buttons should be touched to avoid
burns.
TM03 0177 4304
Pos. Description
1 and 2 Buttons for setting.
3 and 5
Light fields for indication of
• control mode (pos. 3)
• head, performance and operating mode (pos. 5).
4
Indicator lights for indication of
• operation and fault
• external control (EXT).
TM03 9061 3307
15
4
3
2
TM03 5846 4006TM03 5845 4006TM03 0289 4704
H
Q

English (GB)
19
8.4 Setting to min. curve duty
Press continuously to change to the min. curve of the pump
(MIN illuminates). See fig. 34.
To change back, press continuously until the desired head is
indicated.
Fig. 34 Min. curve duty
8.5 Start/stop of pump
Start the pump by continuously pressing until the desired head
is indicated.
Stop the pump by continuously pressing until STOP
illuminates and the green indicator light flashes.
9. Setting by means of R100
The pump is designed for wireless communication with the
Grundfos remote control R100.
Fig. 35 R100 communicating with the pump via infra-red light
During communication, the R100 must be pointed at the control
panel. When the R100 communicates with the pump, the red
indicator light will flash rapidly. Keep pointing the R100 at the
control panel until the red LED diode stops flashing.
The R100 offers setting and status displays for the pump.
The displays are divided into four parallel menus, fig. 36:
0. GENERAL (see operating instructions for the R100)
1. OPERATION
2. STATUS
3. INSTALLATION
The figure above each individual display in fig. 36 refers to the
section in which the display is described.
TM03 0290 4704
H
Q
TM03 0141 4104

English (GB)
20
Fig. 36 Menu overview
0. GENERAL 1. OPERATION 2. STATUS 3. INSTALLATION
9.1.1 9.2.1 9.3.1
9.1.2 9.2.2 9.3.2
9.1.3 9.2.3 9.3.3 (1)
9.1.3 (3) 9.2.4 9.3.3 - 1 (2)
9.1.4 9.2.5 9.3.3 - 2 (2)
9.2.6 9.3.4
9.1.4 (3) 9.2.7 (2) 9.3.5
9.2.8 (2) 9.3.6
9.2.9 (3) 9.3.7 (3)
9.3.8 (3)
9.3.9 (3)
(1): This display only appears for pumps up to 7.5 kW.
(2): This display only appears for three-phase pumps, 11-22 kW.
(3): This display only appears for three-phase pumps.
