Grundfos IO 50 SQFlex User manual

GRUNDFOS INSTRUCTIONS

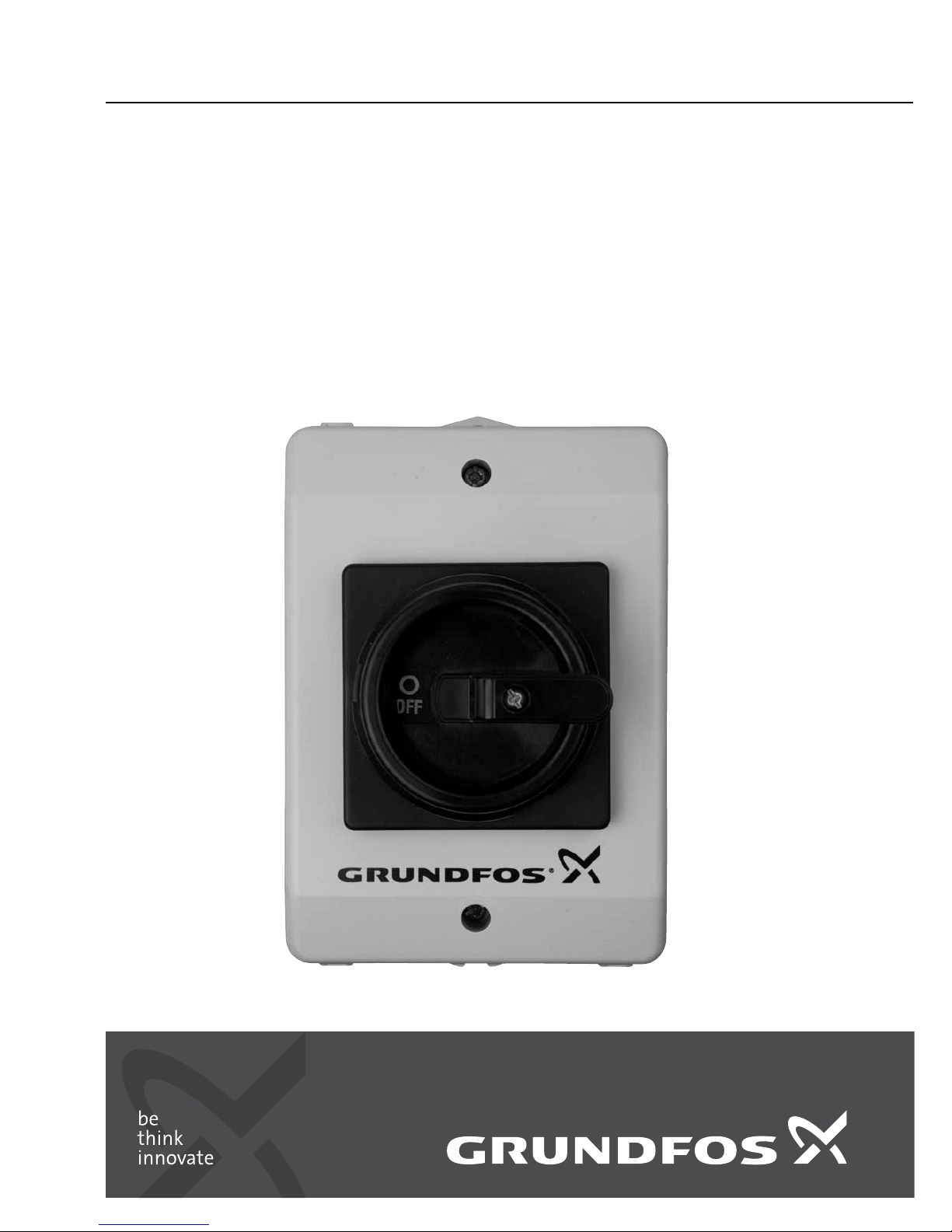

IO 50 SQFlex
Installation and operating instructions

English (GB)
2
English (GB) Installation and operating instructions
Original installation and operating instructions
CONTENTS
Page
1. Applications
The IO 50 SQFlex switch box is made for solar-powered SQFlex systems
and is an on/off switch for the system power supply.
In addition, the IO 50 functions as a connection point for all necessary
cables.
By means of the on/off switch, it is possible to
• start/stop the pump
• reset alarms.
The electrical connection and protection must be carried out in accordance
with local regulations.
1. Applications 2
2. Installation 3
2.1 Mechanical installation 3
2.2 Electrical connection 3
3. Technical data 4
4. Disposal 4
Warning
Prior to installation, read these installation and operating
instructions. Installation and operation must comply with local
regulations and accepted codes of good practice.
Warning
The use of this product requires experience with and knowledge of
the product.
Persons with reduced physical, sensory or mental capabilities
must not use this product, unless they are under supervision or
have been instructed in the use of the product by a person
responsible for their safety.
Children must not use or play with this product.

English (GB)
3
2. Installation
2.1 Mechanical installation
The IO 50 SQFlex must be placed on a firm and stable surface that fits the
box.
2.2 Electrical connection
The electrical connection must be carried out by an authorised electrician in
accordance with local regulations.
Two typical wiring diagrams are shown on page 5:
• one DC conductor earthed (fig. 1)
• floating DC supply or AC connection (fig. 2).
Position of wire jumpers
Explanation
The jumpers are necessary in order to meet the demands of the circuit
breaker due to the complexity of handling DC currents. This means that
contact sets in series connection are required.
The DC supply voltage is stated on the nameplate. Make sure that the IO 50
is suitable for the power supply on which it will be used.
Warning
Before starting any work on the IO 50, make sure that the power
supply has been disconnected and that it cannot be accidentally
connected.
Wiring Place the wire jumpers between
One DC conductor earthed 1L1 - 3L2 5L3 - 7L4 4T2 - 6T3
Floating DC supply 1L1 - 7L4 3L2 - 5L3 -
Warning
Never make any connections in the IO 50 unless the power supply
has been disconnected. The IO 50 must be connected in
accordance with the rules and standards in force for the application
in question.
Use appropriate compression fittings to ensure watertight cable
entries.
The IO 50 must be earthed.

English (GB)
4
3. Technical data
System voltages
• DC: Maximum 300 V, PE.
• AC: Maximum 254 V, 50/60 Hz, PE.
Maximum current
8.4 A.
Ambient temperature
Tamb.: -30 °C to 50 °C.
Enclosure class
IP55 or NEMA 3R.
4. Disposal
This product or parts of it must be disposed of in an environmentally sound
way:
1. Use the public or private waste collection service.
2. If this is not possible, contact the nearest Grundfos company or service
workshop.
Subject to alterations.
Note
All four relay contacts must be used to meet the rated DC voltage.
See the wiring diagrams on page 5.

Appendix
5
Appendix 1
Fig. 1 Wiring diagram, one DC conductor earthed
Fig. 2 Wiring diagram, floating DC supply or AC connection
TM04 5893 2710TM04 9755 2710
1L1
2T1
3L2
4T2
5L3
6T3
7L4
8T4
PE BAR
IO 50
PE PE
Solar Module SQ Flex
6T3
1L1
2T1
3L2
4T2
5L3 7L4
8T4
PE PE
PE BAR
IO 50
Solar Module SQ Flex
~~ ~~
--++

Declaration of conformity
6
Declaration of conformity 2
GB: EC/EU declaration of conformity
We, Grundfos, declare under our sole responsibility that the products IO 50, to which the declaration
below relates, are in conformity with the Council Directives listed below on the approximation of the
laws of the EC/EU member states.
Note: There are two sets of Council Directives and standards listed below. One set applies until and
including 19th April 2016. The other set applies from 20th April 2016 and onwards.
ES: Declaración de conformidad de la CE/UE
Grundfos declara, bajo su exclusiva responsabilidad, que los productos IO 50 a los que hace
referencia la siguiente declaración cumplen lo establecido por las siguientes Directivas del Consejo
sobre la aproximación de las legislaciones de los Estados miembros de la CE/UE.
Nota: A continuación se recogen dos conjuntos de normas y Directivas del Consejo. Uno de ellos es
válido hasta el 19 de abril de 2016. El otro es válido a partir del 20 de abril de 2016.
FR: Déclaration de conformité CE/UE
Nous, Grundfos, déclarons sous notre seule responsabilité, que les produits IO 50, auxquels se réfère
cette déclaration, sont conformes aux Directives du Conseil concernant le rapprochement des
législations des États membres CE/UE relatives aux normes énoncées ci-dessous.
Remarque : Deux groupes de Directives du Conseil et normes sont énoncés ci-dessous. Un groupe
s'applique jusqu'au 19 avril 2016 inclus. L'autre groupe entrera en vigueur le 20 avril 2016.
GR: ∆ήλωση συμμόρφωσης ΕΚ/ΕΕ
Εμείς, ηGrundfos, δηλώνουμε με αποκλειστικά δική μας ευθύνη ότι τα προϊόντα IO 50, στα οποία
αναφέρεται ηπαρακάτω δήλωση, συμμορφώνονται με τις παρακάτω Οδηγίες του Συμβουλίου περί
προσέγγισης των νομοθεσιών των κρατών μελών της ΕΚ/ΕΕ.
Σημείωση:Υπάρχουν δύο σετ Οδηγιών Συμβουλίου και προτύπων που παρατίθενται παρακάτω. Το
ένα σετ ισχύει μέχρι και την 19ηΑπριλίου 2016. Το άλλο σετ ισχύει από την 20ηΑπριλίου 2016 και
μετέπειτα.
IT: Dichiarazione di conformità CE/UE
Grundfos dichiara sotto la sua esclusiva responsabilità che i prodotti IO 50, ai quale si riferisce questa
dichiarazione, sono conformi alle seguenti direttive del Consiglio riguardanti il riavvicinamento delle
legislazioni degli Stati membri CE/UE.
Nota: Di seguito sono elencate due serie di direttive del Consiglio e norme. Una serie si applca fino
al19 aprile 2016 (incluso). La seconda serie si applica a partire dal 20 aprile 2016.
PT: Declaração de conformidade CE/UE
A Grundfos declara sob sua única responsabilidade que os produtos IO 50, aos quais diz respeito a
declaração abaixo, estão em conformidade com as Directivas do Conselho sobre a aproximação das
legislações dos Estados Membros da CE/UE.
Nota: Abaixo estão listados dois grupos de Directivas do Conselho e normas. Um dos grupos é
aplicável até 19 de Abril de 2016, inclusive. O outro grupo é aplicável a partir de 20 de Abril de 2016,
inclusive.
TR: EC/AB uygunluk bildirgesi
Grundfos olarak, aşağıdaki bildirim konusu olan IO 50 ürünlerinin, EC/AB Üye ülkelerinin direktiflerinin
yakınlaştırılmasıyla ilgili durumun aşağıdaki Konsey Direktifleriyle uyumlu olduğunu ve bununla ilgili
olarak tüm sorumluluğun bize ait olduğunu beyan ederiz.
Not: Aşağıda belirtilen iki küme Konsey Direktifleri ve Standartlarıbulunmaktadır. Bir küme 19 Nisan
2016 dahil bu tarihe kadar geçerlidir. Diğer küme 20 Nisan 2016 sonrasıiçin geçerlidir.

Declaration of conformity
7
These Directives and standards apply until and including 19th April 2016:
– Low Voltage Directive (2006/95/EC)
Standard used: EN 60947-3:2008
These Directives and standards apply from 20th April 2016 and onwards:
– Low Voltage Directive (2014/35/EU)
Standard used: EN 60947-3:2008
This EC/EU declaration of conformity is only valid when published as part of the Grundfos installation
and operating instructions (publication number 97823192 0316).
Bjerringbro, 7 January 2016
Svend Aage Kaae
Director
Grundfos Holding A/S
Poul Due Jensens Vej 7
8850 Bjerringbro, Denmark
Person authorised to compile the technical file and
empowered to sign the EC/EU declaration of conformity.

Declaration of conformity EAC
8
Declaration of conformity EAC 3
Модуль сбора ипередачи данных, серии IO сертифицирован на соответствие требованиям
Технических регламентов Таможенного союза ТР ТС 020/2011 «Электромагнитная
совместимость технических средств», ТР ТС 004/2011 «Обезопасности низковольтного
оборудования»
Сертификат соответствия:
№ТС RU C-DK.АИ30.В.00457, срок действия до 25.12.2018г.
№ТС RU C-DK.АИ30.В.00459, срок действия до 26.12.2018г.
Истра, 1 февраля 2016 г.
Касаткина В. В.
Руководитель отдела качества,
экологии иохраны труда
ООО Грундфос Истра, Россия
143581, Московская область,
Истринский район,
дер. Лешково, д.188
