REFRIGERATOR
USER INSTRUCTIONS
GKN17920X
GKN17920FX

Contents
1. Safety and environment
instructions 3
2. Your Refrigerator 8
3Installation 9
3.1 Appropriate installation
location .........................................9
3.2 Installing the plastic wedges .9
3.3 Adjusting the feet....................9
3.4 Electrical connection............10
3.5 Reversing the doors .............11
3.6 Reversing the doors .............12
4 Preparation 13
4.1 Things to be done for energy
saving..........................................13
4.2 Initial use ..............................14
5 Operating the product 15
5.1 Temperature setting button .15
5.2 Fast freeze ...........................15
5.3 Vacation function ..................16
5.5 Indicator panel......................19
5.6 Ice bucket..............................22
(This feature is optional)............22
5.7 Egg holder.............................22
5.8 Fan.........................................22
5.9 Vegetable bin ........................22
(This feature is optional)............22
5.10 Zero degree compartment.22
(This feature is optional)............22
5.11 Moving door rack................23
5.12 Sliding storage box ............23
(This feature is optional)............23
5.13 Moisture controlled
vegetable bin...............................23
(This feature is optional)............23
5.14 Automatic ice machine ......24
(This feature is optional)............24
5.15 Icematic and ice storage
container.....................................25
5.16 Using the water dispenser.25
5.17 Filling the water
dispenser's tank.........................26
5.18 Cleaning the water tank ...26
5.19 Drip tray ..............................27
5.20 Freezing fresh food.............28
5.21 Recommendations for
preserving the frozen food.........29
5.22 Deep-freeze information....29
5.23 Placing the food..................29
5.24 Door open warning.............30
5.25 Illumination lamp ...............30
6. Maintenance and cleaning 31
6.1 Avoiding bad odours..........31
6.2 Protecting the plastic
surfaces .....................................32
6.3 Door Glasses .......................32
7. Troubleshooting 33

2
Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants
and checked under the most meticulous quality control procedures, will
provide you an effective service
For this, we recommend you to carefully read the entire manual of your
product before using it and keep it at hand for future references.
The user manual will help you use the product in a fast and safe way.
Will help you use your appliance in a fast and safe way.
Read the manual before installing and operating your product.
Follow the instructions, especially those for safety.
Keep the manual in an easily accessible place as you may need it later.
Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information
or useful usage tips.
AWarning against
dangerous conditions
for life and property.
BWarning against
electric voltage.
Packaging materials
of the product are
manufactured from
recyclable materials
in accordance with our
National Environment
Regulations.

3
IT
EL
SL
BG
PT
1. Safety and environment instructions
This section provides the safety instructions
necessary to prevent the risk of injury and material
damage. Failure to observe these instructions will
invalidate all types of product warranty.
Intended use
AWARNING:
Keep ventilation openings, in the appliance
enclosure or in the built-instructure, clear of
obstruction.
A
WARNING:
Do not use mechanical devices or other
means to accelerate the defrostingprocess,
other than those recommended by the
manufacturer.
AWARNING:
Do not damage the refrigerant circuit.
A
WARNING:
Do not use electrical appliances inside the
food storage compartments of the appliance,
unless they are of the type recommended by
the manufacturer.
This appliance is intended to be used in household
and similar applications such as
– staff kitchen areas in shops, offices and other
working environments;
– farm houses and by clients in hotels, motels and
other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

4
1.1. General safety
• This product should not be used by persons with physical,
sensory and mental disabilities, without sufficient knowledge
and experience or by children. The device can only be used by
such persons under supervision and instruction of a person
responsible for their safety. Children should not be allowed to
play with this device.
• In case of malfunction, unplug the device.
• After unplugging, wait at least 5 minutes before plugging in
again.
• Unplug the product when not in use.
• Do not touch the plug with wet hands! Do not pull the cable to
plug off, always hold the plug.
• Do not plug in the refrigerator if the socket is loose.
• Unplug the product during installation, maintenance, cleaning
and repair.
• If the product will not be used for a while, unplug the product
and remove any food inside.
• Do not use the product when the compartment with circuit cards
located on the upper back part of the product (electrical card
box cover) (1) is open.
1
1

5
IT
EL
SL
BG
PT
• Do not use steam or steamed cleaning materials for cleaning
the refrigerator and melting the ice inside. Steam may contact
the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it!
Danger of electric shock!
• In case of malfunction, do not use the product, as it may cause
electric shock. Contact the authorized service before doing
anything.
• Plug the product into an earthed socket. Earthing must be done
by a qualified electrician.
• If the product has LED type lighting, contact the authorized
service for replacing or in case of any problem.
• Do not touch frozen food with wet hands! It may adhere to your
hands!
• Do not place liquids in bottles and cans into the freezer
compartment. They may burst out!
• Place liquids in upright position after tightly closing the lid.
• Do not spray flammable substances near the product, as it may
burn or explode.
• Do not keep flammable materials and products with flammable
gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product.
Splashing water on an electrified part may cause electric shock
and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause
electrical danger. When relocating the product, do not pull by
holding the door handle. The handle may come off.
• Take care to avoid trapping any part of your hands or body in any
of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the
refrigerator. This will cause the product to fall down and cause
damage to the parts.

6
• Take care not to trap the power cable.
1.1.1 HC warning
If the product comprises a cooling system using
R600a gas, take care to avoid damaging the cooling
system and its pipe while using and moving the
product. This gas is flammable. If the cooling system
is damaged, keep the product away from sources of
fire and ventilate the room immediately.
CThe label on the inner left side indicates the type of gas used
in the product.
1.1.2 For models with water dispenser
• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar).
If your water pressure exceeds 80 psi (5.5 bar), use a pressure
limiting valve in your mains system. If you do not know how to
check your water pressure, ask for the help of a professional
plumber.
• If there is risk of water hammer effect in your installation,
always use a water hammer prevention equipment in your
installation. Consult Professional plumbers if you are not sure
that there is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take precautions against of
the risk of freezing of the hoses. Water temperature operating
interval shall be 33°F (0.6°C) minimum and 100°F (38°C)
maximum.
• Use drinking water only.

7
IT
EL
SL
BG
PT
1.2. Intended use
• This product is designed for home use. It is not intended for
commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled
temperatures (vaccines, heat sensitive medication, medical
supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for any damage
due to misuse or mishandling.
• Original spare parts will be provided for 10 years, following the
product purchasing date.
1.3. Child safety
• Keep packaging materials out of children’s reach.
• Do not allow the children to play with the product.
• If the product’s door comprises a lock, keep the key out of
children’s reach.
1.4. Compliance with WEEE Directive and Disposing of the Waste
Product
This product complies with EU WEEE Directive (2012/19/EU). This
product bears a classification symbol for waste electrical and electronic
equipment (WEEE).
This product has been manufactured with high quality parts
and materials which can be reused and are suitable for
recycling. Do not dispose of the waste product with normal
domestic and other wastes at the end of its service life. Take it
to the collection center for the recycling of electrical and
electronic equipment. Please consult your local authorities to
learn about these collection centers.
1.5. Compliance with RoHS Directive
• This product complies with EU WEEE Directive (2011/65/EU). It
does not contain harmful and prohibited materials specified in the
Directive.
1.6. Package information
• Packaging materials of the product are manufactured from recyclable
materials in accordance with our National Environment Regulations.
Do not dispose of the packaging materials together with the domestic
or other wastes. Take them to the packaging material collection points
designated by the local authorities.

8
C
* optional:Figures in this user manual are schematic and
may not match the product exactly. If the subject parts are not
included in the product you have purchased, then those parts
are valid for other models.
2. Your Refrigerator
1. Cooler compartment door
shelf
2. Water dispenser filling tank
3. Egg section
4. Water dispenser reservoir
5. Bottle shelf
6. Sliding storage containers
7. Adjustable legs
8. Deep freezer compartment
9. Quick freeze compartment
10. Ice cube tray & Ice bank
11. Vegetable bin
12. Zero degree compartment
13. Interior light
14. Cooler compartment glass shelf
15. Temperature adjustment button
16. Cooler compartment
17. Freezer compartment
*1
*2
*3
*4
*5
*5
*6
*8
*9
77
*11
*12
13
*15
16
17
*14
*10
*4

9
IT
EL
SL
BG
PT
3Installation
3.1 Appropriate installation
location
Contact an Authorized Service for
the installation of the product. In
order to prepare the product for use,
refer the information in the user
manual and ensure that electrical
installation and water installation are
appropriate. If not, call a qualified
electrician and technician to have any
necessary arrangements carried out.
B
WARNING:
Manufacturer shall not be
held liable for damages
that may arise from
procedures carried out by
unauthorized persons.
B
WARNING: Product
must not be plugged
in during installation.
Otherwise, there is the
risk of death or serious
injury!
A
WARNING: If the door
clearance of the room
where the product shall be
place is so tight to prevent
passing of the product,
remove the door of the
room and pass the product
through the door by
turning it to its side; if this
does not work, contact the
authorized service.
• Placetheproductonanevenfloor
surface to prevent jolts.
• Installtheproductatleast30cm
away from heat sources such as
hobs, heater cores and stoves and
at least 5 cm away from electrical
ovens.
• Productmustnotbesubjectedto
direct sun light and kept in humid
places.
• Appropriateairventilationmust
be provided around your product
in order to achieve an efficient
operation. If the product is to be
placed in a recess in the wall, pay
attention to leave at least 5 cm
distance with the ceiling and side
walls.
• Donotinstalltheproductinplaces
where the temperature falls below
-5°C.
3.2 Installing the
plastic wedges
Plastic wedges supplied with the
product are used to create the
distance for the air circulation
between the product and the rear
wall.
1. To install the wedges, remove the
screws on the product and use the
screws supplied together with the
wedges.
2. Insert the 2 plastic wedges onto
the rear ventilation cover as
illustrated in the figure.
3.3 Adjusting the feet
If the product stands unbalanced
after installation, adjust the feet
on the front by rotating them to the
right or left.

10
C
Hot Surface Warning!
Side walls of your product
is equipped with refrigerant
pipes to improve the
cooling system. Refrigerant
with high temperatures
may flow through these
areas, resulting in hot
surfaces on the side walls.
This is normal and does
not need any servicing.
Please pay attention while
touching these areas.
3.4 Electrical connection
AWARNING:Do not make
connections via extension
cables or multi-plugs.
BWARNING: Damaged
power cable must
be replaced by the
Authorized Service Agent.
C
If two coolers are to be
installed side by side,
there should be at least
4 cm distance between
them.
• Our company shall not be
liable for any damages that will
arise when the product is used
without grounding and electrical
connection in accordance with
the national regulations.
• Power cable plug must be within
easy reach after installation.
• Connect your refrigerator to
a grounded outlet rated for a
voltage value of 220-240V /50
Hz. Outlet shall have 10 to 16A
fuse.
• Do not extension cords or
cordless multiple outlets
between your product and the
wall outlet.
•

11
IT
EL
SL
BG
PT

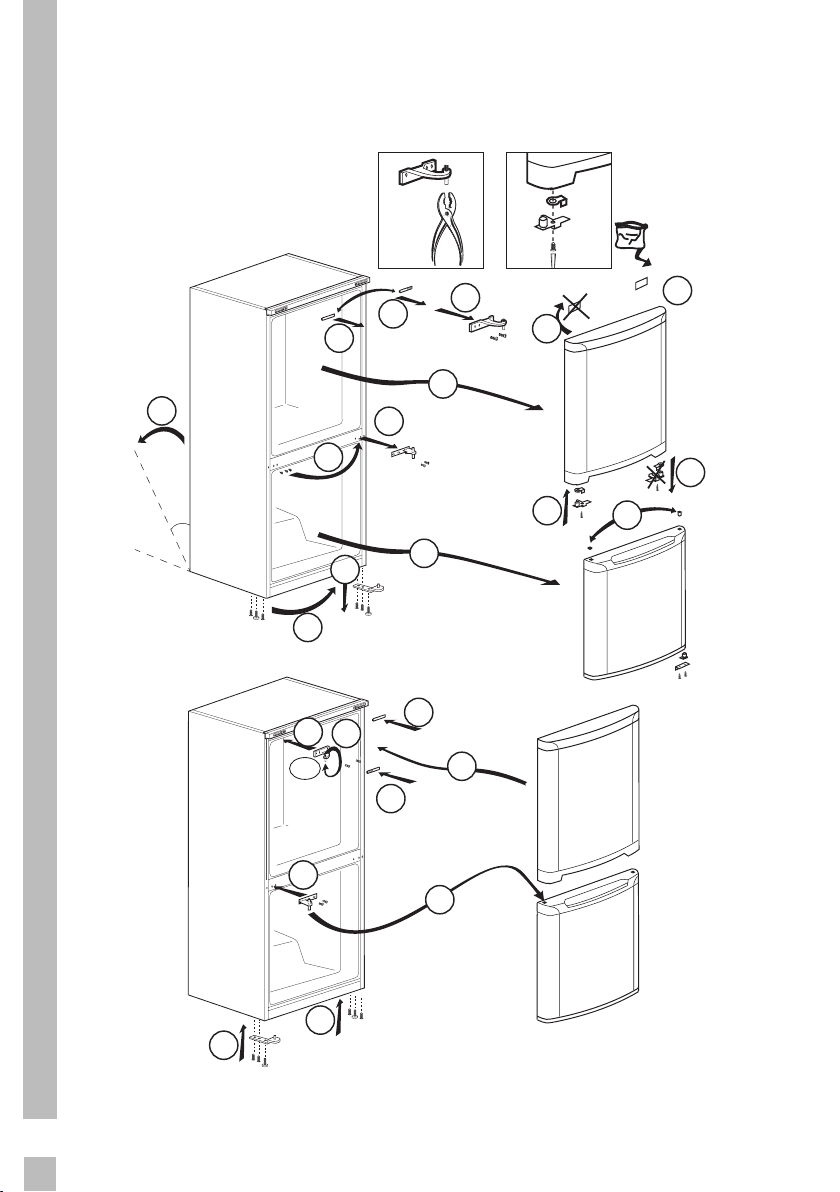

3.5 Reversing the doors
Proceed in numerical order .
5
10
24
24
45¡
4
4
2
10
1
6
7
89
3
12
11
13
14
19
22
19
180¡
17
18
23
21
20
16
15

12
3.6 Reversing the doors
Proceed in numerical order .
1
17
1
20
11
13 9
2
10
5
3
20
20
8
18
17
19
45 °
180°
(8) (13)
14
6
4
12
16
15

13
IT
EL
SL
BG
PT
4 Preparation
4.1 Things to be done for
energy saving
AConnecting the product to
electronic energy-saving
systems is harmful, as it
may damage the product.
• Do not keep the refrigerator
doors open for long periods.
• Do not place hot food or
beverages into the refrigerator.
• Do not overfill the refrigerator;
blocking the internal air flow
will reduce cooling capacity.
• In order to store the maximum
amount of food into the
cooler compartment of your
refrigerator, you should take
out the upper drawers and
place it onto the glass rack. The
declared energy consumption
of your refrigerator was
determined by taking out the
cooler, ice tray and upper
drawers in a way that will
enable maximum storage. Using
the below drawer when storing
is strongly recommended.
Energy saving function should
be activated for best energy
consumption.
• You should not block the airflow
by putting food in front of the
cooler fan. A space of minimum
3cm must be left in front of the
protective fan wire when placing
food.
• Depending on the product’s
features; defrosting frozen foods
in the cooler compartment
will ensure energy saving and
preserve food quality.
• Food should be stored using
the drawers in the cooler
compartment in order to ensure
energy saving and protect food
in better conditions.
• Food packages should not be
in direct contact with the heat
sensor located in the cooler
compartment. If they are in
contact with the sensor, energy
consumption of the appliance
might increase.
• Make sure the foods are not
in contact with the cooler
compartment temperature
sensor described below.

14
4.2 Initial use
Before using your refrigerator,
make sure the necessary
preparations are made in line with
the instructions in “Safety and
environment instructions” and
“Installation” sections.
• Keep the product running with
no food inside for 6 and do not
open the door, unless absolutely
necessary.
CA sound will be heard
when the compressor is
engaged. It is normal to
hear sound even when the
compressor is inactive,
due to the compressed
liquids and gasses in the
cooling system.
CFront edges of the
product might heat up.
This is normal. These
areas are designed to
warm up in order to
prevent condensation.
CIn some models indicator
panel turns off automatically
5 minutes after the door
closes. It will be reactivated
when the door is open or any
button is pressed.

15
IT
EL
SL
BG
PT
5 Operating the product
5.1 Temperature setting button
The interior temperature of your
refrigerator changes for the following
reasons;
• Seasonal temperatures,
• Frequent opening of the door
and leaving the door open for
long periods,
• Food put into the refrigerator
without cooling down to the
room temperature,
• The location of the refrigerator
in the room (e.g. exposing to
sunlight).
• You may adjust the varying
interior temperature due to
such reasons by using the
setting button.
• The numbers around the control
knob indicate the temperature
values in “°C”.
• If the ambient temperature is
25°C, we recommend you to
use the temperature control
knob of your refrigerator at 4°C.
This value may be increased or
decreased as required in other
ambient temperatures.

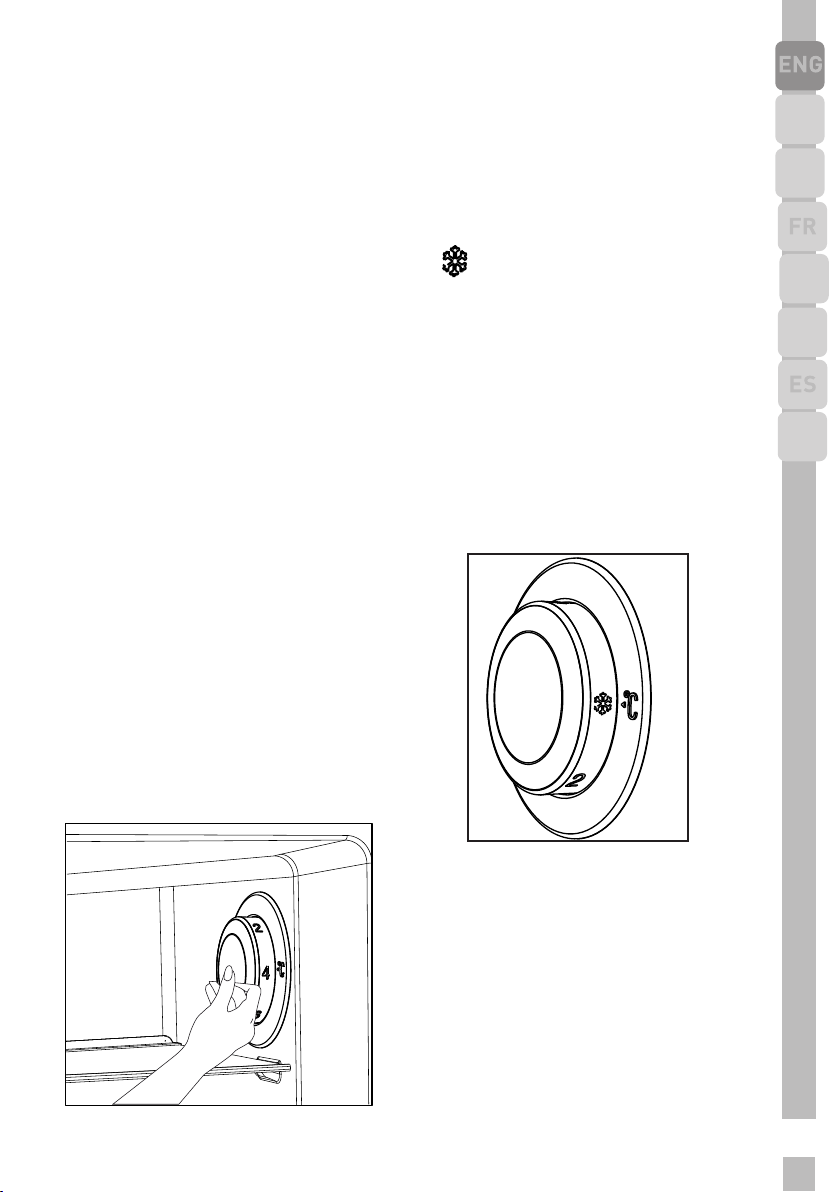

5.2 Fast freeze
If large amounts of fresh food
are going to be frozen, adjust the
temperature control knob to
( ) max. 24 hours before putting
the fresh food in the fast freeze
compartment.
It is strongly recommended to
keep the knob at this position at least
24 hours to freeze maximum amount
of fresh food declared as freezing
capacity. Take special care not to mix
frozen food and fresh food.
Remember to turn the temperature
control knob back to its previous
position once food has frozen.

16
5.3 Vacation function
If the doors of the product are
not opened for 12 hours after the
temperature control knob is switched
to the hottest position, then the
vacation function will be activated
automatically.
To cancel the function, change the
knob setting.
It is not recommended to store food
in cooler compartment when the
vacation function is active.

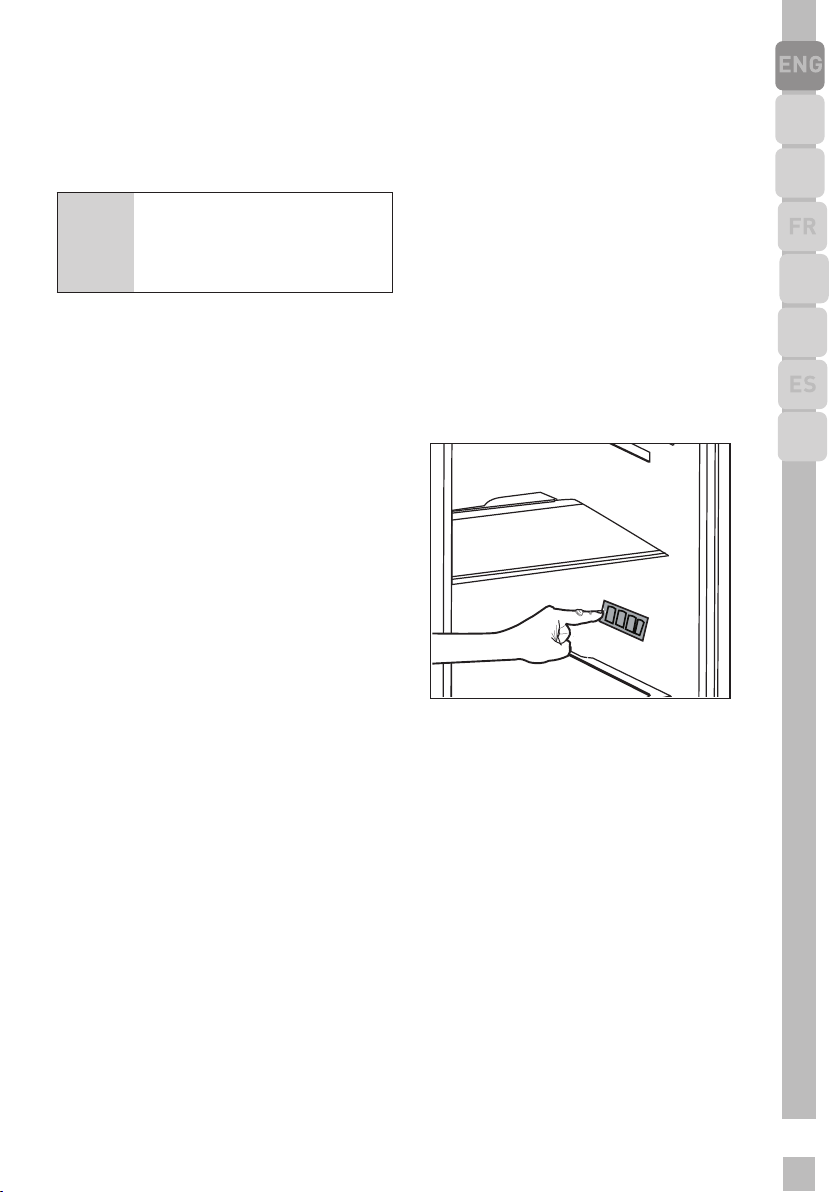

• When the setting operation is
completed, you may press the
temperature control knob and
have it hidden.

17
IT
EL
SL
BG
PT

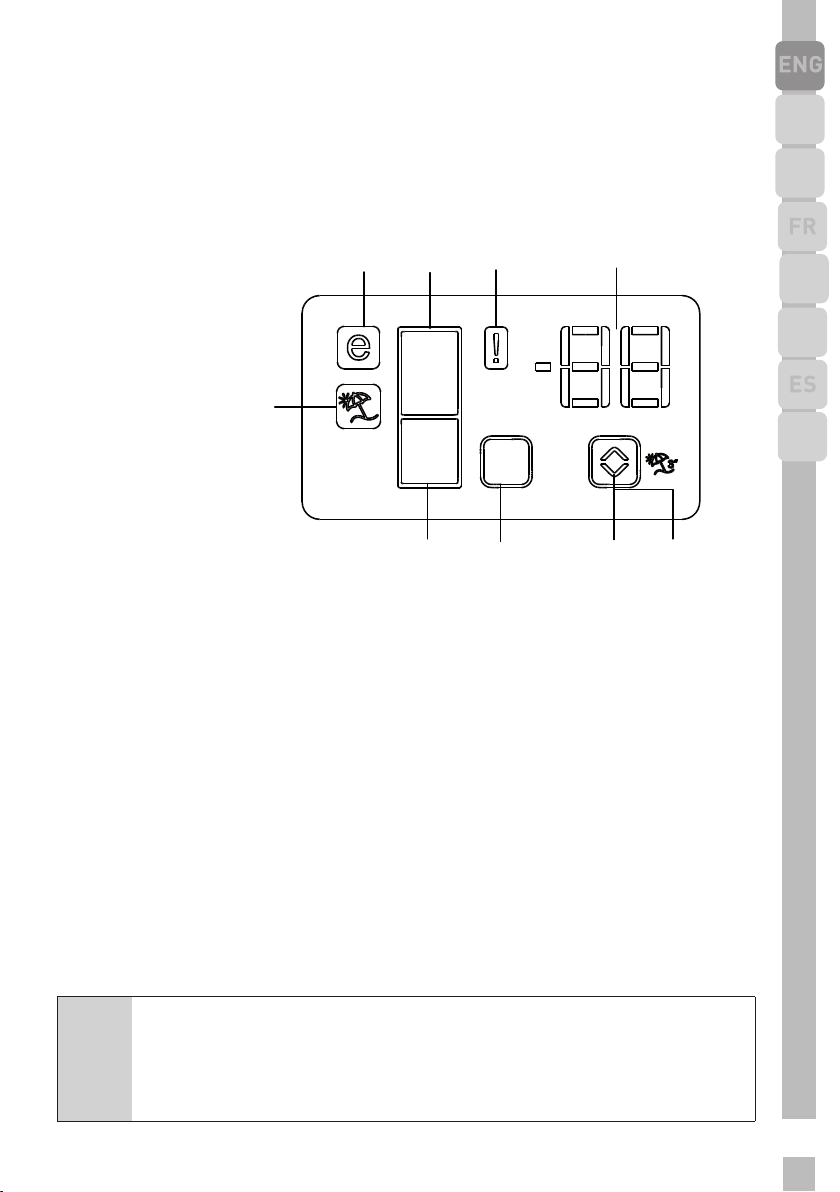

5.4 Indicator panel
Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your
product.
45
76
8
9
123
1. Fridge Compartment Indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature setting button
6. Compartment selection button
7. Freezer compartment indicator
8. Economy mode indicator
9. Vacation function indicator
*optional
C
Figures in this user manual are schematic and may not match
the product exactly. If the subject parts are not included in the
product you have purchased, then those parts are valid for other
models.

18
1. Fridge compartment indicator
Fridge compartment light
is illuminated while the fridge
compartment temperature is set.
2. Error status indicator
If your refrigerator does not perform
enough cooling or in case of a sensor
fault, this indicator is activated.
When this indicator is activated,
“E” is displayed on the freezer
compartment temperature indicator,
and numbers such as “1,2,3...” are
displayed on the fridge compartment
temperature indicator. These
numbers on the indicator inform
service personnel about the error.
3. Temperature indicator
Indicates freezer, fridge
compartment temperature.
4. Vacation function button
Press on Vacation Button for 3
seconds to activate this function.
When the vacation function is
activated, “- -” is displayed on the
fridge compartment temperature
indicator and no active cooling
is performed on the fridge
compartment. It is not suitable
to keep the food in the fridge
compartment when this function is
activated. Other compartments shall
be continued to be cooled as per their
set temperature.
To cancel this function press
Vacation button again.
5. Temperature setting button
Changes the temperature of the
relevant compartment between
-24°C... -18°C and 8°C...1°C.
6. Compartment selection button
Selection button: Press
compartment selection button to
switch between fridge and freezer
compartments.
7. Freezer compartment indicator
Fridge compartment light is
illuminated while the freezer
compartment temperature is set.
8. Economy mode indicator
Indicates that the refrigerator
operates in energy saving mode.
This display shall be activated if the
freezer compartment temperature is
set to -18°C.
9. Vacation function indicator
Indicates that vacation is activated.
