Grundig GKNE162E20F User manual

ENG DA SV
www.grundig.com
www.grundig.com
REFRIGERATOR
USER INSTRUCTIONS
NO
GKN 16222
GKN 16222 X
GKN 16224
GKN 16224 X
GKNE162E20F
GKNE162E20FX
GKN16228F
GKN16228FX
GKNS162S20F
GKNS162S20FX

4
Contents
1. Safety and environment
instructions 6
1.1. General safety.....................7
1.1.1 HC warning..........................9
1.1.2 For models with water
dispenser......................................9
1.2. Intended use......................10
1.3. Child safety........................10
1.4. Compliance with WEEE
Directive and Disposing of the Waste
Product .......................................11
1.5. Compliance with RoHS
Directive......................................11
1.6. Package information.........11
2. Your Cooler/freezer 12
3. Installation 13
3.1 Appropriate installation
location .......................................13
3.2 Installing the plastic wedges14
14
3.3 Electrical connection ........14
3.4 Illumination lamp..............14
4. Preparation 15
4.1 Things to be done for energy
saving..........................................15
4.2 Initial use...........................16
5. Operating the product 17

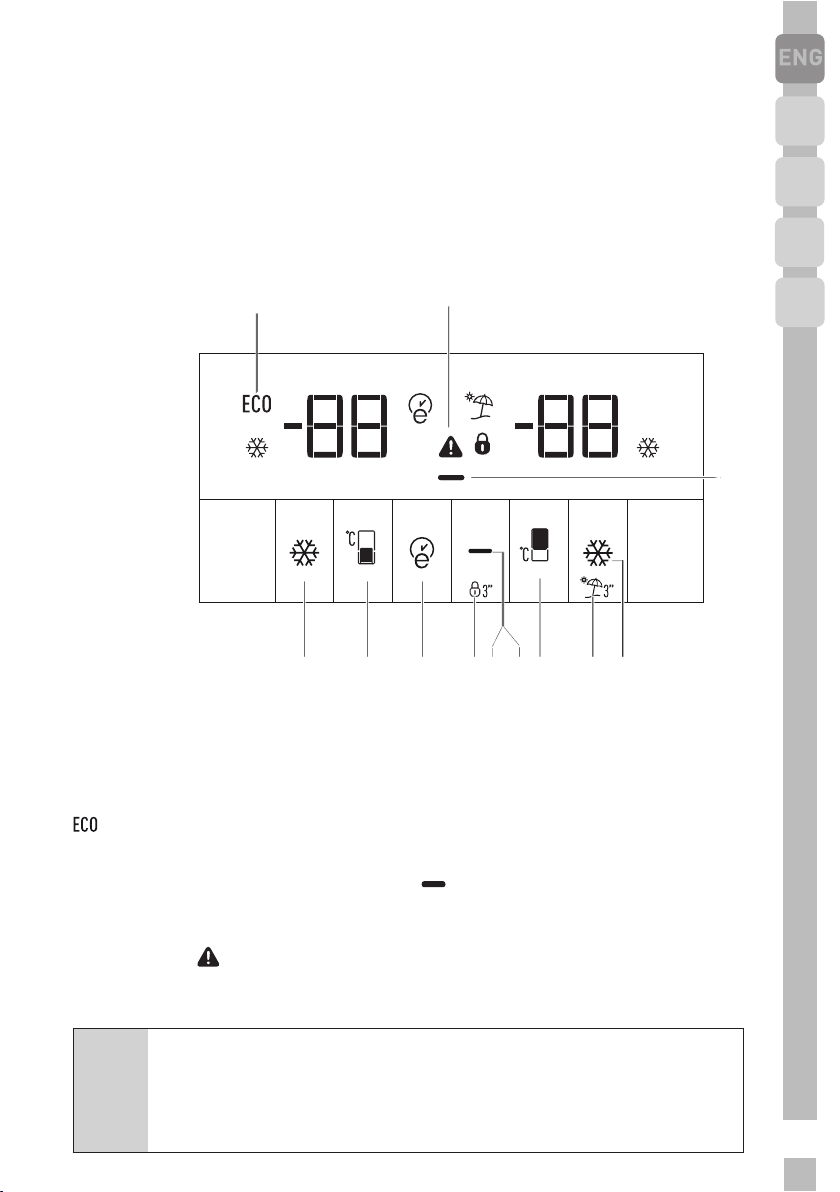

5.1 Indicator panel..................17
5.2 Dual cooling system..........20
5.3 Freezing fresh food...........20
5.4 Recommendations for
preserving the frozen food.........22
5.5 Placing the food ................23
5.6 Deep-freeze information ..23
5.7 Changing the door opening
direction......................................23
5.8 Open door warning ...........23
5.9 Recommendations for
freshfood compartment .............24
5.10 Blue light...........................24
5.11 Humidity Controlled
Crisper........................................24
6. Maintenance and cleaning 25
6.1 Avoiding bad odours..........25
6.2 Protecting the plastic
surfaces .....................................25
7. Troubleshooting 26

5
E
DA
SV
NO
FIN
Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants
and checked under the most meticulous quality control procedures, will
provide you an effective service
For this, we recommend you to carefully read the entire manual of your
product before using it and keep it at hand for future references.
The user manual will help you use the product in a fast and safe way.
Will help you use your appliance in a fast and safe way.
Read the manual before installing and operating your product.
Follow the instructions, especially those for safety.
Keep the manual in an easily accessible place as you may need it later.
Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information
or useful usage tips.
AWarning against
dangerous conditions
for life and property.
BWarning against
electric voltage.
Packaging materials
of the product are
manufactured from
recyclable materials
in accordance with our
National Environment
Regulations.

6
1. Safety and environment instructions
This section provides the safety instructions
necessary to prevent the risk of injury and material
damage. Failure to observe these instructions will
invalidate all types of product warranty.
Intended use
AWARNING:
Keep ventilation openings, in the appliance
enclosure or in the built-instructure, clear of
obstruction.
A
WARNING:
Do not use mechanical
devices or other means to accelerate
the defrosting process, other than those
recommended by the manufacturer.
AWARNING:
Do not damage the refrigerant circuit.
A
WARNING:
Do not use electrical appliances inside the
food storage compartments of the appliance,
unless they are of the type recommended by
the manufacturer.
This appliance is intended to be used in household
and similar applications such as
– staff kitchen areas in shops, offices and other
working environments;
– farm houses and by clients in hotels, motels and
other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

7
E
DA
SV
NO
FIN
1.1. General safety
• This product should not be used by persons with
physical, sensory and mental disabilities, without
sufficient knowledge and experience or by children.
The device can only be used by such persons under
supervision and instruction of a person responsible
for their safety. Children should not be allowed to
play with this device.
• In case of malfunction, unplug the device.
• After unplugging, wait at least 5 minutes before
plugging in again.
• Unplug the product when not in use.
• Do not touch the plug with wet hands! Do not pull
the cable to plug off, always hold the plug.
• Do not plug in the refrigerator if the socket is loose.
• Unplug the product during installation,
maintenance, cleaning and repair.
• If the product will not be used for a while, unplug
the product and remove any food inside.
• Do not use the product when the compartment with
circuit cards located on the upper back part of the
product (electrical card box cover) (1) is open.
1
1

8
• Do not use steam or steamed cleaning materials
for cleaning the refrigerator and melting the ice
inside. Steam may contact the electrified areas and
cause short circuit or electric shock!
• Do not wash the product by spraying or pouring
water on it! Danger of electric shock!
• In case of malfunction, do not use the product, as it
may cause electric shock. Contact the authorised
service before doing anything.
• Plug the product into an earthed socket. Earthing
must be done by a qualified electrician.
• If the product has LED type lighting, contact the
authorised service for replacing or in case of any
problem.
• Do not touch frozen food with wet hands! It may
adhere to your hands!
• Do not place liquids in bottles and cans into the
freezer compartment. They may explode.
• Place liquids in upright position after tightly closing
the lid.
• Do not spray flammable substances near the
product, as it may burn or explode.
• Do not keep flammable materials and products
with flammable gas (sprays, etc.) in the
refrigerator.
• Do not place containers holding liquids on top of
the product. Splashing water on an electrified part
may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and
wind will cause electrical danger. When relocating
the product, do not pull by holding the door handle.

9
E
DA
SV
NO
FIN
The handle may come off.
• Take care to avoid trapping any part of your hands
or body in any of the moving parts inside the
product.
• Do not step or lean on the door, drawers and
similar parts of the refrigerator. This will cause
the product to fall down and cause damage to the
parts.
• Take care not to trap the power cable.
1.1.1 HC warning
If the product comprises a cooling system using
R600a gas, take care to avoid damaging the cooling
system and its pipe while using and moving the
product. This gas is flammable. If the cooling system
is damaged, keep the product away from sources of
fire and ventilate the room immediately.
CThe label on the inner left side indicates the
type of gas used in the product.
1.1.2 For models with water dispenser
• Pressure for cold water inlet shall be maximum
90 psi (6.2 bar). If your water pressure exceeds
80 psi (5.5 bar), use a pressure limiting valve in
your mains system. If you do not know how to
check your water pressure, ask for the help of a
professional plumber.

10
• If there is risk of water hammer effect in your
installation, always use a water hammer
prevention equipment in your installation. Consult
Professional plumbers if you are not sure that there
is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take
precautions against of the risk of freezing of the
hoses. Water temperature operating interval
shall be 33°F (0.6°C) minimum and 100°F (38°C)
maximum.
• Use drinking water only.
1.2. Intended use
• This product is designed for home use. It is not
intended for commercial use.
• The product should be used to store food and
beverages only.
• Do not keep sensitive products requiring controlled
temperatures (vaccines, heat sensitive medication,
medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for
any damage due to misuse or mishandling.
• Original spare parts will be provided for 10 years,
following the product purchasing date.
1.3. Child safety
• Keep packaging materials out of children’s reach.
• Do not allow the children to play with the product.
• If the product’s door comprises a lock, keep the key
out of children’s reach.

11
E
DA
SV
NO
FIN
1.4. Compliance with WEEE Directive and Disposing of the Waste
Product
This product complies with EU WEEE Directive (2012/19/EU). This
product bears a classification symbol for waste electrical and electronic
equipment (WEEE).
This product has been manufactured with high quality parts
and materials which can be reused and are suitable for
recycling. Do not dispose of the waste product with normal
domestic and other wastes at the end of its service life. Take it
to the collection center for the recycling of electrical and
electronic equipment. Please consult your local authorities to
learn about these collection centers.
1.5. Compliance with RoHS Directive
• This product complies with EU WEEE Directive (2011/65/EU). It
does not contain harmful and prohibited materials specified in
the Directive.
1.6. Package information
• Packaging materials of the product are manufactured
from recyclable materials in accordance with our National
Environment Regulations. Do not dispose of the packaging
materials together with the domestic or other wastes. Take
them to the packaging material collection points designated by
the local authorities.

12
C
Figures in this user manual are schematic and may not
match the product exactly. If the subject parts are not
included in the product you have purchased, then those parts
are valid for other models.
2. Your Cooler/freezer
3
4
2
5
6
7
1
9
8
11
10
12
14
13
1. Butter & Cheese sections
2. Indıcator Panel
3. Egg tray
4. Adjustable door shelves
5. Shelter wire
6. Bottle shelf
7. Adjustable front feet
8. Freezer compartment
9. Crisper
10. Chiller
11. Chiller cover and glass
12. Adjustable shelves
13. Bottle shelf
14. Fan

13
E
DA
SV
NO
FIN
3. Installation
Refer to the nearest Authorised
Service Agent for installation of
the product. To make the product
ready for use, make sure that
the electricity installation is
appropriate before calling the
Authorised Service Agent. If not,
call a qualified electrician to have
any necessary arrangements
carried out.
C
Preparation of the
location and electrical
installation at the place
of installation is under
customer's responsibility.
B
Product must not be
plugged in during
installation. Otherwise,
there is the risk of death
or serious injury!
B
WARNING: Installation
and electrical connections
of the product must
be carried out by the
Authorised Service Agent.
Manufacturer shall not be
held liable for damages
that may arise from
procedures carried out by
unauthorised persons.
A
WARNING: Prior to
installation, visually
check if the product has
any defects on it. If so,
do not have it installed.
Damaged products cause
risks for your safety.
C
Make sure that the power
cable is not pinched or
crushed while pushing
the product into its place
after installation or
cleaning procedures.
3.1 Appropriate
installation location
A
WARNING: If the door
of the room where the
product will be placed
is too small for the
product to pass, then the
product's doors must be
removed and the product
must be turned aside to
pass it through.
• Choose a place at where
you would use the product
comfortably.
• Install the product at least 30
cm away from heat sources
such as hobs, ovens, heater
cores and stoves and at least 5
cm away from electrical ovens.
Product must not be subjected
to direct sun light and kept in
humid places after installation.
• Appropriate air ventilation must
be provided around your product
in order to achieve an efficient
operation. If the product is to be
placed in a recess in the wall,
pay attention to leave at least 5
cm distance with the ceiling and
side walls.
• Do not place the product on
the materials such as rugs or
carpets.
• Place the product on an even
floor surface to prevent jolts.
• Your product can operate in
ambinet temperatures between
-5°C to +43°C.

14
3.4 Illumination lamp
Do not attempt to repair yourself
but call the Authorised Service
Agent if the LED illumination
lamps do not go on or are out of
order.
C
If two coolers are to be
installed side by side,
there should be at least
4 cm distance between
them.
3.2 Installing the
plastic wedges
Plastic wedges are used to create
the distance for the air circulation
between the product and the rear
wall. Insert the 2 plastic wedges
onto the rear ventilation cover as
illustrated in the figure. To install
the wedges, remove the screws
on the product and use the screws
given in the same pouch with the
wedges.
3.3 Electrical connection
Connect the product to a grounded
outlet protected by a fuse
complying with the values in the
rating plate. Our company shall
not be liable for any damages that
will arise when the product is used
without grounding in accordance
with the local regulations.
• Electrical connection
must comply with national
regulations.
• Power cable plug must be within
easy reach after installation.
• The voltage and allowed fuse or
breaker protection are specified
in the Rating Plate which is
affixed to interior of the product.
If the current value of the fuse
or breaker in the house does
not comply with the value in the
rating plate, have a qualified
electrician install a suitable
fuse.
• The specified voltage must be
equal to your mains voltage.
• Do not make connections via
extension cables or multi-plugs.
B
WARNING: Damaged
power cable must
be replaced by the
Authorised Service
Agents.
B
WARNING: If the
product has a failure, it
should not be operated
unless it is repaired by
the Authorised Service
Agent! There is the risk of
electric shock!

15
E
DA
SV
NO
FIN
4. Preparation
4.1 Things to be done
for energy saving
A
Connecting the product
to electric energy saving
systems is risky as it may
cause damage on the
product.
• Do not leave the doors of
your cooler/freezer open
for a long time. When doors
are open,warm air enters
the fridge/freezer cabinets
and the appliance consumes
more energy to cool down the
foodstuffs.
• Do not put hot food or drinks in
your cooler/freezer.
• Do not overload the cooler/
freezer. Cooling capacity will fall
when the air circulation inside is
hindered.
• Do not place the cooler/freezer
in places subject to direct
sunlight. Install the product
at least 30 cm away from heat
sources such as hobs, ovens,
heater cores and stoves and at
least 5 cm away from electrical
ovens.
• Pay attention to store your
food in cooler/freezer in closed
containers.




 



• The baskets/drawers that
are provided with the chill
compartment must always be in
use for low energy consumption
and for better storage
conditions.
• Food contact with the
temperature sensor in the
freezer compartment may
increase energy consumption of
the appliance. Thus any contact
with the sensor(s) must be
avoided.
• You can load maximum
amount of food to the freezer
compartment of the cooler/
freezer by removing the freezer
compartment drawers. Declared
energy consumption value of the
cooler/freezer was determined
with the freezer compartment

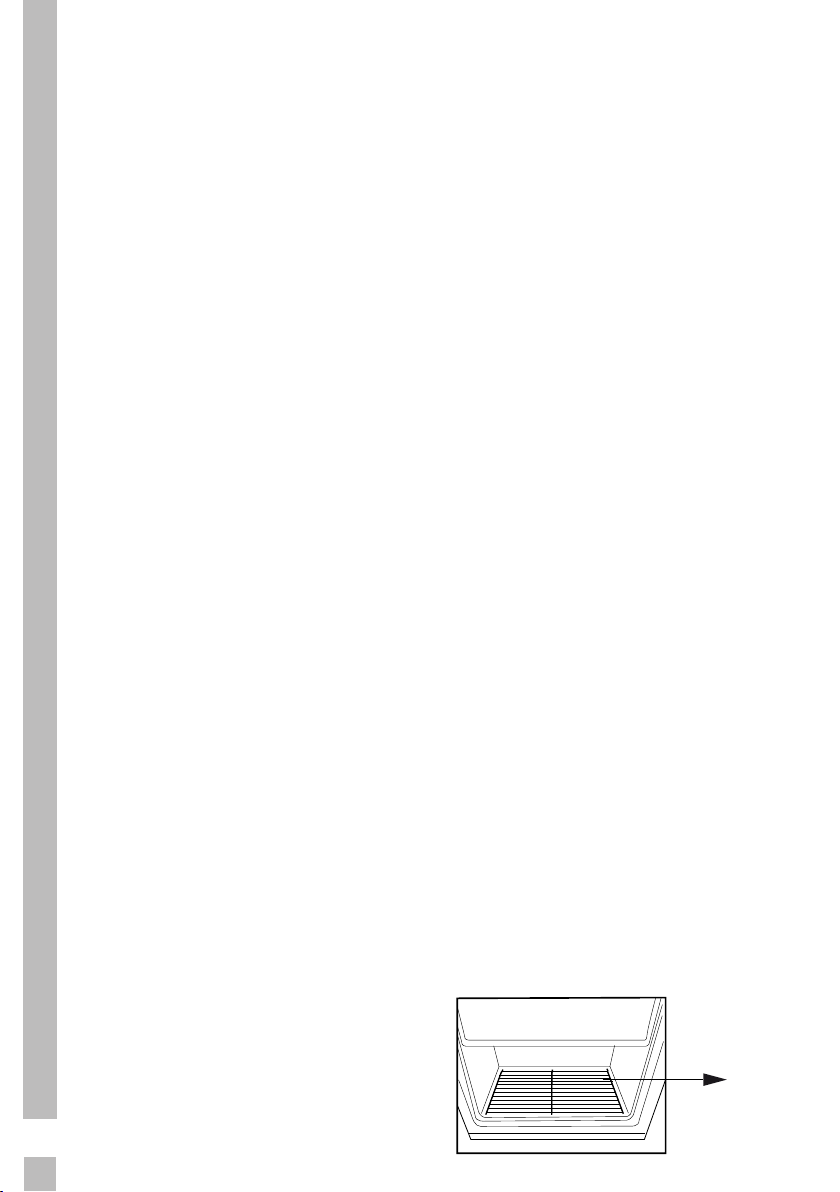

drawers and top compartment
flap removed and given wire
shelf is used at the bottom
of the freezer compartment
for maximum amount of food
loaded. There is no risk in using
a shelf or drawer suitable for
the shapes and sizes of the
foods to be frozen.
• Thawing frozen food in fridge
compartment will both provide
energy saving and preserve the
food quality.
• Do not block the freezer fan grill
by placing foods in front.

16

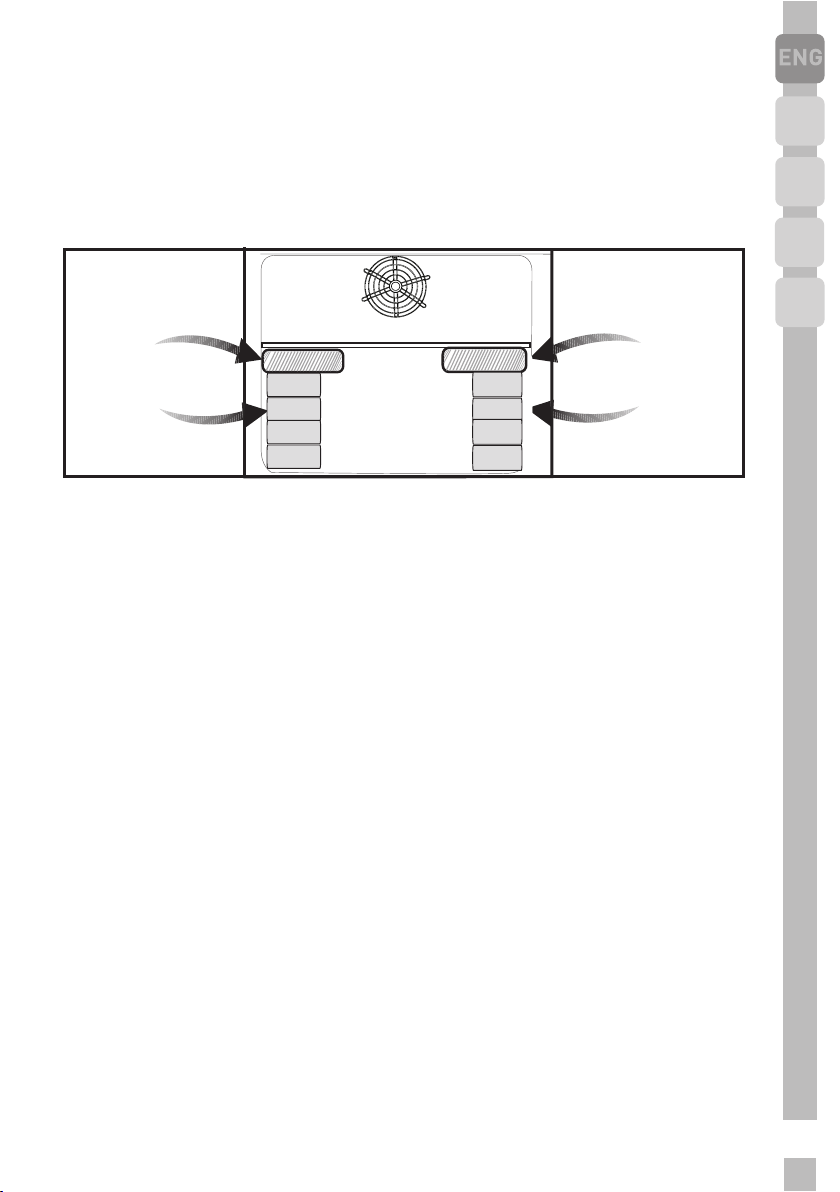

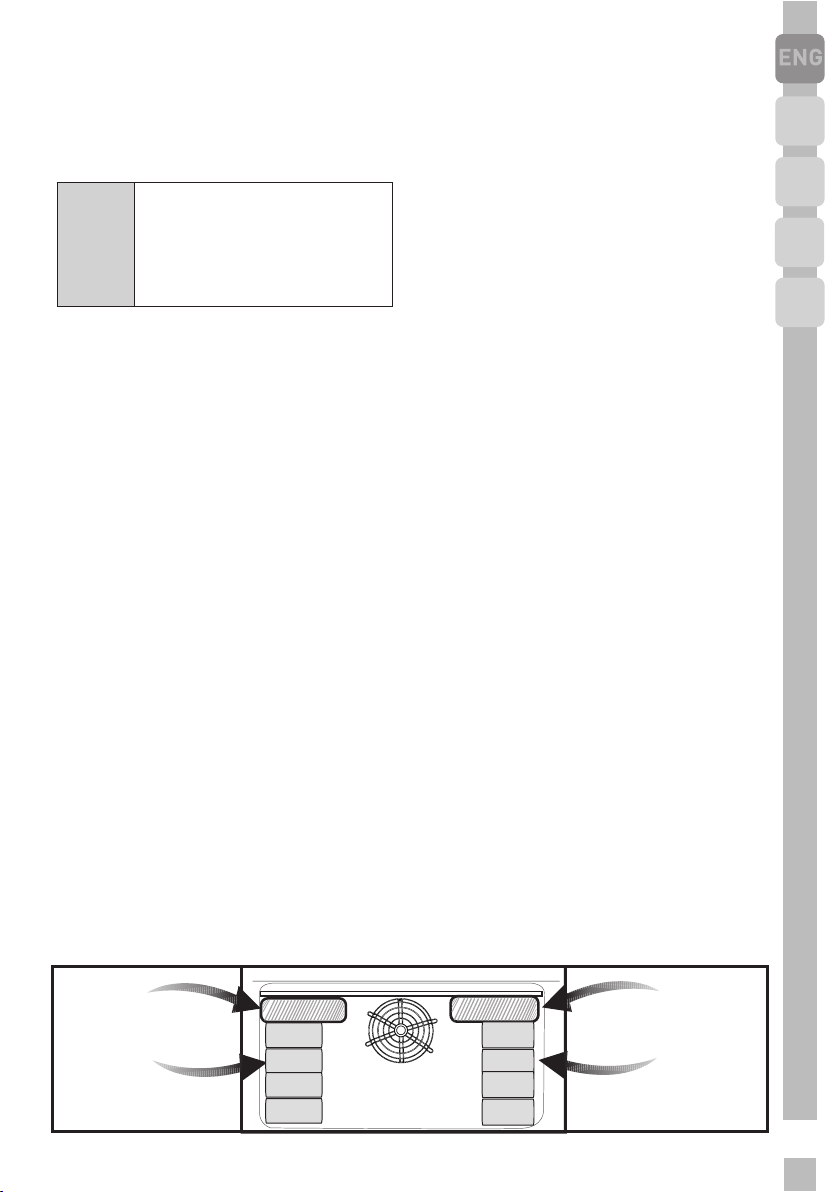

• Please use provided 2 pieces
of cold packs (PCM ) at
recommended places in the
figure when storing foodstuffs
in freezer compartments.
It also helps to keep your
foodstuffs colder for more
time when electricity is off or
your appliance is unplugged.
Temperature rise time declared
with cold packs.
CThe ambient temperature
of the room where you
install the cooler/freezer
should at least be -15°C.
Operating your cooler/
freezer under colder
conditions than this is not
recommended.
CInside of your cooler/
freezer must be cleaned
thoroughly.
CIf two coolers are to be
installed side by side,
there should be at least
4 cm distance between
them.
4.2 Initial use
Before starting to use the product,
check that all preparations are
made in accordance with the
instructions in sections "Important
instructions for safety and
environment" and "Installation".
• Clean the interior of the cooler/
freezer as recommended in the
“Maintenance and cleaning”
section. Check that inside of it is
dry before operating it.
• Plug the cooler/freezer into
the grounded wall outlet. When
the door is opened the interior
illumination will turn on.
• Run the cooler/freezer without
putting any food for 6 hours
and do not open its door unless
certainly required.
CYou will hear a noise
when the compressor
starts up. The liquids and
gases sealed within the
refrigeration system may
also give rise to noise,
even if the compressor
is not running and this is
quite normal.
CFront edges of the cooler/
freezer may feel warm.
This is normal. These
areas are designed
to be warm to avoid
condensation.
CSuch loading will
result in higher energy
consumption and
worsen freezer storage
performance of your
appliance.

17
E
DA
SV
NO
FIN
5. Operating the product
5.1 Indicator panel
Indicator panel allows you to set the temperature and control the other
functions related to the product without opening the door of the product.
Just press the inscriptions on relevant buttons for function settings.
12
5687.1 7.2
910 4
3
11
1. Economy
This symbol is illuminated when
the freezer compartment is set to
-18°C'ye as the most economical
setting value
( ). Economy indicator is turned
off when quick cooling or quick
freeze functions are selected.
2. Power failure/High
temperature / Power Cut Indicator
This indicator ( ) illuminates
during power failure, high
temperature failures and error
C
Figures in this user manual are schematic and may not
match the product exactly. If the subject parts are not
included in the product you have purchased, then those parts
are valid for other models.
warnings. During sustained power
failures, the highest temperature
that the freezer compartment
reaches will flash on the digital
display.
After checking the food located in
the freezer compartment
( ) press the alarm off button to
clear the warning.
Please refer to "remedies advised
for troubleshooting" section on
your manual if you observe that
this indicator is illuminated.

18
3. Energy saving function (display
off)
If the product doors are kept
closed for a long time energy
saving function is automatically
activated and energy saving symbol
is illuminated.When energy saving
function is activated, all symbols
on the display other than energy
saving symbol will turn off.
When the Energy Saving function is
activated, if any button is pressed
or the door is opened, energy
saving function will be canceled
and the symbols on display will
return to normal.
4. Quick cool
Quick cooling indicator
( ) is illuminated when quick
cooling function is activated and
fridge compartment temperature
indicator value is displayed as
1. To cancel this function press
Quick cooling button again. Quick
cooling indicator will turn off
and refrigerator will return to its
normal settings. Quick cooling
function is canceled automatically
in 1 hour if you do not cancel it
before. If you want to cool large
amounts of fresh food, press
the Quick cooling button before
putting the food into the fridge
compartment.
5. Vacation function
Vacation function can be activated
for both fridge and freezer
compartments separately. In order
to activate vacation function for
fridge compartment, press the
button no. (4) for 3 seconds, and
the vacation mode indicator blinks.
Then press no. (6) and the vacation
mode indicator for fridge activates.
When the vacation function is
activated, “- -” is displayed for
fridge compartment temperature
indicator and no active cooling
is performed on the fridge
compartment. It is not suitable
to keep the food in the fridge
compartment when this function
is activated. Other compartments
shall be continued to be cooled
as per their set temperature.To
cancel this function press either
Vacation function button again or
button no. (6)
Similarly, vacation function for
freezer compartment can be
activated by pressing the button
no. (4) for 3 seconds, and after
the vacation mode indicator
blinks, then press no. (10) and
the vacation mode indicator
for freezer activates. When the
vacation function is activated,
“- -” is displayed on the freezer
compartment temperature
indicator and no active cooling
is performed on the freezer
compartment. It is not suitable
to keep the food in the freezer
compartment when this function
is activated. Other compartments
shall be continued to be cooled
as per their set temperature. To
cancel this function press no. (10)
6. Fridge compartment
temperature setting
When the button no. (5) is pressed,
you may set the temperature of the
fridge compartment to 8,7,6,5,4,3,2
and 1 respectively ( ).

19
E
DA
SV
NO
FIN
7.1. Energy saving function (disp-
lay off):
Energy saving symbol ( ) is
illuminated and Energy saving
function is activated when you
press this button ( ). When energy
saving function is activated, all
symbols on the display other than
energy saving symbol will turn off.
When the Energy Saving function is
activated, if any button is pressed
or the door is opened, energy
saving function will be canceled
and the symbols on display will
return to normal. Energy saving
symbol is turned off and energy
saving function is deactivated when
you press this button ( ) again.
7.2.Alarm off warning:
In case of power failure/high
temperature alarm, after checking
the food located in the freezer
compartment press the alarm off
button to clear the warning.
8. Key lock
Press key lock button ( )
simultaneously for 3 seconds. Key
lock symbol ( ) will light up and
key lock mode will be activated.
Buttons will not function if the
Key lock mode is active. Press key
lock button simultaneously for 3
seconds again. Key lock symbol
will turn off and the key lock mode
will be exited.Press the key lock
button if you want to prevent
changing of the temperature
setting of the refrigerator ( ).
9. Eco fuzzy
Press and hold eco fuzzy button
for 1 seconds to activate eco fuzzy
function. Refrigerator will start
operating in the most economic
mode at least 6 hours later and the
economic usage indicator will turn
on when the function is active
( ). Press and hold eco fuzzy
function button for 3 seconds to
deactivate eco fuzzy function.
This indicator is illuminated after 6
hours when eco fuzzy is activated.
10. Freezer compartment tempe-
rature setting
Temperature setting for freezer
compartment is performed here.
When button no. 9 is pressed,
you may set the temperature of
the freezer compartment to -18,
-19, -20, -21, -22, -23 and -24
respectively.
11. Fast freeze
Press button no. (10) for fast
freeze operation, quick freeze
indicator ( ) shall be activated.
Quick freeze indicator is
illuminated when quick freeze
function is activated and fridge
compartment temperature
indicator is displayed as -27. To
cancel this function press quick
freeze button ( ) again.
Quick freeze indicator will turn
off and refrigerator will return to
its normal settings. Quick freeze
function is canceled automatically
in 24 hour if you do not cancel it
before. If you want to freeze large
amounts of fresh food, press
the quick freeze button before
putting the food into the freezer
compartment.

20
5.2 Dual cooling system
Your cooler/freezer is equipped
with three separate cooling
systems to cool the fresh food
compartment, frozen food
compartment and multi zone
compartment. Thus, air and odour
in the fresh food compartment
and frozen food compartment do
not get mixed. Thanks to these
two separate cooling systems,
cooling speed is much higher
then other cooler/freezers. Also
additional power saving is provided
since the defrosting is performed
individually.
5.3 Freezing fresh food
• Wrap the food or place them in a
covered container before putting
them in the cooler/freezer.
• Hot food and beverages
must cool down to the room
temperature before putting
them in the cooler/freezer.
• The food that you want to freeze
must be fresh and in good
quality.
• Divided the food into portions
according to your family’s daily
or meal based consumption
needs.
• Pack the food in an airtight
manner to prevent them from
drying even if they are going to
be stored for a short time.
• Materials to be used for
packaging must be tear-proof
and resistant to cold, humidity,
odour, oils and acids and they
must also be airtight. Moreover,
they must be well closed and
they must be made from easy-
to-use materials that are
suitable for deep-freezers.
• Take special care not to mix
already frozen food and fresh
food.(They should not to be
allowed to come in contact with
the previously frozen items to
prevent their partial thawing.)
• Frozen food must be used
immediately after they are
thawed and they should never
be re-frozen.
• Do not freeze too large
quantities of food at one time.
The quality of the food is best
preserved when it is frozen right
through to the core as quickly as
possible.
• Placing warm food into the
freezer compartment causes
the cooling system to operate
continuously until the food is
frozen solid.
• Maximum frozen food storage
volume is achieved without
using the drawers and the
upper shelf cover provided
in the freezer compartment.
Energy consumption of your
appliance is declared while the
freezer compartment is fully
loaded on shelves without the
use of the drawers and upper
shelf cover. Use the given
wire shelf at the bottom of
the freezer compartment for
a better energy consumption
performance.
• It is recommended that you
place foodstuffs on top shelf of
freezer for initial freezing.
wire shelf

21
E
DA
SV
NO
FIN
• It is advised that provided cold
packs are used as described
below prior to using quick freeze
function.It improves storage and
quıck - freezing performance of
your freezer compartment.




 




