Grundig GD-CI-AC4637P User manual

WWW.GRUNDIG-SECURIT Y.COM
GD-CI-AC4637P
Network Dome Camera
Quick Guide

1
Quick Guide
About this guide
The guide includes instructions for using and managing the product.
Pictures, charts, images and all other information hereinafter are for
description and explanation only. The information contained in the
guide is subject to change, without notice, due to firmware updates
or other reasons.
Please find the latest version at WWW.GRUNDIG-SECURITY.COM
Limitation of Liability / Legal Disclaimer
Abetechs GmbH (Grundig Security) undertakes all reasonable efforts
to verify the integrity and correctness of the contents in this
document, but no formal guarantee shall be provided. Use of this
document and the subsequent results shall be entirely on the user’s
own responsibility. Abetechs GmbH (Grundig Security) reserves the
right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The product described herein, with its hardware, software and
documentation is provided “as is”, without any warranty, expressed
or implies, including without limitation, merchantability, satisfactory
quality, fitness for a particular purpose, and non-infringement of a
third party.
In no event will our company and its employees or agents be liable to
you for any special, consequential, incidental, or indirect damages,
including among others, damages for loss of business profits,
business interruption, or loss of data or documentation, in
QG-GD-CI-AC4637P-2019-02-03-V3-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY

2
connection with the use of this product, even if our company has
been advised of the possibility of such damages.
Regarding to products with internet access, the use of the product
shall be wholly at your own risks. Our company shall not take any
responsibilities for abnormal operation, privacy leakage or other
damages resulting from cyber-attack, hacker attack, virus inspection,
or other internet security risks; however our company will provide
timely technical support if required. Surveillance laws vary by
jurisdiction before using this product in order to ensure that your use
conforms to the applicable law. Our company shall not be liable in
the event that this product is used with illegitimate purposes.
In the event of any conflicts between this manual and the applicable
law, the later prevails.
Trademark:
Each of trademarks herein is registered. The name of this product
and other trademarks mentioned in this manual are the registered
trademark of their respective company.
Copyright of this document is reserved. This document shall not be
reproduced, distributed or changed, partially or wholly, without
formal authorization.
OPEN SOURCE SOFTWARE LICENSE INFORMATION
The software components provided with Grundig products may
contain copyrighted software that is licensed under various open
source software licenses. For detailed information about the
contained open source software packages, the used package
versions, license information and complete license terms, please

3
refer to the product detail pages on our website. The complete open
source software license information is also included in firmware files
of affected products. Please also check your product’s CD-ROM and
manuals for additional information.
You may obtain the complete corresponding open source part of a
specific product from us for a period of three years after our last
shipment of this product by sending an email to: info@grundig-
security.com
Safety Instruction
Make sure that you only use the power adapter that is specified in
the specifications sheet of the product. If you use any other adapter
or connect the power supply incorrectly, this may cause explosion,
fire, electric shocks or damage the product. Do not connect several
devices to one power adapter as this may cause an adapter overload
and can lead to over-heating and fire. Make sure that the plug of the
power adapter is firmly connected to the power socket.
Do not place containers with liquids on the product. Do not place
conducting items like tools, screws, coins or other metal items on the
product. These may fall from the product or can cause fire or electric
shocks or other physical injuries.
Do not push or insert any sharp items or any objects into the device
as this may cause damage to the product, fire, electric shocks and/or
physical injuries.
Do not block any ventilation openings, if there are any. Ensure that
the product is well ventilated to prevent any over-heating.
Do not subject the device to physical shock or drop the product.

4
If the product uses batteries, please use a battery type that is
recommended by the manufacturer. Improper use or replacement of
the battery may result in the hazard of explosion.
Do not use any accessories that are not recommended by GRUNDIG.
Do not modify the product in any way.
If the product starts to smell or smoke comes out of the device,
immediately stop using the product and disconnect it from the power
supply to prevent fire or electric shocks. Then contact your dealer or
the nearest service center.
If the product does not work correctly, contact your dealer or nearest
service center. Never open, disassemble or alter the product yourself.
GRUNDIG cannot accept any liability or responsibility for problems
caused by attempted and unauthorized repair and maintenance.
Special Installation Instructions for IP Cameras
Make sure that the latest firmware is installed on the IP Device. You
may get the latest firmware from grundig-security.com website or
from [e-mail].
Do not touch the sensor module with your fingers.
Do not aim the camera or camera lens at a strong light such as the
sun or a bright lamp. Irreversible damage to the camera can be
caused by a strong light.
Do not expose the sensor of the product to laser beams as this may
damage the sensor.

5
If the product supports IR, you need to take some precautions to
prevent IR reflection. Do not install the product close to reflective
surfaces of objects as this may cause reflection. If the product has a
dome cover, please remove the protection film only after installation
to prevent dust or grease on the camera which can cause reflection.
The foam ring around the lens must be seated flush against the inner
surface of the bubble to isolate the lens from the IR LEDS. Fasten the
dome cover to the camera body so that the foam ring and the dome
cover are attached seamlessly.
For cleaning, use a clean cloth with a bit of ethanol and wipe it
carefully and gently. In any case, do not use alkaline detergents.
If a glove is provided in the package, please use it to open the product
cover. Never touch the product cover directly with fingers, because
the acidic sweat of the fingers may damage the surface coating of the
product cover.

6
Table of Contents
1 Overview......................................................................................... 7
1.1 Cable Descriptions .......................................................... 7
1.2 Alarm Output .................................................................. 8
2 Installation...................................................................................... 9
2.1 Installing the Memory Card............................................. 9
2.2 Installing Series PTZ Camera.......................................... 11
2.2.1 Ceiling Mounting ..................................................... 11
2.2.2 Wall Mounting ......................................................... 13
3 Setting the Network Camera over the LAN .................................. 17
3.1 Wiring ........................................................................... 17
3.2 Activating the Camera................................................... 18
3.2.1 Activation via Web Browser..................................... 18
Activation via Grundig IP-Finder Tool ....................... 19
3.3 Modifying the IP Address .............................................. 21
4 Accessing via Web Browser .......................................................... 24
4.2 Initializing the Memory Card......................................... 26

7
1Overview
1.1 Cable Descriptions
The cable interfaces of network PTZ camera are shown in Figure 1-1.
The cables are distinguished by different colors. Refer to the labels
attached on the cables for identification.
Notes:
⚫Make sure the camera is power-off before you connect the
cables.
Network Cable
Video Cable
Power Cord
.
.
.
DC12V IN
RS-485
Alarm Cable
Audio Cable
Figure 1-1 Cables of PTZ Camera

8
⚫Power Cord: Supports 12 VDC power supply.
⚫Video Cable: Connect BNC Cable to test the video output.
⚫Alarm Cable: Connect terminal ALARM-IN with GND interface,
and connect terminal ALARM-OUT with ALARM-COM interface.
⚫Audio Cable: Connect terminal AUDIO-IN with GND interface.
⚫Network Cable: Connect the network interface with network
cable.
1.2 Alarm Output
Alarm output is shown in Figure 1-2.
Relay Output
OUT (n) DC
OUT (n)
Direct load
+
- Relay Output
OUT (n)
OUT (n)
DC 30V
1A
Power Supply
GND Output
~220V AC
FireWire Zero
Line
JQC-3FG
Relay
(10A 250VAC)
Figure 1-2 Alarm Output

9
2Installation
2.1 Installing the Memory Card
You can install the memory card for local storage.
Steps:

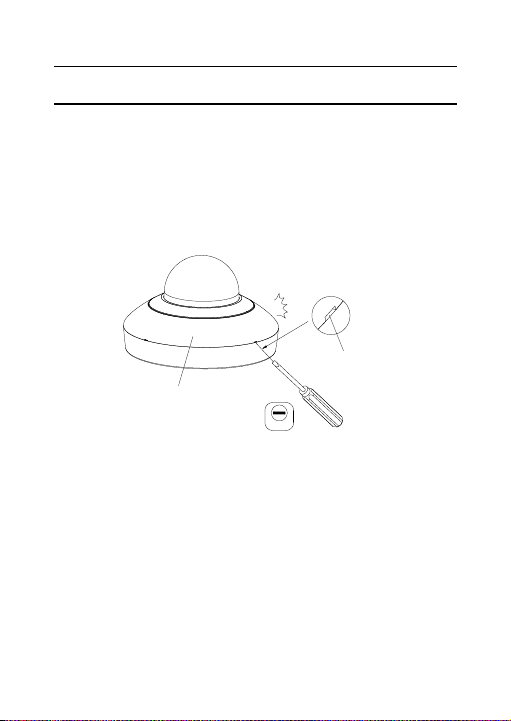

1. Open the cover with the straight screwdriver from a crack on the
cover, as shown in Figure 2-1.
2.0
Cover
Crack
Figure 2-1 Open the Cover
2. Unscrew the screws on the camera base with the cross
screwdriver, and remove the bubble, as shown in Figure 2-2.

10
Bubble
Screw
Figure 2-2 Remove the Bubble
3. Open the memory card slot in the camera, and insert the memory
card.
4. Align the bubble with the camera base, and install the bubble back.
Fix the bubble with four screws, as shown in Figure 2-3.
Figure 2-3 Install the Bubble

11
5. Align the cover with the camera, and install the cover back, as
shown in Figure 2-4.
Cover
Figure 2-4 Install the Cover
2.2 Installing Series PTZ Camera
2.2.1 Ceiling Mounting
Notes:
⚫The thickness of the ceiling shall range from 5 mm to 40 mm.
⚫Make sure the ceiling is strong enough to withstand more than
four times the weight of the PTZ camera and its accessories.
Steps:
1. Rotate the installation plate anticlockwise, and remove the
installation plate, as shown in Figure 2-5.

12
Installation Plate
OPEN
Figure 2-5 Remove the Installation Plate
2. Drill four screw holes in the ceiling according to the installation
plate.
3. Align the installation plate with the screw holes, and fix the
installation plate on the ceiling.
Figure 2-6 Fix the Installation Plate

13
4. Route the cables from the cable hole in the installation plate.

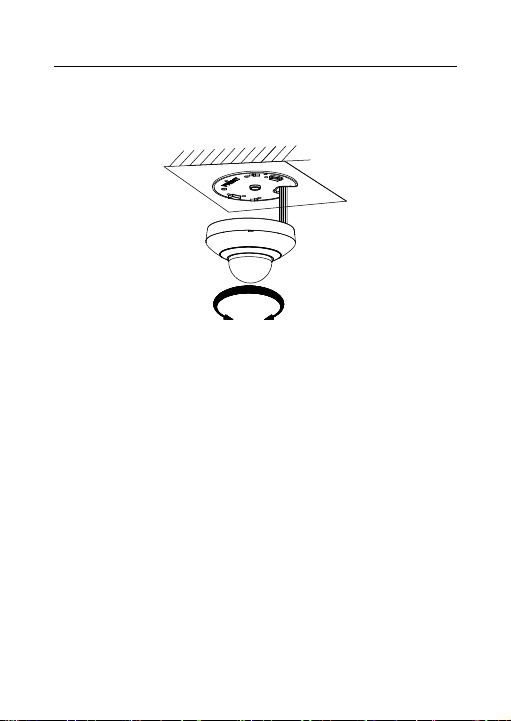

5. Align the camera with the installation plate, and rotate the camera
clockwise to fix it, as shown in Figure 2-7.
OPEN LOCK
Figure 2-7 Fix the Camera
2.2.2 Wall Mounting
Notes:
⚫For cement wall, you need to use the expansion screw to fix the
bracket. The mounting hole of the expansion pipe on the wall
should align with the mounting hole on the bracket.
⚫For wooden wall, you can just use the self-tapping screw to fix
the bracket.
⚫Make sure that the wall is strong enough to withstand more
than eight times the weight of the PTZ camera and its
accessories.
Steps:

14
1. Remove the installation plate, and install it on the wall mounting
bracket (not supplied) with two screws.
Note:
Refer to step 1 in section 2.2.1 Ceiling Mounting to remove the
installation plate.
Figure 2-8 Install the Installation Plate
2. Loosen the fixing screw on the bracket and remove the bracket
base.
Fixing Screw Bracket Base
Figure 2-9 Remove the Bracket Base
3. Install the bracket base on the wall with four screws.

15
Figure 2-10 Install the Bracket Base
4. Route the cables. Align the camera with the installation plate on
the wall mounting bracket, and rotate the camera clockwise to fix it
on the bracket.
OPEN LOCK
Figure 2-11 Install the Camera
5. Connect the cables. Install the wall mounting bracket to the
bracket base on the wall, and fix it with the supplied screw.

16
Figure 2-12 Fix the Bracket
6. Remove the protective film after installation.

17
3Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your own
protection.
If the product does not work properly, contact your dealer or the
nearest service center for help.
3.1 Wiring
Connect the camera to network according to the following figures.
Connecting Directly

18
Connecting via a Switch or a Router
3.2 Activating the Camera
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser and Activation via Grundig IP-Finder Tool
are supported. We will take activation via Grundig IP-Finder Tool and
Activation via Web Browser as examples to introduce the camera
activation.
3.2.1 Activation via Web Browser
Steps:
1. Power on the camera. Connect the camera to your computer or
the switch/router which your computer connects to.
2. Input the IP address into the address bar of the web browser, and
press Enter to enter the activation interface.
Notes:
⚫The default IP address of the camera is 192.168.1.100.
⚫The computer and the camera should belong to the same
subnet.
⚫For the camera enables the DHCP by default, you need to use
the Grundig IP-Finder Tool to search the IP address.

19
Activation Interface (Web)
3. Create a password and input the password into the password field.
STRONG PASSWORD RECOMMENDED–We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
Activation via Grundig IP-Finder Tool
The Grundig IP-Finder Tool is used for detecting the online device and
activating the camera.
Get the Grundig Finder Tool from the supplied disk or the official
website and install the software according to the prompts. Follow the
