Grundig AMIRA 15 Setup guide

ǵ
COLOR
TELEVISION
AMIRA 15
LCD 38-6605 BS
AMIRA 17
LW 45-6605 BS
AMIRA 20
LCD 51-6605 BS
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
TÜRKÇE
POLSKI

2
CONTENTS____________________________________________
3-4 Set-up and safety
5-6 Connection/Preparation
5-6 Connecting the antenna and the mains cable
6Adjusting the inclination of the screen
7-9 Overview
7Operating controls on the television
7Connections on the television
8-9 The remote control
10-13 Settings
10 Setting television channels automatically
10-11 Changing stored channels
12 Picture settings
12-13 Audio settings
14-15 Television operation
14 Basic functions
15 Changing the picture format
15 Zap function
16-17 Teletext mode
16 TOP text or FLOF text mode
16 Normal text mode
16-17 Additional functions
18 Convenience functions
18 Convenience functions with the »FEATURES« menu
19-21 Using external devices
19 Video recorder, DVD player or SET-TOP box
20 Decoder or satellite receiver
20 Headphones
21 Camcorder
21 HiFi system
22 Operation as a PC Monitor
22 Connecting a PC
22 Selecting the channel position for the PC
22 Settings for the PC
23-25 Special settings
23-25 Setting television channels
26-28 Information
26 Technical data,
26 Service information for dealers
26 Environmental note
27 Troubleshooting
28 Additional Information for units sold in the UK.

ENGLISH
3

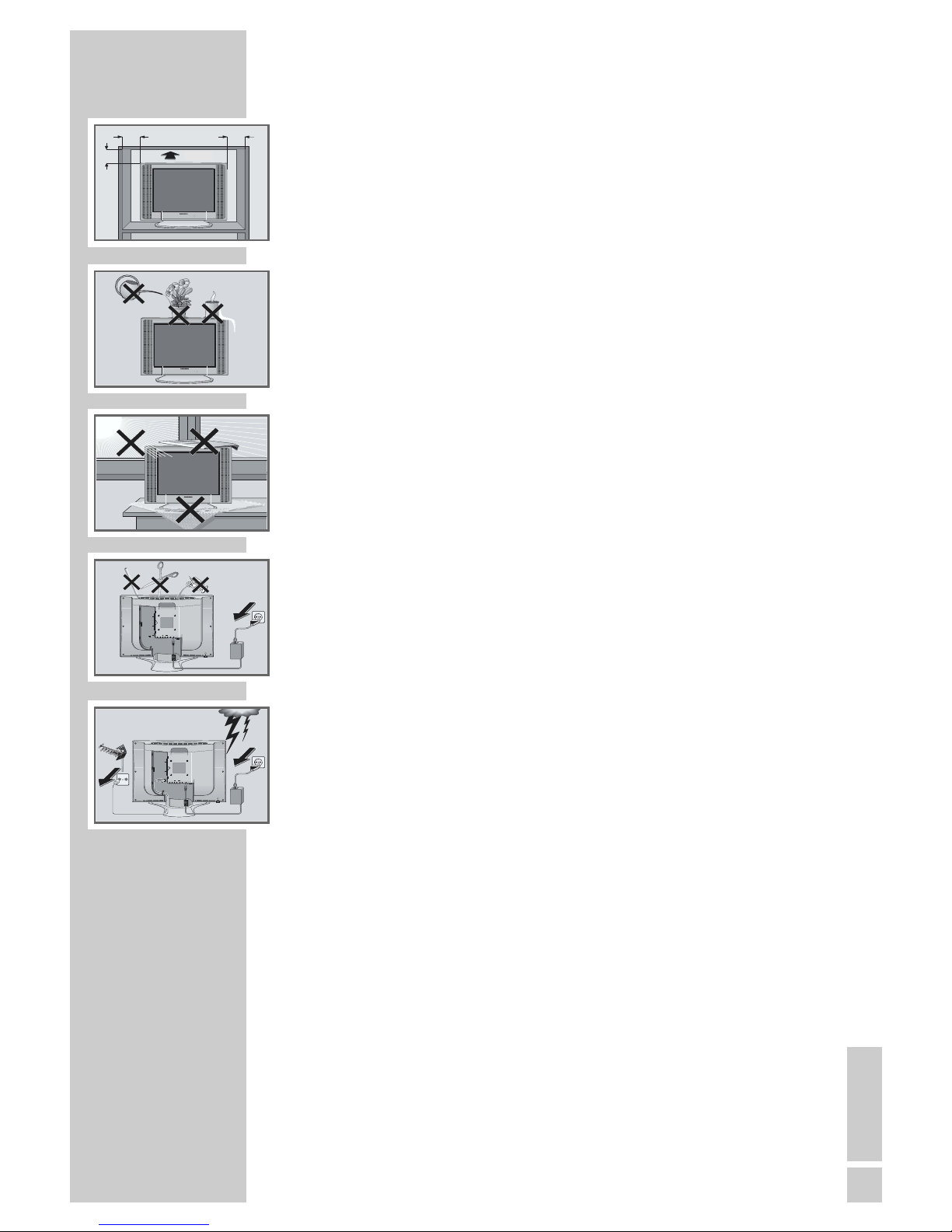

SET-UP AND SAFETY___________________________
Please note the following information when setting up your television set.
This television set is designed to receive and display video and audio
signals.
Any other use is expressly prohibited.
The ideal viewing distance is 5 times the screen diagonal.
External light falling on the screen impairs picture quality.
Ensure sufficient clearance between the TV and the wall cabinet.
The television set is designed for use in dry rooms. If you do use it in the
open, please ensure that it is protected from moisture, such as rain or
splashing water. Do not expose the television set to any moisture.
Do not place any vessels such as vases on the television, as they may
spill liquid, thus presenting a safety risk.
Place the television set on a solid, level surface. Do not place any
objects such as newspapers on the television set or cloth or similar items
beneath it.
Do not place the television set close to heating units or in direct sunlight,
as this will impair cooling.
Heat build-up can be dangerous and shortens the operating life of the
television set. For reasons of safety, have a specialist remove any dirt
deposits in the set from time to time.
Do not open the television set under any circumstances. Warranty
claims are excluded for damage resulting from improper handling.
Ensure that the mains cable and the mains adapter are not damaged.
The television set may only be operated with the mains cable/adapter
supplied.
Thunderstorms are a danger to all electrical devices. Even if the tele-
vision set is switched off, it can be damaged by a lightning strike to the
mains or the antenna cable. Always disconnect the mains and antenna
plugs during a storm.
Clean the screen with a soft, damp cloth. Only use plain water.
Note:
Do not connect any other equipment while the device is switched on.
Switch off the other equipment as well before connecting it.
Only plug the device into the mains socket after you have connected the
external devices and the antenna.
10
cm 10
cm
20
cm
20 cm
A
mira
A
mira
A
mira
Krieg am Golf
AV1
AV2
ANTIN
AUDIOOUT
LR
PCINPUT
LVideoR
AV3
S-VHS DC15V
! SERVICE !! SERVICE !
! SERVICE !
AV1
AV2
ANTIN
AUDIOOUT
LR
PCINPUT
LVideoR
AV3
S-VHS DC15V
TV R

4
Please note when deciding where to put the device that furniture
surfaces are covered by various types of lacquer and plastic, most
of which contain chemical additives. These may cause corrosion to
the feet of the device, thus resulting in stains on the surface of the
furniture which can be difficult or impossible to remove.
The screen of your LCD television meets the highest quality
standards and has been checked for pixel faults.
Despite the great care taken in manufacturing, technological
reasons make it impossible to completely discount the possibility that
some pixels may be faulty.
Provided they are within the thresholds specified by the DIN norm,
pixel faults of this kind cannot be regarded as a defect as defined
by the warranty.
SET-UP AND SAFETY___________________________

ENGLISH
5
CONNECTION/PREPARATION __________
Connecting the antenna and the mains cable
1Take off the cover (A).
2Plug the antenna cable of the rooftop antenna into the
»ANT IN Ä« antenna socket on the television.
3Plug the mains cable supplied into the mains socket of the
power unit.
4Plug the power pack into the »DC 12 V« socket (Amira 15
and
Amira 17) or the »DC 15 V« socket (Amira 20) on the tele-
vision.
5Plug the power cord plug into an earthed safety socket.
Note:
Only connect the television using the power cord supplied
to a suitable earthed safety socket.
Do not use an adapter plug or extension lead which does
not meet the applicable safety standards. Do not tamper
with the power cord.
Only plug the device into the mains socket after you have
connected the external devices and the antenna.
6Put on the cover (A).
AV 1
AV 2
ANT IN AUDIO OUT
LR
PC INPUT
LVideoR
AV 3
S-VHS DC 15V
TV R
2
3
4
5
AV 1
AV 2
ANT IN AUDIO OUT
LR
PC INPUT
LVideoR
AV 3
S-VHS DC 15V
A

6
Inserting batteries in the remote control
1Open the battery compartment by removing the lid.
2Insert the batteries (Mignon type, for example UM-3 or
AA, 2x1,5V). Observe the polarity (marked on the base
of the battery compartment).
3Close the battery compartment.
Note:
If the television no longer reacts properly to remote
control commands, the batteries may be flat. Be sure to
remove used batteries.
The manufacturer accepts no liability for damage re-
sulting from used batteries.
Environmental note
Batteries, including those which contain no heavy metal,
may not be disposed of with household waste. Please
dispose of used batteries in an environmentally sound
manner. Find out about the legal regulations which apply
in your area.
Adjusting the inclination of the screen
1Hold the television stand.
2Carefully tilt the screen forward or back.
CONNECTION/PREPARATION __________
Amira

ENGLISH
7
Controls on the television
•Operation indicator.
+P– Switches the television on from
standby;
Channel selection.
TV/AV Selects the AV channels and the
most recently viewed television
channel.
MENU Opens the »INFO« menu.
+ z–Adjusts the volume.
IO Switches the television into and
out of standby mode.
Connections on the television set
AV 1 Euro/AV socket (FBAS, RGB).
AV 2 Euro/AV (FBAS) socket – Amira 17/20 only.
ANT IN Ä Antenna socket.
AUDIO OUT L R Audio output.
AV 3 L R VIDEO Audio/video input.
S-VHS S-VHS video input.
yHeadphone connection (3.5 mm ø jack).
PC INPUT VGA connection for PC.
DC 12 V Power pack connection socket (Amira 15/17).
DC 15 V Power pack connection socket (Amira 20).
OVERVIEW____________________________________________
Amira
AV 1
AV 2
ANT IN AUDIO OUT
LR
PC INPUT
LVideoR
AV 3
S-VHS DC 15V
AV 1
AV 2
ANT IN Ä
PC INPUT
y
AUDIO OUT L R
DC 12 V Amira 15/17
DC 15 V Amira 20
AV 3 L R VIDEO S-VHS
+
P
–
TV/AV
MENU
+
z
–
IO

8
OVERVIEW____________________________________________
The remote control
ǼSwitches off the television set (stand-by).
PIP Key has no function.
ESwitches between picture formats.
-/-- Switches to the PC channel position;
switches to double character size in teletext mode.
1...0 Switches the television on from standby mode;
selects channels directly.
dSound on/off (mute).
iOpens and closes the »INFO« menu;
closes all menus.
ZZap function.
P+, P- Switches the television on from standby;
selects stations step by step;
moves the cursor in the menus up and down.
ǸǷ Adjusts the volume;
moves the cursor left/right.
OK Calls up the preset channels;
activates various functions.
TXT Switches between teletext and TV modes.
AV Selects the AV channels and the most recently viewed
television channel.
SCAN Reveals answers in teletext mode.
PAP Page stop in teletext mode.
SIZE Selects the sub-pages in teletext mode.
POS Updates a page in teletext mode.
Tele Pilot 160 C
VCR DVD
SAT
z
TXT
PIP
AV
POS
SIZEPAP
SCAN
d

ENGLISH
9
OVERVIEW____________________________________________
zSelects various picture settings;
scrolls back a page in teletext mode
ȄTime on;
scrolls to the next page in teletext mode.
ǷǷSelects the desired chapter in teletext mode.
FSelects various audio settings∞
selects the desired topic in teletext mode.
VCR, SAT Switches to operating a GRUNDIG video
DVD recorder, a GRUNDIG satellite receiver or
a GRUNDIG DVD player.
Keep the relevant buttons (»VCR«, »SAT«, »DVD«)
pressed down. Then press the button you require.
Note:
The functions available to you depend on the model of
the device you are using.
Just try it out.
Tele Pilot 160 C
VCR DVD
SAT
z
TXT
PIP
AV
POS
SIZEPAP
SCAN
d

10

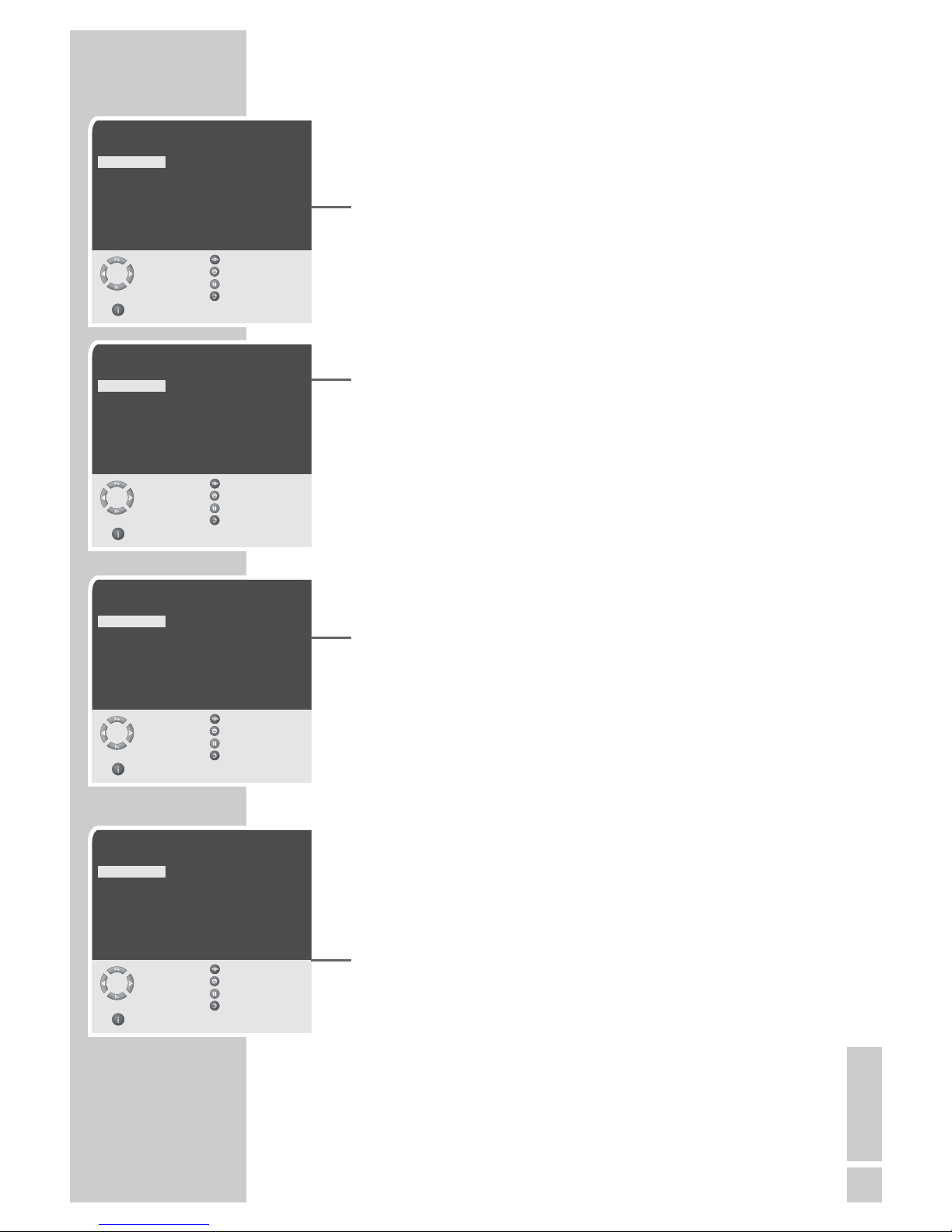

Setting television channels automatically
The television set is equipped with an automatic channel search
system.
You start the search and can then sort the television channels into
your order of preference.
99 preset positions are provided, to which you can assign television
channels from the antenna or from the cable connection.
1Switch on the television with »IO« on the television set, then
press »P+«on the remote control.
– The »SPRACHE« (LANGUAGE) menu appears when the tele-
vision is first switched on.
Hint:
If the »SPRACHE« (LANGUAGE) menu does not appear on the
screen,
then set it in accordance with the chapter on resetting all tele-
vision channels on page 25.
2Select language with »P+«, »P-«, »Ǹ« or »Ƿ« and press
»OK« to confirm.
– The »COUNTRY SELECTION« menu appears.
3Press »P+«, »P-«, »Ǹ«or »Ƿ«to select the country and
»OK«to confirm.
– A warning message appears.
4Press »OK«to start the search.
– The search begins. It may last a few minutes, depending on
the number of television stations found.
– After the search the television switches to channel position 1
and the »PROGRAM TABLE« menu appears.
Changing stored channels
You can delete channels that have been stored more than once
during the automatic search. You can also store channels in a diffe-
rent preset position, change or enter the name of a channel as well
as skip channels.
Selecting the station list
1Press »i« to open the »INFO« menu.
– The »INFO« menu appears.
2Select »SETUP« with »P+« or »P-« and confirm with »OK«.
– The »SETUP« menu appears.
3Select »PROGRAM TABLE« with »P+« or »P-« and confirm
with »OK«.
Note:
Further operation is explained in the following sections.
SETTINGS ______________________________________________
SPRACHE
DEUTSCH MAGYAR
DANSK POLSKI
ESPAÑOL TÜRKÇE
FRANÇAIS EΛΛHNIKA
ENGLISH ССК
ITALIANO SUOMI
NORSK âESKY
NEDERLANDS ROMÂNESTE
PORTUGUÊS УССК
SLOVENSKO HRVATSKI
SVENSKA БЛГ
AUSWÄHLEN ENDE
UND BESTÄTIGEN ZURÜCK
●
OK
COUNTRY SELECTION
BELGIUM NETHERLANDS
CZECH REP. NORWAY
DENMARK POLAND
FINLAND PORTUGAL
FRANCE SPAIN
GERMANY SWEDEN
GREECE SWITZERLAND
HUNGARY TURKEY
IRELAND UK
ITALY –––
SELECT EXIT
AND CONFIRM BACK
●
OK
INFO
SOUND
SETUP
FEATURES
SELECT EXIT
AND OPEN
ǵ
●
OK

ENGLISH
11
Deleting channels
1In the »PROGRAM TABLE« menu, select the station to be dele-
ted with »P+«, »P-«, »Ǹ« or »Ƿ«.
2Press »ǷǷ« (yellow) to delete the channel.
Note:
To delete other stations, repeat steps 1and 2.
Sorting television channels
1In the »PROGRAM TABLE« menu, select the channel to be
moved with with »P+«, »P-«, »Ǹ« or »Ƿ«.
2Highlight the channel with »Ȅ« (green).
3Select a new channel position by pressing »P+«, »P-«, »Ǹ« or
»Ƿ« and then press »Ȅ« to confirm.
– All of the channels that follow move up one position.
Note:
To sort the other television channels repeat steps 1 to 3.
Entering the channel names
(maximum of 5 characters)
1In the »PROGRAM TABLE« menu, select the desired channel
with »P+«, »P-«, »Ǹ« or »Ƿ«.
2Highlight the channel with »F« (blue).
3Select letters or numbers with »P+« or »P-«, move to the next
position with »Ǹ« or »Ƿ« and repeat.
4Store the channel name with »F« (blue).
Note:
To enter additional channel names, repeat steps 1 to 4.
Skipping television channels
You can mark television channels which should be skipped during
selection with »P+« or »P-«. A selection with the number keys is
also possible.
1In the »PROGRAM TABLE« menu, select the desired channel
with »P+«, »P-«, »Ǹ« or »Ƿ«.
2Highlight the channel with »z« (red).
– The station is now displayed in red.
– You can deselect the selected channel by pressing the red
button again.
Concluding the settings
1Press »i« to finish the settings.
SETTINGS ______________________________________________
PROGRAM TABLE
1ARD 6BR3
2RTL 7 TELE5
3SAT18WDR
4ZDF 9 VOX
5PRO7 10SRTL
SELECT SKIP
AND OPEN MOVE
DELETE
NAME
EXIT
●
OK
PROGRAM TABLE
1ARD 6BR3
2RTL 7 TELE5
3SAT18WDR
4ZDF 9 VOX
5PRO7 10SRTL
SELECT SKIP
AND OPEN MOVE
DELETE
NAME
EXIT
●
OK
PROGRAM TABLE
1ARD 6BR3
2RTL 7 TELE5
3SAT18WDR
4ZDF 9 VOX
5PRO7 10SRTL
SELECT SKIP
AND OPEN MOVE
DELETE
NAME
EXIT
●
OK
PROGRAM TABLE
1ARD 6BR3
2RTL 7 TELE5
3SAT18WDR
4ZDF 9 VOX
5PRO7 10SRTL
SELECT SKIP
AND OPEN MOVE
DELETE
NAME
EXIT
●
OK

12
Picture settings
1Press »i« to open the »INFO« menu.
– The »INFO« menu appears.
2Select »PICTURE« with »P+« or »P-« and confirm with »OK«.
– The »PICTURE« menu appears.
3Select »BRIGHTNESS«, »CONTRAST«, »COLOUR« or
»SHARPNESS« with »P+« or »P-« and adjust them with »Ǹ«
or »Ƿ«.
Notes:
After a short while the »PICTURE« menu reappears.
The settings are saved as the »USER« picture default setting.
4Press »i« to finish the settings.
Audio settings
1Press »i« to open the »INFO« menu.
– The »INFO« menu appears.
2Select »SOUND« with »P+« or »P-« and confirm with »OK«.
– The »SOUND« menu appears.
Note:
Further operation is explained in the following sections.
Volume
The standard volume is set here. This is the volume of the device
after switching on.
1Select »VOLUME« with »P+« or »P-« and adjust the setting
with »Ǹ« or »Ƿ«.
Balance
1Select »BALANCE« with »P+« or »P-« and adjust the setting
with »Ǹ« or »Ƿ«.
Stereo / two channel, mono
If the device receives two channel programmes, e.g. a film with the
original sound on sound channel B (display: »Dual II «) and the
dubbed version on sound channel A (display: »DUAL I«), you can
select the sound channel you desire.
If the device receives stereo or Nicam programmes, it switches
automatically to stereo sound (display: »STEREO«).
You can switch the sound to »MONO« if the stereo reception
quality is poor.
1Select »SOUND« with »P+« or »P-« and adjust the setting with
»Ǹ« or »Ƿ«.
SETTINGS ______________________________________________
BRIGHTNESS
CONTRAST
COLOUR
SHARPNESS
SMART CONTROL USER
SELECT EXIT
AND EDIT BACK
●
OK
SOUND
VOLUME
BALANCE
SOUND TYPE MONO
SOUND MODE NORMAL
EQUALIZER
SELECT EXIT
AND EDIT BACK
●
OK

ENGLISH
13
Stereo width
Widens the audio output for stereo programmes and improves the
sound with mono reception.
1Select »SOUND MODE« with »P+« or »P-«.
2Press »Ǹ« or »Ƿ« to select the setting.
Equaliser
The equaliser offers you four pre-programmed sound settings
(Music, Sport, Cinema and Dialogue) and two which you can
modify yourself (User 1 and User 2).
1Select »EQUALIZER« with »P+« or »P-« and confirm with
»OK«.
– The »EQUALIZER« menu appears.
2Select the audio setting »USER 1« or »USER 2« with »P+« or
»P-« and confirm with »OK«.
– The frequency band »120 Hz« is activated.
3Set the desired value with »P+« or »P-« and select the next
frequency band with »Ǹ« or »Ƿ«.
4Press »OK« to save the setting.
Concluding the settings
1Press »i« to finish the settings.
SETTINGS ______________________________________________
EQUALIZER
MUSIC
SPORT
CINEMA
SPEECH
USER 1
USER 2
120 500 1.5 5 10
Hz Hz KHz KHz KHz
SELECT EXIT
AND EDIT BACK
●
OK
ľı ľıľı ľı
ľı
SOUND
VOLUME
BALANCE
SOUND TYPE MONO
SOUND MODE NORMAL
EQUALIZER
SELECT EXIT
AND EDIT BACK
●
OK

14
Basic functions
Switching on and off
1Switch on the television by pressing the »IO« button on the
television set.
– The device switches to standby mode.
Switch the television on with »1…0« or »P+« or »P-«.
2Press the »Ǽ« button to switch the television to standby mode.
Press »1…0« or »P+« or »P-« to switch on the device from
standby mode.
3Completely switch the television off by pressing »IO« on the
television set.
– This saves electricity.
Selecting channels
1Use »1…0« to select channels directly.
2Press »P+« or »P-« to move up and down channels.
Selecting AV channel positions
1Use »AV« to select AV channels directly.
Adjusting the volume
1Adjust the volume with »Ǹ« or »Ƿ«.
Muting
1Use »p« to switch the sound off (mute) and to switch it on
again.
Displaying time
1You can display the time by pressing the »Ȅ« button (only for
channels with teletext).
Picture settings
You can select four different picture settings.
1Select the desired picture setting from »USER«, »NATURAL«,
»RICH« or »SOFT« with »z«.
– You can alter the »USER« picture setting, see the ”Picture
settings” chapter on page 12.
Audio settings
You can select six different audio settings.
1Select the desired sound setting from »USER 1«, »USER 2«,
»MUSIC«, »SPORT«, »CINEMA« or »SPEECH« with »F«.
– You can alter the »USER 1« and »USER 2« sound settings, see
the ”Equaliser” chapter on page 13.
TELEVISION OPERATION ___________________
Tele Pilot 160 C
VCR DVD
SAT
z
TXT
PIP
AV
POS
SIZEPAP
SCAN
d

ENGLISH
15
Changing the picture format
1Select the picture format with »E«.
– You can choose between the following picture formats:
»4:3« format
The picture is shown in 4:3 format.
»AUTO« format
The picture format is automatically switched to »16:9« for 16:9
programmes.
For programmes in 4:3 format, the picture automatically fills the
screen.
»16:9« format
During programmes in 4:3 format the picture is stretched horizon-
tally if the »16:9« format is selected.
The picture geometry is stretched horizontally.
With actual 16:9 signal sources (from a SET-TOP box on the Euro-
AV socket) the picture fills the screen completely and with the correct
geometry.
Zap function
This function allows you to save the television channel which you
are currently watching and switch to other channels (zapping).
1Select the channel you want to save in the zap memory with
»1…0« or »P+« »P-«, (e.g. channel 1, BBC 1) and save by
pressing »Z«.
– The display »z 1« appears in the screen.
2Change channels with »1…0« or »P+« »P-«.
3You can now use »Z« to switch between the saved channel (in
the example, BBC1) and the channel you were watching befo-
re.
4Press »i« to quit the zap function.
– The display disappears.
TELEVISION OPERATION ___________________

16
TOP text or FLOF text mode
1Press »TXT« to switch to teletext mode.
2You can directly select teletext pages with »1...0«.
Note:
At the bottom of the screen, you will see an information line
consisting of a red, green and, depending on the station,
yellow and blue text field. Your remote control has buttons with
the corresponding colours.
3Press »z« (red) to scroll back a page.
4Press »Ȅ« (green) to scroll to the next page.
5Press »ǷǷ« (yellow) to select chapters.
6Press »F« (blue) to select topics.
7Press »TXT« to switch off teletext mode.
Normal text mode
1Press »TXT« to switch to teletext mode.
2You can directly select teletext pages with »1...0«.
3Press »P-« to scroll back a page.
4Press »P+« to scroll to the next page.
5Press »TXT« to switch off teletext mode.
Additional functions
Skipping the waiting time
While a page is being searched for, you can switch to the television
channel.
1Enter the teletext page number using »1…0«and then press
»POS«.
– »ƴ« appears instead of the page number. As soon as the
page is found, the page number is displayed.
2Press »POS« to switch to the teletext page.
Increasing character size
If you have difficulty reading the text on the screen, you can double
the character size.
1To enlarge the character size of a teletext page, press »–/– –«
repeatedly.
TELETEXT MODE _______________________________
Tele Pilot 160 C
VCR DVD
SAT
z
TXT
PIP
AV
POS
SIZEPAP
SCAN
d

ENGLISH
17
Page stop
A multiple page may contain several sub-pages, which are automa-
tically scrolled by the transmitting station.
1Stop the sub-pages with »PAP«.
– » « is displayed instead of the page number.
2Press »PAP« to quit the function.
Calling up a sub-page directly
If the selected teletext page contains further pages, the number
of the current sub-page as well as the total number of pages is
displayed.
1Call up the sub-pages with »SIZE«.
2Enter the four-digit number of the sub-page with »1…0«.
– The selected sub-page is appears after a short delay.
Reveal answer
Certain teletext pages contain ”hidden answers” or information
which can be called up.
1Display information with »SCAN«.
2Conceal information with »SCAN«.
TELETEXT MODE _______________________________
Tele Pilot 160 C
VCR DVD
SAT
z
TXT
PIP
AV
POS
SIZEPAP
SCAN
d

18
Convenience functions with the »FEATURES« menu
1Press »i« to open the »INFO« menu.
2Select »FEATURES« with »P+« or »P-« and confirm with »OK«.
Note:
Further operation is explained in the following sections.
Changing the menu language
1Select »LANGUAGE« with »P+« or »P-« and confirm with
»OK«.
– The »LANGUAGE« menu appears.
2Select the language with »P+«, »P-«, »Ǹ« or »Ƿ« and press
»OK« to confirm.
3Press »i« to finish the setting.
Parental lock
1Select »PARENTAL LOCK« with »P+« or »P-«.
2Press »Ǹ«or »Ƿ«to activate the parental lock (ON) or
deactivate it (OFF).
3Press »i« to finish the setting.
Entering the time
1Select »CLOCK« with »P+« or »P-«.
2Enter the time in four digits with »1…0«.
3Press »i« to finish the setting.
Entering the switch-on and off times
You can set times for the television to switch on and off in the
»TIMER« menu. After this time has elapsed, the television switches to
standby mode or switches on from standby mode. Under
»PROG. NUMBER« you can enter the TV station with which the tele-
vision switches on.
1Select »TIMER« with »P+« or »P-« and press »OK«tocon-
firm.
2Select »PROGRAM NO«, »ON TIME« or »OFF TIME« with
»P+« or »P-«.
3Enter the station, switch-on time or switch-off time with
»1…0«.
4Press »i« to finish the setting.
CONVENIENCE FUNCTIONS______________
FEATURES
LANGUAGE
PARENTAL LOCK OFF
CLOCK 10 : 29
TIMER
SELECT EXIT
AND OPEN BACK
●
OK
FEATURES
LANGUAGE
PARENTAL LOCK OFF
CLOCK 10 : 29
TIMER
SELECT EXIT
AND OPEN BACK
●
OK
FEATURES
LANGUAGE
PARENTAL LOCK OFF
CLOCK 10 : 29
TIMER
SELECT EXIT
AND OPEN BACK
●
OK
TIMER
PROGRAM NO 0
ON TIME – – : – –
OFF TIME – – : – –
SELECT EXIT
AND EDIT BACK
●
OK

ENGLISH
19
USING EXTERNAL DEVICES_______________
Note:
Do not connect any other equipment while the device is switched on.
Switch off the other equipment as well before connecting it.
Only plug the device into the mains socket after you have connected
the external devices and the antenna.
Video recorder, DVD player or SET-TOP box
Connecting the video recorder, DVD player or
SET-TOP box
1Connect the »AV1« or »AV2« socket (Amira 17 and 20 only)
on the television and the corresponding socket on the video
recorder, DVD player or the set-top box with a Euro-AV (Scart)
cable.
Using a video recorder, DVD player or SET-TOP box
1Switch on the video recorder, DVD player or SET-TOP box and
select the function you wish to use.
2Select »AV1« or »AV2« (Amira 17 and 20 only) by pressing
»AV«.
– You can hear and see the video and audio information from
the video recorder or the SET-TOP box on the television set.
Connecting the SVHS video recorder
If you own a SVHS video recorder, you can connect it using a
SVHS cable to the »S-VHS« socket.
Using a SVHS video recorder
1Switch on the video recorder and select the function you wish
to use.
2Select the »AVS« preset channel with »AV«.
– You will see the picture and hear the sound of the video
recorder on the television.
AV 1
AV 2
ANT IN AUDIO OUT
LR
PC INPUT
LVideoR
AV 3
S-VHS DC 15V
DIGITALAUDIO OUT
AUDIOOUT
L
R
EUROAV TV
VIDEOOUT
SVIDEO OUT
110-240V
~50/60Hz 20 W

20
USING EXTERNAL DEVICES_______________
Decoder or satellite receiver
In order for the television to receive encoded programs from a
privately operated station, a decoder is needed.
Connecting a decoder or satellite receiver
1Connect the »AV1« socket on the television set and the appropriate
socket on the decoder using a EURO-AV cable.
Notes:
A satellite receiver can also be connected to this socket.
If you want to use both a satellite receiver and a decoder, the
decoder must be connected to the satellite receiver.
Using a decoder
1Switch on the television and the decoder.
2Select the »AV1« preset channel by pressing »AV« repeatedly
until »AV1« appears on the screen.
Headphones
Connecting headphones
1Insert the headphone jack (3.5 mm ø jack plug) in the headpho-
ne socket on the bottom.
Adjusting the headphone volume
1Press »p« to mute the television sound.
2Press »Ǹ« or »Ƿ« to adjust the headphone volume.
A
V 2
T IN AUDIO OUT
LR
PC INPUT
LVideoR
AV 3
S-VHS DC 15V
AV 1
AV 2
ANT IN AUDIO OUT
LR
PC INPUT
LVideoR
AV 3
S-VHS DC 15V
PAY-TV
