GSI Group H-Series Catwalk User manual

PNEG-1744
H-Series Catwalk Installation
Supplement for GSI Stack Dryers Built
with Stiffeners
Instruction Manual
PNEG-1744
Date: 08-17-10

2PNEG-1744 H-Series Catwalk Installation

Table of Contents
PNEG-1744 H-Series Catwalk Installation 3
Contents
Chapter 1 Introduction ..........................................................................................................................................4
Chapter 2 Dryer Dimensions, Stiffener and Catwalk Locations ........................................................................6
Catwalk Support Assembly at Stiffener ................................................................................................. 6
Dryer Catwalk Layouts .......................................................................................................................... 7
14' Long Dryer Catwalk Layout .........................................................................................................7
18' Long Dryer Catwalk Layout .........................................................................................................8
20' Long Dryer Catwalk Layout .........................................................................................................9
22' Long Dryer Catwalk Layout .......................................................................................................10
26' Long Dryer Catwalk Layout .......................................................................................................11
Dryer Size vs Support Attachments Needed ...................................................................................12
Truss Bracket Attachments for Channel Supports .............................................................................. 13
Truss Bracket, Catwalk Section Edge Locations .............................................................................13
Truss Bracket, Catwalk 8' Section Center Locations .......................................................................13
Catwalk Support Installation for Locations with No Stiffeners .........................................................14
Catwalk Locations ............................................................................................................................... 16
Middle Module Location ...................................................................................................................16
Top Module Location .......................................................................................................................17
20' Catwalk Layout .............................................................................................................................. 18
Catwalk Front Guard Rails - Dryer Top Module ..............................................................................18
Catwalk Front Guard Rails - Dryer Middle Module ..........................................................................19
Chapter 3 Installation Instructions .....................................................................................................................20
Chapter 4 Warranty ..............................................................................................................................................21

4PNEG-1744 H-Series Catwalk Installation
1. Introduction
Please note that the original catwalk installation instructions (included in CATM-01-5 and CATH-01-5)
were written for Farm Fans (FFI) dryers supported with buttresses. This supplement contains catwalk
installation instructions for dryers built with “stiffeners”. Please follow this supplement when installing
a catwalk on a dryer with stiffeners. You will be referred back to the original manual when necessary.
Please study the table included for specifications that are specific to your particular size of equipment.
Install the catwalk on each module prior to lifting modules into place.

PNEG-1744 H-Series Catwalk Installation 5
NOTES

6PNEG-1744 H-Series Catwalk Installation
2. Dryer Dimensions, Stiffener and Catwalk Locations
Catwalk Support Assembly at Stiffener
Figure 2A
Catwalk Support Assembly at Stiffener Parts List (D04-0499)
Ref # Part # Description Qty
1D01-2468 Support at Stiffener 1
2 D01-2469 Stiffener Adapter Plate 1
3S-9067 Flange Bolt 3/8"-16 x 3/4" ZN Grade 5 7
4 S-968 Flange Nut 3/8"-16 ZN Grade 5 7
5401-4718-3 Brace at Stiffener 2
Hardware to attach to stiffener can be at a
different location than shown.

2. Dryer Dimensions, Stiffener and Catwalk Locations
PNEG-1744 H-Series Catwalk Installation 7
Dryer Catwalk Layouts
14' Long Dryer Catwalk Layout
Figure 2B
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2G on Page 13
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2G on Page 13

2. Dryer Dimensions, Stiffener and Catwalk Locations
8PNEG-1744 H-Series Catwalk Installation
18' Long Dryer Catwalk Layout
Figure 2C
Figure 2G on Page 13
Figure 2I on Page 14
Figure 2G on Page 13
Figure 2G on Page 13
Figure 2I on Page 14
Figure 2G on Page 13

2. Dryer Dimensions, Stiffener and Catwalk Locations
PNEG-1744 H-Series Catwalk Installation 9

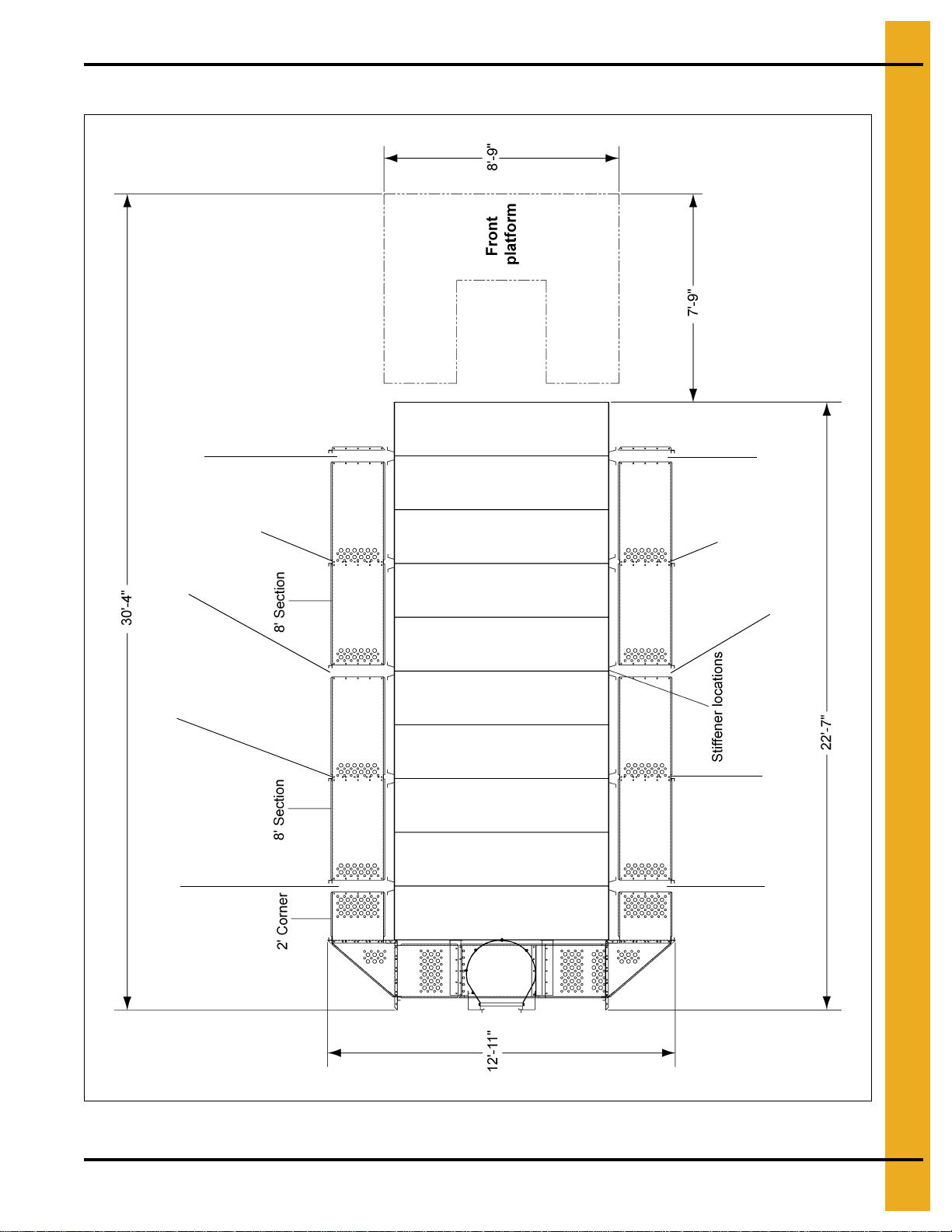

20' Long Dryer Catwalk Layout
Figure 2D
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2G on Page 13
Figure 2G on Page 13
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2G on Page 13
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2H on Page 13

2. Dryer Dimensions, Stiffener and Catwalk Locations
10 PNEG-1744 H-Series Catwalk Installation
22' Long Dryer Catwalk Layout
Figure 2E
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2G on Page 13
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2G on Page 13

2. Dryer Dimensions, Stiffener and Catwalk Locations
PNEG-1744 H-Series Catwalk Installation 11
26' Long Dryer Catwalk Layout
Figure 2F
Figure 2I on Page 14
Figure 2G on Page 13
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2H on Page 13
Figure 2G on Page 13
Figure 2I on Page 14
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2G on Page 13
Figure 2H on Page 13
Figure 2G on Page 13

2. Dryer Dimensions, Stiffener and Catwalk Locations
12 PNEG-1744 H-Series Catwalk Installation
Dryer Size vs Support Attachments Needed
Figure 2G on Page 13 = D01-2425. Used at the edges of both 6' and 8' catwalk sections.
Figure 2H on Page 13 = D01-2437. Used at center of 8' catwalk sections. Note that 6' catwalk sections do
not require center supports.
Figure 2I on Page 14 = Support for catwalk edge locations without a stiffener. (As seen on Page 14 of
layout for new stiffener supports.)
Dryer
Length # of Modules Corner Length 6' Catwalk Sections 8' Catwalk Sections Figure 2G on Page 13 Figure 2H on Page 13 Figure 2I on Page 14
14' 24' 0 2 4 2 0
34'0 4840
18' 24' 4 0 4 0 2
34'8 0804
20' 22' 0 4 6 4 0
32'0 81280
22' 24' 0 4 6 4 0
34'0 81280
26' 22' 2 4 6 4 2
32'4 81284

2. Dryer Dimensions, Stiffener and Catwalk Locations
PNEG-1744 H-Series Catwalk Installation 13

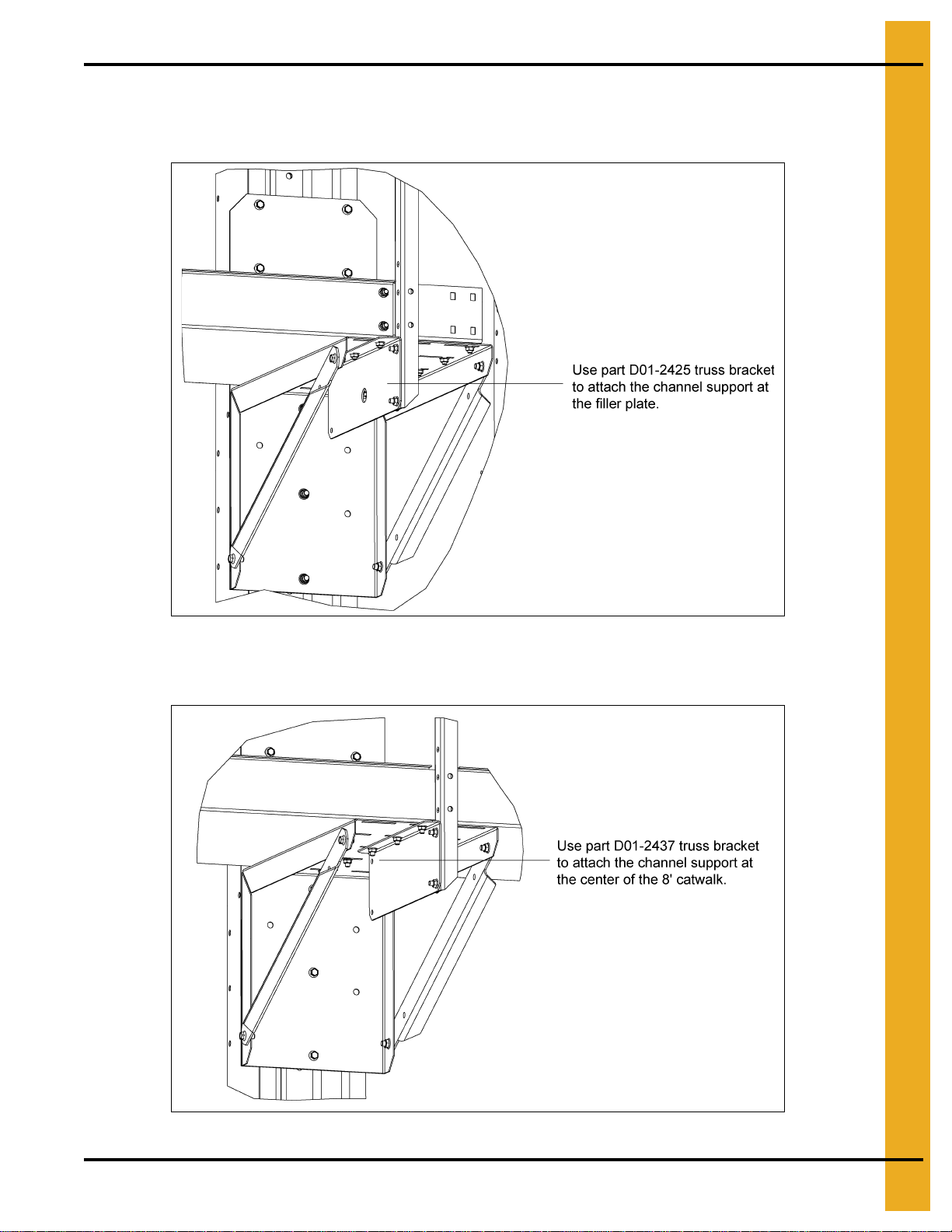

Truss Bracket Attachments for Channel Supports
Truss Bracket, Catwalk Section Edge Locations
Figure 2G
Truss Bracket, Catwalk 8' Section Center Locations
Figure 2H

2. Dryer Dimensions, Stiffener and Catwalk Locations
14 PNEG-1744 H-Series Catwalk Installation
Catwalk Support Installation for Locations with No Stiffeners
Figure 2I Typical Catwalk Support Installation where no Stiffener is Installed

2. Dryer Dimensions, Stiffener and Catwalk Locations
PNEG-1744 H-Series Catwalk Installation 15
Catwalk Support Installation for Locations with No Stiffeners Parts List
Ref # Part # Description Qty
1D31-0055 Column Bulkhead 1
2 401-4713-4 Catwalk Section 1
3401-4753-0 Adapter Channel Support 4
4 401-4717-5 Support Angle 2
5401-4719-1 Brace at Dryer 2
6 S-9067 Flange Bolt 3/8"-16 x 3/4" ZN Grade 5 8
7S-968 Flange Nut 3/8"-16 ZN Grade 5 8
8 401-4720-9 Filler Plate 1
9325-2091-8 Channel - Support 1
10 S-7645 Carriage Bolt 5/16"-18 x 3/4" ZN Grade 5 20
11 S-3611 Flange Nut 5/16"-18 ZN YDP 22
12 S-6606 Flange Bolt 5/16"-18 x 3/4" ZN Grade 5 2

2. Dryer Dimensions, Stiffener and Catwalk Locations
16 PNEG-1744 H-Series Catwalk Installation
Catwalk Locations
Middle Module Location
Figure 2J Location of Catwalk for Middle Module
Middle Module Location Parts List
Ref # Part # Description Qty
1SS-692308 9-5 Gauge 2 Ring 1
2 SS-7053 N.S. 8 Gauge Splice 2
3D01-0872 Stiffener Attach Angle 1
4 D01-2468 Support at Stiffener 1
5D01-2469 Stiffener Adapter Plate 1
6 S-9067 Flange Bolt 3/8"-16 x 3/4" ZN Grade 5 13
7S-968 Flange Nut 3/8"-16 ZN Grade 5 13
8 401-4718-3 Brace at Stiffener 2

2. Dryer Dimensions, Stiffener and Catwalk Locations
PNEG-1744 H-Series Catwalk Installation 17
Top Module Location
Figure 2K Location of Catwalk for Top Module
Top Module Location Parts List
Ref # Part # Description Qty
1SS-692308 9-5 Gauge 2 Ring 1
2 SS-7053 N.S. 8 Gauge Splice 1
3D01-2468 Support at Stiffener 1
4 401-4718-3 Brace at Stiffener 2
5S-9067 Flange Bolt 3/8"-16 x 3/4" ZN Grade 5 13
6 S-968 Flange Nut 3/8"-16 ZN Grade 5 13
7D01-2469 Stiffener Adapter Plate 1

2. Dryer Dimensions, Stiffener and Catwalk Locations
18 PNEG-1744 H-Series Catwalk Installation
20' Catwalk Layout
Catwalk Front Guard Rails - Dryer Top Module
Figure 2L
Catwalk Front Guard Rails - Dryer Top Module Parts List
Ref # Part # Description Qty
1401-4744-9 End Cap, Catwalk H/M Modules 1
2 S-7645 Carriage Bolt 5/16"-18 x 3/4" ZN Grade 5 20
3S-3611 Flange Nut 5/16"-18 YDP Grade 2 26
4 SS-692308 9-5 Gauge 2 Ring 1
5D01-2468 Support at Stiffener 1
6 401-4720-9 Filler Plate 1
7325-2091-8 Channel - Support 1
8 D01-2425 Truss Bracket - Catwalk 1
9401-4718-3 Brace at Stiffener 2
10 S-9067 Flange Bolt 3/8"-16 x 3/4" ZN Grade 5 16
11 S-968 Flange Nut 3/8"-16 ZN Grade 5 16
12 S-6606 Flange Bolt 5/16"-18 x 3/4" ZN Grade 5 6
13 D01-2606 Guard Rail, Standard Front - Catwalk 2
14 D01-2607 Attach Bracket, Front Catwalk Guard Rail 1
15 D01-2469 Stiffener Adapter Plate 1
16 401-4713-4 Catwalk Section 1

2. Dryer Dimensions, Stiffener and Catwalk Locations
PNEG-1744 H-Series Catwalk Installation 19
Catwalk Front Guard Rails - Dryer Middle Module
Figure 2M
Catwalk Front Guard Rails - Dryer Middle Module Parts List
Ref # Part # Description Qty
1401-4713-4 Catwalk Section 1
2 SS-692308 9-5 Gauge 2 Ring 2
3D01-2468 Support at Stiffener 1
4 401-4720-9 Filler Plate 1
5325-2091-8 Channel - Support 1
6 D01-2425 Truss Bracket - Catwalk 1
7S-9067 Flange Bolt 3/8"-16 x 3/4" ZN Grade 5 13
8 S-968 Flange Nut 3/8"-16 ZN Grade 5 13
9D01-2469 Stiffener Adapter Plate 1
10 401-4718-3 Brace at Stiffener 2
11 S-6606 Flange Bolt 5/16"-18 x 3/4" ZN Grade 5 8
12 S-3611 Flange Nut 5/16"-18 YDP Grade 2 28
13 S-7645 Carriage Bolt 5/16"-18 x 3/4" ZN Grade 5 20
14 401-4744-9 End Cap, Catwalk H/M Modules 1
15 SS-7053 N.S. 8 Gauge Splice 1
16 D01-2606 Guard Rail, Standard Front - Catwalk 2
17 D01-2607 Attach Bracket, Front Catwalk Guard Rail 1

20 PNEG-1744 H-Series Catwalk Installation
3. Installation Instructions
For Step 1, please refer to the instructions included in the original manual. Follow Step 2 in this
supplement. Then, return to the original manual for Steps 4-8. (Step 3 in the original manual is
obsolete for dryers without buttresses.)
Step 2: Build catwalk support assemblies (part numbers: D04-0499, D01-2425 and D01-2437). Refer to
Table on Page 12 to determine the number of support assemblies and catwalk platforms needed for the
dryer, based upon its length and the number of modules.
Step 3: To install the assemblies on the dryer: A two-stack dryer will have one catwalk on the top module.
A three-stack dryer will have one catwalk on the middle module, as well as one on the top module.
NOTE: There are places where you must install supports where there is no stiffener. (See Figure 2I
on Page 14.) To determine if this situation is applicable to the particular dryer, please refer to
Table on Page 12, as well as dryer layouts and locate the dryer size.
Now, return to the original manual for Steps 4-8.
To install the catwalk support assembly onthe middle module, measure 17.54" from the top of the stiffener
to the top of the assembly (D04-0499). Use the hardware referenced in Figure 2J on Page 16.
To install the catwalk support assembly on the top module, measure 16.57" from the top of the stiffener to
the top of the assembly (D04-0499). Use the hardware referenced in Figure 2K on Page 17.
Once all supports are in place, install catwalk sections as indicated in Table on Page 12 and dryer catwalk
layouts, using the appropriate layout length.
Step 9: On the truss bracket, install the plate with the hole when there is a gap between catwalk sections.
See Figure 2G on Page 13 for these connections and Table on Page 12 for the quantities required.
On the truss bracket, install the plate without the hole where the support needs to go in the center
of the catwalk. See Figure 2H on Page 13 for these connections and Table on Page 12 for the
quantities required.
Go to Step 13 of the existing manual to finish the hand rail installation.
