Model:
EBI-100M,
EBI-150M,
EBI-100M-24
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia
Electronic Battery Isolator
12V / 24V Negative Ground Charging System
Operating Instructions
Please read these instructions before use
The GSL Electronic Battery Isolator range feature electronic current
limiting, which operates when the isolator is subject to overload
conditions. This setting will allow both main and auxiliary batteries
to share available power while still giving priority to the main vehicle
battery in the case of a heavily discharged main battery.
Warning: Before commencing work ensure that the negative terminals from the main and auxiliary battery have been
removed. Do not short any wiring to bodywork except the black earth wire.
Wiring Instructions
1. Mount the isolator high up in the engine bay away from moisture and any source of external heat
e.g. exhaust systems.
2. Scratch away the paint from the body surface and earth the black wire onto the body.
3. Connect the red wire to a ignition switched power source e.g. voltage side of the coil and the voltage side of the
ignition switch. On EFI vehicles the accessory circuit can be used.
4. Connect the main battery terminal (Right hand side of isolator), using 6 B&S cable to the positive terminal of the
main battery.
5. Connect the auxiliary battery terminal (Left hand side of isolator), using 6B&S cable to the positive terminal of the
auxiliary battery.
6. Ensure that the second battery is correctly earthed using a minimum 3B&S cable.
7. Ensure that battery voltage on red voltage sense wire is as close as possible to main battery voltage.
Note: Any variance should be within 0.2 volts.
Note: When installing the battery isolator, it is recommended that you fuse the red
voltage sense wiring and that winches are powered from the main battery. Power
secondary auxiliary loads such as fridges, lights etc from the auxiliary battery.
12V Recharging Sequence
CONNECTS
The auxiliary battery for
charging only when the main
battery reaches 13.6 volts
DISCONNECTS
The auxiliary battery from
charging when the main battery
voltage falls below 11.4 volts
24V Recharging Sequence
CONNECTS
The auxiliary battery for
charging only when the main
battery reaches 27.2 volts
DISCONNECTS
The auxiliary battery from
charging when the main battery
voltage falls below 22.8volts
Product Voltage Application
EBI-100M 12V For Charging Systems Up to 100 Amps
EBI-150M 12V For Charging Systems Up to 150 Amps
EBI-100M-24 24V For Charging Systems Up to 100 Amps

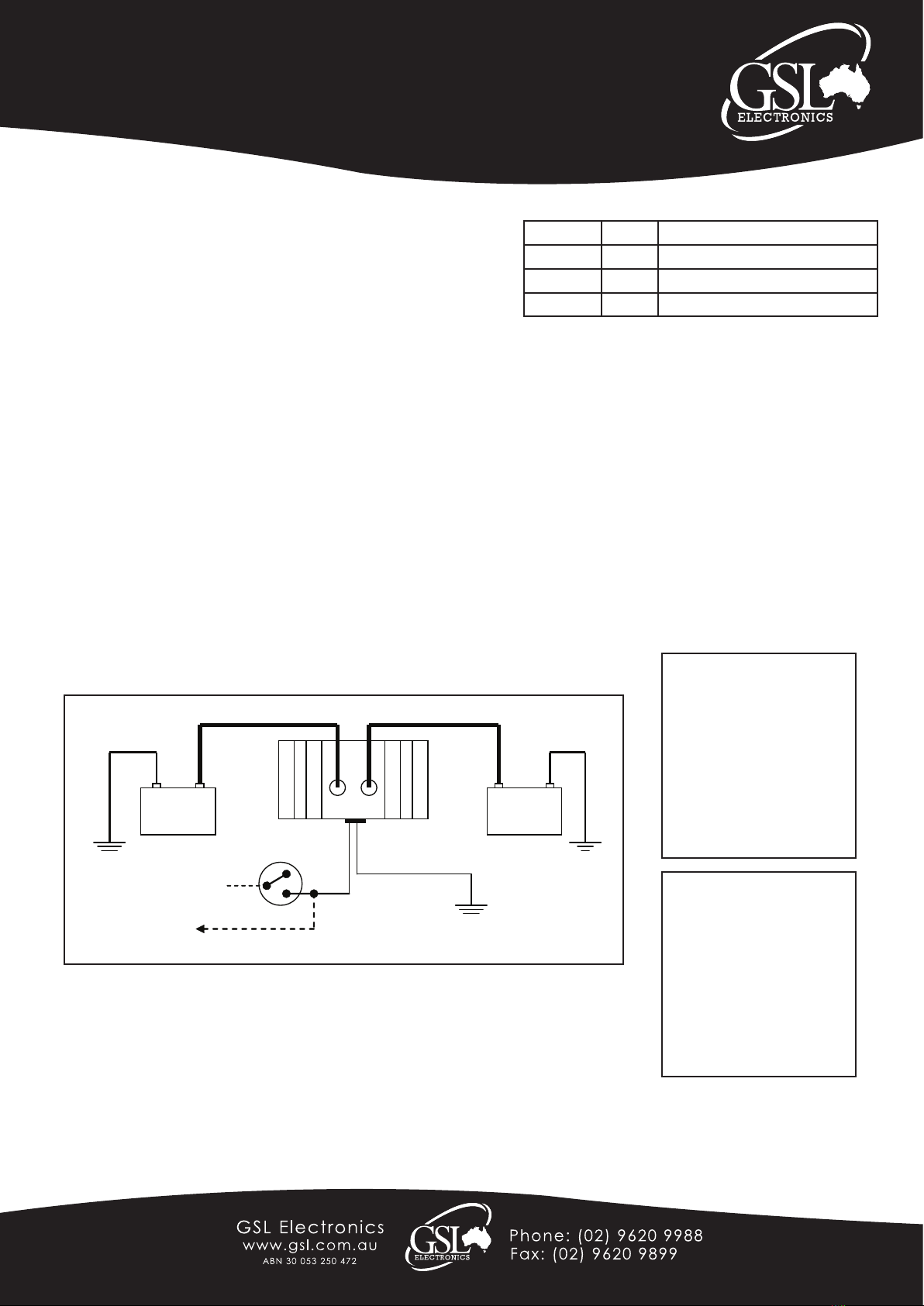

Auxiliary
Battery
Main
Battery
6 B&S Cable 6 B&S Cable
- +
+ -
Existing
Vehicle
Wiring
Ignition
Switch
3.0mm Red Wire
(Battery Sense)
3.0mm Black Wire
Ground
Ground
Ground
EBIM-R1
Warranty Conditions: Our products come with guarantees that cannot be excluded under the Australian Consumer Law.
The customer is entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
The customer is also entitled to have the products repaired or replaced if the products fail to be of acceptable quality and the failure does not
amount to a major failure.
GSL Electronics (GSL) warrants that its products will, under normal use and service, be free of defects in material and workmanship for a
period of two (2) years from the date of the original purchase by the customer as marked on the customer’s original invoice. Please refer to our
website for full warranty and return information which can be found at http://www.gsl.com.au/faq.html
