GSL electronics KBI-100A-12V User manual

Warning: Before commencing work ensure that the negative terminals from the main and auxiliary
batteries have been disconnected.

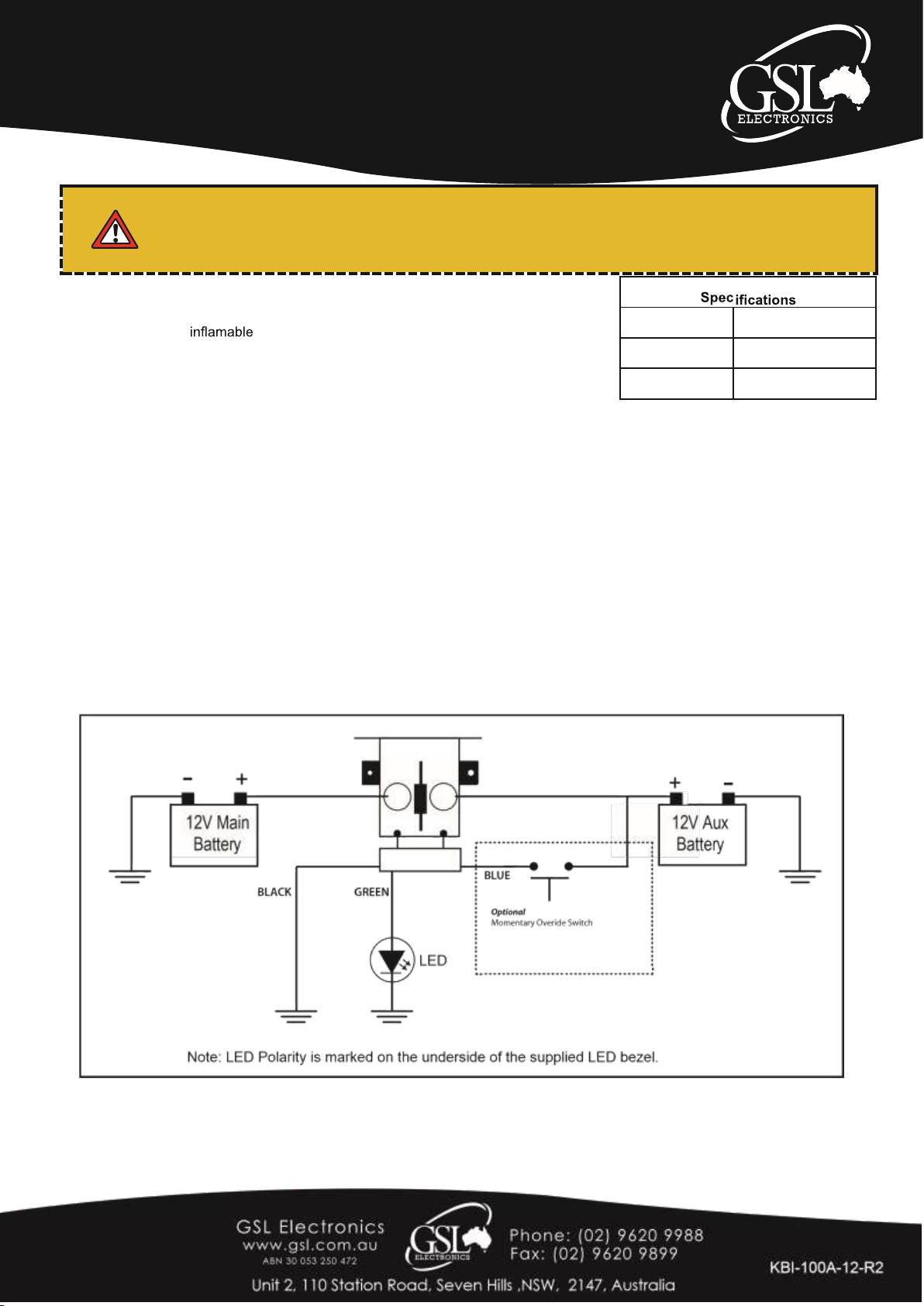

Wiring Instructions
1. Mount the isolator high up in the engine bay away from moisture and any source
of external heat and sources. e.g Fuel Lines, Exhaust systems.
2. Scratch away the paint from the body surface and earth the black wire onto the
body.3. Connect the main battery terminal of the solenoid to the positive terminal of the
main battery using 6B&S cable.
4. Connect the auxiliary battery terminal of the solenoid to the positive terminal of the auxiliary battery using
6B&S cable.
5. Ensure that the auxiliary battery is correctly earthed using a minimum 3B&S cable.
6. (Optional) Connect the blue wire to Auxillary Battery Positive via a momentary switch for manual override. If
you do not use this option, ensure that it is secured away from ground or + voltage.
7. (Optional) Connect the green wire to positive of supplied LED.
L.E.D Codes :-
ON: Solenoid contacts closed, normal operation.
OFF: Solenoid contacts open, normal operation.
Flashing : Abnormal Operating conditions. These are as follows: Low Main Battery ( Below 9.5V), High Main Battery
(Above 15.1V), Solenoid Coil Shorted (Latched alarm/ requires disconnection of solenoid to clear), Excessive Solenoid Drop (
Latched alarm/requires disconection to reset) . In all cases when flashing occurs check both batteries and charging system for
faults.
Warranty Conditions: Our products come with guarantees that cannot be excluded under the Australian Consumer Law.
The customer is entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
The customer is also entitled to have the products repaired or replaced if the products fail to be of acceptable quality and the failure does not
amount to a major failure.
Max Current
100 A
Cut In Volt
13.2 V ±1%
Cut Out Volt
12.7 V ±1%
Page 1 of 1
Model:
KBI -100A -12V
Intelligent Battery Isolator
Operating Instructions
Please read these instructions before use

GSL Electronics (GSL) warrants that its products will, under normal use and service, be free of defects in material and workmanship for a
period of two (2) years from the date of the original purchase by the customer as marked on the customer’s original invoice. Please refer to our
website for full warranty and return information which can be found at http://www.gsl.com.au/faq.html
