GSS HRC 312 AV S User manual

Grundig SAT SystEms
GSS
Grundig SAT Systems GmbH
Beuthener Strasse 43
D-90471 Nuernberg, Germany
Phone: +49 (0) 911 / 703 8877
Fax: +49 (0) 911 / 703 9210
E-mail: [email protected]
Internet: http://www.gss.tv
Montageanleitung
Montageanleitung
Assembly Instruction
Assembly Instruction
English
HRC 312 AV S
Head-End Receiver Converter
A
A
CLASS
CLASS
KLASSE
KLASSE

- 2 -
- 2 -
Contents
1 Safety regulations................................................................................................3
2 General information ............................................................................................3
2.1 Scope of delivery................................................................................... 3
2.2 Technical specifications .......................................................................... 4
2.3 Description ........................................................................................... 5
2.3.1 Display of the control unit software version..................................... 5
3 Installation ..........................................................................................................6
3.1 Installation of the modulators................................................................... 6
3.2 Installing the cassette in the head end....................................................... 8
3.3 Connecting the cassette .......................................................................... 8
4 The control panel at a glance ...............................................................................9
4.1 Menu items ........................................................................................... 9
4.2 Control panel ........................................................................................ 9
5 Programming ....................................................................................................10
5.1 Preparation......................................................................................... 10
5.2 The menus at a glance ........................................................................ 10
5.3 Programming the cassette ..................................................................... 12
Selecting the cassette ........................................................................... 12
Selecting a modulator .......................................................................... 13
Setting the output level.......................................................................... 13
Switching the modulator on/off ............................................................. 14
Setting the TV standard......................................................................... 14
Selecting channel / frequency input ....................................................... 15
Setting the output channel / output frequency.......................................... 15
Setting the frequency offset (fine tuning).................................................. 16
Adjusting the video level....................................................................... 16
Setting the modulation depth (fine tuning) ............................................... 17
Setting the audio carrier amplitude ........................................................ 17
Setting the audio type .......................................................................... 18
Setting the audio output level ................................................................ 18
Saving settings .................................................................................... 18
Channel and frequency tables................................................................................19
I. Band I / III.......................................................................................... 19
II. Hyperband ......................................................................................... 20
III. Band IV / V ........................................................................................ 21

- 3 -
- 3 -
ENGLISH
1 Safety regulations
Caution
• The converter should be assembled, installed and serviced by authorised elec-
tricians.
• Switch off the operating voltage of the system before beginning with assembly
or service work or pull the mains plug.
• Install the system …
- In a dust-free, dry environment
- In such a manner that it is protected from moisture, fumes, splashing water
and dampness
- Where it is protected from direct exposure to sunlight
- Not within the immediate vicinity of heat sources
- At an ambient temperature of below 50 °C
• Make sure the device is sufficiently ventilated.
Do not cover the ventilation slots!
• Avoid short circuits!
• No liability is accepted for damage caused by faulty connections or inap-
propriate handling.
• Observe the relevant standards, regulations and guidelines on the installation and
operation of antenna systems.
• Earth the SAT receiver by means of the equipotential bonding rail in accordance
with DIN EN 50083 and VDE 0855.
• Do not perform installation and service work during thunderstorms.
Take measures to prevent electrostatic discharge when working on the device!
2 General information
2.1 Scope of delivery
1 HRC 312 AV S cassette with installed combiner
2 HF cables
1 assembly instructions manual
Note: Modulators are not included in the scope of delivery!

A
A
CLASS
CLASS
KLASSE
KLASSE
- 4 -
- 4 -
2.2 Technical specifications
The requirements of the following EU directives are met:
73/23/EEC, 89/336/EEC
The product fulfils the guidelines and standards for CE labelling.
Input:
Video
Type of signal: CVBS signal
Input level: Typ. 1 Vpp
Direct impedance: 75 Ω, nominal
Frequency range: 20 Hz … 5 MHz
Audio
Input level: Typ. 500 mVrms
Direct impedance: Typ. 10 kΩ
Frequency range: 20 Hz … 15 kHz
Output:
HF level at the cassette output: Typ. 95 dBµV
TV standards and channel pattern: Depending on the installed modulators
HAM 323 S modulator Order number G.AI 58-00
Channels: S3 … S24 including C5 … C12
Frequency range: 119.25 MHz … 327.25 MHz
Channel pattern: PAL CCIR standard B
HAM 324 S modulator Order number G.AK 27-00
Channels: S21 … S41
Frequency range: 303.25 MHz … 463.25 MHz
Channel pattern: PAL CCIR standard B
HAM 325 S modulator Order number G.AK 28-00
Channels: C21 … C69
Frequency range: 471.25 MHz … 855.25 MHz
Channel pattern: PAL CCIR standard G
Output impedance: 75 Ω, nominal

- 5 -
- 5 -
ENGLISH
Connections:
Video inputs: 3 cinch sockets (1 per modulator)
Audio inputs: 6 cinch sockets (2 per modulator)
Combiner HF output: 1 IEC socket
Combiner HF input: 3 IEC sockets
Terminal strip (10-pin): Supply voltages / Data lines
2.3 Description
The cassette is used to feed standardised audio and video signals into a cable
system from completely different audio and video sources (e.g. audio and video
reproduction devices, test picture generators, observation cameras etc.).
Furthermore you can equip the cassettes with up to 3 modulators to modulate
the fed-in signals on up to 3 freely adjustable channels (refer to “Technical
specifications”).
The audio and video sig nals which are fed in via the cinch sockets of the modu-
lator are modulated to an adjustable carrier frequency in the modulator and
supplied to the combiner. They are brought together with the active signals from
the other modulators there and are sent to the HF output collector of the head
end via the HF output socket. The output level of the cassette can be adjusted
with the level regulator (max. –20 dB) at the output collector of the head end.
The software version of the control unit appears on the two-line LC display after
switching on the head end.
The cassettes are intended for operation in the following head ends:
– STC 316
– STC 332
– STC 1200
– STR 19–8
2.3.1 Display of the control unit software version
This cassette requires a control unit with the V.34 software version or
higher.
The software of the control unit may have to be updated. The latest soft-
ware can be found at: http://www.gss.tv
• To display the control unit‘s software version:
Press two control keys (e.g. ) simultaneously (for about 5 sec-
onds) until the display darkens and the software version “V.34”, f o r
example, is displayed.

- 6 -
- 6 -
3 Installation
3.1 Installation of the modulators
Note
Observe the ESD protective measures!
Danger of cut injuries!
The cassette is made of punched stainless steel parts. Some of them may have
sharp edges.
• Screw 3 screws S(TORX TX6) out of the cassette cover (Fig. 1).
• Push the cassette cover to the rear and remove it.
Fig. 1
• Screw the fastening screws Tout
of the combiner U(Fig. 2).
• Take the combiner out of the cassette.
Fig. 2
• Plug the HF output of the modulator Conto the HF input V of the combiner
(Fig. 2 / 3) .

- 7 -
- 7 -
ENGLISH
• Insert the HF output of the
combiner Uinto the open-
ing Wof the cassette frame
and connect the connec-
tions of the modulator with
the socket strip Xon the
cassette board. Position the
ground connection Yin the
corresponding slot on the
board (Fig. 3). Pull the modu-
lator about 1…2 mm away
from the combiner if neces-
sary.
• Fasten the combiner Uwith
screws T(Fig. 2/3).
Fig. 3
• Connect the HF output of the respective modulator to the HF input of the com-
biner with the corresponding HF cable.
• Plug the modulators Band Aonto the corresponding terminal strips Xof
the cassette board as illustrated in Fig. 4. Position the ground connections Y
of the modulators in the respective slots on the board.
Fig. 4
• Push the cassette cover from the back of the cassette into the guides and fas-
ten it with the 3 screws S (Fig. 1).

- 8 -
- 8 -
3.2 Installing the cassette in the head end
Caution
Pull the mains plug of the head end out of the mains socket before inserting
or replacing any cassettes.
+24
BREITBA
C101
L104
L100
L101
L103
C100
LNC-
+18V
ROT
+18V
Anschl.
GRUEN
INPUT OUTPUT OUTPUT INPUT
0
0
• Screw the fastening screws Sof an unoccupied slot out of the bracket of the
head end.
• Insert the cassette into the free slot and push it into the housing.
• Align the cassette and apply slight pressure to connect it with the connections
of the circuit board and the HF bus bar.
• Fasten the cassette with the screws S.
3.3 Connecting the cassette
   
3)/ 3)/3)/
• Connect the peripheral devices with the cinch input sockets “ Video ” V(yel-
low), “ Audio R ” R(red) and “ Audio L ” L(white).
•
Connect the head end to the mains power supply.

- 9 -
- 9 -
ENGLISH
4 The control panel at a glance
4.1 Menu items
Program the cassette using the keys of the control unit of the head end. The
menus appear on the two-line display of the control unit.
You can use the key
to select the following menu items:
– Cassettes and modulators
– Switching the modulator on/off
– TV standard
– Channel or frequency input
– Output channel / Output frequency
– Video level
– Audio type
– Audio level
Detailed information on how to use the menu
can be found in the settings described
in the following.

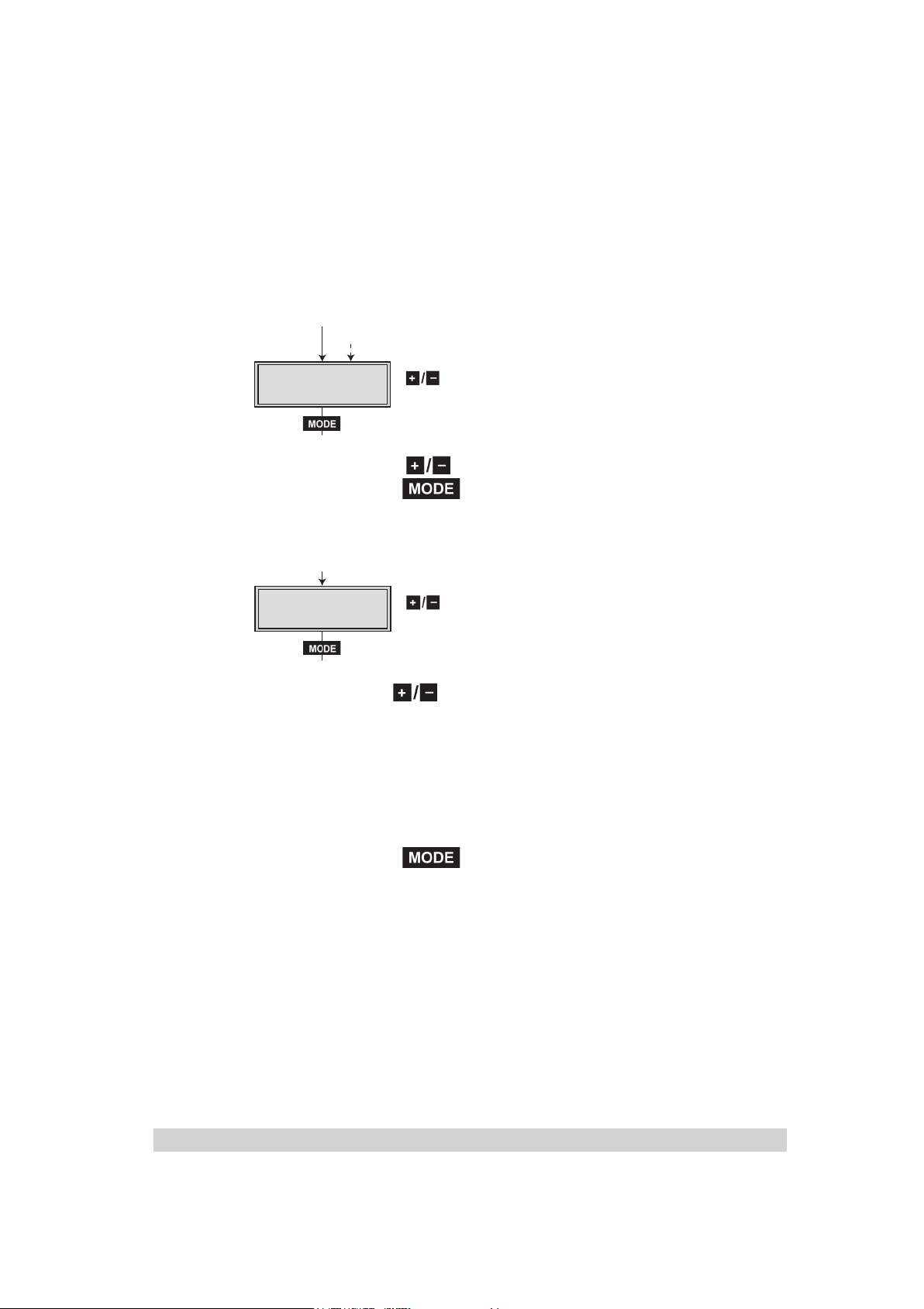

4.2 Control panel
– You can select individual menus and menu items step-by-step using the key-
board of the head end:
is used to scroll forwards through the
menus .
▶
◀/
are used to select parameters from
the menus.
are used to set values and initiate
actions.
Mis used to save all entries.
– The parameter to be set are underlined (cursor).
– The “Cassette selection” menu is returned to if the key is pressed
longer than two seconds while in any menu. Any entries which have not yet
been saved are reset to the “old” settings.
BE–Remote V.34
please wait . . .
BE–Remote V.34
please wait . . .

- 10 -
- 10 -
5 Programming
5.1 Preparation
• Connect the test receiver to the “TEST OUTPUT” 1of the
head end.
• Set the output channel of the
installed modulators (see page
15) and adjust the test receiver to this channel.
• Switch on the modulator if necessary (see page 14).
• Measure the output levels of the installed modulators and ad-
just them to a uniform output level (see page 13).
5.2 The menus at a glance
t > 10 s
Ein/On
BE–Remote
Please wait …
V.34
Bx 2A
UHF,BD1,UHF
3AV STEREO
C40

Bx 1A
C5-12,S3-24
TWIN-SAT
C07
Böx 4
C5-12,S3-24
TWIN-SAT
C07
Bx 2B
UHF,BD1,UHF
3AV STEREO
C12
Bx 2A
LEVEL HF OUT:
3AV STEREO
0
M
▶
◀/
+–
/
Bx 2A
Modulator:
MODULAT:
on on /off
Bx 1
..............
..............
..............
0…-7 dB


Die Displayanzeige ist von der bestückten Cassette abhängig
The displayed data are dependent on the fitted Cassette
B
x
1
..............
..............
..............
+24+24
BREITBABREITBA
L100
L101
L103
C100
LNC-
+18V
ROT
+18V
Anschl.
GRUEN
1
