GSS STS 1916 IPSR CT CI User manual

Assembly Instruction
STS 1916 IPSR CT CI
Default access data (HTML + SFTP):
192.168.0.120
User: admin
Password: geheim

- 2 - STS 1916 IPSR CT CI
Contents
1 Safety regulations and notes .....................................................................................4
2 General information .................................................................................................6
2.1 Packing contents .......................................................................................6
2.2 Meaning of the symbols used .....................................................................6
2.3 Technical data ..........................................................................................6
"SAT -> IP" part ........................................................................................6
"IP -> CT" part ..........................................................................................7
General ...................................................................................................8
2.4 Description ...............................................................................................9
Block diagram ..........................................................................................9
General ...................................................................................................9
User ......................................................................................................11
Administrator access ..........................................................................11
Guest access.....................................................................................11
3 Assembly ...............................................................................................................12
3.1 Device overview .....................................................................................12

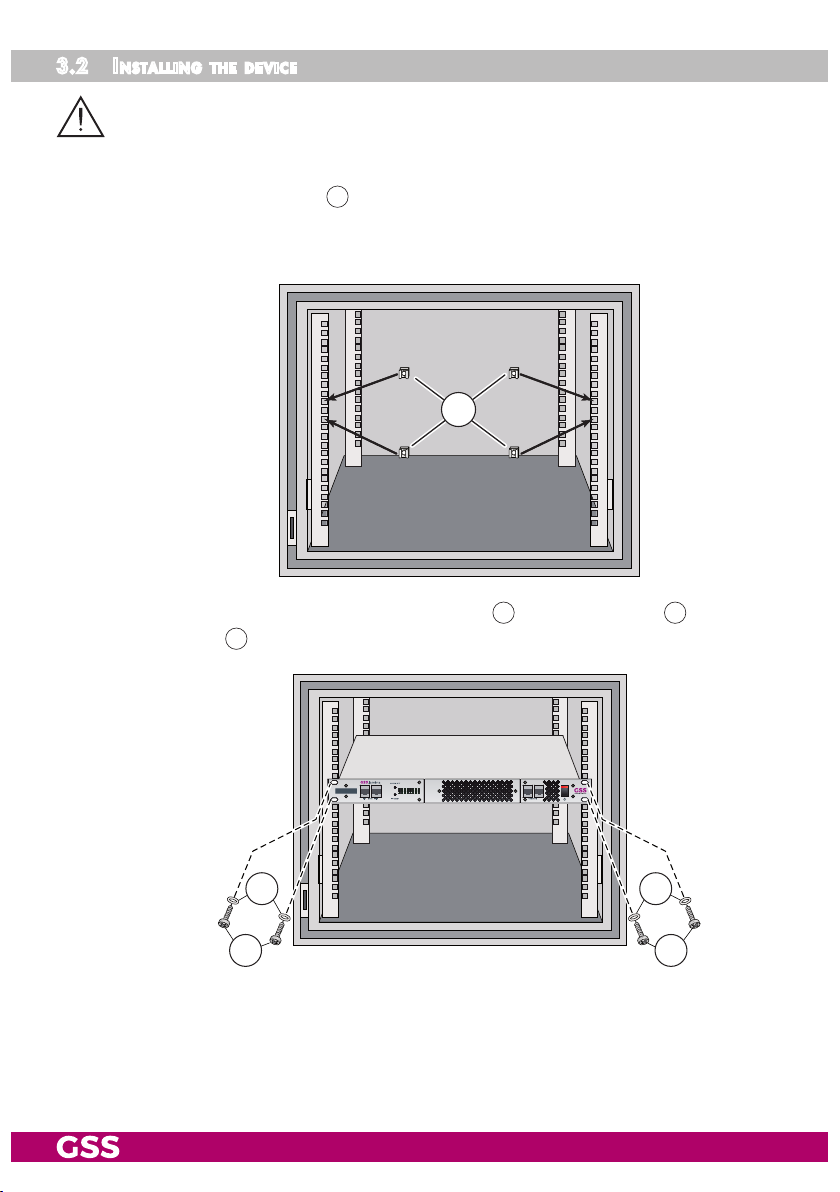

3.2 Installing the device .................................................................................13

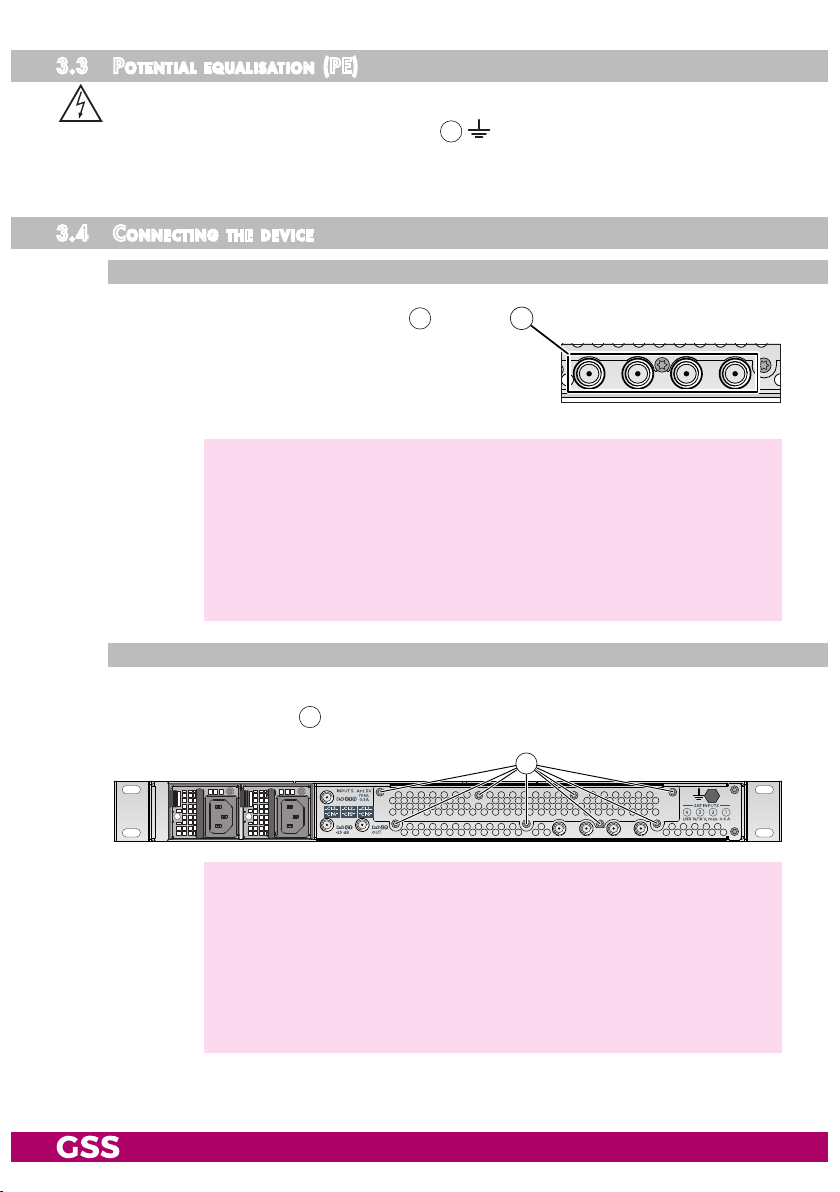

3.3 Potential equalisation (PE) ........................................................................14
3.4 Connecting the device .............................................................................14
SAT Inputs ..............................................................................................14
CI slots ..................................................................................................14
Streaming ports ......................................................................................15
Power Supply .........................................................................................15
Output ...................................................................................................16
3.5 Changing a Power Module ......................................................................16
3.6 Changing a Case Fan .............................................................................17
4 Configuration / Updates .........................................................................................18
General Information ................................................................................18
"SAT -> IP" part .................................................................................18
"IP -> CT" part ..................................................................................18
4.1 Initial configuration .................................................................................19
4.2 Configuration .........................................................................................22
Menu header ..........................................................................................22
Perform changes .....................................................................................23
Number format .......................................................................................23
Overview window "SAT -> IP" part ...........................................................24
Configuration menus "SAT -> IP" part ........................................................25
Input ................................................................................................25
Output .............................................................................................27
CA ..................................................................................................36
Overview window "IP -> CT" part .............................................................39
Configuration menus "IP -> CT" part ..........................................................40
Input ................................................................................................40
Output .............................................................................................42
Multiplex ..........................................................................................46

- 3 - STS 1916 IPSR CT CI
NIT ..................................................................................................48
LCN – Logical Channel Numbering .....................................................52
System menus (SAT -> IP & IP -> CT) ..........................................................54
Logbook ...........................................................................................54
Notification ......................................................................................55
Network (only "SAT->IP" part) .............................................................57
OpenVPN ........................................................................................59
Security ............................................................................................60
- Administrator access ........................................................................60
- Guest access ...................................................................................60
Firmware ..........................................................................................61
- Output Modulation of Head-end Station (only "IP->CT" part): ................61
- System settings: ...............................................................................62
- Firmware update: ............................................................................62
- Backup: ..........................................................................................63
- Manager: .......................................................................................63
- Reset to factory defaults (for the corresponding device part): .................63
- System restart (for the corresponding device part): ...............................64
- Ping (Network Diagnostic Tool): .........................................................64
User .................................................................................................64
5 Multiple satellite reception .......................................................................................65
5.1 Reception of up to 4 satellites ...................................................................65
Overview ...............................................................................................65
Menu Configuration > Input .....................................................................66
Installing the SDUC 516 ..........................................................................67
Potential equalisation (PE) ...................................................................67
Connecting the SDUC 516 ......................................................................68
6 Media Player ("SAT->IP" part) .................................................................................69
6.1 Media2TS – Converting Software .............................................................69
6.2 Transfer the video file to the head-end station .............................................70
Appendix ....................................................................................................................71
Panasonic VIERA TV Sets ...................................................................................71
Configuration steps at the head-end station ................................................71
Upload the M3U List directly to the TV sets ...........................................71
Upload a link to the M3U List to the TV sets ..........................................71
Configuration steps at the Panasonic VIERA TV Sets ....................................71
Enable DVB-via-IP reception ................................................................72
DVB-via-IP – Update the M3U-Liste or Link .............................................72
Channel and frequency tables ............................................................................73

- 4 - STS 1916 IPSR CT CI
1 safety regulations and notes
• The devices meet the EU directives 2011/65/EU, 2014/30/EU and
2014/35/EU.
• This device is subject to the provisions of protection class I. Operate the
device only to mains sockets with protective conductor connection!
• If the power cords need to be replaced, only use OEM power cords.
• The standards EN/DIN EN 50083-2 resp. IEC/EN/DIN EN 60728-11 must
be observed, especially concerning equipotential bonding and earthing.
• Observe the relevant country-specific standards, regulations and guidelines
on the installation and operation of antenna systems.
• Before starting installation or service work disconnect the receiving system
from mains.
• Do not perform installation and service work during thunderstorms.
• Assembly, installation and servicing must be carried out by an authorised
electrician.
• Caution! Dangerous voltage! For a complete disconnection from the mains,
both mains plugs must be pulled out of the mains sockets. Ensure that the
mains plugs can be pulled out without difficulties.
• The head-end station should only be installed in a room where the permis-
sible ambient temperature range (0 °C … +50 °C ) can be maintained, even
during fluctuations in climatic conditions.
• To avoid too strong interacted heating of the head-end stations it is not
admissible to mount them one upon the other without using thermic precau-
tions (e.g. permanently air recirculation, ventilation etc.).
• If additional fans are to be used to circulate the air, ensure that the system
will be shut down (disconnected from mains) should any one of the fans fail.
• Install the head-end station
- in a dry, dust-free environment, in such a manner that it is protected from
moisture, fumes, splashing water and dampness
- where it is protected from direct exposure to sunlight
- on a vibration-free wall or floor construction
- not within the immediate vicinity of heat sources
• In case of the formation of condensation wait until the system is completely
dried.
• Ensure that the head-end station is adequately ventilated.
• Do not cover the ventilation openings!
• Do not install the head end in cabinets or recesses which are not ventilated.
• Do not place any vessels containing liquids on the head-end station.

- 5 - STS 1916 IPSR CT CI
• Do not place anything on the head-end station which could initiate fires
(e.g. candles).
• Due to the risk of fires caused by lightning strikes, we recommend that
all mechanical parts (e.g. distributor, equipotential bonding rail, etc.) be
mounted on a non-combustible base. Wood panelling, wooden beams,
plastic covered panels and plastic panels are all examples of combustible
bases.
• Avoid short circuits!
• To ensure electromagnetic compatibility, make sure all connections are tight
and that the covers are screwed on securely.
• No liability is accepted for damage caused by faulty connections or inap-
propriate handling of the device.
• The firmware contains components which are licensed as Open Source
software. The components to which this relates and the respective license
terms can be called up via menu Help/Licences.
This parts of software source code can be provided at cost price on CD
upon request. The licensee is granted a non-exclusive right of use for the
Open Source Software by the respective right holders used; the conditions
stipulated by the respective valid license terms apply. The license terms of
this license only apply to the components which are not listed as Open
Source software.
In relation to the licensor the regulations on liability and warranty in these
license terms apply for the whole software. The liability and warranty regu-
lations of the Open Source licenses only apply in relation to the respective
right holders.
• Test the firmware versions of the device and update them if necessary. The
current firmware version can be found at "www.mygss.eu".
Take action to prevent static discharge when working on the device!
Electronic devices should never be disposed of in the household rubbish. In accordance
with directive 2002/96/EC of the European Parliament and the European Council from
January 27, 2003 which addresses old electronic and electrical devices, such devices
must be disposed of at a designated collection facility. At the end of its service life,
please take your device to one of these public collection facilities for proper disposal.

- 6 - STS 1916 IPSR CT CI
2 general information
2.1 PaC kin g Co nt ents
1 STS 1916 IPSR CT CI 1 LAN cable
1 Brief assembly instructions 2 Mains cables
2.2 mea n ing o f t he sym bol s us e d
Important note Disconnection, all power plugs
Danger by electrical shock
—> General note
• Performing works
2.3 teC h niC a l data
The device meet the following EU directives:
2011/65/EU, 2014/30/EU, 2014/35/EU
The product fulfils the guidelines and standards for CE labelling (page 74).
Unless otherwise noted all values are specified as "typical".
"sat -> iP" Pa rt
RF input DVB-S/S2/S2X (ETSI 300 421; ETSI EN 302 307-1/-2)
Frequency range: ....................................................... 950 … 2150 MHz
DVB-S mode: ................................................................................. QPSK
DVB-S2 modes: ........................................ QPSK, 8PSK, 16APSK, 32APSK
DVB-S2X modes: .................. QPSK, 8PSK, 8APSK-L, 16APSK(-L), 32APSK(-L)
Symbol rate DVB-S: ............................................ QPSK: 1 … 45 MSymb/s
Symbol rate DVB-S2:
QPSK ................................................................... 4.5 … 45 MSymb/s
8PSK .................................................................... 4.5 … 45 MSymb/s
16APSK ................................................................ 4.5 … 39 MSymb/s
32APSK ................................................................ 4.5 … 32 MSymb/s
Maximum data rate/tuner ......................................................... 83 MBit/s
Level range: ............................................................ 60 dBμV … 80 dBμV
Input impedance: ............................................................................ 75 Ω
LNC supply: ......................................................14 V/18 V max. 500 mA

- 7 - STS 1916 IPSR CT CI
Over all output data
Data rate: .......................................................................... ≤ 820 MBit/s
Remapping ................................................................... SIDs, TS-/ON-IDs
Services:..................................................................................max. 256
PCR Corrections: ......................................................................max. 256
EIT: .........................................................................................max. 256
IPTV Output
SPTS ...............................................................................................128
IGMP ................................................................................................V2
Protocols: .......... UDP (User Data Protocol), RTP (Real-Time Transport Protocol)
"iP -> Ct" Par t
Data input
Streams ...................................................................................128 SPTS
IGMP ................................................................................................V2
Protocols: .......... UDP (User Data Protocol), RTP (Real-Time Transport Protocol)
Input data
Maximum over all input data rate (∑ lines 1-128): ..................... 900 MBit/s
Buffer memory .............................................................................. 1 GBit
(corresponds e.g. at 128 x 6 MBit/s to approx. 128 x 6 ms buffer)
RF output QAM (suitable for adjacent channels; symbol rates and modulation individually adjustable)
Frequency range: ............................................. 42.0 MHz … 868.0 MHz
Types of modulation: ..................................QAM 4, 16, 32, 64, 128, 256
Output level: ......................................................................80…96 dBμV
Dynamic phase error: ................................................................... < 0.2 °
MER: .........................................................................................> 45 dB
Output impedance: ......................................................................... 75 Ω
Symbol rate: ................................................................ 1000…7500 kBd
RF output COFDM (suitable for adjacent channels; modulation individually adjustable)
Frequency range: ............................................. 42.0 MHz … 868.0 MHz
Types of modulation: ........................................ QPSK, 16 QAM, 64 QAM
Transmission modes ............................................................................ 2k
Code rates ....................................................... 1/2, 2/3, 3/4, 5/6, 7/8
Guard intervals .................................................... 1/4, 1/8, 1/16, 1/32
Output level: ......................................................................80…96 dBμV
Output impedance: ......................................................................... 75 Ω

- 8 - STS 1916 IPSR CT CI
ge n er a l
LAN interfaces for data
Standard: ........................................................................... 1000-BASE-T
Data rate: .......................................................................... ≤ 820 MBit/s
IGMP ................................................................................................V2
Protocols: .......................................................... UDP (User Data Protocol),
RTP (Real-Time Transport Protocol)
LAN interfaces for HTML control/update
Standard: ............................................................................. 100-BASE-T
Connections
SAT inputs: ............................................................................. 4 F sockets
LAN (for control/cascading) 100-BASE-T: ............................. 2 RJ 45 socket
LAN (for data) 1000-BASE-T: ............................................... 1 RJ 45 socket
LAN redundant (for data) 1000-BASE-T: ............................... 1 RJ 45 socket
Common Interfaces ...............................................................................6
General
PSUs: .......... 2 (redundant; can be exchanged individually during operation)
Mains voltage: ....................................................100…240 V, 50/60 Hz
Maximum Power consumption ....................................................... 100 W
Admissible ambient temperature: ............................................0 … +50 °C
Dimensions (WxHxD): ....................... 483 mm x 44,5 mm (1HE) x 490 mm
Weight: ....................................................................................... 5.5 kg

- 9 - STS 1916 IPSR CT CI
2.4 desCr i Pti on
The head-end station consists of two parts:
The "SAT -> IP" part converts 16 DVB-S/S2/S2X modulated transponders (up
to 32 APSK) into up to 128 SPTS transport streams. In combination with spe-
cially programmed multiswitches up to 4 satellites can be received (multiple
satellite reception – option dCSS/Unicable II page 65).
The "IP -> CT" part converts up to 128 SPTS data streams (max. total input
data rate 900 Mbit/s) into 16 multiplexes and outputs them as 16 QAM- or 16
COFDM-modulated transponders.
The two parts are connected via an internal switch, to which two data inter-
faces are also connected (maximum total data rate 820 MBit/s).
blo C k d i ag r a m
Tuner "1"
STS 1916 IPSR CT CI
SAT -> IP
IP -> CT
Tuner "6"
Tuner "7"
Tuner "16"
6
x
CI
SAT IN 1
SAT IN 4
SAT IN 2
SAT IN 3
ASTRA 19,2
ASTRA 23,5
Hotbird
Türksat
Option dCSS/Unicable II
f1
f2
f3
f4
f1
f2
f3
f4
f1
f2
f3
f4
f1
f2
f3
f4
LAN
DATA
128 x SPTS
128 x SPTS
LAN
DATA
RF OUT
Modulator
"1"
Combiner
TEST
–25dB
MUX
Modulator
"16"
TPS –>
SPTS
Gbit Switch
Both LAN ports contain the same signals!
Both LAN ports contain the same signals!
ge n er a l
The station is equipped with four SAT IF inputs and two LAN interfaces. It is
preset to receive the most popular ASTRA transponders. Different programming
is possible at any time.
The SPTS output data streams are output via an internal switch at both LAN
interfaces.
—> If you connect both data outputs to an external switch at the same
time, problems (looping) may occur (depending on the external
switch).
—> You will find descriptions to important terms for configuring a
streaming network in menu Help > Multicast Setup.

- 10 - STS 1916 IPSR CT CI
Each of the 16 tuners can be assigned to any SAT input.
Using adequate CA modules scrambled channels can be descrambled via tun-
ers "1"…"6".
Via the internal switch, up to 128 SPTS data streams are output in 16 multi-
plexes at the RF output (QAM or COFDM).
The configuration of the station is to be done via two separate HTML user
interfaces (SAT -> IP and IP -> CT) via a PC and a standard HTML browser con-
nected to the configuration input.
The two configuration inputs are connected via an internal switch. Several sta-
tions can thus be cascaded for configuration.
STS 1916 IPSR CT CI
STS 1916 IPSR CT CI
—> The two Control interfaces must not be connected to an external
switch at the same time (looping).
GSS
OpenVPN
Server
STS 1916 IPSR CT CI
If the configuration input is connect-
ed to the Internet, after the initial
setup, you can get worldwide ac-
cess to the station via an OpenVPN
connection – by PC, tablet or smart
phone with Internet access.
—> When using mobile terminals – dependent on your mobile contract
– additional connection costs / data transfer costs may also be
incurred here.
16 LEDs provide an indication of the SAT IF input signal quality based on their
colour. Another 16 LEDs provide an indication of the status of the 16 RF output
lines and indicate if the respective modulator is switched on (LED illuminates)
or off. The LEDs are blinking red/green during data overflow.

- 11 - STS 1916 IPSR CT CI
An integrated MediaPlayer enables the output of one video stream (max. data
rate 10MBit/s) in a loop. For this you need a transport stream format file (*.ts)
that you can produce with the program Media2TS from all popular video for-
mats. The software Media2TS can be downloaded from "www.mygss.eu".
The maximum/free space is displayed in the menu Output > Mediaplayer.
The files can be copied via any "SFTP file transfer" software (e.g. WinSCP)
into the station.
The station is powered by two independent power supplies (redundancy). The
power supplies can be replaced individually during operation. If one power
supply unit fails, a warning signal sounds.
If the control input has connection to the Internet, the device can send a warn-
ing e-mail when a signal, power supply or one of the fans fails.
us e r
ad mi n is tr at or aCC es s
The user admin has access to all menus and may make changes.
—> The default password for the user admin is geheim.
gu es t aCCe ss
The user gast has access to (almost) all menus, but may not make any changes.
—> The default password for the user gast is gast.
A guest access is shown in all menus:
The button has no function!

- 12 - STS 1916 IPSR CT CI
3 assembly
3.1 devi C e ov e rvie w
sw rt ge
1819
2021
22 22
14 15 1613 14 15 1613 17
23
CI 4
CI 3
CI 5
CI 2
CI 6
CI 1
1234
5
8
9 10 11 12
761 2 43 5
STS 1916 IPSR CT CI
STS 1916 IPSR CT CI
1
9
1
9
SAT->IP
IP->CT
8
16
8
16
5
1 2 Streaming ports1)
3 Reset IP address and password
2)
4 Alarm tone off
5 Status LEDs
3)
6 Fan access
7 Configuration ports 1) 4) 8 Power ON/OFF
9 GND fan connectors 10 Monitoring fan connectors
11 +12 V fan connectors 12 Fan screws
13 PSU releases 14 PSU brackets
15 IEC connectors C14; connectors for mains cables
16 PSU status LEDs5) 17 Connector for potential equalisation
18 SAT IF inputs – inputs1-4 19 without function – input 5
20 RF output 21 RF test output (-25 dB)
22 Screws CI cover 23 CI slots
1) The two Streaming ports are connected via an internal 1000-BASE-T switch.
2) Reset password and network settings (hold depressed for more than 5 seconds)
3) "SAT -> IP" part input signals; "IP -> CT" part output signals
4) The two configuration ports are connected via an internal 100-BASE-T switch.
5) Power off + no fault –> LED 16 blinks green
Power on + no fault –> LED 16 lights green
Power on + fault –> LED 16 blinks red

- 13 - STS 1916 IPSR CT CI
3.2 in stall ing th e dev i Ce
– The device should only be installed in a room where the permissible ambi-
ent temperature range (0 °C … +50 °C ) can be maintained, even during
fluctuations in climatic conditions.
• Attach four cage nuts 26 at the installation site.
We recommend the use of lateral slide rails/component carriers in order to
relieve the front panel.
26
• Screw the unit with the mounting screws 28 and the washer 27 to the four
cage nuts 26 .
STS 1916 IPSR CT CI
2727
2828

- 14 - STS 1916 IPSR CT CI
3.3 Poten ti al equa lisatio n (Pe)
Equalise the potential (PE) in accordance with IEC/EN/DIN EN 60728-11.
• Connect the PE connection terminal
17
to a PE rail (supplied by customer)
using the PE wire (Cu 4 mm2 - 9 mm2).
3.4 Co nne Cti ng the d evi C e
sat in Pu ts
18 HH HL VH VL
4321
• Connect the SAT IF inputs 1-4 18 to the
corresponding outputs of an LNB.
• Make sure that all inputs have the same
level!
—> Factory defaults for ASTRA reception:
Input 4 = horizontal high*; Input 3 = horizontal low*
Input 2 = vertical high*; Input 1 = vertical low*
*Can be changed individually.
—> For multiple satellite reception observe the dCSS/Unicable II mode
from page 65 on.
Ci slots
The CI slots are located under the CI cover on the rear of the housing.
• Unscrew 8 screws 22 and remove the cover.
22
—> Note for the selection of slots:
Slots 1…6 are assigned to the tuners 1…6. If a CA module is not
sufficient to descramble all channels of a transponder, alternatively
the modules 6…4 can be assigned to the tuners 1…3 additional:
– Module 1 + 6 for tuner 1,
– Module 2 + 5 for Tuner 2 and
– Module 3 + 4 for Tuner 3.

- 15 - STS 1916 IPSR CT CI
• Insert the CA modules …
– for slots 1 … 3 with the (thicker) top side towards housing top, …
– for slots 4 … 6 with the (thicker) top side towards the housing bottom.
4
3
5
2
6
1
• Final mount again the CI cover (EMC).
st r ea m i n g P o rt s
• Make sure the LAN network is adapted and configured for streaming!
Therefore note menu Help > Multicast Setup.
• Connect a streaming port 1/2 to the LAN network via a CAT 6 cable.
—> If you connect both streaming ports to an external switch at the
same time, problems (looping) may occur (depending on the exter-
nal switch).
—> The device requests the required multicast IP streams via the data in-
put every 60 seconds. Querier requests will not be answered! Keep
this in mind when configuring the network (Querier host timeout
> 60s).
Powe r suPPly
• Connect the attached mains cables to the IEC connectors C14 15 .
—> The power cables are equipped with lockable C13 connectors. Re-
move the connectors by pulling back the red locking pin.
• Connect the mains cables to mains sockets with protective conductor con-
nections. Thereby note the voltage specified on the device.
—> If only one power supply is connected, a warning signal will sound.
—> This device has no primary power switch and is in standby mode im-
mediately after connecting the operating voltage. Power ON/OFF
8 switches only the secondary DC voltages!
For a complete disconnection from the mains, both mains plugs must
be pulled out of the mains sockets. Ensure that the mains plugs can
be pulled out without difficulties.

- 16 - STS 1916 IPSR CT CI
outPut
• Configure the device (page 19).
• If the configuration is finished connect the RF output 20 to the cable net-
work.
3.5 Chan g ing a Pow e r modu le
In case of a malfunction of a power module – or if only one mains cable is
connected – a warning signal sounds and the status LED 16 blinks red if the
set is switched on.
—> Using button "ALARM OFF"
4
the warning signal can be switched
off.
A warning e-mail will be sent out if a connection from the CONTROL input to
the Internet is established and warning e-mails are configured in the device
settings.
14 15 1613 14 15 1613
A defective power module can be exchanged during operation.
• Remove the mains cable from the defective power module.
• Move release 13 in direction of the arrow and pull the power module out
of the device by bracket 14 .
• Insert the new power module.
—> Make sure that it is locked.
• Connect the new power module to the mains cable and check whether the
status LED 16 lights green.

- 17 - STS 1916 IPSR CT CI
3.6 Ch an g i ng a Ca se fan
If a connection from the CONTROL input to the Internet is established and
warning e-mails are configured in the device settings, a warning e-mail will be
sent out in case of a case fan malfunction.
A defective case fan can be exchanged during operation.
6
• Remove the fan panel (2 screws 6).
sw rt ge
9 10 11 12
25
• Remove the 2 screws 12 of the defective fan.
• Remove the wires of the defective fan from the connection
terminals (pressure point 25 ).
• Mount the new fan (screws 12 ). An arrow on the fan
housing indicates the flow direction. Mount the fan so
that the air stream is passed into the device.
• Shorten if necessary connecting cables in accord-
ance. The cable ends must be stripped 6…7 mm.
• Push the connecting cables in the space between the fan and case ground.
• Attach the stripped ends of the connecting wires to the appropriate termi-
nals (pressure point 25 ):
– the black wire to the lower terminal (3 x minus terminal 9).
– the red wire to the middle terminal (3 x plus terminal 11)
– the yellow wire on the upper terminal (3 x monitoring terminal 10)
• Mount the fan panel (2 screws 6).
—> Make sure that no wires will be clamped between fan and housing.

- 18 - STS 1916 IPSR CT CI
4 Configuration / uPdates
ge n er a l in f or m at i o n
The STS 1916 IPSR CT CI is configured via the web interface (HTML user inter-
face) in two parts!.
Access is provided for each part via a separate IP address!
—> Remote access via OpenVPN is also done via two OpenVPN ac-
cesses!
"sat -> iP" Pa rt
Here you make the settings for the SAT inputs, IP outputs and the CA menu as
well as the system settings (for the "SAT -> IP" part) for Logbook, Notification,
Network, OpenVPN, Security, Firmware and User.
Factory default setting "SAT -> IP" part:
Configuration interface:
IP address 192.168.0.120; user admin; password geheim; hostname gss
Streaming interface:
IP address 192.168.10.120
"iP -> Ct" Par t
Here you make the settings for the IP inputs, DVB-C/T outputs, Multiplex Signal
Distribution, NIT and LCN as well as the system settings (for the "IP -> CT" part)
for Logbook, Notification, OpenVPN, Security, Firmware and User.
—> The IP address settings Network are made for both parts in the
"SAT -> IP" part.
Factory default setting "IP -> CT" part:
Configuration interface:
IP address 192.168.0.121; user admin; password geheim; hostname gss2
Streaming interface:
IP address 192.168.10.121

- 19 - STS 1916 IPSR CT CI
4.1 in i ti al C on fi g ur at i on
• Connect a PC via a LAN cable directly to a configuration input 7.
—> The PC and the head-end station must be within the same network
(same IP address range). Cookies must be accepted and JavaScript
must be active.
Use current browser versions.
—> Example for IP address setting with Windows 7 operating system:
• For the initial setup open the properties for TCP/IPv4 of the PC:
> Control Panel
> Network and Sharing Center
> LAN connection
> Properties

- 20 - STS 1916 IPSR CT CI
> Internet Protocol Version 4 (TCP/IPv4)
> Properties
• Activate point "Use the following IP address".
• Enter e.g. 192.168.0.2 for the IP address.
• Enter for the Subnet mask 255.255.255.0.
• Confirm the setting with "OK".
