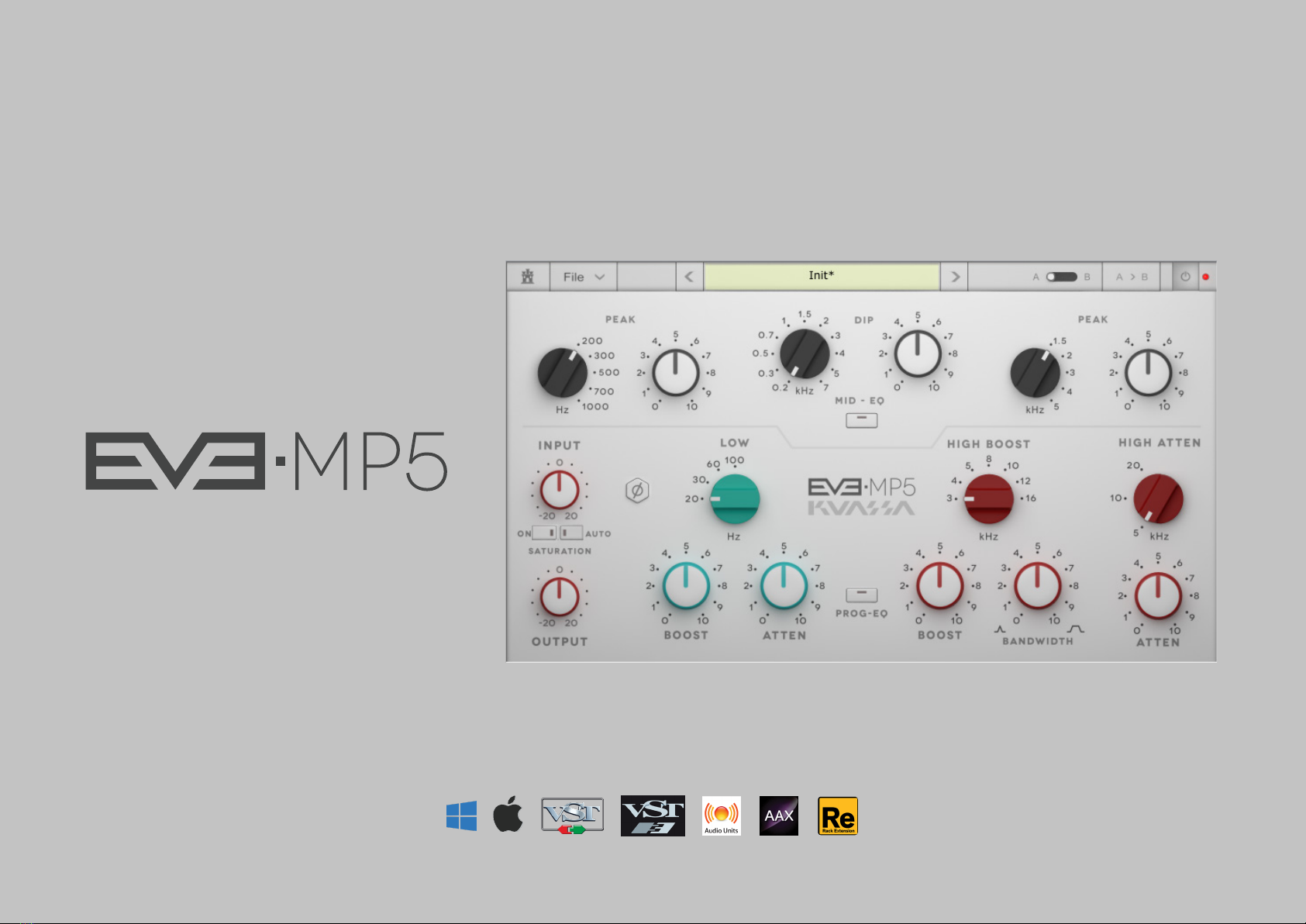

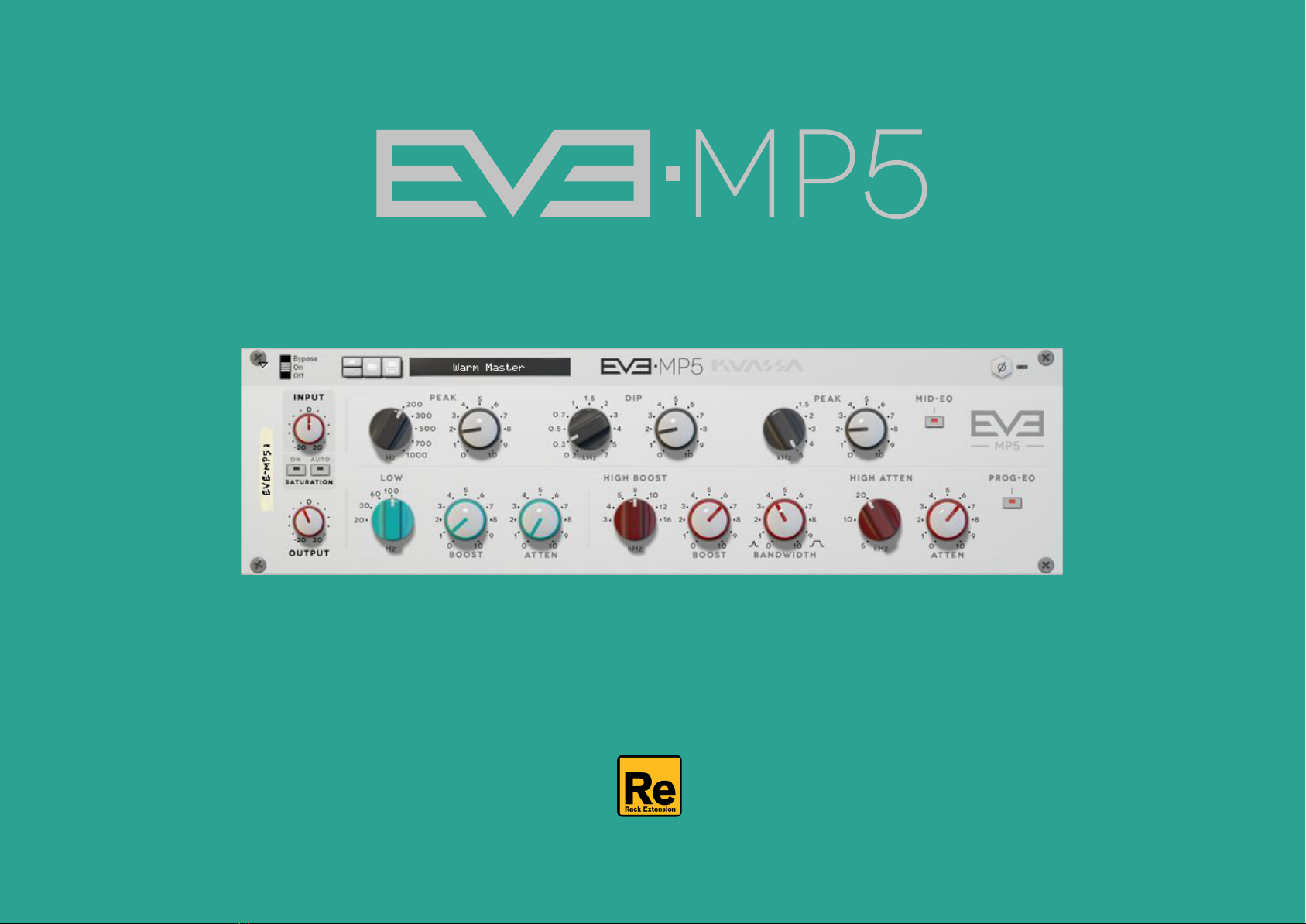

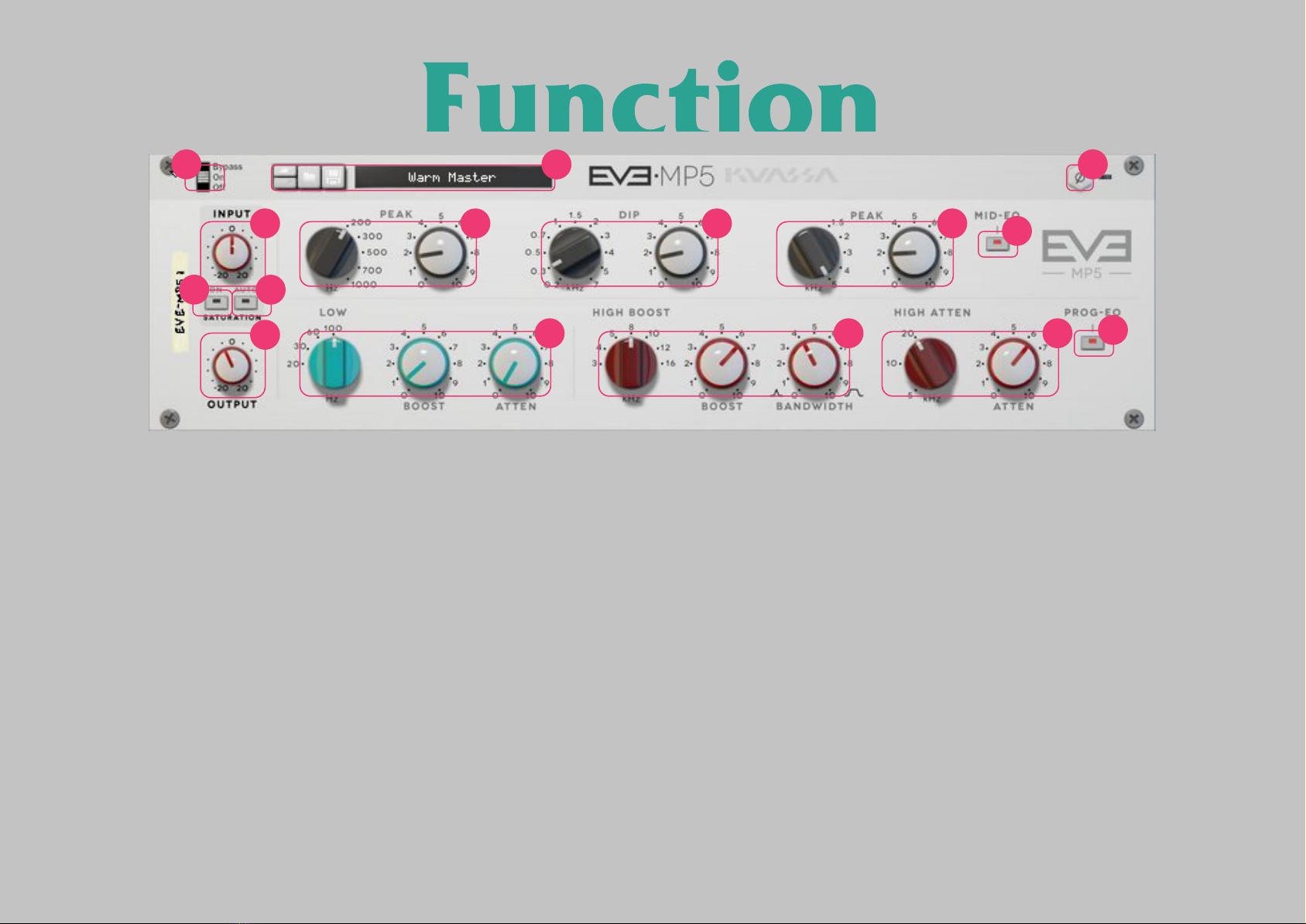

Kuassa “Castle” Logo: Click to show the About Box.

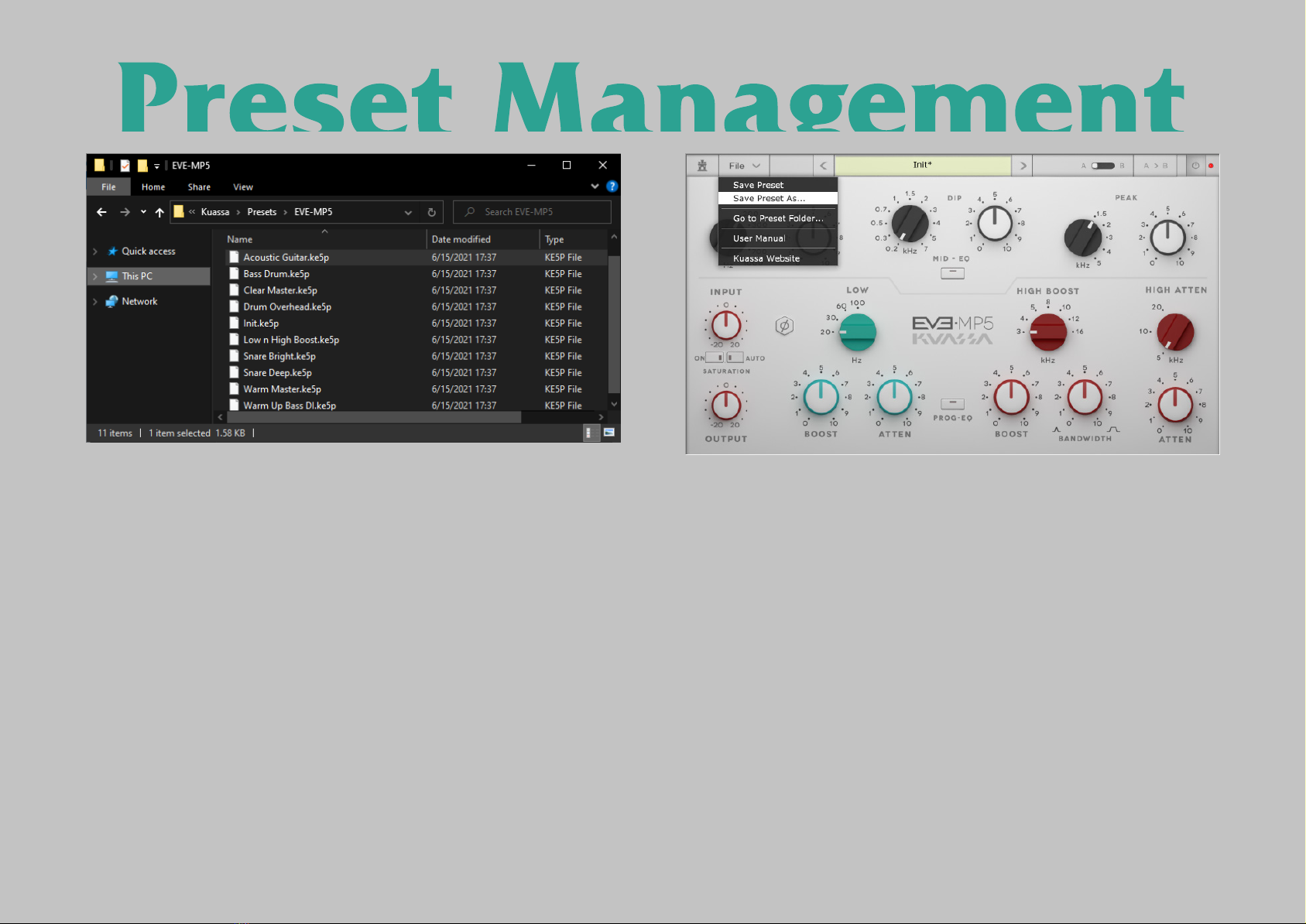

File] button: The Menu button contains several functions; preset saving,
license file authorization, and shortcuts to the user manual and Kuassa
website.

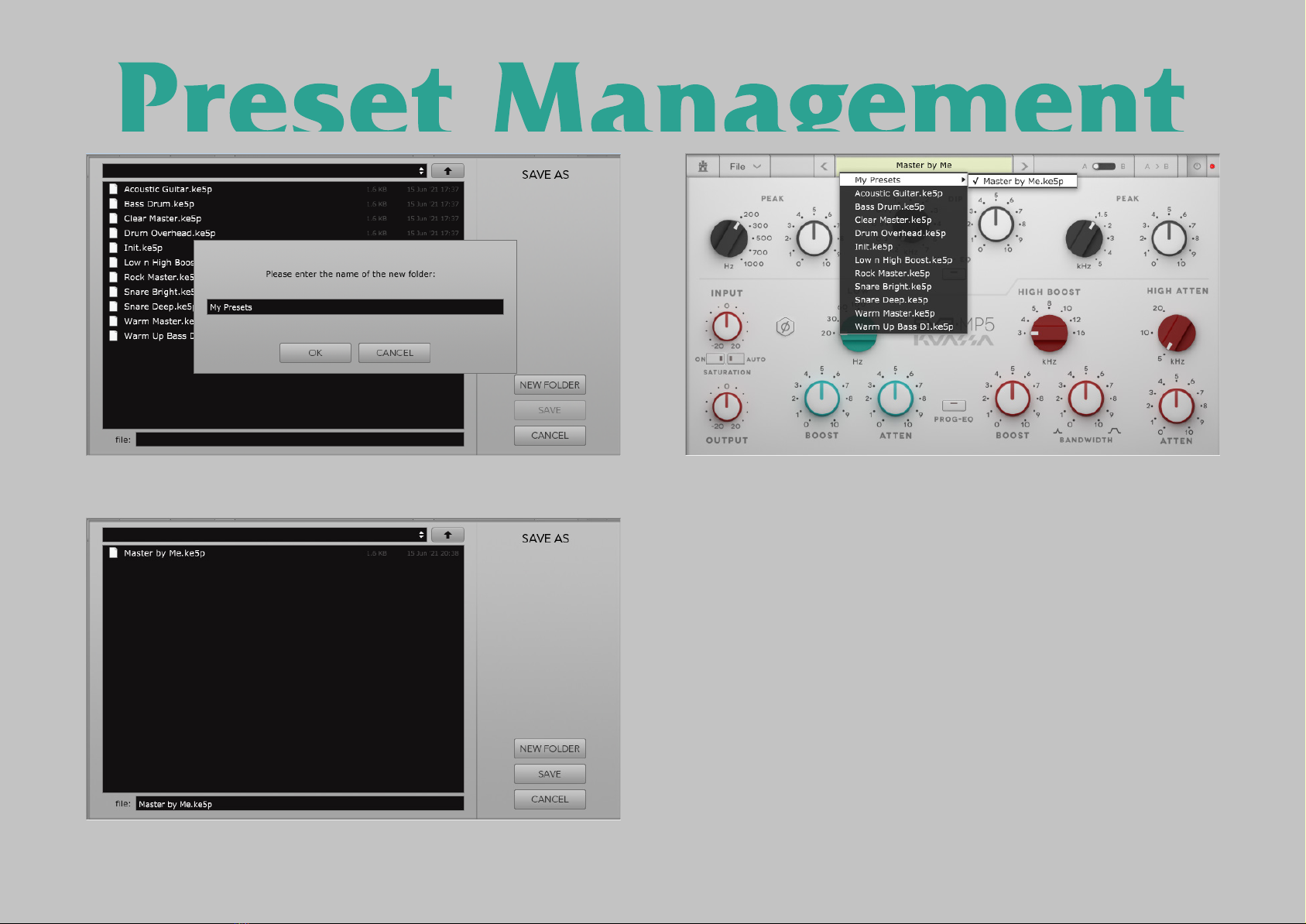

Preset Selector: Select from available Presets, press left-right buttons or
select from drop down menu.
A-B Compare: Compare two different settings of the EQ.
Copy A to B: Copy settings from the “A” state to “B” state
EQ Power Button: Turns the EQ on or off.
Input: Sets the input level of the device. When “Auto Switch”(10) is turned
on, it will control the saturation amount with level automatically maintained.
Output Trim: Increase or decrease the track output volume after
equalization.
Saturation On/Off Switch: Activate the modeled power amp saturation
Auto Switch: Activate the automatic level compensation for maintaining
constant level in relation with input.
Phase button: Click to flip the phase of the output 180 degrees SECTION.
Mid-EQ Switch: Enable or Disable the whole MID-EQ Section
Peak(200-1000Hz): Select frequency (Hz) and turn up to boost the selected
frequency.
Dip(0.2-7kHz): Select frequency (Hz) and turn up to cut/attenuate the
selected frequency.
Peak (1.5-5kHz): Select frequency (Hz) and turn up to boost the selected
frequency.
Prog-EQ Switch: Enable or Disable the whole PROG-EQ section
Low: Select frequency (Hz) to be modified, and turn up the Boost knob to
boost selected frequency or Atten knob to attenuate/cut the selected
frequency. While Boost and Atten can be applied separately, they can be
combined to achieve a unique frequency response widely known as the
Pultec Low End Trick.
High Boost: Select desired frequency and turn the Boost knob to boost the
selected frequency. You can change the width / Q value of the
corresponding frequency by turning Bandwidth knob clockwise for broader
Q value.
High Atten: Select desired frequency, and turn the Atten knob to cut the
selected frequency.
