GSS HDMT 660 CI TPS User manual

English
Head-End Digital Modulator
Terrestrial
HDMT 660 CI TPS
Notes on the Assembly Instructions.
As well as this supplementary Assembly
Instructions, the Assembly Instructions for the
STC 160 apply.
GSS
Grundig SAT Systems GmbH
Beuthener Strasse 43
D-90471 Nuremberg
Phone: +49 (0) 911 / 703 8877
Fax: +49 (0) 911 / 703 9210
Email: [email protected]
Internet: www.gss.de

- 2 - HDMT 660 CI TPS
Contents
1 Safety regulations .......................................................................................4
2 General information ....................................................................................4
2.1 Scope of delivery ..........................................................................4
2.2 Meaning of the symbols used..........................................................5
2.3 Technical data...............................................................................5
2.4 Description ...................................................................................6
TPS module functions ....................................................................7
Station filter .............................................................................7
Stuffing ...................................................................................7
Changing service information ....................................................7
Changing the operator ID (CAT).................................................7
Effective assignment of cable channels with low bandwidths ..............8
SelecPlex®..............................................................................8
3 Installation..................................................................................................8
3.1 Retrofitting a CA module ................................................................9
3.2 Installing the COFDM-QAM module...............................................10
3.3 Connecting the COFDM-QAM module...........................................11
4 The control panel at a glance.....................................................................12
4.1 Menu items.................................................................................12
4.2 Functions of the control panel buttons.............................................12
5 Programming............................................................................................13
5.1 Preparation.................................................................................13
5.2 Notes on level setting...................................................................13
5.3 Programming procedure...............................................................14
5.4 Programming the COFDM-QAM module ........................................16
Selecting the module / channel strip ..............................................17
Channel / Frequency setting.........................................................18
Output frequency, Output channel, Modulator.................................19
Output level ................................................................................20
Input channel ..............................................................................20
Setting the fine-tuning..............................................................21
Hierarchical modulation ...............................................................22
Station filter ................................................................................23
Test the status of the individual stations .....................................24

- 3 - HDMT 660 CI TPS
QAM modulation ..........................................................................24
Inverting the user signal...........................................................25
Output data rate..........................................................................25
Substitute signal in the case of an incorrect input signal ...................26
Network Information Table (NIT)....................................................27
Network/operator identification....................................................28
Deleting (data content) a PID / Renaming a PID ..............................29
Deleting a PID (data content)....................................................29
Renaming a PID .....................................................................30
Factory reset ...............................................................................31
Saving data................................................................................32
Setting the CA module .................................................................32
PID monitoring .......................................................................32
Configuring the CA module .....................................................33
Selecting stations....................................................................34
6 Final procedures........................................................................................35
7 Channel and frequency tables....................................................................36

- 4 - HDMT 660 CI TPS
1 safety regulations
 • The standardsEN/DINEN50083resp. IEC/EN/DINEN60728must be
observed.
 • Donotperforminstallationandserviceworkduringthunderstorms.
• Assembly, installation and servicing should be carried out by authorised
electricians.
 • Switchofftheoperatingvoltageofthesystembeforebeginningwithassem-
bly or service work.
 • Avoidshortcircuits!
 • Observetherelevantstandards,regulationsandguidelinesontheinstalla-
tion and operation of antenna systems.
 • Toensureelectromagneticcompatibility,makesureallconnectionsaretight
and the covers are screwed on securely.
 • Noliabilityisacceptedfordamagecausedbyfaultyconnectionsorinap-
propriate handling of the device.
Check the head-end station according to the safety instructions listed in their
assembly instruction.
Takeprecautionstopreventstaticdischargewhenworkingonthedevice!
Electronic devices should never be disposed of in the household rubbish. In
accordance with directive 2002/96/EC of the European Parliament and the
European Council from January 27, 2003 which addresses old electronic and
electrical devices, such devices must be disposed of at a designated collection
facility. At the end of its service life, please take your device to one of these
public collection facilities for proper disposal.
2 general information
2.1 sCope of delivery
1 Head-end Digital Modulator HDMT 660 CI TPS
1 HF connection cable
1 Brief Assembly Instructions

- 5 - HDMT 660 CI TPS
2.2 meaning of the symbols used
Important note
—> General note
– /
– / Optional use of the buttons
 •    Performingworks
2.3 teChniCal data
The requirements of the following EU directives are met:
2006/95/EC, 2004/108/EC
The product fulfils the guidelines and standards for CE labelling (page 37).
Unless otherwise noted all values are specified as "typical".
HF input:
Frequency range: ................................................... 146.0 … 862.0 MHz
Channel range: ....................................................................C 5 … C 69
Input level:.............................................................. 60 dBμV … 80 dBμV
Input impedance:............................................................................75 Ω
Loop-through loss:............................................................................0 dB
HF output:
Output frequency:..................................................... 42.0 … 868.0 MHz
Channel separation:.............................................................. 2 … 8 MHz
Output symbol rate: .............................................1000 … 7500 kSymb/s
Modulation method [QAM]:.................................4, 16, 32, 64, 128, 256
Modulation error rate:.................................................................> 39 dB
Output level: ............................................................................. 81 dBμV
Output impedance:.........................................................................75 Ω
Connections:
HF inputs: ..............................................................2 IEC sockets (female)
HF loop-through output: .............................................. 2 IEC sockets (male)
HF output: .............................................................................. 1 F socket
Slot for CA module: ..............................................................................1
Connection strip (20-pin):...................... For supply voltages and control circuits

- 6 - HDMT 660 CI TPS
2.4 desCription
The Digital Modulator HDMT 660 CI TPS , in the following called COFDM-QAM
module converts two COFDM -modulated data streams into two QAM-modulat-
ed data streams. The COFDM-QAM module has two HF inputs, one HF output
and 2 loop-through outputs .
The COFDM-QAM module is equipped with two channel strips ("A" and "B").
The channel strips consist of the digital tuners, the digital signal processing lev-
els and an output converter. The channel strips are indicated in the head-end
station display with "Bx …A" and "Bx …B". Using an adequate CA module
encoded channels can be decoded via channel strip "A". The control of the
module takes place via the control unit of the head-end station .
Two LEDs indicate if the respective channel strip is switched on (LED illumi-
nates) or off, and also provide an indication of the signal quality based on their
colour.
The integrated TPS module (Transport Stream Processing) processes the data
from the demodulated transport streams. This enables service information
(NIT – Network Information Table) to be changed, data rates to be increased
(stuffing) and stations to be deleted from the transport stream (thus optimising
bandwidth for the other stations being transmitted). In addition, the operator
ID (required for e.g. visAvision) can be set.
The HF output signals are sent through the HF output of the COFDM-QAM
module to the output collector.
When the head-end station is switched on, the two-line LC display shows the
"SETUP" menu and the software version of the control unit. The head-end sta-
tion output level can be adjusted in this menu.
The COFDM-QAM module operating software can be updated using a PC or
notebook and the software "BE-Flash" via the 9-pin D-SUB socket on the head-
end station. You can find the current operating software for the COFDM-QAM
module, the software "BE-Flash" and the current assembly instructions on the
website "www.gss.de".
To operate the COFDM-QAM module the software version of the control unit
must be "V 10" or higher.
The COFDM-QAM module is designed exclusively for use in the STC 160
head-end station.

- 7 - HDMT 660 CI TPS
tps module funCtions
When converting COFDM-modulated signals to QAM-modulated cable sig-
nals, the demodulated data stream can be accessed via the integrated TPS
module. This data stream, also called transport stream, contains several sta-
tions in all their components (video, audio, data and service information),
which can be changed using the TPS module.
station filter
Individual stations can be deleted. This reduces the data rate. As a result, a
lower output symbol rate can be selected.
stuffing
The transport stream is padded using what is known as zero data. This in-
creases the data rate and, consequently, the output symbol rate. Changing
the output symbol rate suitably alters the bandwidth used (halving the output
symbol rate roughly halves the bandwidth at the output).
Changing serviCe information
The transport stream contains data in the form of tables which the receiv-
ers evaluate and require for convenient use. The TPS module can adjust the
"Network Information Table" (NIT) to accommodate the new station data. The
"NIT" contains data which is required by the set-top box for the automatic
search feature.
Changing the oper ator id (Cat)
Some network operators transmit an operator ID in the data stream (e.g.
visAvision). By changing the CAT the operator ID can be adjusted to the de-
mands.

- 8 - HDMT 660 CI TPS
effeCtive assignment of Cable Channels with low bandwidths
seleCplex®
Channels with low bandwidths are the result of filtering out several
unwanted stations from the data stream. These "narrow" channels can
then be arranged in one channel to save space.
—> The required bandwidth (in kHz) is roughly equal to the symbol rate
(kSymb/s) plus 20%.
The modulator in this module employs automatic neighbouring-channel as-
signment. This means that when the output channel or the output frequency for
channel strip "A" is set, the output channel or the output frequency of channel
strip "B" will always be 8 MHz above the output channel or the output fre-
quency of channel strip "A".
If SelecPlex®will be used, the normal channel separation of 8 MHz can be
reduced up to 2 MHz via the frequency setting for channel strip "B".
3 installation
– Ensure the head-end station is mounted so it will not be able to vibrate.
Avoid, for example, mounting the head-end station onto a lift shaft or any
other wall or floor construction that vibrates in a similar way.
– Before installing or changing a module, switch off the head-end station or
unplug the power cable from the mains power socket.
 TakemeasurestoprotectagainstESD!
 • Open the housing of the head-end station in accordance with the assembly
instructions for the STC 160.

- 9 - HDMT 660 CI TPS
3.1 retrofitting aCa module
The COFDM-QAM module is equipped with a common interface for CA mod-
ules of various scrambling systems and service providers. Scrambled channels
can only be descrambled with a CA module suitable for the scrambling system
and the corresponding smart card. The smart card contains all the information
for authorisation, descrambling and subscription.
– Check with the distributor or manufacturer of the CA module to be used to
ensure that it is suitable for the reception of several channels.
– The module‘s hardware and software have been thoroughly prepared and
tested.
– Any changes made by program vendors to the structures in the program
data might impair or even prevent this function.
– When working with the CA module, please read the corresponding operat-
ing manual from the respective provider.
 • Insertthesmartcard 1into the CA module 2so that the chip 3 on the
smart card faces the thicker side (top) of the CA module.
 • PushtheCAmodule2without canting into the guide rails 4of the com-
mon interface slot 5according to the following picture and contact it to
the common interface.
5
2
3
4
1

- 10 - HDMT 660 CI TPS
3.2 installing the Cofdm-Qam module
– Check that the plug contacts of the CA module are tightly seated in the
terminal strip on the common interface of the COFDM-QAM module and
make sure there is reliable contact.
– When installing a module, make sure that it is inserted in one of the long,
numbered grooves in front of the contact strip on the board at the rear wall
of the housing.
– The shorter, non-numbered grooves without a contact strip on the board at
the rear wall of the housing, are for add-on modules only.
 • Open the housing of the head-end station in accordance with the assembly
instructions for the STC 160.
 • Openthelockingdevice1in the direction of the arrow.
1
 • Insert the COFDM-QAM module in grooves Aand Bof an open slot (with
contact strip on the board at the rear wall of the housing) and gently slide
it into the head-end station until it makes contact with the board on the rear
wall.
 • Afterinstallingthe COFDM -QAM module close the locking device 1in the
direction of the arrow.
A
B
1

- 11 - HDMT 660 CI TPS
3.3 ConneCting the Cofdm-Qam module
• Connect the HF inputs C(tuner "A") an d D (tuner "B") on the COFDM-
QAM module (fig. 4) to the preinstalled F terminals in the rear wall of
the head-end station via the cable inlets Fusing HF cables made on-site
(length approx. 80 cm).
To connect the second tuner the loop-through-output E of the other tuner
can be used, if necessary.
 • Afterprogramming,connectthemodulatoroutputGto one of the input
sockets Hof the output collector.
F
E
C
E
D
G
H

- 12 - HDMT 660 CI TPS
4 the Control panel at aglanCe
4.1 menu items
Program the COFDM-QAM module using the buttons on the head-end station
control panel. The menus appear on the two-line display of the control panel.
The parameters and functions to be set are underlined.
With the button select the channel strip / other modules.
You can use the button to select the following menu items:
– Activating the module and channel strip
– Channel setting / frequency setting
– Output channel / output frequency
– Output level
– Input channel
– Hierarchical modulation
– Station filter
– CA module (if available, only channel strip A)
PID Check
Menu/Edit
– QAM modulation
– Stuffing
– Substitute signal
– Network Information Table (NIT)
– Network/operator identification (Conditional Access Table)
– Deleting/Renaming a PID
– Factory reset
– Save data
4.2 funCtions of the Control panel but tons
S
M
To move the cursor, call up
functions
To adjust values and functions
To save the programmed data
To switch to the next menu

- 13 - HDMT 660 CI TPS
5 programming
5.1 preparation

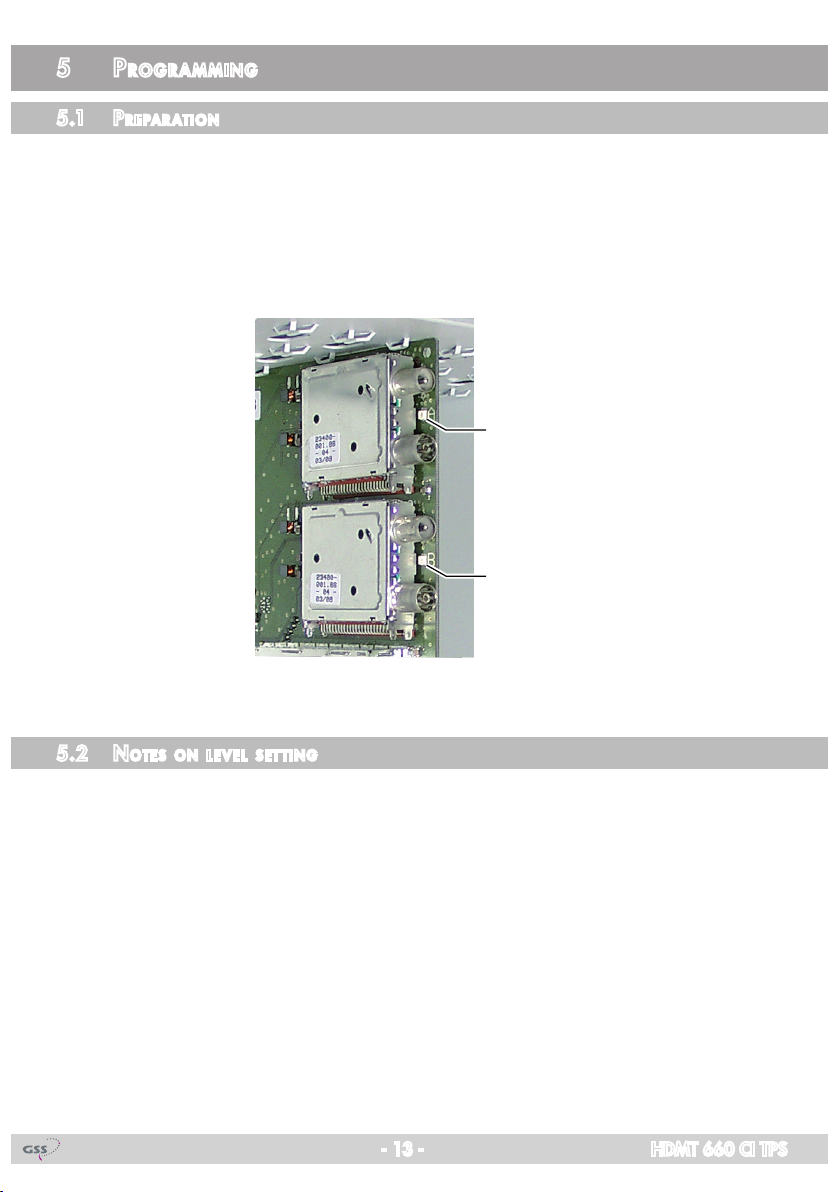

 • Connect the test receiver to the modulator output on the COFDM-QAM module
G (page 11) or to the HF output on the output collector if it is already connected.
 • Adjustthetestreceivertotheoutputchannelofthechannelstriptobeset.
 • Switch on the channel strip (modulator) if necessary (page 19). For each
channel strip, there is an LED which indicates if the channel strip is switched
on.
Status LED
Channel strip ”A”
Status LED
Channel strip ”B”
5.2 notes on level set ting
– In order to prevent interference within the head-end station and the cable
system, the output level of the COFDM-QAM module must be lowered by
10 dB compared to the system level at 64 QAM, and by 4 dB compared to
the system level at 256 QAM.
– Check the output level of the output collector according to the assembly
instructions of the head-end station STC 160 and if necessary set it to the
demand of the cable system.

- 14 - HDMT 660 CI TPS
5.3 progr a mming proCedure
Bx 1A
Channel
OUTPUT
A
Bx 1A
C5-12,S3-24
TWIN-SAT
C07
Böx 4
C5-12,S3-24
TWIN-SAT
C07
Bx 1B
S22
TPS
AV 15
SETUP
Bx 1A
S21
TPS
AV 15
V 10
M
/
Ein/On
Bx 1A
0 dB
LEVEL
Bx 1A
S21 / S22
OUTPUT
on /
/
/
/
M
M
Channel / Freq.
Null Packets /
Single Carrier
on / off
on / off
Bx 1A
C 34 (578.0)
INPUT
M
M
Bx 1A
Filter
PROGRAM
off
M
M
Bx 1A
Priority: high
INPUT
/
0 … -25 dB
/
normal / inverse
Bx 1A
256
QAM
normal
M
/
/
Bx 1A
SR=6900 (6531)
STUFFING
/
M
Bx 1A
off
NIT
=> Make
M
Bx 1A
0xDE00
CAT-ID
off
/
M
Bx 1A
Null Packets
FAILURE
4 … 256
/
/
/
/
/on / off
on / off
/
/
neue NIT erstellen
make new NIT
-64 … +64
high / low
/
/
nur Kanalzug “A” mit CA-Modul
only Channel strip “A“ with CA module
M
Bx 1A
Menu <=
CA
=> Edit
*) Die angezeigte Information ist
abhängig vom verwendeten
CA-Modul.
The information displayed is
dependent on the CA module
used.
Bx 1A 01/03
Information *)
MENU
Bx 1A TV X
. . . .
04/04
X – entschlüsseln
descrambling
0 – nicht entschlüsseln
no descrambling
X / 0
nächster Service
next service
M
M
M
S
/
/
/
Bedienhinweise
"blättert" Menüs vorwärts.
wählen die Eingabeposition
wählt Untermenü
stellen Werte ein,.
speichert alle Eingaben.
1 zeigt die Eingabeposition
/
/
M
S
Operating Hints
scrolls forward through the menu.
select the enter position.
selects a submenu.
set values and triggers actions.
saves all entries.
1 shows the enter position
/
/
M
S
01/04Bx 1A/B TV +
ZDF
/
/
Programme entfernen / hinzufügen
Removing / activating stations
nächster Service (Programm)
next service (station)
M
S
/
Bx 1…
C34 0
Input
OK
Bx 1A
PID Check
CA
on
M
/
/
Bx 1A/B
01 – – – –
PID
M
/
/
M
CANCEL
STORE
Bx 4
S => STORE
MEMORY A
A
Einstellung speichern
store factory defaults
S
M
MM
A
Bx 4
Defaults
FACTORY
=>
Bx 4
STORE
FACTORY
=> M
Werkeinstellung
aufrufen
invoke factory defaults S
BE160
Page 16

- 15 - HDMT 660 CI TPS
Bx 1A
Channel
OUTPUT
A
Bx 1A
C5-12,S3-24
TWIN-SAT
C07
Böx 4
C5-12,S3-24
TWIN-SAT
C07
Bx 1B
S22
TPS
AV 15
SETUP
Bx 1A
S21
TPS
AV 15
V 10
M
/
Ein/On
Bx 1A
0 dB
LEVEL
Bx 1A
S21 / S22
OUTPUT
on /
/
/
/
M
M
Channel / Freq.
Null Packets /
Single Carrier
on / off
on / off
Bx 1A
C 34 (578.0)
INPUT
M
M
Bx 1A
Filter
PROGRAM
off
M
M
Bx 1A
Priority: high
INPUT
/
0 … -25 dB
/
normal / inverse
Bx 1A
256
QAM
normal
M
/
/
Bx 1A
SR=6900 (6531)
STUFFING
/
M
Bx 1A
off
NIT
=> Make
M
Bx 1A
0xDE00
CAT-ID
off
/
M
Bx 1A
Null Packets
FAILURE
4 … 256
/
/
/
/
/on / off
on / off
/
/
neue NIT erstellen
make new NIT
-64 … +64
high / low
/
/
nur Kanalzug “A” mit CA-Modul
only Channel strip “A“ with CA module
M
Bx 1A
Menu <=
CA
=> Edit
*) Die angezeigte Information ist
abhängig vom verwendeten
CA-Modul.
The information displayed is
dependent on the CA module
used.
Bx 1A 01/03
Information *)
MENU
Bx 1A TV X
. . . .
04/04
X – entschlüsseln
descrambling
0 – nicht entschlüsseln
no descrambling
X / 0
nächster Service
next service
M
M
M
S
/
/
/
Bedienhinweise
"blättert" Menüs vorwärts.
wählen die Eingabeposition
wählt Untermenü
stellen Werte ein,.
speichert alle Eingaben.
1 zeigt die Eingabeposition
/
/
M
S
Operating Hints
scrolls forward through the menu.
select the enter position.
selects a submenu.
set values and triggers actions.
saves all entries.
1 shows the enter position
/
/
M
S
01/04Bx 1A/B TV +
ZDF
/
/
Programme entfernen / hinzufügen
Removing / activating stations
nächster Service (Programm)
next service (station)
M
S
/
Bx 1…
C34 0
Input
OK
Bx 1A
PID Check
CA
on
M
/
/
Bx 1A/B
01 – – – –
PID
M
/
/
M
CANCEL
STORE
Bx 4
S => STORE
MEMORY A
A
Einstellung speichern
store factory defaults
S
M
MM
A
Bx 4
Defaults
FACTORY
=>
Bx 4
STORE
FACTORY
=> M
Werkeinstellung
aufrufen
invoke factory defaults S

- 16 - HDMT 660 CI TPS
5.4 programming the Cofdm-Qam module
—> Pressing the button for longer than 2 seconds cancels the pro-
gramming procedure. This takes you back to the program item " Se-
lecting the module/channel strip " from any menu. Any entries that
have not been saved are reset to the previous settings.
—> Entries in the menus can be saved by pressing the key. You are
taken back to the " Selecting the module/channel strip " menu item.
 • Switchonthehead-end station.
SETUP
V 10
Ein/On
BE160
—> The display shows "SETUP BE160" and the software version of the
head-end station (e.g. V 10).
—> In the " SETUP " menu, the output level of the output collector can be
adjusted (see STC 160 assembly instructions).
Bx 1A
Channel
OUTPUT
A
Bx 1A
C5-12,S3-24
TWIN-SAT
C07
Böx 4
C5-12,S3-24
TWIN-SAT
C07
Bx 1B
S22
TPS
AV 15
SETUP
Bx 1A
S21
TPS
AV 15
V 10
M
/
Ein/On
Bx 1A
0 dB
LEVEL
Bx 1A
S21 / S22
OUTPUT
on /
/
/
/
M
M
Channel / Freq.
Null Packets /
Single Carrier
on / off
on / off
Bx 1A
C 34 (578.0)
INPUT
M
M
Bx 1A
Filter
PROGRAM
off
M
M
Bx 1A
Priority: high
INPUT
/
0 … -25 dB
/
normal / inverse
Bx 1A
256
QAM
normal
M
/
/
Bx 1A
SR=6900 (6531)
STUFFING
/
M
Bx 1A
off
NIT
=> Make
M
Bx 1A
0xDE00
CAT-ID
off
/
M
Bx 1A
Null Packets
FAILURE
4 … 256
/
/
/
/
/on / off
on / off
/
/
neue NIT erstellen
make new NIT
-64 … +64
high / low
/
/
nur Kanalzug “A” mit CA-Modul
only Channel strip “A“ with CA module
M
Bx 1A
Menu <=
CA
=> Edit
*) Die angezeigte Information ist
abhängig vom verwendeten
CA-Modul.
The information displayed is
dependent on the CA module
used.
Bx 1A 01/03
Information *)
MENU
Bx 1A TV X
. . . .
04/04
X – entschlüsseln
descrambling
0 – nicht entschlüsseln
no descrambling
X / 0
nächster Service
next service
M
M
M
S
/
/
/
Bedienhinweise
"blättert" Menüs vorwärts.
wählen die Eingabeposition
wählt Untermenü
stellen Werte ein,.
speichert alle Eingaben.
1 zeigt die Eingabeposition
/
/
M
S
Operating Hints
scrolls forward through the menu.
select the enter position.
selects a submenu.
set values and triggers actions.
saves all entries.
1 shows the enter position
/
/
M
S
01/04Bx 1A/B TV +
ZDF
/
/
Programme entfernen / hinzufügen
Removing / activating stations
nächster Service (Programm)
next service (station)
M
S
/
Bx 1…
C34 0
Input
OK
Bx 1A
PID Check
CA
on
M
/
/
Bx 1A/B
01 – – – –
PID
M
/
/
M
CANCEL
STORE
Bx 4
S => STORE
MEMORY A
A
Einstellung speichern
store factory defaults
S
M
MM
A
Bx 4
Defaults
FACTORY
=>
Bx 4
STORE
FACTORY
=> M
Werkeinstellung
aufrufen
invoke factory defaults SPage 14
Page 14
Page 14

- 17 - HDMT 660 CI TPS
seleCting the module / Channel strip
 • Ifnecessary,press repeatedly to select the particular module (Bx …)
or channel strip "A" or "B" to be programmed.
Bx 1A
C5-12,S3-24
TWIN-SAT
C07
Böx 4
C5-12,S3-24
TWIN-SAT
C07
Bx 1B
S22
TPS
AV 15
Bx 1A
S21
TPS
AV 15
—> The display shows, e.g., the "Bx 1A TPS" menu.
"Bx" indicates the slot
"1" indicates slot no. 1
"A" indicates channel strip "A"
"TPS" type of module
"S21" set channel
"V 15" software version of the module
—> If a channel strip is selected whose modulator is switched off, in-
stead of the frequency or the channel "OFF" is displayed.
Bx 1A
OFF
TPS
AV 15
—> Without using a CA module, the programming procedure is the
same for channel strips "A" and "B". If a CA module will be used note
the supplementary programming procedure on page 32.
 • Pressthe button.
—> The "Channel / Frequency setting" – "OUTPUT" menu is activated.

- 18 - HDMT 660 CI TPS
Channel / freQuenCy setting
In this menu, you can choose whether you require the channel or frequency
setting for the adjustment of the HF output. The channel setting covers the
range of channels S21 … C69, the frequency setting covers the range from
42.0 MHz to 860.0 MHz.
Bx 1A/B
Channel
OUTPUT Bx 1A/B
Freq.
OUTPUT
—> The QAM signal is normally transmitted with a bandwidth of 8
MHz. This means that you can only use the channel centre frequen-
cy of the existing channel raster in the range of channels S21 …
C69 (frequency raster 8 MHz). The CCIR channel raster is 7 MHz
in the range of the lower frequency bands (channels C2 … S20).
Therefore the frequency setting is used here. If one uses the existing
channel raster of 7 MHz in these channel ranges, this will result in
interference (overlapping) with the 8 MHz QAM signal packages,
thus causing transmission problems.
—> For programming in these channel ranges and in the frequency
ranges below them, we recommend starting with channel S21 /
306 MHz going back in steps of 8 MHz (s. table on page 35), or
reducing the bandwidth of the QAM output signal by removing sta-
tions.
—> Using "SelecPlex®" only the frequency setting can be used.
 • Use to select channel setting "Channel" or frequency setting "Freq.".
 • Pressthe button.
—> The "Output channel" resp. "Output frequency" – "OUTPUT" menu
is activated.

- 19 - HDMT 660 CI TPS
output freQuenCy, output Channel, modul ator
In this menu, dependent on the setting before, you set the output frequency
(42.0 … 860.0 MHz) resp the output channel (S21 … C69) of the channel
strip. Additionally the modulator of the channel strip can be switched off or on.
Bx 1A
S21 / S22
OUTPUT
on oder Bx 1A 306,0 / 314,0
OUTPUT
on
 • Usethe buttons to position the cursor under the digit to be set for
the frequency or channel display then use to set the desired output
frequency or channel.
—> The modulator in this module employs automatic neighbouring-chan-
nel assignment. This means that the output channel/frequency of
channel strip "B" will always be 1 channel/8 MHz above the output
channel/frequency of channel strip "A".
• Usingthe button, move the cursor under "on" and then use the
buttons to switch off or on the channel strip (modulator) if necessary.
—> The switched off channel strip is indicated in the display with " - - - ".
Bx 1A
– – – / S22
OUTPUT
off
oder
Bx 1A
––––– / 314,0
OUTPUT
off
—> Channel strip "B": Use the same process as described above.
Bx 1B
S21 / S22
OUTPUT
on oder Bx 1B 306,0 / 314,0
OUTPUT
on
Bx 1B
S21 / – – –
OUTPUT
off
oder
Bx 1B
306,0 /
–––––
OUTPUT
off
—> For using "SelecPlex®", in channel strip "B" only the normal chan-
nel separation of 8 MHz can be reduced up to 2 MHz.
 • Pressthe button.
—> The "Output level" – "LEVEL" menu is activated.

- 20 - HDMT 660 CI TPS
output level
This menu item is used to set the output levels of the modulators of the module´s
channel strips to the same value and to level them to the output levels of the
modulators of other modules used.
Bx 1A/B
0 dB
LEVEL
 • Usethetestreceivertomeasuretheoutputlevelofthechannelstripand
make note of the value.
 • Whenadjustingthesecondchannelstrip,compareitsvaluewiththevalue
noted for the first channel strip.
 • Measuretheoutputlevelsoftheothermodulatorsusedandmakenotesof
their values.
 • Use the buttons to balance the higher output level of the one channel
strip to the lower output level of the other channel strip and the output levels
of the other modulators used ("0 dB" … "–25 dB").
 • Pressthe button.
—> The "Input channel" – "INPUT" menu is activated.
input Channel
In this menu you can set the input channel. You can also carry out the fine-
tuning.
Bx 1A/B
C 34 (578.0)
INPUT
—> Besides the channel display the appropriate input frequency is dis-
played.
 • Use to set the input channel.
