GT POWER GT7005EFi User manual

GT7005EFi

2. 3.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
WARNING!
READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS
MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH
INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL
INJURY, PROPERTY DAMAGE, AND/ OR VOIDING OF YOUR
WARRANTY. GT POWER WILL NOT BE LIABLE FOR ANY DAMAGE
BECAUSE OF FAILURE TO FOLLOW THESE INSTRUCTIONS.
Congratulations on your new GT Power product!
The GT Power range from Euroquip uses latest technology design and
engineering to produce generator products that combine market leading value
and features with durability. Designed for discerning operators who seek
professional results and product quality. Design emphasis is placed on simple,
functional design and operation. GT Power products are subject to stringent
quality control and designed and manufactured to NZ & Australian standards.
Euroquip is a market leading provider of innovative power equipment solutions
to a wide range of industries across New Zealand and Australia. Key product
categories are; welding equipment, air compressors, power generators and
cleaning equipment.
Euroquip’s slogan is ‘empowering industries’, nd out more about the advantage
Euroquip brings at www.euroquip.co.nz.
Providing exceptional product support is a key component of Euroquip’s market
leading customer advantage focus. As part of this program, it is required for
all products to be registered with Euroquip to qualify for product support and
the extended 24 month warranty. Products not registered with Euroquip are
supported by a base 12 month warranty only. Spare parts and technical support
will not be available for an unregistered product outside of this base warranty
period. If a Euroquip dealer has not already registered your
product, please register it online at www.euroquip.co.nz.
To request a physical registration form, please download
one at www.euroquip.co.nz under the ‘Contact Us’ tab.

2. 3.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
Table Of Contents
Safety Denitions .....................................................................4
General Safety Precautions .....................................................4
Unpacking the Generator..........................................................6
Assembling the Generator.........................................................6
Specications.......................................................................7
Safety Labels............................................................................8
Generator Controls & Features ................................................9
Control Panel............................................................................9
Control Functions....................................................................10
Before Starting the Generator.................................................11
Starting the Generator............................................................14
Generator Use........................................................................15
Stopping the Generator...........................................................16
Maintenance ..........................................................................17
Transporting and Storage........................................................21
Calculating Your Power Needs...............................................22
Wattage Reference Guide......................................................23
Troubleshooting ....................................................................24
Wiring Diagram.......................................................................25
Warranty.................................................................................26

4. 5.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
The word WARNING and NOTE are used
throughout this manual to highlight important
information. Be certain that the meanings of
these alerts are known to all who work on or
near the equipment.
The above safety alert symbol appears with
most safety statements. It means attention,
become alert, your safety is involved! Please
read and abide by the message that follows
the safety alert symbol.
WARNING!
Indicates a hazardous situation which,
if not avoided, could result in death
or serious injury, or cause damage
to the generator, personal property
and/or the environment, or cause the
equipment to operate improperly.
NOTE: Indicates a procedure,
practice or condition that should be
followed in order for the generator to
function in the manner intended.
Safety Definitions
WARNING!
Never use the generator in a location
that is wet or damp. Never expose the
generator to rain, snow, water spray
or standing water while in use. Protect
the generator from all hazardous
weather conditions. Moisture or ice
can cause a short circuit or other mal-
function in the electrical system.
Never operate the generator in an en-
closed area. Engine exhaust contains
carbon monoxide. Only operate the
generator outside and away from win-
dows, doors and vents.
WARNING!
Voltage produced by the generator
could result in death or serious injury.
• Never operate the generator in rain or a
oodplain unless proper precautions are
taken to avoid being subject to rain or ood.
• Never use worn or damaged extension
cords.
• Always have a licensed electrician connect
the generator to any xed electrical instal-
lation.
• Never touch an operating generator if the
generator is wet or if you have wet hands.
• Never operate the generator in highly con-
ductive areas such as around metal deck-
ing or steel works.
• Always use earthed extension cords.
• Always use three-wire or double insulated
power tools.
General Safety
Precautions

4. 5.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
• Never touch live terminals or bare wires
while the generator is operating.
• Keep animals and children away from the
generator at all times.
WARNING!
Petrol fuel liquid and vapours are
extremely ammable and explosive
under certain conditions.
• Always refuel the generator outdoors, in a
well-ventilated area.
• Never remove the fuel cap while th engine
is running.
• Never refuel the generator while the engine
is running. Always turn engine off and allow
the generator to cool before refuelling.
• Only ll fuel tank with unleaded petrol.
• Keep away from sparks, open ames or
other forms of ignition such as matches,
cigarettes, CB radios and mobile phones
when refuelling.
• Never overll the fuel tank. Leave room for
fuel to expand. Overlling the fuel tank can
result in a sudden overow of fuel and re-
sult in spilled fuel coming in contact with
hot surfaces. Spilled fuel can ignite. If fuel
is spilled on the generator, wipe it up imme-
diately and dispose of rags properly. Allow
area of spilled fuel to dry before operating
the generator.
• Wear eye protection while refuelling.
• Never use fuel as a cleaning agent.
• Store any fuel containers in a well venti-
lated area, away from any combustibles or
source of ignition.
• Check for fuel leaks after refuelling.
• Never operate the engine if a fuel leak is
discovered.
• Equip the operating area with a Class ABE
or BE portable re extinguisher.
WARNING!
Never operate the generator if pow-
ered items overheat; electrical output
drops; there are sparks, ames or
smoke coming from the generator; or
if the receptacles are damaged.
• Never attempt to connect more than one
generator to the same electrical device, ex-
tension cord or xed electrical installation.
• Never use the generator to power medical
support equipment.
• Always remove any tools or other service
equipment used during maintenance be-
fore operating the generator.
WARNING!
You must take reasonable care for
the health and safety both of yourself
and any others who may be affected
by your actions. You must understand
and follow all of the safety rules and
working instructions described herein.
You must also use your own good
judgement and common sense.
NOTE: Never modify the generator.
• Never operate the generator if it vibrates
at high levels, if the engine speed changes
greatly or if the engine misres often.
• Always disconnect electric tools or appli-
ances from the generator before starting.

6. 7.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
NOTE: Do not operate the generator without
the wheels and supports, otherwise the air
lter will be exposed to debris.
The following accessories are supplied with
the generator:
Wheels x 2 Shafts x 2
R cotter pin x 2 Support x 2
M6*40 Bolt x 4
Assembling Procedure
1. Ensure the generator is not running, and
lift it (refer to “Transporting and Storage”
on page 21)
2. Put one wheel through a shaft, and t onto
the wheel base of the generator.
3. Lock the end of the shaft with R cotter pin.
4. Install one support with two bolts using a
10mm spanner.
5. Install the second wheel and support, refer
to steps 2 and 4 above.
Assembling the
Generator
Unpacking
the Generator
WARNING!
Always have assistance when lifting
the generator. The generator is heavy;
lifting it could cause bodily harm. Avoid
cutting on or near staples to prevent
personal injury.
1. Carefully cut packing tape on top of carton.
2. Fold back top aps to reveal instruction
manual on top of the upper packing tray.
Remove manual and save it for reference.
3. Remove and discard upper packing tray.
4. Unfold top of the plastic bag enclosing the
generator.
5. Lift generator out of plastic bag and carton.
6. Recycle or dispose of packaging materials
properly.

6. 7.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
ENGINE:
Model: Powerdyne 190F
Engine Displacement 420CC
Maximum Power 15HP / 11.2kW / 3900rpm
Motor 1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
Oil Capacity 1.1L
Oil Type SAE 15W-30 Synthetic Blend
Bore Stroke 90mm *66mm
Compression Ratio 8.8:1
Ignition System Full Transistor
Start System Recoil / Electric Starter
Fuel Type Gasoline without Lead
Fuel Capacity 23L
GENERATOR:
Model: GT7005EFi
Voltage 230V
Frequency 50Hz
Current 28.3A
Rated Output Power 6.5kVA
Maximum Output Power 7.0kVA
OTHER SPECIFICATIONS:
Continuous Running Time 5.5 hours
Working Ambient Temperature -20oC ~40oC
Maximum Altitude 1000m
Noise Level** 68dB@7m
DIMENSIONS & WEIGHT:
L x W x H (mm) 700 x 550 x 550
Net Weight 80kg
Specifications
Noise Level is measured when Economy Switch is turned ON.
** The Noise level in dB @7m is the arithmetic mean value of sound press level (LpA) in
four directions measured 7 metres away from the generator. The noise level may vary in
different environments

8. 9.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
B
C
E
D
Safety Labels
The safety labels have specic positions and
must be replaced if they are unreadable,
damaged or missing.
(Fig. 1) Safety Labels
DE
A
B
C
A

8. 9.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
1 - Handle
2 - Fuel Cap
3 - Folding Handle
4 - Control Panel
Generator Controls and Features
2
3
1
4
6
5
7
8
9
10
5 - Battery
6 - Support
7 - Fuel Level Indicator
8 - Starter Grip Recoil
9 - Air Cleaner
10 - Choke Lever
11 - Mufer
12 - Fuel Switch
Control Panel
13 - Economy Switch
14 - Engine Switch
15 - Circuit Breaker Switches
16 - Operation Indicator Lights
17 - Circuit Breaker Light
17 - 230V Power Outlets
18 - AC Reset Button
19 - Hour Meter Function Button
20 - Hour Meter
21 - ATS Connection
22 - Ground Terminal (Neutral Floating)
14
16 17 18
21
15
13
19 20
22
11
12

10. 11.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
Control Functions
Choke Lever (10)
The choke is used to help start the engine. It
can be turned to the CLOSED or OPEN posi-
tion.
CLOSED: Is used to start the engine, when
the engine is cold.
OPEN: Is used to run the engine.
Engine Switch (14)
The engine switch starts and stops the
engine.
STOP: Stops the engine.
RUN: Keeps the engine running.
START: Starts the engine using the
electrical starting system.
Fuel Switch (12)
The fuel switch controls the ow of fuel.
OFF: Stops fuel owing to the carburetor.
ON: Allows fuel to ow to the carburetor.
Closed
Choke Lever
Closed
Fuel Switch
ON
OFF
Starter Grip Recoil (8)
Pull the starter grip to manually start the
engine.
Starter Grip
Ground Terminal (22)
The generator ground terminal is connected
to the frame of the engine, the non-current
carrying metal parts of the generator and the
ground terminals of the AC receptacles.
NOTE: Before using the ground terminal,
consult a qualied electrician to ensure
compliance with relative laws and electrical
codes.
Ground Terminal
NOTE: • The grounding system is not
connected to the AC neutral wire.
• Neutral oating for the AC system.

10. 11.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
Economy Switch (13)
When the switch is turned to the “ON” posi-
tion, the generator will automatically adjust
the engine speed according to the electrical
load, to save on fuel consumption.
The “ON”( ) position is recommended at elec-
trical load: 0~4000W
When the switch is in the “OFF” position, the
engine runs at high speed. It is recommended
to run with a continuous high electrical load.
NOTE: Turn the economy control switch to
the “OFF” position when a high demand load
appliance (such as an induction electric mo-
tor) is connected to the generator to minimise
voltage variations.
AC Circuit Breaker (15)
While the generator is running, the circuit
breaker should be placed into the “ON” po-
sition. If the current has exceeded its limits,
it will automatically be switched to the “OFF”
position.
OFF: The output indicator light (green) is off.
ON: The overload indicator light (red) is on.
Reset Button (18)
The “RESET” button can reset the output of
the generator, however the engine will need
to be restarted.
Press and hold the “RESET” button for one
second, until the overload indicator light (red)
is off, and output indicator light (green) is on.
When the generator is not over-loaded, the
RESET button is ineffective.
NOTE: For every accumulated 100 hours,
the Hour Meter will display “CHECK OIL”.
This is a reminder to replace the oil.
Hour Meter (20)
The generator’s hour meter displays the en-
gine’s cumulative working time.
The Min. Scale: 0.1 hours
The Max. Scale: 999 hours
Before Starting
the Generator
WARNING!
The generator should be on a at, level
surface and turned OFF.
Checking Engine Oil Level
Do not use poor quality oil, it will reduce en-
gine life and void warranty. Use only high
quality 4 stroke synthetic blended engine oils
certied to meet or exceed API standards:
SC, SF, SE.
Ensure the engine is cool. Clean oil ll/dip-
stick areas of any debris.
1. Remove the dipstick and wipe off oil.
2. Reinsert the dipstick into the oil ller
hole until the lowest point of thread
leads.
3. Remove the dipstick and check the oil
level. The level should be above the low
est scale on the dipstick.
4. If the oil is low, add recommended oil up
to the upper level of the oil ller hole.

12. 13.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi

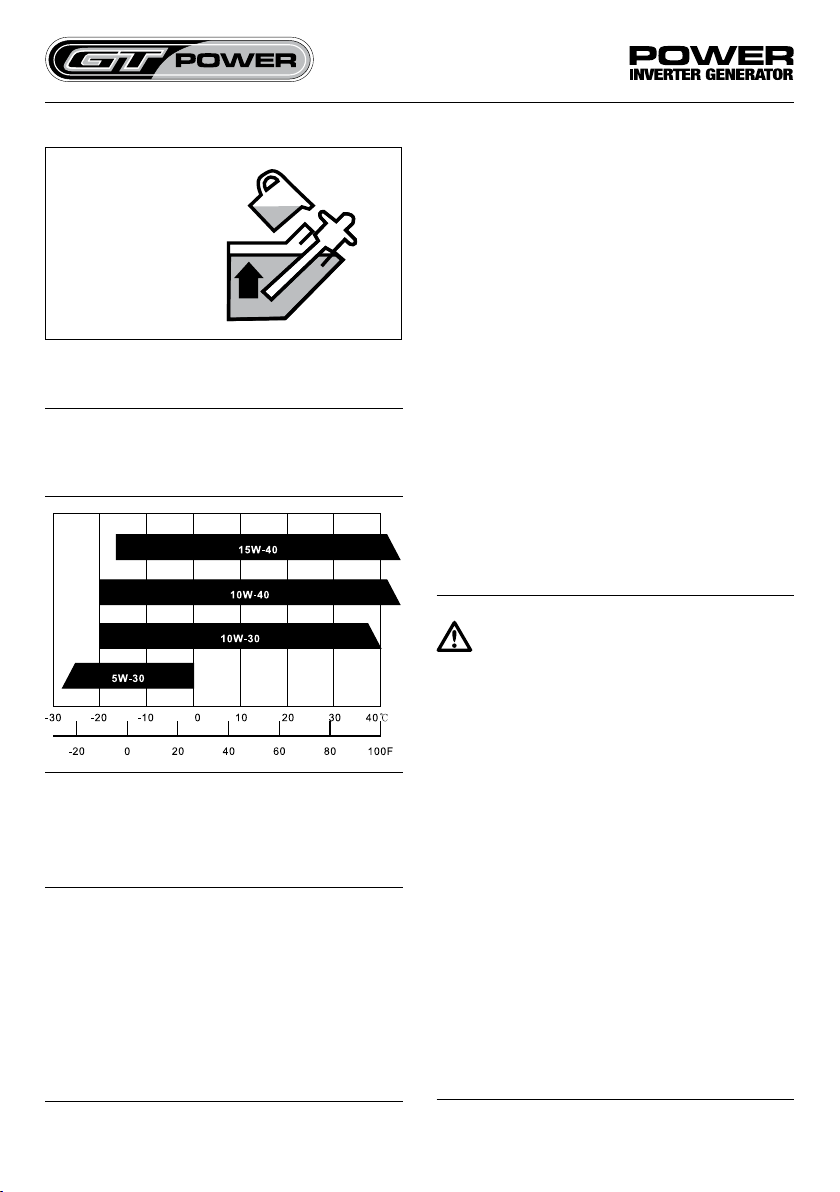

Engine Oil
Capacity:
1.1L
NOTE: Carefully use and store the engine
oil - avoid getting dirt or dust into the engine
oil. Mixing different kinds of engine oil is pro-
hibited.
NOTE: Running the generator with low oil will
damage the engine. The low oil alert system
will shut down the engine automatically, be-
fore the engine oil reaches below the safety
margin.
To avoid the inconvenience caused by unex-
pected stopping, you should always check
the engine oil level before starting.
Checking Fuel Level
Fuel must meet these requirements:
• Clean, fresh, unleaded petrol. Do not add
oil to fuel or use fuel older than 30 days.
• Research Octane Number (RON) 90
Octane or higher.
• Bio-fuel blend up to 10% ethyl alcohol
unleaded is acceptable. Methyl Tertiary
Butyl Ether (MTBE) and unleaded fuel
blend (max 15% MTBE by volume) are
approved.
•Avoid getting dirt or water into the fuel
tank.
• ALWAYS turn fuel switch OFF when
generator is not in use.
5. Replace the dipstick and tighten
securely.
NOTE: Do not tilt the generator when add-
ing engine oil. This could result in overlling
and damage to the engine.
WARNING!
• Fuel is highly explosive and
ammable. Use extreme caution
when refuelling.
• Turn off generator and let cool
completely before refuelling.
• Do not overll the fuel tank (no fuel
above the red upper limit mark).
After refuelling, make sure the
fuel cap is closed properly and
securely. Wipe up any spilled fuel.
• Do not start the generator until all
fuel is properly stored and cleaned
/evaporated from around the
generator.
• Avoid fuel contact with skin or
breathing any fuel vapours.
• KEEP OUT OF REACH OF
CHILDREN.

12. 13.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
Fuel Capacity : 25L
Highest Fuel Level
Lowest Fuel Level
F
E
Upper Limit Mark
Checking the Air Cleaner
Check the air cleaner element to be sure it is
clean and in good condition.
a. Loosen the air cleaner cover screw and
remove the cover.
b. Check the element, clean or replace if
necessary.
Air Cleaner Element
Air
Cleaner
Cover
NOTE: Do not run the engine without the air
cleaner element, otherwise the Warranty will
be void.
Checking the Battery
Check the battery connection for correct op-
eration of the electric starting system.
1. Connect red cable to battery positive (+)
terminal.
2. Connect black wire to battery negative (-)
terminal.
3. Hook battery belt.
If a replacement battery is required it should
be purchased with the following specica-
tions:
Voltage: ≤ 12V
Capacity: ≤ 9~18AH
Dimensions: ≤ 181 x 76 x 167mm (LxWxH)
WARNING!
• Battery can contain caustic acid, emit
explosive gases or cause electrical
shock. Keep away from spark/re.
• Always use eye protection and
protective gloves when working
around the battery. Caustic acids and
explosive gases can cause
blindness and severe burns.
• If battery electrolyte gets into eyes,
skin or clothing, ush thoroughly with
warm water for 15 minutes, and call
for medical assistance immediately.
• For adult operation only. Never touch
both battery terminals at the same
time with your hand or an non-
insulated tool.

14. 15.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
WARNING!
Any connection to a building’s
electrical system: THE GENERATOR
MUST BE ISOLATED FROM MAINS
POWER VIA A TRANSFER SWITCH.
This connection must be made by a
qualied electrician.
NOTE: The connection of a generating set
bonding system to the general mass of earth
through an earth electrode is not required or
recommended.
Ground Terminal
Earth
Mark
Grounding the Generator
Starting the
Generator
NOTE: Place the generator on a at, level
surface outdoors and disconnect any load at
the receptacles. Follow all safety and warn-
ing label instructions.
Electric Starting
1. Turn fuel switch to “ON” position and wait
for 30 seconds for fuel to ll the carbureter.
Fuel Switch
ON
OFF
2. Move choke lever to “CLOSED” position.
3. Turn the engine switch to “START” posi-
tion and hold tuntil engine is running
Closed
Choke Lever
Closed
NOTE: When starting, the engine switch
should not stay in the “START” position for
more than 5 seconds.
4. After starting, return switch to “RUN” posi-
tion
5. Once the engine is running, move the
choke lever to the “OPEN” position.
Open
Choke Lever
Open
NOTE: If the engine stops and will not re-
start, check the oil level.
NOTE: Do not move the choke lever to
“CLOSED” position when the engine is hot
or the ambient temperature is high.

14. 15.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
Carburetor Modication for High
Altitude Operation
At high altitudes, the standard carburetor air-
fuel mixture will be too rich. Performance will
decrease and fuel consumption will increase.
A very rich mixture will also foul the spark
plug and cause hard starting.
If the generator operates at high altitude,
change the main nozzle or adjust the idling
screw of the carburetor.
If the generator will always operate at an al-
titude above 1,000 metres (3,280 feet), con-
WARNING!
If the carburetor has been modied for
high altitude operation, the air-fuel mix-
ture will be too lean for low altitude use.
Operation at low altitude may cause the
engine to overheat and result in seri-
ous engine damage. If operating at low
altitude, the carburetor will need to be
returned to its original specications.
WARNING!
Any connection to a mains power sys-
tem must be made by a qualied elec-
trician.
The generator must be isolated from
mains power via a transfer switch, and
must comply with the relevant laws and
electrical codes.
WARNING!
For continuous operation, do not ex-
ceed the rated ouput power of the gen-
erator.
Do not make parallel connection with
any other generators.
Do not connect an extension to the ex-
haust pipe.
When an extension cable is required,
be sure to use an appropriate cable.
Keep away from other electric cables
or wires.
Generator Use tact your generator service or engine author-
ised dealer to modify the carburetor.
Generator output power should be modied
according to the altitude and ambient tem-
perature.
AC Applications - 230V Output
1. Start the generator and make sure the
output indicator light (green) is on.
2. Conrm all electrical applicances are off,
and then plug into receptacles.
3. Turn on the AC breaker, and switch on
the electrical appliances.
NOTE: Do not exceed the rated output of the
generator, this will overload the generator
and trip the circuit breakers.
NOTE: To obtain optimal life from the gen-
erator, it should be run at 50% rated load for
the rst 20 hours, when new.

16. 17.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
NOTE: Ensure all electrical applicances are
in good working order before connecting
them to the generator. If an electrical appli-
ance becomes abnormal, sluggish or stops
suddenly, shut off the engine immediately
and disconnect the appliance.
Output and Overload Indicator
Under normal operating conditions, the out-
put indicator light (green) will remain on. If
the generator is overloaded (over 6.5kVA),
or the connected appliance is short circuited,
the output indicator light (green) will switch off
and the overload indicator light (red) will turn
on. The AC output will switch off, but the en-
gine will continue running.
If the overload indicator light (red) is on, dis-
connect the electrical appliances and press
the “RESET” button to recover the output.
Once the overload indicator light (red) switch-
es off and the output indicator light (green)
switches on, you may reconnect electrical ap-
pliances. If the overload indicator light (red)
doesn’t switch off, and the output indicator
light (green) doesn’t switch on, stop the en-
gine and check the generator.
Oil Alert System
The oil alert system is designed to prevent
engine damage caused by an insufcient
amount of oil in the crankcase. Before the oil
level in the crankcase falls below a safe limit,
Stopping the
Generator
Normal Shut Down
1. Switch off the connected electrical appli-
ances and pull out their plugs.
2. Turn fuel switch to “OFF” position and let
engine run out of fuel. This will extend the
life of the fuel delivery systems.
Fuel Switch
ON
OFF
3. Turn engine switch to “STOP” position.
Oil Alert Indicator
Light (Red)
Output Indicator
Light (Green)
Output Indicator
Light (Red)
Emergency Shut Down
1. Turn the engine switch to the “STOP” po-
sition.
2. Switch off any connected electrical appli-
ances and disconnect from the generator.
3. Turn the fuel switch to the “OFF” position.
the oil alert system will automatically shut the
engine down (the engine switch remains in
the “RUN” position).
If the oil alert system shuts the engine down,
the oil alert indicator light (red) will turn on
and the engine will not start.

16. 17.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
Maintenance Schedule
The purpose of the maintenance and adjust-
ment schedule is to ensure the generator is
kept in the best operating condition.
Maintenance
WARNING!
Shut down the generator before per-
forming any maintenance and let it cool
down completely. Use only genuine
parts and recommended uids to re-
place the wear components.
Maintain the generator according to the
maintenance schedule below. Service items
more frequently when used in dusty areas,
or under conditions of light load, temperature
and humidity.
Maintenance intervals will vary for commer-
cial use, due to the long hours of operation.
Engine Oil Check Change Change Change Change
Air Cleaner Element Check Clean (1) Check Replace
Spark Plug Check / Adjust Replace
Spark Arrester Check Check Check/Replace
Valve Clearance Check / Adj (2)
Combust. Chamber Clean every 300 Hours (2)
Fuel Tank & Filter Clean every Year (2)
Fuel Line Check every 2 Years (Replace if necessary) (2)
Maintenance
Item
Each
Use
After First 10Hrs
or First Month*
After First 50Hrs
or Every 3 Months*
After 100Hrs
or Every 6 Months*
After 200Hrs or
Every 2 Years*
NOTE: Never modify or alter the carburetor
in any way. Modications can create serious
safety hazards and will also void the
Warranty.
(1) Service more frequently when used in dusty areas.
(2) These items should be serviced by your servicing dealer,
unless you have the proper tools and are mechanically procient.

18. 19.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
Changing the Oil
Use protective gloves and drain the oil com-
pletely. Ensure the engine has completely
cooled down before changing oil.
1. Unhook the battery belt, and remove the
battery.
2. Remove dipstick from the engine.
3. Remove oil drain plug and drain oil into the
oil collection pan.
4. Once oil is completely drained, t the oil
drain plug.
5. Rell with recommended oil and check the
oil level.
6. Place the oil dipstick back into its slot.
Oil Dipstick
and Cap
Oil Drain Plug
Once oil change is complete, wash your
hands with soap.
NOTE: Dispose of used oil in a manner that is
compatible with the environment and in ac-
cordance with local, state and federal laws
and regulations.
NOTE: Used oil should be put into a sealed
container and transported to a service station
or recycler.
Do not throw oil into the trash, pour it on the
ground or pour it down the drain.
Oil Filler Inlet
Upper
Level
Oil Dipstick
and Cap
Servicing the Air Cleaner
A dirty air cleaner will restrict air ow into the
carburetor. Clean and maintain the air cleaner
regularly, especially in extremely dusty areas.
WARNING!
Do not use fuel or low ignition point sol-
vents for cleaning. They are ammable
and explosive under certain conditions.
NOTE: Never run the generator without an
air cleaner, as this will result in premature en-
gine failure and will void the warranty.
1. Loosen the air cleaner cover screw and re-
move the cover.
2. Take out the air cleaner element and clean
it with detergent and water. Rinse with wa-
ter and let dry.
Engine Oil Capacity: 1.1L

18. 19.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
3. Use ~20ml of clean oil to coat the air clean-
er element, squeeze out extra oil. If neces-
sary, change cleaner element.
Element
Air Cleaner Element
Air
Cleaner
Cover
4. Reinstall the air cleaner element and cover.
Servicing the Spark Plug
Check the spark plug gap and clean the car-
bon deposition at the bottom of the spark
plug.
Engine
Spark Plug:
Champion
RC12YC
NGK-
BCPR5ES
1. Take off the spark plug cap.
2. Remove the spark plug with a spark plug
spanner wrench.
3. If the insulation of the spark plug is cracked
or chipped, or the electrode is damaged,
replace the spark plug with a new one.
4. Check the electrode gap and set it to the
gap shown below.
5. Measure the spark plug gap with a feel
gauge. The normal size is 0.7-0.8mm. Ad-
just the gap by bending the electrode care-
fully.
6. Replace the spark plug carefully by hand,
to avoid cross-threading. A new spark plug
should be tightened 1/2 turn with a span-
ner. A used spark plug should be tightened
1/8 to 1/4 turn with a spanner.
7. Replace the spark plug cap.
NOTE: The spark plug must be securely
tightened as described above, otherwise
damage to the engine will occur.
Never use a spark plug with an improper heat
range.

20. 21.
www.gtpower.co.nz www.gtpower.co.nz
GT7005EFi
Replacing the Battery
Replacement battery should be within the fol-
lowing specications:
Voltage: ≤ 12V
Capacity: ≤ 9~18AH
Dimensions: ≤ 181 x 76 x 167mm (LxWxH)
When the engine is running, the battery will
charge by the charging system on the gener-
ator. If the battery has been stored for a long
period, it will need to be charged prior to use.
If using an alternative charging system, the
charging current should be less than 0.15c
Amperes (c: battery rated capacity).
Rubber Tape
Battery
1. Unhook the rubber tape.
2. Remove the black cable from the battery
negative (-) terminal, and then remove the
red cable from the battery positive (+) ter-
minal.
3. Remove the battery from the battery tray
and replace with a new one.
4. Reconnect red cable to battery positive (+)
terminal, and reconnect black cable to bat-
tery negative (-) terminal.
5. Hook the rubber tape.
Replacing the Fuse
If the engine can’t be started due to low
speed of the starter motor, check charging
fuse or battery voltage. If starter motor does
not actuate during electric starting, check the
starting fuse:
1. Remove fuse holder located near battery.
2. Hold and twist the two ends of the fuse
holder.
3. If the fuse has blown, replace it.
4. Replace the fuse into the holder.
Fuse Specications
Starting fuse: 4A, 250V/120V
Charging fuse: 2A, 250V/125V
Cleaning the Fuel Tank Filter
1. Remove the fuel cap and lter.
2. Clean the lter with solvent.
3. Wipe the lter and insert it.
