Gulf Coast Spas LUXURY Series User manual

LUXURY SERIES
OWNER’S MANUAL
LX 11000 | LX 9000 | LX 7000 | LX 5000
Model # 1001,1002,1003,1004
P.N. 827114
11620 - 54th Street North
Clearwater, FL 33760 [phone]
www.GulfCoastSpas.com

GULF COAST SPAS AFFILIATIONS
2

3
TABLE OF CONTENTS
TABLE OF CONTENTS…………………...………………………………………….…….…………...……….3
INTRODUCTION…………………………….……………………………………………..……………………4
IMPORTANT SAFETY INSTRUCTIONS..………………….….…………………….………….…….……...….5
INSTALLATION……………………………...………………………………………….…….………………….9
ELECTRICAL SPECIFICATIONS…………………………………………………………….......………….…10
STARTUP PROCEDURES…………………………………………………………………………….…….…..17
AQUACLARA NATURAL WATER MANAGEMENT SYSTEM…….………………………..…...…….…....25
FREQUENTLY ASKED QUESTIONS……………………………………………………………..….…….…...26
TROUBLESHOOTING GUIDE….……….……………………………………………………………….…….28
MAINTENANCE and CARE…………………………………………...………………………….…….……29
SHUTDOWN / WINTERIZING PROCEDURES ………………………………….………………..……….…31
LUXURY SERIES SPECIFICATIONS……………………………………………………………………………32
WARRANTY…………………………………………………………..…….…………..………………….…..38

4
INTRODUCTION
Your Choice of a Gulf Coast spa indicates that you are devoted to excellence. The
management and staff appreciate your patronage and takes pride in the tradition of quality
spas that our company represents.
In order to get the most out of your spa, we strongly suggest that you take time to read
through this manual before you hook up and operate your spa. This will acquaint you with
important operating and safety procedures, thereby ensuring an enjoyable experience right
from the start. If you need any more information than this manual provides, feel free to visit
our Web site at www.GulfCoastSpas.com or call our 24/7 technical support line at (727) 573-
9888.
WARNING! This manual was written to ensure the proper use and installation of any Luxury
Series spa. Any modifications to the procedures outlined in this manual may result in your
warranty being void. Please take the time to read this manual to avoid any unnecessary
problems with your brand new spa and equipment.
IMPORTANT: Please complete, sign and submit the warranty card within 30 days of purchase.
THIS MANUAL AND ITS CONTENTS ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALTHOUGH
GULF COAST SPAS HAS PREPARED THIS MANUAL AS ACCURATE AND PRECISE AS POSSIBLE, WE
WILL NOT BE LIABLE FOR LOSS, INJURY OR DAMAGES CAUSED BY IMPROPER INSTALLATION OR
USE OF SPA (IMPROPER OR OTHERWISE).

5
IMPORTANT SAFETY INSTRUCTIONS
When installing your spa and using this equipment, always follow basic safety precautions
including the following:
READ AND FOLLOW ALL INSTRUCTIONS!
DANGER!: TO REDUCE THE RISK OF INJURY, do not permit children to use this product unless
they are closely supervised at all times.
Your Gulf Coast spa is meant to be enjoyable, healthful and relaxing. Some basic safety rules
do apply when using the spa. Here is a small list of things to remember:
1) Always check the temperature of the spa before entering. Excessively high temperatures
can be hazardous to your health.
2) Persons suffering from heart disease, diabetes, high or low blood pressure and pregnant
women should consult a doctor before using the spa.
3) Persons under the influence of medication, drugs or alcohol should not be allowed into
the spa.
4) Do not allow children to use the spa without supervision of an adult.
5) Do not use the spa alone.
6) The GFCI breaker must be tested prior to using the spa each time to ensure it operates
properly.
7) Any electrical devices near the spa must be GFCI protected and out of reach from inside
the spa.
8) Keep all breakables away from the spa area.
9) Lock the cover on any outdoor spas when not in use. Position spa to provide drainage of
the compartment for electrical components. For floor recessed spas, install in such a way to
permit access for servicing from above and below floor.
SAVE THESE INSTRUCTIONS!
TO AVOID INJURY, EXERCISE CARE WHEN ENTERING OR EXITING THE SPA OR HOT TUB.
POUR EVITER LE SOIN D'EXERCICE DE BLESSURE EN ENTRANT OU SORTIR LE SPA OU LE BAQUET
CHAUD.

WARNING SIGN MUST BE POSTED
The (red) WARNING sign above is packed with your new Gulf Coast spa. This sign must be
posted in a prominent place in close proximity to the spa installation site immediately upon
completion of spa installation.
WARNING SIGN – is extremely important that this sign be permanently placed in clear view of
any persons using the spa. Occasional spa users may not be aware of some of the dangers
hot water poses to pregnant women, small children, and people under the influence of
alcohol. If you did not receive a warning sign or your sign has become damaged, please
contact our 24/7 technical support line at [phone].
DANGER! – A wire connector is provided on this unit to connect a minimum No. 6 AWG
(10mm2) solid copper conductor between unit and any metal equipment, metal enclosures
of electrical equipment, metal water pipe, or conduit, if that item is located within 5 feet
(1.5m) of the unit.
DANGER! – RISK OF ACCIDENTAL DROWNING: Extreme caution must be exercised at all times,
to prevent unauthorized access by children. To avoid accidents, ensure that children cannot
use spa unless they are supervised at all times. Cover spa and use safety locks to prevent
accidents.
6

7
DANGER! – RISK OF ELECTRICAL SHOCK: Install at least 6 feet (91.5m) from all metal surfaces.
As an alternative, a spa may be installed within 5 feet (1.5m) of metal surfaces if each metal
surface is permanently connected by a minimum No. 6 AWG (10mm2) solid copper
conductor to the wire connector on the terminal box that is proved for this purpose. Do not
permit any electrical appliance, such as a light, telephone, radio or television within 5 feet
(1.5m) of the spa, unless factory installed.
Position the spa to provide proper drainage of the compartment for electrical components.
For floor recessed spas, install to permit access for servicing from above or below floor.
Consideration should be taken for water to splash out. Water can ruin wood floors and some
finishes. DO NOT use a wall switch, ground fault circuit interrupter, circuit breaker, fuse, or
plugging and unplugging the spa as a means of turning on or off your spa for normal
everyday use. DO NOT block access door. Set the spa on a firm level (flat) surface. DO NOT
set spa on blocks as structural damage may occur to the spa.
WARNING! – Reduce the risk of injury. The water temperature in a spa should never exceed
40º C (104º F). Water temperatures between 38º C (100º F) and 40º C (104º F) are considered
safe for a healthy adult. Lower water temperatures are recommended for young children
and when spa use exceeds 10 minutes.
WATER TEMPERATURE IN EXCESS OF 38º C MAY BE INJURIOUS TO YOUR HEALTH.
AVERTISSEMENT: DES TEMPERATURES DE L'EAU SUPERIEURES A 38C PEUVANT PRESENTER UN
DANGER POUR LA SANTE. L'AVERTISSEMENT: LA TEMPERATURE D'EAU DEPASSANT 38C MAI EST
NUISIBLE A VOTRE SANTE.
Since excessive water temperatures have a high potential for causing fetal damage during
early pregnancy, pregnant or potentially pregnant women should limit water temperatures
to 38º C (100º F). Before entering a spa, the user should measure the water temperature with
an accurate thermometer. The tolerances of water temperature-regulating devices vary.
The use of alcohol, drugs, or medication before or during spa use may lead to
unconsciousness with the possibility of drowning. Persons suffering from obesity, medical
history or heart disease, low/high blood pressure, circulatory system problems, or diabetes,
should consult a physician before using a spa. Persons using medication should consult a
physician before using a spa because some medications induce drowsiness while others
may affect heart rate, blood pressure and circulation.
HYPERTHERMIA – Prolonged immersion in hot water may induce hyperthermia. A description
of the causes, symptoms, and effects of hyperthermia are as follows:
Hyperthermia occurs when the internal temperature of the body reaches a level severalº
above the normal body temperature of 98.6º F (37º C). The symptoms of hyperthermia
include drowsiness, lethargy, and an increase in the internal temperature of the body. The
effects of hyperthermia include:
Unawareness of impending hazard; Failure to perceive heat; Failure to recognize the need
to exit spa; Physical inability to exit spa; Fetal damage in pregnant women; and
Unconsciousness and danger of drowning.

CAUTION! – Always test the spa water temperature before entering the spa. Enter and exit
the spa slowly. Wet surfaces can be very slippery. Never bring any electrical appliances into
or near the spa, with the exception of a space heater used for winterizing/troubleshooting
ONLY. Call [phone] for instructions on this procedure. Never operate any electrical
appliances from inside the spa or when you are wet unless such appliances are built-in by
the manufacturer.
FOR ALL SPAS EQUIPPED WITH AUDIO COMPONENTS: Caution! – Risk of Electric Shock: Do not
leave audio compartment door open. Replace audio components only with identical
components. Warning! – Prevent Electrocution: Do not connect any auxiliary components –
for example, cable, additional speakers, headphones, etc., to the system.
8

9
INSTALLATION
Proper planning is an important consideration when installing your new spa. Site selection is a
critical step and should be given some serious thought. Planning ahead, before the delivery
of your spa, will make the process of installation easier. The following information is provided
to assist you in site preparations.
1) Check out the local building codes with respects to gates, fences, etc.
2) Be sure the spa will have proper access to water, drainage and electricity.
3) Check with your dealer on how to support the weight. In most cases, the best answer is a
4-inch thick cement pad. (Or you may purchase a durable, custom-molded plastic Handi-
Spa pad by calling the 24/7 technical support line at 727-573-9888.) There are many ways to
support your spa. Please consult your spa sales representative before constructing a base.
4) Be sure your spa will fit into the space you have chosen, and ensure there is proper access
into the area of the spa for repairs if necessary.
5) Ventilation may be needed because of the humidity from the spa. In most cases, a Spa
Hard Cover is sufficient.
6) Check the load carrying capabilities of the floor on which the spa will reside. Most homes
meet the requirement of 80 pounds per square foot.
7) Protect the pump and all equipment from the weather by ensuring the cabinet panels are
secure at all times.
IMPORTANT! When building a skirt or sinking a spa into a deck or ground, easy access must
be provided beneath the spa. This will ensure proper serviceability to the plumbing and
equipment. Please allow 36 inches. This is a minimum figure only! Consider your design
carefully. The more access the better. Make the access door in a logical place (i.e. near
controls and equipment). Call the 24/7 technical support line at [phone] for more
details.

ELECTRICAL SPECIFICATIONS
IMPORTANT! Qualified and licensed electricians must perform all electrical hookups. The
following specifications must be followed in order to ensure proper performance and safety.
CAUTION! Failure to abide by specifications listed may result in damage to the equipment
and may void the warranty.
ALL SPAS MUST BE WIRED WITH A 50 AMP BREAKER. FAILURE TO DO SO WILL CAUSE EQUIPMENT
DAMAGE AND WILL NOT BE COVERED UNDER WARRANTY.
ALL SPAS MUST BE PROTECTED WITH AN OVER CURRENT PROTECTIVE DEVICE WITH BUILT-IN
GROUND FAULT CIRCUIT INTERRUPTER (GFCI) IN THE SERVICE PANEL.
WARNING!: STARTING A SPA THAT IS INCORRECTLY WIRED COULD CAUSE SEVERE DAMAGE TO
THE MECHANICAL EQUIPMENT OR BODILY HARM. HAVE YOUR LICENSED ELECTRCIAN VERIFY

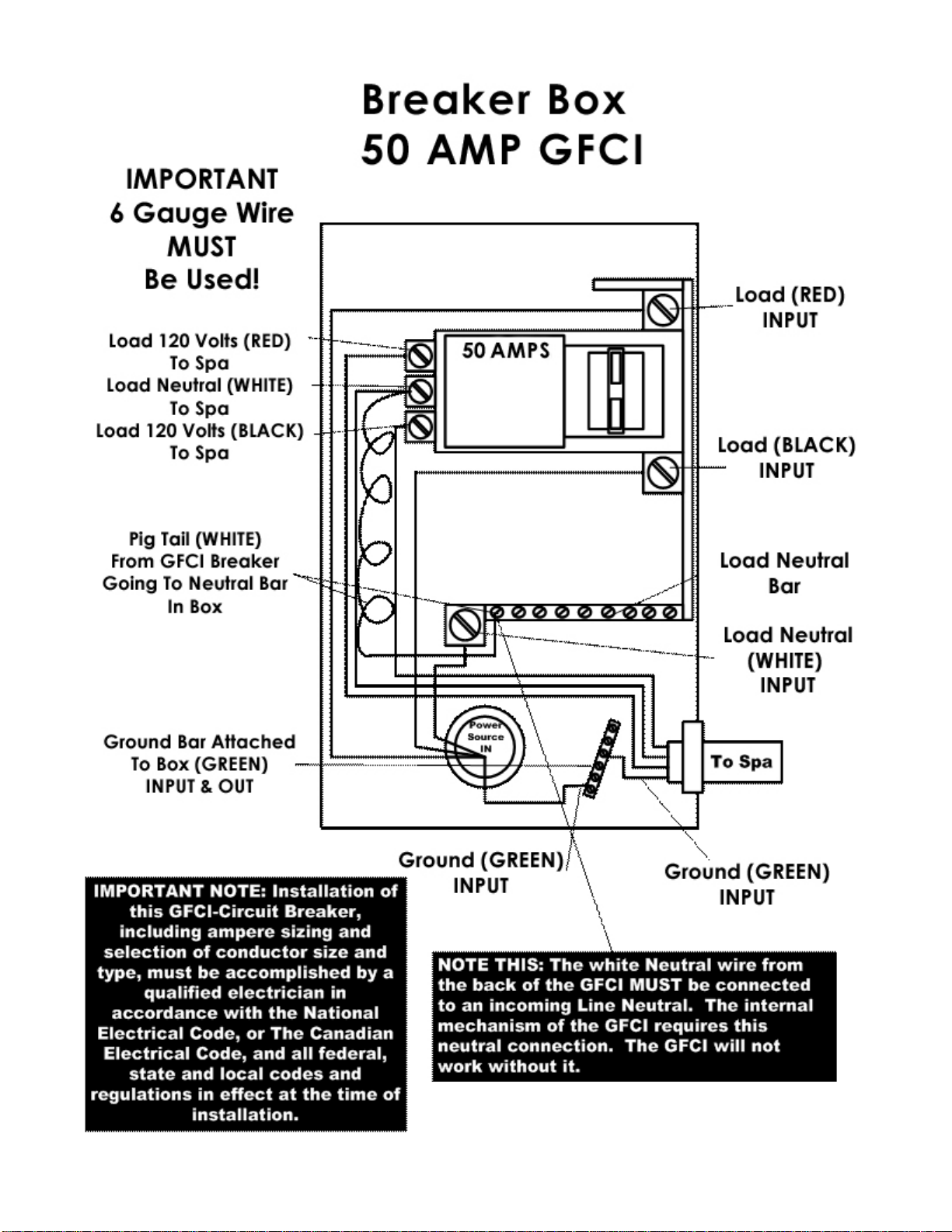

GFCI WIRING WITH SCHEMATIC ON PAGE 11 PRIOR TO STARTING THE SPA.
EUROPE:
CAUTION: CONNECT ONLY TO A CIRCUIT PROTECTED BY A RESIDUAL CURRENT DEVICE.
ATTENTION: CONNECTER UNIQUEMENT A UN CIRCUIT PROTEGE PAR UN DISJONCTEUR
DIFFERENTIEL.
CAUTION: TEST THE RCD BEFORE EACH USE OF THE SPA. TOUJOURS VERIFIER L'EFFICACITE DU
DISJONCTEUR DIFFERENTIEL AVANT D'UTILISER LE BAIN. BONDING LUGS. COSSES DEMISE A LA
MASSE. USE THE COPPER CONDUCTORS ONLY. EMPLOYER UNIQUEMENT DES CONDUTEURS DE
CUIVRE.
WARNING: DISCONNECT THE ELECTRICAL POWER BEFORE SERVICING. AVERTISSEMENT:
DISCONNECTER DU CIRCUIT D'ALIMENTATION ELECTRIQUE AVENT L'ENTRETIEN. BEFORE
OBTAINING ACCESS TO TERMINALS, ALL SUPPLY CIRCUITS MUST BE DISCONNECTED.
EN60335-1 and EN60335-2-60. 230vac/50Hz. 1x32A Single Phase. IPX5. Spa Model. Gulf Coast
Spa Manufacturers
Parts with extra low voltage not exceeding 12v must be inaccessible to a person in the spa.
Earthed appliances must be permanently connected to fixed wiring. Parts incorporating
electrical components, except remote control devices, must be located or fixed so that they
cannot fall into the spa. Appliances should be supplied through a residual current device
(RCD) having a rated residual operating current not exceeding 30ma.
10

Means for disconnection must be incorporated in the fixed wiring in accordance with the
wiring rules.
11

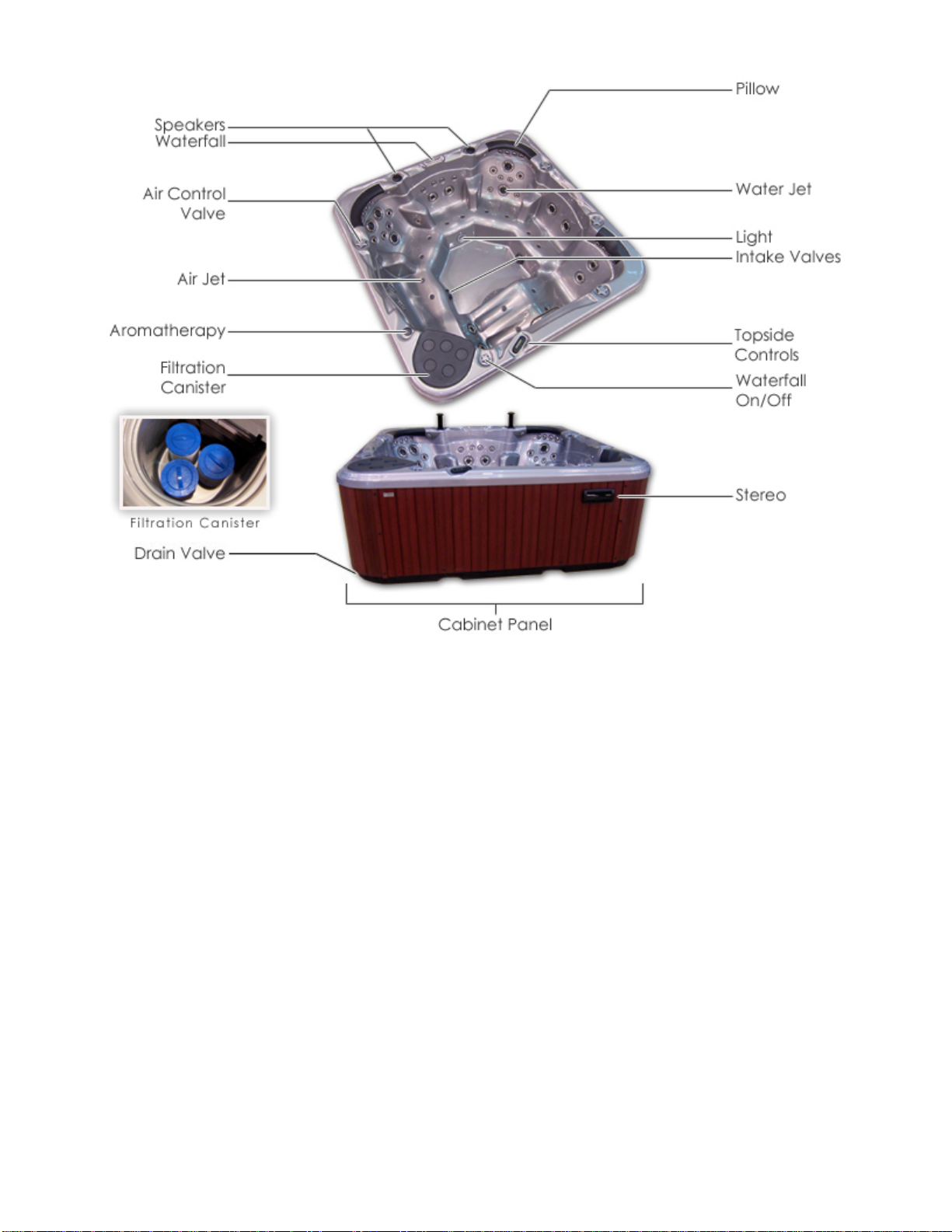

12

13

14

15 15

16

17
STARTUP PROCEDURES
IMPORTANT!: Read these step-by-step startup procedures before starting your spa. Failure to
follow any of these steps listed may result in damage to the equipment and may void the
warranty.
NOTE: Running the spa pump dry (without water running through it) could cause IMMEDIATE
damage and will void the warranty! Be sure the following conditions exist:
The spa has been installed properly in accordance with the instructions in this manual.
All slide valves must be pulled out completely in the open position. These are located to the
left and right of the heater element and on the suction side of the primary pump.
Check and hand tighten unions at each end of the heater tube. CAUTION! DO NOT use a
wrench. These are hand-tightened unions and over-tightening may cause damage to unions
and gaskets, which will not be covered under warranty.
Clean out the spa and remove any foreign material.
Filling the spa.
Always fill spa through one filter housing (hard water is recommended) to purge any trapped
air from pump intakes. Failure to do so may cause air to be trapped in the two-speed pump
intake, creating an air lock and preventing the pump from moving water. Ensure all slide
valves are fully open. Place your garden hose, with the AquaClara prefilter attachment
assembled, into the filter housing and begin filling with clean water. Continue filling spa until
the water level is one inch above the highest water jets (excluding the neck jets that remain
above the water level). Do not over fill. Remember every person entering a spa displaces a
given volume of water, so adjust water level to number of people who will be entering the
spa. CAUTION! Be sure drain valve is closed before the water is turned on. DO NOT turn pump
on until the spa is filled to the required level. Running the pump dry may cause IMMEDIATE
damage, which will not be covered under warranty!
CAUTION! The water from your hot water tank should not be used to fill the spa.
Once the spa is filled to the proper level, check to make sure the slide valves are open at the
pump. Start the pump and watch for some water to come out of the jets.
If the water is running smoothly through the lines, open the air valve (AVC) to the jets and
you should see an increase in jet pressure.
SPECIAL NOTE: If you are unsure of any of the above startup procedures, please call the 24/7
technical support line at [phone]. For best results, read each step in its entirety before
proceeding.

Turning the power on and activating the jets.
Turn on the power to the hot tub at the house circuit breaker. The GFCI circuit breaker must
be tested before each use of the spa. Press the “Test” button on the breaker and the circuit
breaker should go to the tripped position. Reset the GFCI and ensure it stays on. The topside
control display goes through specific sequences. Press Pump 1 key to turn the two-speed
water pump on low speed, press a second time for high speed. If Pump 1 has not primed
after two minutes, and water is not flowing from the jets in the spa, do not allow the pump to
continue to run. Turn the power off at the main house panel and vent air from the pump. Do
this by loosening the union nut on the discharge side of pump. Turn the power on again.
Sometimes momentarily turning the pump off and on will help to prime. Do not do this more
than four times. Be sure Pump 1 is primed and the water moves from the jets. Check and
adjust the water and airflow of every jet from Pump 1 if necessary. Push Pump 1 key a third
time to turn Pump 1 off. A built-in timer automatically turns Pump 1 off after 20 minutes, unless
the pump manually has been deactivated first.
Press Pump 2 key to activate the single-speed Pump 2 (if equipped). If the Pump 2 has not
primed after two minutes repeat same priming procedure for Pump 2. Check and adjust the
water and airflow of every jet from Pump 2 if necessary. Push Pump 2 key a second time to
turn off Pump 2. A built-in timer automatically turns Pump 2 off after 20 minutes, unless the
pump manually has been deactivated first.
18

Activating the air blower (if equipped).
Press the Blower key to turn on the air blower. Check if air goes to air jets on the butt/bottom
of each seat. Press the Blower key again to turn the Blower off. A built-in timer automatically
turns the Blower off after 20 minutes, unless it manually has been deactivated first. If you
encounter a problem, please reference the troubleshooting guide.
19

20
