Gunnebo GlasStile GSR User manual

.............................
CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009
GlasStile GSR
Installation Operation and Maintenance Manual

.............................
CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009

3
.............................
CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009
Contents
Page
SECTION 1INTRODUCTION ...................................................................................................................................... 5
General .............................................................................................................. 5
Electrical Warnings ............................................................................................ 5
Mechanical Warnings ........................................................................................ 5
Errors.................................................................................................................. 5
Proprietary Notices ............................................................................................ 5
Rotating Machinery ........................................................................................... 6
Warnings, Cautions and Notes .......................................................................... 6
Static Sensitive Devices ...................................................................................... 6
Good Practices ................................................................................................... 7
Risk Assessment ................................................................................................. 7
CE - Marking....................................................................................................... 8
SECTION 2PRODUCT DESCRIPTION ........................................................................................................................... 9
Product Description............................................................................................ 9
Technical Specification..................................................................................... 10
SECTION 3INSTRUCTIONS FOR USE ......................................................................................................................... 11
Starting the GlasStile ....................................................................................... 11
Operating Modes ............................................................................................. 12
Card Reader Control - Push to Go .................................................................... 12
Reset ................................................................................................................ 12
Unauthorised passage ..................................................................................... 12
Blocking or forcing GlasStile GSR during rotation............................................ 12
Power Failure ................................................................................................... 12
Fire Alarm......................................................................................................... 12
SECTION 4TECHNICAL INFORMATION ...................................................................................................................... 13
Technical Information ...................................................................................... 13
Material Finishes.............................................................................................. 13
Flexibility of Design .......................................................................................... 13
Standard Dimensions ....................................................................................... 14
Component Location........................................................................................ 20
SECTION 5INSTALLATION ...................................................................................................................................... 21
Unpacking ........................................................................................................ 21
Tools Required ................................................................................................. 21
Site Preparation ............................................................................................... 21
Installation Kit.................................................................................................. 21
Installation Routines ........................................................................................ 22
Customer Connections ..................................................................................... 31
Programming ................................................................................................... 32
Program Options.............................................................................................. 33
Programming the GlasStile GSR....................................................................... 33
Programming the Wing Positions .................................................................... 33
Testing after Installation.................................................................................. 34
Adjusting the encoder home position .............................................................. 34

4
.............................
CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009
SECTION 6MAINTENANCE..................................................................................................................................... 35
General Care .................................................................................................... 35
Trouble Shooting.............................................................................................. 37
SECTION 7SPARE PARTS ....................................................................................................................................... 39
Recommended Spare Parts .............................................................................. 39
SECTION 8DECLARATION OF CONFORMITY ............................................................................................................... 40

5
.............................
CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009
Section 1 Introduction
Introduction
General
Please read this manual carefully, it contains information that will assist you with all aspects of
installation and maintenance, including unpacking. Correct installation & Maintenance will
ensure smooth functionality and increase the lifespan of components.
Gunnebo makes every effort to ensure that this manual is reviewed whenever significant
changes are made to the design. However, our policy of continuous improvement may result in
some small differences between the unit supplied and the description in this document.
Enquiries in this respect should, in the first instance be directed to our Technical Department.
Telephone [phone], Fax [phone],
E-mail [e-mail]
Electrical Warnings
The electrical power used in this equipment is at a voltage high enough to endanger life. Before
carrying out maintenance or repair, you must ensure that the equipment is isolated from the
electrical supply and tests made to verify that the isolation is complete.
When the supply cannot be disconnected, functional testing, maintenance and repair of the
electrical units is to be undertaken only by persons fully aware of the danger involved and who
have taken adequate precautions and training.
Mechanical Warnings
Safety systems and controls, such as interlocks, covers and guards, must not be overridden or
by passed by personnel other than authorised staff who are qualified to carry out prescribed
actions within specified Warnings.
Only trained individuals should work on the unit as it has many moving parts and there is a
possibility of serious injury.
Errors
Reports on errors, comments and suggestions concerning this manual are requested and
encouraged. They should be submitted to:
Technical Department, Gunnebo Entrance Control Ltd, Bellbrook Business Park, Uckfield, East
Sussex, TN22 1QQ, UK.
Telephone [phone], Fax [phone],
E-mail [e-mail]
Proprietary Notices
All data appearing herein, is of a proprietary nature, with exclusive title to it held by Gunnebo.
The possession of this Manual and the use of the information are therefore restricted only to
those persons duly authorised by Gunnebo.
Do not reproduce, transcribe, store in a retrieval system or translate into any human or
computer language, any part of this Manual without prior permission of Gunnebo.

6
.............................
CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009
Changes
No hardware or software changes may be made without authority from Gunnebo who will be
responsible for ensuring that the proposed change is acceptable in all safety aspects. Only
personnel authorised by Gunnebo may make changes.
Any maintenance or modification of Emergency Stop and Guarding Circuitry must be followed
by safety checks on the whole hardwired Emergency Stop and Guarding Circuitry.
Prior to a hardware change, records must be made of the change, one of which MUST be sent
to the Technical Department at Gunnebo.
Rotating Machinery
Rotating industrial machinery may possess huge amounts of stored energy. On no account
must you commence maintenance if you do not fully understand what you are doing and/or
have not taken all the safety precautions normally associated with industrial electronic control
systems and machines.
Before starting work on the equipment, please make yourself familiar with all the system sub-
assemblies, including control loops, mechanics, drives, transducers and electric circuits. Please
read this Manual if you are unfamiliar with the equipment before you commence work.
Warnings, Cautions and Notes
Where necessary within this technical manual, Warnings, Cautions and Notes may be given.
Warnings
Are for conditions that might endanger people. The instructions given in Warnings must be
followed precisely. They are given to avoid injury or death.
Cautions
Are for conditions that may cause damage to equipment, or may spoil work. The instructions
given in Cautions must be followed to avoid spoilt work or damage to equipment.
Notes
Alert the user to pertinent facts and conditions.
Static Sensitive Devices
The PCB in the equipment covered by this Technical Manual contains Static Sensitive Devices.
It is recommended that maintenance and service engineers are fully aware of the Local Industry
Regulations and procedures when handling such devices.

7
.............................
CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009
Good Practices
Equipment being installed must not be left unattended, unless all potential mechanical and
electrical hazards have been made safe. A competent person must be left in charge when the
equipment is to be left while potentially unsafe.
The following points indicate good practice that will contribute to safety and avoid equipment
damage.
I. Ensure that all electrical power supplies are turned OFF and disconnected
before working on any of the equipment.
II. Never leave the equipment in a potentially dangerous state.
III. Use only the correct tools for the task in hand.
IV. When working on the equipment, remove any personal jewellery that may be
conductive, or clothing that may become entangled with mechanical parts.
Equipment Safety Systems
Safety systems and controls, such as interlocks, covers and guards, must not be overridden or
bypassed by personnel other than authorised staff who are qualified to carry out prescribed
actions within specified Warnings.
Risk Assessment
Risk assessment is graded into categories of safety, rated 1 to 8 (where 8 is the highest risk
level). The following activities are covered.
Rating Activity
1 Cleaning
2 General Installation
3 Servicing
4 Servicing
General Maintenance
Using Chemical Fixers
5 Commissioning
8 Floor Drilling
Glass Panel Installation
Rating 1: Cleaning.
Who is at Risk Engineers or Site Personnel
Hazard Misuse of Cleaning Fluids
Current Controls Compliance with COSSH regulations
Rating 2: General Installation
Who is at Risk Site Personnel
Hazard Objects/Tools in Installation area
Current Controls Trained Installation Engineers
Rating 4: General Maintenance

8
.............................
CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009
Who is at Risk Site Personnel
Hazard Electric Shock
Current Controls Isolation of Power/Trained Service Personnel
Using Chemical Fixer
Who is at Risk Site Personnel within the Vicinity of the Work Area
Hazard Fume Inhalation
Current Controls Compliance with COSSH regulations
Rating 5: Commissioning
Who is at Risk Site Engineer
Hazard Power Supply/Moving Parts
Current Controls Isolate Power
Rating 8: Floor Drilling
Who is at Risk Installation Engineer
Hazard Flying Debris and Noise
Current Controls Protective Equipment must be worn
Glass Panel Installation
Who is at Risk Installation Engineer
Hazard Glass Breaking
Incorrect handling techniques
Current Controls Protective Equipment must be worn.
CE - Marking
The Gunnebo GlasStile GSR is CE marked, developed and manufactured and tested according
to the EU‟s Machinery, Low-Voltage and EMC-Directives.

9
.............................
CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009
Section 2 Product Description
Product Description

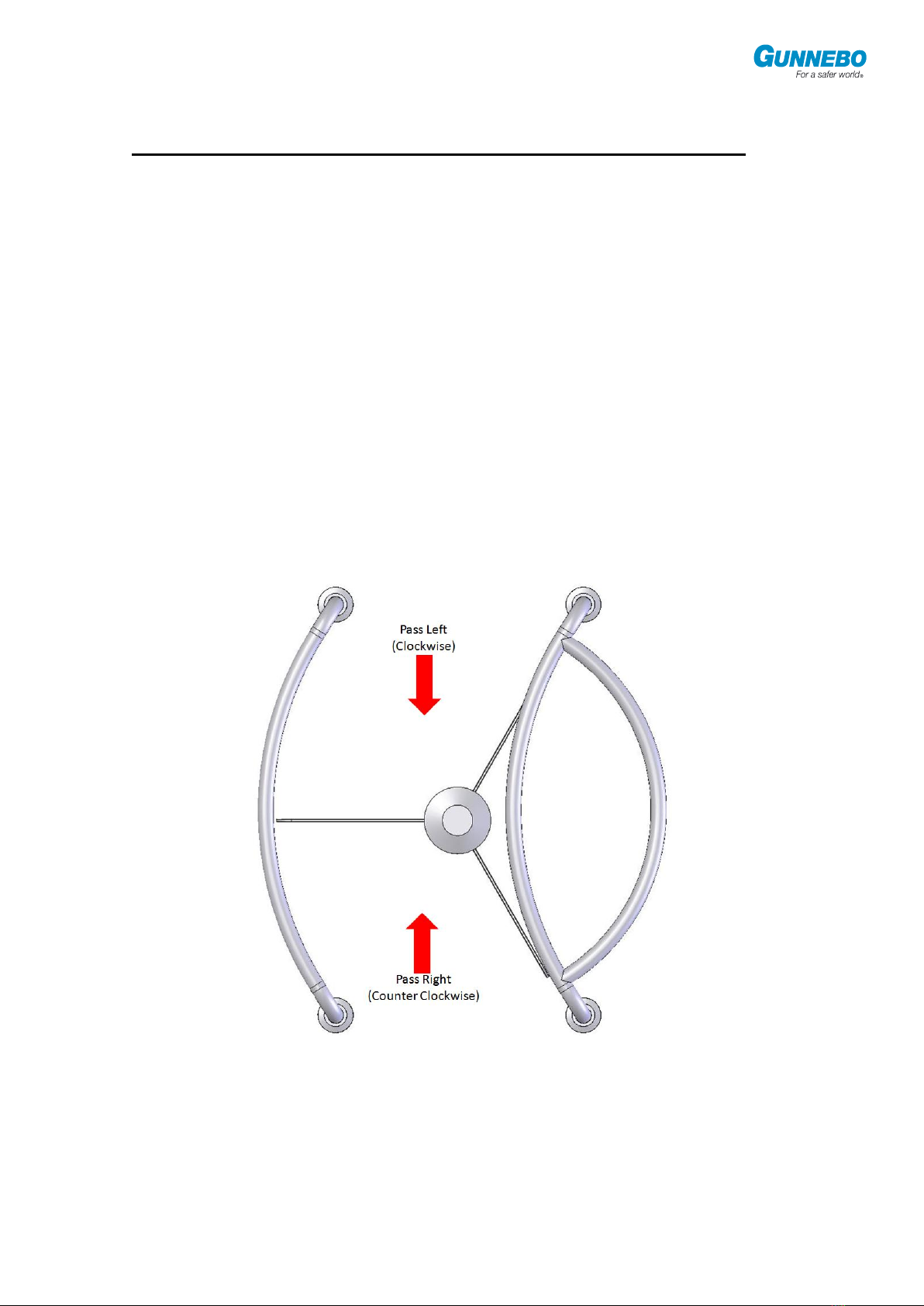

The Gunnebo GlasStile GSR is a revolving entrance gate with glazed panels. The GlasStile
GSR rotates clockwise or counter-clockwise 120before being locked by an electro-magnetic
brake. The GlasStile GSR is activated in each direction by impulses to the driving electronics
unit from the reception or impulse unit (e.g. card reader or pushbutton).
Any impulse unit with a dry contact closing for between 0.5 - 1.0 seconds can be connected to
GlasStile GSR. Acknowledgement output pulse of completed rotations is given before and after
each rotation is completed. Optional status lights can show the status of the gate.
The speed, time delay, drive mode and individual setting of the panel‟s home positions can be
altered using an optional Hand Programming Unit. In the event of a power failure the
programmable functions are stored in a non-volatile memory.
The drive electronics are mounted on a printed circuit board that has connection points for
power, motor, brake, sensors, impulse units and status lights.

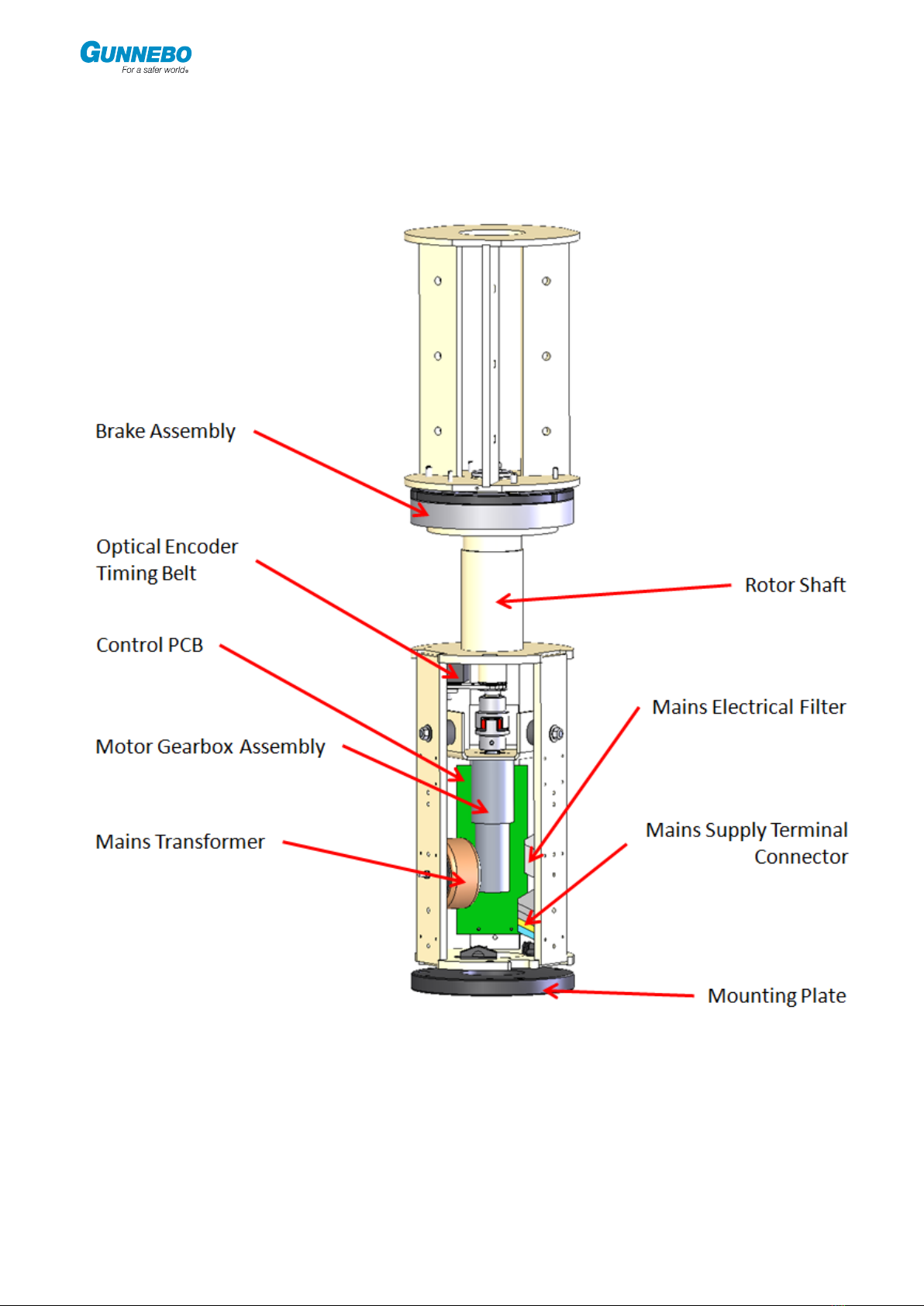

A 24V DC motor with gearbox drives the gate. An encoder is connected to the outgoing shaft
by a gear belt. The encoder‟s function is to monitor the position of the gate.

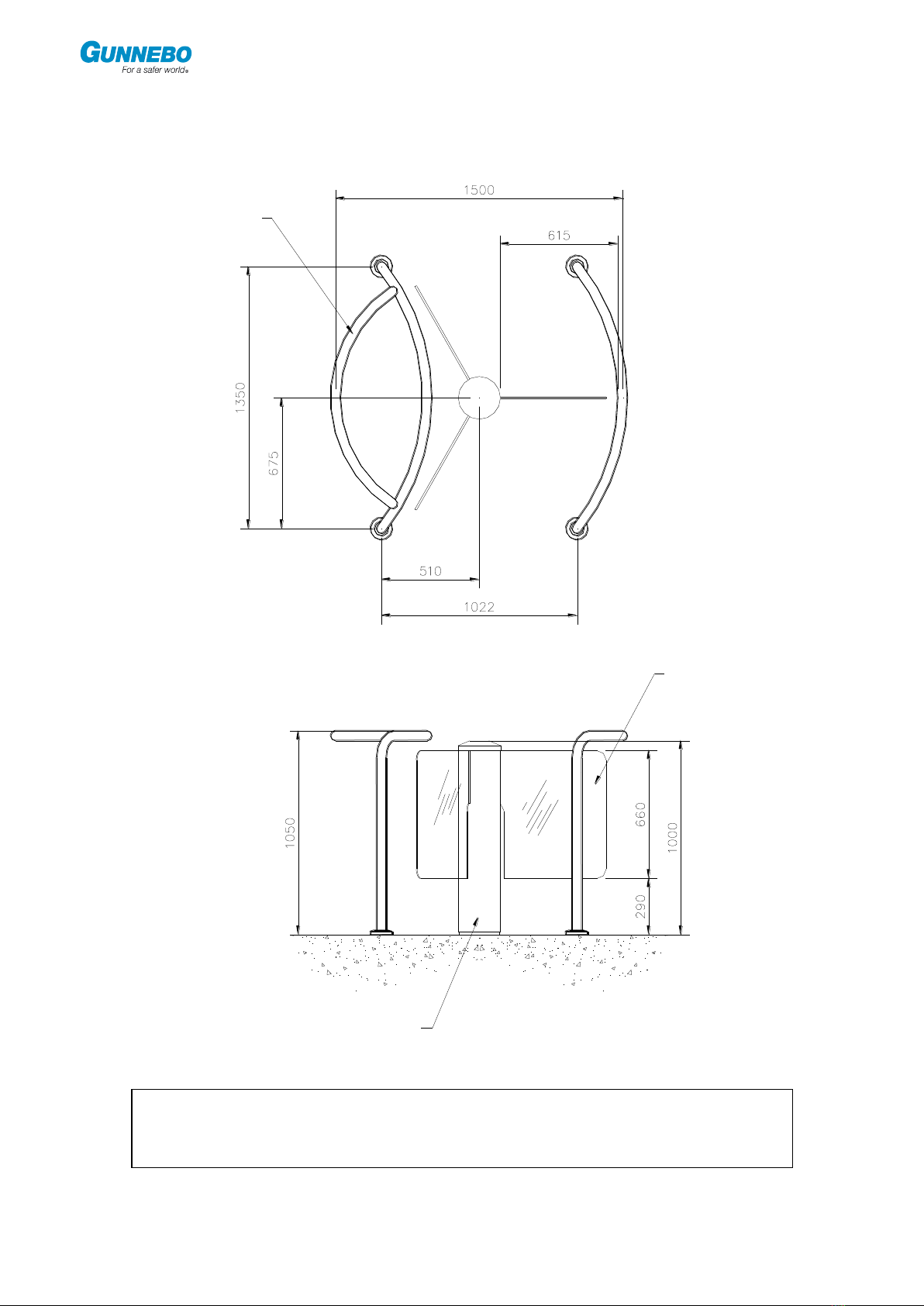

Type "A" Casework

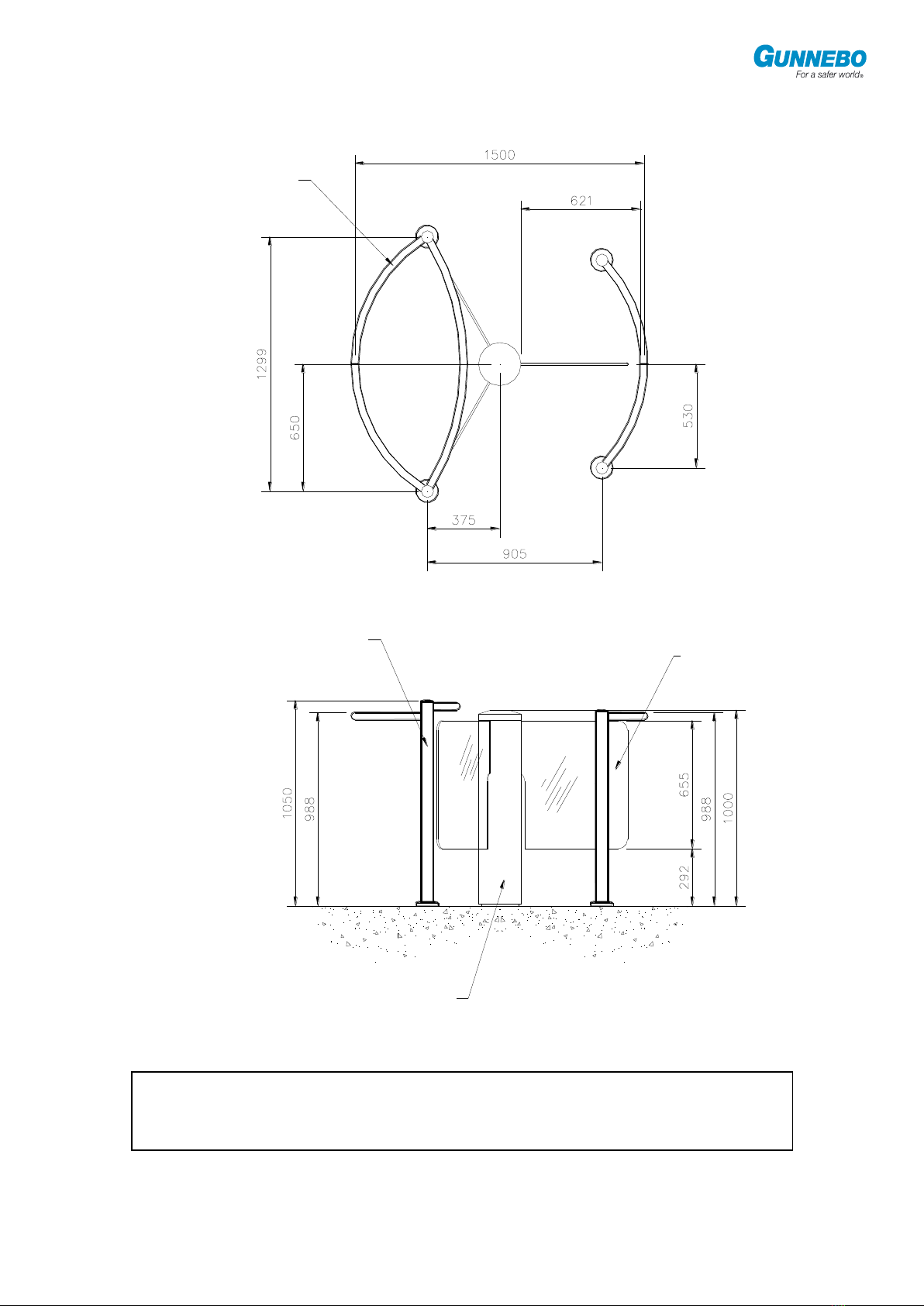

Type "B" Casework

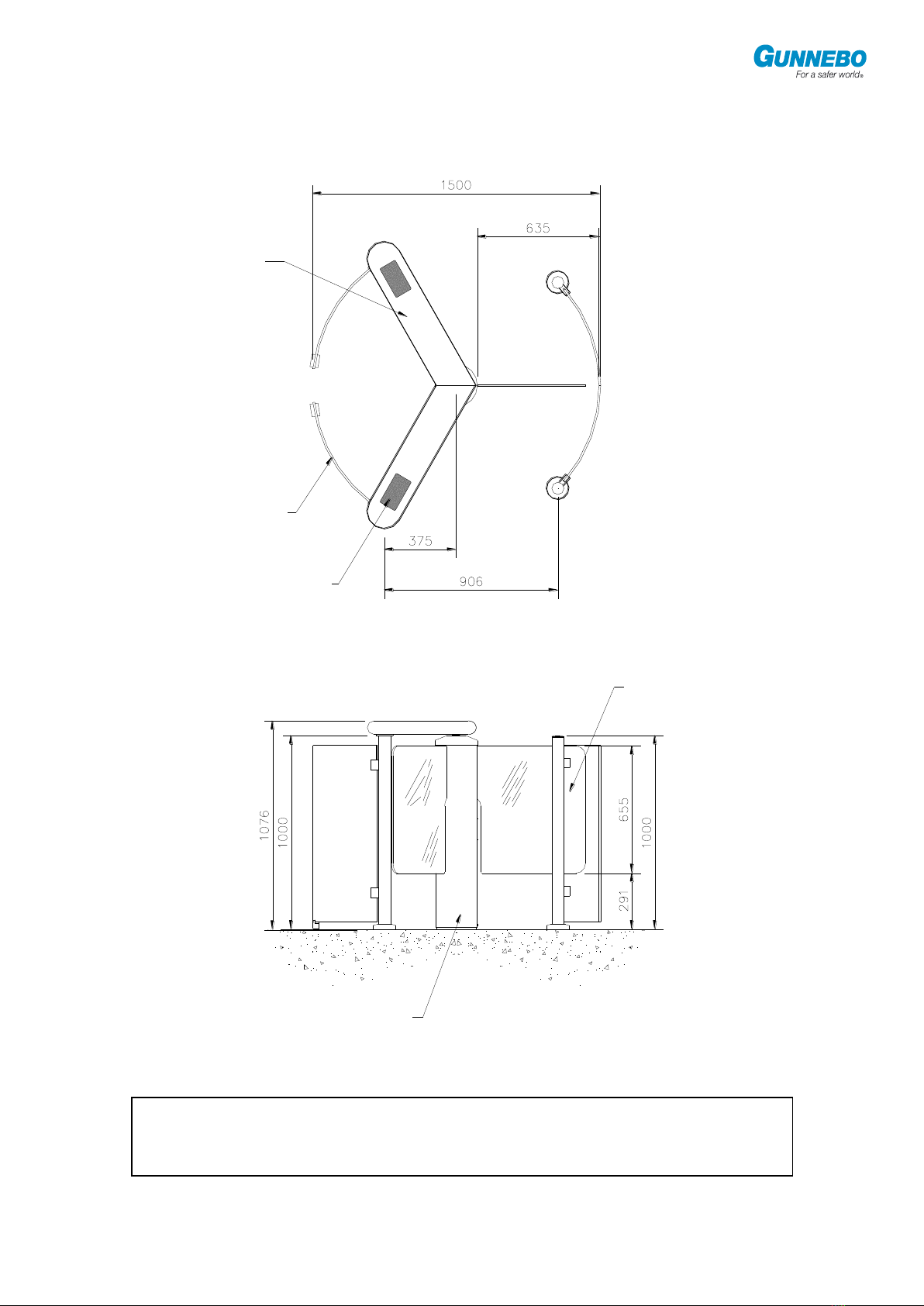

Type “C” Casework

10
.............................
CCEC/ OM Manual GlasStile GSR 1.6 EN 07.2009
Technical Specification
Unit Dimensions Column Height: 1000mm
Column Diameter: 220mm
Casework
Size
Casework
Type
Height
mm
Depth
mm
Width
mm
1350
A
1050
1189
1387
1350
B
1050
1350
1350
1350
C
1076
1350
1350
Note: Casework is also available to special order in size 1500.
Drive 24V DC Motor and gearing
Orientation Vertical
Materials Cladding - Stainless Steel Grade 304
Panels -Toughened Glass
Power Failure Gate Rotate freely with any power loss or emergency signal
Power Supply Voltage: 110/230 VAC 50/60Hz
Power rating: 250 W, fuse 1.0 A
Note - Class C mains circuit breaker is required.
Other dimensions and materials are available upon request to Gunnebo.
