GVA G85FFW15 User manual

Instruction Manual
G85FFW15
85L Refrigerator/ Freezer

1
Contents
Guide to the Appliance
13
7
4
3
2
14
15
17
Caring for the Envir
Safety Informatio n and
Get ting Started
Op e ration Instruc tions
Tro ubleshooting
Care and Main te n an ce
Te c hn ic al Specificatio n s

Guide to the Appliance
Due to production improvements, the appliance may differ slightly from the diagram
shown. Diagrams in this instruction manual are for reference only.
Lower Fridge
Door Shelf
Upper Fridge
Door Shelf
Fridge Door
Freezer Door
Salad Bin Cover
Salad Bin
Fridge Glass Shelf
Thermostat
Control & Light
Freezer
Compartment
Levelling Feet
2
Note:
2

3
3
Responsible disposal of the packaging
•The packaging of your appliance has been selected from environmentally friendly materials
and can usually be recycled. Please ensure these are disposed of correctly.
•Plastic wrapping can be a suffocation hazard for babies and young children, please ensure
all packaging materials are out of reach and are safely disposed of. Please ensure they are
offered for recycling rather than throwing these materials away.
Responsible disposal of the appliance
•At the end of its working life, do not throw this appliance out with your household rubbish.
An environmentally friendly method of disposal will ensure that valuable raw materials can
be recovered and used again.
•Electrical and electronic appliances contain materials and substances which, if handled or
disposed of incorrectly, could be potentially hazardous on the environment and human
health.
•Observe any local regulations regarding the disposal of electrical consumer goods and
dispose of it appropriately for recycling and recovery of the refrigerant. This appliance
contains the flammable refrigerant isobutane (R600a) and cyclopentane (R141b) in the
cabinet insulation, and must be disposed of in a separate waste collection. Contact your
local authorities for advice on recycling facilities in your area.
•Take care not to damage the pipework at the back of the appliance before or during
transportation so that the refrigerant gas cannot escape.
•The plug must be rendered useless and the cable cut off directly behind the appliance or
the machine to prevent misuse.
•DANGER. Risk of child entrapment: When discarding a fridge or freezer, make sure to
take off the door and the spring action or bolt catch. Leave the shelves in place so that
children cannot easily climb in, get trapped inside and suffocate.
Caring for the Environment

Safety Information and Warnings
Read this manual thoroughly before first use, even if you are familiar with this type of product.
We have provided many important safety statements in this manual concerning the use of this
appliance. Always read and observe all safety statements. They reduce the risk of fire, electric
shock and injury when correctly adhered to.
Keep the manual in a safe place for future reference, along with the purchase receipt.
If applicable, pass these instructions on to the next owner of the appliance.
Pay particular attention to safety messages that follow this safety alert symbol or the
words DANGER
DANGER
WARNING
WARNING
CAUTION
CAUTION
, or . These words are used to alert you to a
potential hazard that can seriously injure you and others.
The instructions will tell you how to reduce the chance of injury and let you know what can
happen if the instructions are not followed.
means that failure to read this safety statement may result in severe personal injury.
means that failure to read this safety statement may result in extensive product
damage or serious personal injury.
means that failure to read this safety statement may result in minor or moderate
personal injury, property or equipment damage.
This symbol alerts you to take care as the appliance contains a flammable
refrigerant. Do not expose it to high heat, sparks or open flame.
We assume no liability for any eventual damages caused by misuse of the appliance or non-
compliance with the instructions in this manual.
CAUTION:
Flammable Gas
4

Damaged cord: Do not use a cord that shows cracks or abrasion damage along its length or at
either end. If the power cord is damaged, it must be replaced by the manufacturer or its
service agent. Contact GVA customer care for advice.
5
Safety Information and Warnings
Installation
Electrical Safety
Heavy: This appliance is heavy, take care when moving it. To avoid back or other injury, consider
a two person lift or mechanical aid when installing it.
Location: The room for installing the appliance must be at least 1M ³per 8g of refrigerant. The
amount and type of refrigerant in the appliance can be found on the rating plate on the back of
the appliance.
Moisture: Install the fridgein an indoor area protected from wind, rain, water spray or drips.
Heat: Do not install it next to an oven, grill or other source of high heat.
Ventilation: To ensure proper ventilation, the front of the appliance must be completely
unobstructed. Keep any ventilation openings clear of obstructions. Choose a well-ventilated area
with temperatures above 16˚C and below 43˚C .
Refrigerant circuit: Do not damage the refrigerant circuit.
Level: Install the appliance on a level surface or adjust the feet to level the appliance and ensure
proper operation.
Pipes:Make certain that the pipes are not pinched, kinked or damaged during installations.
Check for leaks after connection.
Voltage: Make sure your outlet voltage and circuit frequency correspond to the voltage stated on
the appliance rating label. Plug the fridgeinto a 220-240V, 50Hz, 3-prong, power outlet with a
15A fuse at the mains. The outlet must be properly earthed to the ground.
Separate circuit: Do not use an adaptor; do not use an extension cord. We recommend you
connect the fridge to a separate circuit serving only this appliance. This provides the best
performance and prevents overloading the house wiring circuits that could cause a fire hazard
from overheating. Use a power point that cannot easily be turned off accidentally.
Power cord:Do not kink or damage the power cord. Do not leave it exposed or dangling. Secure
it behind the appliance so no one steps on or places anything on the cord or against it. Never
unplug the appliance by pulling the cord. Always grip the plug firmly and pull straight out from
the power point.
Electrical work: If the installation of this appliance requires any electrical work, make sure itis
carried out by a qualified electrician.

6
Safety Information and Warnings
Usage conditions and restrictions
•This appliance is intended to be used in household and similar applications such as:
1）Staff kitchen areas in shops, offices and other working environments;
2）Farm houses and by clients in hotels, motels and other residential type environments;
3）Bed and breakfast type environments;
4）Catering and similar non-retail applications.
•Intended purpose: Do not use this appliance for anything other than its intended
purpose, and only use it as described in this manual. Do not attempt to alter or modify this
appliance in any way.
partments of the appliance, unless they are specifically recommended in this manual.
•Electrical type appliances: Do not use any such appliances inside the food storage com-
•Usage restrictions : The ap pliance is not intended for use b y persons(includi n g ch il dren) with
reduced physical, sens ory o r mentalcapabilities , o r lack of experience and know le dge , u nless
they have been given sup ervision or ins truction concer nin g u se o f the ap pliance b y a person
respon sible for their safety.
•Children: Supervise children to ensure they do not play with the fridge. Never allow chil-
dren to operate, play with or crawl inside the bar fridge.
specifically recommended in this manual . Refer a ll other servicing to a qualified technician,
Cleaning and maintenance
•Disconnect: Unplug the bar fridge or disconnect power before cleaning or servicing.
Failure to do so can result in electrical shock, injury or death. Do not connect or disconnect
Do n ot
Do not let open flames or ignition sources enter the appliance.
the electric plug when your hands are wet.
•Flames:
•Flammable/explosive substances:Never clean this appliance with flammable fluids.
store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The fumes can create a fire hazard or explosion caused by electric sparks.
•Solvents: Do not use solvent based cleaning agents or abrasives on the interior. These
cleaners may damage or discolour the interior.
•Defrosting aids: Do not use mechanical devices, steam cleaners or other means to
accelerate the defrosting process. Never use a sharp or metal instrument to remove frost
as it may damage the cooling system and will void the warranty. We recommend using a
plastic scraper.
•Service: Do not attempt to repair or replace any part of the bar fridge unless it is
or contact the after sales supportline for advice on repair or replacement. It is
hazardous for anyone other than an Authorised Service Person to service this appliance.
In Queensland - the authorized Service Person MUST hold a Gas Work Authorisation for
hydrocarbon refrigerants, to carry out Servicing or repairs which involve the removal of
covers.

Getting Started
Before First Use
Installing the Appliance
Unpack the appliance, keep all packaging materials until you have made sure your new
appliance is undamaged and in good working order.
Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all
packaging materials are out of their reach.
Check to ensure you have all the parts listed on the 'Guide to the Appliance' page, plus
an instruction manual and a warranty card.
Read this manual to familiarise yourself with all the parts. Pay particular attention to the
safety instructions on the previous pages.
Unwind the cord to its full length and inspect it for damage. Do not use the appliance if
Before installing your new appliance, read all safety instructions in this manual, especially
the sections on electrical safety and installation. Then follow the instructions below.
This appliance is designed to be freestanding only and should not be recessed or built in.
Place the appliance on a sturdy, level floor that is strong enough to support the appliance
when it is fully loaded.
DO NOT install the appliance directly on carpeting or soft material. Carpeting must be
removed or be protected by a metal or wood panel beneath the appliance, which extends
at least the full width and depth of the appliance.
NOTE: Ensure that the appliance does not stand on the electrical supply cable. Parts
which heat up should not be exposed. Whenever possible, the back of the appliance
should be close to a wall but leaving the required distance for ventilation.
the appliance or its cord has been damaged. In case of damage, contact GVA customer
care for advice on examination, repair or return of the damaged product.
Make sure the appliance is disconnected from the power supply before cleaning the
interior surfaces with lukewarm water using a soft cloth to remove any dust from transit
and storage. Dry the appliance thoroughly.
Overloading the fridge will affect cold air circulation and cooling performance. We therefore
recommend you only load the fridge up to about 70% of its storage volume, always leave
some space around food stored, and do not use containers that are too large and block
ventilation openings.

Getting Started
Location
Locate the appliance
- Away from direct sunlight, which may affect the acrylic coating.
- Away from sources of heat (stove, heater, radiator, dishwasher, etc.), which may
increase power consumption.
-In an area without extreme cold ambient temperatures, which may affect cooling
performance.
-In a cool, well-ventilated area, without excessive moisture and high humidity.
Installing the appliance in the coolest area of the room will save energy consumption and
running costs.
To ensure correct operation, this appliance must not be located where the temperature
will be below 16°C or above 43°C.
Ensure there are no obstructions that could prevent the door from closing.
To level the appliance, adjust the levelling legs at the bottom of the appliance.
The appliance must have at least 50mm clearance between the rear of the appliance and
the wall, 25mm between the sides and wall, and the space above the top should be at
least 25mm. Ensure that there is enough spacing to open the door to 160°.
Before plugging in your new appliance, let it stand upright for approximately 2 hours. This
will allow the refrigerant gases to settle into the compressor and reduce the possibility of
a malfunction in the cooling system from handling during transportation.
The appliance is suitable for connection to 220-240VAC 50Hz supply. The appliance must
be plugged into a dedicated individual 220-240VAC main socket outlet.
Plug the appliance into an exclusive, properly installed and earthed wall outlet. Do not
under any circumstances cut or remove the third (ground) prong from the power cord. If
in doubt about your setup, direct any questions concerning power and/or grounding to a
certified electrician.
Do not use an extension cord or an adapter plug.
NOTE: After plugging the appliance into a wall outlet, allow it to cool down for at least 2 or
3 hours before placing food inside.
Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
Secure the supply cord behind the appliance. Do not leave it exposed or dangling to
prevent injury and accidental disconnection from the power supply.
This appliance is intended to be used in households and similar applications such as:
- staff kitchen areas in shops, offices and other working environment;
- by clients in hotels, motels and other residential type environments;
- farm houses;
- bed and breakfast type environments.
8
8

Getting Started

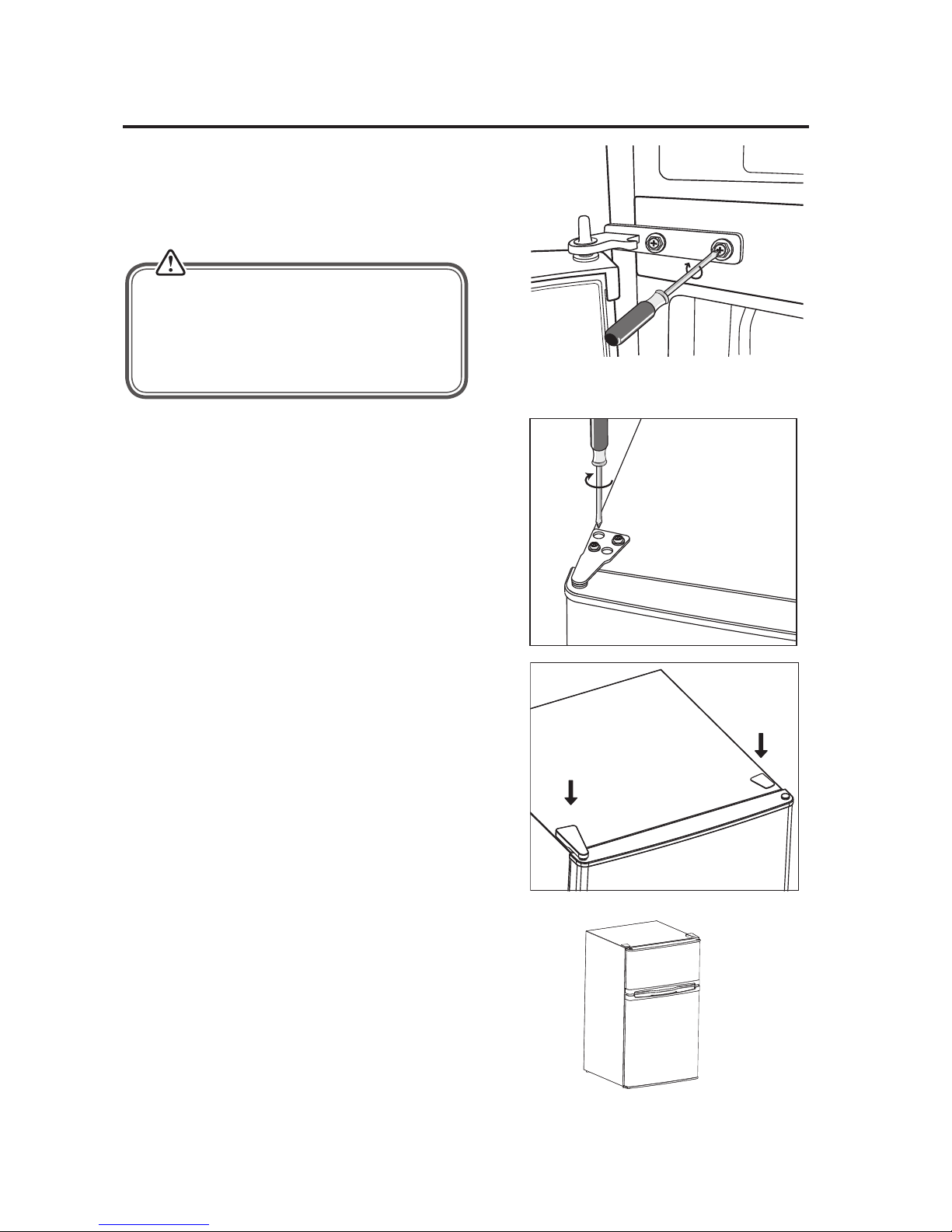

This door can be opened from either the left side (as supplied) or right side to suit your individual
installation requirements. If you want to open the door from the right side, follow the instructions
below to reverse the door swing.
WARNING Ensure the appliance is disconnected from the power supply when reversing door
swing.
Unscrew
1. Remove the top right hinge cover.
2. Undo the screws. Then remove the hinge bracket.
3. Remove the top left screw cover.
9

Unscrew
4. Move the core cover from left side to right side.
And then lift the upper door and place it on a
padded surface to prevent it from scratching.
5. Take off the middle hinge by removing the screws.
Lift the lower door and place it on a padded surface
to prevent it from scratching.
6. Remove the screws’ covers and place
them on the opposite side.
7. Remove the screws and bottom hinge. Then
remove the levelling feet from both side.
10
Getting Started

Unscrew Screw
Screw
8. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
9. Re-fit the bottom hinge. Replace both levelling
feet. Transfer the door to the proper position.
10. Move the hinge hole cover of lower door
from left side to right side.
11
Getting Started

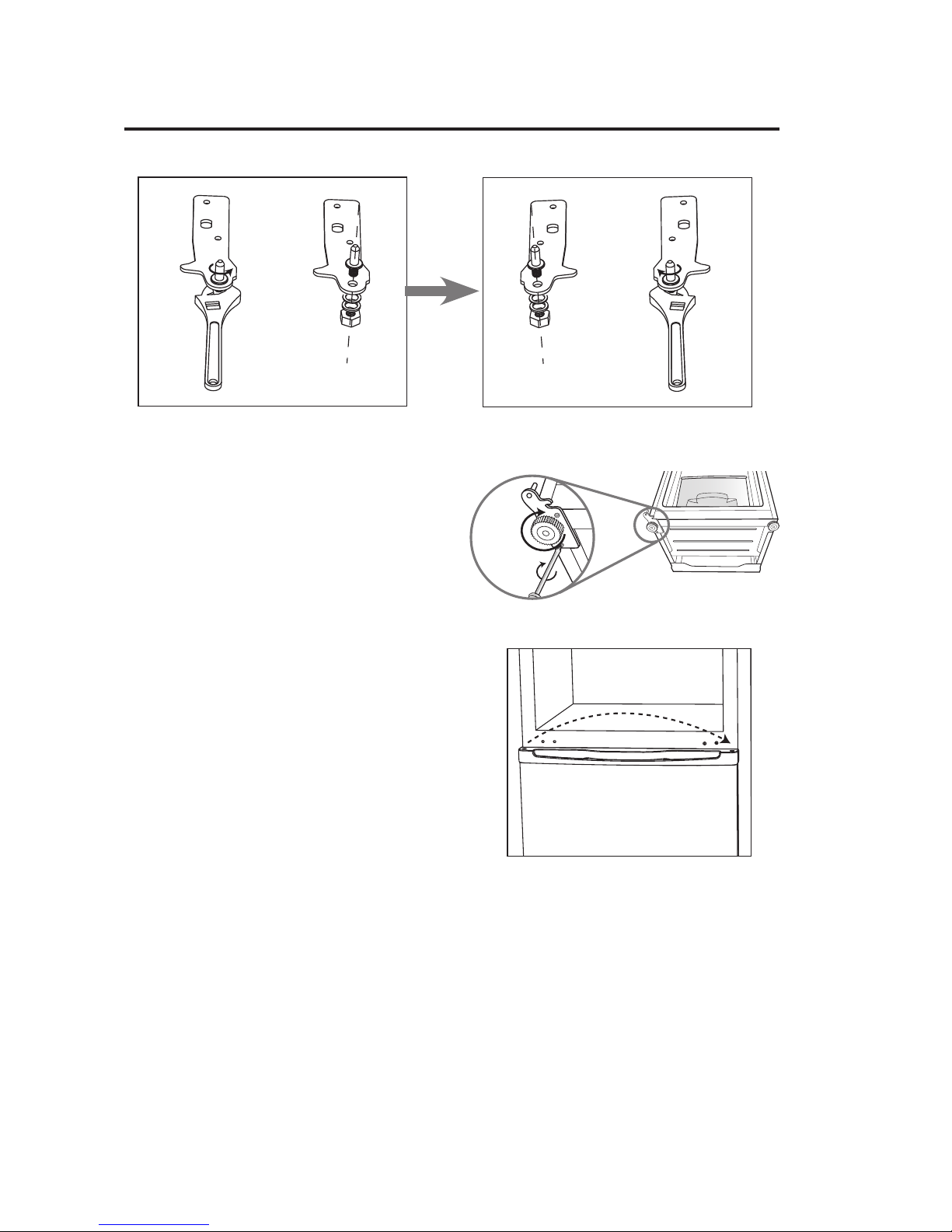

11. Reverse the middle hinge 180°C, then transfer
it to the left position. Insert the middle hinge pin
in the upper hole of the lower door, then tighten
the bolts.
Ensure the door is aligned horizontally and
vertically so that the seals are closed on all
sides before finally tightening the hinge.
12. Place the upper door back on. Ensure the
door is aligned horizontally and vertically so
that the seals are closed on all sides before
finally tightening the top hinge.
13. Insert the hinge bracket and screw it to the
top of the unit.
14. Use a spanner to tighten it if necessary.
15. Put the hinge cover and the screw cover back.
16. With the doors closed, check that the doors
are aligned horizontally and vertically and that
the seal is closed on all sides before finally
tightening the bottom hinge. Re-adjust the
levelling feet as needed.
12
Getting Started

13
Operation Instructions
Switching on the Appliance
Adjusting the Temperature
Storing Fresh Food
Normal Operating Sounds
1. Before connecting the appliance to the mains supply, adjust the thermostat control dial to
the desired position. Bear in mind that the higher the number, the lower the temperature.
Position 3 is the recommended setting when operating at normal room temperature
(between 16°C and 43°C).
2. The appliance may not operate at the correct temperature ifitisin a particularly hot or a
particularly cold room, or if you open the door often.
3. To ensure that the appliance is cool enough to sufficiently chill your food, wait 24 hours
before filling it with food.
The internal temperature of the appliance is controlled by a thermostat. The recommended
position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to
7 for hotter environments. Please adjust according to the environment.
The fresh food (refrigerator) compartment is suitable for short-term storage of fresh food. The
temperature inside varies depending on the amount of food stored and the frequency of door
opening.
In order to maintain good cooling efficiency and save energy, we recommend you do not open
the door for too long or too often. Do not overload the refrigerator, and keep enough space
around items for cold air flow. Do not block ventilation openings.
The following noises are characteristic of refrigeration appliances:
Clicks: Whenever the compressor is switched on or off, a click sound may be heard.
Humming: As soon as the compressor isin operation, you may hear it humming.
Bubbling/Splashing: When refrigerant flows into thin tubes, you may hear bubbling or splashing
noises. Even after the compressor has been switched off, this noise may still occur for a short
time.

Troubleshooting
The appliance does not
Problem Possible Cause
operate.
-It is not plugged in. Ensure it is properly plugged in and there is
power at the socket (plug another appliance into the outlet to
check).
-The circuit breaker tripped or has blown a fuse.
-The temperature control is set to OFF.
-A general power outage has cut power to your home (check the
household lights).
The temperature is not
cool enough.
-The room temperature is hotter than normal.
-A large amount of food has been added at once.
-The door is opened too often.
-The door is not closed completely.
-The temperature control is not set correctly.
-The door gasket does not seal properly.
There are vibrations. -The appliance is not level.
The appliance seems to
make too much noise.
-A rattling noise may come from the flow of the refrigerant, which
is normal. A popping and crackling noise may be caused by the
contraction and expansion of the inside walls.
-The appliance is not level, or is touching other furniture.
-Bottles or packages inside are touching each other.
The door will not close
properly.
-The appliance is not level.
-The door was reversed and is not properly installed.
-The gasket is dirty or bent.
-The shelves, racks or crisper are out of position.
The door will not open. -If the door has just been opened, leave it for a few minutes to
allow the air pressure to equalise before trying again.
Moisture forms on the
inside or outside walls of
the appliance.
-Hot and humid weather increases the internal rate of frost build-
up. This is normal.
-Open the door less often and make sure it is always properly
closed.
The external surface is
warm.
-The exterior walls can be warmer than room temperature. This is
normal while the compressor works to transfer heat from inside
the cabinet.
Excessive frost and ice has
built up.
-The door has been left open.
-Something is preventing the door from closing.
-The door gasket is dirty or damaged.
-Make sure to defrost the appliance regularly.
The compressor runs
continuously.
-The temperature is set too cold: select a lower (warmer) setting.
-The door is open, or something is obstructing proper door
closure.
-The door gaskets are worn, dirty or damaged.
-Large quantities of food have been added.
-The room temperature is hotter than usual.
If you experience a problem with your appliance, check in the following table for solutions to
help you solve the problem. If after these checks you still have a problem with your
appliance, call GVA customer care for advice.
14

15
Care and Maintenance
Defrosting the Appliance
Cleaning the Appliance
Power Failure
Vacation Time
When? For the most efficient operation and minimum energy consumption, defrost the appliance
when the frost accumulated on the evaporator is about 5mm thick.
How? Turn the thermostat dial to the [0] position and unplug the cord. Remove perishable food
items and keep them in another fridge or freezer or place in a cooler bag to protect the food.
Defrosting usually takes a few hours. After defrosting, dry the inside of the appliance and return
the thermostat dial to the desired position.
To defrost quickly, remove all food from the appliance and leave the door open.
CAUTION: Do not use boiling water because it may damage the plastic parts. Never use sharp
or metallic instruments to remove frost as they may damage the cooling system. Use a plastic
scraper if required.
CAUTION: Before cleaning, make sure to turn the thermostat dial to the [0] position, unplug
the power cord and remove the food.
Remove all the shelves and drawers.
Wipe the inside of the appliance with a weak solution of bicarbonate soda and then rinse
with warm water using a sponge or cloth. Wipe completely dry before replacing the
shelves and drawers.
Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish.
Make sure that the door is closed to avoid the polish getting on the magnetic door seal or
inside the appliance.
The grille of the condenser at the back of the appliance and the adjacent components can
be vacuumed using a soft brush attachment.
Most power failures are corrected within a few hours and should not affect the temperature of
your fridge if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you will need to take the proper steps to protect your contents.
Short holidays: leave the appliance operating during vacations of less than three weeks.
Long holidays: if the appliance will not be used for several months, remove all food, unplug the
power cord and thoroughly clean and dry the interior. To prevent odour and mould growth,
block the door open slightly.

Care and Maintenance
Energy Saving Tips
Moving the Appliance
Switching off the Appliance
Place the appliance in the coolest area of the room, away from heat-producing
appliances and out of direct sunlight.
Do not line any storage bin with aluminium foil, wax paper or paper towels. Liners
interfere with cold air circulation, reducing cooling efficiency.
Do not leave the door open for longer than required.
Let hot foods cool down before placing them inside. Overloading the appliance forces the
compressor to run longer.
Wrap foods properly and wipe containers dry before placing them in the appliance. This
cuts down on frost build-up inside.
Remove all the contents in the appliance.
Securely tape down any loose items inside.
Turn the levelling screws up to the base to avoid damage.
Tape the door shut.
We recommend moving the appliance in its original packaging. Otherwise, make sure to
protect the outside with a blanket or similar item during transportation.
Be sure the appliance stays in the upright position during transportation.
Do not apply force on any external part such as pipes, condenser or door when moving.
Ensure the appliance stays secure in an upright position; do not tilt it for more than 45°
from upright.
To switch off the appliance, turn the thermostat dial to position “0”. If the appliance is
not going to be used for an extended period:
Remove all items.
Switch off the appliance by turning the thermostat dial to position “0”.
Remove the mains plug, switch off or disconnect the electricity supply.
Clean thoroughly.
Leave the door open to avoid the build-up of odours.
Once the appliance has been turned off, allow it to settle down for about 10 minutes
before turning the appliance on. This will prevent the compressor from being
damaged.
16

Model: G85FFW15
Group: 4 (Refrigerator/Freezer)
Product dimension WxDxH : 470mm x 500mm x 850mm
Total gross volume: 85L
Total storage volume: 84L
Fresh-food compartment storage volume: 59L
Freezer compartment storage volume: 25L
Climate class: T
Rated voltage: 220-240V.
Rated Frequency: 50Hz
Rated Current: 0.6A
Star Rating: 1.5
Energy consumption: 295 kWh per year
7

M.E.W. (Australia) Pty Ltd
15 Vaughan Street
Essendon Fields VIC 3041
ACN 152 719 036
1300 725 885
[email protected]
gvaproducts.com.au
CKGVA-P01-A
