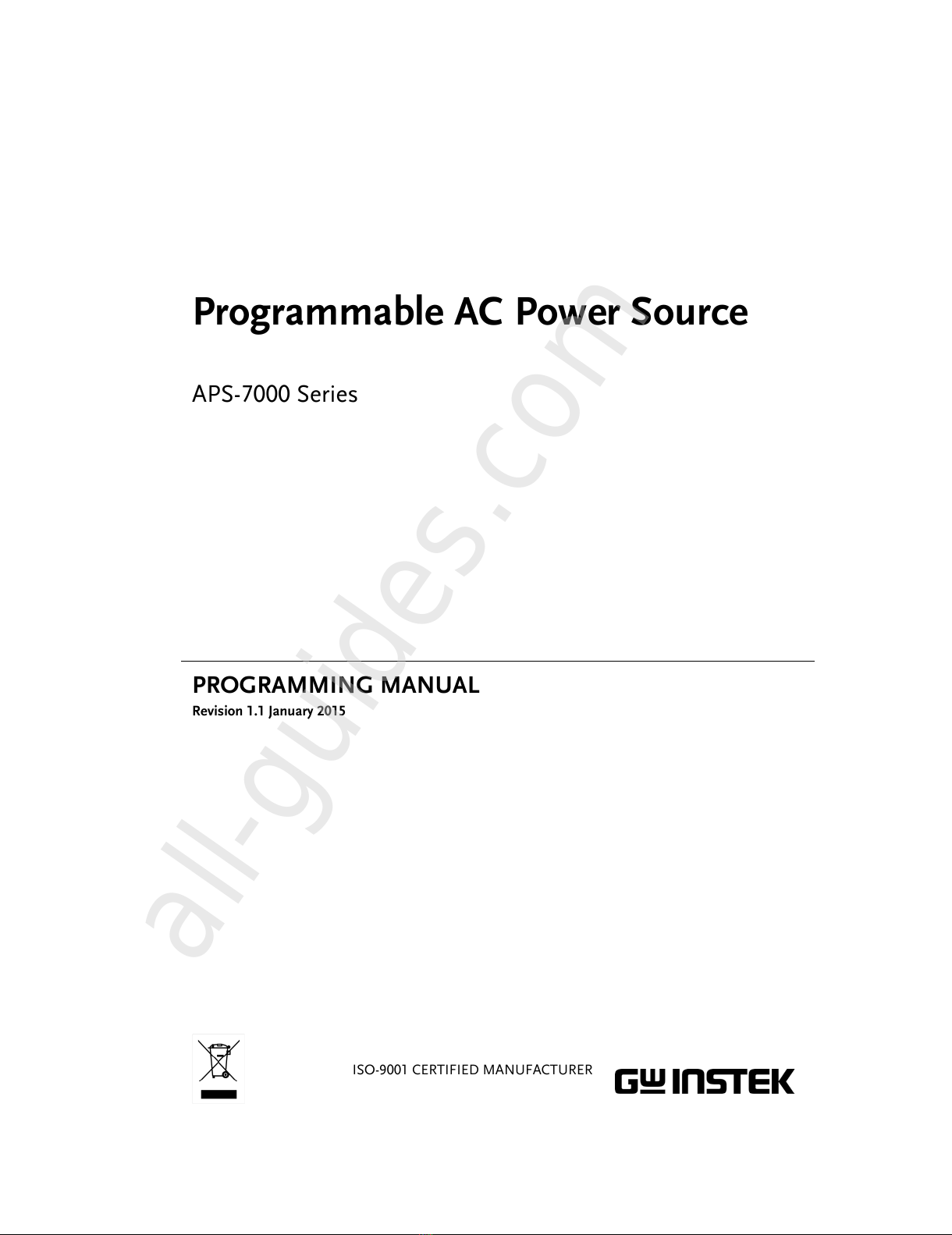

GW Instek APS-7100 Owner's manual

Programmable AC Power Source
APS-7000 Series
PROGRAMMING MANUAL
Revision 1.1 January 2015
ISO-9001 CERTIFIED MANUFACTURER
All manuals and user guides at all-guides.com
all-guides.com

This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
All manuals and user guides at all-guides.com

Table of Contents
3
Table of Contents
SAFETY INSTRUCTIONS ................................................... 4
GETTING STARTED ........................................................... 8
APS-7000 Series Overview......................9
Appearance .......................................... 12
REMOTE CONTROL ........................................................ 18
Interface Configuration ........................ 19
Command Syntax ................................. 38
Command List ..................................... 42
Status Register Overview ................... 117
Error List ........................................... 129
APPENDIX .....................................................................138
APS-7000 Default Settings ................. 138
INDEX............................................................................140
All manuals and user guides at all-guides.com

APS-7000 Programming Manual
4
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to insure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the APS-7000 or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
All manuals and user guides at all-guides.com

SAFETY INSTRUCTIONS
5

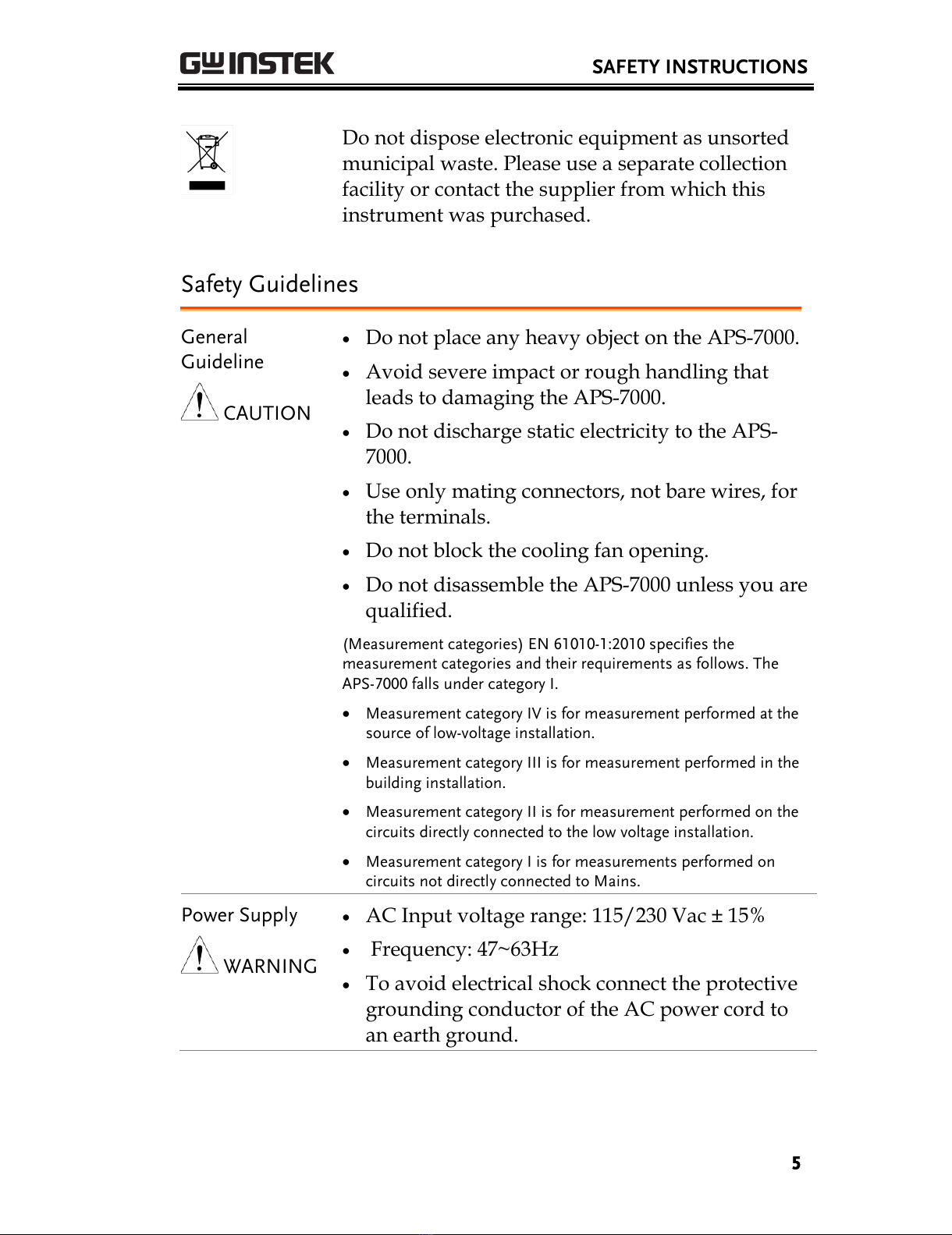

Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Do not place any heavy object on the APS-7000.
Avoid severe impact or rough handling that
leads to damaging the APS-7000.
Do not discharge static electricity to the APS-
7000.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening.
Do not disassemble the APS-7000 unless you are
qualified.
(Measurement categories) EN 61010-1:2010 specifies the
measurement categories and their requirements as follows. The
APS-7000 falls under category I.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.
Power Supply
WARNING
AC Input voltage range: 115/230 Vac ± 15%
Frequency: 47~63Hz
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.
All manuals and user guides at all-guides.com

APS-7000 Programming Manual
6
Cleaning the APS-
7000
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: 20%~ 80%
Altitude: < 2000m
Temperature: 0°C to 40°C
(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees
and their requirements as follows. The APS-7000 falls under degree
2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -10°C to 70°C
Relative Humidity: ≤80%, no condensation
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.
All manuals and user guides at all-guides.com
all-guides.com

SAFETY INSTRUCTIONS
7

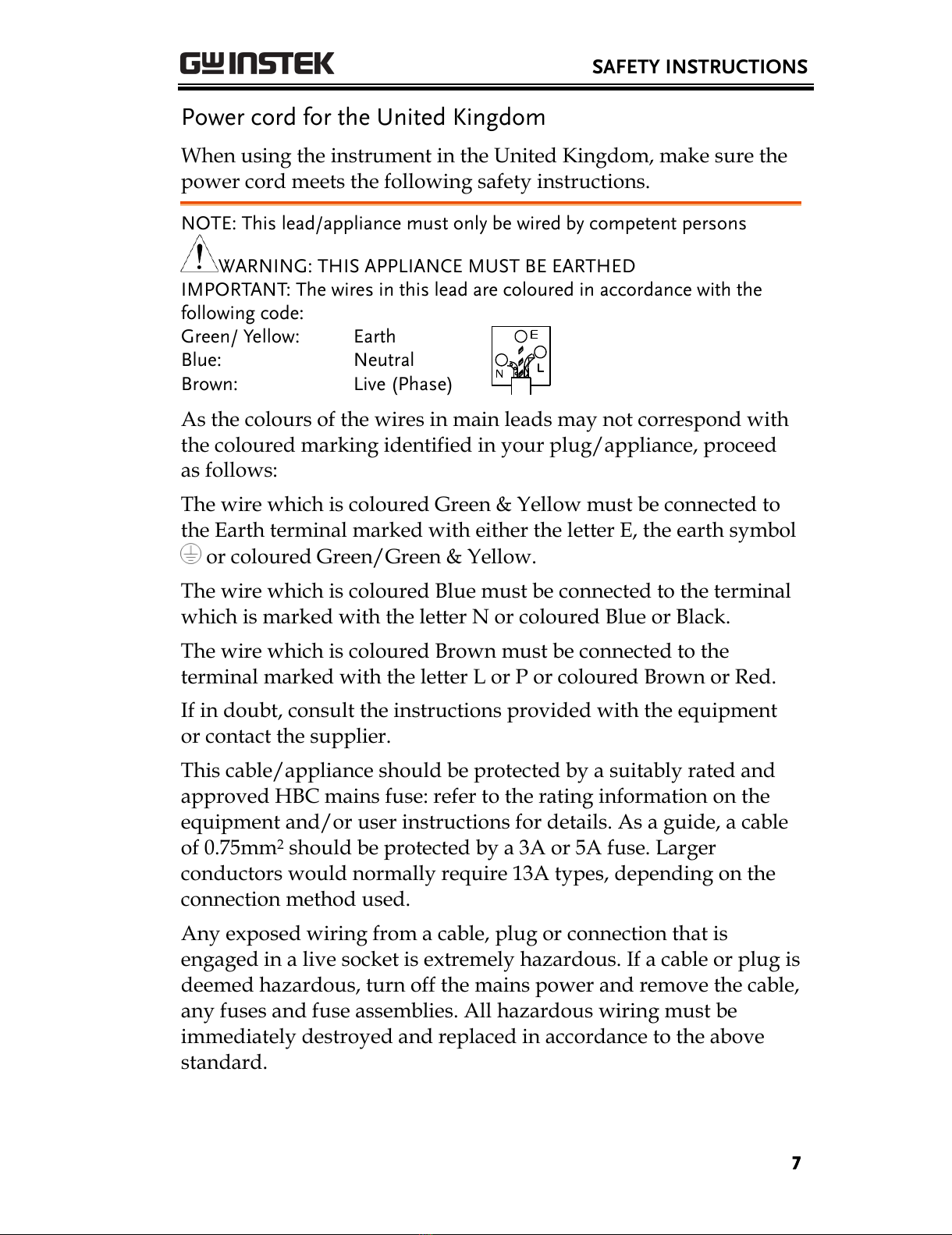

Power cord for the United Kingdom
When using the instrument in the United Kingdom, make sure the
power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.
All manuals and user guides at all-guides.com

APS-7000 Programming Manual
8
GETTING STARTED
This chapter describes the power source in a
nutshell, including its main features and front /
rear panel introduction.
APS-7000 Series Overview ................................................. 9
Series lineup................................................................. 9
Main Features .............................................................. 9
Accessories ................................................................. 10
Appearance ..................................................................... 12
All manuals and user guides at all-guides.com

GETTING STARTED
9

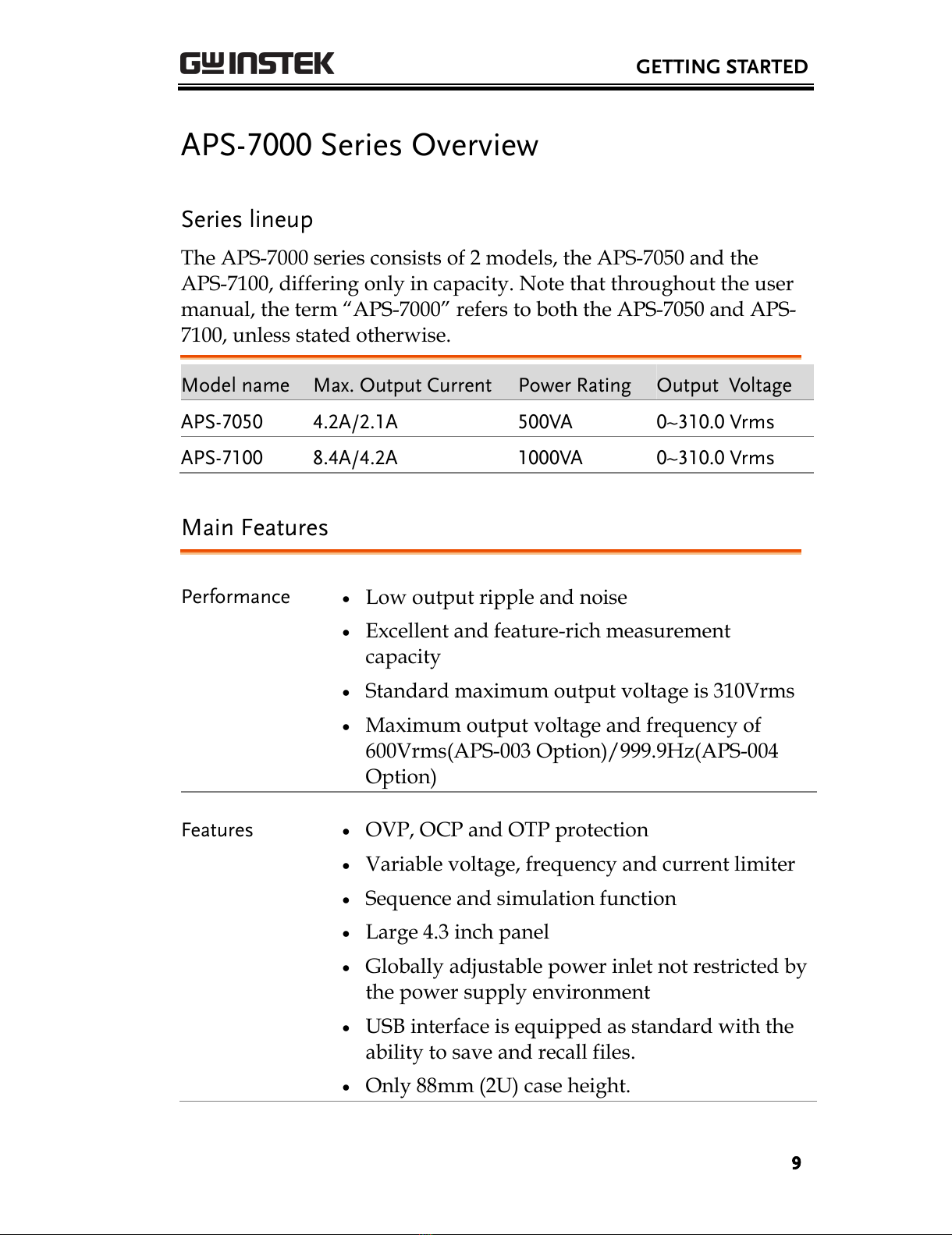

APS-7000 Series Overview
Series lineup
The APS-7000 series consists of 2 models, the APS-7050 and the
APS-7100, differing only in capacity. Note that throughout the user
manual, the term “APS-7000” refers to both the APS-7050 and APS-
7100, unless stated otherwise.
Model name
Max. Output Current
Power Rating
Output Voltage
APS-7050
4.2A/2.1A
500VA
0~310.0 Vrms
APS-7100
8.4A/4.2A
1000VA
0~310.0 Vrms
Main Features
Performance
Low output ripple and noise
Excellent and feature-rich measurement
capacity
Standard maximum output voltage is 310Vrms
Maximum output voltage and frequency of
600Vrms(APS-003 Option)/999.9Hz(APS-004
Option)
Features
OVP, OCP and OTP protection
Variable voltage, frequency and current limiter
Sequence and simulation function
Large 4.3 inch panel
Globally adjustable power inlet not restricted by
the power supply environment
USB interface is equipped as standard with the
ability to save and recall files.
Only 88mm (2U) case height.
All manuals and user guides at all-guides.com

APS-7000 Programming Manual
10

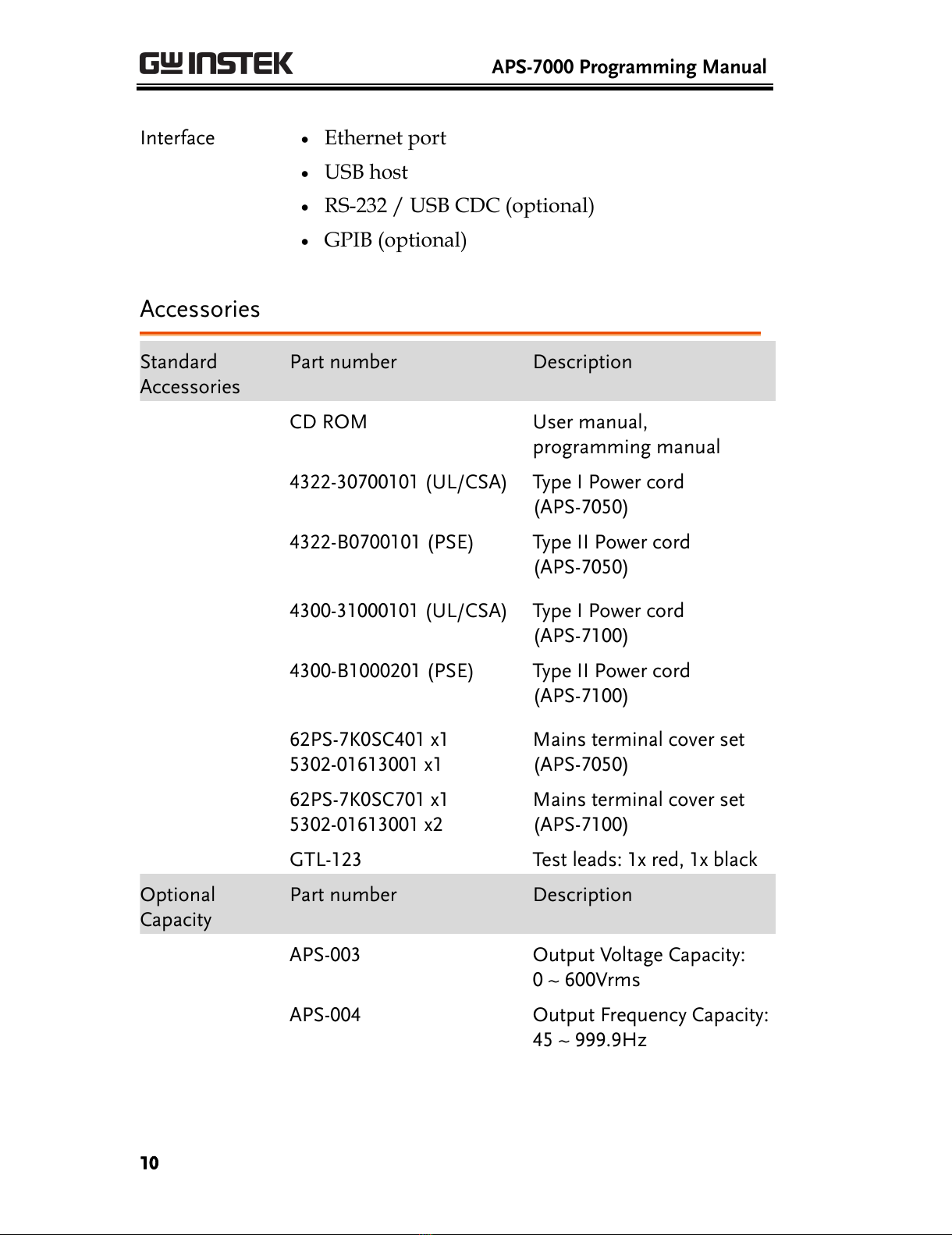

Interface
Ethernet port
USB host
RS-232 / USB CDC (optional)
GPIB (optional)
Accessories
Standard
Accessories
Part number
Description
CD ROM
User manual,
programming manual
4322-30700101 (UL/CSA)
Type I Power cord
(APS-7050)
4322-B0700101 (PSE)
Type II Power cord
(APS-7050)
4300-31000101 (UL/CSA)
Type I Power cord
(APS-7100)
4300-B1000201 (PSE)
Type II Power cord
(APS-7100)
62PS-7K0SC401 x1
5302-01613001 x1
Mains terminal cover set
(APS-7050)
62PS-7K0SC701 x1
5302-01613001 x2
Mains terminal cover set
(APS-7100)
GTL-123
Test leads: 1x red, 1x black
Optional
Capacity
Part number
Description
APS-003
Output Voltage Capacity:
0 ~ 600Vrms
APS-004
Output Frequency Capacity:
45 ~ 999.9Hz
All manuals and user guides at all-guides.com

GETTING STARTED
11
Optional
Accessories
Part number
Description
GRA-423
APS-7000 rack mount kit
APS-001
GPIB interface card
APS-002
RS-232 / USB interface
card
Download
Name
Description
gw_aps.inf
USB driver
All manuals and user guides at all-guides.com
all-guides.com

APS-7000 Programming Manual
12
Appearance
Front Panel
APS-7050, APS-7100
APS-7050 AC Power Source Display
Programmable
F 1
F 2
F 3
F 4
Output
: Long Push
Menu Test Preset
V
Local
Off Phase
On Phase
0
1
4
7
2
5
8
3
6
9
V-Limit F-Limit IPK-Limit
F I rms
Cancel
Shift
Range
Enter
Lock
ALM CLR
IPK CLR
Unlock
Surge / Dip
Ramp
TriggerARB

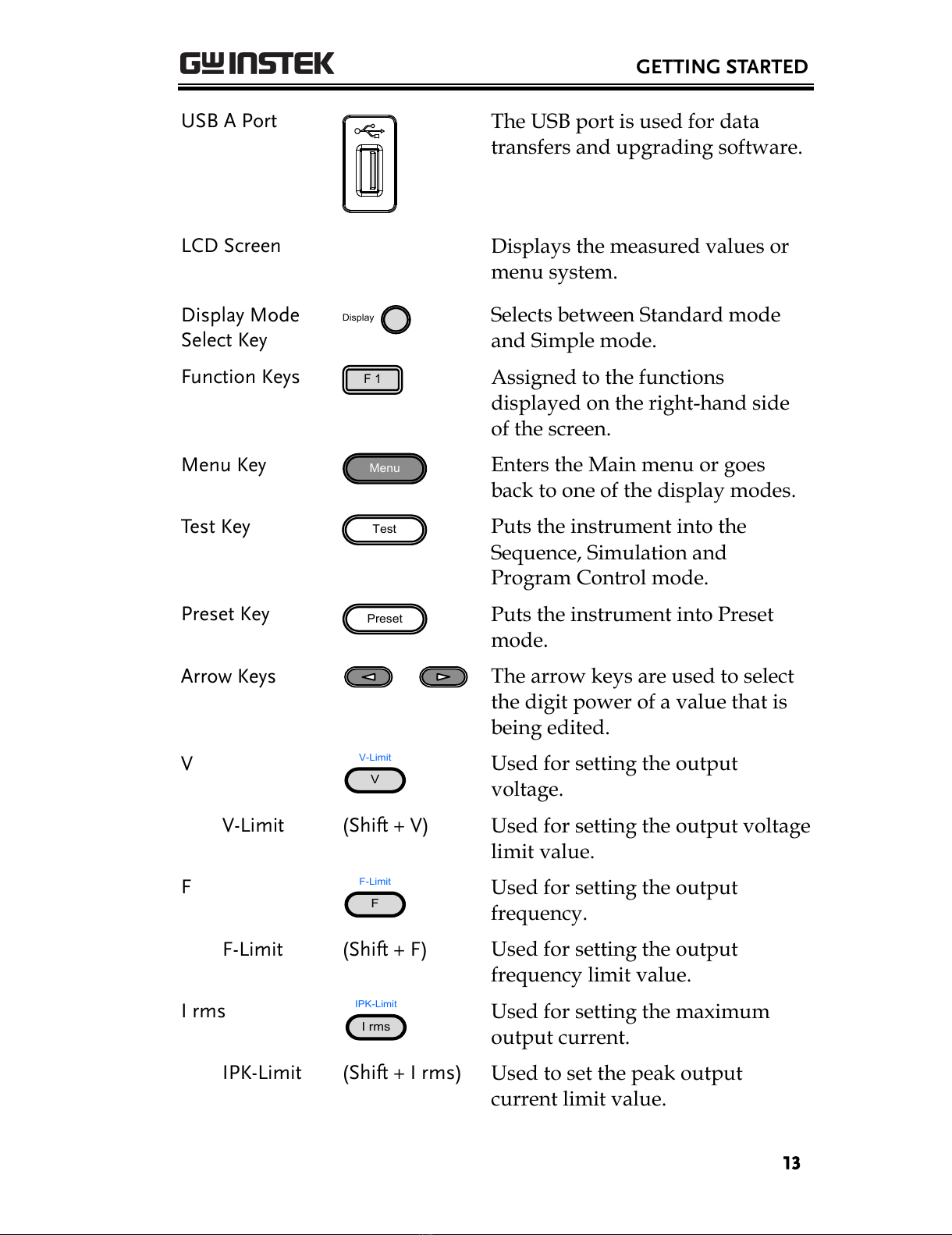

USB A port
Power
switch
Front voltage
output socket
Menu, Test,
Preset keys
LCD
display
Function keys
Display
mode key
Arrow keys,
Scroll wheel
Voltage, Frequency,
Current setting and limit
Keypad
Range, Shift, Cancel,
Enter, Lock keys
Output key
Item
Description
Power Switch
Turns on the mains power.
Front Voltage
Output Socket
Neutral
GND
Line
Output voltage
terminal using a
regional universal
plug. There is a Euro
and a Universal
regional plug.
CAUTION
Maximum allowable output voltage
and current are 250Vrms and
10Arms.
For voltages exceeding 250Vrms,
please use the rear output terminal.
All manuals and user guides at all-guides.com

GETTING STARTED
13
USB A Port
The USB port is used for data
transfers and upgrading software.
LCD Screen
Displays the measured values or
menu system.
Display Mode
Select Key
Display
Selects between Standard mode
and Simple mode.
Function Keys
F 1
F2
F3
F4
Assigned to the functions
displayed on the right-hand side
of the screen.
Menu Key
Menu
Enters the Main menu or goes
back to one of the display modes.
Test Key
Test
Puts the instrument into the
Sequence, Simulation and
Program Control mode.
Preset Key
Preset
Puts the instrument into Preset
mode.
Arrow Keys
The arrow keys are used to select
the digit power of a value that is
being edited.
V
V
V-Limit
Used for setting the output
voltage.
V-Limit
(Shift + V)
Used for setting the output voltage
limit value.
F
F
F-Limit
Used for setting the output
frequency.
F-Limit
(Shift + F)
Used for setting the output
frequency limit value.
I rms
I rms
IPK-Limit
Used for setting the maximum
output current.
IPK-Limit
(Shift + I rms)
Used to set the peak output
current limit value.
All manuals and user guides at all-guides.com

APS-7000 Programming Manual
14

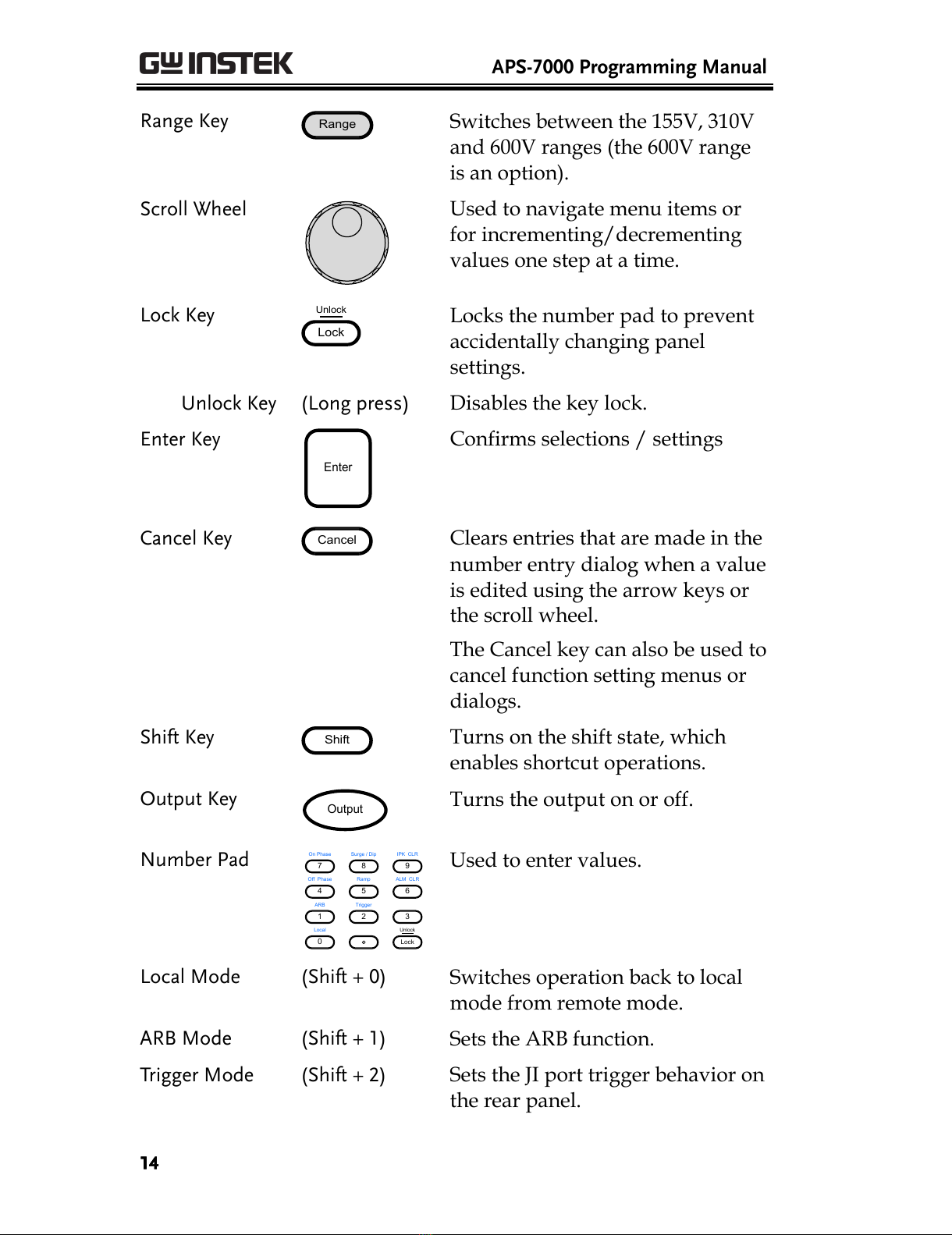

Range Key
Range
Switches between the 155V, 310V
and 600V ranges (the 600V range
is an option).
Scroll Wheel
Used to navigate menu items or
for incrementing/decrementing
values one step at a time.
Lock Key
Lock
Unlock
Locks the number pad to prevent
accidentally changing panel
settings.
Unlock Key
(Long press)
Disables the key lock.
Enter Key
Enter
Confirms selections / settings
Cancel Key
Cancel
Clears entries that are made in the
number entry dialog when a value
is edited using the arrow keys or
the scroll wheel.
The Cancel key can also be used to
cancel function setting menus or
dialogs.
Shift Key
Shift
Turns on the shift state, which
enables shortcut operations.
Output Key
Output
Turns the output on or off.
Number Pad
0
1
4
2
5
8
3
6
9
Lock
Unlock
7
On Phase Surge / Dip IPK CLR
Off Phase Ramp ALM CLR
ARB Trigger
Local
Used to enter values.
Local Mode
(Shift + 0)
Switches operation back to local
mode from remote mode.
ARB Mode
(Shift + 1)
Sets the ARB function.
Trigger Mode
(Shift + 2)
Sets the JI port trigger behavior on
the rear panel.
All manuals and user guides at all-guides.com

GETTING STARTED
15

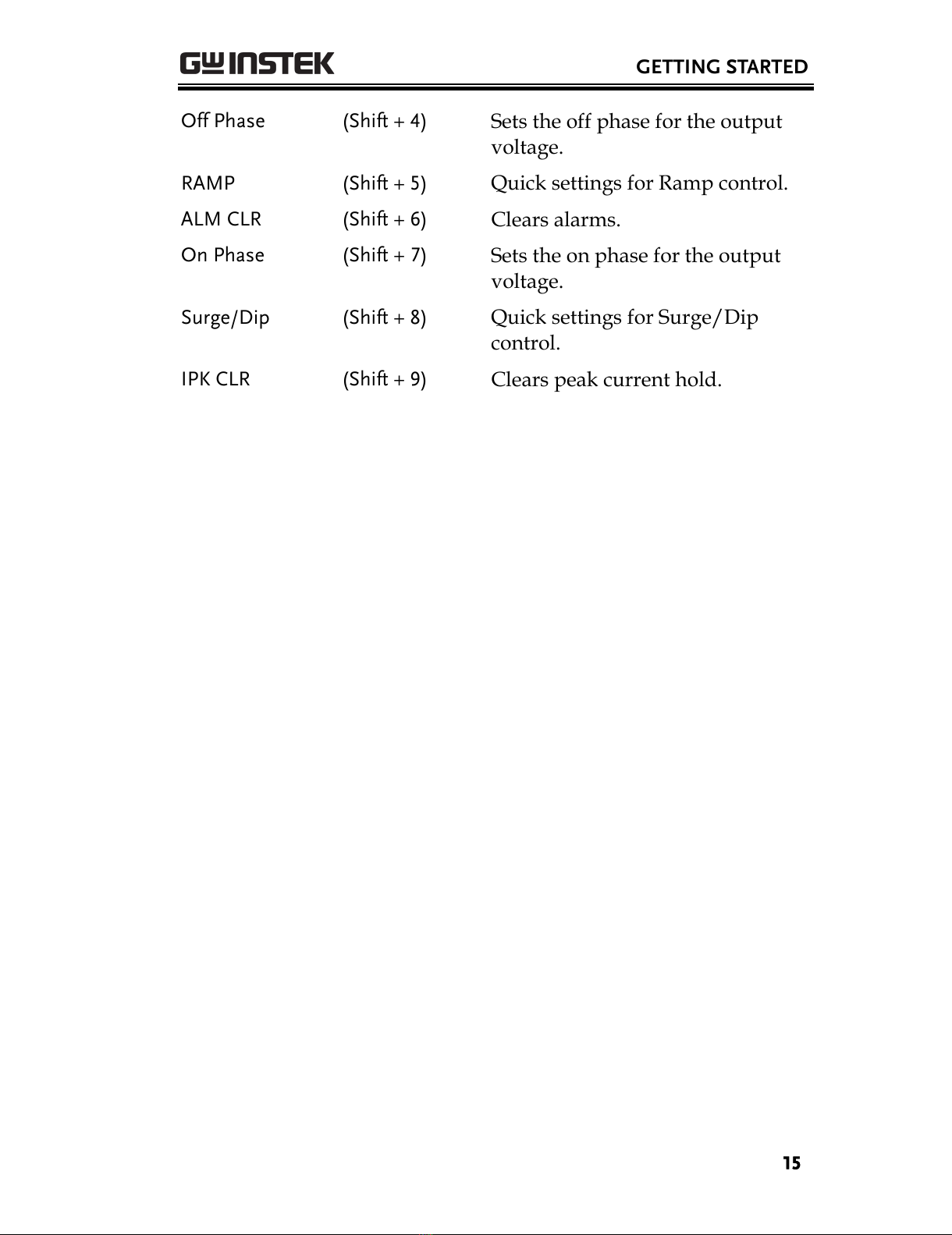

Off Phase
(Shift + 4)
Sets the off phase for the output
voltage.
RAMP
(Shift + 5)
Quick settings for Ramp control.
ALM CLR
(Shift + 6)
Clears alarms.
On Phase
(Shift + 7)
Sets the on phase for the output
voltage.
Surge/Dip
(Shift + 8)
Quick settings for Surge/Dip
control.
IPK CLR
(Shift + 9)
Clears peak current hold.
All manuals and user guides at all-guides.com

APS-7000 Programming Manual
16

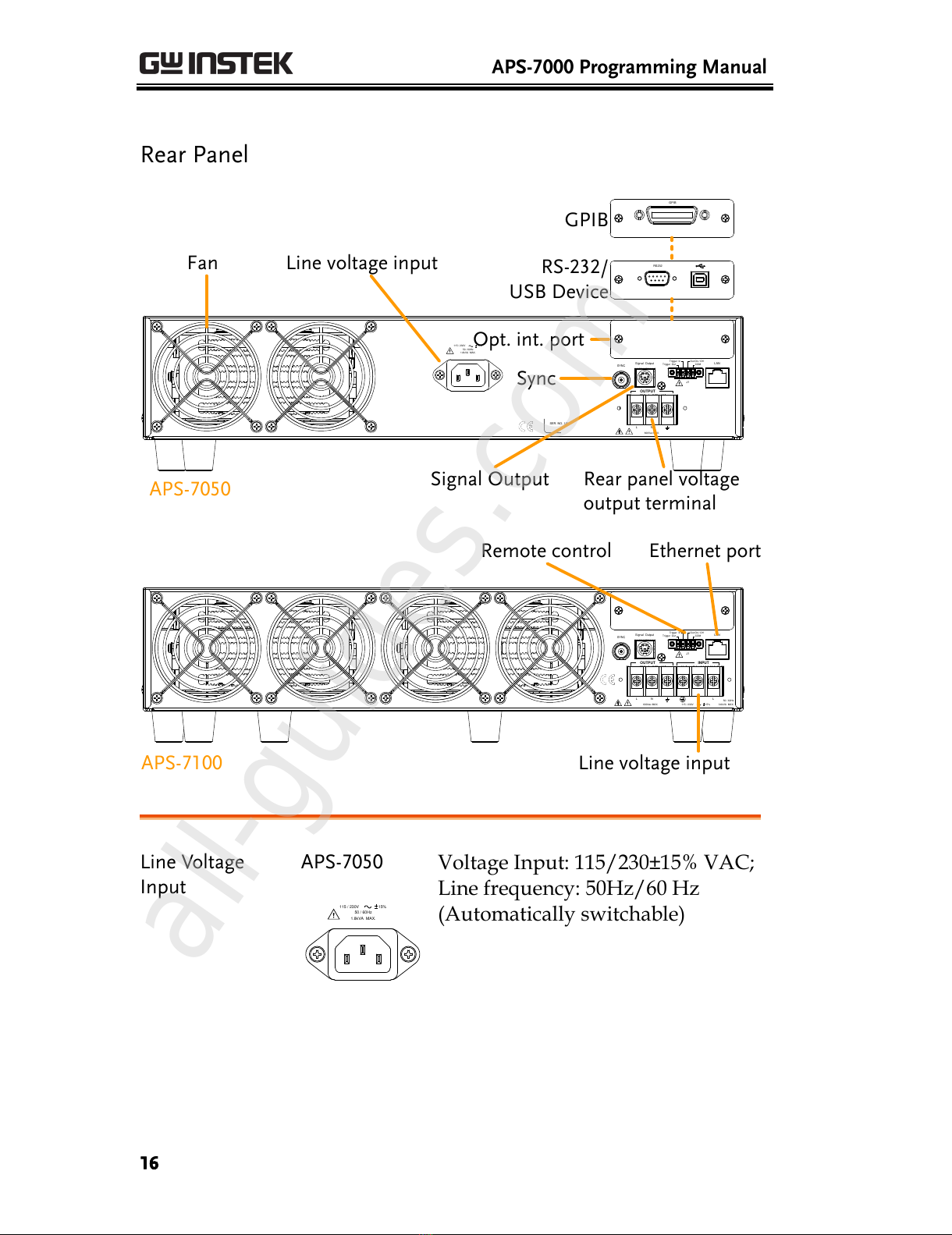

Rear Panel
SYNC Signal Output LAN
OUTPUT INPUT
L N N L
600Vac MAX. 115 / 230V 15%
50 / 60Hz
3.6kVA MAX.
Out On / Off
COM
J1
Trigger Out
Trigger In
115 / 230V 15%
50 / 60Hz
1.8kVA MAX.
SYNC
SER. NO. LB
L N
600Vac MAX.
Signal Output Trigger Out
Trigger In Out On / Off
COM LAN
J1
OUTPUT
Fan
GPIB
Line voltage input
GPIB
RS232
RS-232/
USB Device
Sync
Signal Output Rear panel voltage
output terminal
Remote control Ethernet port
Line voltage input
APS-7050
APS-7100
Opt. int. port
Line Voltage
Input
APS-7050
115 / 230V 15%
50 / 60Hz
1.8kVA MAX.
Voltage Input: 115/230±15% VAC;
Line frequency: 50Hz/60 Hz
(Automatically switchable)
All manuals and user guides at all-guides.com
all-guides.com

GETTING STARTED
17

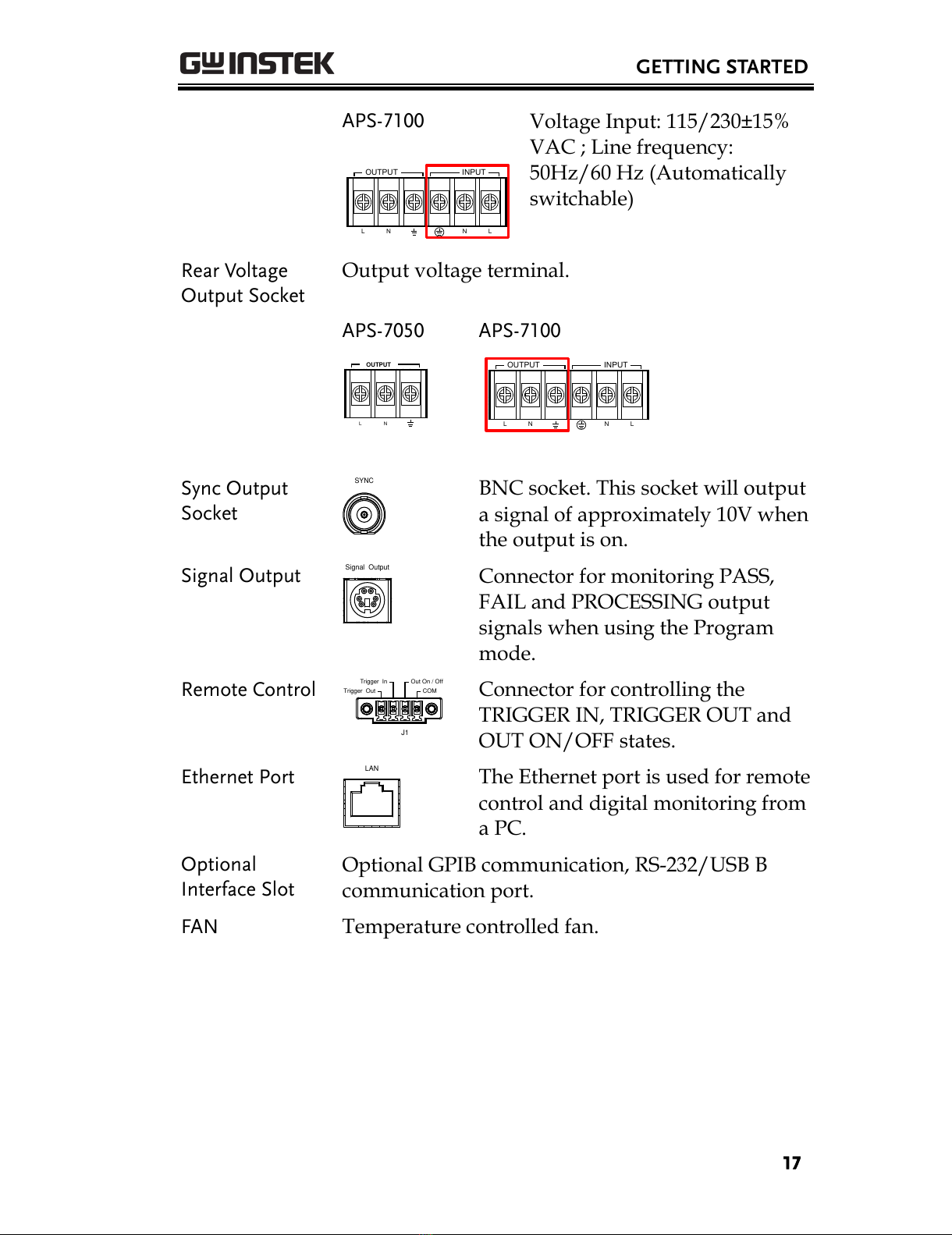

APS-7100
OUTPUT INPUT
L N N L
Voltage Input: 115/230±15%
VAC ; Line frequency:
50Hz/60 Hz (Automatically
switchable)
Rear Voltage
Output Socket
Output voltage terminal.
APS-7050
L N
OUTPUT
APS-7100
OUTPUT INPUT
L N N L
Sync Output
Socket
SYNC
BNC socket. This socket will output
a signal of approximately 10V when
the output is on.
Signal Output
Signal Output
Connector for monitoring PASS,
FAIL and PROCESSING output
signals when using the Program
mode.
Remote Control
Trigger Out
Trigger In Out On / Off
COM
J1
Connector for controlling the
TRIGGER IN, TRIGGER OUT and
OUT ON/OFF states.
Ethernet Port
LAN
The Ethernet port is used for remote
control and digital monitoring from
a PC.
Optional
Interface Slot
Optional GPIB communication, RS-232/USB B
communication port.
FAN
Temperature controlled fan.
All manuals and user guides at all-guides.com

APS-7000 Programming Manual
18
REMOTE CONTROL
This chapter describes basic configuration of
IEEE488.2 based remote control.
Interface Configuration ................................................... 19
Command Syntax ............................................................ 38
Command List................................................................. 42
Status Register Overview ................................................117
Error List........................................................................129
All manuals and user guides at all-guides.com

REMOTE CONTROL
19
Interface Configuration
USB Remote Interface - Optional
USB
configuration
PC side
connector
Type A, host
APS-7000 side
connector
Rear panel Type B, slave
Speed
1.1/2.0 (full speed/auto speed)
USB Class
CDC (communications device
class)
Note
The RS-232/USB interface card (APS-002) must
first be installed before the USB interface can be
used for remote control. Please see the user
manual for installation details.
Steps
1. Connect the Type A-Type B USB
cable from the PC to the rear panel
USB B port.
2. Press the Menu key. The Menu
setting will appear on the display.
Menu
3. Use the scroll wheel to go to item 6, Rear USB
and press Enter.
4. Go to the Speed setting and set the USB speed.
Speed
Full, Auto
5. If the connection is successful Connection Status
will change from Offline to Online.
All manuals and user guides at all-guides.com

APS-7000 Programming Manual
20
Speed settings
Connection status
Exit
6. Press Exit[F4] to exit from the rear
panel USB settings.
RS-232 Remote Interface - Optional
The APS-002 RS-232/USB interface card must be installed to
remotely control the APS-7000 via the serial port.
RS-232
configuration
Connector
BD-9, male
Parameters
Baud rate, data bits, parity, stop
bits.
Pin Assignment
12345
6789
2: RxD (Receive data)
3: TxD (Transmit data)
5: GND
4, 6 ~ 9: No connection
Pin Connection
Use a Null Modem connection (RS-232C cable)
as shown in the diagram below.
APS PC
RxDPin2 RxD Pin2
GNDPin5 GND Pin5
TxD Pin3
TxDPin3
All manuals and user guides at all-guides.com
