GW Instek GDM-350B User manual

Handheld Digital Multimeter
GDM-350B
USER MANUAL
GW INSTEK PART NO. 82DM-350B0M01
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by copyright. All
rights are reserved. No part of this manual may be photocopied, reproduced or
translated to another language without prior written consent.
The information in this manual was correct at the time of printing. However, we
continue to improve our products and therefore reserve the right to change the
specifications, equipment, and maintenance procedures at any time without notice.
Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

Table of Contents
1
Table of Contents
OVERVIEW............................................................................................................................. 2
Unpacking & Inspection ...................................................................................................................3
Safety Information.............................................................................................................................4
International Electrical Symbols .......................................................................................................6
Overall Specification .........................................................................................................................7
The Meter Structure ..........................................................................................................................8
MEASUREMENT OPERATION............................................................................................. 9
DC or AC Voltage Measurement ....................................................................................................10
DC Current Measurement ..............................................................................................................12
Resistance Measurement ...............................................................................................................14
Diode Measurement .......................................................................................................................16
Continuity Measurement ................................................................................................................18
Transistor hFE measurement .........................................................................................................20
Temperature Measurement............................................................................................................22
ACCURACY SPECIFICATIONS............................................................................................ 24
MAINTENANCE .................................................................................................................. 30
General Service and Maintenance..................................................................................................30
Replacing the Battery and Fuse ......................................................................................................31

GDM-350B User Manual
2
OVERVIEW
The GDM-350B multimeter is a hand-held 3 1/2digit multimeter with an advanced
design, multiple functions and reliable performance. This meter is fully capable of
measuring both AC and DC voltage, DC current, resistance, temperature, the
forward voltage drop of diodes, transistors, hFE and continuity tests. The multi-
purpose socket is used to measure SMTs as well. This operating manual covers
information on safety and precautions to fulfill CE standards. Please read the
relevant information carefully and observe all the warnings and notes.
Warning
To avoid electric shock or personal injury, read the “Safety Information”
carefully before using the Meter.

OVERVIEW
3
Unpacking & Inspection
Open the package case and take out the Meter. Check the following items carefully
to see if any parts are missing or damaged:
Item
Description
Qty
1
Operating Manual
1 piece
2
Test Leads
1 pair
3
K-type Temperature Probe
(Nichrome-Nickel Aluminum Thermocouple)
1 piece
4
Multi-Purpose Socket
1 piece
In the event that you find any parts missing or damaged, please contact your dealer
immediately.

GDM-350B User Manual
4
Safety Information
This meter complies with the IEC/EN61010-1 standard, pollution degree 2,
overvoltage category (CAT III 250V) with double insulation. Only use the meter as
specified in this operating manual, otherwise the protection provided by the meter
may be impaired.
1. Before using the meter inspect the case. Do not use the meter if it is damaged
or if the case (or part of the case) is removed. Look for cracks or missing plastic.
Pay attention to the insulation around the connections.
2. Inspect the test leads for damaged insulation or exposed metal. Before using
the meter replace any damaged test leads with test leads of the same model
number or of the same electrical specifications
3. Replace the battery as soon as the battery indicator “ ” appears. With a low
battery, the meter might produce false readings that can lead to electric shock
and personal injury.
4. Turn measurement on only if the correct input terminals are used.
5. Do not apply more than the rated voltage, as marked on the meter in order to
avoid possible electric shock or personal injury and to avoid possible damage
to the meter
6. Do not change the measuring range during the testing as it causes damage to
the meter.

OVERVIEW
5
7. When each measurement has been completed, disconnect the test leads from
the DUT and then turn the power off from the meter. Remove the test leads
from the input terminals of the meter. This is vital for high current
measurement.
8. When the meter is working at an effective voltage over 60V in DC or 30Vrms in
AC, special care should be taken.
9. Do not use or store the meter in an environment with high temperature and
humidity. The performance of the meter may deteriorate if dampened.
10. The internal circuit of the meter should not be tampered with. To avoid
damage to the meter when cleaning, use soft cloth and mild detergent to clean
the surface of the meter when servicing. No abrasives or solvent should be
used to prevent the surface of the meter from corrosion and damage.

GDM-350B User Manual
6
International Electrical Symbols
Battery has insufficient charge
Ground
Warning: Refer to the Operating Manual
AC (Alternating Current)
DC (Direct Current)
Double Insulated
Conforms to Standard of European Union

OVERVIEW
7
Overall Specification
1. Maximum voltage between any terminal and ground: Refer to the different
input protection voltage ranges shown on the terminals.
2. 10A terminal: Set (CE) 10A H 240V Fast Type Ceramic Fuse φ6x25mm.
3. mA terminal: Set (CE) 1 A H 240V Fast Type Ceramic Fuse φ6x25mm.
4. Operating temperature: 0˚C~40˚C, 32˚F ~104˚F.
Relative Humidity: 0˚C ~30˚C below ≤75%, 30˚C ~40˚C below ≤50%.
Storing temperature:-10˚C ~50˚C (14˚F ~122˚F).
5. Electromagnetism:
Under 1V/m emission: Best Total Accuracy= Specific Accuracy +
Measurement 5%, Over 1V/m emission does not have any specific index.
6. Elevation: 0~2000m.
7. Internal battery: 9V 6F22 or NEDA 1604 or 006P.
8. Low Battery: indicated by “ ” on the LCD display.
9. Product size: 72mm×137mm×35mm.
10. Net Weight: About 200g (battery included).
11. Safety Standard:
IEC/EN 61010-1: CATIII 250V, Pollution Degree 2.
12. Conformance: CE.

GDM-350B User Manual
8

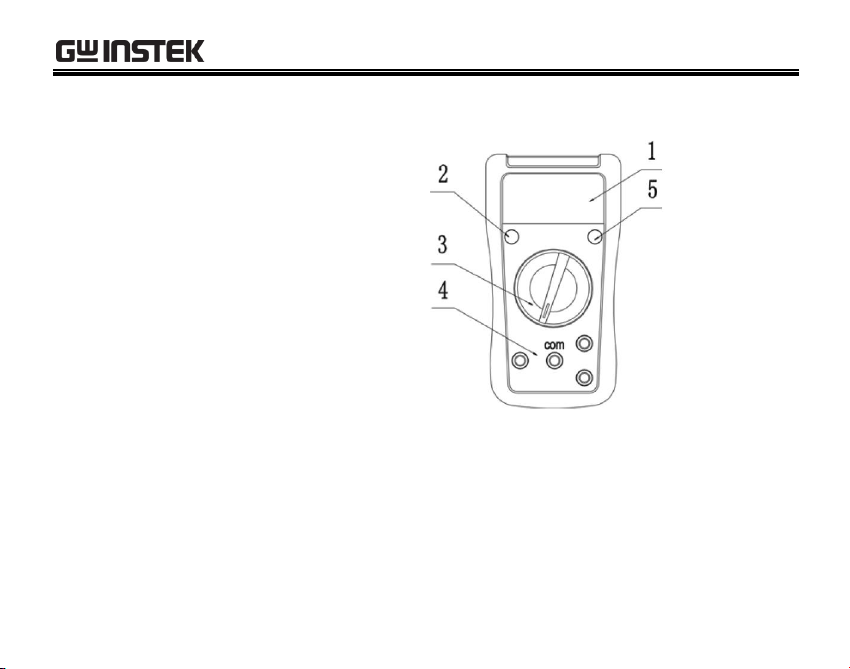

The Meter Structure
(see diagram 1)
1. LCD Display
2. Power Button
3. Rotary Switch
4. Input Terminals
5. HOLD Button
diagram 1

MEASUREMENT OPERATION
9
MEASUREMENT OPERATION
First check to see that the 9V battery is charged. Turn the rotary switch to a
measurement position. If the battery charge is low, the “” indicator will be
displayed on LCD panel. Ensure the input voltage or current does not exceed
250Vrms and 10A, respectively.

GDM-350B User Manual
10

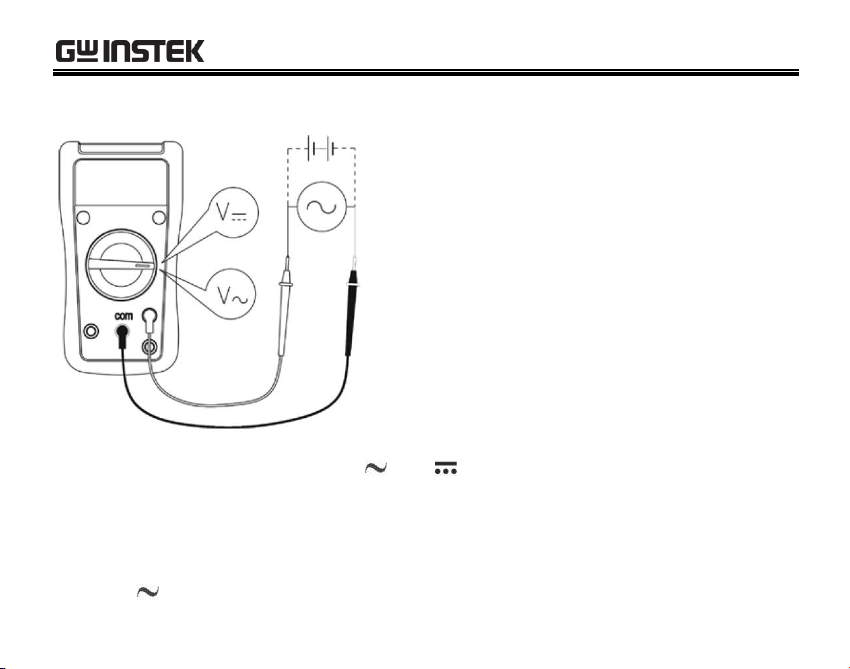

DC or AC Voltage Measurement
(see diagram 2)
Diagram 2
1. Turn the rotary switch to the V or V position for voltage measurement.
2. Insert the red test lead into the “V” terminal and the black test lead into the
“COM” terminal, Connect the test leads to the DUT being measured. The
measured value shows the true root mean square voltage (for stable inputs).
3. For each range, the meter has an input impedance of 10MΩ. Input impedance
for V is about 4.5MΩ. This loading effect can cause measurement errors in

MEASUREMENT OPERATION
11
high impedance circuits. If the circuit impedance is less than or equal to 10kΩ,
the error is negligible (0.1% or less).
Warning:
To avoid damage to the meter, please do not attempt to input more than 250V.
To avoid electrical shock, please pay attention during high voltage
measurement.

GDM-350B User Manual
12
DC Current Measurement
(see diagram 3)
Diagram 3
1. Turn the rotary switch to the “A “ position for current measurement.
2. Insert the red test lead into the “mA” or “10A” terminal, and the black test lead
into the “COM”terminal. Connect the test leads to the DUT being measured.
The measured value shows on the display.

MEASUREMENT OPERATION
13
Warning:
Pre-requisites: Remove the power from the circuit before connecting the test
leads to the DUT.
Select the correct terminal input and turn the rotary switch to select the
measurement function. If the correct range is not known, select the highest
range and work your way down to a lower range if needed.
Fuses are located on the mA and 10A current input terminals. Never attempt
connecting the test leads to any circuits that are connected to mains power.
For safety purposes, ensure each measurement over 5A is performed for less
than 10 seconds with a 15 minute interval between measurements.

GDM-350B User Manual
14

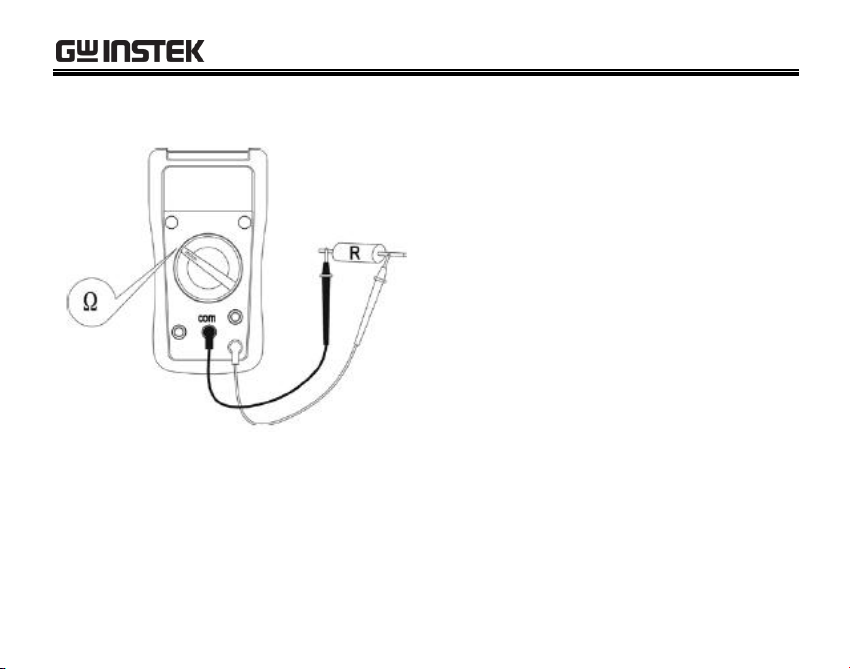

Resistance Measurement
(see diagram 4)
Diagram 4
1. Turn the rotary switch to the “Ω” position for resistance measurement.
2. Insert the red test lead into the “Ω” terminal and the black test lead into the
“COM” terminal. Connect the test leads to the DUT being measured. The
measured value shows on the display.

MEASUREMENT OPERATION
15
Warning:
If the LCD displays “1”, it indicates the circuit is open or that the resistance
exceeds the maximum range of the meter.
To maintain the resistance measurement accuracy, remove circuit power and
discharge all high voltage capacitors when measuring resistance.
The test leads cause a resistance drop of 0.1Ω~0.2Ω. In order to obtain precise
readings for low-resistance measurements, the resistance of the test leads must
be deducted from the measured resistance. Short the test leads and note the
measurement result. Deduct this value from the resistance of the DUT.
Measured Result of DUT –Resistance of test leads = Actual measurement.
If a resistance reading with shorted test leads is not less than or equal to 0.5Ω,
check for possible problems such as loose test leads or an incorrectly selected
function.
For resistance measurements greater than 1MΩ, it may take several seconds to
obtain a stable reading.
Do not input greater than DC 60V and AC 30V to prevent damage and injury.

GDM-350B User Manual
16

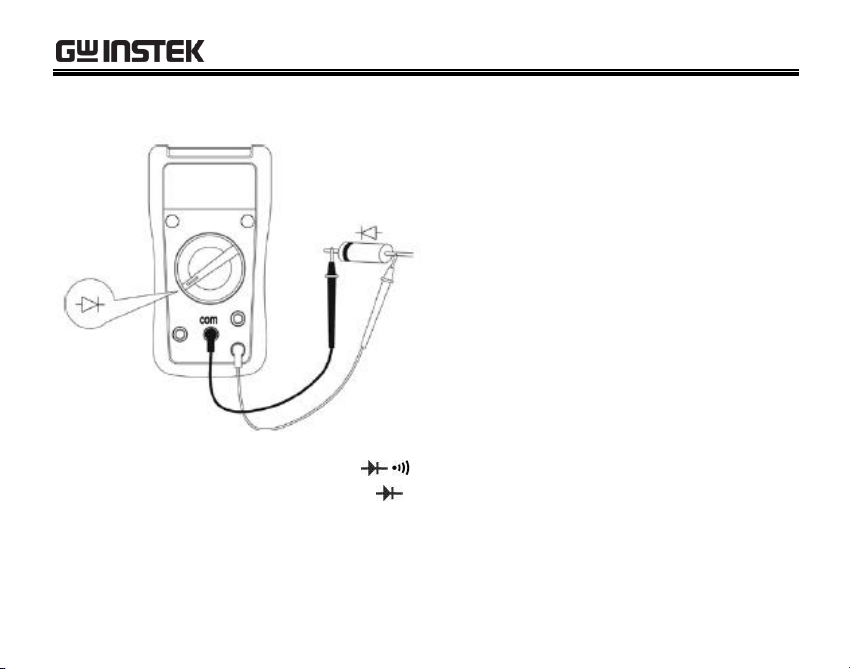

Diode Measurement
(see diagram 5)
Diagram 5
1. Turn the rotary switch to the “”position for diode measurement.
2. Insert the red test lead into the “ ” terminal and the black test lead into the
“COM” terminal. The red test lead is “+”, the black test lead is “-”.
3. In a circuit, a good diode should still produce a forward voltage drop reading
of 500~800mV. However, a reverse voltage drop reading can vary depending
on the resistance of other pathways between the probe tips.

MEASUREMENT OPERATION
17
Warning:
The LCD displays “1”to indicate that the circuit is open or that the polarity of
the diode is incorrect.
To ensure the accuracy of the diode measurement, disconnect power from the
circuit and discharge all high voltage capacitors during the measurement.
The open circuit voltage for diodes is 2.3V.
Do not input greater than DC 60V and AC 30V to prevent damage and injury.

GDM-350B User Manual
18
Continuity Measurement
(see diagram 6)
Diagram 6
