GW Instek PSW Series User manual

Multi-Range DC Power Supply
PSW Series
USER MANUAL
GW INSTEK PART NO. 82SW-80400ME1
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

SAFETY INSTRUCTIONS
3
Table of Contents
SAFETY INSTRUCTIONS ................................................... 5
GETTING STARTED ........................................................... 9
PSW Series Overview ........................... 10
Appearance .......................................... 15
Theory of Operation ............................. 21
OPERATION.................................................................... 33
Set Up.................................................. 35
Basic Operation ................................... 49
Parallel / Series Operation ................... 62
Test Scripts .......................................... 76
CONFIGURATION ........................................................... 84
Configuration ....................................... 85
ANALOG CONTROL .......................................................101
Analog Remote Control Overview....... 102
Remote Monitoring ............................ 118
COMMUNICATION INTERFACE .....................................123
Interface Configuration ...................... 124
MAINTENANCE .............................................................135
FAQ ...............................................................................137
APPENDIX .....................................................................139
Firmware Update ............................... 139
PSW Default Settings ......................... 143
Error Messages & Messages .............. 145

PSW Series User Manual
4
LCD Display Format ........................... 145
PSW Specifications ............................ 146
PSW Dimensions ............................... 155
Declaration of Conformity .................. 158
INDEX............................................................................159

SAFETY INSTRUCTIONS
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to insure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the PSW or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal

PSW Series User Manual
6
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Do not place any heavy object on the PSW.
Avoid severe impact or rough handling that
leads to damaging the PSW.
Do not discharge static electricity to the PSW.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening.
Do not disassemble the PSW unless you are
qualified.
(Measurement categories) EN 61010-1:2001 specifies the
measurement categories and their requirements as follows. the
PSW falls under category II.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.
Power Supply
WARNING
AC Input voltage range: 85VAC~265VAC
Frequency: 47Hz~63Hz
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.

SAFETY INSTRUCTIONS
7
Cleaning the PSW
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: 20%~ 85%
Altitude: < 2000m
Temperature: 0°C to 50°C
(Pollution Degree) EN 61010-1:2001 specifies the pollution degrees
and their requirements as follows. The PSW falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -25°C to 70°C
Relative Humidity: <90%
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

PSW Series User Manual
8
Power cord for the United Kingdom
When using the power supply in the United Kingdom, make sure
the power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.

GETTING STARTED
9
GETTING STARTED
This chapter describes the power supply in a
nutshell, including its main features and front /
rear panel introduction. After going through the
overview, please read the theory of operation to
become familiar with the operating modes,
protection modes and other safety considerations.
PSW Series Overview....................................................... 10
Series lineup..............................................................................................................10
Main Features...........................................................................................................11
Accessories................................................................................................................12
Package Contents..................................................................................................... 14
Appearance ..................................................................... 15
PSW Front Panel .....................................................................................................15
Rear Panel ................................................................................................................. 18

PSW Series User Manual
10
PSW Series Overview
Series lineup
The PSW series consists of 9 models, divided into 3 different model
types covering 3 power capacities: Type I (360 Watt), Type II (720
Watt) and Type III (1080 Watt).
Model name
Type
Voltage Rating
Current Rating
Power
PSW 30-36
Type I
0~30V
0~36A
360W
PSW 80-13.5
Type I
0~80V
0~13.5A
360W
PSW 160-7.2
Type I
0~160V
0~7.2A
360W
PSW 30-72
Type II
0~30V
0~72A
720W
PSW 80-27
Type II
0~80V
0~27A
720W
PSW 160-14.4
Type II
0~160V
0~14.4A
720W
PSW 30-108
Type III
0~30V
0~108A
1080W
PSW 80-40.5
Type III
0~80V
0~40.5A
1080W
PSW 160-21.6
Type III
0~160V
0~21.6A
1080W
Apart from the differences in output, each unit differs in size. The
720 and 1080 watt models are larger than the 360 watt models to
accommodate the increase in power.

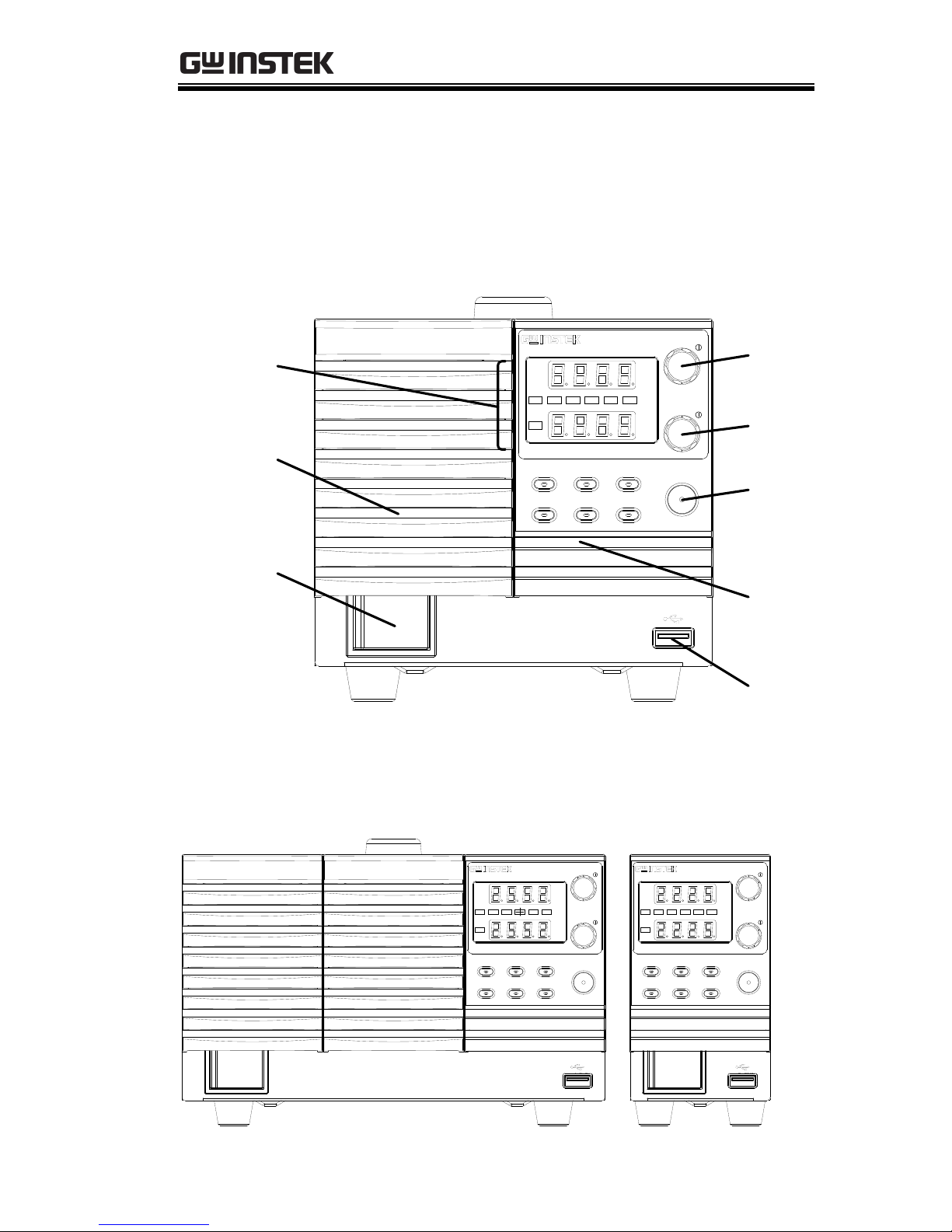

360 Watt models
Type I
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set Output
PWR DSPLLock/LocalTest
PS W 30- 36 360W
Multi-Range DC Power Supply Voltage
Current
720 Watt models
Type II
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set Output
PWR DSPLLock/LocalTest
PS W 30- 72 720W
Voltage
Current
Multi-Range DC Power Supply
1080 Watt models
Type III
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set Output
PWR DSPLLock/LocalTest
PS W 30- 108 1080W
Voltage
Current
Multi-Range DC Power Supply

GETTING STARTED
11
Main Features
Performance
High performance/power
Power efficient switching type power supply
Low impact on load devices
Fast transient recovery time of 1ms
Fast output response time
Features
OVP, OCP and OTP protection
Adjustable voltage and current slew rates
User adjustable bleeder control to quickly
dissipate the power after shutdown to safe
levels.
Extensive remote monitoring and control
options
Support for serial and parallel connections
Power on configuration settings.
Supports test scripts
Web server monitoring and control
Interface
Ethernet port
Analog connector for analog voltage and current
monitoring
USB host and device port

PSW Series User Manual
12
Accessories
Standard
Accessories
Part number
Description
Region dependant
User manual
4323-30600101
Power cord (Type I/II)
4320-91001101
Power cord (Type III)
63SC-XF100201
Output terminal cover: top
63SC-XF100301
Output terminal cover:
bottom
GTL-123
Test leads: 1x red, 1x black
GTL-240
USB Cable
PSW-004
Basic Accessory Kit:
M4 terminal screws and
washers x2, M8 terminal
bolts, nuts and washers x2,
Air filter x1, Analog control
protection dummy x1,
Analog control lock level x1
Optional
Accessories
Part number
Description
GET-001
Extended terminal
PSW-001
Accessory Kit:
Pin contact x10, Socket x1,
Protection cover x1
PSW-002
Simple IDC
Tool
PSW-003
Contact
Removal Tool

GETTING STARTED
13
PSW-005
Series operation cable for 2
units.
PSW-006
Parallel operation cable for
2 units.
PSW-007
Parallel operation cable for
3 units.
GRA-410-J
Rack mount adapter (JIS)
GRA-410-E
Rack mount adapter (EIA)
GUG-001
GPIB to USB adapter
GTL-240
USB Cable
57RG-30B00201
Large filter (Type II/III)
Download
Name
Description
psw_cdc.inf
USB driver

PSW Series User Manual
14
Package Contents
Check the contents before using the PSW.
Opening the box
Contents
(single unit)
Main unit
Output terminal cover
(top x1, bottom x1)
Test leads (red x1,
black x1)
M4 terminal screws
and washers x2
Air filter x1
L-type USB cable x1
Power cord x1 (region
dependent)
Analog control
protection dummy x1
Analog control lock
lever x1
M8 terminal bolts,
nuts and washers X2

GETTING STARTED
15
Appearance
PSW Front Panel
PSW 160-14.4, PSW 80-27, PSW 30-72 (720W)
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set Output
PWR DSPLLock/LocalTest
PSW 3 0 -72 720W
Voltage
Current
Multi-Range DC Power Supply
Current
knob
Output
key
Power
switch
Voltage
knob
USB A
port
Display
Cover
panel
Function
keys
PSW 160-21.6, PSW 80-40.5, PSW 30-108
(1080W)
PSW 160-7.2,
PSW 80-13.5,
PSW 30-36 (360W)
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set Output
PWR DSPLLock/LocalTest
PS W 30- 10 8 1080W
Voltage
Current
Multi-Range DC Power Supply
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set Output
PWR DSPLLock/LocalTest
PS W 30- 36 360W
Multi-Range DC Power Supply Voltage
Current

PSW Series User Manual
16
Function Keys
The Function keys along with the Output key will
light up when a key is active.
Function
The Function key is used to
configure the power supply.
OVP/OCP
Set the over current or over
voltage protection levels.
Set
Sets the current and voltage limits.
Test
Used to run customized scripts for
testing.
Lock/Local
Locks or unlocks the panel keys to
prevent accidentally changing
panel settings.
PWR DSPL
Toggles the display from viewing
V/AV/WA/W.
Display
Indicators
VSR
Voltage Slew Rate
C V
Constant Voltage Mode
RMT
Remote Control Mode
ALM
Alarm on
DLY
Delay Output
C C
Constant Current Mode
ISR
Current Slew Rate

GETTING STARTED
17
20
40
60
80
100
% W
Power bar
Indicates the current power output
as a percentage.

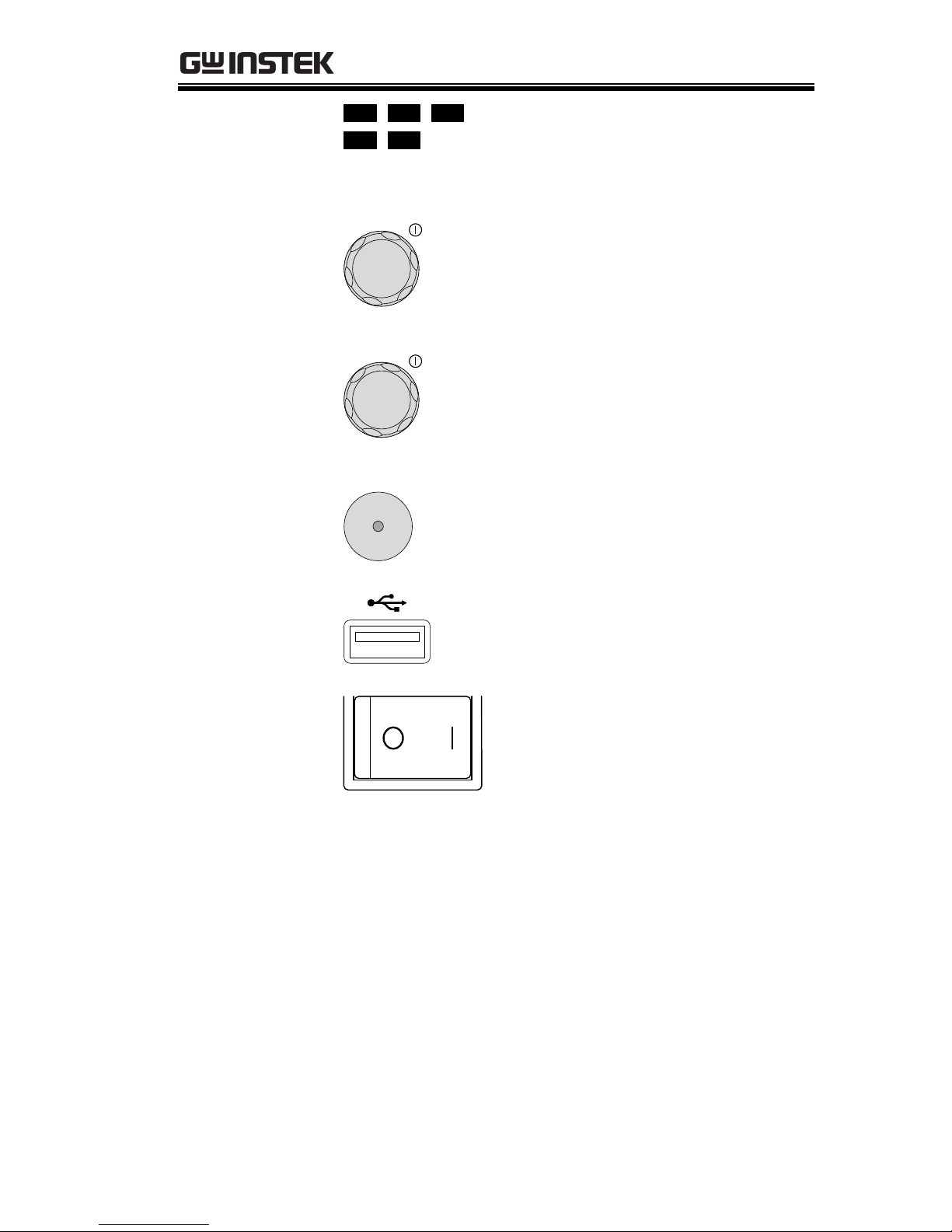

Voltage Knob
Voltage
Sets the voltage.
Current Knob
Current
Sets the current.
Output
Output
Press to turn on the output. The
Output key will light up when the
output is active.
USB
USB A port for data transfer,
loading test scripts etc.
Power Switch
Used to turn the power on/off.

PSW Series User Manual
18

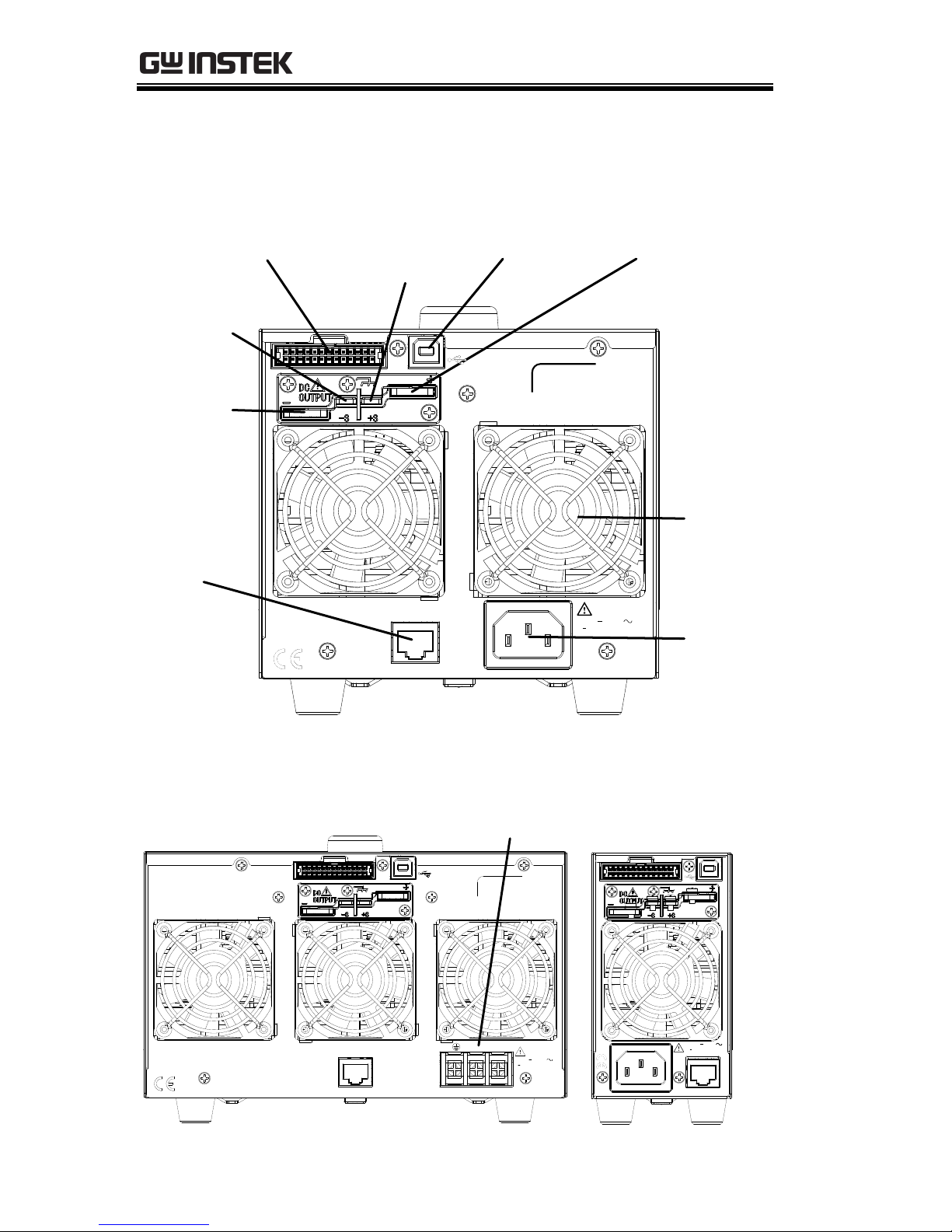

Rear Panel
PSW 160-14.4, PSW 80-27, PSW 30-72 (720W)
Output
terminal
(+)
Fan
Output
terminal
(-)
USB B
port
LAN
AC Input
Sense-
terminal
Analog control
connector
LAN
100 240V
1000VA MAX.
AC
47 63Hz
SER.NO. LABEL
Sense+
terminal
PSW 160-21.6, PSW 80-40.5, PSW 30-108
(1080W)
PSW 160-7.2,
PSW 80-13.5,
PSW 30-36 (360W)
100 240VAC
1500VA MAX.
47 63Hz
LAN
LN
SER.NO. LABEL
AC Input
LAN
100 240V
47 63Hz 500VA MAX.
AC

GETTING STARTED
19

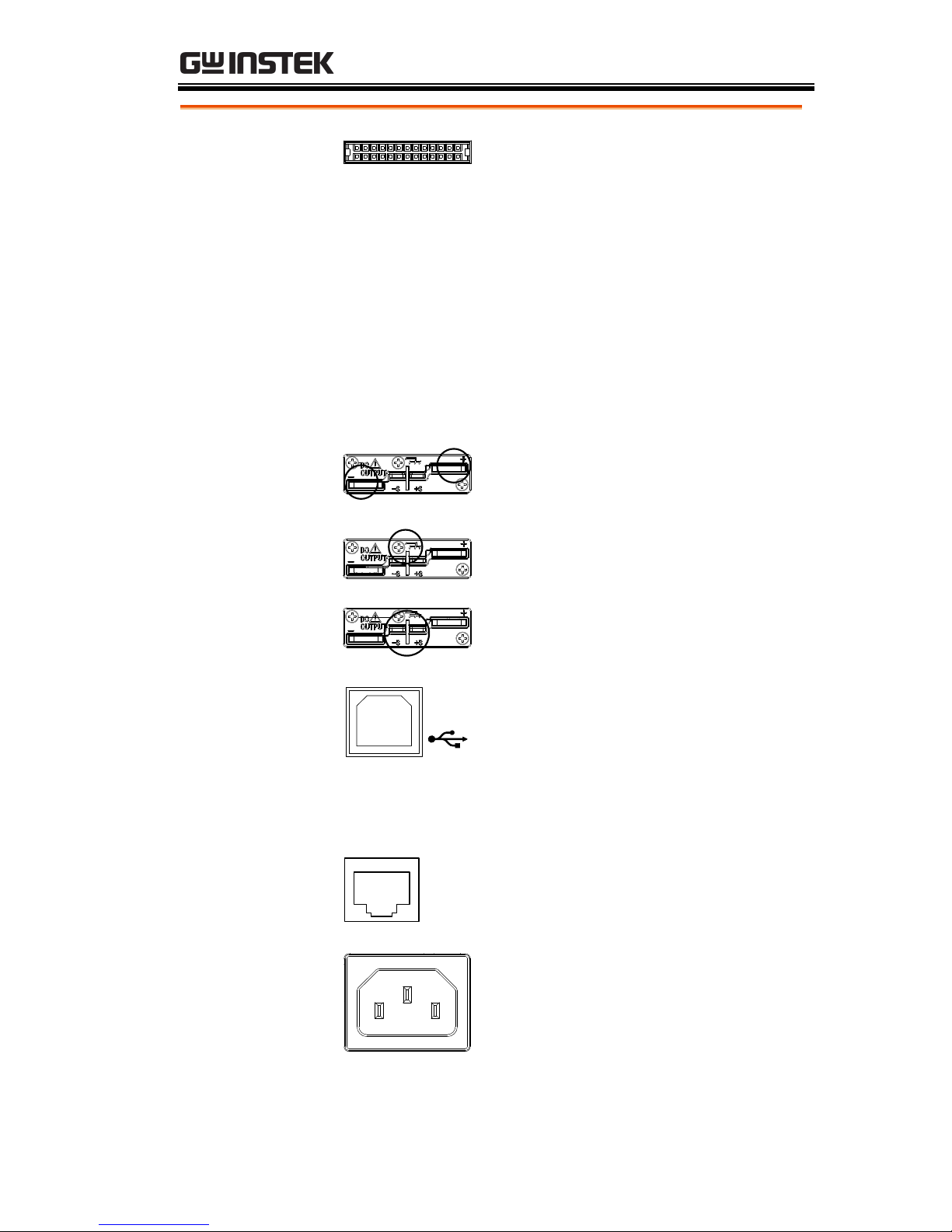

Analog Control
Connector
Standard 26 pin MIL connector
(OMRON XG4 IDC plug).
The analog control connector is
used to monitor current and voltage
output, machine status (OVP, OCP,
OTP etc.), and for analog control of
the current and voltage output.
Use an OMRON XG5 IDC socket as
the mating socket.
Output Terminals
Positive (+) and negative (-) output
terminals.
Chassis ground
Sense (-) and Sense (+) terminals.
USB B port
The USB B port is used for remote
control.
Fans
Temperature controlled fans
Ethernet Port
LAN
The ethernet port is used for remote
control and digital monitoring from
a PC.

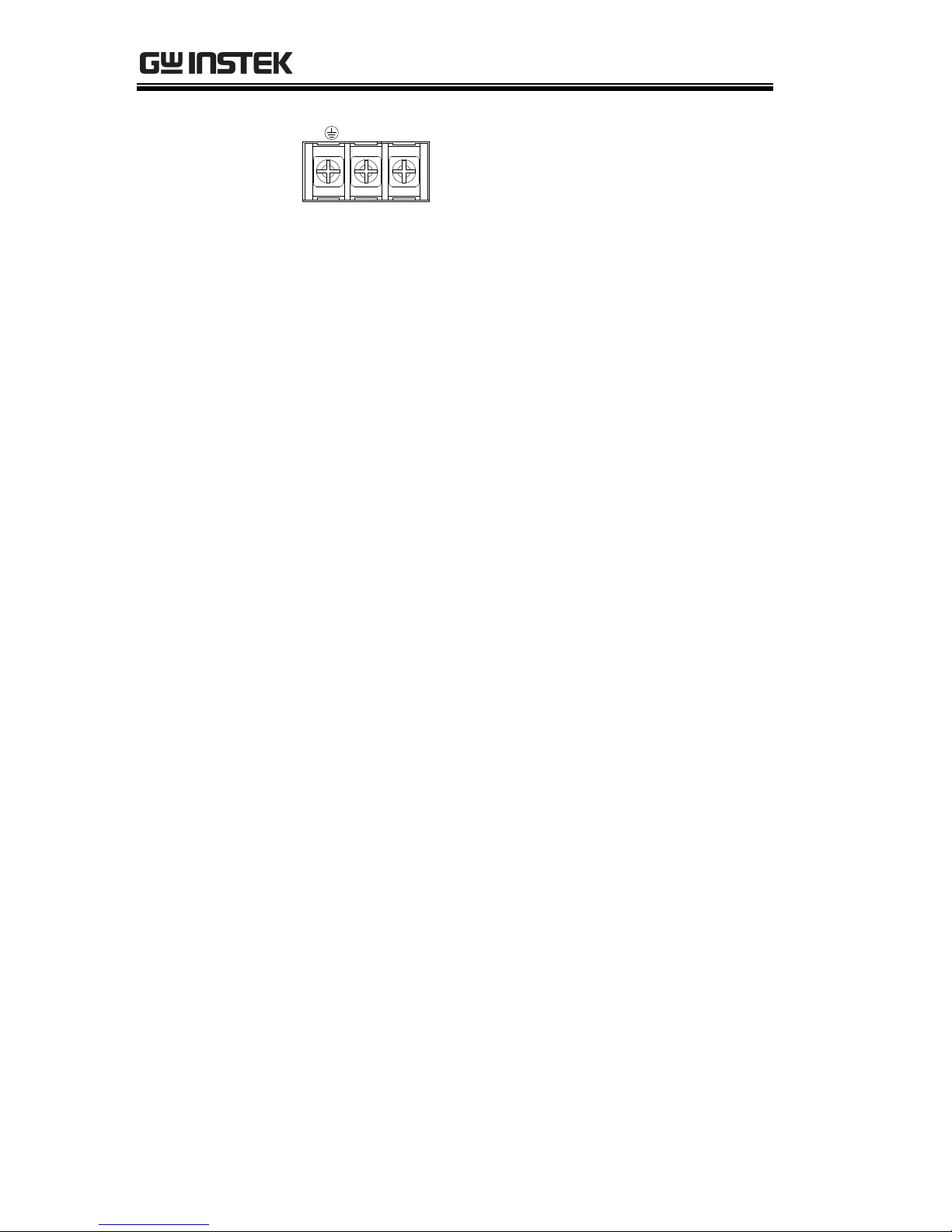

Line Voltage
Input
(Type I/TypeII)
Type I: PSW 30-36/80-13.5/160-7.2
Type II: PSW 30-72/80-27/160-14.4
Voltage Input: 100~240 VAC
Line frequency: 50Hz/60 Hz
(Automatically switchable)

PSW Series User Manual
20
Line Voltage
Input
(Type III)
LN
Type III:
PSW 30-108/80-40.5/160-21.6
Voltage Input: 100~240 VAC
Line frequency: 50Hz/60 Hz
(Automatically switchable)
