Gyroor Hovershoes S300 User manual

GYROOR
Hovershoes
USER MANUAL

Link: https://gyroorboard.com/pages/review
Gyroor is not responsible for damage caused by unreasonable
use, please watch Gyroofs instructional video before use.
Learn more News about the Gyroor hoverboard?
Scan on "Gyroorboard" Messenger QR code to get it soon.

1. Riding Safety 01
2. Packing List 03
3. Diagram 04
4. Charging 05
5. Before Riding 05

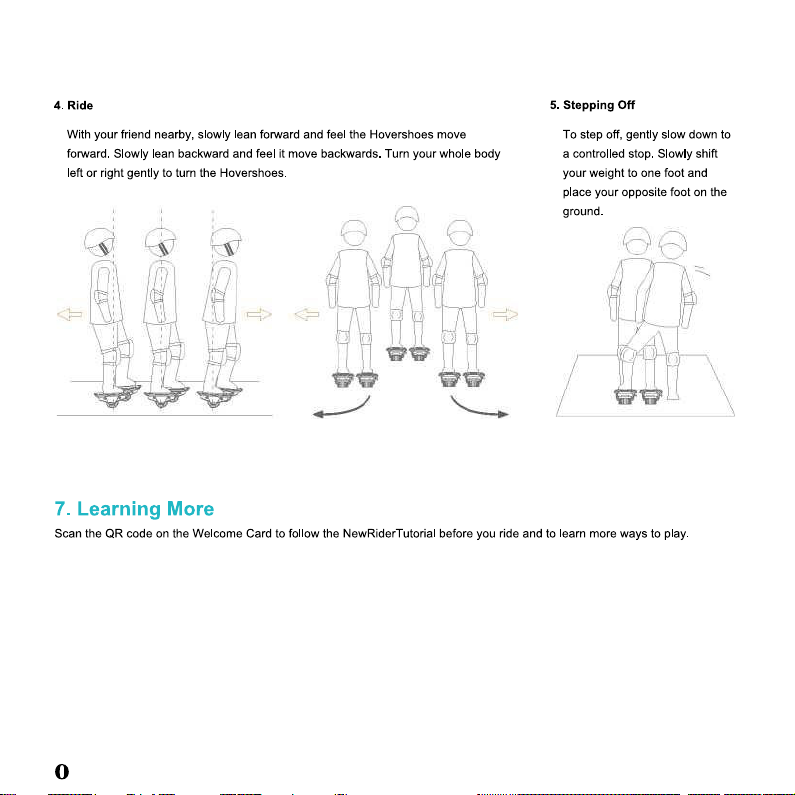

6. Learning to Ride 07
7. Learning More 08
8. Warnings 09
9. Calibration and Alarms 12
10.Maintenance 12
11.Specifications 14
12. Certifications 15
13. Trademark and Legal Statement 15
Contents

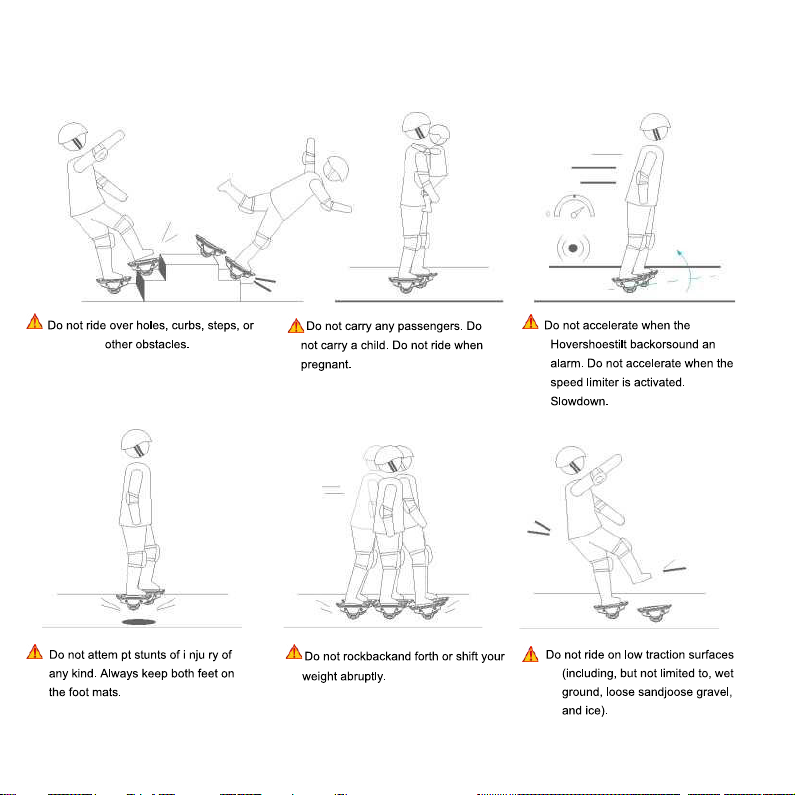

10. To reduce risk of injury, you must read and follow all "CAUTION"( ),"Tips" (*),and "WARNING" ( ) notices in this document.
Do not ride at an unsafe speed. Under no circumstance should you ride on roads with motor vehicles.The manufacturer
recommends riders be 6+ years old. Always follow these safety instructions:
A. People who should not ride the Hovershoes include:
I. Anyone underthe influence ofalcohol or drugs.
ii. Anyone who suffers from disease that puts himself/herselfat risk if he/she engagesin strenuous physical activity.
iii. Anyone who has problems with balance or with motorskillsthatwouldinterferewith their ability to maintain balance.
iv. Anyone whose weight is outside the stated limits (see Specifications).
v. Pregnant women.
B. Riders under the age of 16 years old should ride under adult supervision.
C. Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
D. To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.
E. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, orthat are slippery for any reason. Do not ride over
obstacles (including, but not limited to, sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and
could cause a fall.
F. Do not ride the Hovershoes in the rain. Riding in the rain may cause the Hovershoes to be immersed in water, resulting in
function damage and even a risk of fire and explosion due to a wet battery pack. Damageand losses caused by water
submersion are not covered by the Limited Warranty.
G. Do not accelerate or decelerate suddenly. If the Hovershoes tilts back, you have reached the speed limit, slowdown. Do not
overpower the speed limiter or you risk injury from loss of control, collisions and falls.
11. Do not attempt to charge your Hovershoes, if the charger orthe power outlet is wet.
12. As with any electronic device, use a surge protector when charging to help protect your Hovershoes from damage dueto power
surges and voltage spikes. Only use the Gyroor supplied charger. Do not use a charger from any other product.
13. Use only Gyroor approved parts and accessories. Do not modify your Hovershoes. Modifications to your Hovershoes could
interfere with the operation ofthe Hovershoes, resultingin serious injury and/or damage, and could void the Limited Warranty.

2. Packing List
Charger
Mainframe X2
User Materials
USER
MANUAL
LIMITED
WARRANTY
WELCOME
CARD
When unpacking your Hovershoes, pleaseverifythat the above itemsare included in the package. If you are missing
any components, please contact your dealer/distributor or nearest service center.
Please retain the box and packaging materials in case you need to shipyour Hovershoes in the future.

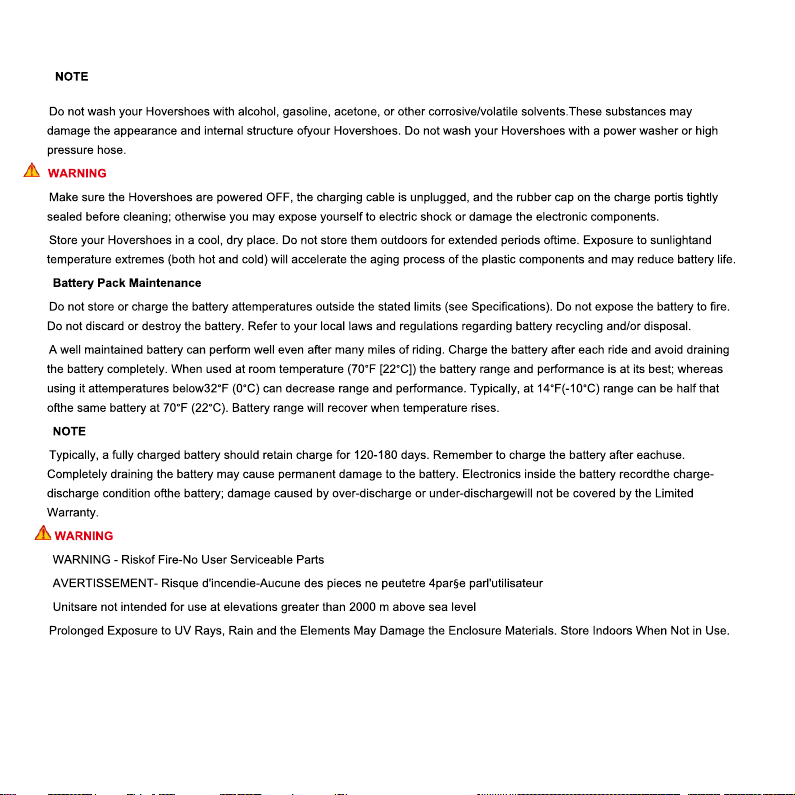

Always power off your Hovershoes and unplug the charge cable before cleaning.











11 .Specifications
Product Name Hovershoes S300
Dimensions Unit (single wheel) 251.9x178.2x111.2 mm
Weight Payload 22-220 lbs (10-100 kg)
Net (single wheel) Approx. 7.7 lbs (3.5 kg)
Rider Recommended Age 64- years old. See the weight limit
Machine
Parameters
Max. Speed
Approx. 6.5 mph (10 km/h)
Top speed will vary based on riding style and remaining battery life. Top speed
will be reduced when the battery is low.
Typical Riding Time [1] 40 minutes
Max. Slope [2] 10°
Traversable Terra in Flat, hard ground free of bumps or obstacles
Operating Temperature 14-104°F(-10-40°C)
Storage Temperature -4-122°F(-20-50°C)
Max. Storage Time A pp rox. 180 days/100% power; Approx, 30 days/30% power
Charge Time (for both mainframes) Approx. 3 hours
Battery
Nominal Voltage 25.2 VDC
Max. Charging Voltage 29.4VDC
Charging Temperature 50-110°F(10-45°C)
Nominal Capacity 2AH*2
Battery Management System Over-voltage, under-voltage, over-current, short circuit, and over-heating
protection. Auto-sleep, auto-balance, and auto-wake.
Motors Max. torque (single wheel) 300W
Charger
Output Power 43.5W
Input Voltage 100-240 VAC
Output Voltage 29.4V
Output Current 1.5A
[1] Typical Riding Time: tested while riding under full power, 165 lbs (75 kg) load, 77°F (25°C), 5 mph (8 km/h)
average speed on flat hard ground.
[2] Max. Slope: tested while riding with the payload of 165 lbs (75 kg) and speed less than 3 mph (5km/h).

12. Certification
Electromagnetic Compatibility Directive & Low-Voltage Directive
Shenzhen ChitadoTechnology Co., Ltd, declares thatthe equipment listed in this section are in compliance with the essential
requirements and other relevant provisions of Directives 2014/30/EU & 2014/35/EU.
13.Trademarkand Legal Statement
GYROOR and Hovershoes are trademarks of Shenzhen ChitadoTechnology Co., Ltd, registered in China and other countries.
The respective owners reserve the rights of their trademarks referred to in this manual.
The Hovershoes is covered by relevant patents. For patent information go to http://www.gyroorboard.com.
We have attempted to include descriptions and instructions for all the functions ofthe Hovershoes at the time of printing.
However, your Hovershoes may differ slightly from the one shown in this document.
Please note that there are multiple Hovershoes models with different functions, and some ofthe functions mentioned herein
may not be applicable to your unit.The manufacturer reserves the rightto change the design and functionality ofthe Hovershoes
productand documentation without prior notice.
@2018 Shenzhen ChitadoTechnology Co., Ltd. All rights reserved.
