H-BUSTER HBTV-32D03HD User manual

LCD TV
Model No.
MANUAL DE SERVIÇO
HBTV-32D03HD
HBTV-42D03FD
ATENÇÃO
Este manual técnico é de uso exclusivo da Rede Autorizada H-Buster. Não existem peças ou partes que possam
ser reparados pelo consumidor final, sob riscos de choque elétrico, causando ferimentos graves.
É proibida a distribuição, comercialização ou cópia deste documento. Sujeito a modificações.
© 2011 H-BUSTER DO BRASIL
Revisão 2

Service Manual
1
CONTENTS
Chapter 1.General Information
1-1. General Guidelines ................................................................................ 3
1-2. Important Notice .....................................................................................
3
1-2-1. Followthe regulations and warnings .....................................................
3
1-2-2. Be careful to the electrical shock...........................................................
3
1-2-3. Electro static discharge (ESD)...............................................................
3
1-2-4. About lead free solder (PbF)..................................................................
4
1-2-5. Use the genewingparts (specified parts) ..............................................
4
1-2-6. Safety check after repairment................................................................
4
1-2-7. OrderingSpare Parts.............................................................................
6
1-2-8. Photo used in this manual .....................................................................
6
1-3. Howto Read this Service Manual......................................................
7
1-3-1. Usingicons . ..........................................................................................
7
Chapter 2. Specification
2-1. Specification list...................................................................................... 8
2-2. External pictures (four faces) .............................................................. 9
Chapter 3. Disassemble and Assemble
Chapter 4. Location ofControls and Components
4-1. Board Location.......................................................................................17
4-2. Main Board & AV Board .......................................................................18
4-2-1. Function Description ............................................................................18
4-2-2. Connector definition .............................................................................18
4-3. Power Supply Board............................................................................ 20
4-3-1. Function description ............................................................................ 20
4-3-2. Connector definition............................................................................. 20
4-4. LCD Panel
.............................................................................................. 22
4-4-1. Function Description: Display the signal ................................................. 22
4-4-2. Connector definition ................................................................................ 22
4
HBTV-32D03 / 42D03
3-1. HBTV-32D03HD
3-2. HBTV-42D03FD......................................................................................13
......................................................................................15
Chapter 5. Operation Instructions
5-1. Get To KnowYour TV......................................................................... 24
5-2. Get To KnowYour Remote Control
.................................................
26
C
5-
5
5

Service Manual
2
Chapter 6. Electrical Parts
.......................................................................................35
.......................................................................................36
7-1. Service Mode (Modo de Serviço) .......................................................47
7-1-1.Howto enter into Service Mode (como entrar no modo de serviço) .......47
7-1-2.Howto exit (sair do modo de serviço).....................................................47
7-2. Measurements and Adjustments ........................................................ 47
7-2-1. Memory Resetting (Reinicializando a memória) . ......................................47
Chapter 9. Troubleshooting(guia de defeitos)
9-1. Power Supply Board Failure Check...................................................51
9-2. Mainboard Failure Check.....................................................................52
C
6---1. Block Diagram
6-2. Circuit Diagram
7-
7-
C
9 -
9 -
Chapter 7. Measurements and Adjustments
HBTV-32D03 / 42D03
Chapter 8. Firmware Update (Atualização de Programa)
7-1. Initial Care (Cuidados Iniciais)
7-2. Initial Procedures (Procedimentos Iniciais)
.Updating firmware (Atualizando o programa)................................. 49
C
8-
8-
8-3
.......................................48
Chapter 10. Exploded View and Parts List
................................................................................. 53
................................................................................. 55
C
10-1. HBTV-32D03HD
10-2. HBTV-42D03FD
...........................................................48
.Firmware Update Diagram (Diagrama da Atualização do programa)
50
8-4
..................................................................................................................

Service Manual
3
Chapter 1.General Information
1-1. General Guidelines
When servicing, observe the original lead dress. Ifashort circuit is found, replace all parts which
have been overheated or damaged by the short circuit.
After servicing, see to it that all the protective devices such as insulation barriers, insulation papers
shields are properly installed.
After servicing, make the followingleakage current checks to prevent the customer frombeing
exposed to shock hazards.
1) Leakage Current Cold Check
2) Leakage Current Hot Check
3) Prevention ofElectro Static Discharge (ESD) to Electrostatically Sensitive
1-2. Important Notice
1-2-1. Followthe regulations and warnings
Most important thingis to list up the potential hazard or risk for the service personnel to open
the units and disassemble the units. For example, we need to describe properly howto avoid the
possibility to get electrical shock fromthe live power supply or charged electrical parts (even the
power is off).
This symbol indicates that high voltage is present inside.It is dangerous to make any
kind ofcontact with any inside part ofthis product.
This symbol indicates that there are important operatingand maintenance instructions
in the literture accompanyingthe appliance.
1-2-2. Be careful to the electrical shock
To prev e nt damage which might result in electric shock or fire, do not expose this TV set to
rain or excessive moisture. This TV must not be exposed to drippingor splashingwater, and
objects filled with liquid, such as vases, must not be placed on top ofor above the TV.
1-2-3. Electro static discharge (ESD)
HBTV-32D03 / 42D03
Some semiconductor (solid state) devices can be damaged easily by static electricity.
Such components commonly are called Electrostatically Sensitive (ES) Devices. The following
techniques should be used to help reduce the incidence ofcomponent damage caused by
electros static discharge (ESD).

Service Manual
4
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such
components commonly are called Electrostatically Sensitive (ES) Devices. Examples oftypical
ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"
components. The followingtechniques should be used to help reduce the ncidence ofcomponent
damage caused by static by static electricity.
1. Immediately before handlingany semiconductor component or semiconductor-equipped
assembly, drain off any electrostatic charge on your body by touchingaknown earth ground.
Alternatively, obtain and wear acommercially available dischargingwrist strap device, which
should be removed to prevent potential shock reasons prior to applyingpower to the unit under
test.
2. After removingan electrical assembly equipped with ES devices, place the assembly on a
conductive surface such as aluminumfoil, to prevent electrostatic charge buildup or exposure of
the assembly.
1-2-4. About lead free solder (PbF)
This product is manufactured usinglead-free solder as apart ofamovement within the
consumer products industry at large to be environmentally responsible. Lead-free solder must be
used in the servicingand repairingofthis product.
1-2-5. Use the genewingparts (specified parts)
Special parts which have purposes offire retardant (resistors), high-quality sound (capacitors),
lownoise (resistors), etc. are used.
When replacingany ofcomponents, be sure to use only manufacture's specified parts shown in
the parts list.
Safety Component
ƔComponents identified by mark have special characteristics important for safety.
1-2-6. Safety check after repairment
Confirmthat the screws, parts and wiringwhich were removed in order to service are put in the
original positions, or whether there are the positions which are deteriorated around the serviced
places serviced or not. Check the insulation between the antennaterminal or external metal and
the AC cord plugblades. And be sure the safety ofthat.
General Servicing Precautions
HBTV-32D03 / 42D03
1. Always unplugthe receiver AC power cord fromthe AC power source before:
a. Removingor reinstallingany component, circuit board module or any other receiver
assembly.

Service Manual
5
b. Disconnectingor reconnectingany receiver electrical plugor other electrical connection.
c. Connectingatest substitute in parallel with an electrolytic capacitor in the receiver.
CAUTION: Awrongpart substitution or incorrect polarity installation ofelectrolytic capacitors
may result in an explosion hazard.
2. Test high voltage only by measuringit with anappropriate high voltagemeter or other voltage
measuringdevice (DVM, FETVOM, etc) equipped with asuitable high voltage probe.
Do not test high voltage by "drawinganarc".
3. Do not spray chemicals on or near this receiver or any ofits assemblies.
4. Unless specified otherwise in this service manual, clean electrical contacts only by applying
the followingmixture to the contacts with apipe cleaner, cotton-tipped stick or comparable non-
abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99%
strength).
CAUTION: This is afl ammable mixture.
Unless specified otherwise in this service manual, lubrication ofcontacts is not required.
Capacitors may result in an explosion hazard.
5. Do not defeatany plug/socket B+ voltage interlocks with which receivers covered by this
service manualmight be equipped.
6. Do not apply AC power to this instrument and/or any ofits electricalassemblies unless all
solid-state device heat sinks are correctly installed.
7. Always connect the test receiver ground lead to the receiver chassis ground before connecting
the test receiver positive lead.
Always remove the test receiver ground lead last. Capacitors may result in an explosion
hazard.
8. Use with this receiver only the test fixtures specified in this service manual.
CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.
9. Remove the antennaterminal on TV and turn on the TV.
10. Insulation resistance between the cord plugterminals and the eternal exposure metal should
be more than Mohmby usingthe 500V insulation resistance meter.
11. Ifthe insulation resistance is less than M ohm, the inspection repair should be required.
Ifyou have not the 500V insulation resistance meter, use aTester. External exposure metal:
Antennaterminal Headphone jack.
HBTV-32D03 / 42D03
12. Use only agrounded-tip solderingiron to solder or unsolder ES devices.

Service Manual
6
13. Use only an anti-static type solder removal device. Some solder removal devices not
classified as "anti-static" can generate electrical charges suffi c i e n t t o d amage ES devices.
14. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to
damage ES devices.
15. Do not remove areplacement ES device fromits protective package until immediately
before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by
conductive foam, aluminumfoil or comparable conductive material).
16. Immediately before removingthe protective material fromthe leads ofareplacement ES
device, touch the protective material to the chassis or circuit assembly into which the device will
be installed.
CAUTION:
Be sure no power is applied to the chassis or circuit, and observe all other safety
precautions.
17. Minimize bodily motions when handlingunpackaged replacement ES devices. (Otherwise
harmless motion such as the brushingtogether ofyour clothes fabric or the liftingofyour foot
fromacarpeted floor can generate static electricity suffi c i e n t t o d amage an ES device.)
1-2-7. OrderingSpare Parts
Please include the followinginformations when you order parts. (Particularly the Version letter)
1. Model number, serial number and software version
The model number and serial number can be found on the back cover ofeach product. Software
version can be found in the Spare Parts List.
2. Spare part No. and description
Spare part No. and description can be found in the Spare Parts List.
1-2-8. Photo used in this manual
The illustration and photos used in this Service Manual may not base on the final design of
products, which may differ fromyour products in some way.
HBTV-32D03 / 42D03

Service Manual
7
1-3. How to Read this Service Manual
1-3-1. Usingicons:
Icons are used to attract the attention ofthe reader to specific information. The
meaningofeach icon is described in the table below:
Note:
A“note” provides information that is not indispensable, but may nevertheless be
valuable to the reader, such as tips and tricks.
Caution:
A“caution” is used when there is danger that the reader, through incorrect
manipulation, may damage equipment, loose data, get an unexpected result or has to
restart(part of) aprocedure.
Warning:
A“warning” is used when there is danger ofpersonal injury.
Reference:
A“reference” guides the reader to other places in this binder or in this manual,
where he/she will find additional information on aspecific topic.
HBTV-32D03 / 42D03

Service Manual
8
Chapter 2. Specification
2-1. Specification list
HBTV-32D03 / 42D03
げ䝈伃
㙆啈䡑䱝䠃
⑖午䙗啄坌刃
㕈噒佘坌剑
㕈噓剑噈䱐䣄偖ః
⑑䩈伃剉䱈娃
♒兗啄噗

╕䱊䭗先噖
㈶✃佄兊塄䩈
⡑䩏䱖䬃
㍒啗塊塈噈
㙓䑑䱖䬃
⡑䩏䱖䬃
㍒啗塊塈噈
㙓䑑䱖䬃
♒佒唃噜噗䡐
⑘䝌刃噜噗䡐
⑘䝌刃剘坓塗剚䡕ଥ塌佗၌儌଺ః
㝒坄伃卒婈唃䱑単埄㫅
㥒佗䑊䠃啄兊䣄㧅
㍒婈唃䥕䡔塈兆峄⭝씃
ㅈ圃婈䱊䭗ମ⨌
⩕剖嘃婈䱊䭗ମ⨌
ᐔᄘ୚䱗䭖坄兇ఀ
ᐗᄘ୚䱗䭖坄兇ఀ
ᐜᄘ୚䱗䭖坄兇ఀ
ᔘᄘ୚䱗䭒塗坄兇ఀ
ᘔᄘ䱑䙋 ᜕䱑䙋
ᜓፆ䜒倕 ᜓፆ䜒倕
ᐓጺ ᐘጺ
ᨛᬑᜍᔔግ᠘ᰑᘀ ᐓᐜഖᰍᤖᰑᨀ
ᐓ㨍ᔃ ᐓ㨍ᔃ
HBTV-32D03HD HBTV-42D03FD
ᐙᴜ ᐙᴜ
ᐖᤙചᤛ ᐜᔓഔጛጀ
ᤑᡐ嘀 ᤑᡐ嘀
⬝ᐚᬒ㤝ᐚᬃ ⬝ᐚᬒ㤝ᐚᬀ
ᘓጓᴔ ᜓጓᴔ
PAL NTSC ISDB-T PAL NTSC ISDB-T
〃㄃ 〃㄃
ᐓጐᔗጹ ᐓጐᔗጹ
᠓ሙጫ㴃 ᠓ሙጫ㴃
MODELO
Tamanho de tela 32 polegadas 42 polegadas
Taxa de Aspecto 16:9 16:9
Resolução 1366 x 768 1920 x 1080
Tempo de Resposta (ms) 6.5 6.5
Ângulo de Visão (H/V) 178° 178°
Contraste 3000:1 5000:1
Brilho 400 cd/m² 500 cd/m²
Idioma OSD Inglês Inglês
Português Português
Espanhol Espanhol
Sistema de Cor
Sistema de Áudio M / N M / N
Potência de saída de áudio (W) 8W*2 8W*2
Consumo total (W) 130W 180W
Tensão da rede (V) 100-240V 100-240V
Frequencia da rede (Hz) 50-60 Hz 50-60 Hz
Peso líquido (c/ pedestal) (Kg) 10 17,5
Peso Bruto (c/ pedestal) (Kg) 13 24,6

Service Manual
2-2. External pictures (four faces)
Front Side
Left Side
2-2-1. HBTV-32D03HD
9
HBTV-32D03 / 42D03

Service Manual
10
Right Side
Back Side
HBTV-32D03 / 42D03

Service Manual
Front Side
Left Side
2-2-2. HBTV-42D03FD
11
HBTV-32D03 / 42D03

Service Manual
12
Right Side
Back Side
HBTV-32D03 / 42D03

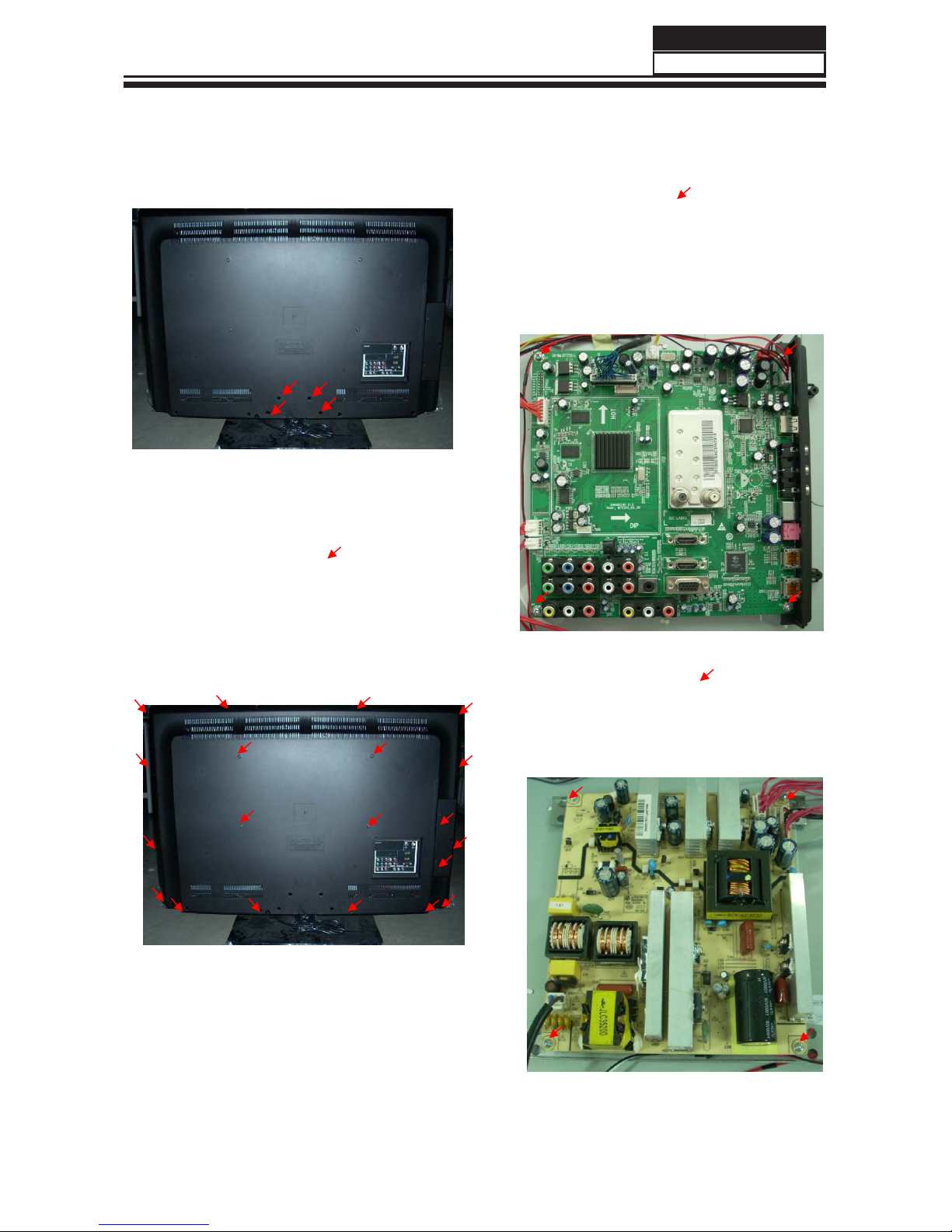

Chapter 3. Disassemble and Assemble
3-1. HBTV-32D03HD
3-1-2. Remove the Back Cover
Service Manual
3-1-3. Remove the mainboard
power supply
3-1-1. Remove the Stand
3-1-4. Remove the
13
ķ/D\GRZQWKHXQLWVRWKDWUHDU
FRYHUIDFHVXSZDUG
ĸ5HPRYHWKHIRXUVFUHZVIURPWKHUHDU
FRYHULQGLFDWHGZLWK
Ĺ7KHQUHPRYHWKHVWDQG
ķ5HPRYHWKHIRXUWHHQVFUHZVLQGLFDWHG
RQILJXUHDERYHE\
ĸ7KHQUHPRYHWKHEDFNFRYHUIURP
WKHXQLW
ķ5HPRYHWKHIRXUVFUHZVLQGLFDWHGRQ
WKHILJXUHDERYHE\
ĸ5HPRYHWKH0DLQERDUG
ķ5HPRYHWKHILYHVFUHZV
LQGLFDWHGRQWKHILJXUHDERYHE\
ĸ7KHQUHPRYHWKHSRZHUVXSSO\
HBTV-32D03 / 42D03

3-1-6. Remove the remote control
3-1-8. Remove the Panel
Service Manual
14
3-1-5. Remove the Speaker
3-1-7.
Remove the O
Takeoutthespeakerdirectly.









5HPRYHWKHVFUHZ
WDNHRXWWKHUHPRWHFRQWUROERDUG


ķ5HPRYHWKHWZRVFUHZVLQGLFDWHGRQ
WKHILJXUHDERYHE\

ķ5HPRYHWKHVL[VFUHZV
LQGLFDWHGRQWKHILJXUHDERYHE\
ĸ7KHQUHPRYHWKHSDQHO
Assembly
ĸ7KHQUHPRYHWKH2UQDPHQWDO/LJKW
$VVHPEO\
rnamental
HBTV-32D03 / 42D03

3-2. HBTV-42D03FD
3-2-2. Remove the Back Cover
Service Manual
15
3-2-4. Remove the power supply
3-2-1. Remove the Stand
3-2-3. Remove the mainboard and
bracket of Side AV
FRYHUIDFHVXSZDUG
ĸ5HPRYHWKHIRXUVFUHZVIURPWKHUHDU
FRYHULQGLFDWHGZLWK
Ĺ7KHQUHPRYHWKHVWDQG
ķ/D\GRZQWKHXQLWVRWKDWUHDU
ķ5HPRYHWKHWZHQW\VFUHZVLQGLFDWHG
RQILJXUHDERYHE\
ĸ7KHQUHPRYHWKHEDFNFRYHUIURPWKH
XQLW
ķ5HPRYHWKHIRXUVFUHZVLQGLFDWHGRQ
WKHILJXUHDERYHE\
ĸ5HPRYHWKH0DLQERDUG
HBTV-32D03 / 42D03

3-2-5. Remove the Speaker
Service Manual
16
3-2-7. Remove the Metal connecting
3-2-6. Remove the remote control
ķ5HPRYHWKHIRXUVFUHZV
LQGLFDWHGRQWKHILJXUHDERYHE\ 
ĸ7KHQUHPRYHWKHSRZHUVXSSO\












5HPRYHWKHVFUHZ
WDNHRXWWKHUHPRWHFRQWUROERDUG
board
3-2-9. Remove the panel bracket
7DNHRXWWKHVSHDNHULQGLFDWHGRQWKH
ILJXUHDERYHE\GLUHFWO\
ķ5HPRYHWKHVHYHQVFUHZVLQGLFDWHGRQWKH
ILJXUHDERYHE\
ĸ5HPRYHWKH0HWDOFRQQHFWLQJERDUG
ķ5HPRYHWKHWZHQW\WZRVFUHZVLQGLFDWHGRQWKH
ILJXUHDERYHE\
ĸ5HPRYHWKH3DQHO%UDFNHWDQG0HWDO6OLFH
Ĺ7KHQ\RXFDQWDNHRIIWKH3DQHO









3-2-8.
Remove the Ornamental Light


ķ5HPRYHWKHWZRVFUHZVLQGLFDWHGRQ
WKHILJXUHDERYHE\ 
Assembly
ĸ7KHQUHPRYHWKH2UQDPHQWDO/LJKW
$VVHPEO\
HBTV-32D03 / 42D03

Chapter 4. Location of Controls and Components
4-1. Board Location
No. Parts number Description
4-1-2. HBTV-42D03FD
Service Manual
17
4-1-1. HBTV-32D03HD
A
B
C
ABoard
B Board
C Board
No. Parts number Description
ABoard
B Board
C Board
A
B
C
Placa Principal
Placa Principal
HBTV-32D03 / 42D03
Tela de LCD
Placa da Fonte
Tela de LCD
Placa da Fonte
OBS.: OS ITENS ACIMA SOMENTE PODEM SER SOLICITADOS
MEDIANTE CONSULTA AO SUPORTE TÉCNICO !!!
497241
497234
410772
410852
410853
410283

4-2.Mainboard
4-2-1. Function Description:
Process signal which incept fromexterior equipment then translate into signal that panel can display.
4-2-2-1.Mainboard ofHBTV-32D03HD/ HBTV-42D03FD:
4-2-2.Connector definition
Power connectors (CNA1)
Pin number Signal name Description
5
6
7
ON/OFF
PW-ON/OFF
GND
GND
5VS 5V-Stand
GND GND
GND GND
12VA 12V-Mainboard
12VA 12V-Mainboard
1
2
3
4
4-2-2-2.Connector definition
18
Service Manual
CNA1
CN1
CNE1
CNE2
CON1
CNC1
CND1
CND2
HBTV-32D03 / 42D03

19
1
2
3
4
Back light connectors (CN1)
Pin number Signal name Description
ADJ
PBON
GND
5VS
Back light adjust
Back light ON/OFF
GND
5VS
Speaker connector (CNC1)
1
2
3
Pin number Signal name Description
L+
L+
L-
4R+
Left of audio
Right of audio
Power ofaudio anplifier connector (CON1)
1
2
3
Pin number Signal name Description
GND GND
24V 24V
24V 24V
4GND GND
Left of audio
Right of audio
Key connector (CNE2)
1
2
3
Pin number Signal name Description
GND GND
KEY1 KEY1
KEY0 KEY0
Remote connector (CNE1)
1
2
3
Pin number Signal name Description
4
5
5V 5V
IRIN IR IN
LEDR LED-RED
LEDB LED-BLUE
GND GND
Service Manual
HBTV-32D03 / 42D03
