H-L Data Storage Super Multi MP7 User manual

HLW-TNMP7
Product
Manual
MFL67903119
50mm
80mm

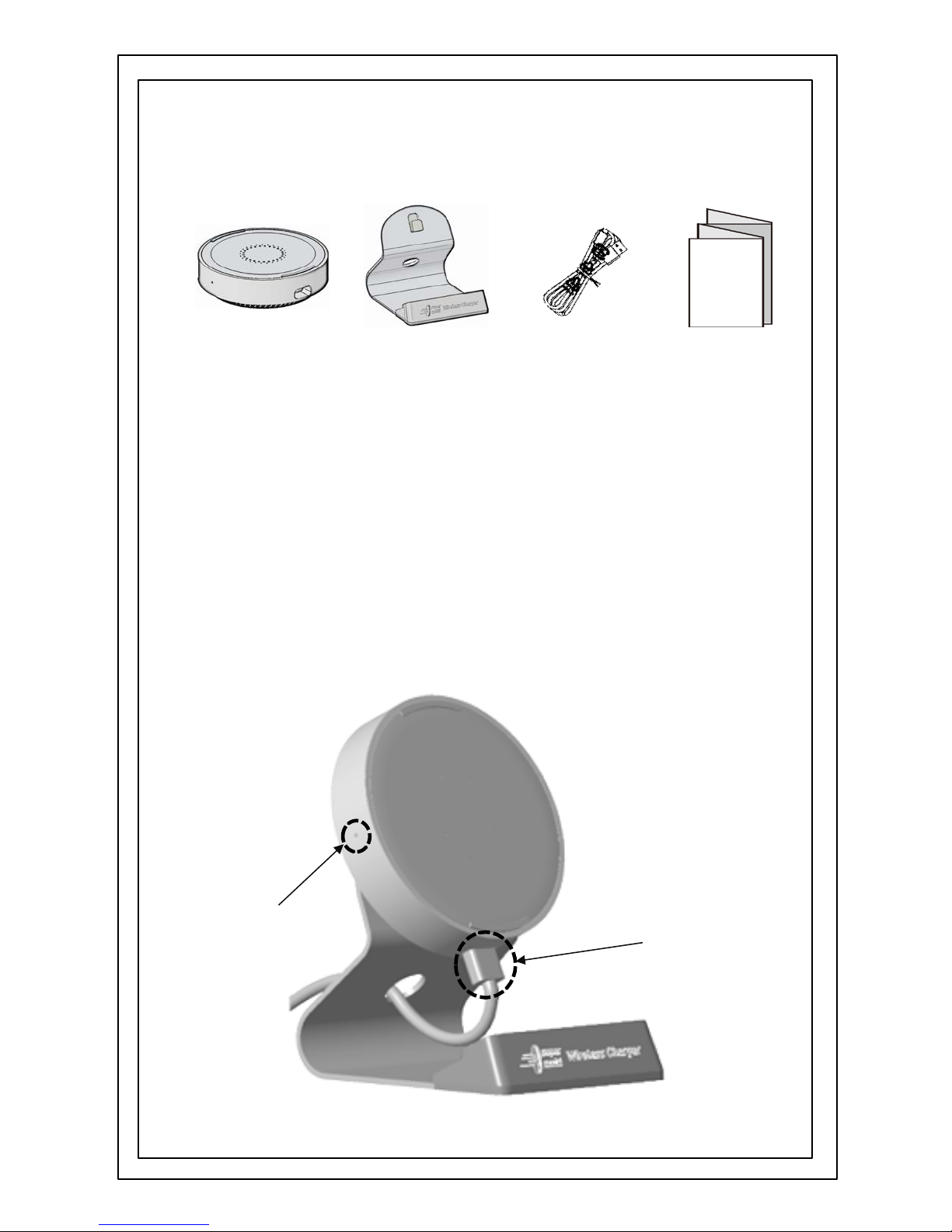

Product Configuration
USB Cable
Wireless Charging Pad Manual
Name of Each Part
Status
Indication Light
USB-C
Adapter
connection
제품
사용 설명서
Stand

• Please read this manual before using the product for safe and
correct use.
• The figures in the manual can be different from the actual product
and the contents are subject to change without notice for
performance improvement.
• If you want to connect this product to other devices, please check
if the devices are compatible with this product.
Caution : It is marked for items which require caution to use the
product correctly and without damage.
Note : It is marked for notes and additional information
which can allow the user to use the product more easily and
conveniently.
Read Before Use
Description of Symbols

•The supplied components are subject to change depending on
the manufacturer’s circumstances.
•As the components are exclusively made for this product, they
may not be compatible with other devices.
•The product’s appearance, specifications, etc. are subject to
change without notice for performance improvement.
•Some mobile devices may not charge depending on the location
of the mobile devices’ charging base.
•Seamless charging may be difficult when thick cases are used.
•Wireless charging function is not supported when wired charger
is connected to the mobile devices during wireless charging.
•Please take caution to not place any metallic materials,
magnets, cards, etc. between the product and mobile devices. It
may interfere with normal charging or cause overheating and
malfunction.
•When the red light is blinking, charge after removing metallic
materials on top of the charging base.
•Make sure to only use adapters that are compatible with the
product’s specifications.
(ex. Phone adapters certified by international standards)
1. Insert and connect the charger to the product.
2. Place the mobile device that support wireless charging function
on the cradle of the product. Charging begins when the product’s
charging base and the mobile device’s charging base comes in
contact.
3. When charging is complete, separate the mobile device from the
product.
How to Use the Product

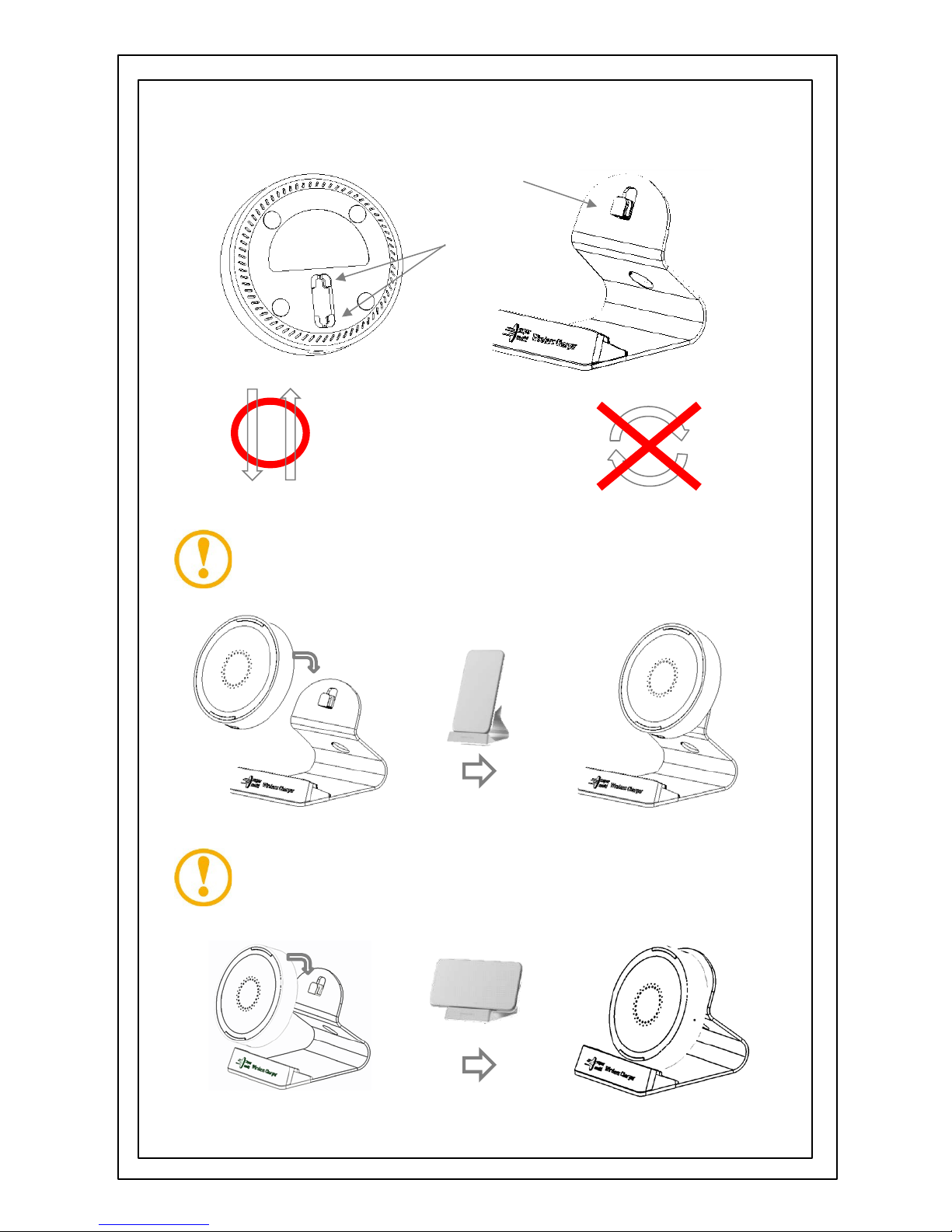

Caution on Pad (A)
and Stand (B)
Assembly
B
Caution : Do not change the wireless charging pad by
rotating it during assembly. It may damage the “A”
Charging in Vertical Position
Charging in Horizontal Position
Caution : When changing the cradle’s position from
vertical to horizontal, assemble by separating the pad and
rotating it 180 degrees
OK NG
How to Use the Pad and Stand
A

Faster charging is supported for mobile devices that have high-speed
wireless charging function. For details, refer to the smart phone’s manual.
High-speed Wireless Charging
LED Scenario
Color of Indication Light Status
Yellow light is turned on
and turned off
Green light is blinking Charging
Green light is turned on Charging complete
Red light is blinking Charging error
OFF Mobile device is
separated/power off
Standard WPC 1.2
Input Voltage 5 ~ 12 V DC
Input Current Max 2 A
Output Voltage Up to 15 W
Output Current Max 12 V @ 15 W
Suitable Temperature +5 ~ +35 ℃
Suitable Storage Temperature -20 ~ +50 ℃
Product Specifications
•Recommended adapter specifications for high-speed
wireless charging :
15 W : 12 V 2 A (24 W supported) adapter
Fast Charging : 9 V 1.67 A / QC2.0 / QC3.0 adapter
(Depending on the adapter specifications, charging power of the wireless
charger may differ.)
The display showing the charge complete status may differ
depending on the mobile phone.
Connected to power
Frequency 115kHz ~ 130kHz
Output Power
86.7 dBuV/m at 3m (for USA)
12.49 dBuA/m at 10m (for Europe)

• Do not use damaged power cords/plugs or loose wall socket.
• Do not excessively bend or break the power cord.
• Information may get damaged for products with magnetic properties
such as credit cards, bankbooks, and passes due to the product’s
magnetism.
• Do not touch the product with wet hands.
• Do not cause severe impact such as dropping the product.
• Take caution to prevent children, infants, or pets from mouthing or biting
the product.
• Do not use the product for purposes other than its intended use.
• Place the product in a dry place free of water and moisture.
• Do not modify or disassemble the product at the user’s discretion.
• Do not place mobile devices that do not support wireless charging. It
may cause adverse effects.
Safety Precautions
Please use the product according to correct purpose and method of use.
The company is not liable for injuries or damages caused by neglecting
cautions.
FCC ID Warning:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the equipment. Exposure to
Radio Frequency Radiation:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
FCC Label Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
CE Conformity Notice:
Hereby, Hitachi-LG Data Storage Inc. declares that this Super multi
Wireless Charger is compliant with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
The complete Declaration of Conformity may be requested through the
following postal address : Hitachi-LG Data Storage Inc.Amsterdam office
- Keienbergweg 77, 1101 GE, Amsterdam, The Nethelands

•Warranty Service
- You can receive warranty service for 1 year after the product
purchase.
•Exclusion of Warranty Service
- Upon loss or breakage due to the customer’s fault or negligence
(damage caused by impact or inserting foreign substance) / Upon
breakage due to personal repair or modification other than repair
provided by the customer center / Product damage caused by natural
disaster / Upon 2 or more registrations of the product without faults
(even during the warranty period)
•Service Consultation
- For A/S related information, please contact the vendor.
(For vendor information, refer to the label on the back of the
product.)
※B Grade Equipment (Domestic Broadcasting and Communication
Equipment) As this device is for domestic use (B Grade) and
registered for Electro-Magnetic Compatibility, it is intended for
domestic use and can be used in all areas.
Model Name
Purchased Date
Purchased Location
Customer Name
Product Warranty
•Please check if there are any missing items on the warranty. To
receive service, please have this warranty and receipt with you.
As this warranty is not issued again, please keep it in a safe
place. After purchasing this product, make sure to fill in the
information and keep it in a safe place.
