FRO­NIUS Wattpilot Go 11 J 2.0 User manual

Operating
Instructions
Fronius Wattpilot
Go 11 J 2.0 / 22 J 2.0
Go 22 J 2.0 AUS
Home 11 J 2.0 / 22 J 2.0
42,0426,0435,EN 003-08092022
EN Operating instructions

Contents
General information 5
Safety rules 7
Explanation of safety notices 7
General 7
Environmental conditions 8
Qualified personnel 8
EMC measures 8
Data protection 8
Copyright 8
General 9
Intended use 9
Symbols on the device 9
Scope of supply 9
Accessories 10
Safety 11
Suitable inverters 13
Suitable generators from third-party manufacturers 14
Controls and indicators 15

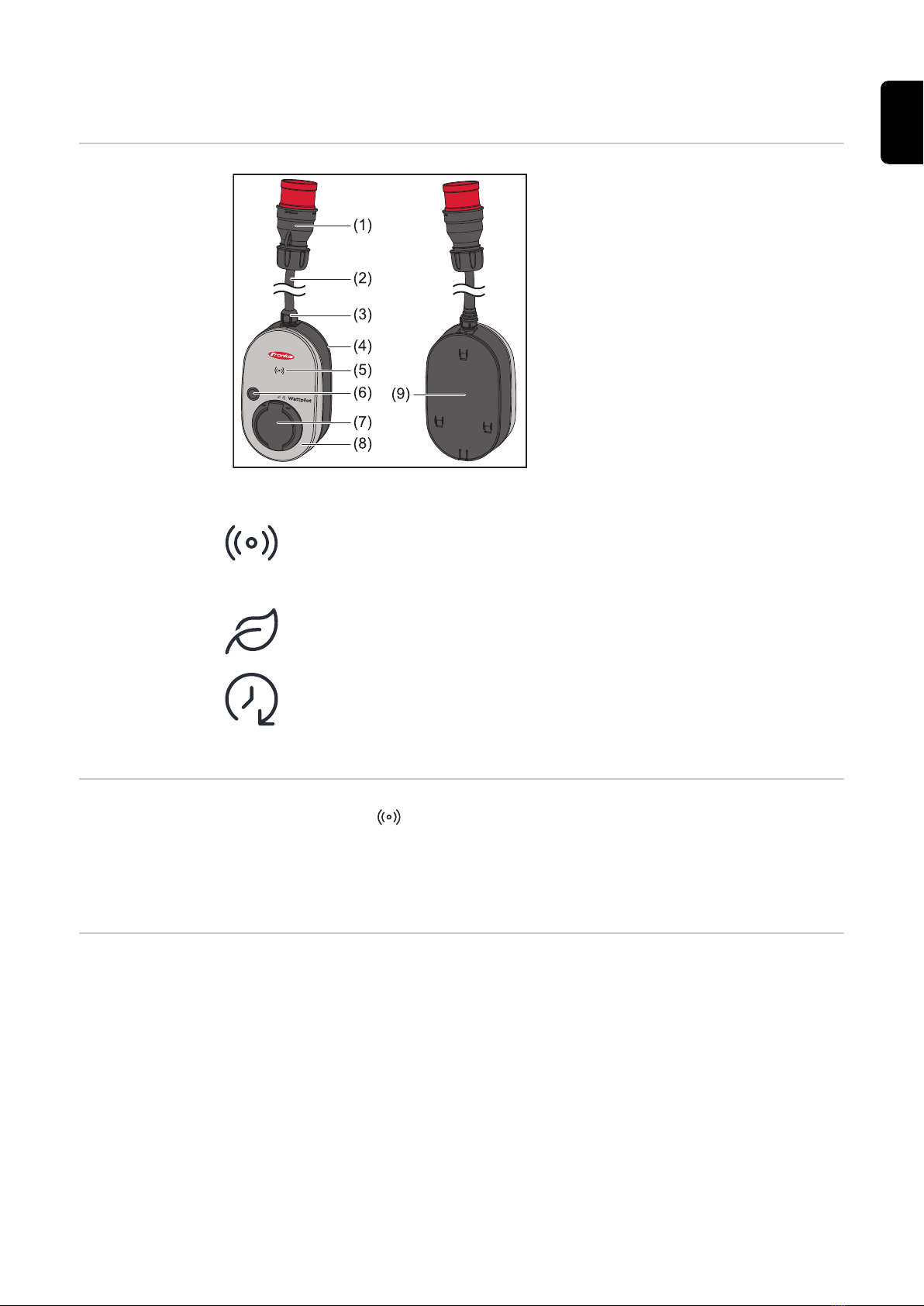

Product overview 15
Card reader 15
Pushbutton functions 15
ID chip 16
Reset card 16

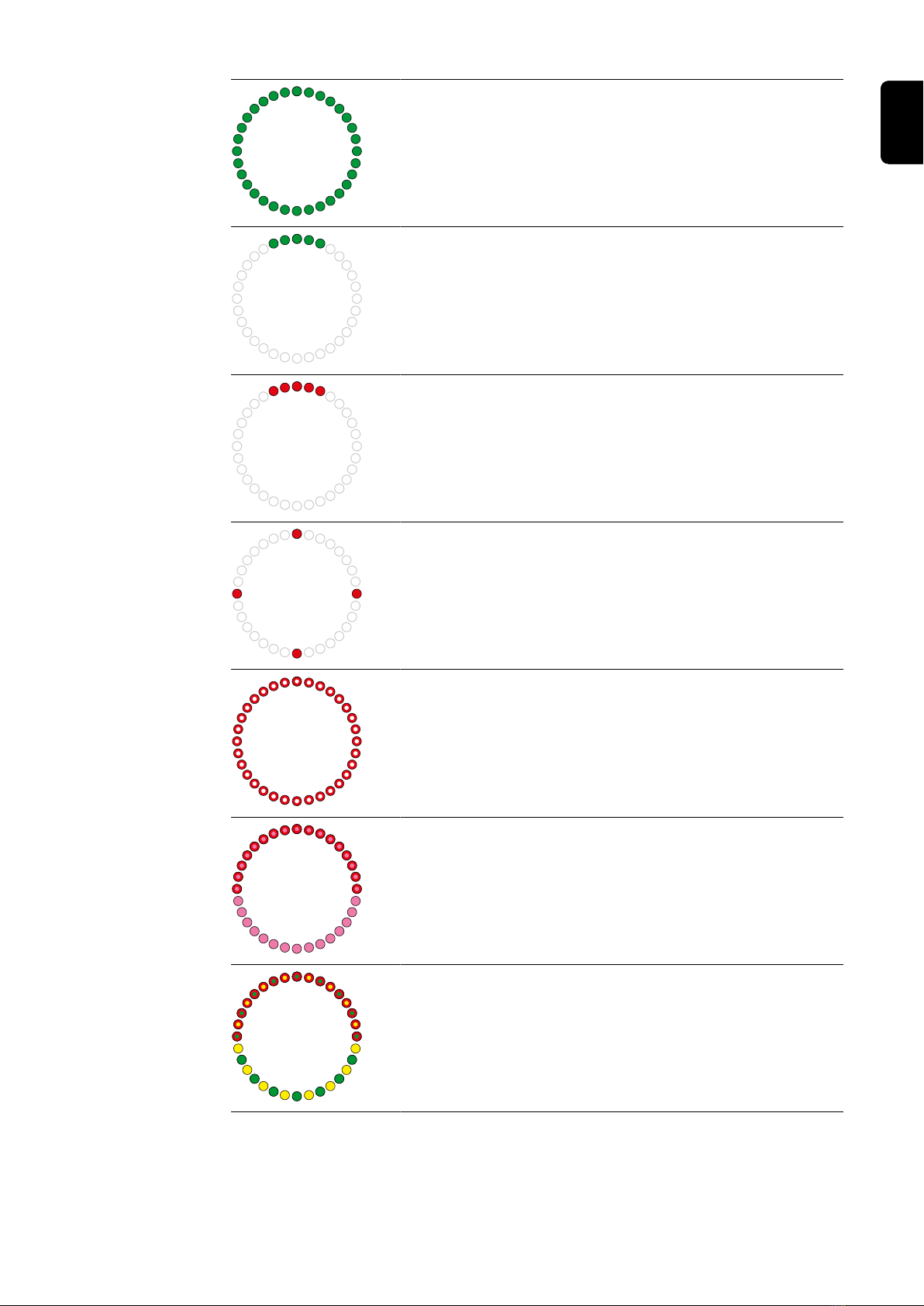

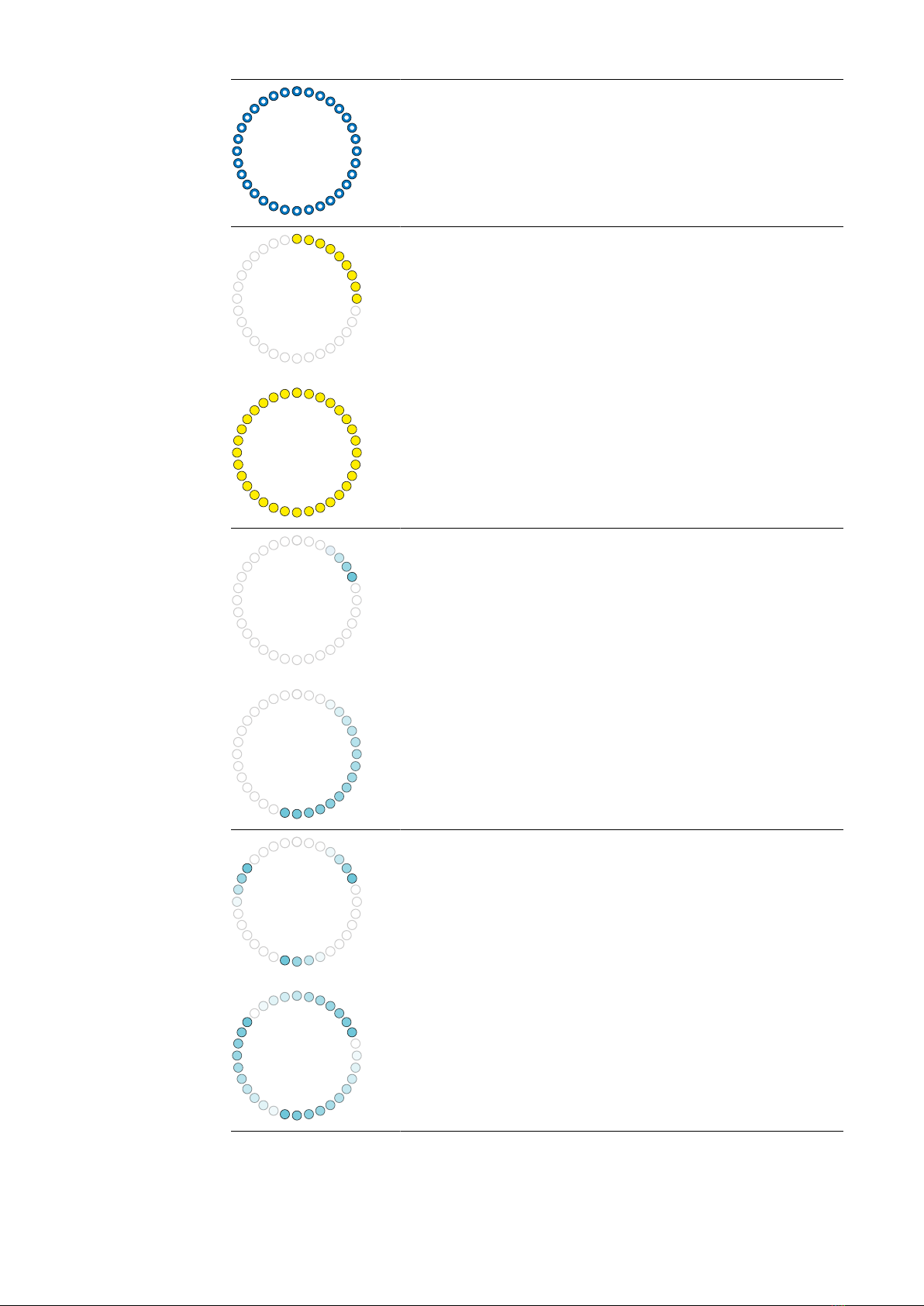

LED status indicator 17
Functions 22
Overview 22
Phase changeover 22
PV surplus 22
Flexible electricity tariff 25
Different charging modes 26
Standard mode 26
Eco Mode 26
Next Trip Mode 27
Installation and commissioning 31
Installation location and position 33
Choice of location 33
Installation position 33
Installation 35
Mounting the Wattpilot on the wall 35
Mounting the anti-theft protection 36
Connecting the Wattpilot 38
General information 38
Installing the Wattpilot Home 38
Backup power mode 39
Commissioning 39
Stopping charging 40
Data communication with the inverter 40
Fronius Solar.wattpilot app 43
Overview 45
General 45
Download 45
Connecting via WLAN 46
Launching the app 46
Setting up a hot spot 46
3
EN

Setting up the WLAN 46
Adding a Wattpilot 46
Charging 47
Homepage 47
Energy per user 48
Settings 49
Current level 49
Next Trip Mode 49
Cost optimisation 49
Charging timer 51
Name 51
Brightness 52
LED colours 52
Time zone 52
Access management 52
Cable release 53
Earthing test 53
ID chips 53
Password 53
Grid settings 54
Internet 55
Connection 55
OCPP 55
Restart 55
Firmware update 56
Appendix 57
General 59
Residual current detection 59
Safety functions 59
Standard settings 59
Technical data 63
Wattpilot Go 11 J 2.0 63
Wattpilot Go 22 J 2.0 63
Wattpilot Go 22 J 2.0 AUS 64
Wattpilot Home 11 J 2.0 65
Wattpilot Home 22 J 2.0 66
Status codes and remedy 67
Status Codes 67
Warranty terms and conditions, and disposal 70
Fronius manufacturer's warranty 70
Disposal 70
4

General information
5

6

Safety rules
Explanation of
safety notices DANGER!
Indicates immediate danger.
▶If not avoided, death or serious injury will result.
WARNING!
Indicates a potentially hazardous situation.
▶If not avoided, death or serious injury may result.
CAUTION!
Indicates a situation where damage or injury could occur.
▶If not avoided, minor injury and/or damage to property may result.
NOTE!
Indicates a risk of flawed results and possible damage to the equipment.
General Follow these Operating Instructions to ensure safe and proper use of the device.
Keep for later reference.
The device has been manufactured in line with the state of the art and according
to recognised safety standards. If used incorrectly or misused, however, it can
cause:
-Serious or fatal injury to the operator or third parties
-Damage to the device and other material assets belonging to the operating
company
All personnel involved in commissioning, maintenance and servicing of the device
must:
-Be suitably qualified
-Have knowledge of and experience in dealing with electrical installations
-Have fully read and precisely followed these Operating Instructions
In addition to the Operating Instructions, all applicable local rules and regula-
tions regarding accident prevention and environmental protection must also be
followed.
All safety and danger notices on the device:
-Must be kept in a legible state
-Must not be damaged
-Must not be removed
-Must not be covered, pasted or painted over
Only operate the device when all connections and protection devices are fully
functional. If the connections and protection devices are not fully functional,
there is a danger of
-Serious or fatal injury to the operator or third parties
-Damage to the device and other material assets belonging to the operating
company
7
EN

Any safety devices that are not fully functional must be repaired by an author-
ised specialist before the device is switched on.
Never bypass or disable protection devices.
For the meaning of the safety and danger notices on the device, refer to the sec-
tion headed "Information on the device".
Any equipment malfunctions which might impair safety must be remedied before
the device is turned on.
This is for your personal safety!
Environmental
conditions
Operation or storage of the device outside the stipulated area will be deemed as
not in accordance with the intended purpose. The manufacturer accepts no liab-
ility for any damage resulting from improper use.
Qualified per-
sonnel
The information on mounting and installing the device contained in these Operat-
ing Instructions is intended only for the use of qualified service engineers. Do not
carry out any actions other than those described in the documentation. This also
applies to qualified personnel.
Maintenance and repair work must only be carried out by an authorised special-
ist.
EMC measures In certain cases, even though a device complies with the standard limit values for
emissions, it may affect the application area for which it was designed (e.g., when
there is equipment that is susceptible to interference at the same location, or if
the site where the device is installed is close to either radio or television receiv-
ers). If this is the case, then the operator is obliged to take appropriate action to
rectify the situation.
Data protection The user is responsible for the safekeeping of any changes made to the factory
settings. The manufacturer accepts no liability for any deleted personal settings.
Copyright Copyright of these operating instructions remains with the manufacturer.
The text and illustrations are all technically correct at the time of printing. We
reserve the right to make changes. The contents of the operating instructions
shall not provide the basis for any claims whatsoever on the part of the pur-
chaser. If you have any suggestions for improvement, or can point out any mis-
takes that you have found in the instructions, we will be most grateful for your
comments.
8

General
Intended use The Fronius Wattpilot Go 11 J 2.0 / Go 22 J 2.0 / Go 22 J 2.0 AUS is a mobile
charging station for charging electric vehicles for connection to an AC/three-
phase network.
The Fronius Wattpilot Home 11 J 2.0 / Home 22 J 2.0 is a charging station for
charging electric vehicles for fixed connection to an AC/three-phase network.
The Wattpilot may only be used for the purpose of charging battery-powered
electric vehicles and plug-in hybrid vehicles in conjunction with the appropriate
adapters and cables.
Intended use also includes complying with all the instructions in these Operating
Instructions.
The following circumstances are considered improper:
-Use other than or in excess of the intended use.
-Making any modifications to the Wattpilot that have not been expressly ap-
proved by Fronius.
-Installation of components that are not distributed or expressly approved by
Fronius.
The manufacturer shall not be liable for any damage resulting from such use. All
warranty claims will be forfeited.
Symbols on the
device
The symbols on the Fronius Wattpilot must not be removed or painted over. They
warn against incorrect operation, as this may result in serious injury and damage.
Symbols on the rating plate:
CE mark – confirms compliance with applicable EU directives and
regulations. The product has been tested by a specific notified body.
WEEE mark – waste electrical and electronic equipment must be
collected separately and recycled in an environmentally sound manner
in accordance with the European Directive and national law.
RoHS marking - The product complies with the requirements of the EU
Directive on the restriction of the use of certain hazardous substances
in electrical and electronic equipment. See RoHS statement.
UKCA mark – confirms compliance with applicable UK directives and
regulations.
RCM mark – tested in accordance with the requirements of Australia
and New Zealand.
Scope of supply Depending on the product variant, the scope of delivery differs as follows.
9
EN

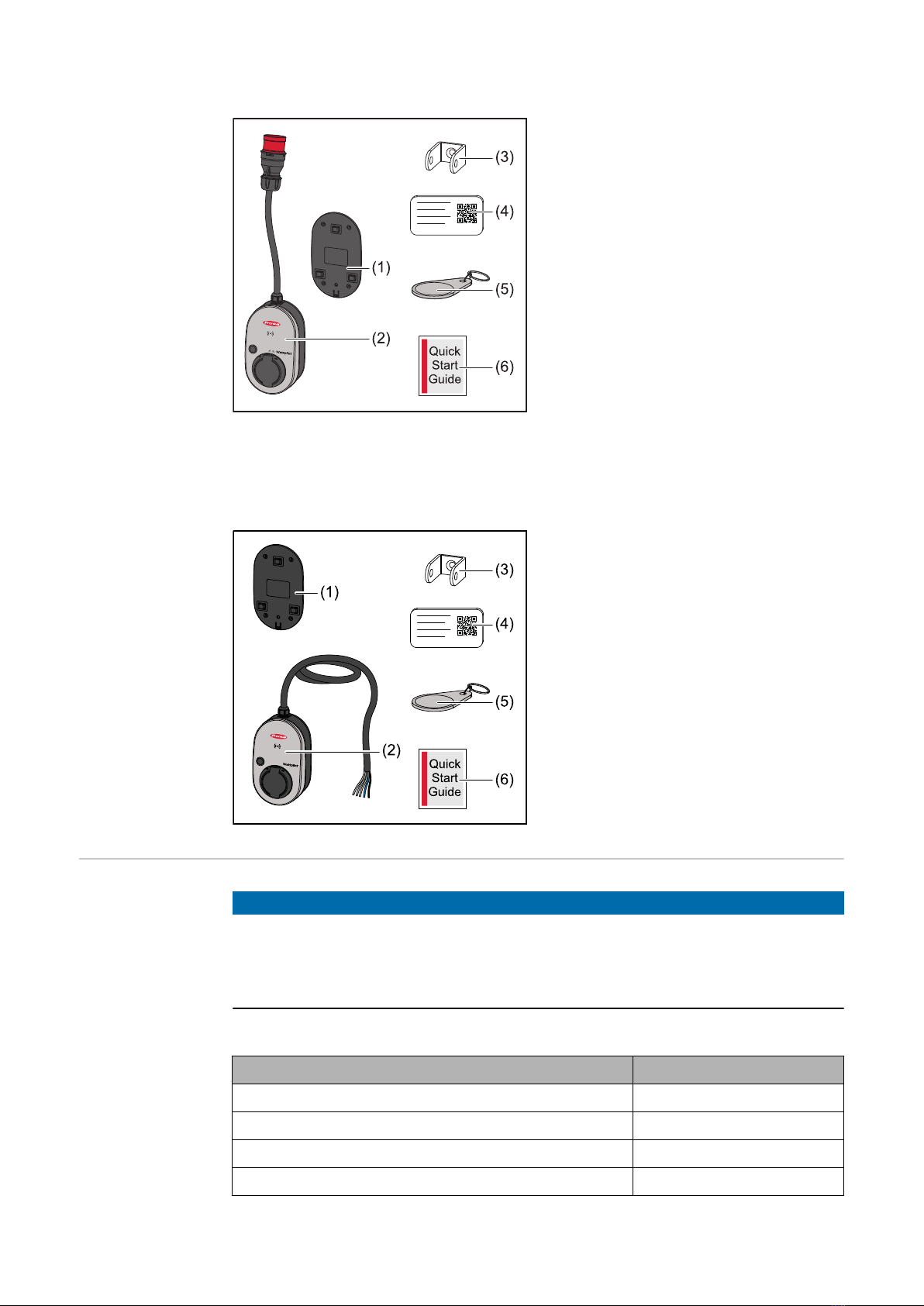

Fronius Wattpilot Go 11 J 2.0 / Go 22 J 2.0 / Go 22 J 2.0 OFF*
(1) Mounting bracket, incl. screws
and dowels
(2) Wattpilot Go 11 J 2.0 or Wattpi-
lot Go 22 J 2.0
(3) Anti‑theft device
(4) Reset card
(5) ID chip
(6) Quick Guide
*The scope of delivery for the Fronius Wattpilot Go 22 J 2.0 AUS differs from the
other product variants by the plug type.
Fronius Wattpilot Home 11 J 2.0 / Home 22 J 2.0
(1) Mounting bracket, incl. screws
and dowels
(2) Wattpilot Home 11 J 2.0 or
Wattpilot Home 22 J 2.0
(3) Anti‑theft device
(4) Reset card
(5) ID chip
(6) Quick Guide
Accessories NOTE!
Only use original adapters for the operation of the Wattpilot!
The CEE plugs (see IEC 60309) of the adapter set differ from those of other
suppliers due to their design with a reed contact.
▶Use original adapter sets.
Accessories, optional
Item designation Item number
Type 2 charging cable, 32 A, 22 kW, 2.5 m 4,240,419
Type 2 charging cable, 32 A, 22 kW, 5.0 m 4,240,180
Type 2 charging cable, 32 A, 22 kW, 7.5 m 4,240,420
ID chips, 10 pieces 4,240,181
10

Item designation Item number
Mounting plate Go 2.0 (mounting bracket) 4,240,421
Type 2 wall bracket (cable wall bracket) 4,240,422
Adapter set Go 11 2.0, CEE adapter 16 A to
-CEE plug, red, 32 A (3-phase)
-CEE plug, blue, 16 A (1-phase, camping plug)
-Earthed plug type F 16 A (household socket)
4,240,405
Adapter Go 11 CEE32 red 2.0, (3-phase) 4,240,406
Adapter Go 11 CEE16 blue 2.0, (1-phase) 4,240,407
Adapter Go 11 type F plug 2.0 (household socket) 4,240,408
Adapter set Go 22 2.0, CEE adapter 32 A to
-CEE plug, red, 16 A (3-phase)
-CEE plug, blue, 16 A (1-phase, camping plug)
-Earthed plug type F 16 A (household socket)
4,240,410
Adapter Go 22 CEE16 red 2.0, (3-phase) 4,240,411
Adapter Go 22 CEE16 blue 2.0, (1-phase) 4,240,412
Adapter Go 22 type F plug 2.0 (household socket) 4,240,413
Safety WARNING!
Danger due to incorrect operation and incorrectly performed work.
This can result in serious injury and damage to property.
▶Read and understand this document.
▶Read and understand all the Operating Instructions for the system compon-
ents, especially the safety rules.
WARNING!
Danger from electromagnetic fields for persons with pacemakers and defibril-
lators!
This can result in serious injury.
▶Persons with pacemakers must maintain a distance of at least 60 cm.
▶Persons with defibrillators must maintain a distance of at least 40 cm.
WARNING!
Danger due to open or damaged housing!
This can result in severe personal injury and damage to property due to high
voltage and/or fire.
▶Do not use the device if the housing is damaged or open.
▶Send in the device for repair.
11
EN

WARNING!
Danger from loose parts in the housing!
This can result in severe personal injury and damage to property due to high
voltage and/or fire.
▶Do not use the device if there are loose parts in the housing.
▶Send in the device for repair.
WARNING!
Danger due to cables!
Damaged or exposed cables can result in severe personal injury and damage to
property.
▶Do not use the device if the cables attached to or plugged into the device are
damaged.
▶Adequately support the weight of the device and the charging cable.
▶Provide mechanical relief for the cables.
▶Lay the charging cable securely to avoid the risk of tripping over the charging
cable.
WARNING!
Danger due to wet or dirty connectors!
Charring caused by prolonged usage can result in severe personal injury and
damage to property.
▶Only mount the device vertically.
▶Dry wet connectors in a de-energised state.
▶Clean soiled connectors in a de-energised state.
WARNING!
Danger from gassing vehicle batteries!
This can result in serious injury.
▶Only use in well-ventilated areas.
WARNING!
Danger from driving away with the charging cable connected!
This can result in severe personal injury or damage to property.
▶Disconnect the charging cable from the electric vehicle before driving away.
▶Do not bypass the safety device of the electric vehicle.
WARNING!
Danger due to excessive load!
This can result in severe personal injury or damage to property.
▶The load when operating the device with an earthed plug must not exceed
10 A.
▶The earthed socket outlet must be suitable for continuous operation at 10 A.
▶Check for heat generation after each use.
▶The device and the sockets must not overheat.
12

CAUTION!
Danger due to excessive charging current!
Fires or damage to the in-house installation may result.
▶Observe the maximum permissible current at the connected socket.
▶If the maximum charging current is not known, charge with the lowest pos-
sible charging current.
▶Only use original adapters. An automatic reduction of the charging current to
16 A by plugging in the adapter is only possible in conjunction with the ori-
ginal adapters.
CAUTION!
Danger due to heat generation on the device!
The build-up of heat can lead to lasting damage and even fire.
▶Never cover the device during charging.
▶Unwind the cable completely from a cable drum.
▶Observe the correct installation position.
Never pull the plug out of the plug connection by the cable!
Observe the specifications of the grid operator regarding 1‑phase charging and
the asymmetrical network load that may result.
The device has a built-in residual current protection module with residual current
detection (20 mA AC and 6 mA DC). This means that no upstream type B resid-
ual-current circuit breaker is required. A separate type A residual-current circuit
breaker and an automatic circuit breaker must be connected upstream for each
Wattpilot.
The device may only be operated at the following connections:
-CEE red 32 A, 3-phase, 400 V
-CEE red 16 A, 3-phase, 400 V
-With original adapters:
-CEE red 16 A, 3-phase, 400 V
-CEE red 32 A, 3-phase, 400 V
-CEE blue 16 A, 1-phase, 230 V
-Earthed plug 16 A, 1-phase, 230 V
In case of defective adapters or defective CEE plugs, send the device in for re-
pair.
Suitable invert-
ers
Compatibility with the connected devices, suitable data communication and a
Fronius Smart Meter at the feed-in point are prerequisites for using some Watt-
pilot functions (e.g. PV surplus).
Suitable Fronius inverters
-Fronius GEN24
-Fronius Symo Hybrid
-Fronius SnapINverter (except light versions)
-Fronius IG*
-Fronius IG Plus*
-Fronius IG TL**
-Fronius CL*
13
EN

*Requirement:
-Fronius Smart Meter
-Fronius Datamanager 2.0 (item number 4,240,036,z), or
-Fronius Datamanager Box 2.0 (item number 4,240,125)
**Requirement:
-Fronius Datamanager Box 2.0 (item number 4,240,125)
Suitable gener-
ators from third-
party manufac-
turers
Suitable generators can be, for example, inverters or wind power plants. A pre-
requisite for compatibility with external generators is that no other self-con-
sumption controllers (with e.g. battery, power-to-heat) are operated in parallel.
This can lead to photovoltaics optimisation (PV optimisation) malfunctions. The
proportion of energy consumed by other loads is not taken into account in the
Fronius Solar.wattpilot app, as the power is only known at the grid connection
point.
Requirement:
-Fronius Smart Meter (at the feed-in point)
-Fronius Datamanager Box 2.0 (item number 4,240,125)
For further information see Data communication with the inverter on page 40.
14

Controls and indicators
Product over-
view
(1) CEE plug
(2) Connection cable
(3) Strain-relief device
(4) Housing
(5) Card reader
(6) Pushbutton
(7) Type 2 junction box
(8) LED ring
(9) Rating plate
Symbols on front of the device:
Kartenleser
The symbol shows the location of the card reader installed in the device
where ID chips can be authenticated or taught-in or the Wattpilot can
be reset using the reset card.
Eco Mode
This symbol indicates operation in Eco Mode; the first LED lights up
white.
Next Trip Mode
This symbol indicates operation in Betrieb im Next Trip Mode; the
second LED lights up white.
Card reader Behind the symbol is the card reader for reading ID chips and the reset card.
The card reader uses RFID (radio-frequency identification). RFID is the transmit-
ter‑receiver technology for automatic and contactless identification with radio
waves.
Pushbutton
functions
By pressing the pushbutton, the level of charging current can be adjusted or the
operating mode can be changed.
Press for under 0.5 s
Briefly pressing the pushbutton changes the operating mode. The charging
modes are
-Standard mode
-Eco Mode
-Next Trip Mode
The selected charging mode (see Different charging modes on page 26) is indic-
ated by the LED status indicator (see LED status indicator on page 17); in
standard mode, no operating mode LEDs light up.
15
EN

Pressing for more than 2.0 s
Pressing the pushbutton repeatedly changes the preset charging current (in
amperes). The level of the set charging current is indicated by the LED status in-
dicator (see LED status indicator on page 17).
The level of the preset charging current can be adjusted in the app (see Current
level on page 49).
Standard settings
-Fronius Wattpilot Go 11 J 2.0 / Home 11 J 2.0: 6 A, 10 A, 12 A, 14 A, 16 A
-Fronius Wattpilot Go 22 J 2.0 / Go 22 J 2.0 AUS: 10 A, 16 A, 20 A, 24 A, 32 A
ID chip The ID chip can be used to personalise access to the Fronius Wattpilot. The ID
chip is used for authentication and for recording user-specific charging amounts.
In the app settings, authentication for charging can be activated under "Access
management" and "Authentication required" (see Access management on page
52). Charging with authentication activated can be carried out after scanning
the supplied ID chip or by providing confirmation in the app. To scan, hold the ID
chip directly in front of the card reader of the Wattpilot.
Each ID chip can be assigned a name in the app under "ID chips". The stored
charging amount per ID chip can be viewed in this menu (see ID chips on page
53).
No authentication is required in order to assign the charging amount to the ID
chips.
Reset card The reset card resets all settings (e.g. access management, WLAN and LED set-
tings) to the factory settings. The taught-in ID chips and the corresponding char-
ging amounts continue to be stored.
The following information is printed on the reset card.
-"Serial number" - serial number of the Wattpilot
-"Hot spot SSID" - WLAN network name of the Wattpilot
-"Hot spot key" - WLAN password of the Wattpilot
-"QR code" - key to connect the app to the Wattpilot hot spot
Resetting the Wattpilot
1Hold the reset card in front of the card reader.
2All LEDs briefly light up red.
RESET CARD
NOTE!
Keep the reset card safe!
The reset card contains all access
data.
▶TIP: Keep the reset card in the car.
16

LED status indic-
ator
The LED status indicator on the Wattpilot indicates whether the system is
switched on and the current system status of the Wattpilot. One LED represents
one ampere (1 A). A maximum of 32 A is displayed.
The first two LEDs indicate the currently active operating mode. If these do not
light up white, the Wattpilot is in standard mode - charging takes place with the
maximum set current without taking surplus PV electricity and flexible electricity
tariffs into account.
Eco Mode
The Wattpilot is in Eco Mode.
-The first LED lights up white.
-The first LED flashes orange (see chapter Status
Codes on page 67).
-The first LED flashes red (see chapter Status Codes
on page 67).
Next Trip Mode
The Wattpilot is in Next Trip Mode.
-The second LED lights up white.
-The second LED flashes orange (see chapter Status
Codes on page 67).
-The second LED flashes red (see chapter Status
Codes on page 67).
Starting
The Wattpilot is starting up or restarting.
-The LEDs light up in rainbow colours.
Ready
The Wattpilot is ready for operation. The number of
LEDs that light up indicates the set charging current.
Each LED represents 1 ampere (A). A maximum of 32 A
can be displayed, whereby the first two LEDs are re-
served for the charging modes.
-A few blue LEDs light up = low charging current (e.g.
10 LEDs = 10 A).
-Several/all blue LEDs light up = high charging cur-
rent (e.g. 32 LEDs = 32 A).
Enable
The Wattpilot must be activated via the app or an ID
chip.
-The LEDs light up blue, four pairs of LEDs run in a
quarter circle from the top and bottom towards each
other.
17
EN

Waiting
The Wattpilot is waiting for cheap electricity from a
photovoltaic system or electricity provider, or the char-
ging timer is active.
-The LEDs flash blue in the number of amperes set.
Wait for car
The Wattpilot recognises the connected vehicle and the
set charging parameters. Charging has been enabled by
the charging station but not yet started by the car.
-A few yellow LEDs light up when the charging cur-
rent is low.
-Several/all yellow LEDs light up when the charging
current is high.
1-phase charging
The Wattpilot is carrying out 1-phase (230 V) charging
with low to high charging current.
-One series of blue LEDs moves in a clockwise direc-
tion.
-The level of charging current is indicated by the
number of LEDs and the speed of rotation.
3-phase charging
The Wattpilot is carrying out 3-phase (400 V) charging
with low to high charging current.
-Three series of blue LEDs move in a clockwise direc-
tion.
18

Charging finished
The charging process is complete.
-All LEDs light up green.
ID chip detected
The Wattpilot has detected an authorised ID chip.
-Five LEDs light up green.
Invalid value
Wattpilot displays an invalid input. Pressing the pushbut-
ton was not permitted or an ID chip was detected but
not authorised.
-Five LEDs light up red.
Earthing test deactivated
The earthing test is deactivated.
-Four LEDs light up at 3, 6, 9 and 12 o'clock.
Internal communication fault
The Wattpilot displays an internal communication error.
The error code is displayed in the app. For more informa-
tion, see Status Codes on page 67.
-All LEDs flash red.
Residual current detected
The Wattpilot has detected a residual current (≥ 6 mADC
or ≥ 20 mAAC). Restart the Wattpilot. For more informa-
tion, see Status Codes on page 67.
-The LEDs light up pink, the LEDs at the top flash
red.
Earth fault detected
The earthing of the supply line to the Wattpilot is faulty.
Check the earthing of the supply line. For more informa-
tion, see Status Codes on page 67.
-The LEDs light up green and yellow, the LEDs at the
top flash red.
19
EN

At least one phase of the power supply is missing
The phase(s) of the supply line to the Wattpilot has/have
failed. Check the phase(s) of the supply line. For more
information, see Status Codes on page 67.
-The LEDs light up blue, the LEDs at the top flash
red.
Temperature too high
The temperature of the Wattpilot is too high. The char-
ging current is reduced. For more information, see
Status Codes on page 67.
-The LEDs light up yellow, the LEDs at the top flash
red.
Unlocking or locking error
Unlocking or locking has failed. The unlocking or locking
attempt is repeated at 5-second intervals. For more in-
formation, see Status Codes on page 67.
-The LEDs light up red at the top and yellow at the
bottom for 1 second.
Charge controller error
The charge controller is not working properly. For more
information, see Status Codes on page 67.
-The LEDs light up red at the top and yellow at the
bottom for 1 second.
Update
The Wattpilot firmware is being updated. The update can
take several minutes. Do not unplug the charging station.
-All LEDs flash pink, the progress of the update is in-
dicated by yellow LEDs.
Update successful
-The LEDs light up alternately pink and green.
Update failed
-The LEDs light up alternately pink and red.
20
