H3C Aolynk ET204&ET300
Quick Start
Hangzhou H3C Technologies Co., Ltd.
http://www.h3c.com
Manual Version: T2-08225L-20071129-C-1.07

Copyright © 2006-2007, Hangzhou H3C Technologies Co.,
Ltd. and its licensors
All Rights Reserved
No part of this manual may be reproduced or transmitted in any form
or by any means without prior written consent of Hangzhou H3C
Technologies Co., Ltd.
Trademarks
H3C, , Aolynk, , H3Care, , TOP G, , IRF,
NetPilot, Neocean, NeoVTL, SecPro, SecPoint, SecEngine, SecPath,
Comware, Secware, Storware, NQA, VVG, V2G, VnG, PSPT, XGbus,
N-Bus, TiGem, InnoVision and HUASAN are trademarks of Hangzhou
H3C Technologies Co., Ltd.
All other trademarks that may be mentioned in this manual are the
property of their respective owners.
Notice
The information in this document is subject to change without notice.
Every effort has been made in the preparation of this document to
ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of
any kind, express or implied.
To obtain the latest information, please access:
http://www.h3c.com
Technical Support
[e-mail]
http://www.h3c.com

About This Manual
Organization
H3C Aolynk ET204&ET300 Quick Start is organized as follows:
Chapter Contents
1 Product Overview Details the product models,
architecture, characteristics and
Network Applications.
2 Hardware Installation Details the installation of the products
and their accessories.
3 Troubleshooting Introduces the ways of troubleshooting
the product.
4 Abbreviation Lists all the abbreviation of the manual.
Conventions
The manual uses the following conventions:
I. Symbols
Convention Description
Caution
Means reader be careful. Improper
operation may cause data loss or damage
to equipment.
Note Means a complementary description.

Environmental Protection
This product has been designed to comply with the requirements
on environmental protection. For the proper storage, use and disposal
of this product, national laws and regulations must be observed.

H3C Aolynk ET204&ET300 Quick Start Table of Contents
i
Table of Contents
Chapter 1 Product Overview ........................................................1-1
1.1 Overview............................................................................1-1
1.2 Introduction ........................................................................1-1
1.2.1 ET204......................................................................1-2
1.2.2 ET300......................................................................1-4
1.2.3 ET204-L20...............................................................1-6
1.2.4 ET300-L20...............................................................1-8
1.2.5 Technical Specifications of Aolynk ET Series EPON
ONU Devices..................................................................1-10
1.2.6 System Features of Aolynk ET Series ONU
Devices..........................................................................1-12
1.3 Network Applications........................................................1-13
Chapter 2 Hardware Installation...................................................2-1
2.1 Safety Precautions.............................................................2-1
2.2 Installing the ONU..............................................................2-2
2.2.1 Installing the ONU on a Workbench........................2-2
2.2.2 Installing the ONU on a Vertical Surface.................2-2
2.3 Connecting the Network Cable..........................................2-4
2.4 Connecting the Fiber Cable...............................................2-5
2.5 Connecting Power Adapter................................................2-6
2.5.1 Mode 1.....................................................................2-6
2.5.2 Mode 2.....................................................................2-7
2.6 Verifying the Installation.....................................................2-7

H3C Aolynk ET204&ET300 Quick Start Table of Contents
ii
Chapter 3 Troubleshooting...........................................................3-1
3.1 Troubleshooting with the Help of LEDs on an ONU ..........3-1
Chapter 4 Abbreviation.................................................................4-1

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-1
Chapter 1 Product Overview
1.1 Overview
With the increase of Internet users and the development of the
services concerning video meeting and giant-size file transmission,
demands for network bandwidth keeps increasing. Optical fiber
transmission provides an effective way to address these issues.
Through combining the widely-used Ethernet technologies with the
passive optical network (PON) technologies, Ethernet passive optical
network (EPON) can provide sound solutions for
point-to-multiple-point accesses.
The EPON series products released by Hangzhou H3C
Technologies Co., Ltd. (H3C) include optical line terminals (OLT) and
optical network units (ONU). They can provide high bandwidth over a
distance of 10 km to 20 km, breaking through the limitations on
bandwidth and transmission distance and making the access solution
more flexible. Due to their large-scale coverage, these products
reduce the number of offices and meet the operators’demand of using
fewer offices for larger capacity.
1.2 Introduction
Aolynk series ONU products are deployed on the user side of an
EPON system. When combined with IP voice modules and video
modules, they can provide data, telephone and video service
interfaces for users to implement fiber to the house (FTTH), fiber to the
building (FTTB), and major customers integrated access solutions.

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-2
The Aolynk ET series EPON ONU models and specifications are
shown in the following table.
Table 1-1 The Aolynk ET series EPON ONU models and
specifications
Type Description
ET204
Compliant with IEEE 802.3ah 1000Base-PX10.
An ET204 ONU provides one uplink Gigabit PON
interface and four downlink 10/100BASE-T user
interfaces.
ET300
Compliant with IEEE 802.3ah 1000Base-PX10.
An ET300 ONU provides one uplink Gigabit PON
interface and one downlink 10/100/1000BASE-T
user interface.
ET204-L20
Compliant with IEEE 802.3ah 1000Base-PX20.
An ET204-L20 ONU provides one uplink Gigabit
PON interface and four downlink 10/100BASE-T
user interfaces.
ET300-L20
Compliant with IEEE 802.3ah 1000Base-PX20.
An ET300-L20 ONU provides one uplink Gigabit
PON interface and one downlink
10/100/1000BASE-T user interface.
1.2.1 ET204
Figure 1-1 An ET204 ONU

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-3
I. Front panel
As shown in Figure 1-2, an ET204 ONU provides one POWER,
DIAG (diagnostic), PON interface LED and four 10/100BASE-T
interface status LEDs from left to right on its front panel.
Figure 1-2 The front panel of an ET204 ONU
II. Rear panel
As shown in Figure 1-3, an ET204 ONU provides one power
socket (POWER), four 10/100BASE-T interfaces, one reset button
(RESET) and one PON interface from left to right on its rear panel.
Figure 1-3 The rear panel of an ET204 ONU
III. LED description
Table 1-2 LED description
LED Status Meaning
Steady on The unit is powered on
POWER Off The unit is powered off

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-4
LED Status Meaning
Steady on The unit is self-testing
DIAG Off The unit is operating normally
Steady on The ONU has been registered
successfully
PON Off The ONU has not been registered
Steady on A link is present
Blinking Data is being transmitted or
received
LINK/AC
T
Off No link is present
1.2.2 ET300
Figure 1-4 An ET300 ONU
I. Front panel
As shown in Figure 1-5, an ET300 ONU provides one POWER,
DIAG, and PON interface LED and two 10/100/1000BASE-T interface
status LEDs (LINK andACT) from left to right on its front panel.

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-5
Figure 1-5 The front panel of an ET300 ONU
II. Rear panel
As shown in Figure 1-6, an ET300 ONU provides one power
socket (POWER), one 10/100/1000BASE-T interface, one reset
button (RESET) and one PON interface from left to right on its rear
panel.
Figure 1-6 The rear panel of an ET300 ONU
III. LED description
Table 1-3 LED description
LED Status Meaning
Steady on The unit is powered on
POWER Off The unit is powered off
Steady on The unit is self-testing
DIAG Off The unit is operating normally

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-6
LED Status Meaning
Steady on The ONU has been registered
successfully
PON Off The ONU has not been registered
Steady on A link is present
LINK Off No link is present
Blinking Data is being transmitted or
received
ACT Off No data is being transmitted or
received
1.2.3 ET204-L20
Figure 1-7 An ET204-L20 ONU
I. Front panel
As shown in Figure 1-8, an ET204-L20 ONU provides one
POWER, DIAG, and PON interface LED and four 10/100BASE-T
interface status LEDs from left to right on its front panel.

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-7

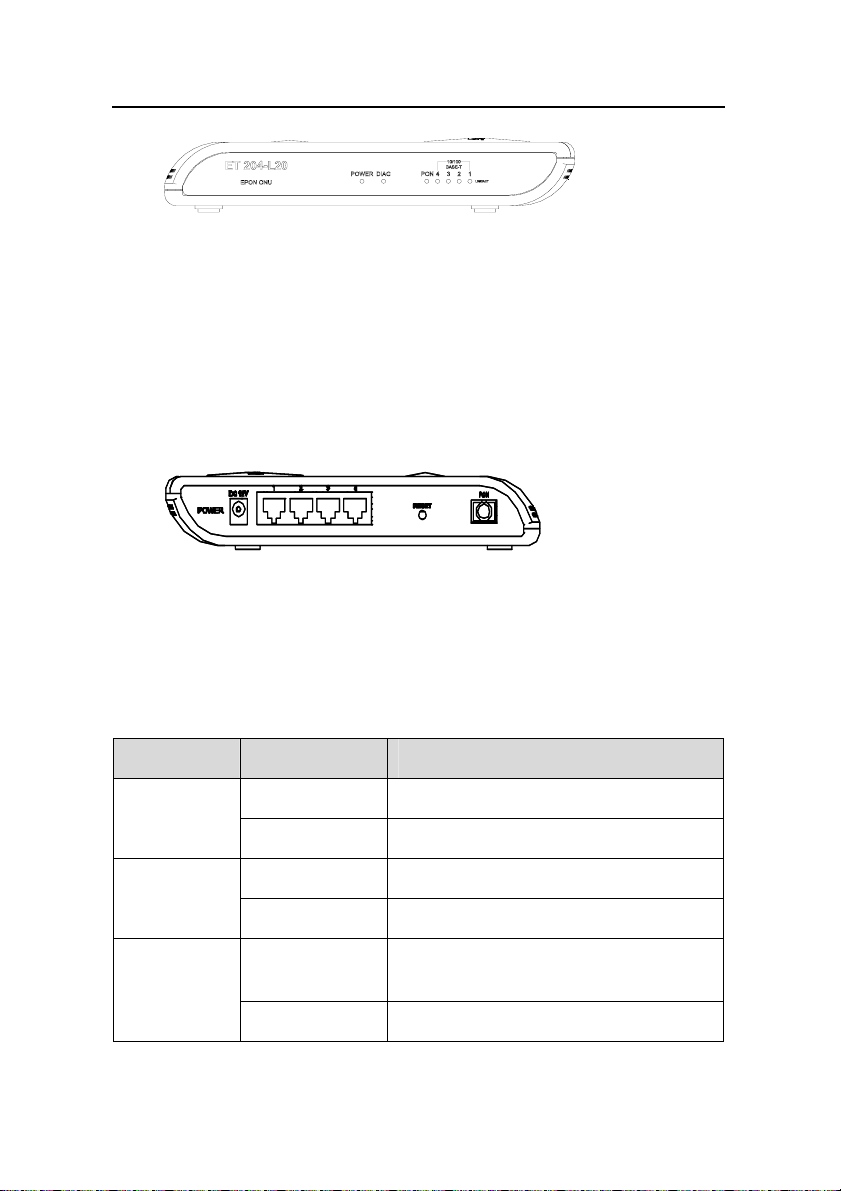

Figure 1-8 The front panel of an ET204-L20 ONU
II. Rear panel
As shown in Figure 1-9, an ET204-L20 ONU provides one power
socket (POWER), four 10/100BASE-T interfaces, one reset button
(RESET) and one PON interface from left to right on its rear panel.
Figure 1-9 The rear panel of an ET204-L20 ONU
III. LED description
Table 1-4 LED description
LED Status Meaning
Steady on The unit is powered on
POWER Off The unit is powered off
Steady on The unit is self-testing
DIAG Off The unit is operating normally
Steady on The ONU has been registered
successfully
PON Off The ONU has not been registered

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-8
LED Status Meaning
Steady on A link is present
Blinking Data is being transmitted or
received
LINK/ACT
Off No link is present
1.2.4 ET300-L20

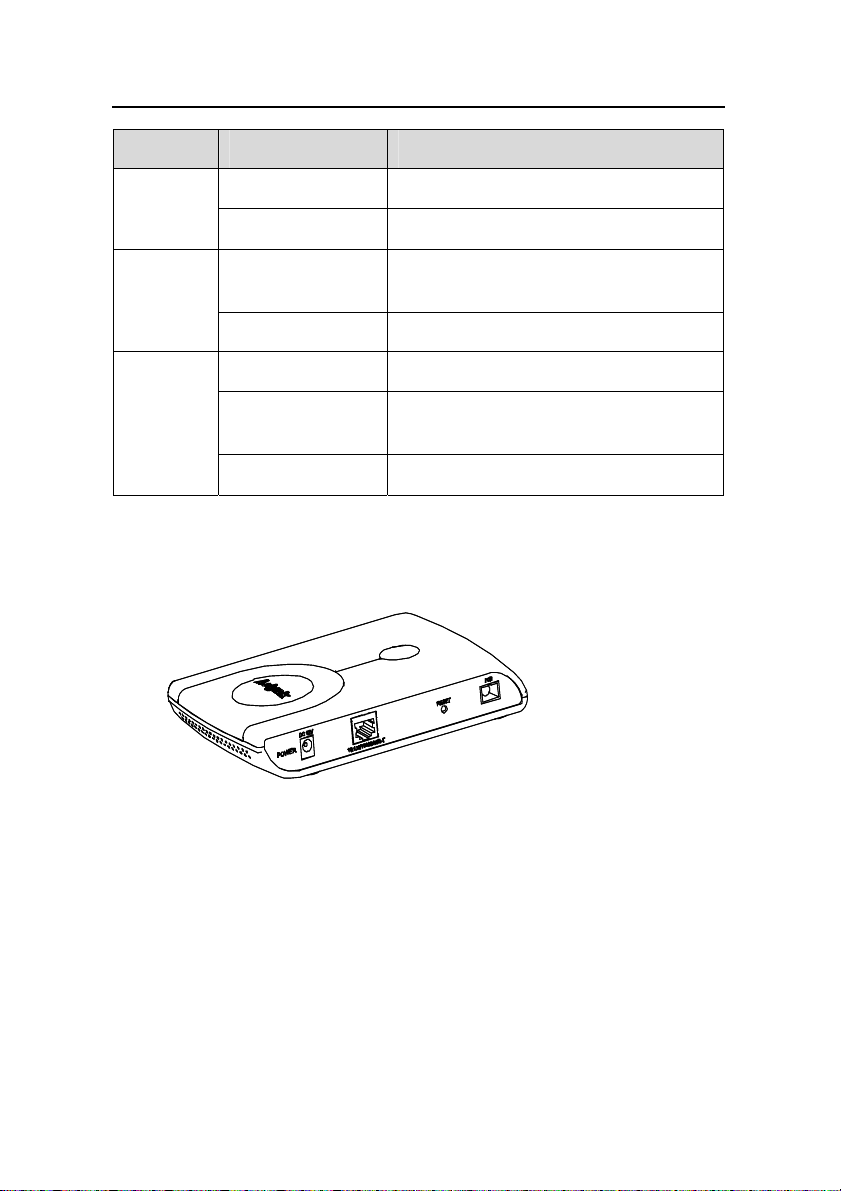

Figure 1-10 An ET300-L20 ONU
I. Front panel
As shown in Figure 1-11, an ET300-L20 ONU provides one
POWER, DIAG, and PON interface LED and two 10/100/1000BASE-T
interface status LEDs (LINK and ACT) from left to right on its front
panel.
Figure 1-11 The front panel of an ET300-L20 ONU

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-9
II. Rear panel
As shown in Figure 1-12, an ET300-L20 ONU provides one
power socket (POWER), one 10/100/1000BASE-T interface, one
reset button (RESET) and one PON interface from left to right on its
rear panel.
Figure 1-12 Rear panel of the ET300-L20
III. LED description
Table 1-5 LED description
LED Status Meaning
Steady on The unit is powered on
POWER Off The unit is powered off
Steady on The unit is self-testing
DIAG Off The unit is operating normally
Steady on The ONU has been registered
successfully
PON Off The ONU has not been registered
Steady on A link is present
LINK Off No link is present

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-10
LED Status Meaning
Blinking Data is being transmitted or received
ACT Off No data is being transmitted or
received
1.2.5 Technical Specifications of Aolynk ET Series
EPON ONU Devices
Table 1-6 Technical specifications of Aolynk ET series EPON
ONU devices
Item ET204/ET204-L20 ET300/ET300-L20
Max power
consumption 8 W 10 W
DC input voltage 12 VDC 12 VDC
Physical dimensions
(H x W x D) 31.5 x 193 x 123 mm (1.2 x 7.6 x 4.8 in.)
Installation Can be put on desk top or fixed on a wall
Operating
temperature 0°C to 40°C (32°F to 104 °F)
Humidity
(non-condensing) 10% to 90%

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-11
Item ET204/ET204-L20 ET300/ET300-L20
Demultiplex
ratio 1:32, 1:16, 1:8, 1:4, and 1:2
Uplink/downli
nk
wavelength Uplink: 1310 nm; downlink: 1490 nm
Maximum
optical signal
power -3 dBm
Receiving
sensitivity -24 dBm
Optic
al
featur
es
Transmitting
optical power +4dBm to -1 dBm
Table 1-7 Interface specifications of Aolynk ET series EPON
ONU devices
Item Uplink PON
interface Downlink user interface
Interface type SC/PC, single-fiber
bi-directional RJ45
Quantity 1 z1 (ET300/ET300-L20)
z4 (ET204/ET204-L20)
Interface
standard
z1000BASE-PX10
(ET204/ET300)
z1000BASE-PX20
(ET204-L20/ET30
0-L20)
z10/100/1000BASE-T
(ET300/ET300-L20)
z10/100/BASE-T
(ET204/ET204-L20)

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-12
Item Uplink PON
interface Downlink user interface
Transmission
distance
z10km
(ET204/ET300)
z20km
(ET204-L20/ET30
0-L20)
100m
Conformed
standard
zIEEE 802.3ah
zIEEE.802.1x
zIEEE 802.3
zIEEE 802.3u
zIEEE802.3x
zIEEE 802.1p
zIEEE 802.1q
1.2.6 System Features of Aolynk ET Series ONU
Devices
Table 1-8 System features of Aolynk ET series ONU devices
Item Description
Transmission
distance of 10 km
to 20 km
Two types of ONU products supporting the
transmission distance of 10 km and 20 km
respectively to provide optical network
coverage within different distances
Security
zSupport 802.1x authentication to
guarantee the validity of each device
zET204/ET204-L20 user network
interfaces (UNI) support VLAN
transparent transmission, VLAN division,
and VLAN priority setting

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-13
Item Description
Remote
management
zET204/ET204-L20 UNI support rate
setting, duplex mode setting, traffic control
setting, and can retrieve statistics about
UNI status and the number of
sent/received packets
zSupport upgrading all ONU software in a
slot or an OLT in batch
Remote
maintenance
Support self failure detection and restoration.
Configuration does not get lost even when
power failure occurs or the device is
restarted.
1.3 Network Applications
I. FTTH
The OLT device is deployed in the central equipment room, and
ET204/ET204-L20 are installed in homes. They provide Ethernet ports
for users to access the network. The ONU devices are connected to
the OLT device through an optical splitter, which forms a
point-to-multiple-point topology, as shown in Figure 1-13.

H3C Aolynk ET204&ET300 Quick Start Chapter 1 Product Overview
1-14
Center Office
Users
Splitter
. . .
Stream media
server
OLT
ET204/ET204-L20 IPTV
IP telephone
PC
PSTN Internet
IP MAN
Center Office
Users
Splitter
. . .
Stream media
server
OLT
ET204/ET204-L20 IPTV
IP telephone
PC
PSTN Internet
IP MAN
Figure 1-13 Network diagram for FTTH
II. FTTB
The OLT device is deployed in the central equipment room.
ET300/ET300-L20 are attached to the switches that are of the same
floor. You can plan the network in the building as required. The ONU
devices are connected to the OLT device through an optical splitter,
which forms a point-to-multiple-point topology, as shown in Figure
1-14.
