Hadley FKVSLGMDGY User manual
hadley
media cabinet
>> assembly instructions
style # FKVSLGMDGY (stone gray)
dpci # 249-10-1948
tcin # 53289658
style # FKVSLGMDWH (shell)
dpci # 249-10-1947
tcin # 53289656
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
2
Congratulations on your latest Target purchase.
Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you.
All you need to do is follow our simple instructions and you’ll be on your way to transforming your
room in no time. Good luck—though we’re condent you won’t need it.
before you begin
1. Check for damaged or missing parts. Call 1-855-MYTGTHOME (855-698-4846) to order missing supplies.
2. Use the carton as a working surface to prevent product damage during assembly.
3. Read through and review assembly steps.
4. Gather all tools prior to assembly.
5. It is recommended to have 2-people for assembly.
tools needed
hardware
(H1) x 16
wooden dowel
(H2) x 8
cam bolt
(H3) x 8
cam
(H4) x 8
bolt
(H5) x 8
lock washer
(H6) x 10
washer
(H7) x 1
allen wrench
(H8) x 2
magnet catch
(H9) x 4
large pan
head screw
(H10) x 29
small pan
head screw
(H11) x 6
metal plate
(H12) x 16
shelf pin
(H13) x 8
at head screw
(H14) x 2
knob bolt
(H15) x 2
knob
(H16) x 1
wall strap
(H17) x 1
wall anchor
(H18) x 1
wall screw
(H19) x 1
truss head screw
4
exploded diagram
ITEM DESCRIPTION QUANTITY
A top panel 1
B left side panel 1
C right side panel 1
D left partition 1
E right partition 1
F outer adjustable shelf 2
G inner adjustable shelf 2
H bottom panel 1
I center foot 2
J left door 1
K right door 1
Linner back panel 1
Mleft back panel 1
Nright back panel 1
5

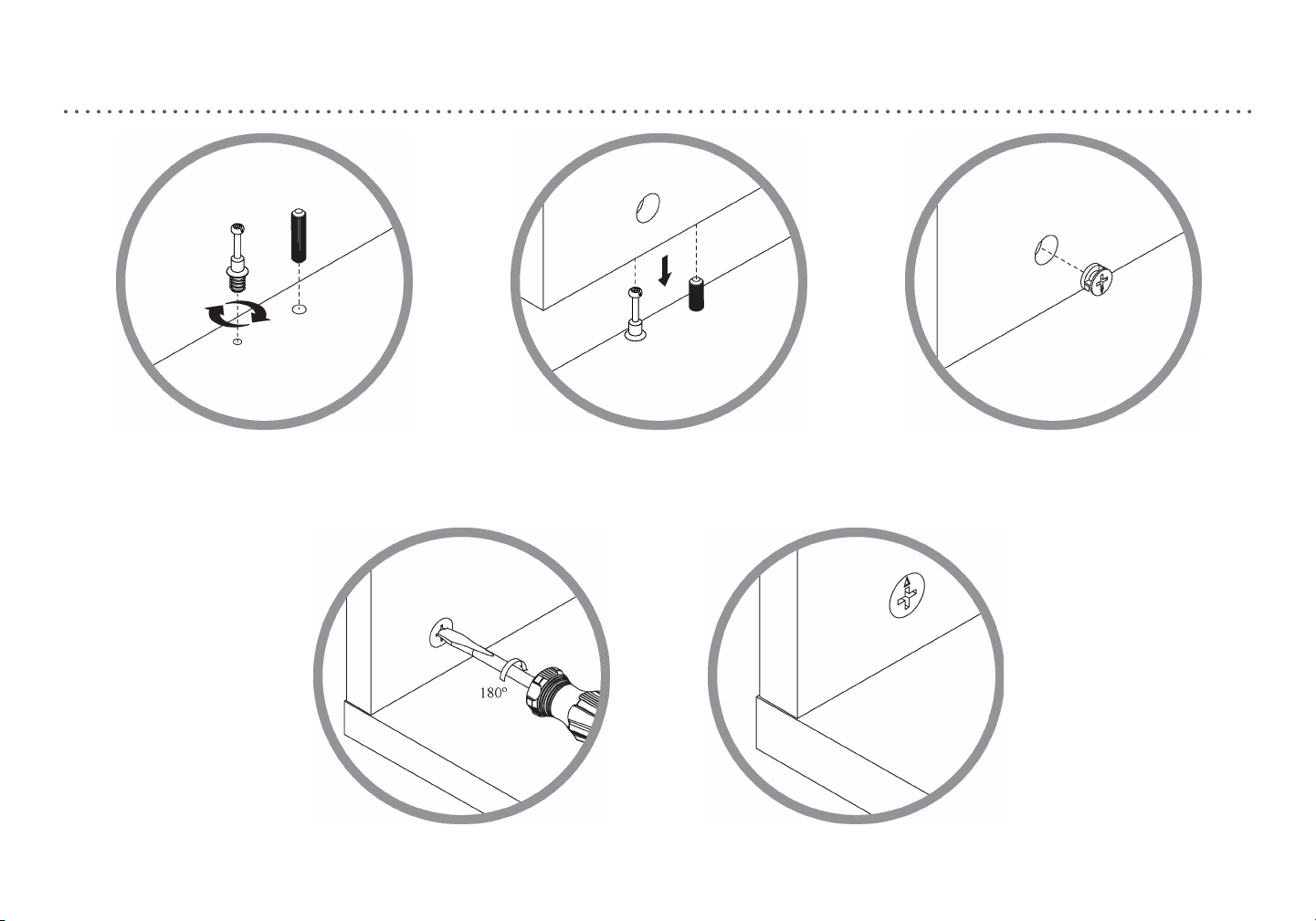

how to use the cam lock system
1.
Screw cam bolt into panel
2.
Align cam bolt(s) with cam(s)
and insert all the way into
cross-bored hole(s)
3.
Push cam into panel - arrow feature
on cam top points to panel edge
4.
Rotate cam(s) clockwise 180° to
lock panels together
5.
Panels should be tight against each
other and connection should be rigid
6
1. 2. 3.
4. 5.
7
step 1: attach left and right partition panels to bottom panel
(H1) x 4
wooden dowel
(H2) x 4
wooden dowel
(H3) x 4
wooden dowel
1.1. Carefully tap small wooden dowels into place in left partition and right partition. Leave 1/2” of the dowels sticking out.
1.2. Screw-In cam bolts must be screwed down ush in left partition and right partition.
1.3. Refer to page 6 for instructions on how to use the cam lock system.
1.4. Do not over tighten bolts.
8

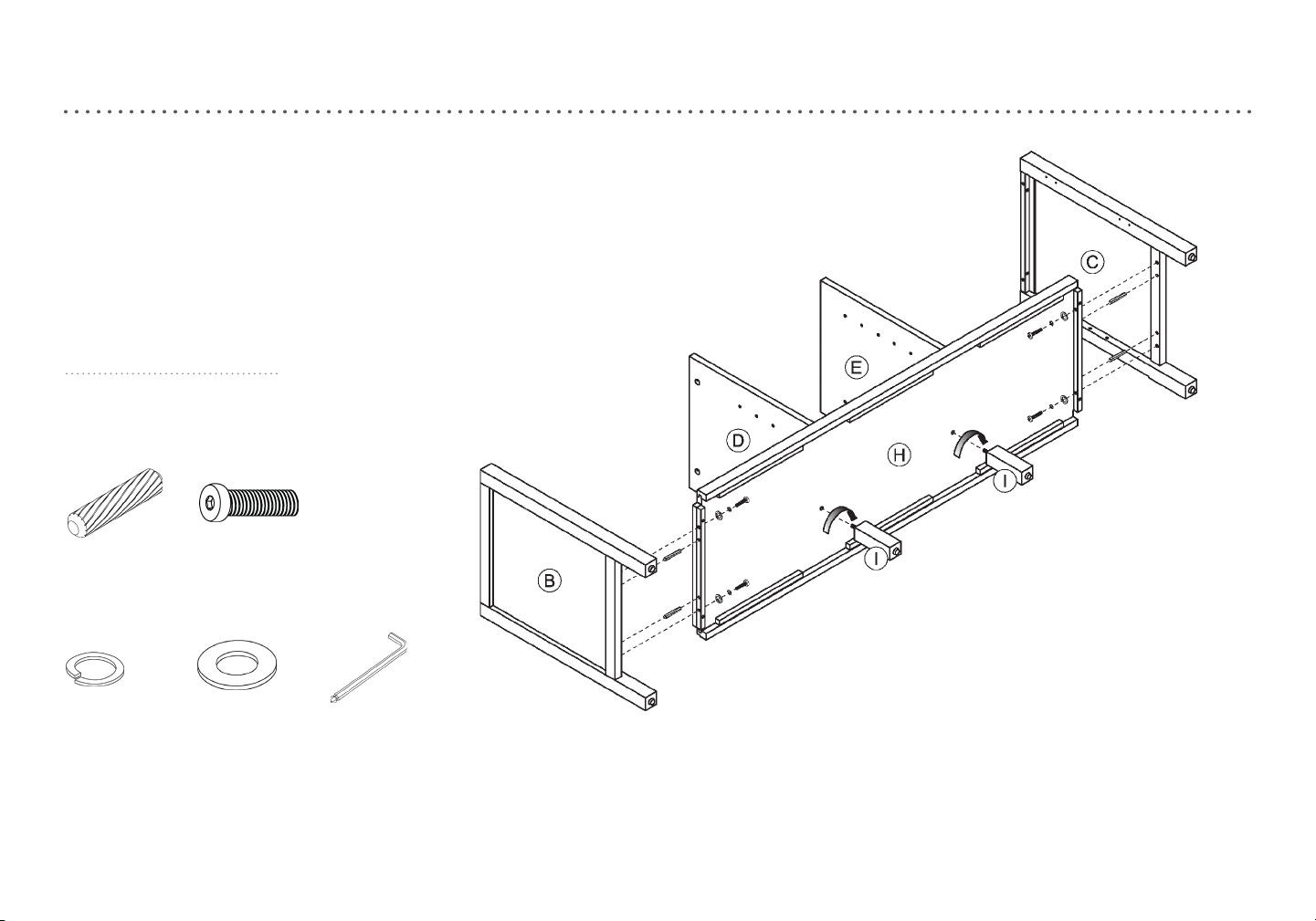

step 2. attach side frames
(H1) x 4
wooden dowel
(H4) x 4
bolt
(H5) x 4
lock washer
(H6) x 4
washer
(H7) x 1
allen wrench
2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
2.2. Align bolts with pre-drilled holes.
2.3. Do not over tighten bolts.
step 3. attach top panel
(H1) x 8
wooden dowel
(H2) x 4
cam bolt
(H3) x 4
cam
(H4) x 4
bolt
(H5) x 4
lock washer
(H6) x 4
washer
(H7) x 1
allen wrench
(H8) x 2
magnet catch
(H9) x 4
long pan
head screw
3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
3.2. Screw-In cam bolts must be screwed down ush.
3.3. Refer to page 6 for instructions on how to use the cam lock system.
3.4. Do not over tighten screws.
9
(H9) x 4
long pan
head screw
step 4: attach back panel
FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN UNEVEN DOOR ALIGNMENT
Begin by installing all of the screws along one
edge of the back panel. Next, using a square
or tape measure, make sure that the cabinet is
square. (If using a tape measure, the distance
from one corner, diagonally to the other corner
should be the same in both directions.) If not,
apply gentle pressure to the diagonally opposite
corners to shift case into alignment. Re-measure
to ensure equal distances. Install the remaining
screws, starting with the corners.
(H10) x 29
small pan head
screw
(H11) x 6
metal plate
4.1. Make sure the screws go through the pre-drilled holes properly.
4.2. Do not over tighten screws.
10
** **
hole for anti-tip kit

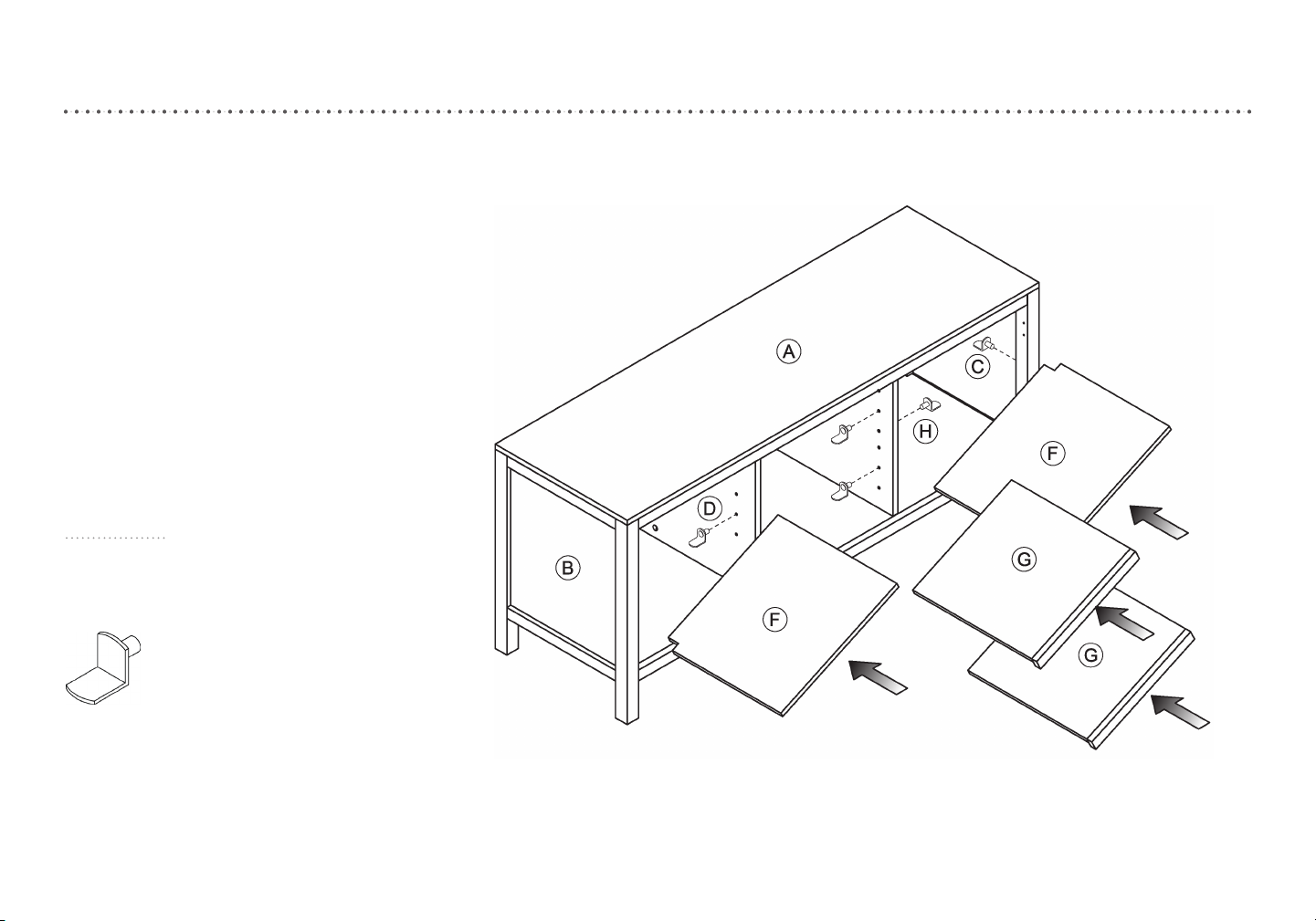

step 5: install adjustable shelves
(H12) x 16
shelf support
5.1. Insert shelf supports into desired hole. Dierent holes accommodate dierent shelf heights.
5.2. Angle shelf to t between the rails and set on top of shelf supports.
11
step 6: attach doors to side frames
(H14) x 2
knob bolt
(H15) x 2
knob
(H13) x 8
at head screw
6.1. Align bolts with pre-drilled holes.
6.2. Do not over tighten bolts.
12

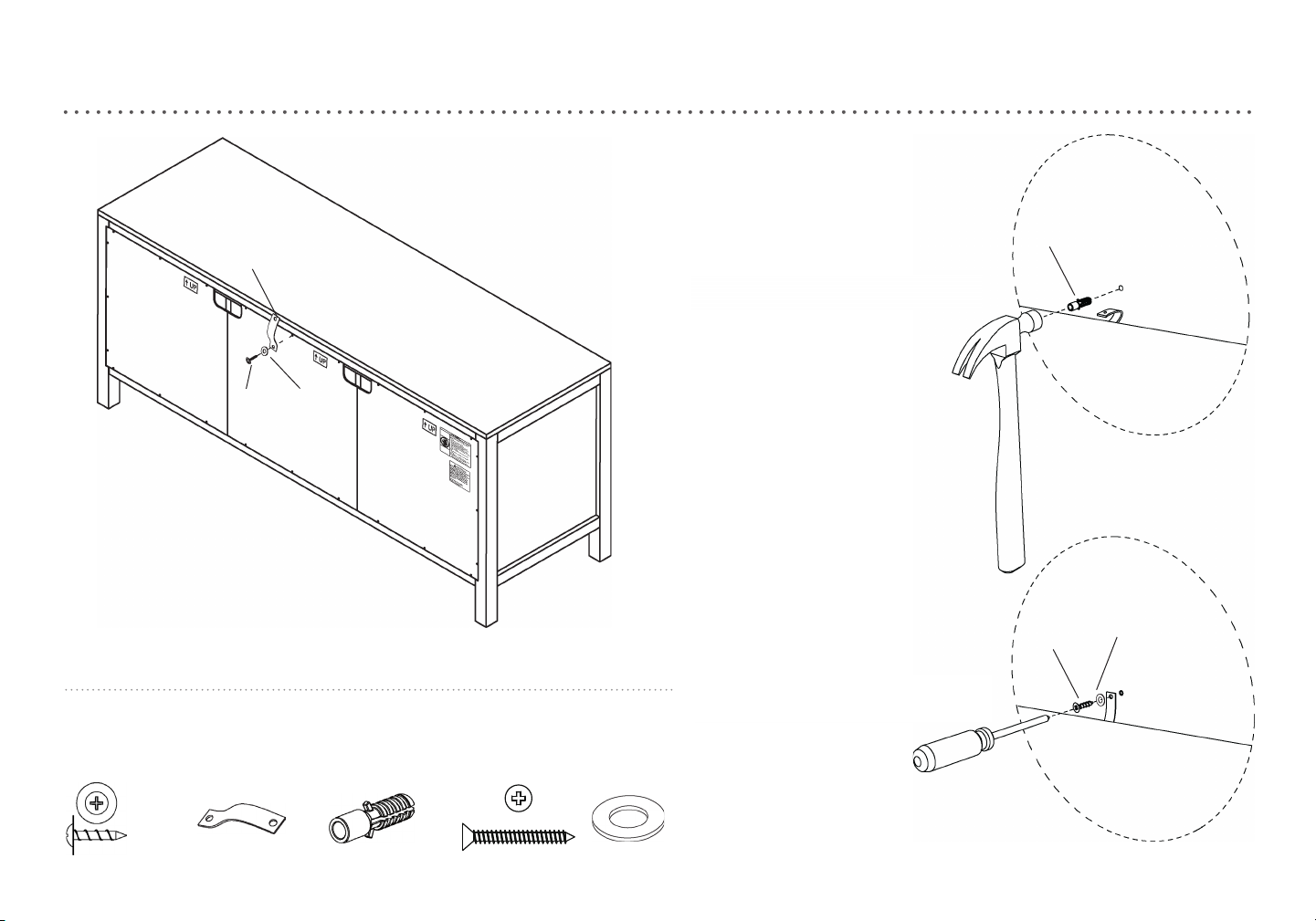

step 7: install anti-tip kit
(H19) x 1
truss head
screw
(H16) x 1
wall strap
(H17) x 1
wall anchor
(H18) x 1
wall screw
(H6) x 2
washer
Position against wall
Mark position of strap hole on wall
Drill 1/4” hole
Tap in wall anchor
Fasten anti-tip strap with wall screw
provided
13
(H18)
(H16)
(H6)(H19)
(H17)
(H6)
Mark position of strap hole on wall
Fasten anti-tip strap with wall screw
provided

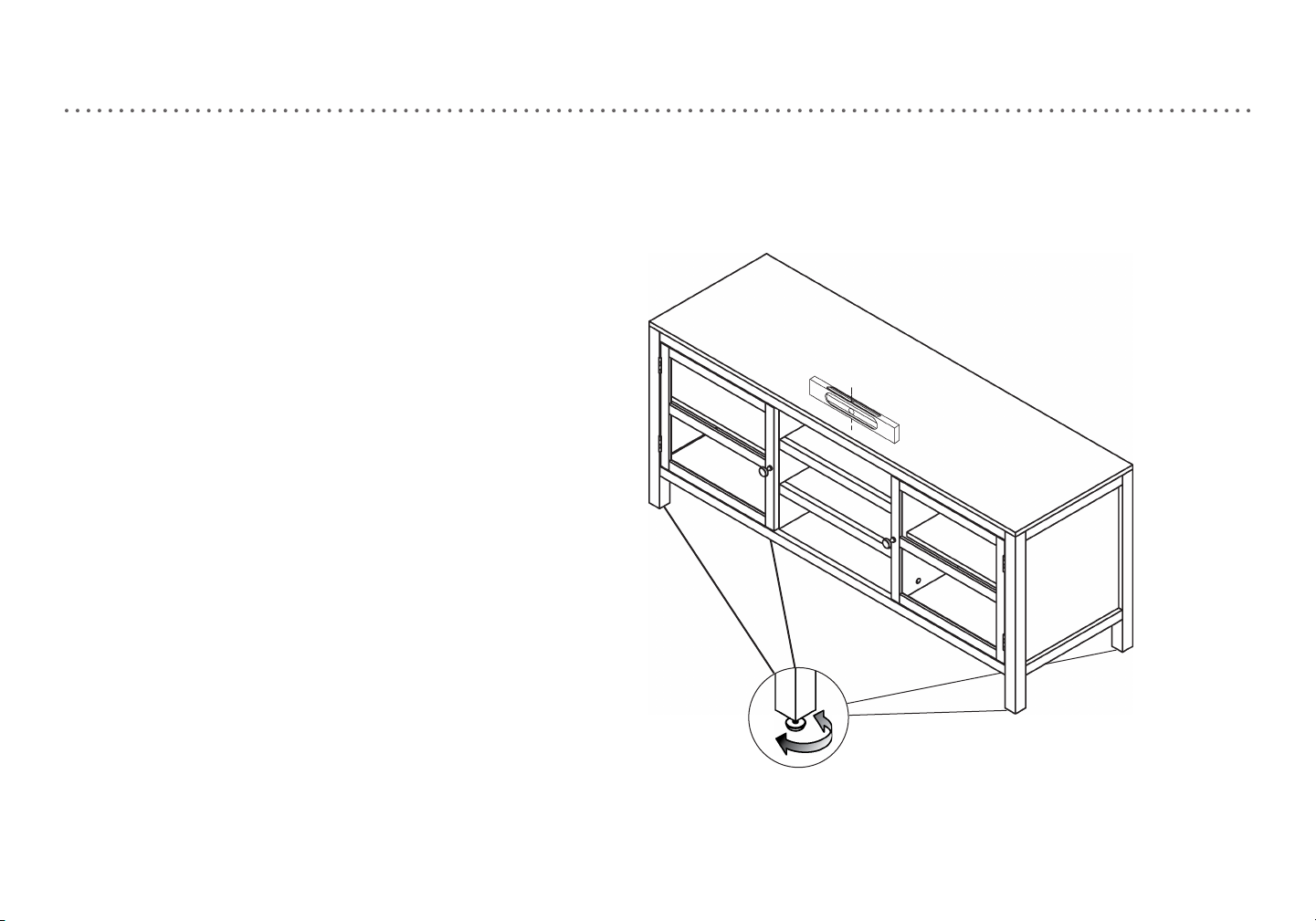

how to adjust door alignment
Tips for proper door alignment:
-Adjustable levelers will reduce minor door mis-alignments
caused by an uneven oor.
-Use a level to determine if the cabinet top is level. If not, start
with the levelers retracted and adjust them as needed.To
retract the levelers turn them counterclockwise. To extend
the levelers turn them clockwise.
-If door mis-alignment persists, refer back to Step 4 (pg. 10)
for additional information. If the cabinet is not square you will
need to repeat this step.
14
adjustable leg levelers
WARNING
Children have died from furniture tipover.
To reduce the risk of furniture tipover:
• ALWAYS install tipover restraint provided.
• For use with televisions weighing 50
lb
(22.7 kg) or less. Use with heavier televisions
may result
in
instability causing tipover
resulting
in
death or serious injury.
• NEVER allow children to stand, climb or
hang on drawers, doors, or shelves.
• Place heaviest items
in
the lowest drawers.
• NEVER open more than one drawer at a time.
(OR)
•
Do
not defeat or remove the drawer interlock
system.
This is a permanent label.
Do
not
remove!
For use with flat panel televisions
weighing 50 pounds (22.7 kg) or less.
Use with heavier televisions may
result
in
instability causing tip over
resulting
in
death or serious injury.
Use of anti-tip restraints may only
reduce, but not eliminate, the risk
oftip-over.
Manufactured by: BDDMI
Factory#: 16840041
1. WARNING - Death or serious injury may occur when children climb on
audio and/or video equipment furniture. A remote control or toys placed
on the furnishing may encourage a child to climb on the furnishing and as a
result the furnishing may tip over on to the child.
2. WARNING - Relocating audio and/or video equipment to furniture not
specically designed to support audio and/or video equipment may result
in death or serious injury due to the furnishing collapsing or over turning
onto a child.
3. This unit has been designed for the weight shown. Exceeding this recom-
mended weight could result in excessive “sagging” of the top. Extreme
overloading can cause failure of the top and possible injury.
4. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray
furniture polish as needed.
15
holds at panel TVs
up to 44” or 50 lbs.
25 lbs. per shelf
QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and DPCI number ready when calling.
