Hafele RDS B-in-Radio 12V User manual
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 1 von 15
1. Welcome
Thank you for buying this quality product. Please read this manual carefully, especially the safety and
security information.
Please check that you have the correct manual for your product. To do this, please compare the product
code number shown above with the product code number displayed on your product.
2. Contents Check List
- RD B-in radio incl. adapter cables
(12 VDC (yellow), loudspeaker (green))
- Antenna
- Installation frame (single)
- PT screws (3x16)
- Cardboard distance rings
- IR Remote Control
- Battery for IR Remote Control
- Manual
3. Safety & Security
General Information
In addition to this guidance please adhere to your own country-specific safety & security regulations.
3.1. How to use this guide:
Read these instructions carefully before use and use this product only in accordance with the instructions
listed here.
3.2. Signs & symbols used
This sign warns of danger of injury and property damage.
This sign warns of injury from electricity.
This sign warns of injury and/or explosion.
This symbol refers to additional information.
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 2 von 15
3.3. Signal words and their meaning
anger: Potential severe physical damage and acute danger.
Warning: Potential electrical shock physical damage and severe property damage.
Caution: Potential fire hazard physical damage or property damage as a result of.
Attention: Advisory notes only.
Warning
The Electrical supply must be disconnected before working on the device.
Improper handling may void warranty.
4. Product Scope
ingle room audio solution.
5. Intended use
Indoors, flush mounted.
6. Improper use
The device is not suitable for outdoor operation.
The ambient temperature should not exceed 30 ° C.
7. Specifications R S B-in radio
upply Voltage 12 V DC, 50 Hz
Output 1 x 1.2 watt
peaker Impedance 1 x 4 ohms
Aux-In (front) Mini stereo jack
Line-In (rear) Terminal (scews)
Impedance Line-Out 470 ohms
Output Voltage Line-Out 0.2 V AC (depends on mobile device)
THD Typ: 0,5 % @ 1 kHz
Frequency range 30 Hz ~ 20 kHz / -3 dB
NR speakers: 70 dB
Line-Out: 70 dB
AC Power ( tandBy) < 0,5 VA
Protection class II
Dimesnions 55×55×36 mm
Depth 36 mm
Weight 100 g
Operating Temperature +5°C bis +45°C
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 3 von 15
8. Preparatory work before installation
Install the power cable for 12 VAC and the RCA cable (for
the music center AUX) in accordance with installation
guidelines, and your desired port scenario.
Note:
To get a proper installation please pull out some cable
length out of the wall and flush mounting box to connect
the terminals without obstruction. Draw back the cable in
the wall or the flush mounting box again before fixing the
device with the screw. Have enough space available in your
instructive tube and your flush mounting box.
Note on the structure of the R S B-in radio
The device consists of three parts:
1 - Control panel (pluggable)
2 - Housing with mounting plate (assembly unit)
Attention
witch off 12V power supply when unplug the control unit.
9. Installing the device
9.1. General
Mount the flush box at the decided location.
Note:
The unit has a mounting depth of 37 mm. For flush mounting box has a minimum depth of 40 mm
requirement for a professional installation. The flush-mounting box is not supplied.
Disconnect the cables necessary for connection of something out of the box and plug in the device.
Plug the control tower on the mounting unit.
9.2. Connections
9.2.1. Connections in general
The BTR 55 is applicable for Haefele cabling system.
Note
peaker connection: green
Power connection: yellow
Accessory: Loox Power upply / 12 V DC
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 4 von 15
9.2.2. Connecting power supply and speaker / AUX (IN)
or
or
Connect the cables to the appropriate components (power supply / speaker / AUX).
Note:
The power supply is not part of the BTR 55. It must be ordered separately.
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 5 von 15
Suitable Loudspeakers
Art.Nr.: 833.02.822
Loudspeaker 70,5x70,5x38mm
Fitting for installation in flush-mounting
boxes ø 68 mm,
B x T x H: 70,5 x 26 x 70,5 mm
Material: plastic
Specifications
Load Rating / Music Power 3 / 4 Watt
Impedance 4 Ohm
PL 1W/1m: 78 dB
Frequency Range (-3dB) 140-21.000 Hz
Installation Depth 26 mm
Art.Nr.: 833.02.823
Fitting for installation in furniture,
ø x depth: 140 x 48 mm
(Dimensions: ø 120 x 48 mm)
Material: plastic / metal
Specifications
Load Rating / Music Power 6 / 8 Watt
Impedance 8 Ohm
PL 1W/1m: 86 dB
Frequency Range (-3dB) 170-16.000 Hz
Installation Depth 48 mm
Art.Nr.: 833.65.002
Exciter, fitting for installation in furniture
(pasting/screwing)
ø x depth: 70 x 26 mm
Material: plastic / metal
Specifications
Load Rating / Music Power 4 / 15 Watt
Impedance 8 Ohm
PL depending on material
Frequency Range (-3dB) depending on material
Installation Depth 26 mm
* … mounting informations in chapter 9.3.1.
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 6 von 15
9.2.3. Connecting antenna
Connecting antenna cable:
Connect the outer screen at (-) and the inner
conductor at (+) and screw it firmly with the
screws on the front.
If there is no external antenna cable then slide the
included antenna into the installation pipe and fix
the one end of the cable at Ant(+).
Note:
For best reception, the wire antenna must be
stretched and must not be rolled up!
9.2.4. Connecting external audio source (AUX 2)
Connecting Bluetooth Receivers 12V (Häfele, Type
833.02.821):
Connect the AUX cable (green) of the RD B-in
radio with the AUX cable (green) of the Bluetooth
Receiver.
Note:
The AUX Line-In is in Mono. o the Line-Out of
the external source has also to be switched to
Mono.
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 7 von 15
9.2.5. Connecting external TV (AUX 1)
9.2.5. Connecting external amplifier (Line Out)
Use a screend RCA cable. Connect the screen at
(-), inner conductor at (+) and screw it firmly with
the screws on the front.
The AUX Line-Out is in Mono.
9.3. Flush mounting the device
Run the device with the cables connected and the appropriate equipment frame carefully into the flush
mounting box. Make sure that the cables are not kinked or clamped.
Adopt the distance between the mounting plate and the control unit with the designated cardboard
templates. crew the unit with the screws in the flush-mounting box set.
Replace the cover frame of the installation program and then use the cover on the control and press
firmly.
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 8 von 15
10. Operation
10.1. Getting stated
When 230V power supply is up, the device is ready for operation.
Note:
In case of power supply the green LED flashes approximately every 5 seconds briefly to display stauts
“ tandBy” / “Power ON”.
10.2. Connecting external audio sources (front)
Local Audio Source (AUX 1)
Cable: RCA, 3,5 mm jack
10.3. Features of the R S B-in radio
Radio playback with RD function
Number of station presets: 9
Playback of music stored on up to max. two external sources
Display screen for special functions ( leep / Time) and source information

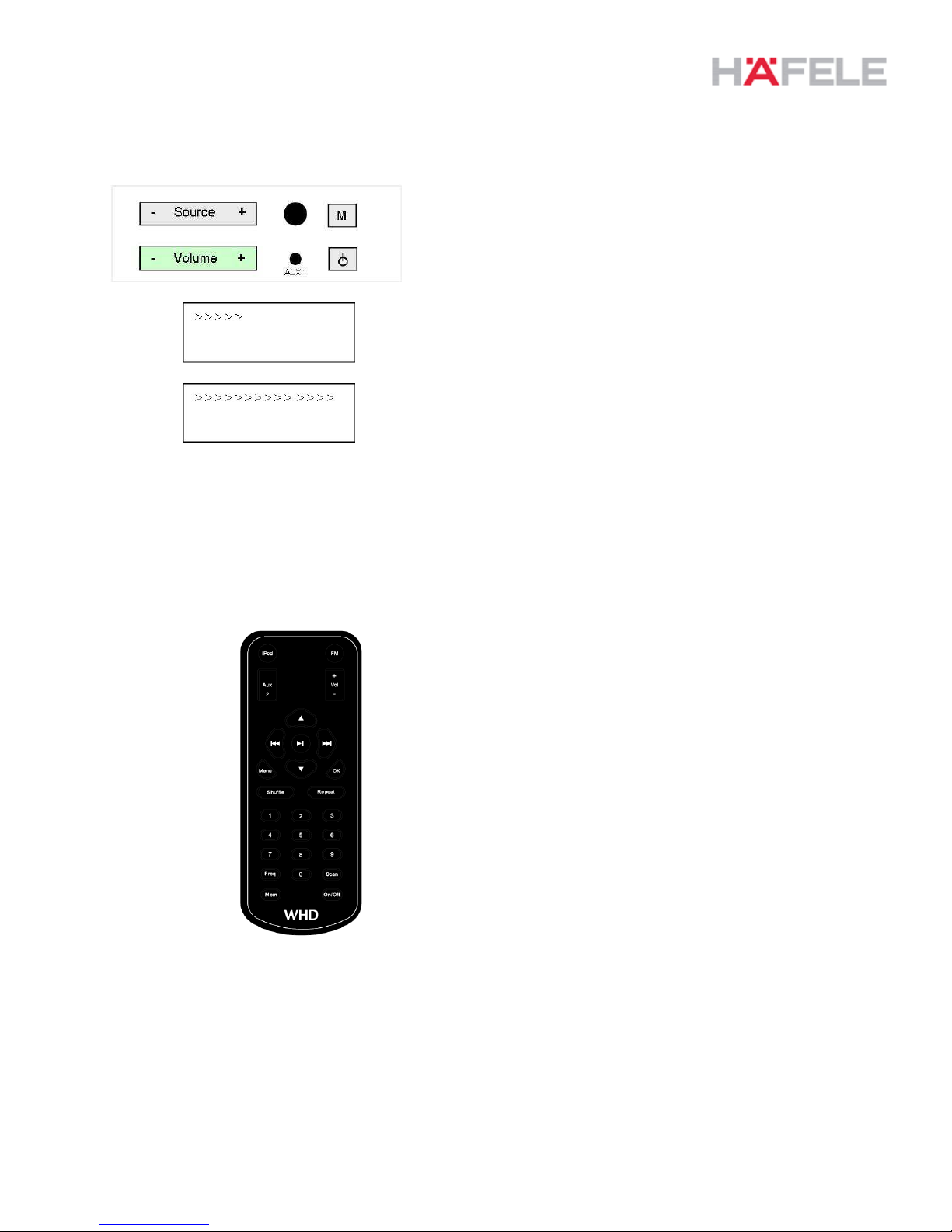

Buttons of the control panel
Button 1 … ource +/- (Ring counter: Ant, AUX1,
AUX2)
Button 2 … Volume +/-
Button 3 … M (Menu)
On/Off … ymbol … activating the RD B-in
radio
10.4. Setup
Press the ON/OFF button on the right side of the
control panel. The device is activated now.
Note:
With the button Source -/+ the device can also be
activated.
10.5. isplay (Operation Mode)
There are 2 display lines
Upper line: TIME
Lower line: ource / RD -Informations
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 9 von 15
11. Configuration
11.1. Configuration menu - Basics
On/Off:
Pressing the ‘On/Off’ button shortly switches on the RD B-in radio
Pressing the ‘On/Off’ button longer than 2 sec. starts “ leep Mode” within operation menu. The “ leep
Mode” can be switched off again by shortly pressing button the ‘On/Off’ button again.
M (Menu)
Pressing the ‘M’ button starts configuration menu or next configuration step (ring counter)
Note:
Configuration menu will be closed after 5 seconds without active changes being made.
ubmitted configuration data will be stored automatically when leaving the menu.
11.2. Configuration menu
isplay control unit (Confiuration mode)
The unit display consists of two display lines.
Upper line: Parameter
Lower line: ettings
Note:
The RD -Radio can be programmed with the
keypad as well as with the IR remote control (see
chapter 12.).
Configuration menu steps
Menu A1 (configure radio stations)
Press then the button „M“ between 2 and 4
seconds to start this configuration item.
isplay as shown:
Line 1: Frequency
Line 2: Frequency in MHz
Press button „Volume -“ shortly: - 50 kHz
Press button „Volume +“ shortly: + 50 kHz
Press button „Volume -“ for 1 sec.: can down
Press button „Volume +“ for 1 sec.: can up
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 10 von 15
If frequency settings are changed select your
memory setting key with the „Source +/-“ button
to save configuration settings.

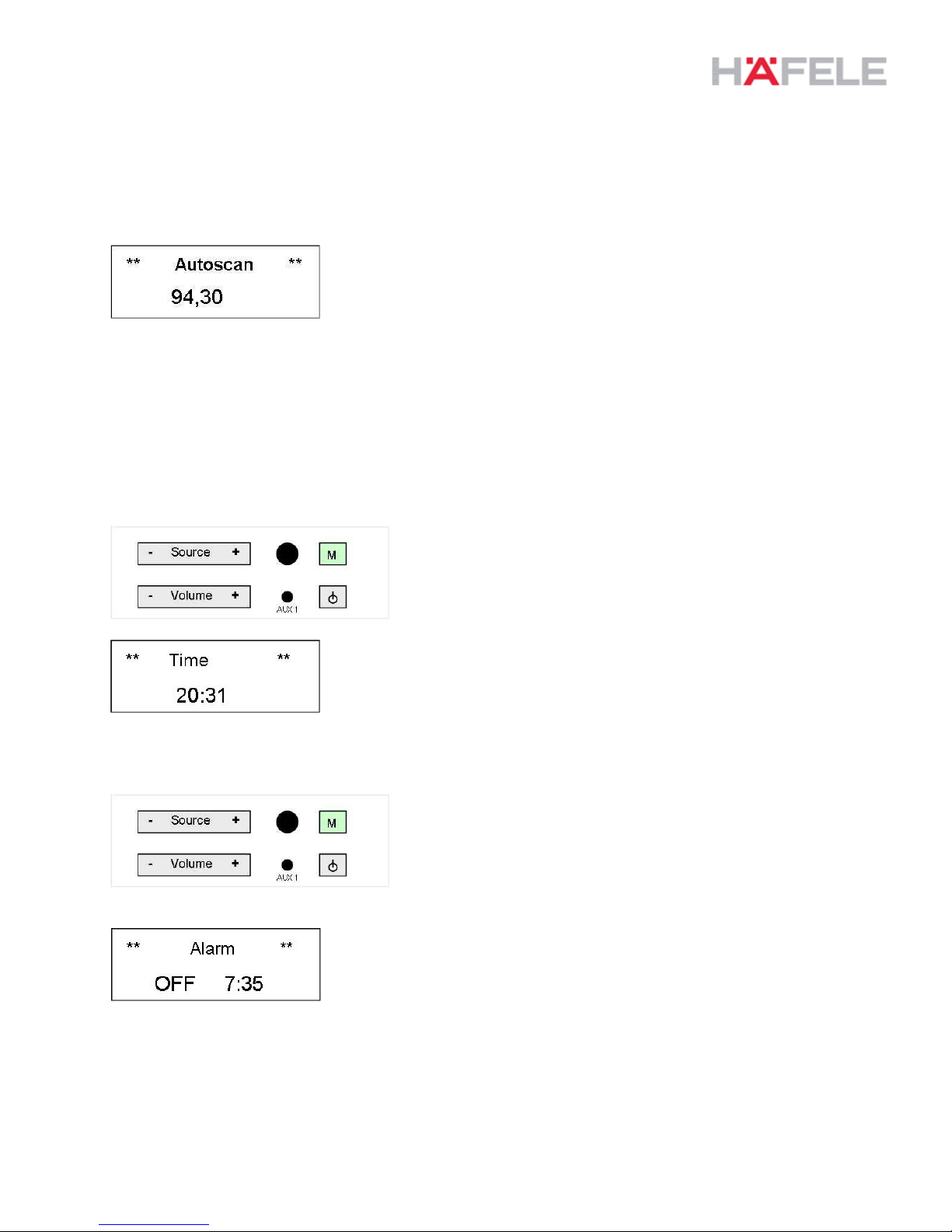

Menu A2 (Autoscan)
isplay as shown:
Line 1: Frequency
Line 2: Frequency in MHz
Press button „Volume +“: canstart
“Autoscan” seeks out the first 9 radio stations and
saves them on the buttons 1...9 for station
settings.
If there is no radio station found, the startup
frequency (87,5 MHz) is set.
Menu B ( evice time)
Press then the button „M“ approximately 5
seconds to start this configuration item.
isplay as shown:
Line 1: Time
Line 2: HR : MIN …. Hours:Minutes
et the time on your current time zone.
Press button „Volume -“ … + 1 hour
Press button „Volume +“ … + 1 minute
Menu C
To start the configuration mode, press the button
„M“.
Menu C1: ALARM
isplay as shown:
Line 1: Alarm
Line 2: On/Off …. Hours: Minutes
Note:
Alarm setting is stored but must be activated
manually when needed.
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 11 von 15
Menu C2: SLEEPTIME
(1 … 99 minutes)
isplay as shown:
Zeile 1: leeptime
Zeile 2: On/Off … Minutes
Menu C3: IM
Display brightness in Operation / Standby.
Standby: 5 steps (OFF/ tep1/ tep2/ tep3/MAX)
Operation: 4 steps ( tep1/ tep2/ tep3/MAX)
Setting brightness:
Touching the buttons
ource +/- (one step up)
Volume +/- (one step down)
Note:
When Display Brightness in tandby mode is OFF
the radio also turns off after 30 seconds. Time
and/or tuner settings are slightly visible on the
display.
Configuration Examples
Example: Set alarm at 7:30 am
Press the ‘M’ button
Press the ‘Source +’ button
ALARM is activated now. Display line 2 switches to ON.
Now press the ‘Volume -’ button 7 times.
Display line 2 switches to ‘7:00’.
Now press the ‘Volume +’ button 30 times.
Display line 2 switches to ‘7:30’.
Confirm your settings by pressing the ‘M’ button.
The settings are now stored.
The next function menu step will be displayed automatically.
If you want to leave the configuration menu completely press the ‘M’ button again or wait 5 seconds until
the device switches automatically back into operation mode.
Example: Set sleep time up to 15 minutes
A.) From operation mode: press the ‘M’ button two times.
B.) From configuration mode:
Press the ‘Source +’ button.
LEEPTIME is activated now. Display line 2 switches to ON.
Press the ‘Volume +’ button 15 times.
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 12 von 15
Display line 2 switches to „15“.
Confirm your settings by pressing on the ‘M’ button.
Now the settings are stored.
You’ll get automatically to the next function menu step.
If you want to leave the configuration menu completely press the ‘M’ button again or wait 5 seconds until
the device switches automatically back into operation mode.
Menu 1 (Maximum Voume)
Press the „Source -“ button and the „M“ button
at the same time up to max. 2 sec. to get to start
this configuration item.
isplay as shown:
Line 1: max. 0 dB (max. volume)
Line 2: a: < ... dB (used max. volume)
Configure your „max. volume“ setting.
Press button „Volume -“ … - 1 dB
Press button „Volume +“ … + 1 dB
Menu 2 (Menu Blocking)
isplay as shown:
Line 1: Access
Line 2: free / locked
Press button „Volume -“ … free (menu enabled)
Press button „Volume +“ … locked (menu
disabled)
Menu 3 (Reset)
isplay as shown:
Line 1: Reset
Line 2: tart V+
Press the „Volume +“ button to start “Reset”.
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 13 von 15
11.3. Volume isplay whilst setting
Pressing the button „Volume“ (+ / -)
The actual volume is visable by the arrows in the display.
Note:
The arrows disappear after 5 seconds if no further change in
setting is done.
12. IR Remote Control
12.1. Features of the Remote Control
The RD B-in radio can be controlled and configured with the buttons of the IR remote control.
12.2. Buttons of the remote control
AUX 1-2 … switches to the external audio sources
1, 2
FM … switches to tuner function
VOL +/- … volume
buttons 1 - 9 … radio station/frequency settings
button 0 … go to frequency settings
Freq … manual frequency setting
can … automatic frequency scanning
Mem … save settings
On/Off … Power On/off
Turning ON the device:
1. Button „ON/OFF“: last active audio source
2. Buttons (1-9): radio station selection
Note:
Volume setting will be stored automatically when
pressing the button „ON/OFF“.
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 14 von 15
12.3. Frequency setting of radio stations
Radio station frequency settings via tuning (SCAN)
Press the button „SCAN“
The scan begins at 87,5 MHz and stops automatically at the first found active radio station frequency.
The scan can be continued by pressing the button „SCAN“ again.
Adding the found frequency to your selected radio stations press the button „MEM“, then chose your
memory space button (1-9).
Manual radio station frequency setting (Frequenz)
Press the button „FREQ“
Tap in your preferred frequency by pressing the buttons (1-9), e.g. 97,8
Confirm your setting by pressing the button „FREQ“
Adding the frequency to your selected radio stations press the button „MEM“, then chose your memory
space button (1-9 / e.g. # 2).
Automatic assignment of the channel positions
The radio channels 1-9 can be assigned automatically.
Press the button „MEM“ and then the button „SCAN“
Note:
The scan may take a few minutes. Be patient.
Parameters are saved automatically
The station selection and volume settings are saved automatically every 10 seconds.

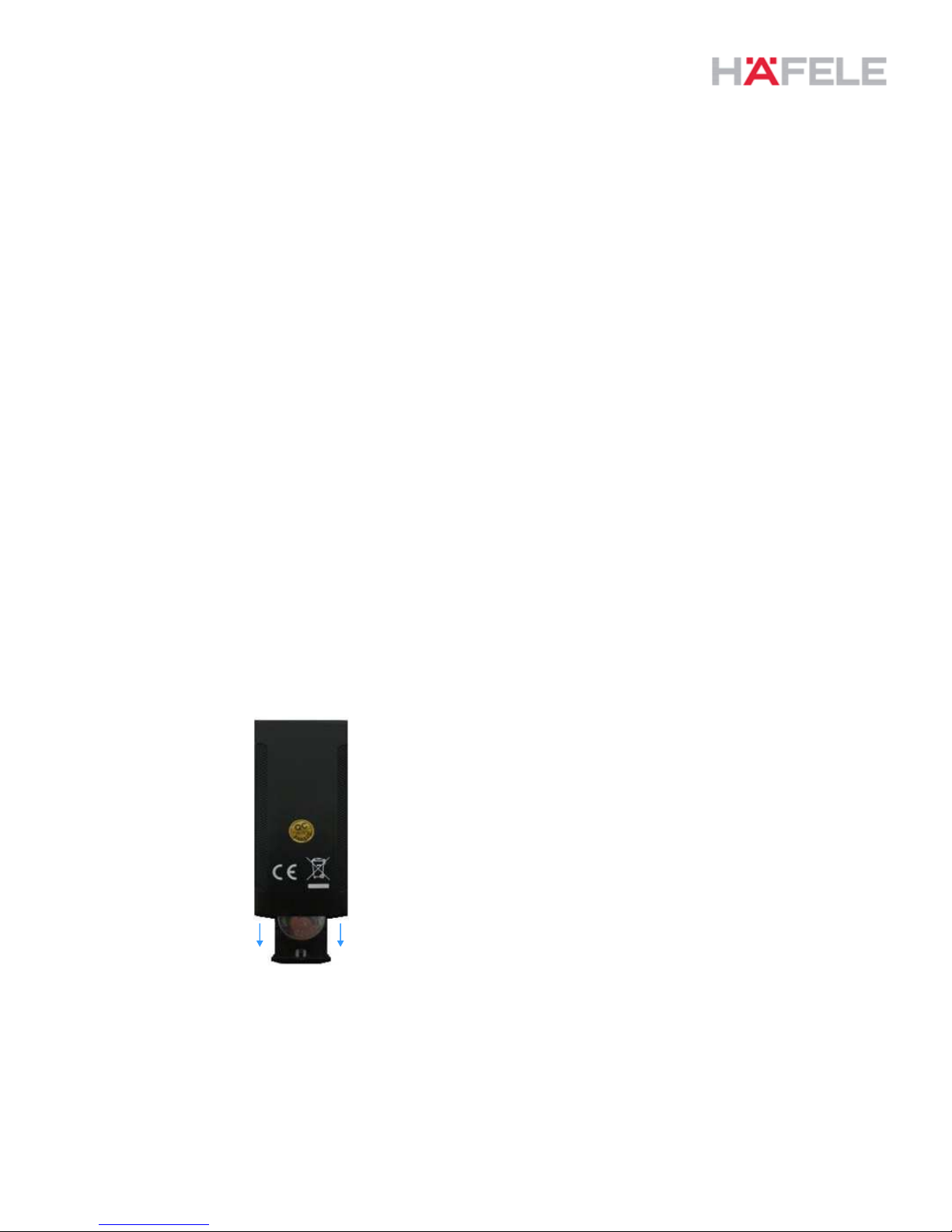

12.4. Changing battery
- Gently pull and slide the battery compartment
tray as shown
- Remove old battery making note of the polarity
positions
- Insert NEW replacement battery
- Close battery insert
Attention:
Only use suitable batteries of type
Lithium 3V CR 2025
Manual RDS B-in-Radio 12V
Fitting to
833.02.820
Version (modifications reseverd)
17.08.2015
Seite 15 von 15
13. Trouble-Shooting
Noise
Check your installation and cabling carefully on electromagnetically influences (EMC Installation
Guidelines!).
No radio station receive with the included antenna
Connect an external antenna (home antenna, indoor antenna, …)
14. eclaration of Conformity
This product supports all CE-marking criteria.
The declaration of conformity certificate can be
obtained from the manufacturer.
15. Contact
Häfele GmbH & Co KG
Adolf-Häfele- tr. 1
D-72202 Nagold
Tel: +49 (0)74 52 / 95 - 0
Fax: +49 (0)74 52 / 95 - 2 00
E-Mail: [email protected]
