Haier GE GDF510P M0 Series How to use

31-9290
2018 Plastic Tub Dishwasher
Technical Service Guide
GDF510PxM0xx
GDF511PxM0xx
GDF530PxM0xx
GDF630PxM0xx
GDF640HxM0xx
GDP615HxM0xx
GDT535PxM0xx
GDT605PxM0xx
GDT635HxM0xx
May 2018

– 2 –
Safety Information
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing
this product. If electrical power is required for diagnosis or test
purposes, disconnect the power immediately after performing the
necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to
complete a path to ground are removed for service, they must be
returned to their original position and properly fastened.
GE Appliances, a Haier Company
Copyright © 2018
All rights reserved. This service guide may not be
reproduced in whole or in part in any form without written
permission from GE Appliances, a Haier Company.
For Warranty Information:
1. Go to http://products.geappliances.com
2. Search the model number.
3. Click on the Literature tab.
4. Click on Use and Care Manual.
5. Locate the Warranty page.
Warranty

– 3 – (Continued next page)
Safety Information ........................................................................................................................2
Warranty .......................................................................................................................................2
Table of Contents ..........................................................................................................................3
Safety Requirements ....................................................................................................................7
Nomenclature ...............................................................................................................................8
..............................................................................................................................9
..........................................................................................................9
..........................................................................................................9
Operation and Cycle Information ..................................................................................................10
Troubleshooting ............................................................................................................................13
Flashing Lights .....................................................................................................................13
Will Not Start .........................................................................................................................13
Component Locator Views ...........................................................................................................14
Front Control .........................................................................................................................14
Top Control ...........................................................................................................................14
Toe Kick Area ........................................................................................................................15
Side ......................................................................................................................................15
Back ......................................................................................................................................16
Bottom ..................................................................................................................................16
Sump (Top) ...........................................................................................................................17
Sump (Bottom) .....................................................................................................................17
Inside ....................................................................................................................................18
Racks ....................................................................................................................................18
Tub and Structure .........................................................................................................................19

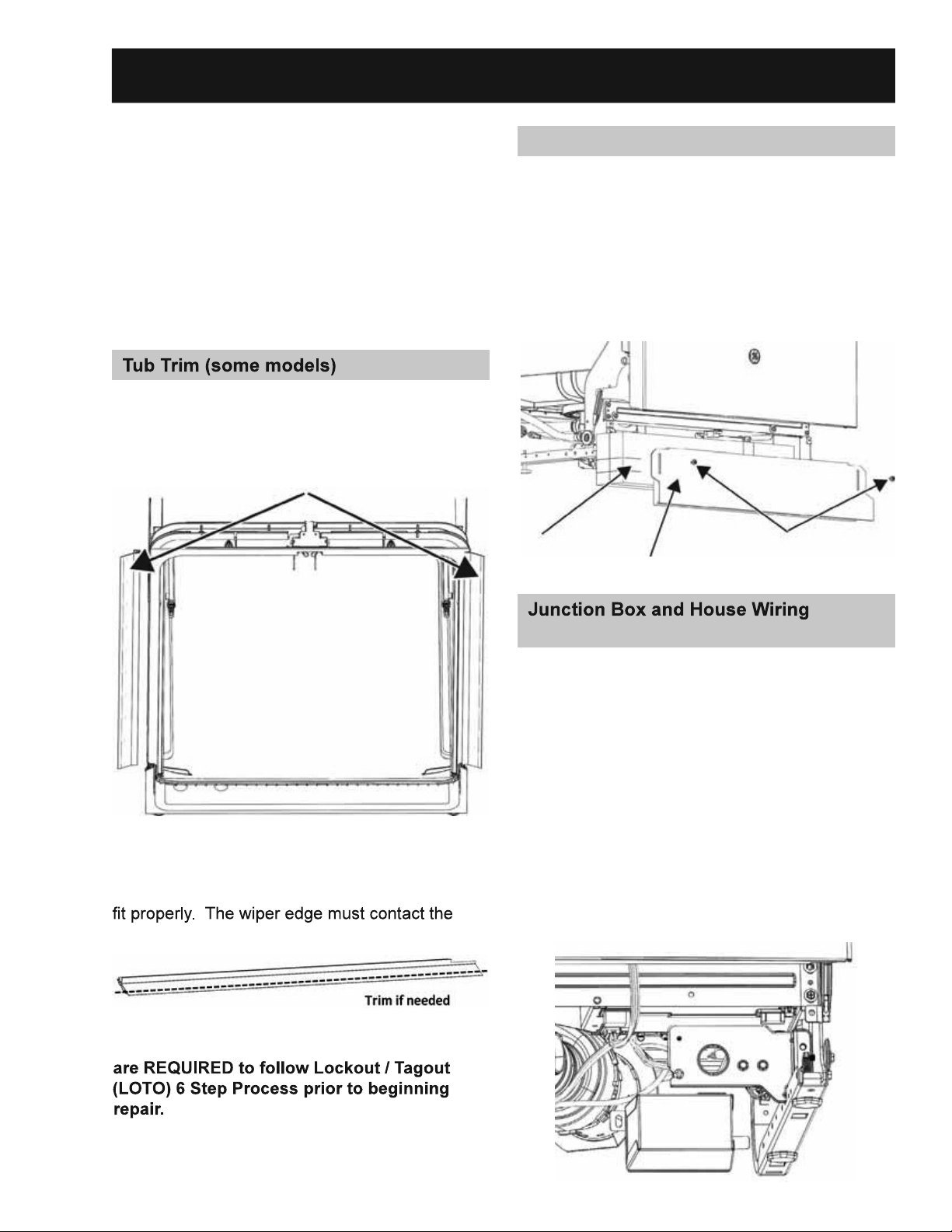

Tub Trim (some models) .......................................................................................................19
Toe Kick ................................................................................................................................19
Junction Box and House Wiring Connection ........................................................................19
Leveling Legs .......................................................................................................................20
Door Balance System ...........................................................................................................20
Hinge ....................................................................................................................................21

– 4 –
Tub Gasket ...........................................................................................................................21
Latch System ........................................................................................................................22
Latch Switch Diagnosis ........................................................................................................23
Racks ....................................................................................................................................23
Door ......................................................................................................................................27
Inner Door Vent Cover ..........................................................................................................29
Front Control Console ..........................................................................................................30
UI (User Interface) ................................................................................................................30
Front Control UI, Light Pipe and Buttons ..............................................................................31
Pocket Handle (Front Control Only) .....................................................................................32
Pocket Handle (GDP615) .....................................................................................................32
GDP619 Fan Assist Dry ........................................................................................................33
Top Control Panel, UI, Light Pipe and Buttons .....................................................................33
Top Control Console Cover ..................................................................................................34
Outer Door Panel ..................................................................................................................35
Inner Door Panel ..................................................................................................................35
Door Gasket .........................................................................................................................36
Vent Parts (Except GDP615) ................................................................................................36
Detergent Dispenser .............................................................................................................36
Door Strike ............................................................................................................................37
Sump Module .......................................................................................................................38
Sump Gasket ........................................................................................................................40
Installing Sump Module ........................................................................................................41
Electronic Controls .......................................................................................................................42
Consumer Error Mode ..........................................................................................................42
Service Mode ........................................................................................................................43
Diagnosing Electronic Control Boards ..................................................................................43
Main Control Diagnostics ......................................................................................................44
Self-Diagnostics ....................................................................................................................44
On the Main Control Board CSM ..........................................................................................46
UI Diagnostics ......................................................................................................................48
Fill System ....................................................................................................................................49
(Continued next page)

– 5 –
Water Level ...........................................................................................................................49
Diagnostics ...........................................................................................................................50
Flood and Float Switch .........................................................................................................51
Fill Funnel and Hose .............................................................................................................52
Fill Valve ...............................................................................................................................52
Circulation System .......................................................................................................................53
Diagnostics ...........................................................................................................................54
No Circulation and Drain ......................................................................................................55
Drain Pump Diagnostics .......................................................................................................56
Filtration ................................................................................................................................57
Circulation Motor and Pump Assembly .................................................................................58
Diverter .................................................................................................................................58
Turbidity Sensor ....................................................................................................................61
Thermistor.............................................................................................................................61
Conduits and Spray Arms .....................................................................................................63
Main Conduit ........................................................................................................................64
Spray Arms ...........................................................................................................................64
Middle Conduit ......................................................................................................................65
Bottle Wash System (on some models) ................................................................................66
Upper Spray System ............................................................................................................66
Drain System ................................................................................................................................67
Diagnostics ...........................................................................................................................68
Dry System ...................................................................................................................................70
Heat Element Removal .........................................................................................................74
Tub TCO ...............................................................................................................................74
....................................................................................................................75
Schematics ...................................................................................................................................76
(Continued next page)

– 6 –
GDF510P, GDF511P and GDT535 .......................................................................................76
GDF530P, GDF640P, GDP615, GDT605H ...........................................................................77
GDF630P and GDT635 ........................................................................................................78
Index .............................................................................................................................................79

– 7 –
Prior to disassembly of the dishwasher to access components, GE
Factory Service technicians are REQUIRED to follow the Lockout /
Tagout (LOTO) 6 Step Process:
Safety Requirements
GE Factory Service Employees are required to use safety glasses with side shields, safety gloves and
steel toe shoes for all repairs.
Step 1
Plan and Prepare
Step 4
Apply LOTO device and lock
Step 2
Shut down the appliance
Step 5
Control (discharge) stored
energy
Step 3
Isolate the appliance
Step 6
“Try It” verify that the appliance
is locked out
Steel Toed Work Boot
Electrically Rated Glove and
Dyneema® Cut Resistant Glove
Keeper
Dyneema®Cut Resistant
Glove
Cut Resistant Sleeve(s)
Plano Type Safety Glasses
Brazing Glasses Prescription Safety Glasses
Safety Glasses must be
ANSI Z87.1-2003 compliant

– 8 –
Serial Number
designating the year repeats every 12 years.
Example: FL123456S = March, 2018
A – JAN
D – FEB
F – MAR
G – APR
H – MAY
L – JUN
M – JUL
R – AUG
S – SEP
T – OCT
V – NOV
Z – DEC
2024 – Z
2023 – V
2022 – T
2021 – S
2020 – R
2019 – M
2018 – L
2017 – H
2016 – G
2015 – F
2014 – D
2013 – A
Model and Serial Tag
Mini Manual
Model Number
G D T 6 3 5 H M M 0 E S
Brand
H: Hotpoint
G: GE
P
C: Cafe
Z: Monogram
D: Built-In
P: Portable
Control Appearance
F: Front Control
T: Top Control
P: Top Control with Pocket Handle
Wash System
3: Low
5: Mid
6: Mid/Bottle Wash
7: High
8: Monogram
0 - 99
Interior Material
H: Hybrid (Plastic Tub/SS Inner Door)
P: Plastic Tub/Inner Door
S: Stainless Tub/Inner Door
Exterior Finish
G: Generic Color (Glass)
I: Panel Ready
M: Metallic
P: Pro
S: Stainless
Model Year
M: 2018
0 - 99
Color
WW: White
CC: Bisque
BB: Black
II: Panel Ready
SA: Silver Metallic
SS: Stainless
ES: Slate
TS: Black Stainless
BS: Black Slate
The nomenclature breaks down and explains what the letters and numbers mean in the model number.
Nomenclature

– 9 –
Circulation Pump: 120 VAC, .8 amp – 3.8
LRA, 8GPM @ 5PSI
Drain Pump
second cycle
Tub TCO: 120 VAC, 210°F +/- 10°F Manual
Reset
Main Control: Input 120 VAC, Output 120
VAC, and Output 5 and 13.5 VDC
Heater 120 VAC
Wet Dry
Watts 800 500 +/- 5%
Ohms 18 28.8 +/- 5%
Amps 6.67 4.17 +/- 5%
Resistance Temperature
20k 50°F
11k 75°F
5.8k 100°F
3.4k 125°F
2.1k 150°F
1.3k 175°F
Product
Product
Door Switch: 13.5 VDC
Water Valve
minute cycle time
UI Control: 13.5 VDC (some models have
13.5 VDC output to detergent module and dry
fan)
to release detergent cup, 15 seconds to
release rinse aid
Fan Assist Dry GDP615HxM0xx only, 13.5
VDC
Flood Switch: 13.5 VDC, .42 amp
Turbidity Sensor
Models GDF510PxM0xx, GDF511PxM0xx and GDT535PxM0xx have a tub thermistor.
Models GDF530PxM0xx, GDF630PxM0xx, GDF640HxM0xx, GDT605PxM0xx,
GDT635HxM0xx and GDP615HxM0xx the thermistor is located in the Turbidity Sensor
~ 70 pounds (depending model)
33 3/8"
34 5/8"
23 3/4"
24"
to neutral (see Drain Pump Diagnostic
section of this guide).

– 10 –
Operation and Cycle Information
This section of the guide provides details on segments of cycles, timing of cycles, temperature
expectations and cycling of the heater during the dry portion of a cycle.
Auto Hot Start
If incoming water temperature is below 75°F, Auto Hot Start is initiated at the beginning of the cycle
in an attempt to purge the home water lines of cooler water. Auto Hot Start can add up to 10 minutes
70-second drain, repeating this sequence if the 75°F temperature is not met. The dishwasher can
repeat this up to three times, if needed. If the temperature is met in one or two segments, the cycle
Cycle Times
Times will vary depending on options selected, incoming water temperature, and soil level (on some
models).
Incoming water temperature of 120°F through 140°F is recommended.
The Cycle Chart below explains the segments of a cycle (cycles for all models included, not all models
contain some cycles). The chart below details Fill and Drain times which depend on either a full or
partial drain. It provides the circulation time in each segment, but does not include dry cycles (see the
Dry System section in this service guide). Times will vary depending on turbidity response (on some
models), options selected and water temperature.
Normal AutoSense
Heavy
Fixed Soil
Heavy
Soil Soil
Heavy
Soil
PW1 Fill (sec)
Circ (min)
Heat
Drain
USA with
Pulsing
No 60
5
No
Empty
60
5
No
Empty
60
5
No
Empty
60
5
No
Empty
60
5
No
Empty
60
5
No
Empty
PW2 Fill (sec)
Circ (min)
Heat
Drain
LSA
with
pulsing
No 60
5.5
No
Empty
60
5.5
No
Empty
60
6
No
Empty
PW3 Fill (sec)
Circ (min)
Heat
Drain
60 LSA/ 60
USA
No 60
4
No
None
60
5
No
Empty
60
5
No
Empty
60
5
No
Empty
PW4 Fill (sec)
Circ (min)
Heat
Drain
60 LSA/ 60
USA
Yes
Shorten
~30%
60
15
Yes
Empty
Main
Wash
Fill (sec)
Circ (min)
Heat
Drain
180 USA/
180 LSA
Yes will
Shorten
~30%
0
20
Yes
Empty
60
41
Yes
Empty
60
40
Yes
Empty
60
40
Yes
Empty
60
45
Yes
Empty
60
60
Yes
Empty
60
45
Yes
Empty
PR1 Fill (sec)
Circ (min)
Heat
Drain
180 LSA/
180 USA
Yes will
Shorten
~30%
60
12
No
Empty
60
12
No
Empty
60
6
No
Empty
60
15
Yes
Empty
PR2 Fill (sec)
Circ (min)
Heat
Drain
180 LSA/
180 USA
Yes will
Shorten
~30%
60
4
Yes
Empty
60
5
No
Empty
60
5
No
Empty
60
5
No
Empty
60
5
No
Empty
60
12
No
Empty
0.8
5
Yes
Empty
Final
Rinse
Fill (sec)
Circ (min)
Heat
Drain
60LSA/
120USA
No 60
13
Yes
Empty
60
15
Yes
Empty
60
15
Yes
Empty
60
15
Yes
Empty
60
30
Yes
Empty
60
21
Yes
Empty
60
30
Yes
Empty
