IMPORTANT SAFETY INSTRUCTIONS
Before beginning installation, carefully read these instructions. This will simplify
the installation and ensure the dryer is installed correctly and safely.
NOTE: The electrical service to the dryer must conform with local codes and
ordinances and the latest edition of the National Electrical Code, ANSI/
NFPA 70 or in Canada, CSA C22.1 Canadien Electrical Code Part 1.
NOTE: The gas service to the dryer must conform with local codes and
ordinances and the latest edition of the National Fuel Gas Code, ANSI
Z223.1 or in Canada, CAN/CGA B149.1.
NOTE: The dryer is designed under ANSI Z21.5.1 or ANSI/UL 2158 - CAN/
CSA C22.2 No. 112-97 (latest editions) for HOME USE ONLY. This
dryer is not recommended for commercial application such as restaurants,
beauty salons, etc.
WARNING
ADVERTENCIA
ADVERTENCIA
ADVERTISSMENT
PRECAUCIÓN
PRECAUCIÓN PRECAUCIÓN
ATTENTION
CAUTION
CAUTION
For your safety the information in this manual must be
followed to minimize the risk of fire or explosion or to
prevent property damage, personal injury or loss
of life.
Combustible materials, gasoline, and other flammable vapors and
liquids must not be stored near the dryer.
WHAT TO DO IF YOU SMELL GAS
1. Do not try to light any appliance
2. Do not touch any electrical switch. Do not use any phone in
your building.
3. Clear the room, building, or area of all occupants.
4. Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
5. If you cannot reach your gas supplier, call the Fire Department.
Installations must be performed by a qualified or licensed
contractor, plumber, or gasfitter qualified or licensed by the state,
province, or region where this appliance is being installed.

English
English
IMPORTANT SAFETY
INSTRUCTIONS
WARNING - To reduce the risk of fire, electric shock, or
injury to persons when using your appliance, follow the
basic precautions, including the following:
1. Read all of the instructions before using this appliance.
2. Don’t dry articles that have been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry clean solvents or other
flammable explosive sub stains as they give off vapors which could
ignite or explode.
3. Do not allow children to play on or in the appliance. Close
supervision of children is necessary when the appliance is used
near children.
4. Before the appliance is removed from service or discarded, remove
the door to the drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to
water and/or to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in the user-repair
instructions that you understand and have skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturers of the fabric softener or product.
10. Do not use heat to dry articles or products to eliminate static unless
recommended by the manufacturers of the fabric softener or product.
11. Clean lint screen before or after each load.
12. Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust and dirt.
13. Keep the dryer area clear and free from items that would obstruct
the flow of combustion and ventilation air through the louvered panel
located on the rear of the dryer.
14. The interior of the appliance and the exhaust duct should be cleaned
periodically by qualified service personnel.
3

English
English
4
Thank you for using our Haier
product. This easy-to-use manual
will guide you in getting the best
use of your dryer.
Remember to record the model and
serial number. They are on a label
in back of the dryer.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
15. Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oil may contribute to a chemical reaction
than could cause a load to catch fire.
16. If material has been used with any flammable liquids or solids, it
should not used in the dryer until all terraces of flammable liquids
and its fumes have been removed.
17. This dryer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in
the installations sections.
18. Proper grounding must be ensured to reduce the risk of electric shock
and force. Check with a qualified electrician or service personnel if
you are in doubt as to whether the dryer is properly grounded.
19. Use the dryer only for its intended purpose: drying clothes.
20. Always disconnect dryer from electrical supply before attempting any
service. Disconnect power cord by grasping the plug, not the cord.
21. Replace worn power cord and/or loose plugs.
22. To reduce the risk of electric shock or fire, do not use extension cords
or adapters to connect dryer electrical power source.
SAVE THESE
INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old dryer,
take off the door so that children may not get trapped inside.

5
WARNING
ADVERTENCIA
ADVERTENCIA
ADVERTISSMENT
ÓN PRECAUCIÓN
ATTENTION
CAUTION
1. Clothes dryer installation must be performed by a
qualified installer.
2. Install the clothes dryer according to the manufacturer’s
instructions and local codes.
3. To reduce the risk of severe injury or death, follow all
installation instructions.
SAVE THESE INSTRUCTIONS
Tools and materials required
• Phillips-Head and flathead screwdrivers
• Channel-lock adjustable pilers
• 1/2-inch open-end wrench
• Carpenter’s level
• Measuring tape (12ft. min.)
• Duct tape
• Pipe thread sealer (Gas)
• Rigid or flexible metal 4 inch (102cm) duct
• Vent hood
Safety Warning:
1. Before starting installation, make sure that the gas shut off valve is in the
off position.
2. All old gas connectors and gas piping should be discarded.
INSTALLATION INSTRUCTIONS
English English
ATTENTION
WAR
Risk of Fire:
NING
4. Do not install a clothes dryer with flexible plastic venting materials.
If flexible metal (foil type) duct is installed, it must be of a specific
type identified by the appliance manufacturer as suitable for use
with clothes dryers. Flexible venting materials are known to collapse,
be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
ELECTRICAL REQUIREMENTS
Circuit
Individual 15 Amp branch circuit fused with 15-Amp maximum time delay fuse
or circuit breakers.
Power Supply
3 wire, 120 Volt, 1 Phase, 60Hz, AC
Power Supply Cord
The dryer is equipped with a 120 Volt 3-wire power supply cord.
Note: This dryer is equipped with a three-prong grounding plug for your
protection against shock hazard and should be plugged into a properly
grounded three-prong receptacle. Do not under any circumstance cut or
remove grounding prong from plug.

English English
6
Unpacking Your Dryer
1. Remove all packaging material. This includes the foam base and all adhesive
tape holding the dryer accessories inside and outside.
2. Inspect and remove any remains of packaging, tape or printed materials
before using the dryer.
The following are specific requirements for
proper and safe operation of your dryer. Failure
to follow these instructions can create excessive
drying times and fire hazards.

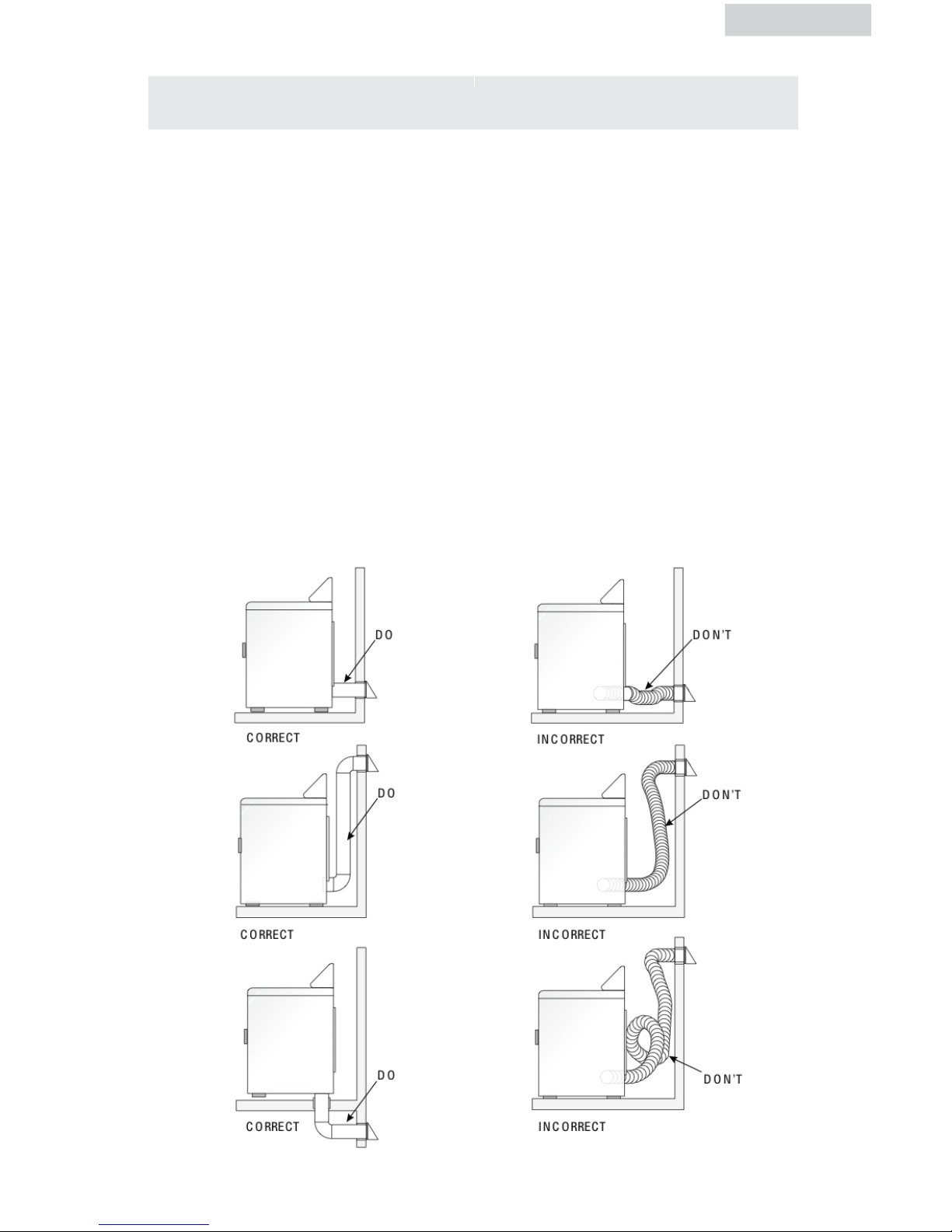

1. Do not use plastic flexible duct to exhaust the dryer. Excessive lint can build up
inside exhaust system and create a fire hazard and restrict air flow. Restricted
air flow will increase drying time. If your present system is made up of plastic
duct or metal foil duct, replace it with a rigid or flexible metal duct. Ensure
present duct is free of any lint prior to installing dryer duct.
3. Exceeding the length of duct pipe or number of elbows allowed in the
“Maximum Length” chart can cause an accumulation of lint in the exhaust
system. Plugging the system could create a fire hazard, as well as increase
drying times.
4. Do not screen the exhaust ends of the vent system. Lint can become caught in

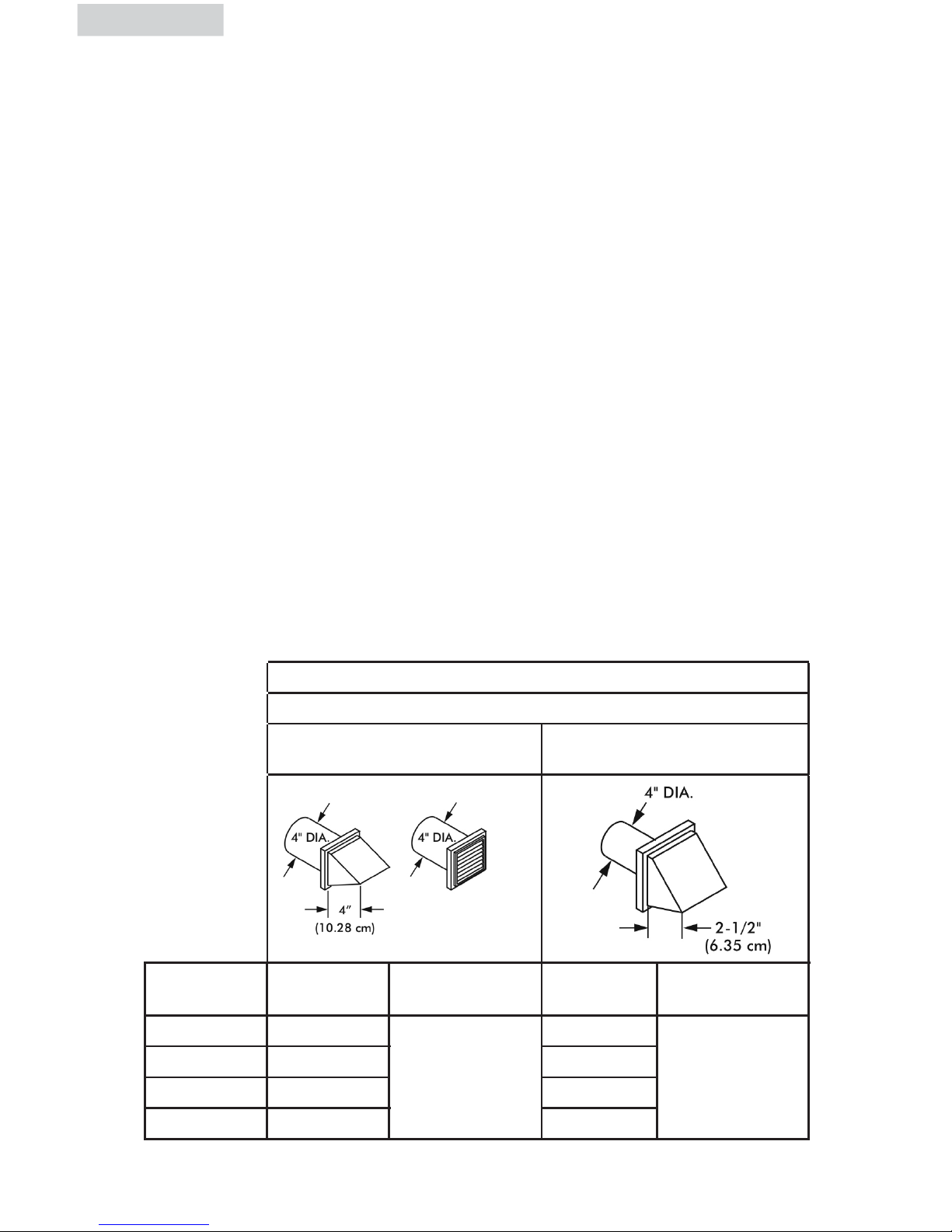

the screen, increasing drying time. Use an approved vent hood to terminate the
duct outdoors, and seal all joints with duct tape.
5. All male duct pipe fittings must be installed downstream with the flow of air.
6. Exhaust duct must not be connected or secured with screws or other fastening
devices which extend into the interior of the duct.
7. Do not allow combustible material (clothing, draperies/curtains, paper, etc.) to
come in contact with exhaust system.
Explosion hazard:
Do not install the dryer where gasoline or other flammables are kept or
stored. If the dryer is installed in a garage, it must be a minimum of 18
inches (45.7cm) above the floor. Failure to do so can result in death,
explosion, fire or burns.
WARNING
EXHAUST SYSTEM REQUIREMENTS
2. The dryer must not be exhausted into any gas vent, chimney, wall, ceiling
The dryer exhaust system MUST be
exhausted to the outdoors.
If the dryer is not exhausted outdoors, some
the laundry area. An accumulation of lint in any area of the home can
create a health and fire hazard.
attic, crawl or any concealed space of a building.
fine lint will be expelled into

Exhaust Requirements:
Use only 4 inch (10.2cm) diameter (minimum) rigid of flexible metal duct and
approved vent hood which has a swing-out damper hat open when the dryer is
in operation. When the dryer stops, the dampers automatically close to prevent
drafts and the entrance of insects and rodents. To avoid restricting the outlet,
maintain a minimum of 12 inches (30.5cm) clearance between the vent hood
and the ground or any other obstruction. The vent flap should be able to move
freely, although vertical orientation of the exhaust system is acceptable. Certain
extenuating circumstances could affect the performance of the dryer:
1. Only rigid metal duct work should be used.
2. Venting vertically through a roof may expose the exhaust system to down
drafts causing an increase in vent restriction.
3. Running the exhaust system through an uninsulated area may cause
condensation and faster accumulation of lint.
4. Compression of crimping of the exhaust system will cause an increase in
vent restriction.
The exhaust system should be inspected and cleaned a minimum of every 12
months with normal usage. The more the dryer is used the more often you
should check the exhaust system and vent hood for proper operation.
English English
7
In Canada,only foil-type flexible ducts, if any, specifically identified for
use with the appliance by the manufacturer shall be used.In the United
5.
States,only foil-type flexible ducts, if any, specifically identified for use
with the appliance by the manufacturer and that comply with the UL
Outline for Clothes Dryer Transition Duct, Subject 2158A (2006), shall
be used.
The exhaust duct shall be 4 inch (102 mm) in diameter.
6.
RECOMMENDED MAXIMUM
Exhaust Hood Types
Recommended Use only for short
run installations
No. of 90º
elbows
Rigid Metal
Flexible Metal
Rigid Metal
Flexible
Metal
0 90 ft.
Flexible metal
60 ft.
1 60 ft. 45 ft.
2 45 ft. 35 ft.
3 35 ft. 25 ft.
metal shoud only
length to be 7.5ft.
wall.Maximum
the dryer and the
be used between
Flexible metal
metal shoud only
length to be 7.5ft.
wall.Maximum
the dryer and the
be used between

English English
8
GAS SUPPLY REQUIREMENTS
WARNING
ADVERTENCIA
ADVERTENCIA
ADVERTISSMENT
PRECAUCIÓN
PRECAUCIÓN PRECAUCIÓN
ATTENTION
CAUTION
CAUTION
Replace copper connecting pipe that is not plastic-
coated. Stainless steel or plastic-coated brass MUST
be used.
1.
Installation MUST conform with local codes. In the absence of local codes,
installation must conform with the National Fuel Gas Code, ANSI Z223.1 (latest
edition) or in Canada, the current CAN/CGA B149.1
2. The gas supply line should be 1/2 inch (1.27cm) pipe.
3. If codes allow, flexible metal tubing may be used to connect your dryer to the
gas supply line. The tubing MUST be constructed of stainless steel or plastic-
coated brass.
4. The gas supply line MUST have an individual manual shutoff valve installed
within 6 feet (183cm) of the dryer in accordance with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54.
In Canada, an individual manual shut-off valve MUST be installed in
accordance with the B149.1, Natural Gas and Propane Installation Code.
5. A 1/8 inch (0.32cm) N.P.T. plugged tapping, accessible for test gauge
connection, MUST be installed immediately upstream of the gas supply
connection to the dryer.
6. The dryer MUST be disconnected from the gas supply piping system during
any pressure testing of the gas supply piping system at test pressures in excess
of 1/2 psig (3.45kPa).
7. The dryer MUST be isolated from the gas supply piping system during any
pressure testing of the gas supply piping system at test pressures equal to or
less than 1/2 psig (3.45 kPa).

English English
9
Do Not Install Your Dryer:
1. In an area exposed to dripping water or outside weather conditions.
2. In an area where it will come in contact with curtains, thick carpet, or anything
that will obstruct the flow of combustion and ventilation air.
3. On carpet, floor must be solid with a maximum slope of 1inch (2.54 cm). Any
floor unevenness should be corrected with leveling legs located on the bottom
of the dryer.
Installation in Alcove or Closet:
1. DO NOT install your dryer in a closet with a solid door.
2. A dryer installed in a bedroom, bathroom, alcove or closet MUST be
exhausted outdoors.
3. No other fuel burning appliance shall be installed in the same closet as the
gas dryer.

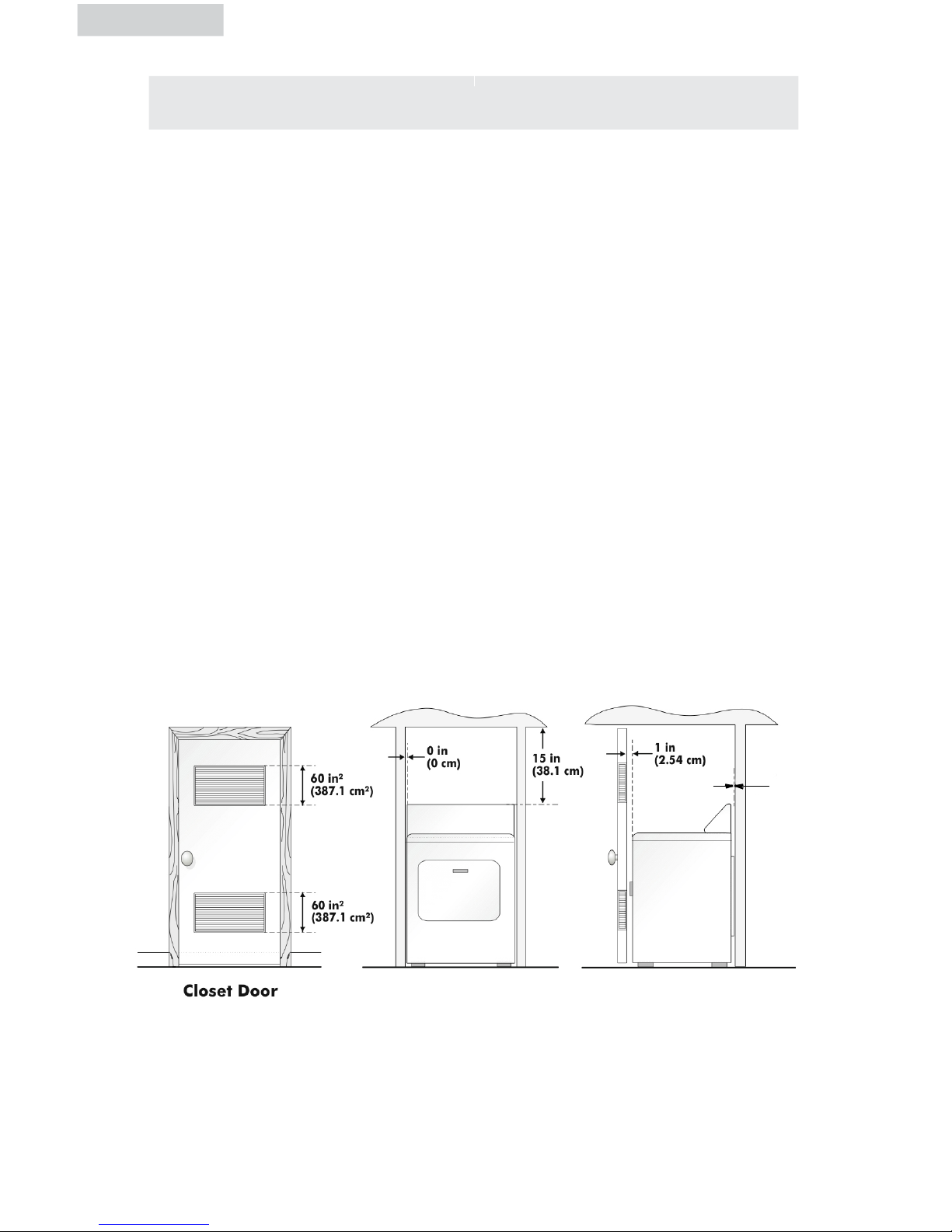

4. Refer to the images on this page to ensure the installation provides the
minimum amount of clearance required for ventilation.
5. When installing the dryer in a closet with a door, a minimum of 120 square
inches (774.2 square cm) of ventilation in the door is required. Openings must
be equally divided at the top and bottom of the door and airflow must be
unobstructed. A louvered door with equivalent air openings for the length of
the door is acceptable.
LOCATION OF YOUR DRYER
0 in
(0 cm)

English English
10
1. Dryer MUST be exhausted outside (outdoors, not beneath the manufactured
home) using metal ducting that will not support combustion. Metal ducting must
be 4 inch (10.16 cm) in diameter with no obstructions. Rigid metal duct
is preferred.
2. If dryer is exhausted through the floor and area beneath the manufactured
home is enclosed, the exhaust system MUST terminate outside the enclosure
with the termination securely fastened to the mobile home structure.
3. When installing a gas dryer into a manufactured home, a provision must be
made for outside make up air. This provision is to be not less than twice the
area of the dryer exhaust outlet.
4. This dryer MUST be fastened to the floor using P/N 0030807899
Manufactured Home Installation Kit. Follow the instructions supplied with
the kit.
5. Refer to previous sections for other important venting requirements.
6. Installation must conform to current Manufactured Home Construction & Safety
Standard (which is a Federal Regulation Title 24 CFR-Part 32-80) or when
such standard is not applicable, with American National Standard for Mobile
Homes. In Canada, the CSA Z240 is applicable.
MANUFACTURED (MOBILE) HOME INSTALLATION

English
English
11
The following are specific requirements for proper
and safe electrical installation of your dryer. Failure to
follow these instructions can create
electrical shock and/or fire hazard.
WARNING
Gas dryers are equipped with a factory installed three-prong 15 Amps ~120 Volts
(grounding) plug for your protection against shock hazard and should be plugged directly
into a properly grounded three-prong receptacle. Do not cut or remove the grounding
prong from this plug.
GAS CONNECTION
NOTE: DO NOT connect the dryer to L.P. gas service without converting the
gas valve. An L.P. Conversion Kit must be installed by a qualified
gas technician.
1. Remove the shipping cap from gas pipe at the rear of the dryer.
2. Connect a 1/2 inch (1.27cm) I.D. semi-rigid or approved pipe from gas supply line to
the 3/8 inch (0.96cm) pipe located on the back of the dryer. Use a 1/2 inch to 3/8
inch (1.27cm to 0.96cm) reducer for a connection. Apply an approved thread sealer
that is resistant to the corrosive action of liquified gases on all pipe connections.
3. Open the shutoff valve in the gas supply line.
4. Test all connections by brushing on a soapy water solution. NEVER TEST FOR GAS
LEAKS WITH AN OPEN FLAME.
5. Connect the exhaust duct to the outside exhaust system. Use duct tape to seal
all joints.
6. With the dryer in its final position, adjust one or more of the legs until the dryer is
resting solid on all four legs. Place a level on top of the dryer. THE DRYER MUST BE
LEVEL AND RESTING SOLID ON ALL FOUR LEGS.
7. Plug the power cord into a grounded outlet. NOTE: check to ensure power is OFF at
circuit breaker/fuse box before plugging the power cord into the outlet.
8. Turn on the power at the circuit breaker/fuse box.
WARNING
ADVERTENCIA
ADVERTENCIA
ADVERTISSMENT
PRECAUCIÓN
PRECAUCIÓN PRECAUCIÓN
ATTENTION
CAUTION
CAUTION
Before operating the dryer, make sure the dryer area is clean and free
from combustible materials, gasoline, and other flammable vapors. Also
see that nothing (such as boxes, clothing, etc.) obstructs the flow of
combustion and ventilation air through the louvered panel located on the
rear of the dryer.
9. Run the dryer through a cycle check for proper operation.
NOTE: On gas dryers, before the burner will light, it is necessary for the gas line to be
bled of air. If the burner does not light within 45 seconds the first time the dryer is
turned on, the safety switch will shut the burner off. If this happens, turn the dryer
to “OFF” and wait 5 minutes before making another attempt to light.
NOTE: Follow instructons supplied with kit.
ELECTRICAL INSTALLATION

English
English
12
A) Connect female 3/8” NPT elbow to gas
inlet on dryer. Then connect 3/8” flare
union adapter to female elbow.
IMPORTANT: To prevent the inlet from
twisting, please use a pipe
wrench to secure the dryer
gas inlet. Affix Teflon®
tape or pipe compound to
adapter and gas inlet.
B) Attach the flexible metal gas line connector
to the adapter.
C) Make sure flexible gas line seal is secure.
Use two wrenches for the best
possible connection.
D) To check gas inlet pressure, attach 1/8”
NPT plugged tapping to dryer gas line shut-
off valve. Then connect flare union adapter
to plugged tapping. Affix Teflon® tape
to the threads of the adapter and plugged
tapping to ensure seal.
E) Use two adjustable wrenches to tighten
every connection.
IMPORTANT: Do not overtighten!
F) Open gas shut-off valve.
CONNECTING THE DRYER TO THE GAS SUPPLY

English English
13
REPLACEMENT PARTS
Replacement parts and accessories for US and Canada can be purchased
through Haier America at 1-800-313-8495
WARNING
ADVERTENCIA
ADVERTENCIA
ADVERTISSMENT
PRECAUCIÓN
PRECAUCIÓN PRECAUCIÓN
ATTENTION
CAUTION
CAUTION
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation. Check
unit for proper operation after servicing.
WARNING
ADVERTENCIA
ADVERTENCIA
ADVERTISSMENT
PRECAUCIÓN
PRECAUCIÓN PRECAUCIÓN
ATTENTION
CAUTION
CAUTION
Discard or destroy the carton and plastic bags after the dryer is
unpacked. Children should not be allowed to use them to play with.
Cartons covered in rugs, bedspreads or plastic sheets can become
an airtight chamber and cause suffocation leading to death. Make
all packing materials inaccessible to children.
WARNING
ADVERTENCIA
ADVERTENCIA
ADVERTISSMENT
PRECAUCIÓN
PRECAUCIÓN PRECAUCIÓN
ATTENTION
CAUTION
CAUTION
The instructions in this manual and all other literature included with
this dryer can not cover every possible condition and situation that
may occur. Good safe practice and caution must be applied when
installing, operating, and maintaining any appliance. If you are in
doubt after installing, call a certified electrician to install and wire
the dryer.

English English
14
Understanding the Control Panel
Note: Features may vary per model.
Start/Pause Button: (1)
• Press the button to turn the dryer ON. Press this button once to start the dry
process. Press this button once again to pause the activity during the dry cycle.
Off Button: (2)
• Press the button to turn dryer off.
Signal Button: (3)
• Selects buzzing volume or turns off the buzzer. You can choose louder, softer,
or off.
Temp Button: (4)
• Used to set drying temperature. There are 4 available drying temperatures:
High, Medium, Low, and No Heat (Air Dry).
Sensor Dry Level Button: (5)
• Used to set drying level of auto-programs. If no auto-program is selected,
pressing the button will cause the chime to sound. There are 5 selections: Very,
More, Normal, Less, Damp.
Wrinkle Saver Button: (6)
• This convenient feature helps keep wrinkles from setting when you cannot
unload the dryer at the end of a cycle. The dryer will stop and then tumble
for a brief period every few minutes. Press the wrinkle saver button to choose
the number of hours required, from 3 to 24. Stop the setting at any time by
pressing the wrinkle saver button or opening the dryer door.
• If not set, the wrinkle saver indicator is off and remaining time indicator is on.
• The LED display indicates the remaining time of non-reserved program. If setting
“Wrinkle Saver” in standby status, the LED display indicates 3 hr, which will
increase by 1 hr with each press until 24 hours is reached It will then return to
3. If held for 1.5 seconds, the LED display indicated value will
increase continuously.
Extend T umble
Very
More
Normal
Less
Damp
910 7 6 11 12
85 4 3
OPERATING INSTRUCTIONS

mode: Normal, Heavy, Cotton, Bulky Items, Casual, Delicate, Touch-up,
and Custom.
Status lights: (10)
• Status lights note which part of the cycle the machine is in.
Digital display: (11)
• Indicates the remaining time (min) during cycle operation. Also indicates
remaining wrinkle saver time (hr).
Note: If door is opened during running cycle, the display will be flashing with
sound of alarm.
Function Light Indicator:
• The function “display light” indicates selected feature is “ON” or the cycle is
about to begin.
• During the dry cycle, “flashing light” indicates current running program.
• Rapidly flashing light indicates that the dryer is not operating properly.
English
English
15
More Time & Less Time Button: (7)
• Used to set time from 0 to 180 minutes when Timed Dry or Rack Dry
cycle selected.
Timed-Dry Cycles Button: (8)
• The “Timed-Dry Cycles” button will let you select your desired dry mode.
Timed Dry: You can set status of “Temp”, “Signal” and dry time with “More Time”
and “Less Time” by yourself.
Rack Dry: This program is used to dry articles like sport shoes.
Auto-Dry Cycles Button: (9)
• “Auto-Dry cycles” button will let you select your desired dry cycles. For your
convenience, there are seven fabric care dry cycles programmed in this
Normal Normal drying
Heavy Heavy weight material such as jeans or bath towels.
Cotton Special drying for cotton clothes.
Bulky Items Drying bulky clothing, such as bed sheets.
Casual Drying casual everyday clothes.
Delicate Drying small quantity clothes and delicate fabric.
Touch Up Used to select wrinkle-remove function.
Custom The drying program defined by user and stored.

English
English
16
• Sort clothes of the same kind (cotton, synthetics, woolen) to dry.
• Dark and light colored clothes should be separately dried. Fabrics prone to
losing lint and those prone to adhering lint shall be separately dried. Clothes
prone to falling lint should be turned inside out before putting into the dryer.
• Make sure buttons and ornaments on the clothes are high temperature
resistant and won’t damage drum surface. Before loading, the clothes should
have their zippers zipped up, buttons and hooks done up and belts tied so as to
avoid entanglement or other obstacles.
• If possible, turn out the clothes pockets for uniform drying.
• Check if clothes remain soiled. If so, wash them again, otherwise soils may be
permanently set.
• Small articles should be collected in a mesh bag before loading and drying, so
as to avoid entanglement and ensure easy removal.
• Make sure the power socket is reliably grounded. The grounding terminal should
not be connected to gas or tap water pipelines.
• Make sure exhaust duct has been properly connected.
• Make sure lint filter is clean and properly installed. If lint filter is not in place,
tumbling items could enter the exhaust system and cause damage to the dryer.
Note: Applies to Auto Dry cycle and Timed Dry cycle.
• For Rack Dry cycle, remove the lint filter and assemble the drying rack with its
rear end slightly downward inclined. The configuration is as shown in the
following figure:
PREPARATIONS BEFORE DRYING

English
English
1817
• The appropriate load should be 1/3 ~ 1/2 of the drum volume. Avoid too
much load, as space is needed to allow clothes free rotation for uniform and
wrinkle-proof drying.
• When drying big articles, only 2-3 pieces should be loaded at a time and
supplemented with small and medium-sized articles.
• For delicate clothes or less load, two towels may be added to get better
drying and wrinkle-proof effects.
• Do not excessively dry clothes to avoid wrinkles, shrinkage, roughness,
electro-static charge accumulation, and/or more lint.
Rack Dry cycle
• This program is designed specially for articles like sport shoes. During drying,
please make sure the articles are placed on the rack with no risk of
entangling the baffles while the drum is rotating.
Note: If drying rack is not in place, rolling inner tub could collide with drying
rack and causes damage to the dryer and drying rack.
1. Press any button except “Off” button to power on.
• Turn on the power switch. The computer board will beep once and the dryer
will change from off status to the initial operating status (Normal program).
• If the “Start/Pause” button is not pressed in 5 min after powering on, it
automatically cuts off power and returns to off status.
• The dryer returns to off status immediately upon end of each cycle. Regardless,
the status of the control panel, pressing OFF will stop all operations.
• The default status is “Normal” program.
Note: Your dryer is equipped with an electronic moisture sensor which
continuously senses the moisture in the dryer load during the drying cycle. The
dryer will stop when the moisture in the clothes has reached your selected dry
level. This helps to avoids clothes from over drying and prevents damage to
clothes. The control panel will display “SEN” during the final sensing period and
once the estimated dry time is determined it will be displayed.
LOAD CLOTHES INTO DRYER
AUTO DRY CYCLE
Extend T umble
Very
More
Normal
Less
Damp

English
English
1817
2. Press “Auto-Dry Cycles” button to select a suitable full automatic cycle.
• The Normal program will be automatically selected after powering on. If
another full automatic program is desired, press “Auto-Dry Cycles” button until
corresponding indicator turns on.
• To select your desired settings, the “Custom” function should be chosen.
• The dryer can memorize programs defined by user and display the previous
program upon next application of this function.
Use details are as follows (Features may vary per model purchased):
After powering on, press “Auto-Dry Cycles” until ”Custom” status, then set
“Timed-Dry Cycles” to Timed Dry or Rack Dry and set status of other buttons.
Press “Start/Pause” button or after half a minute, the program defined by user will be
stored and will be directly displayed upon next use.
Note: The“Sensor Dry Level” button will be inactive during use of “Custom” function
and “Touch Up” cycle.
3. Press “Sensor Dry Level” button to select a suitable drying level.
• After powering on, the clothes dryer automatically sets dryness at “very”, which
means a longer drying time. If other drying level is desired, press “Sensor Dry
Level” button to select.
4. Press “Temp” button to set a suitable drying temperature.
• After switching on, the dryer sets the corresponding temperature adapting to
different cycles selected. If other drying temperature is wanted, press “Temp”
button to enable such a selection. There are 4 available drying temperatures:
High, Medium, Low, and Air Dry.
Casual
Delicate
Touch Up
Custom
Normal
Heavy
Cotton
Bulky Items
Auto-Dry Cycles
Cycle Signal
Softer
Wrinkle Care
Off
Cycles
Normal
LED display
Indicates current program remaining time. Initial display time is 60 minutes.
This is subject to change depending on the moisture level in the dry load.
Temp
High
Sensor Dry Level
Very
Timed/Cycles
Auto-program

19
5. Press “Signal” button, and the buzzer will sound upon end of a cycle.
• After switching on, the dryer automatically sets buzzer at “Softer”. The user may
define three prompt sound conditions: “Louder”, “Softer” and “Off”.
6. Press the “Wrinkle Saver” button to select a suitable reserved drying program.
• This convenient feature helps keep wrinkles from setting when you cannot unload the
dryer at the end of a cycle. The dryer will stop and then tumble for a brief period
every few minutes. Press the wrinkle saver button to choose the number of hours you
want, from 3 to 24. Stop the setting at any time by pressing the wrinkle saver button
or opening the dryer door.
• If not set, the wrinkle saver indicator will be off and remaining the time indicator will
be displayed.
• The LED display indicates remaining time of a non-reserved program. If setting
“Wrinkle Saver” in standby status, the LED display indicates 3 hr, which will
increase by 1 hr with each press (until 24 and return to 3). If held for 1.5 seconds,
LED display indicated value will increase continuously.
7. Press “Touch Up” button to select wrinkle-proof drying mode.
• You can also use the “Touch Up” cycle to remove wrinkles from clean clothes
packed tightly in a suitcase or closet.
8. Press “Start/Pause” button
• When starting the machine, first close the door and then press this button.
• If pause is needed during machine operating, press this button. Pressing again will
resume operation.
• Wrinkle saver 3-24 hours
• Sensor Dry Levels: Very, More, Normal, Less, Damp
• Temp Levels: High, Medium, Low, Air Dry
• Signal: Louder, Softer, Off
Autodry Cycle Remain Time
Sensor
Dry Level
Temp Signal
Start/
Pause
Normal 60 very High Softer
Heavy 52 very High Softer
Whites 65 very High Softer
Bulky 62 very High Softer
Casual 35 very Medium Softer
Delicate 35 very Low Softer
Touch Up 25 N/A Low Softer
0-180
minutes
Custom Timed
Dry
40 N/A High Softer
Pass for Rack
Dry
60 N/A Air Dry Softer
English English
