Haier Ginesis HLF103Q User manual

What The World Comes Home T o
TM
Electric Dr yer
User Manual-
Model #
HLF103Q

WARNING
1

2

Tables Of Contents
PAGE

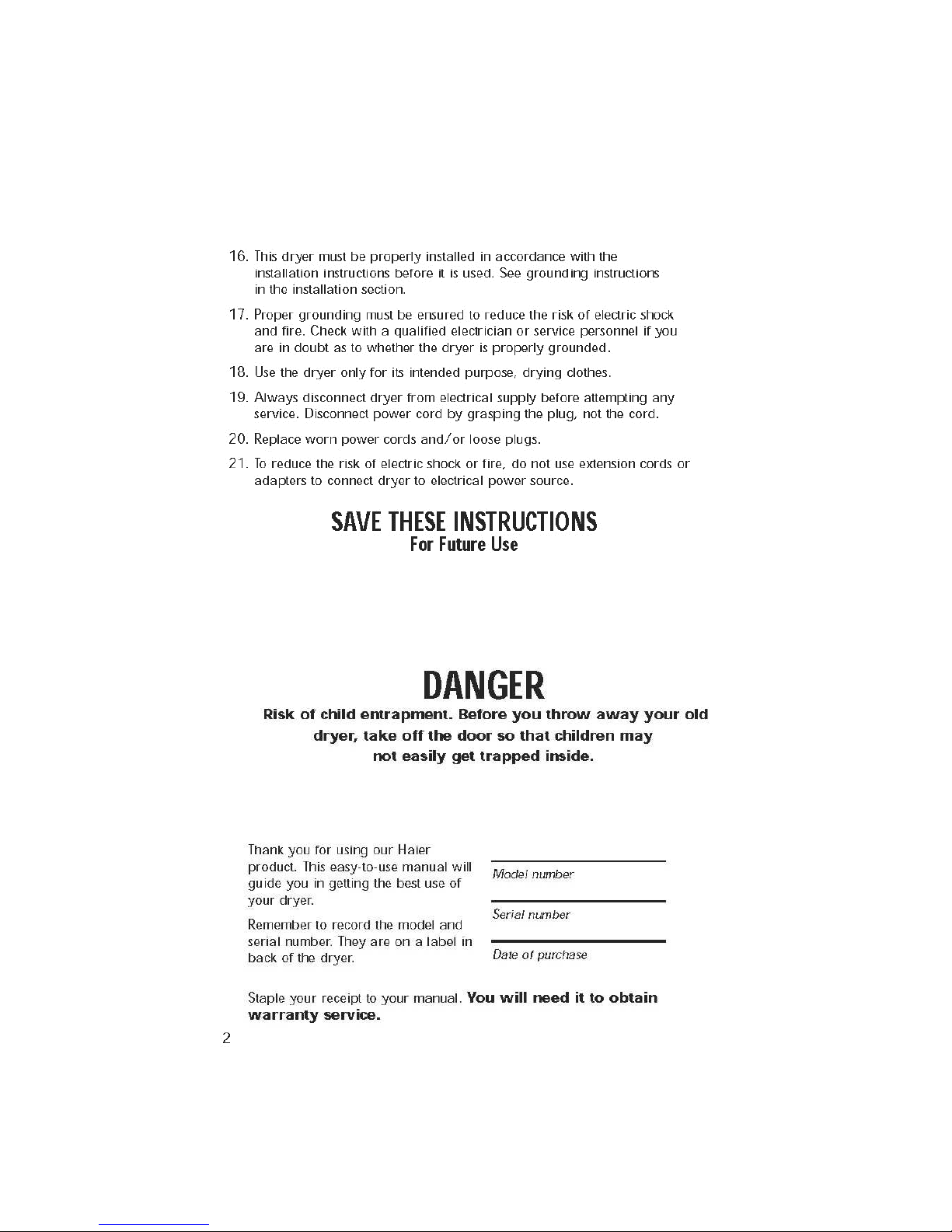

Safety Instructions ............................................................................ 1
OPERATING INSTRUCTIONS ............................................................ 4
Understanding the Control Panel .......................................................... 4
Preparation s before dryin g
.................................................................. 6
Load clothes into dr y e
.
r
..................................................................... 7
Auto Dry cycle ................................................................................... 7
Timed Dry cycle
................................................................................. 10
Rack Dry cycle
................................................................................. 11
Other Features ................................................................................. 11
Normal Operating Sounds ................................................................. 12
Tips ................................................................................................. 12
Care and Cleaning Guide ............................................................... 13
Troubleshooting
.............................................................................. 14

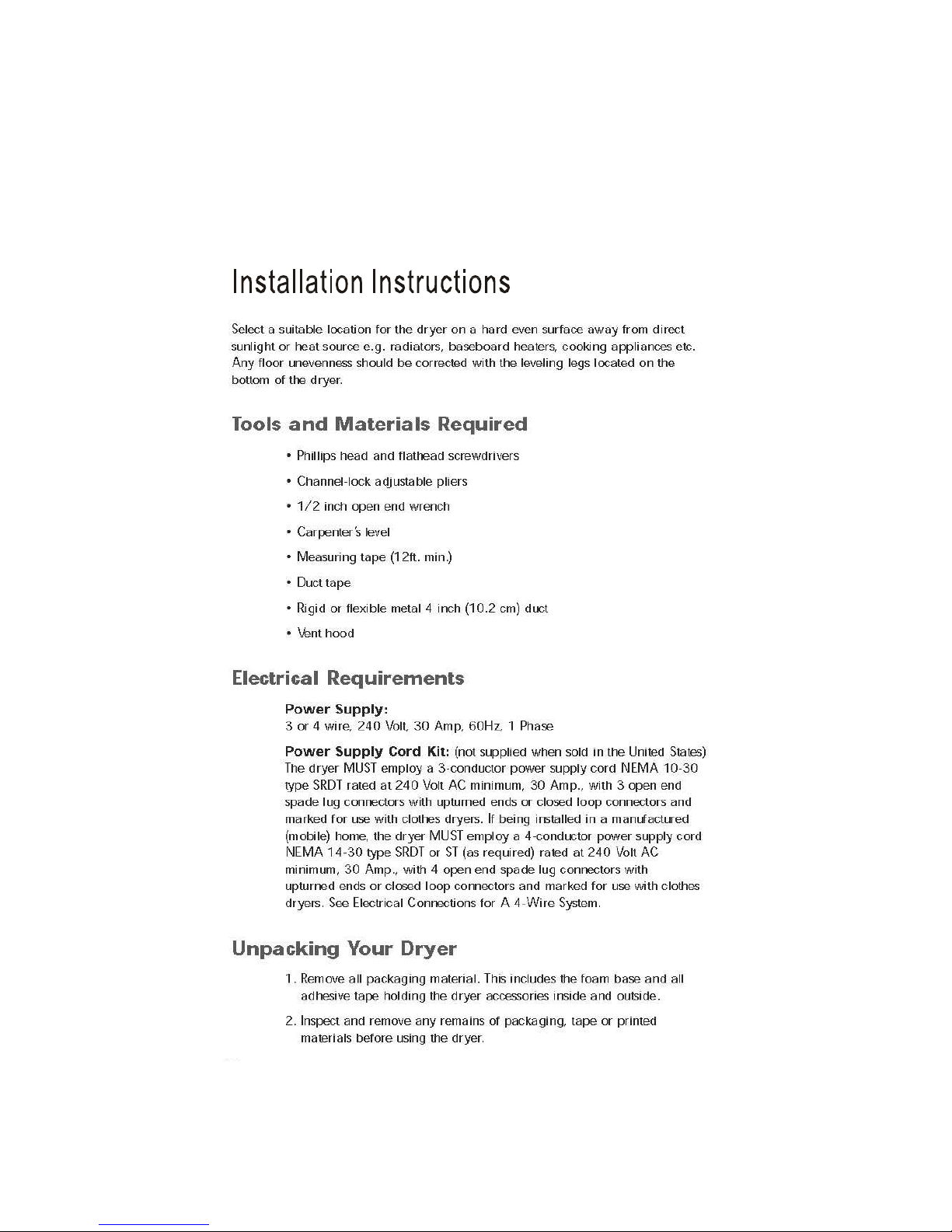

INSTALLATION INSTRUCTIONS
....................................................... 15
Tools and Materials Require d .............................................................. 15
Electrical Requirement s ...................................................................... 15
Unpacking Your Dryer ........................................................................ 15

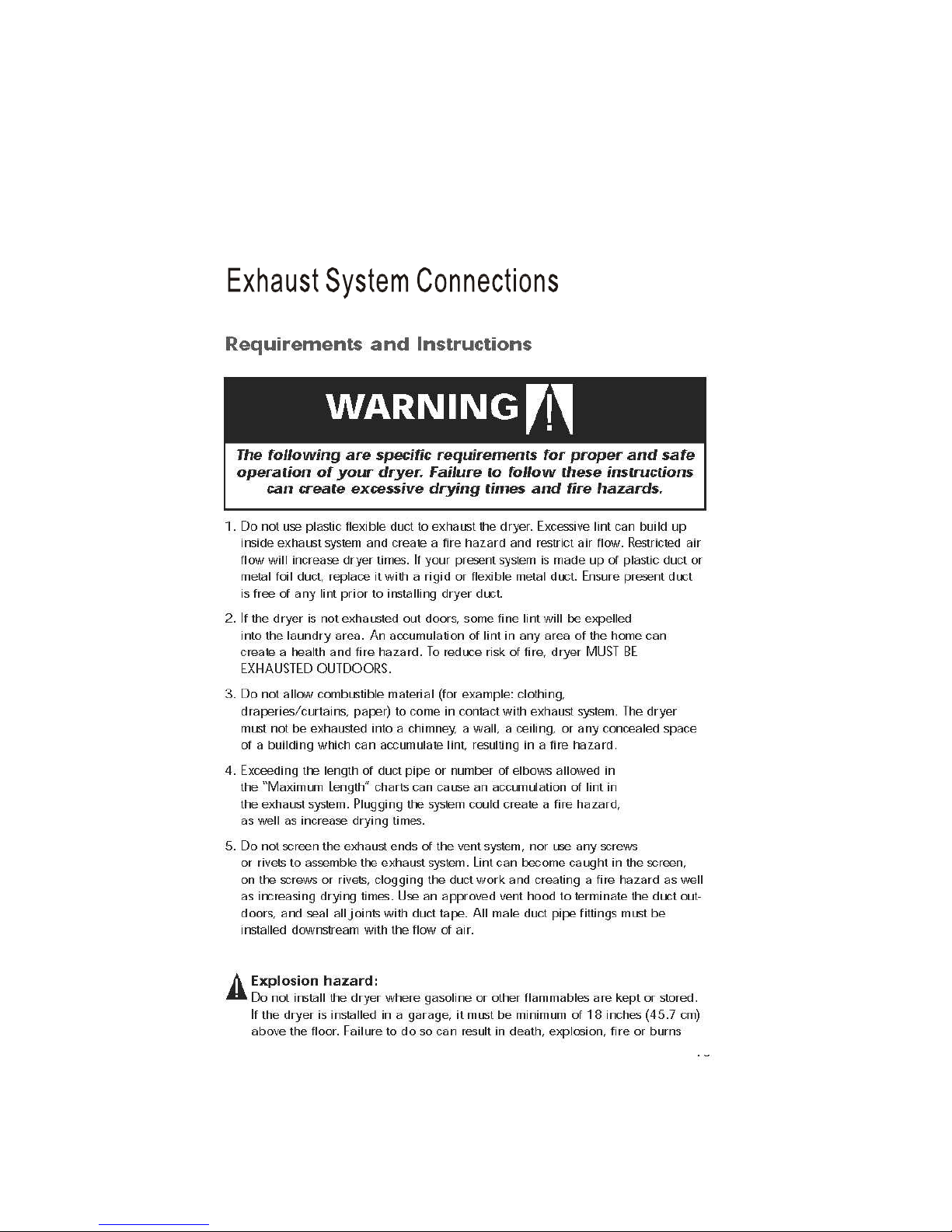

Exhaust System Connections .......................................................... 16
Requirements and Instructions ............................................................ 16
Materials ............................................................................................ 17
Location of Your Drye r ........................................................................ 19
Installation in Mobile Home ............................................................... 20
Electrical Connections .................................................................... 21
Requirements and Instructio n . s ............................................................ 21
3-Wire Cord Connection s ................................................................... 22
4-Wire Cord Connection s ................................................................... 23
3

Time Remaining(Min)
More Time
Power
Dry More Dry
Time On(Hour)
On/Off
Cool down
On
Cycle completed
High
Delay
Less Time
Louder
Start
Customer
Start
Off
Extend trumble
Medium Auto Dry
Softer Pause
Normal Bulky Items
Less Dry
Low
Timed Dry
Off
Air Only(No Heat) Rack Dry
Wrinkle
Care
Dryness
Cycle
Heavy Duty Casual
Level
Temp
Cycles
Timed Signal
Cycles
Towels/Cotton Delicate
Dry Delay Time Very
More
Cool down Estimated Time Normal
Less
Cycle completed Extend Tumble
Damp
Time Remaining(Min)
More Time
Power
Dry
More Dry
Time On(Hour)
On/Off
Cool down
On
Cycle completed
High
Delay
Less Time Louder
Start
Customer
Start
Off
Extend trumble
Medium Auto Dry
Softer
Pause
Normal Bulky Items
Less Dry
Low Timed Dry
Off
Air Only(No Heat) Rack Dry
Wrinkle
Care
Dryness
Cycle
Heavy Duty Casual
Level
Temp
Cycles
Timed Signal
Cycles
Towels/Cotton Delicate
Dry Delay Time Very
More
Cool down Estimated Time Normal
Less
Cycle completed Extend Tumble
Damp
C
y
c
le
s
Dr
y
Cycles
D
r
y
OPERATING INSTRUCTIONS

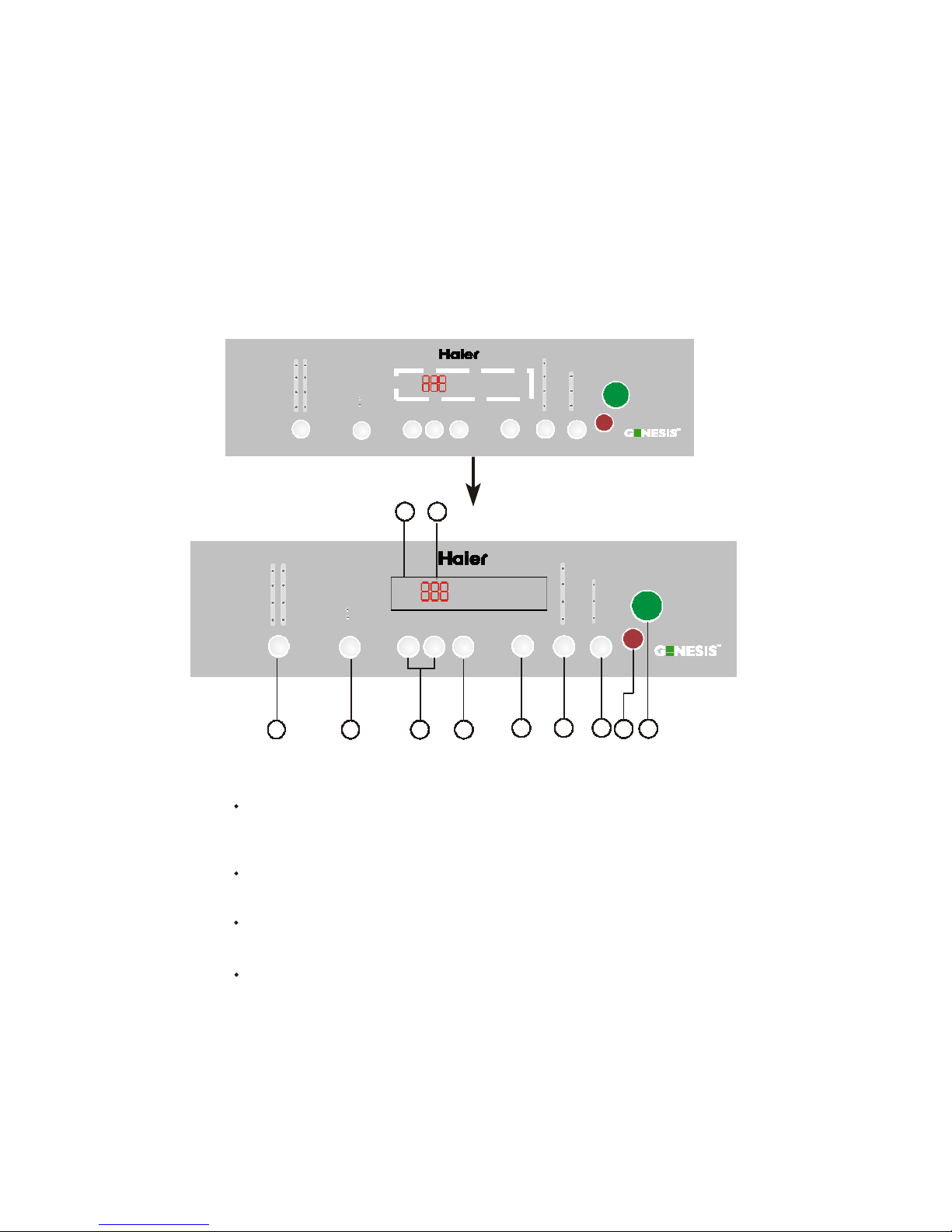

Understanding the Control Panel
Super Capacity
Normal
Heavy
Cotton Bulky
Items
Casual
Delicate
Touch Up
Custom
Timed Dry
Rack Dry
Dry
Cool down
Cycle completed
Wrinkle Saver
Remaining Time
Extend Tumble Time
Very Dry
More
Normal
Less
Damp Dry
High
Medium
Low
Air Dry
Louder
Softer
Off
Start
Pause
A
A
u
u
t o
to
-
D r y
Cycl es
T
T
i m
imed
-
C
C
y
ycle
e
s
s
Less
Time
More
Time Wrin kle
Saver
Sensor
Drry
Level
TTeemmpp
Signal
Off
11 12
Super Capacity
Normal
Heavy
Cotton
Bulky Items
Casual
Delicate
Touch Up
Custom
Timed Dry
Rack Dry
Dry
Cool down
Cycle completed
Wrinkle Saver
Remaining Time
Extend Tumble Time
Very Dry
More
Normal
Less
Damp Dry
High
Medium
Low
Air Dry
Louder
Softer
Off
Start
Pause
A
A
u
u
to
to
-
Dry
Cycles
T
T
im
i me d
d-
C C y y c l e e s s
Less
Time
More
Time
Wrinkle
Saver
Sensor
Dry
Level
TTeemmpp
Signal
Off
9 8 7 6
5 4 3
2 1
Start/Pause Button: (1)
Press this button once to start the dry process. Press this button once again to
pause the activity during the dry cycle.
Off Button: (2)
Press the button to turn the dryer OFF.
Signal Button: (3)
Used to select buzzing volume or turn off the buzzer.
Temp Button: (4)
Used to set drying temperature. There are 4 available drying temperatures:
High, Medium, Lo w , and Air Dry (no heat).
4

Sensor Dry Level Button: (5)
Used to set drying time of auto-programs. If no auto-program is selected,
pressing the button is inactive and will get alarms.
Wrinkle Saver Button: (6)
This convenient feature lets you delay the start of the dry cycle between 3 to
24 hours. Press the "Wrinkle Saver" to choose the number of hours you want to
delay the start of the cycle.
If no delay, the wrinkle saver indicator is off and remaining time indicator is on .
The nixie display indicates remaining time of non-reserved program.
If setting "Wrinkle Saver" in standby status, the nixie display indicates 3 h r , which
will increase by 1 hr with each pressing (until 24 and return to 3). If keep
pressed for 1.5 s, nixie display indicated value will increase continuousl y .
More Time &Less Time Button: (7)
Set time from 0 to 180 minute when Timed Dry or Rack Dry cycle selected.
Timed-Dry Cycles Button: (8)
"Timed-Dry Cycles" button will let you select your desired dr y mode.
Timed Dry: you can set status of "Temp", "Signal" and dry time
with "More Time" and "Less Time" buttons by yourself.
Rack Dry: the program used to dry article like sport shoes.
Auto-Dry Cycles Button: (9)
"Auto-Dry cycles" button will let you select your desired dry cycl es. For your
convenience, there are seven fabric care dry cycles programmed in
this mode:Normal, Heavy , Cotton,Bulky Items, Casua l , Delicate ,Touch
Up and Customer.
Normal
Normal drying
Heavy
Big clothes drying li ke jeans
Cotton
Special drying for cotton clothes
Bulky Items
Drying bulky clothing
Casual
Drying casual ever yday clothes
Delicate
Drying
small
quantity
clothes
and
delicates
Touch Up
Used to select wrinkle-remove function
Custom
The drying program defined by user himself and stored.
5

Status lights: (10)
Status lights give notification of which part of the cycle the machine is in.
Digital display: (11)
Indicate remaining time (min) during cycle operation.
Indicate remaining reserved time (hr) during reservation.
Note: if door opened during cycle running, displays "E2" and alarms.
Function Light Indicator:
The function "display light" indicates selected feature is "ON" or the
cycle is about to begin.
During the dry cycle, "flashing light" indicates current running program.
Rapidly flashing light indicates that the dryer is not operating properly.
Preparations before drying
Group the clothes of the same kind (cotton, chemical fibres, woolen) to dry.
Dark and light colored clothes shall be separately dried. Fabrics prone to falling
lint and those prone to adhering lint shall be separately dried. Clothes prone to
falling lint shall be turned inside out before putting into the dryer.
Make sure buttons and ornaments on the clothes are high temperature resistant
and won't damage drum surface. Before loading, the clothes shall have their
zippers zipped up, buttons and hooks done up and belts tied so as to avoid
entanglement or other obstacles.
If possible, turn out the clothes pockets for uniform drying.
Check if clothes remain soiled. If yes, wash it away again, otherwise the soils after
drying may not be removed permanently.
Small articles shall be collected in a mesh bag before loading and drying, so as to
avoid entanglement and ensure easy to be taken out.
Make sure power socket is reliably grounded. The grounding terminal shall not be
connected to gas or tap water pipelines.
Make sure exhaust duct has been connected with extension pipe.
Mak e sure lint filter is clean and then assemble it properly. If lin t filter is not
in place, tumbling items could enter the exhaust system and cause damage
to the dr yer.
Notes: It applies to Auto Dry cycle and Timed Dry cycle. For Rack Dry cycle,
remove the lint filter and assemble the drying rack with its rear end slightly
downward inclined. The assembled status is as shown in the following figure:
Dry ing rack
Drum
6
F ront d oor

Time Remaining(Min)
More Time
Power
Dry More Dry Time On(Hour)
On/Off
Cool down
On
Cycle completed
High
Delay
Less Time
Louder
Start
Customer
Start
Off
Extend trumble
Medium Auto Dry
Softer
Pause
Normal Bulky Items
Less Dry
Low
Timed Dry
Off
Air Only(No Heat) Rack Dry
Wrinkle
Care
Dryness
Cycle
Heavy Duty Casual
Level
Temp
Cycles
Timed
Signal
Cycles
Towels/Cotton Delicate
Dry Delay Time Very
More
Cool down Estimated Time Normal
Less
Cycle completed Extend Tumble
Damp
Load clothes into dryer
Auto Dry cycle and Timed Dry cycle
The appropriate load shall be 1/3 ~ 1/2 of the drum volume. Avoid too much load,
for a certain space is needed to allow clothes free rotation for uniform and wrinkle-
proof drying.
When drying big articles, only 2-3 pieces shall be loaded at a time and
supplemented with middle and small articles.
For elaborate clothes or less load, two towels without lint falling may be added to
get better drying and wrinkle-proof effects.
Do not excessively dry clothes to avoid wrinkles, shrinkage, roughness, electrostatic
chargesaccumulation and more lint.
Rack Dry cycle
This program is designed specially for articles like sport shoes. During drying
please make sure the clothes reliably stay on the rack with no risk of entangling
the agitation blade while drum is rotating.
Note: If dryi ng rack is not in place, rolling inner tub could collid with
drying rack and causes damage to the dr yer and drying rack.

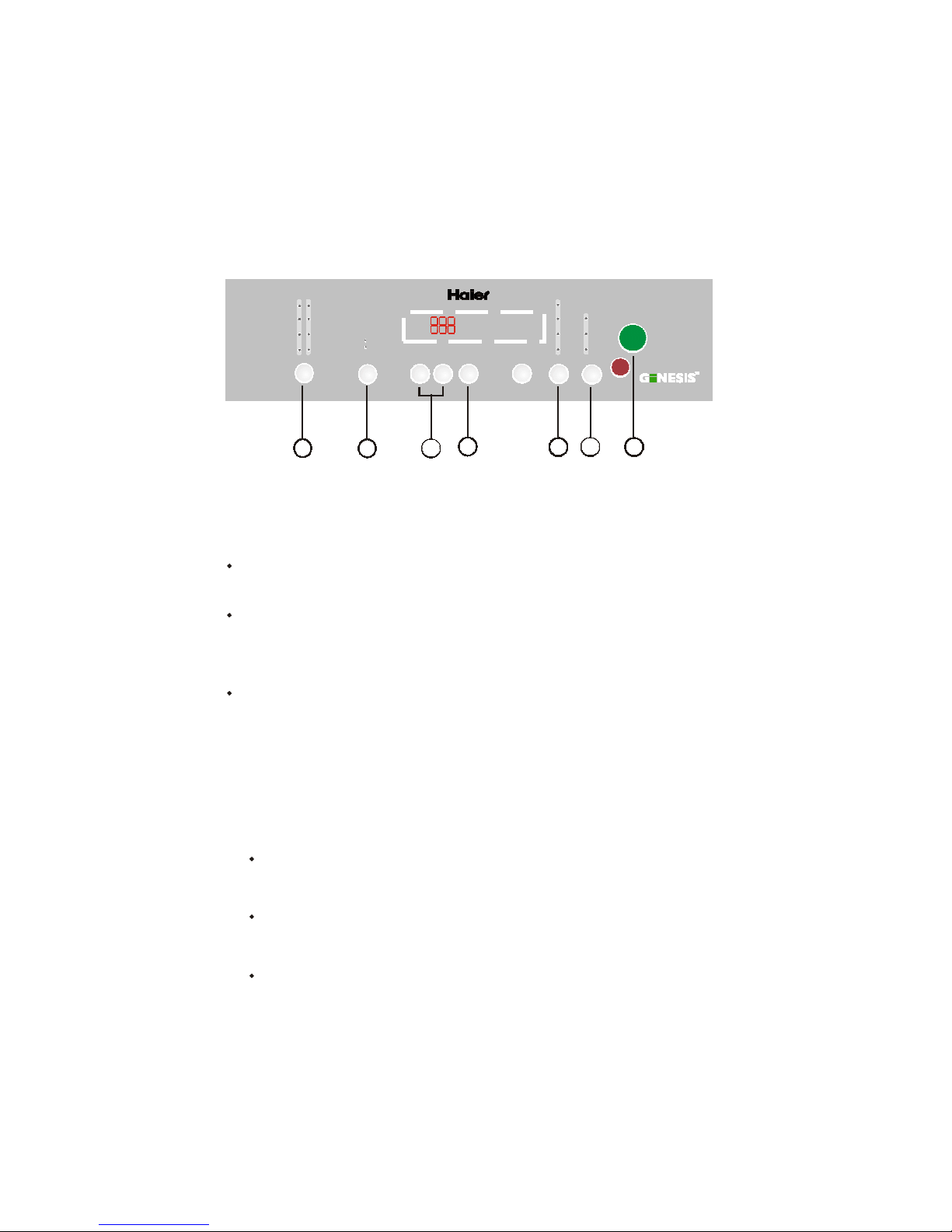

Auto Dry cycle
Super Capacity
Normal Casual
High
Heavy
Delicate
Dry Wrinkle Saver
Very Dry
Medium Louder
More
Cool down Remaining Time Normal
Cotton Touch Up
Less
Low Softer
Start
Timed Dry
Cycle completed Extend Tumble Time
Damp Dry
Pause
Bulky Items
Custom
Rack Dry Air Dry Off
A
A
u
u
to
t o
-
Timed
Less
More
Sensor
Off
Cy
D
c
r y
les
Tim
Dry
ed-
Time
Time
Wrinkle
Dry TTeemmpp
Signal
Cycles C C y ycle e s s Saver
Level
2 6 3 4 5 1
1. Press any button except "Off" button to power on
Turn on the power switch, the computer board beeps once and the dryer transfers
from off status to the initial operating status (Normal program);
If no "Start/Pause" button is pressed in 5 min after powering on, it automatically
cuts off power and returns to off status;
It returns to off status immediately upon end of a cycle;
Whatever status the computer board is (start, pause, alarm et c .), Pressing
"Off" button will stop all operations and it enters off status.
7

Various button initial status for "Normal program"
Cycle Signal
Softer
Wrinkle Care
Off
Cycles
Normal
Nixie
display
Indicate current program remaining time
Temp
High
sensor
Dry
Level
More
Dry
Timed/Cycles
Auto
-
program
2. Press "Auto-Dry Cycles" button to select asuitable full automatic cycle
The Normal program will be automatically selected after powering on. If other
full automatic program is desired, press "Auto-Dry Cycles" button
until corresponding indicator turns on.
Normal
Heavy
Cotton
Bulky Items
Casual
Delicate
Touch Up
Custom
Aut
t
o
o
-D
-
ry
C Cycl l e e s s
To select your desired settings the "Custom" function should be chosen.
It can memorize programs defined by user and display the previous program
upon next application of this function.
Use details are as follows:
After powering on, press "Auto-Dry Cycles" until"Custom" status, then set
"Timed-Dry Cycles" to Timed Dry or Rack Dr y, and set status of other button s .
Press "Start/Pause" button or after half a minute, the program defined by
user himself will be stored and will be directly displayed upon next use.
Notes: Pressing "Sensor Dry Level" button will be inactive during use of
"Custom" function.
8

3. Press "Sensor Dry Level" button to select asuitable drying time
After powering on, the clothes dryer automatically sets dryness at "ver y " ,
which means a longer drying time. If other drying time is desired, press
"Sensor Dry Level" button to select a shorter time.
4. Press "Temp" button to set asuitable drying temperature
After switching on, the dryer sets corresponding temperature adapting to
different program selected. If other drying temperature is wanted, press
"Temp" button to enable such a selection.
5. Press "Signal" button, you will be reminded up upon
end of acycle
After switching on, the dryer automatically sets buzzer at "Softer", while the
user may define three prompt sound conditions "Louder", "Softer" and "Off".
6. Press "Wrinkle Saver"button to select asuitable reserved drying
program
After powering on, the dryer d elay start drying program automatically sets as disabled.
When you desire a drying cycle ends at a delay time, p ress "Wrin kle Saver" button to
set wrinkle saver drying program . After initial pressing , the nixie display indicates 3 hrs ,
which will be increased until 24 hrs by an increment 1 hr with every pre ssing . Pre ss again
will display drying tim e. H ere if press again, it will repeat from 3 hrs . If k eep pressed for
1.5 s, n ixie display will increase continuously .
When"Wrinkle Saver" is enabled, your selected program indicator turns off while
"Wrinkle Saver"indicator and remaining reservation time indication turn on. During
reserved period, pressing "Wrinkle Saver" button can indicate reserve status.
To change operating program or cancel dela y , you should cut off the supply and
re-select.
7. Press "Touch Up" button to select wrinkle-proof drying mode
Use the
"Touch Up"
cycle to complete drying if clothes are still damp after the
Automatic cycle.
You can also use the
"Touch Up"
cycle to remove wrinkles from clean clothes
which packed tig htly in a suitcase or closet.
8. Press "Start/Pause" button
If starting the machine, firstly close the front door and then press this button.
If pause is needed during machine operating, press this button. Pressing again will
resume operation.
9

Time Remaining(Min)
More Time
Power
Dry More Dry
Time On(Hour)
On/Off
Cool down
On
Cycle completed
High
Delay
Less Time
Louder
Start
Customer
Start
Off
Extend trumble
Medium Auto Dry
Softer
Pause
Normal Bulky Items
Less Dry
Low
Timed Dry
Off
Air Only(No Heat) Rack Dry
Wrinkle
Care
Dryness
Cycle
Heavy Duty Casual
Level
Temp
Cycles
Timed
Signal
Cycles
Towels/Cotton Delicate
Dry Delay Time Very
More
Cool down Estimated Time Normal
Less
Cycle completed Extend Tumble
Damp
Cycles
Dr
y
Timed Dry cycle
Super Capacity
Normal
Heavy
Cotton
Bulky Items
Casual
Delicate
Touch Up
Custom
Timed Dry
Rack Dry
Dry
Cool down
Cycle completed
Wrinkle Saver
Remaining Time
Extend Tumble Tiime
Very Dry
More
Normal
Less
Damp Dry
High
Medium
Low
Air Dry
Louder
Softer
Off
Start
Pause
A
A
u
u
to
t o
-
D r y
Cycles
T
T
im
imed
-
C C y ycle e s s
Less
Time
More
Time
Wrinkle
Saver
Sensor
Dry
Level
TTeemmpp
Signal
Off
1 2 3
5
4 6
7
1. Press any button except "Off" button to power on
2. Press "Timed-Dry Cycles" button and select "Timed Dry" cycle
After powering on, press "Timed-Dry Cycle" button to select "Timed Dry" program.
3. Press "More Time" And "Less Time" buttons to set asuitable time
After setting "Timed-Dry Cycle" to "Timed Dry" , you can press these two buttons to
increase or decrease drying time as you desires.
4-6. Press buttons "Temp", "Cycle Signal", "Wrinkle saver", and "Touch
Up" to define your desired program
Notes: For "Timed Dry" program, use of buttons "Temp", "Cycle Signal", "Wrinkle
Saver" and "Touch Up" is the same as for auto-programs. "Sensor Dryness Level" is
here inactive, pressing of which will get alarms.
7. Press "Start/Pause" button
10

Time Remaining(Min)
More Time
Power
Dry More Dry
Time On(Hour)
On/Off
Cool down
On
Cycle completed
High
Delay
Less Time
Louder
Start
Customer
Start
Off
Extend trumble
Medium Auto Dry
Softer
Pause
Normal Bulky Items
Less Dry
Low
Timed Dry
Off
Air Only(No Heat) Rack Dry
Wrinkle
Care
Dryness
Cycle
Heavy Duty Casual
Level
Temp
Cycles
Timed
Signal
Cycles
Towels/Cotton Delicate
Dry Del ay Time Very
More
Cool down Estimated Time Normal
Less
Cycle completed Extend Tumble
Damp
Cycles
Dr
y
Rack Dry cycle
Super Capacity
Normal
Heavy
Cotton Bulky
Items
Casual
Delicate
Touch Up
Custom
Timed Dry
Rack Dry
Dry
Cool down
Cycle completed
Wrinkle Saver
Remaining Time
Extend Tumble Tiime
Very Dry
More
Normal
Less
Damp Dry
High
Medium
Low
Air Dry
Louder
Softer
Off
Start
Pause
A
A
u
u
to
t o
-
D r y
Cycl es
T
T
im
imed
-
C C y ycle e s s
Less
Time
More
Time
Wrinkle
Saver
Sensor
Dry
Level
TTeemmpp
Signal
Off
1 2 3
5
4 6
7
1. Press any button except "Off" button to power on
2. Press "Timed-Dry Cycles" button and select "Rack Dry" cycle
After powering on, press "Timed-Dry Cycle" button to select "Rack Dry" program.
3. Press "More Time" And "Less Time" buttons to set asuitable time
After setting "Timed-Dry Cycle" to "Rack Dry" , you can press these two buttons to
increase or decrease drying time as you desires.
4-7. Press buttons "Temp", "Signal", "Wrinkle saver", and "Touch
Up" to define your desired program
Notes:
For "Rack Dry" program, use of buttons "Temp", "Signal", "wrinkle
Saver" and "Touch up" is the same as for auto-programs. "Sensor Dry Level" is
here inactive, pressing of which will get alarms.
8. Press "Start/Pause" button
Other Features
Your dryer also has the following features for your convenience:
Lint Filter:
All dryers come with a lint filter that needs to be cleaned before or after
eve r y use (read Care and CleaningGuide Section).
Leveling Legs:
Your dryer has four leveling legs which are located in the front and rear
corners of your dryer. After installingyour dryer in its final position,
you can level your dryer.
Leveling legs can be adjusted by turning them clockwise to raise your
dryer or by turning them counterclockwise to lower your dr yer.
11

12

13

14

15

16

17

18
