Haier Ginesis HLF103Q User manual

Electric D_er
S@cheoJinge Genesis
Secad@ra £J@¢trica

iiiii!!i:l!! T

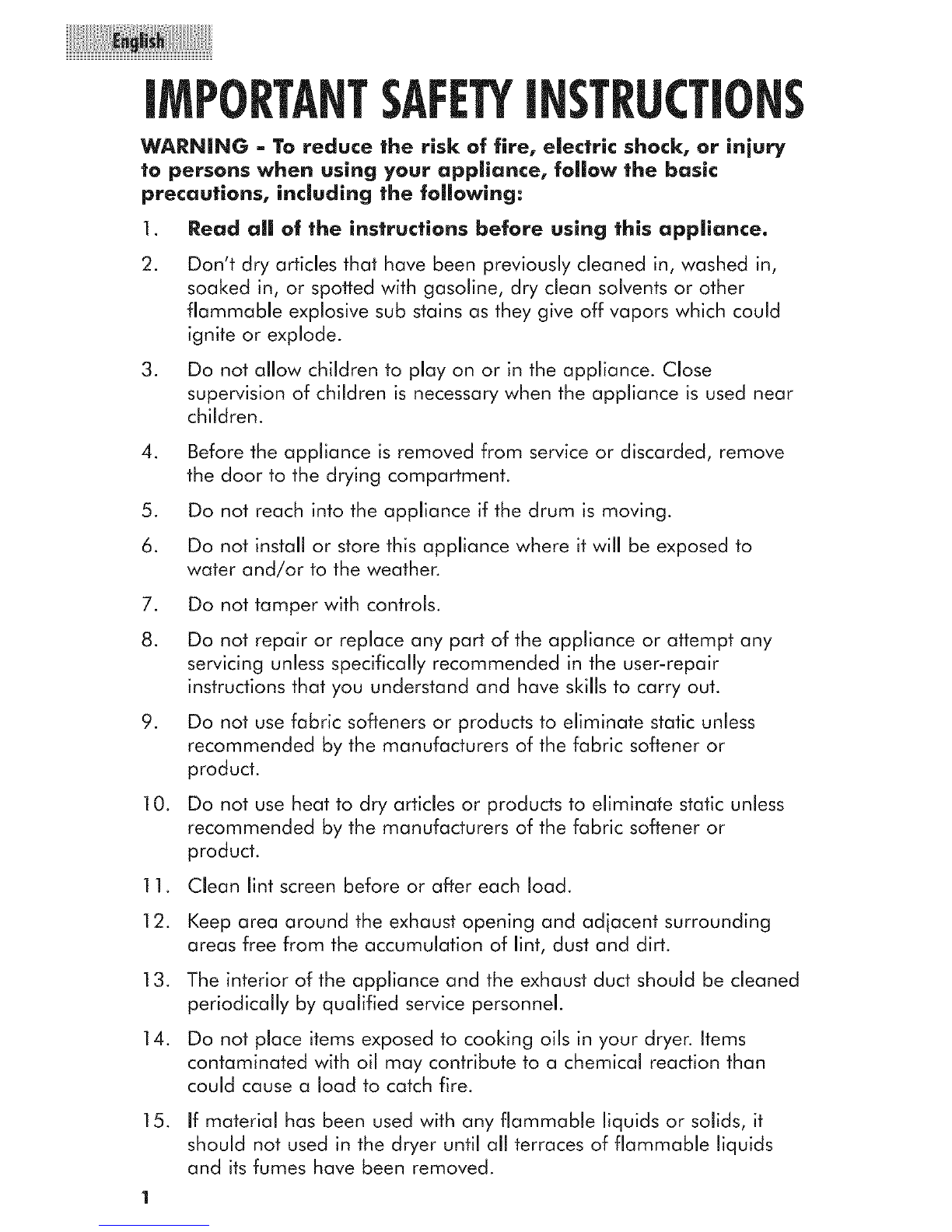

WARNING - To reduce the risk of fire, electric shock, or iniury
to persons when using your appliance, follow the basic
precautions, including the following:
.
2.
.
Read all of the instructions before using this applianceo
Don't dry articles that have been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry clean solvents or other
flammable explosive sub stains as they give off vapors which could
ignite or explode.
Do not allow children to play on or in the appliance. Close
supervision of children is necessary when the appliance is used near
children.
4. Before the appliance is removed from service or discarded, remove
the door to the drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to
water and/or to the weather.
J
8.
.
10.
11.
12.
13.
14.
Do not tamper with controls.
Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in the user-repair
instructions that you understand and have skills to carry out.
Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturers of the fabric softener or
product.
Do not use heat to dry articles or products to eliminate static unless
recommended by the manufacturers of the fabric softener or
product.
Clean lint screen before or after each load.
Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust and dirt.
The interior of the appliance and the exhaust duct should be cleaned
periodically by qualified service personnel.
Do not place items exposed to cooking oils in your dryer. Items
contaminated with oil may contribute to a chemical reaction than
could cause a load to catch fire.
] 5. If material has been used with any flammable liquids or solids, it
should not used in the dryer until all terraces of flammable liquids
and its fumes have been removed.

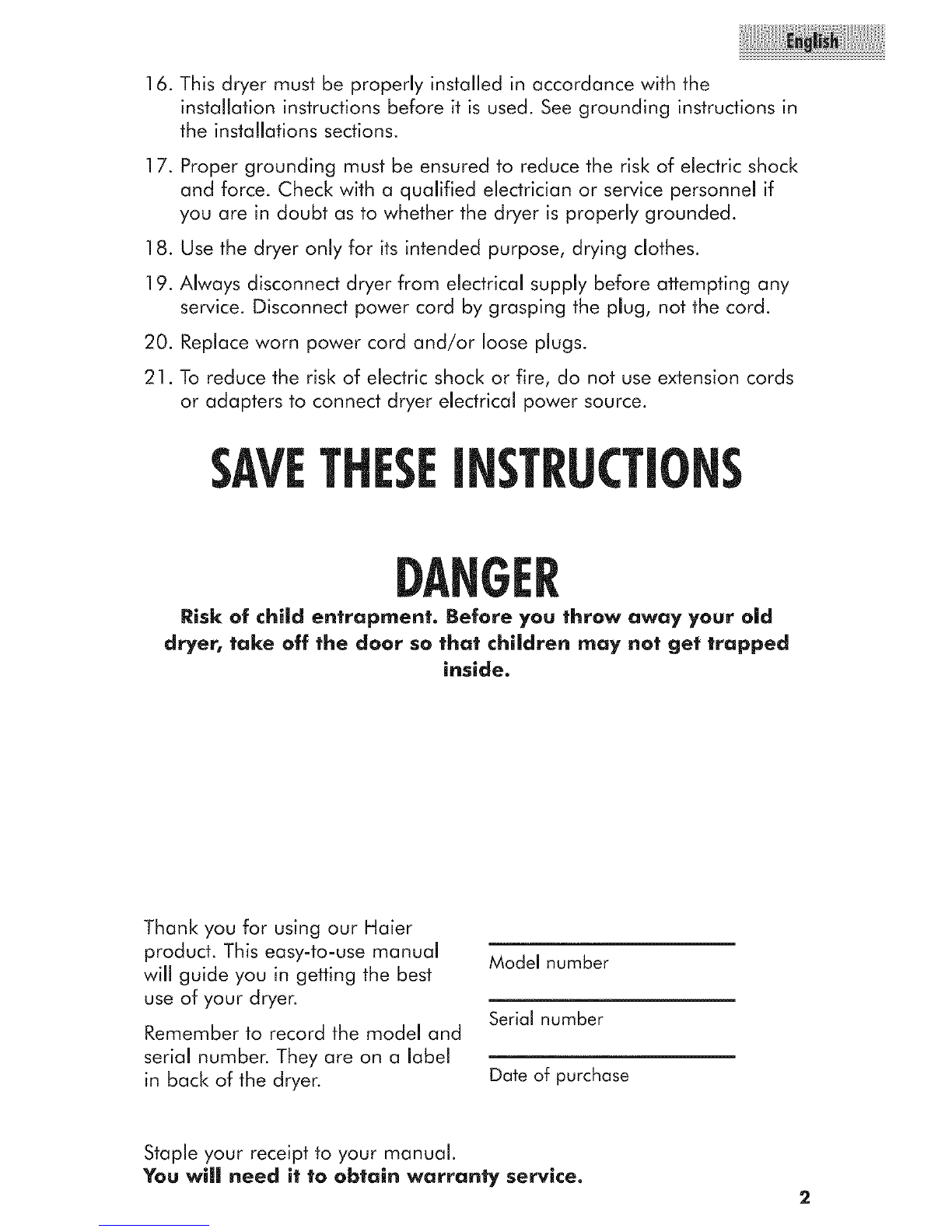

16.Thisdryermustbeproperlyinstalledinaccordancewiththe
installationinstructionsbeforeitisused.Seegroundinginstructionsin
theinstallationssections.
17.Propergroundingmustbeensuredtoreducetheriskofelectricshock
andforce.Checkwithaqualifiedelectricianorservicepersonnelif
youareindoubtastowhetherthedryerisproperlygrounded.
18.Usethedryeronlyforitsintendedpurpose,dryingclothes.
19.Alwaysdisconnectdryerfromelectricalsupplybeforeattemptingany
service.Disconnectpowercordbygraspingtheplug,notthecord.
20.Replacewornpowercordand/orlooseplugs.
21.Toreducetheriskofelectricshockorfire,donotuseextensioncords
oradapterstoconnectdryerdectricalpowersource.
SAVETHESEINSTRUCTIONS
Risk of child entrapment. Before you throw away your old
dryer, take off the door so that children may nat get trapped
inside.
Thank you for using our Haler
product. This easy-to-use manual
will guide you in getting the best
use of your dryer.
Remember to record the model and
serial number. They are on a label
in back of the dryer.
Model number
Serial number
Date of purchase
Staple your receipt to your manuak
You will need it to obtain warranty service.

PAGE
SAFETY INSTRUCTIONS .................................................................... 1
|NSTALLATIION |NSTRUCT|ONS ................................................ 4-12
Tools and Materials Required ................................................................ 4
Electrical Requirements ........................................................................ 4
Unpacking Your Dryer ........................................................................ 4
Exhaust System Connections ................................................................ 5
Requirements and Instructions .............................................................. 5
Materials ............................................................................................ 5
Location of Your Dryer ........................................................................ 7
Installation in Mobile Home ................................................................ 7
Electrical Connections ........................................................................ 9
Requirements and Instructions .............................................................. 9
3-Wire Cord Connections .................................................................. 10
4-Wire Cord Connections ............................................................ 11-1:2
OPERATING INSTRUCTIONS .................................................... 13-21
Understanding the Control Panel ........................................................ 13
Preparations before drying .................................................................. 15
Load clothes into dryer ...................................................................... 16
Auto Dry Cycle ............................................................................ 16-18
Timed Dry Cycle ................................................................................ 19
Rack Dry Cycle .................................................................................. :20
Other Features .................................................................................. :20
Normal Operating Sounds ................................................................ 21
Tips .................................................................................................. :21
CARE AND CLEAH|NG GU|DE .......................................................... 21
TROUBLESHOOTING ...................................................................... 22
WARI_NTY" ...................................................................................... 23

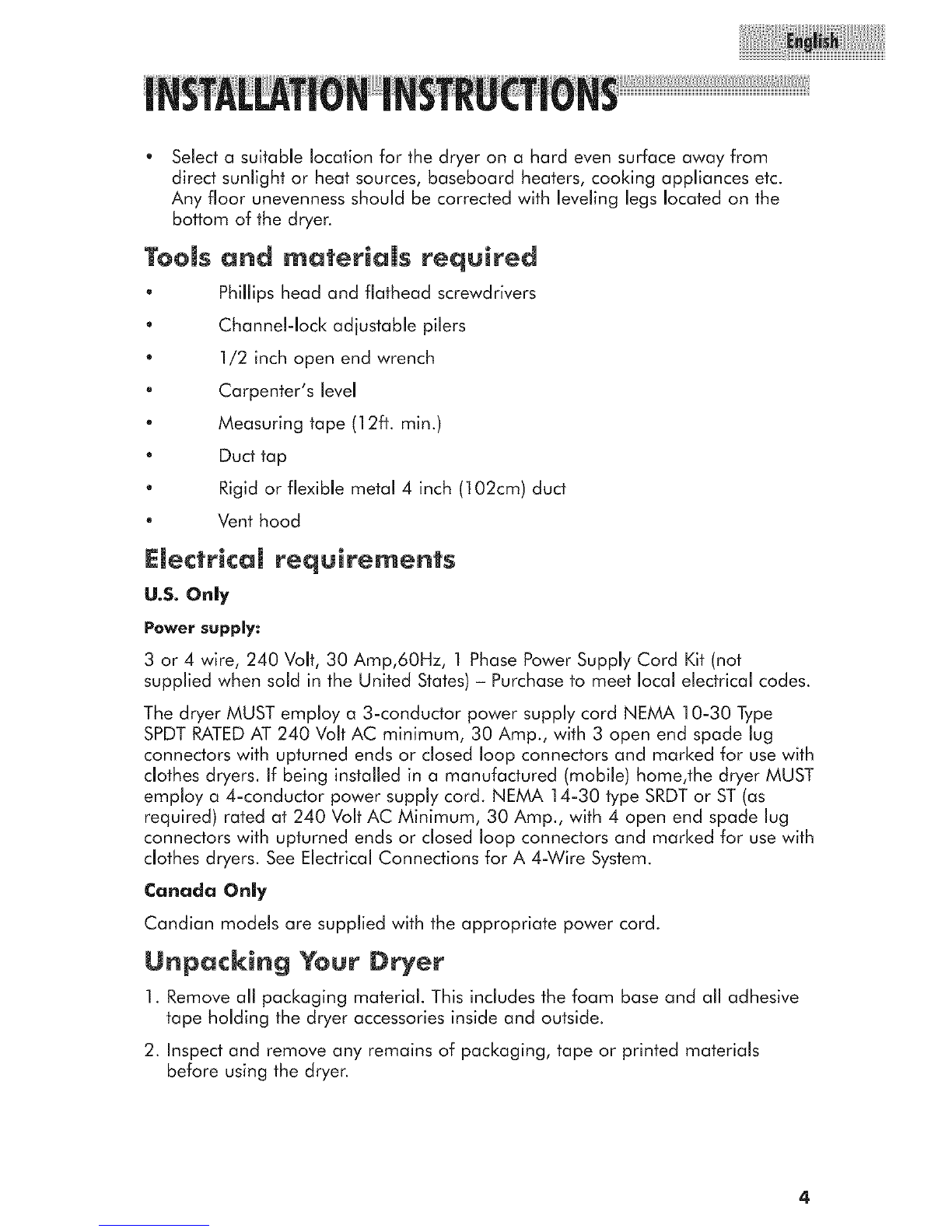

,Select a suitable location for the dryer on a hard even surface away from
direct sunlight or heat sources, baseboard heaters, cooking appliances etc.
Any floor unevenness should be corrected with leveling legs located on the
bottom of the dryer.
Tooms and materi ls required
"Phillips head and flathead screwdrivers
.ChanneHock adjustable pilers
*1/2 inch open end wrench
*Carpenter's level
"Measuring tape (] 2ft. min.)
*Duct tap
*Rigid or flexible metal 4 inch (t 02cm) duct
°Vent hood
Emectric m requirements
U.S. Only
Power supply:
3 or 4 wire, 240 Volt, 30 Amp,60Hz, 1 Phase Power Supply Cord Kit (not
supplied when sold in the United States) - Purchase to meet local electrical codes.
The dryer MUST employ a 3-conductor power supply cord NEMA ] 0-30 Type
SPDTRATEDAT 240 Volt AC minimum, 30 Amp., with 3 open end spade lug
connectors with upturned ends or closed loop connectors and marked for use with
clothes dryers. If being installed in a manufactured (mobile) home,the dryer MUST
employ a 4-conductor power supply cord. NEMA ]4-30 type SRDT or ST (as
required) rated at 240 Volt AC Minimum, 30 Amp., with 4 open end spade lug
connectors with upturned ends or dosed loop connectors and marked for use with
clothes dryers. See Electrical Connections for A 4-Wire System.
Canada On|y
Candian models are supplied with the appropriate power cord.
Unpacking Your Dryer
1. Remove all packaging material. This includes the foam base and all adhesive
tape holding the dryer accessories inside and outside.
2. Inspect and remove any remains of packaging, tape or printed materials
before using the dryer.
4

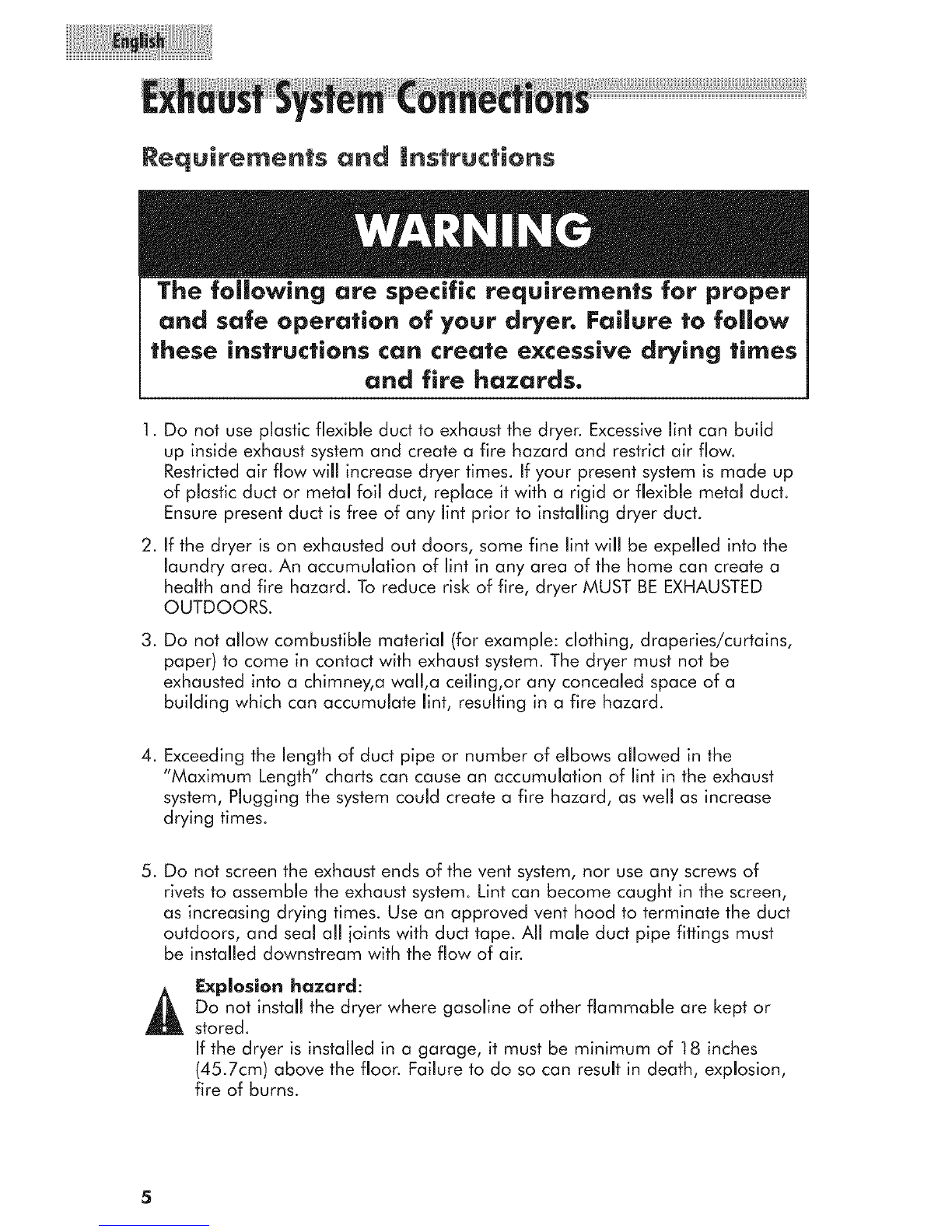

Requirements and |nstructions
The fol|owing are specific requirements for proper
and safe operation of your dryer. Failure to follow
these instructions can create excessive drying times
and fire hazards.
1. Do not use plastic flexible duct to exhaust the dryer_ Excessive lint can build
up inside exhaust system and create a fire hazard and restrict air flow.
Restricted air flow will increase dryer times, if your present system is made up
of plastic duct or metal foil duct, replace it with a rigid or flexible metal duct.
Ensure present duct is free of any lint prior to installing dryer duct.
2. if the dryer is on exhausted out doors, some fine lint will be expelled into the
laundry area. An accumulation of lint in any area of the home can create a
health and fire hazard. To reduce risk of fire, dryer MUST BEEXHAUSTED
OUTDOORS.
3. Do not allow combustible material (for example: clothing, draperies/curtains,
paper) to come in contact with exhaust system. The dryer must not be
exhausted into a chimney, a wall,a ceiling,or any concealed space of a
building which can accumulate lint, resulting in a fire hazard.
4. Exceeding the length of duct pipe or number of elbows allowed in the
"Maximum Length" charts can cause an accumulation of lint in the exhaust
system, Plugglng the system could create a fire hazard, as well as increase
drying times.
5. Do not screen the exhaust ends of the vent system, nor use any screws of
rivets to assemble the exhaust system. Lint can become caught in the screen,
as increasing drying times. Use an approved vent hood to terminate the duct
outdoors, and seal all joints with duct tape. All male duct pipe fittings must
be installed downstream with the flow of air.
_Explosion hazard:
Do not install the dryer where gasoline of other flammable are kept or
stored_
if the dryer is installed in a garage, it must be minimum of 18 inches
(45.7cm) above the floor. Failure to do so can result in death, explosion,
fire of burns.

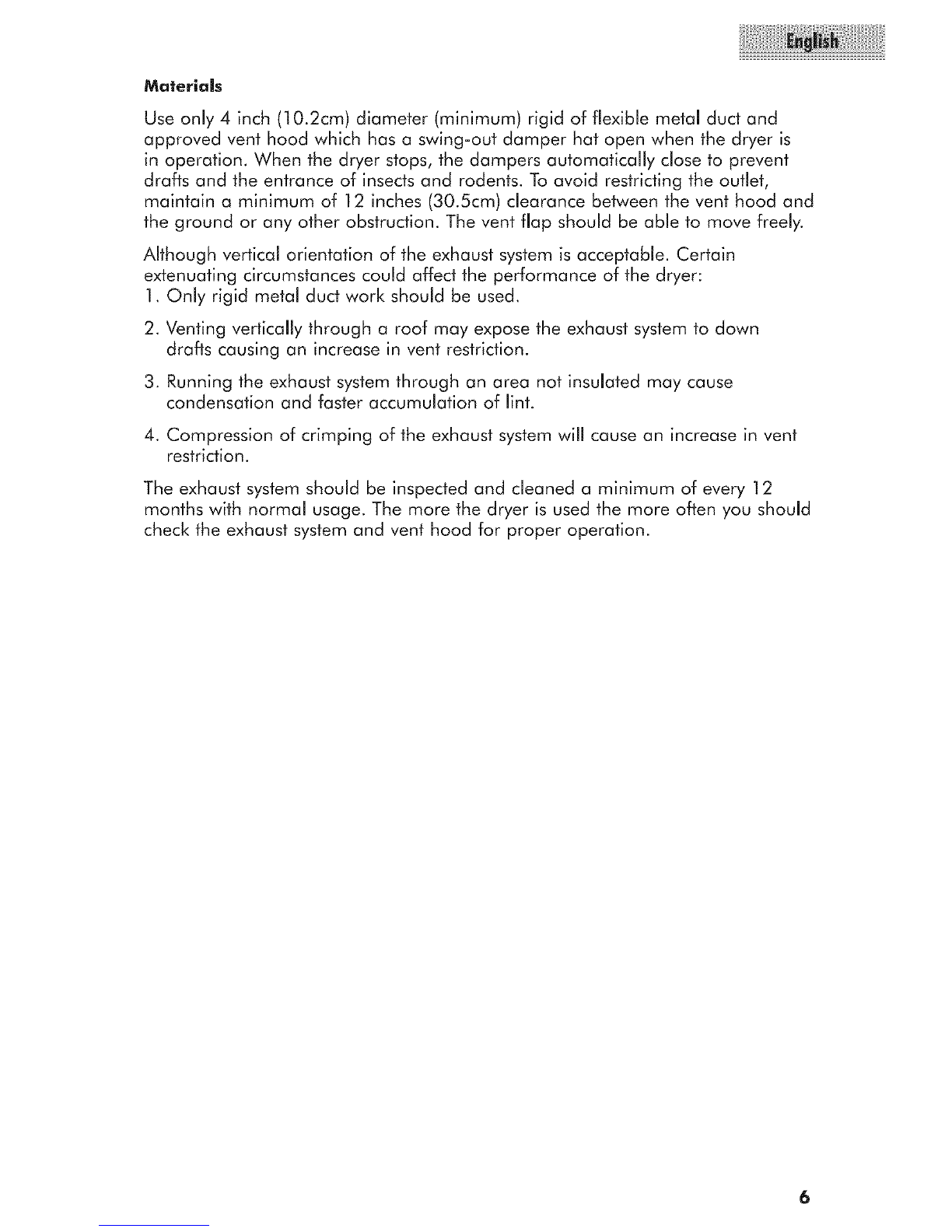

Materla|s
Use only 4 inch (t0.2cm) diameter (minimum) rigid of flexible metal duct and
approved vent hood which has a swing-out damper hat open when the dryer is
in operation. When the dryer stops, the dampers automatically dose to prevent
drafts and the entrance of insects and rodents. To avoid restricting the outlet,
maintain a minimum of ] 2 inches (30.5cm) clearance between the vent hood and
the ground or any other obstruction. The vent flap should be able to move freely.
Although vertical orientation of the exhaust system is acceptable. Certain
extenuating circumstances could affect the performance of the dryer:
1. Only rigid metal duct work should be used.
2. Venting vertically through a roof may expose the exhaust system to down
drafts causing an increase in vent restriction.
3. Running the exhaust system through an area not insulated may cause
condensation and faster accumulation of lint.
4. Compression of crimping of the exhaust system will cause an increase in vent
restriction.
The exhaust system should be inspected and cleaned a minimum of every 12
months with normal usage. The more the dryer is used the more often you should
check the exhaust system and vent hood for proper operation.
6

Do Not Install Your Dryer:
• In an area exposed to dripping water or outside weather conditions.
,In an area where it will come in contact with curtains, thick carpet,or any
thing that will obstruct the flow of combustion and ventilation air.
•On carpet floor must be sdid with a maximum slope of linch (2.54 cm).
©
_FAR VIFV¢ @ rJF_FW
•Dryer must be exhausted outside (outdoors, not beneath the mobile home)
using metal ducflng that will not support combustion. Metal ducting must be
4 inches (] 0.]6 cm) in diameter with no obstructions° Rigid metal duct is
preferred.
.If dryer is exhausted through the floor and area beneath the mobile home is
enclosed, the exhaust system must terminate outside the enclosure with the
termination securely fastened to the mobile home structure.
Refer to previous pages for other important venting requirements.
•Installation must conform to current Manufactured Home Construction &
Safety Standard.

7

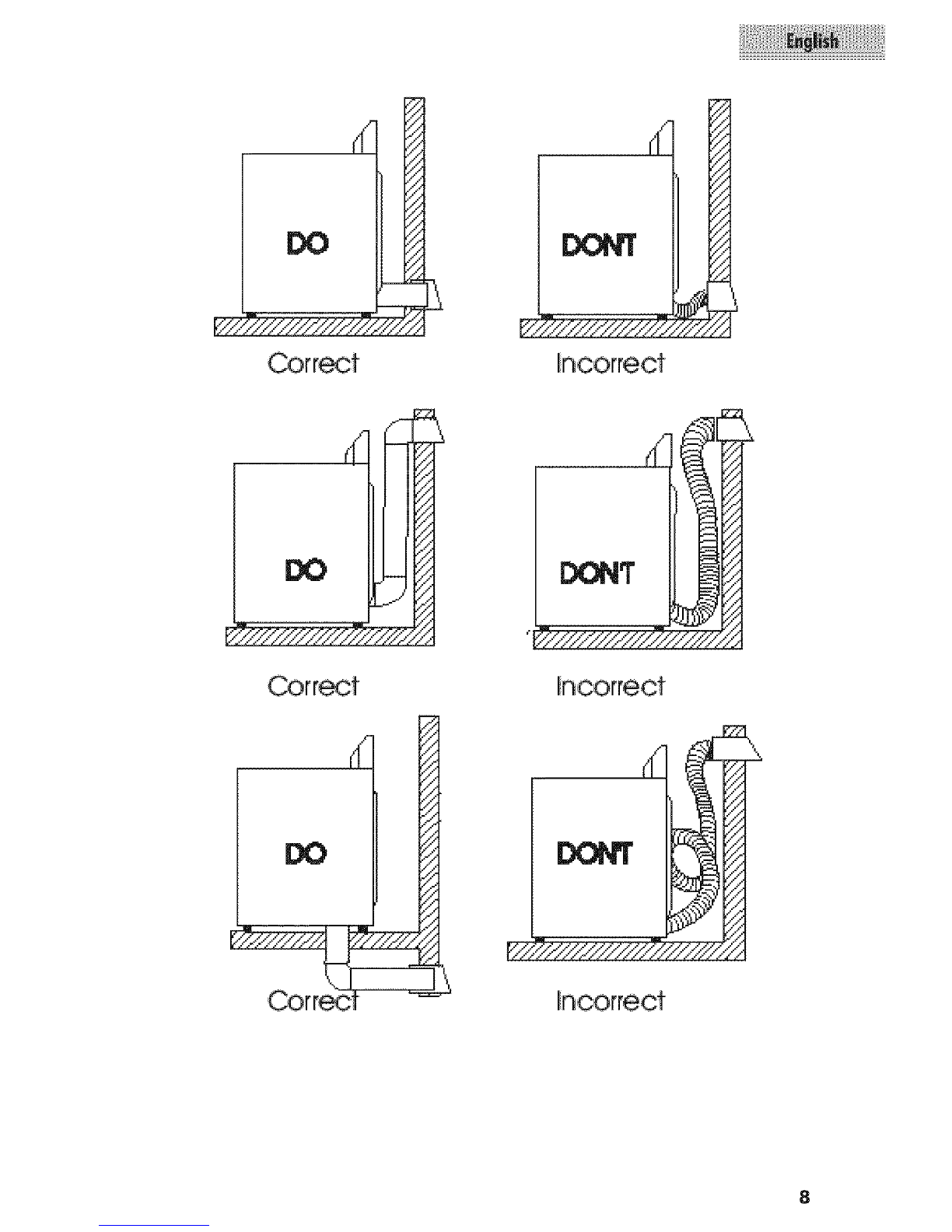

DO
Corr_t
_rr_:t
Corr
_ncorrect
I
_ncorrect
Incorrect
8

Requirements and instructions
The foffowing are specific requirements for proper
and safe electrical insta||ation of your dryer. Faffure
to foffow these instructions can create
electrical shock and/or fire hazard.
1. This appliance must be properly grounded. Electrical shock can result if the
dryer is not properly grounded. Follow the instructions in this manual for
proper grounding.
2. Do not use an extension cord with this dryer. Some extension cords are not
designed to withstand the amounts of electrical current this dryer utilizes and
can melt, creating electric shock and/or fire hazard. Locate the dryer within
reach of the receptacle for the length power cord to be purchased, allowing
some slack in the cord. Refer to the electrical requirements in this manual for
the proper power cord to be purchased.
3. A UL approved strain relief must be installed onto power cord. If the strain
relief is not attached, the cord can be pulled out of the pulled out of the
dryer and can be cut by any movement of the cord, resulting in electrical
shock.
4. Do not use an aluminum wire receptacle with copper wired power cord and
plug (or vice versa ). A chemical reaction occurs between copper and
aluminum and can cause electrical shorts. The proper wiring and receptacle
is a copper wired power cord with a copper wired receptacle.
Note: Dryers operating on 208 Volt power supply sill have longer drying times
than operation on 240 Volt power supply.
Danger: Improper connection of the equipment grounding conductor can
result in a risk of electrical shock. Check with a licensed
electrician if you are in doubt as to whether the appliance is
properly grounded.

3-Wire Cord Connections (USA only)
1. Remove the screws securing the terminal block access cover and the strain
relief mounting bracket located on the back of the dryer upper corner.
2. Install a U.L. approved strain relief into the power cord entry hole of the
mounting bracket. Finger tighten the nut only at this time.
3. Thread a U.L. Approved 30 Amp. Power cord, NEMA ] 0-30 Type SRDT,
through the strain relief.
4. Attach the power cord neutral (center wire) conductor to the brass colored
center terminal on the terminal block. Tighten the screw securely.
5. Attach the remaining two power cord outer conductors to the outer brass
colored terminals on the terminal block. Tighten both screws securely.
Warning: Do not make a sharp bend or crimp wiring/conductor at
connections,
6. Reattach the strain relief mounting bracket to the back of the dryer with two
screws. Tighten screws securely.
7. Tighten the screws securing the cord restraint firmly against the power cord.
8. Tighten the strain relief nut securely so that the strain relief does not turn.
9. Reinstall the terminal block cover.
Green Ground
Screw
Green Neutral
Ground Wire /_
Brass Terminal
Tighten Nut to
These Threads
Power Cord
Strain Relief
Mounting Bracket
10

4-WireCord Connections
Green Ground Green PowerCord
Screw Ground Wire
Red ..__ ___
Brass Terminal
Terminal Block
/
! Block
Tighten Nut to
These Threads
f
Power Cord Strain Relief
Mounting Bracket
1. Remove the screws securing the terminal block access cover and the strain
relief mounting bracket located on the back of the dryer upper corner.
2. Install a UL approved strain relief into the power cord entry hole of the
mounting bracket. Finger tighten the nut only at this time.
3. Remove the green neutral ground wire from the green ground screw located
above the terminal block.
Typical Conductor
Receptacle
11
Typical 4
Conductor Cord
J
Black240V
_ hite Neutral
Red240V
Green Ground

4.
5.
Thread a U.L. approved 30 Amp power cord. NEMA 14u30 type ST or SRDT
through the strain relief.
Attach the green power cord ground wire to the cabinet with green ground
screw,
.
7.
Attach the white (neutral) power cord conductors to the outer cord and the
green ground wire from the dryer harness to the brass-colored center
terminal on the terminal block. Tighten the screw securely.
Attach the red and black power cord conductors to the outer brass-colored
terminals on the terminal block.
Warning: Do not make a sharp bend or crimp wiring/conductor at
connections.
8. Tighten the screws securing the cord restraint firmly against the power cord.
9. Tighten the strain relief nut securely so that the strain relief does not turn.
] 0. Reinstall the terminal block cover.
_it Caution: Label all wires prior to disconnection, when servicing controls.
Wiring errors can cause improper operations and be
dangerous. Check unit for proper operation after servicing.
_hL warning: Discard or destroy the carton and plastic bags after the dryer is
unpacked. Children should not be allowed to use them to play
with. Cartons covered with rugs. Bedspreads, or plastic sheets
can become an airtight chamber and cause suffocation leading
to death. Make all packing materials inaccessible to children.
_Warning: The this manual all literature included
instructions in and other
with this dryer can not cover every possible condition and
situation that may occur. Good safe practice and caution must
be applied when installing, operating and maintaining any
appliances, after installing, if you are in doubt, call a certified
electrician to install and wire the dryer.
12

Understanding the Control Panel
@ @@ @ @©@@@ @¢>
Note: Features may vary per model.
Start/Pause Button: (1)
,Pressthe button to turn the dryer ON. Pressthis button once to start the dry
process. Pressthis button once again to pause the activity during the dry
cycle.
Off Button: (2)
•Pressthe button to turn on drayer off.
Signal Button: (3)
•Used to select buzzing volume or turn off the buzzer.
Temp Button: (4)
Used to set drying temperature. There are 4 available drying temperatures:
High, Medium, Low, and Air Dry (no heat).
Sensor Dry Level Button: (5)
"Used to set drying time of auto-programs, if no auto-program is selected,
pressing the button will cause the chime to sound.
Wrinkle Saver Button: (6)
•This convenient feature lets you delay the start of the dry cycle between 3 to
24 hours. Pressthe "Wrinkle Saver" to choose the number of hours you want to
delay the start of the cycle.
if no delay, the wrinkle saver indicator is off and remaining time indicator is
on.
The LED display indicates remaining time of non-reserved program, if setting
"Wrinkle Saver" in standby status, the LED display indicates 3 hr, which will
increase by 1 hr with each press (until 24 and return to 3). if held for 1.5
seconds, LED display indicated value will increase continuously.
13

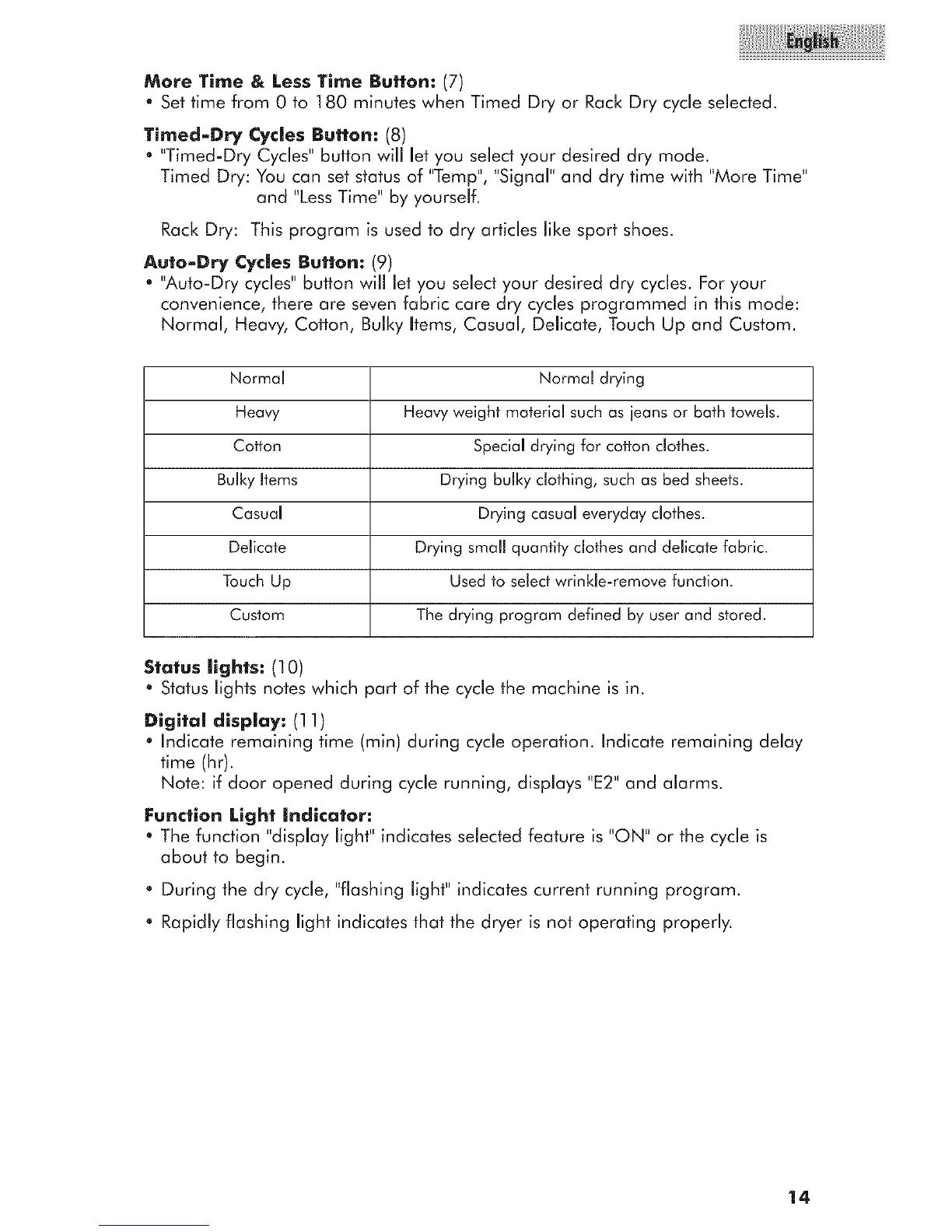

MoreTime & Less Time Button: (7)
-Set time from 0 to 180 minutes when Timed Dry or Rack Dry cycle selected.
Timed-Dry Cycles Button: (8)
""Timed-Dry Cycles" button will let you select your desired dry mode.
Timed Dry: You can set status of "Temp'*,"Signal" and dry time with "More Time"
and "Less Time" by yourself.
Rack Dry: This program is used to dry articles like sport shoes.
Auto-D_ Cycles Button: (9)
•"Auto-Dry cycles" button wiil Jetyou select your desired dry cycles. For your
convenience, there are seven fabric care dry cycles programmed in this mode:
Normal, Heavy, Cotton, Bulky items, Casual, Delicate, Touch Up and Custom.
Normal Normal drying
Heavy Heavy weight material such as jeans or bath towels.
Cotton Special drying for cotton clothes.
Bulky items Drying bulky clothing, such as bed sheets.
Casual Drying casual everyday clothes.
Delicate Drying small quantity clothes and delicate fabric.
Touch Up Used to select wrinkle-remove function.
Custom The drying program defined by user and stored.
Status lights: (t0)
.Status lights notes which part of the cycle the machine is in.
Digital display: (11)
*indicate remaining time (min) during cycle operation. Indicate remaining delay
time (hr).
Note: if door opened during cycle running, displays '*E2" and alarms.
Function Light Indicator:
.The function "display light" indicates selected feature is "ON" or the cycle is
about to begin.
"During the dry cycle, "flashing light" indicates current running program.
.Rapidly flashing light indicates that the dryer is not operating properly.
14

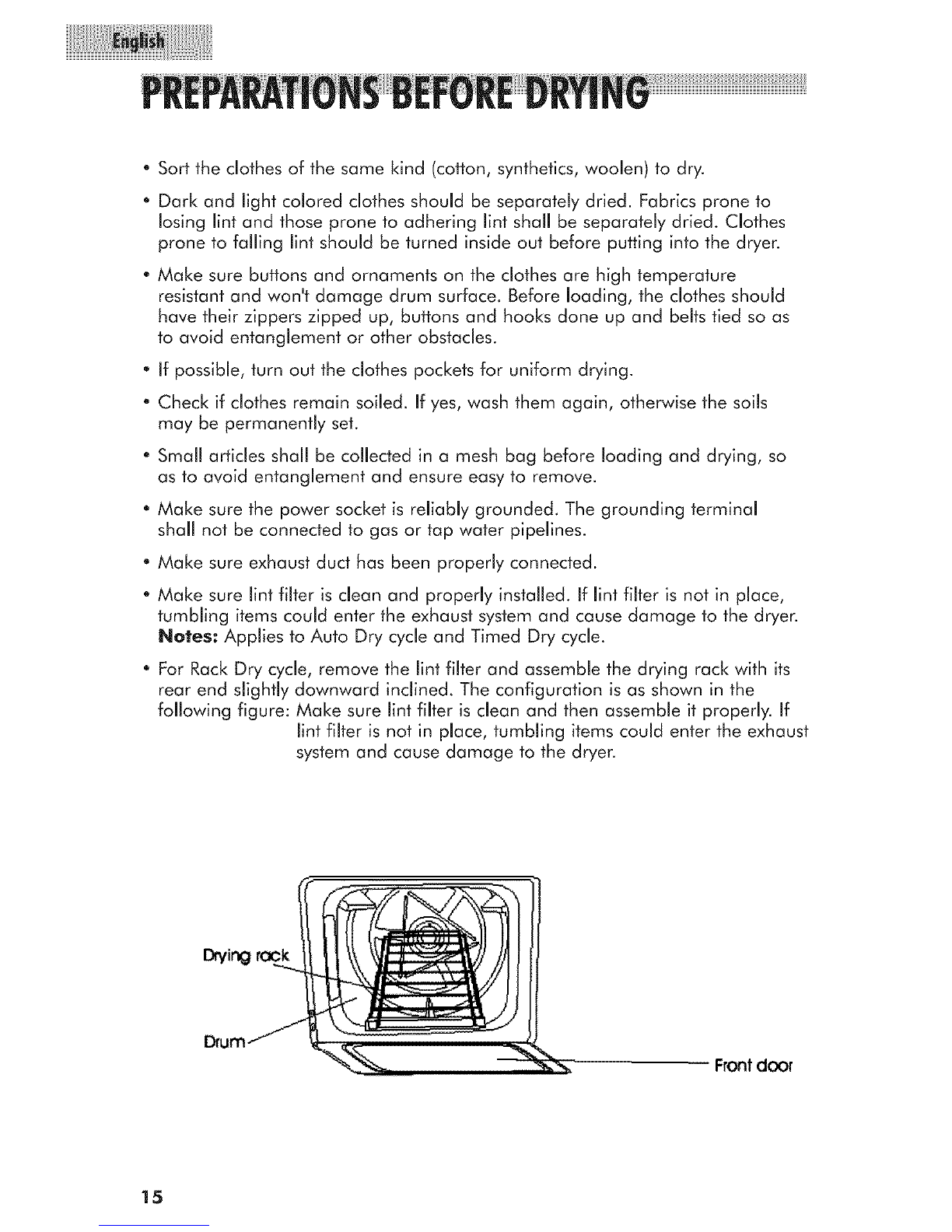

* Sorttheclothesofthesamekind(cotton,synthetics,woden)todry.
* Darkandlightcoloredclothesshouldbeseparately dried. Fabrics prone to
losing lint and those prone to adhering lint shall be separately dried. Clothes
prone to falling lint should be turned inside out before putting into the dryer.
Make sure buttons and ornaments on the clothes are high temperature
resistant and won't damage drum surface. Before loading, the clothes should
have their zippers zipped up, buttons and hooks done up and belts tied so as
to avoid entanglement or other obstacles.
• If possible, turn out the clothes pockets for uniform drying.
Check if clothes remain soiled. If yes, wash them again, otherwise the soils
may be permanently set.
Small articles shall be cdlected in a mesh bag before loading and drying, so
as to avoid entanglement and ensure easy to remove.
° Make sure the power socket is reliably grounded. The grounding terminal
shall not be connected to gas or tap water pipelines.
• Make sure exhaust duct has been properly connected.
Make sure lint filter is clean and properly installed. If lint filter is not in place,
tumbling items could enter the exhaust system and cause damage to the dryer.
Notes." Applies to Auto Dry cycle and Timed Dry cycle.
•For Rack Dry cycle, remove the lint filter and assemble the drying rack with its
rear end slightly downward inclined. The configuration is as shown in the
following figure: Make sure lint filter is clean and then assemble it properly. If
lint filter is not in place, tumbling items could enter the exhaust
system and cause damage to the dryer.
Frontdoor
15

°The appropriate load shall be 1/3 - 1/2 of the drum volume. Avoid too
much load, space is needed to allow clothes free rotation for uniform and
wrinkle proof drying.
o When drying big articles, only 2-3 pieces shall be loaded at a time and
supplemented with small and medium sized articles.
,For delicate clothes or less load, two towels may be added to get better
drying and wrinkle-proof effects.
,Do not excessively dry clothes to avoid wrinkles, shrinkage, roughness,
electro static charges accumulation and more lint.
Rack Dry cycle
•This program is designed specially for articles like sport shoes. During drying
please make sure the articles are placed on the rack with no risk of
entangling the baffles while drum is rotating.
Note: If drying rack is not in place, rolling inner tub could collide with drying
rack and causes damage to the dryer and drying rack.
1.Press any button except "Off" button to power on.
•Turn on the power switch, the computer board beeps once and the
dryer transfers from off status to the iniflaJ operating status (NormaJ program).
.If no "Start/Pause" button is pressed in 5 min after powering on, it
automatically cuts off power and returns to off status.
o It returns to off status immediately upon end of a cycle; Whatever status
the computer board is (start, pause, alarm etc.). Pressing "Off" button will
stop all operations and it enters off status.
Various button initial status for "Normal program".
@ @@@
16

Cycle Signal Softer
Wrinkle Care Off
Cycles Normal
LED display Indicate current program remaining time
Temp High
Sensor Dry Level More Dry
Timed/Cycles Auto-program
2. Press"Auto-Dry Cycles" button to select a suitable full automatic cycle.
*The Normal program will be automatically selected after powering on. If
another full automatic program is desired, press "Auto-Dry Cycles" button
until corresponding indicator turns on.
Normal Casual
Heavy Delicate
Cotton "a Touch Up
Bulkyitems Custom
Auto-Dry Cycles
*To select your desired settings the "Custom" function should be chosen.
,It can memorize programs defined by user and display the previous program
upon next application of this function.
Use details are as follows:
After powering on, press "Auto-Dry Cycles" until"Custom" status, then set
"Timed-Dry Cycles" to Timed Dry or Rack Dry, and set status of other buttons.
Press"Start/Pause" buffon or after half a minute, the program defined by user
himself will be stored and will be directly displayed upon next use.
Notes: Pressing "Sensor Dry Level" button will be inactive during use of "Custom"
function.
3. Press"Sensor Dry Level" button to select a suitable drying time.
After powering on, the clothes dryer automatically sets dryness at "very", which
means a longer drying time. If other drying time is desired, press "Sensor Dry
Level" button to select a shorter time.
17

4. Press"Temp" button to set asuitable drying temperature.
o After switching on, the dryer sets corresponding temperature adapting to
different program selected, if other drying temperature is wanted, press "Temp"
button to enable such a selection.
5. Press "Signal" button, a buzzer will sound upon end of a cycle.
•After switching on, the dryer automatically sets buzzer at "Softer", while the
user may define three prompt sound conditions "Louder", "Softer" and "Off".
6. Press "Wrinkle Saver"button to select asuitable reserved drying program.
After powering on, the dryer delay start drying program automatically sets
as disabled. When you desire a drying cycle after a delay time, press
"Wrinkle Saver" button to set wrinkle saver drying program. After initial
pressing, the LED display indicates 3 hrs, which will be increased until 24 hrs
by an increment ] hr with every pressing. Pressagain will display drying time.
Here if press again, it will repeat from 3 hrs. if keep pressed for ].5 seconds,
LED display will increase continuously.
When "Wrinkle Saver" is enabled, your selected program indicator turns off
while "Wrinkle Saver'%dicator and remaining reservation time indication turn
on. During reserved period, pressing "Wrinkle Saver" button can indicate
reserve status.
o To change operating program or cancel delay, you should press "OFF" and
re-select a new cycle.
7. Press "Touch Up" button to select wrinkle-proof drying mode.
•Use the "Touch Up" cycle to continue drying if clothes are still clamp after the
Automatic cycle,
o You can also use the "Touch Up" cycle to remove wrinkles from dean
clothes which packed tightly in a suitcase or closet.
8. Press"Start/Pause" button
When starting the machine, first dose the door and then press this
button.
"if pause is needed during machine operating, press this button. Pressing
again will resume operation.
18

® @

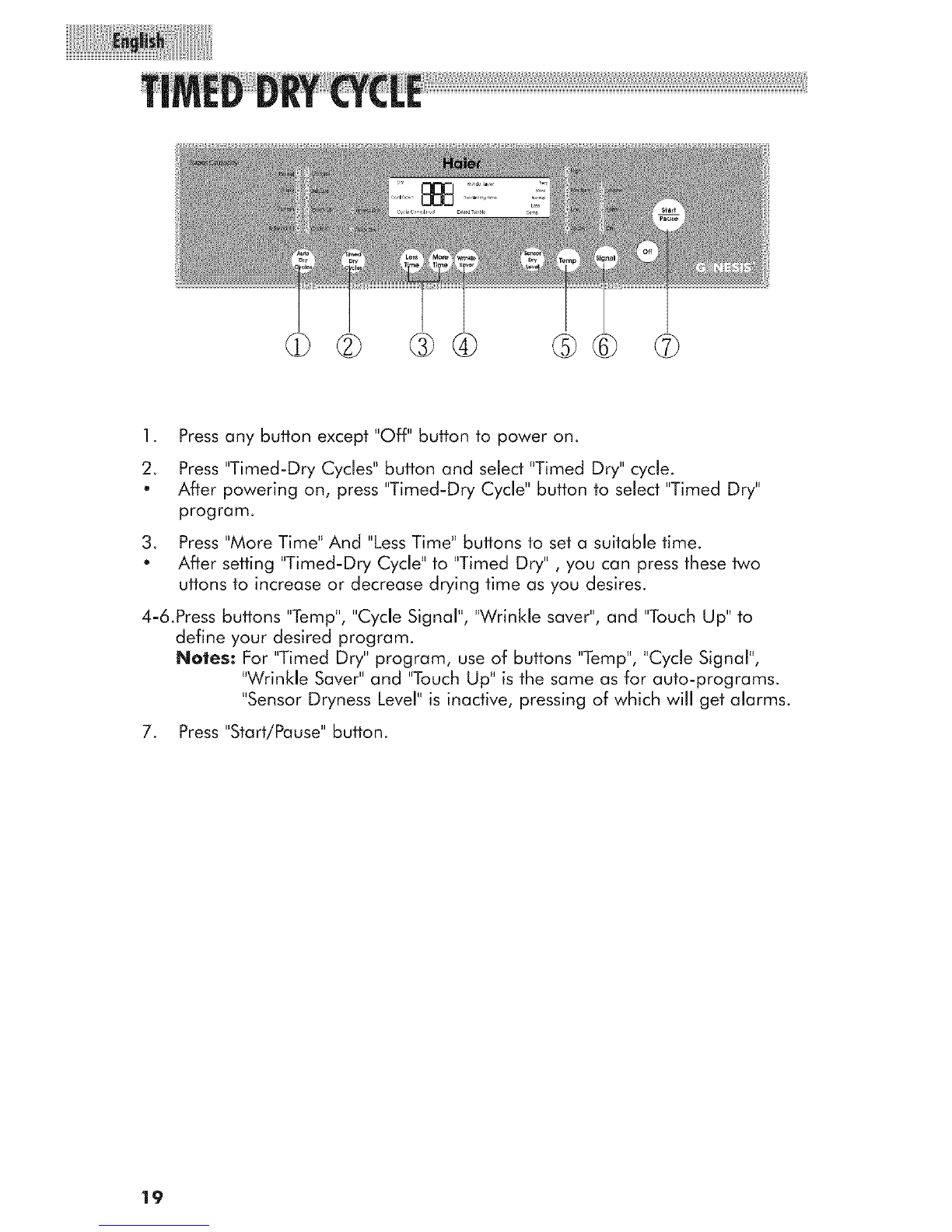

1. Pressany button except "Off" button to power on.
2. Press "Timed-Dry Cycles" button and select "Timed Dry" cycle.
• After powering on, press "Timed-Dry Cycle" button to select "Timed Dry"
program.
3. Press "More Time" And "Less Time" buttons to set a suitable time.
° After setting "Timed-Dry Cycle" to "Timed Dry" ,you can press these two
uffons to increase or decrease drying time as you desires.
4-6.Press buttons "Temp", "Cycle Signal", "Wrinkle saver", and "Touch Up" to
define your desired program.
Notes: For "Timed Dry" program, use of buttons "Temp", "Cycle Signal",
"Wrinkle Saver" and "Touch Up" is the same as for auto-programs.
"Sensor Dryness Level" is inactive, pressing of which will get alarms.
7. Press"Start/Pause" button.
19
