Haier HIS-X76SWA1 User manual

Sterilizer
Model:HIS-X76SWA1
INSTALLATION GUIDE/USER GUIDE

1
CONTENTS
1.Instruction ....................................................................................................3
2.Safety and warnings
.............................................................................4
3.Technical information & Packing list
4.Installation instructions
...............................................................................7
5.Operating instructions
.........................................................5
7.Troubleshooting
...............................................................................................13
6.Cleaning and maintenance
..................................................................12
...............................................................................9

2

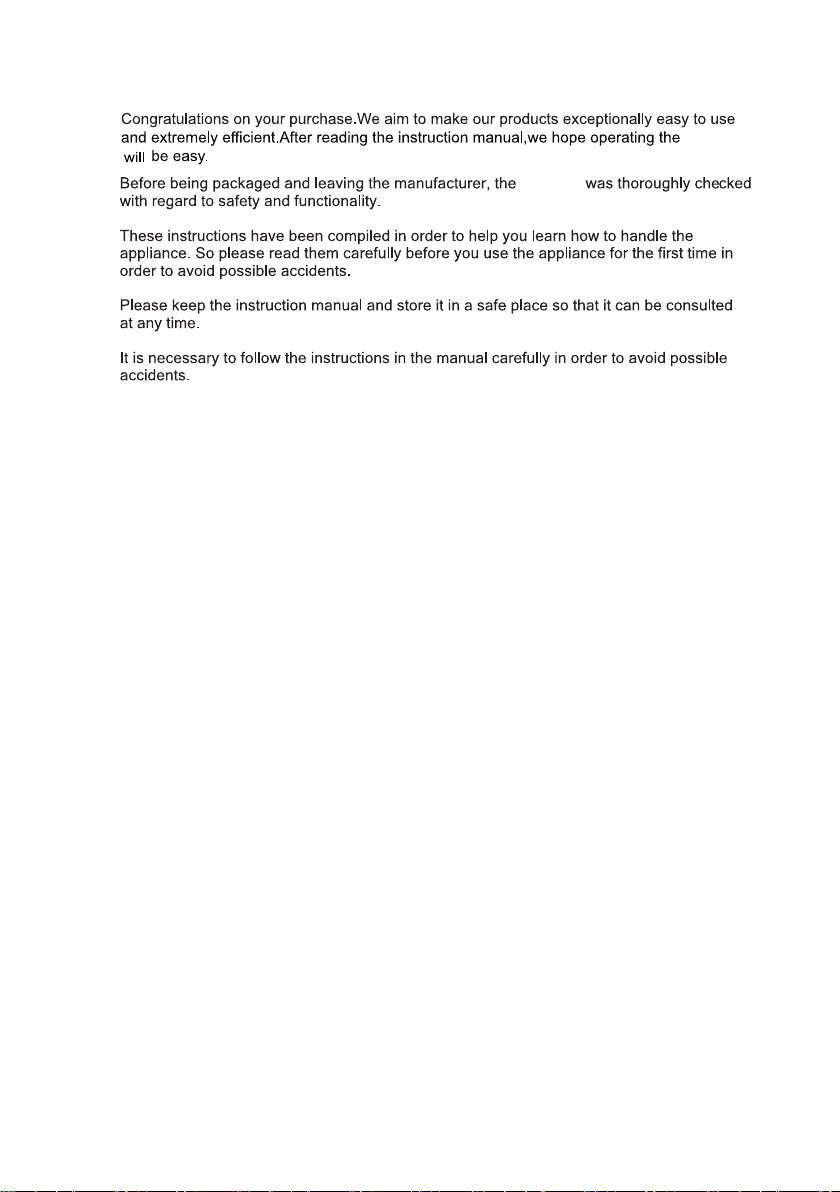

Dear Customer,
sterilizer
sterilizer

3
Introduction
The product is equipped with two independent-controlled cavities,and with two
control mode:Mannual and Intelligent. Upper cavity with ultraviolet C-ray function,
broadband light wave pasteurization function,and drying function; Lower cavity with
PTC hot air dish-warmer function.The upper two sterilization methods are physical,
without producing ozone .No chemical pollution or penetrating harmful rays. Safe and
effective to use.
Principle of sterilization: the upper cavity with ultraviolet C-ray function andbroadband
light wave pasteurization function. Ultraviolet C-ray can quickly penetrates microbcell
membrane, making microorganisms lose the ability to replicate,and at the same time
make nuclear proteins coagulate to kill bacteria and viruses;Broadband light wave
pasteurization can heat microorganism instantly,cause cellwall to break, inactivate and
die, achieve the purpose of sterilization.
Suitable for sterilization of household utensils, not suitable for sterilization of non-
utensils or medical purposes.

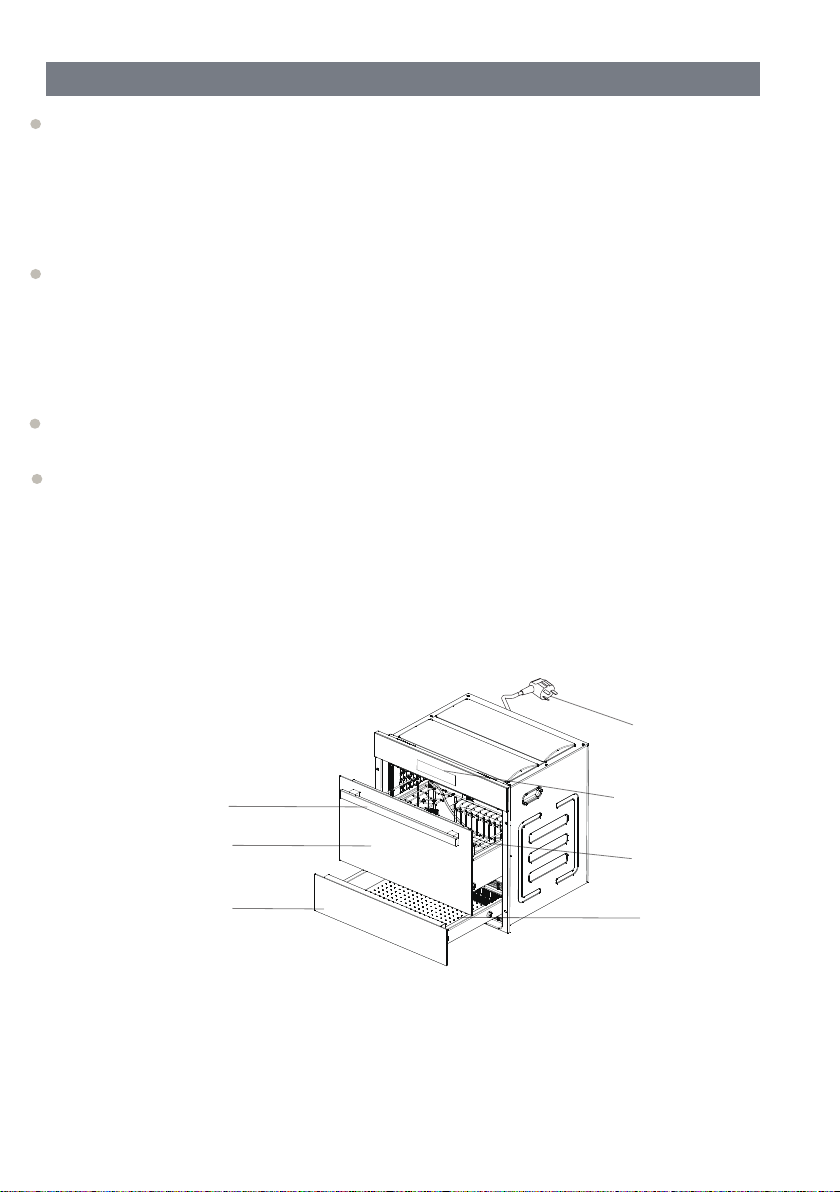

Names of principal components
HIS-X76SWA1
3
4
7
1.Power cord
2
5
6
1
2.Touch control panel
3.Door handle
4.Upper door panel
5.Upper rack
6.Lower drawer
7.Lower door panel
This product implements the standard：
GB 17988-2008《Safety and Hygienic Requirements for Tableware Disinfection Cabinet》
GB 4706.1-2005《Safety of Household and Similar Electrical Appliances Part 1: General
Requirements》
Q/HZCD J0202 010-2019《Sterilizer》
Health permit number：Lu Wei Xiao zi Hao (2020) No.0678

4
Safety and warnings
Forbid
to operate Warning
Icons
Forbidden
Must
follow guidance
Should be
aware and notice
Attention
When power interruption occur during the process of operation, the cavity is in a high
temperature state, Do not immediately open the door to take things, otherwise it may
lead accidental injury such as scald.
Non-professional maintenance personnel is prohibited to change the internal wiring.
Do not disassemble and repair without permission.
If the power cord is damaged, it must be replaced by the manufacturer or its mainte-
nane department or a similar professional.
Do not soak the sterilizer in water or spray the sterilizer.
Do not allow children to use, or contact the sterilizer.
Do not use power sources other than 220~240V or power sockets in bad contact.
Do not damage or crush the power cord with any heavy objects.
Do not put non-utensils such as dishwashing towels into the sterilizer.
Please use a separate socket with rated current above16A and make sure ground
reliably.
When pulling the plug from the socket, you must hold the head of the plug to pull it out.
Not pull the power cord.Otherwise it may cause dangers like electric shock, short cir-
cuit etc.
Do not touch the glass surface and border of the door to avoid scalding hand.
The door of the cabinet can only be opened after the sterilization is finished for 20min.
If it is urgent to open the door, please be careful to prevent burns.
The door must be closed first ,then turn on the sterilizer. If the door is not closed, not
only the sterilization cannot fulfill,It may also pose a risk of hot burns and ultraviolet
radiation.
Forbidden
Attention
If it is found that the light emitted by the ultraviolet sterilization lamp can be directly
seen without passing through any transparent object in the process of use, please stop
using turn off the power immediately, notify the professional for repair. If ultraviolet
sterilization lamp is
damaged, will have to replace it with the same power and wavelen
-gth.

5
Technical information & Packing list
Technical information
Sterilizer
Product
AC220-240V
50Hz
1230W
65 5
2 5 5
Sterilization temperature
HIS-X76SWA1
Sterilization level
Capacity/L
≥70 W /cm
2
≥6 0 ℃
15 W /2 5 3.7nm
9 0 0 W /2 5 0-7 8 0 nm
315 W
≥4
0
℃
Model name
Rated voltage
Rated Frequency
Rated input power
Upper
cavity
Light-wave lamp: Power/Main wavelength
Ultraviolet lamp: Power/Wavelength
Ultraviolet radiation illumination
Capacity/L
Power of heater
Dish-warmer tempreture
Product dimension(Width*Depth*Height) (mm)
Net/Gross weight
Rated load capacity of each rack
Average life of light-wave lamp
Average life of Ultraviolet lamp
Lower
cavity
Name
User manual
APP Operation Instruction
Set screw
Quantity
12
1 1
Name Quantity
Sterilizer
Packing list
595 X 455 X 598
27.2 kg / 31.2 kg
7kg
5000h
2000h

6
Circuit diagram
WIFI module
Temperature sensor 1
Humidity sensor
Upper door switch
The upper door lock
Ultraviolet sterilization lamp
Ballast
Light wave sterilization lamp
Temperature limiter
Thermostat
PTC heater
Ignitor
M
Fan
Power
supply
board
Temperature sensor 2
The
upper
door
lock

7
Installation instructions
Please ground reliably, but do not connect ground wire to gas pipe, lightning rod or
It should be installed in a place that can bear the weight, otherwise some parts may
Installation should be entrusted to a professional, otherwise it will be dangerous.
Warning
Preparation and inspection before installation
Before installation a suitable position on the cabinet should be reserved in accordance with the insta-
Installation
Attention
telephone line; Unreliable grounding may cause lelectric shock and accidents.
drop and cause damage or loss.
Do not use door handle when carring, it should be lifted from the bottom of the cabinet
body,gently lift up and put down.
Cabinet body, gently lift up and put down.
llation diagram; Installation must be more than 5 cm away from the gas or heating appliances or separated
by a partition.
Before installation, the strength and surface flatness of the installation site must be checked,otherwise the
machine may fall off, and the cupboard door may be skew and misplace.
Power socket should be set within 0.3 meters next to reserved position of the sterilizer.
The impulse current is about 10 amperes, please consider the electrical capacity.
Test the machine according to the instruction manual.
Built-in installation should be in accordance with the installation diagram,before use,make sure it is fixed
steady.
Should set vent in appropriate part of the built-in cabinet, the user should decide the position of the vent .
Install the sterilizer steadily into the reserved position in the cabinet, open the door, use 2 fix screw to fix
the sterilizer in the position that is flush with the face of the door.(Attention: do not tilt)

8

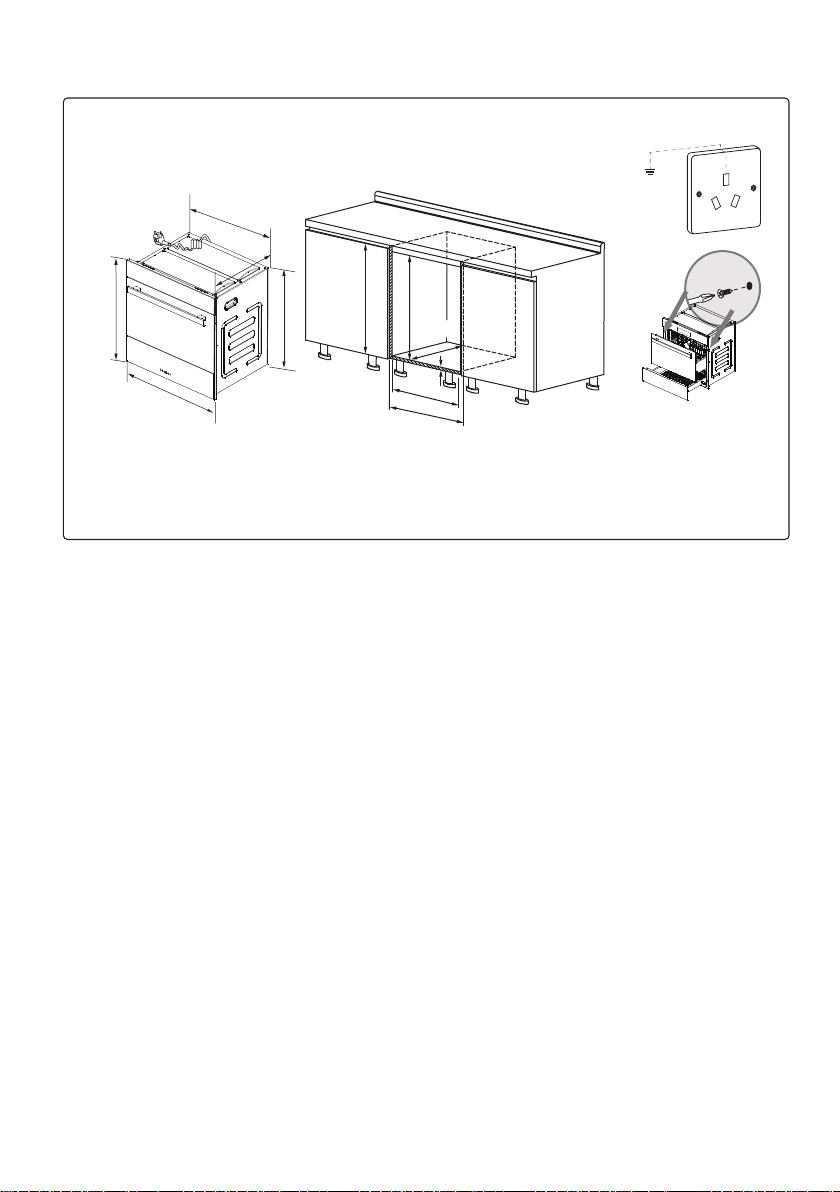

Installation diagram: Sterilizer Dimension and Cabinet dimension (mm)
Must make sure ground reliably
Note: fix screws to kitchen cabinet after installation
598
595
455
540
620
595
600
18
≥480
About dimension of sterilizer and cabinet:
Height of floor cabinet door plate=620mm, when the height of local cabinet door plate is >620mm,
580
560
it is recommended to add decorative strip on the top of sterilizer to ensure that the height of floor
cabinet door plate is level with that of floor cabinet.

9
Operating instructions
Control panel
Intelligent
WIFI Upper cavity Power
Upper cavity Function Dry Lower cavity Function Lock
Lower cavity
Upper cavity
Lower cavity
Touch control
Turn ON/OFF
Switch on the power of the plug,and the power button icon will be half bright.
Touch the button for 1.5 seconds,the power button icon will be fully bright,
and the other operable function icons will be half bright.Touch the power
button when it is not locked status, the sterilizer will be shut down.
Function Operation details
Start/Cancel
About Control buttons
button
Upper cavity
functions
Start/Cancel
Lower cavity
functions
Start/Cancel
Touch the button continuously when the machine is ON, the icon will be lit
bright,and the function icons of upper cavity is lit up or off in a cycle,
the three functions of Sterilize,Tense sterilize and Cold food sterilize are
selected or cancell ed respectively.5 seconds after the function selection
and without further operation the corresponding function of upper chamber
starts to run.When the upper cavity function program runs, by touching the
button the upper chamber exits the executing function.
Touch the button continuously when the machine is ON, the icon will be lit
bright,and the function icons of lower cavity is lit up or off in a cycle,
the three functions of Warm-keep, Cup-warm and Dish-warm are selected
or cancelled respectively.5 seconds after the function selection and without
further operation,the corres ponding function of lower chamber starts to run.
When the lower chamber function.
intelligent
tracking function
Start/Cancel
Dry function
Touch the button when the machine is ON,the icon will be lit bright,and the
intelligent tracking function starts to run,the upper chamber will automatical
-ly detect the environment inside, and according to the detection result aut
-omatially run the sterilization program.
Touch the button when the machine is ON, the icon will be lit bright, and the
drying function of upper chamber starts to run.In the process of upper cavi
-ty drying,touch the button to exit the function.
When the machine is on, press the button for 3 seconds to lock the touch
buttons on the control panel. Press the button again for 3 seconds to un-
lock the buttons on the control panel.
To lock the
buttons on the
control panel,to
prevent misoper
-ation
To Set up and
display wifi
connection
When the machine is off, to set up the network, long press the WIFI button
for 5 seconds to enter the setting mode. For specific operation,please refer
to the mobile APP operation manual.

10
Functional specifications
5min / ≤60℃
Functions
Function effect
time:20min
10min
90℃
42min
2 h / ≤50℃
time≥ 20min
temperature≥ 60℃
Tense
Cold meal
Dry
Warm-keep
Cup-warm
Dish-warm
Sterilize
Upper
5min / ≤50℃
Working status
Chamber/Mode Time/Temperature
chamber
Upper
chamber
Upper
chamber
Upper
chamber
Lower
chamber
Lower
chamber
Lower
chamber
Ultraviolet
and
broadband
light
Ultraviolet
and
broadband
light
Ultraviolet
light wave
PTC hot air
PTC hot air
PTC hot air
time≥
temperature≥
Can kill the common intestinal
pathogens, viruses in the kitchen,
used for tableware sterilization.
Can kill the common intestinal
pathogens, viruses in the kitchen,
used for tableware sterilization.
To sterilize the surface of
tableware, vegetables, fruits and
dried fruits at normal temperature.
For drying/dehumidifying tableware.
Warm-keeping for tableware and food
For cups warm-keeping
For dishes warm-keeping
Lock
When the machine is on, press the button for 3 seconds to the touch buttons on the
control panel.Press the button again for 3 seconds to unlock the buttons on the control
panel.
Sterilize
Door switch protection function: during the work of sterilizer, if the door is not closed,
the buzzer will alarm,five minutes without closing the door, the sterilizer will be auto-
matically shut down.
Buzzer sound function: For effective operation, buzzer beep once; For invalid opera
-tion ,buzzer beep twice;At the end of a normal function cycle, the buzzer beep heree
times.
Intelligent tracking function: Touch the button, if 5 seconds without other operation, or
after a selected function is finished,the sterilizer will automatically turn into the tracking
sterilization state. In the process of intelligent tracking, only the intelligent light flashes.
When the intelligent time arrives, the sterilization function starts and the power lamp
is always on. After the sterilization is completed, turn back to the intelligent tracking
status, and the intelligent light will resume flashing status. To exit the Intelligent tracking
function , just touch the "Intelligent" button.
Intelligent constant temperature function: during the operation of the selected program,
when the corresponding chamber temperature reaches the set temperature, the light
wave tube will change from"continuous operation" change from "continuous operation
(heating)" to "intermittent operation (heating)" and automatically switch to the intelligent
constant temperature state.

11
Note: The sterilization time refers to the time experienced when the central point tem-
perature
in the sterilizer reaches the specified value and the timing starts, until the control
device stops working when the power is cut off and the sterilization temperature drops below
the specified value. The working cycle is the time required when the sterilizer starts to work
until the control device cuts off the power supply of the last electrical component producing
sterilization material. The working cycle varies with the ambient temperature, and the working
cycle does not equal the sterilization time.
Safety door lock function: in the working process of upper chamber,the door will be locked,
do not pull the door handle, so as not to damage the door lock structure. After the function
is over, when the temperature in the chamber is lowered to the set value, the door lock will
open automatically. Please do not open the door in advance. If the power button is turned off
during the work, the door lock will open automatically. Please do not put your hand into the
sterilizer to avoid burns.

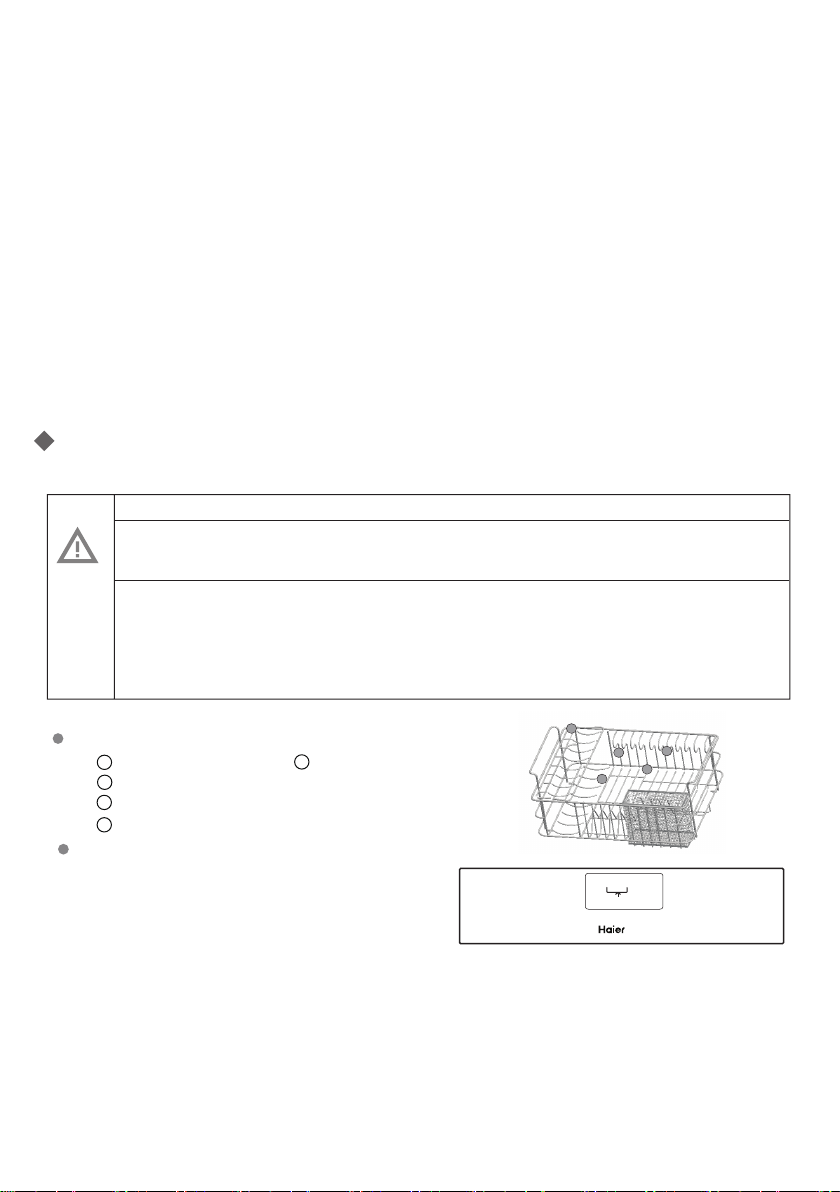

Rack instructions
First to remove the fixing material and packing materials of accessories before use the Rack.
Attention
After washing the dishes, please drain the water first before put the dishes into the sterilizer,
however there is no need to wipe the dishes. Because the surface moisture of the tablewares
will be heated into steam, with stronger heat penetration and better sterilization effect.
To ensure sterilization effect, only one piece of cutlery can be put in each case, and make sure
that the cutlery is not crowded together. In upper chamber,for sterilization for high-temperature
plastics (150 degrees) and wood tableware, must be placed away from the light wave tube
For those non-high-temperature tableware, cannot be put in the upper chamber.Do not put
towels, shoes and other non - utensils into the sterilizer.
12
3
4
5
Upper rack usage (tableware instruction for each area)
Middle/Small bowl; Middle/Small dish;
Big dish/Fish dish/Soup bowl;
small dish;
Knife and fork,Spoon, mother and baby area.
Lower warm-drawer usage
The lower drawer is equipped with Push-out structure,
to open the drawer, push the middle areaof the glass.
To close the drawer, please push the middle area
of the glass again.
Push area
1
2
45
3
more than 22 cm.

12
Cleaning and maintenance
Before clean and maintenance work, first to turn off the sterilizer,
unplug the power plug, and wait for the machine to cool down.Do
not use gasoline,alcohol, or other organic solvents, cleaning powder,
etc., so as to avoid machine discoloration, surface paint cracks.
Remove stains from the utensils. To avoid peculiar smell inside the
sterilizer, before putting in the tableware , the grease and stains on the
surface of the tableware should be cleared up thoroughly.
In order to extend the service life, please timely clean the cavity and
the rack, to remove the surface dirt, water stains, remaining water, etc.
酒
精
去
污
粉
汽油

13
Troubleshooting
What to do
Possible causes
Fault Phenomenon
The machine doesn't
work
The ultraviolet
sterilization lamp is
not on
The light wave
sterilization lamp is
not on
Electricity is not connected
Electricity power failure
There is a source of electromagnetic
The power board or controlboard is broken
interference nearby
The starter is broken
Poor contact of the ultraviolet sterilization lamp
The ultraviolet sterilization lamp or the door
swith is broken
The connector is not firmly connected
The door is not closed well.
The light wave sterilization lamp or the door
swith is broken
Connect the electricity
Change to reliable power supply
Eliminate the source of
electromagnetic interference
Call the aftersales center
Close the door.
Please rotate the lamp tube and
install it in place
Call the aftersales center

Customer Name :- …………………………………………….. Address :- ……………………………………………………………………………………………....
Serial Number :- …………………………………………….. Date of Purchase :- …………………………… Model No. :- ………………….…………………..
Dealer Seal :- ………………………………………………..
HAIER WARRANTY
HAIER APPLIANCES (INDIA) PVT. LTD . (here-in-aer referred to as “the Company”) hereby offers thefollowing warranty tothe originaldomesc purchaser commencing from the Date of the
Purchase (DOP)
. The Company at its sole discreon, will free of charge repair or replace any defecve part or parts which prove to be defecve in workmanship and/or materials and
not due to abnormal orimproper usage
CONDITIONS OF WARRANTY
1) This warranty will be automacally terminated on the expiry of the warranty period from the Date of Purchase (DOP).
2) The Company is not liable for any delay in servicing due to reasons beyond the control of the Company or any of its authorized service center.
3) Parts replaced or repaired under this warranty are warranted throughout the remaining of the original warranty period.
4) It is enrely leto the Company's discre
on to repair/replace parts at the site of installaon or at the authorized serv ice center.
5) This warranty shall be strictly limited to the repairs or replacement of the defecve part specified in warranty. This warranty shall not cover any consequenal
or resulng liability.
6) This warranty shall not, in any case, extend towards payment of any monetary consideraon whatsoever or replacement or return of the product.
7) The Company may repair/supply parts free of cost during the warranty period. This warranty does not cover any Excise duty, Central or Sales tax, Octroi and
other local taxes or levies on the components/parts.
8) The parts shall be replaced by funconally operang equivalent material only and not with brand new ones and are likely to be different from the one
originally fied. The parts thus removed shall be taken back by the Company.
9) The Company reserves the right to retain any part or component replaced at its sole discreon during the warranty period.
10) In no event the Company or its authorized service center, be liable for any consequenal damages or resulng liability, damage or loss arising directly or indirectly out of
any defect in the product.
11) This warranty is not valid in case of the following events.
a) If the Product has been Installed/Serviced/Repaired/Opened or Tampered by any unauthorized personnel.
b) If defects arise/caused by accidents, alteraon, misuse, neglect, substuon of original components with spurious/non- genuine components, aacked by
household pest / rodents, fire, flood, earthquake, lightning and/or any other act of God/natural calamies.
c) The product is shied outside India.
12) (a) For any service under this warranty beyond city/town/municipal limits from the Company/authorized service center, a fixed charge of Rs. 100 will be
collected from the customer in addion to the actual to and for charges by the shortest route.
(b) Service charges applicable aer expiry of comprehensive warranty.
13) Any change of locaon or change in the ownership during the warranty period must be inmated in wring to the Company.
14) The Company's employees or its authorized representaves have no authority to vary the terms of this warranty
15) Brass burners valve carry warranty against any manufacturing defect for 60 months. Warranty is not applicable for De-coloraon of the burners.
16) The warranty does not cover rust, oxidaon, discoloraon, scratches, and wear & tear, plasc, rubber, aesthec, filters, Consumable parts.
17) HOB Tempered glass top have 24 Month warranty for any manufacturing defect. The warrant of glass become null & void in following condions.
a) Glass breakage due to improper use or accidental damage.
b) Use of gas tandoor / Gas Oven / Dosa Tawa.
c) Sprinkling of water on hot Glass surface.
d) Other safety norms / precauon not followed.
18) This warranty is affected in New Delhi and claims, if any, shall be made only before the courts having j urisdicon in New Delhi and no claim shall be made
against the Company outside New Delhi not withstanding that the Appliance may have been sold or delivered elsewhere.
Customer Name :- …………………………………………….. Address :- ……………………………………………………………………………………………....
Serial Number :- …………………………………………….. Date of Purchase :- …………………………… Model No. :- ………………….…………………..
Dealer Seal :- ………………………………………………..
Outer Body, Cavity, Door, Glass, Handle,
Knob/ Touch Panel, bulbs, Plasc Parts,
accidents or damage, etc.
BUILT - STERILIZER
1 Year Comprehensive
(1 + 1 Yr. on Glass) &
(1 + 4 Yrs. On Burner & Valve )
Pan Support, Leg, Drip Tray & Knob,
Mixing tube, Plasc Parts, accidents or
damage, etc.
1 Year Comprehensive
Glass, Duct Cover, Body, Filters, Oil
Collector & Cleaning, Bulbs, Switches,
Knobs, Plasc Parts, accidents or damage,
etc.
1 Year Comprehensive
1 Year Comprehensive
1 Year Comprehensive
BUILT - IN - HOB
HYBTID - HOB
TABLET - HOB
HOOD
BUILT - MWO
BUILT - IN - OVEN
Segment Warranty
Period Parts not Covered
Haier Appliances (India) Pvt. Ltd.
Building -1, Okhla Industrial Estate Phase III, New Delhi -110020
Tel- +91-1139496000,30674000,
Fax: [phone]
1800-102-9999, 1800-419-9999
(Toll Free - 24x7)
Whatsapp : [phone]
For Quick Connect to Haier India Scan QR Code
