Haier L32A9-AK User manual

MODEL: L42A9-AK
+
L42A9 -AK
L46A9-AK
L32A9-Ak
TFT-LCD TELEVISION
OWNER`S MANUAL
Please READ thismanual carefully before
operating your TV, and retain it for future
reference.

Congratulations on yourpurchase, and welcome to the family !
Dear Haier product owner:
Thank you for your confidence in Haier. You`veselected one of the
best-built, best-backed products available today. We`ll do everything
in our powerto keep you happy with yourpurchase for many years to
come.
As a member of the Haier family, you`re entitled to protection by
one of themost comprehensive warranties and outstanding service
networks in theindustry.
thanks for investingin a Haier product.
""
""

DISPLAY
POWER
MUTE STILL
I/II
PIC.SIZE
TV/AV
S-VIDEO
DVD/DTV PC/HDMI
OK
Q.VIEW
CH+
CH-
VOL- VOL+
MENU
PSM
123
456
789
-/-- 0
ZOOM/MOVE
USB
PIP SWAP SCAN
CH.EDIT
SHUTTLE
SLEEP
H.LOCK TIME.SKIP
ZOOM
RETURN
SSM
HELPENTER
CONTENTCONTENT
BEFORE OPERATING
Warning..............................................................................................................1
Important Safety Instructions..............................................................................2
Buttons and interface location........................................................................... 4
Remote controller...............................................................................................7
Remote controller key function...........................................................................8
Effective range of remote controller....................................................................9
External equipment connections........................................................................10
BASIC OPERATING
Switching on/off the TV set................................................................................16
Select input modes .......................................................................................... 17
Searching channel............................................................................................ 18
Watching TV program........................................................................................20
Picture control functions.................................................................................. .23
Sound control functions.....................................................................................25
Time functions....................................................................................................28
Function menu...................................................................................................30
Adjust menu.......................................................................................................31
Lock setup ........................................................................................................34
OTHERS
Others functions................................................................................................37
Stream media broadcast system.......................................................................39
Specifications ...................................................................................................49
......................................................................................................50
Troubleshooting.................................................................................................51
Maintenance

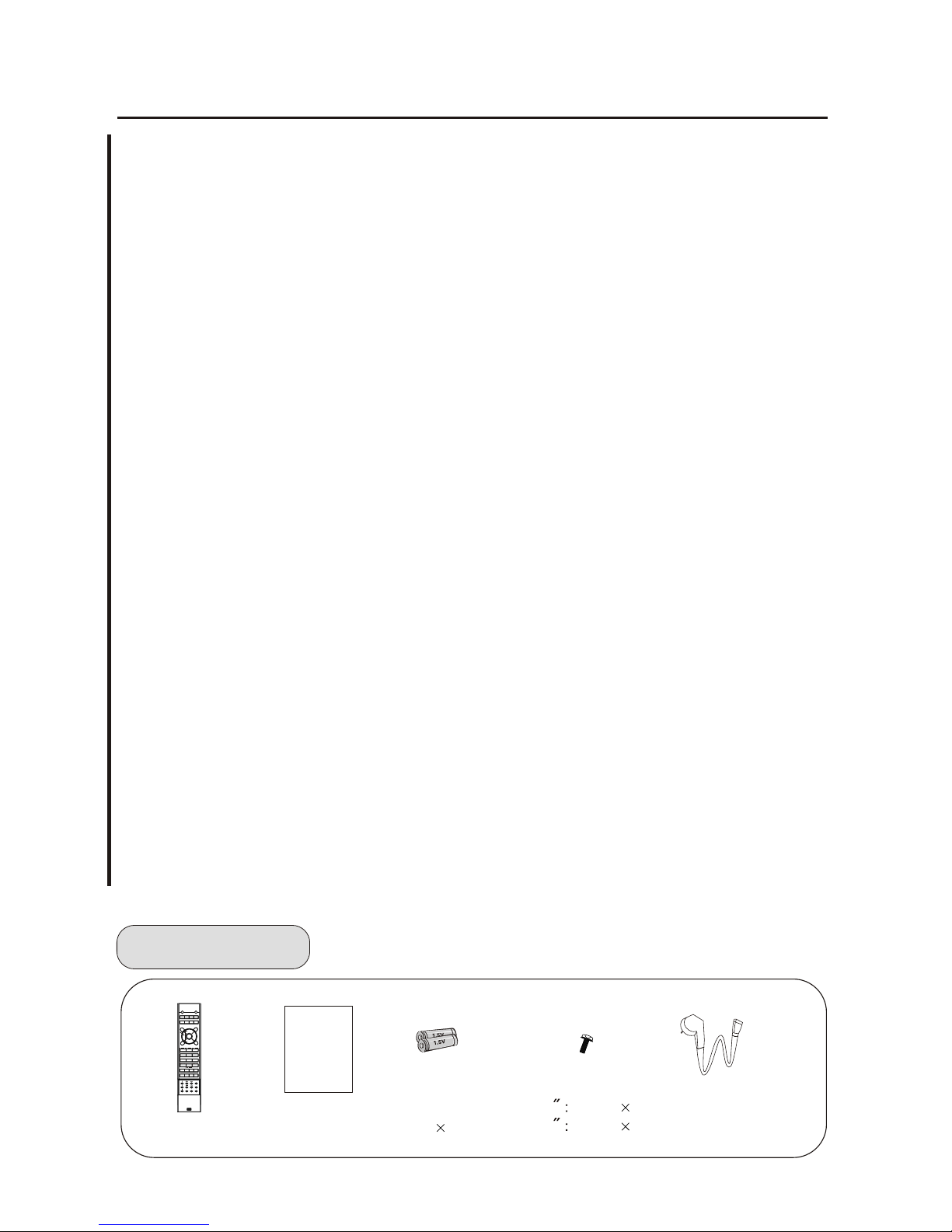

Accessories
Remote controller User's manual Alkaline battery
(AAA) 2 Power cable
42 Screws 8
46 Screws 4

WARNING
*To avoid electric hazards, it is strongly suggested that the back cover not be opened, as
there is no any accessory inside the casing.
*If necessary, please contact authorized after-sales services.
*A lighting flash mark in a triangle: Apotentially hazardous situation, which, if not avoided,
could result in serious injury by high voltage.
*An exclamation mark in a triangle: Major part or accessory of which technical specifications
must be followed if it is to be replaced.
Warning:
To avoid fire or electric hazards, never place your television receiver in an area
with heavy moisture. Attention should be paid to avoid accidental scratches or
impacts onto the LCD screen.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Caution:
Please read this manual carefully before using your television and keep this
manual in a good place for future reference.
To achieve the best performance of your television, read this User's Manual
carefully and properly store it for future reference.
Information of screen displays and figures in the User's Manual may vary due
to technical innovations.
Caution:
Unauthorized disassembly of this product is prohibited.
Warning
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
1

Important Safety Instructions
The product should be tightly fixed to avoid
drop damages and even fire.
To avoid fire hazards, do not use this
product under direct sunlight or closely
to heat sources.
Do not locate the product close to water
or oil, which may cause fire hazards.
Unplug the power supply and antenna of
the product when there is a rainstorm,
especially
Thunderstorm.
Do not use damaged or worn electric plugs
and keep electric cord away from heat sources
to avoid electric shocks or fire hazards.
Do not connect excessive sockets in parallel
or share the same socket by multiple plugs
to avoid fire hazards.
The product must be placed on a solid and
stable surface to avoid collapse.
Unauthorized disassembly of the television
is prohibited to avoid electric shocks or fire
hazards. Contact
authorized after-sales
service if technical
service is needed.
Keep the product away from a transformer
or heat source to avoid fire hazards.
Disconnect the product from power supply
and contact authorized after-sales service
if abnormal sound is heard in the product.
2

Important Safety Instructions
Don't use or store inflammable materials
near the product to avoid explosion or fire
hazards.
Don't place the product in a humid area to
avoid fire hazards.
The antenna of the product should be away
from electric cable to avoid
electric shocks.
Never touch the plug when your hand is wet
as this might cause electric shocks.
Always make sure that the televisionis well
plugged as poor electric
connection might cause fire.
When antenna is used, measures should be
taken to prevent water
from flowing down
along the cable into
the television.
Unplug the television, use soft fabric, never
chemicals, if you are going to make
cleaning of the product.
Make sure that no
water drops in the
product.
The plug and electric cable must be kept
clean to avoid electric
shocks or fire
hazards.
Disconnect the television from power supply
and antenna when there is a
rainstorm or thunderstorm
to avoid electric shocks
or fire hazards.
Disconnect the television from power supply
to avoid electric shocks or fire
hazards in a long
vocation.
3

Front panel Control
Buttons and functions
1Channel number increase and decrease.
2Volume decrease:
for lowering the volume or adjusting
the menu.
Volume increase:for enhancing the
volume or adjusting the menu.
3TV/AV button
4Menu button
5Power and indicator: for turning on or
off the power supply.
6Remote receiving window
7Card jack
- This is a simplified representation of front panel.
- Here shownmay be somewhat different from your TV.
Buttons and interface location
4
- CH + - VOL + TV/AV MENU POWER
Buttons and functions
1Channel number increase and decrease.
2Volume decrease:
for lowering the volume or adjusting the menu.
Volume increase:
for enhancing the volume or adjusting the menu.
3TV/AV button Source view button
4MENU button
5Power and indicator: for turning on or off the
power supply.
6Remote receiving window
7Card jack
- CH + - VOL + TV/AV MENU

HDMI Input
Connect the monitor output
connector from a PC to the
appropriate input port.
Antenna Input
Connect cable or
antenna signals to
the TV, either directly
or through your
cable box.

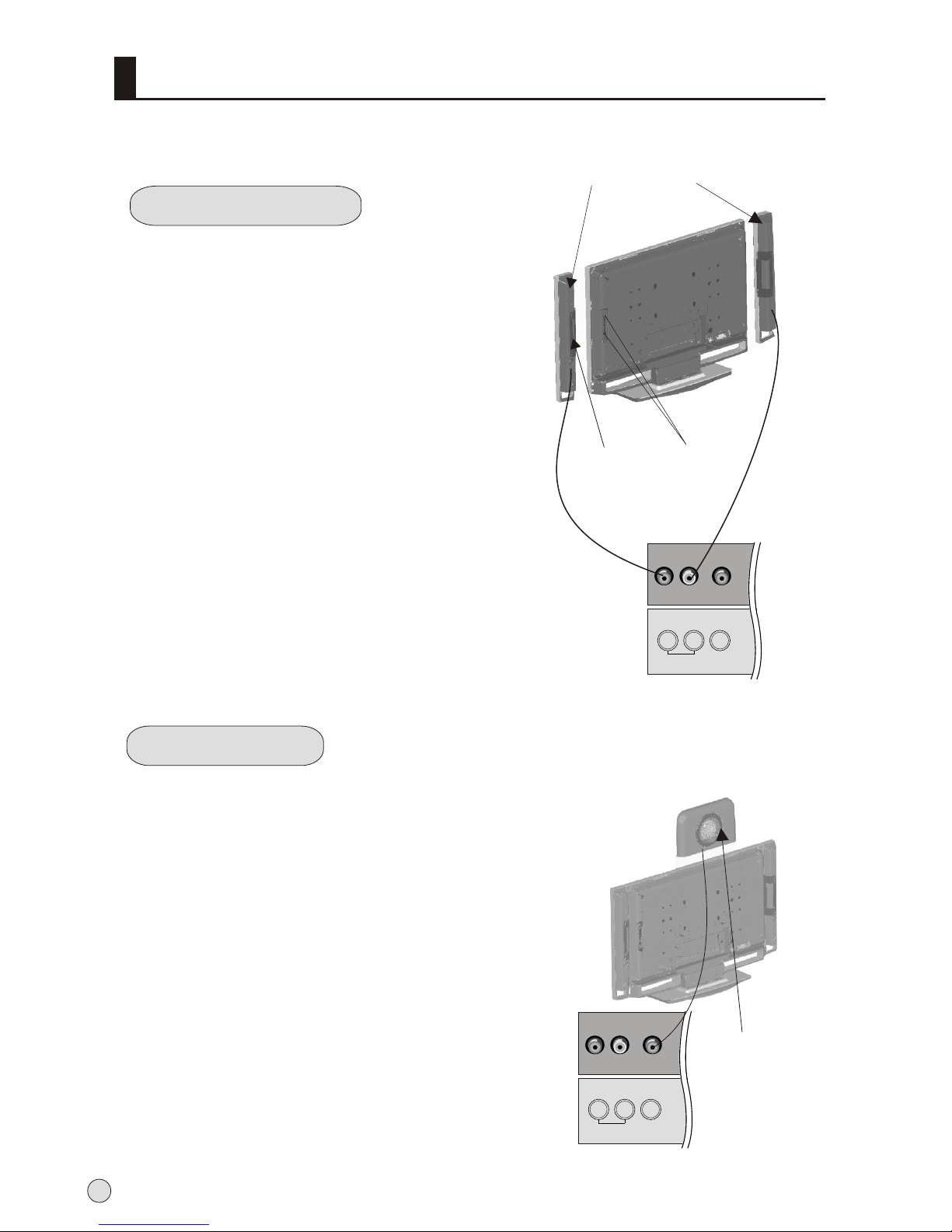

External Speaker
(8 ohm Output)
Connect to optional
external speaker(s).
DVD/DTV Input
(Component )
Connect a component
video/audiodevice to
these jacks.
Audio/Video Input
S-Video Input
Connect audio/video or
S-Video out from an
audio/video or S-Video
device to these jacks.
Buttons and interface location

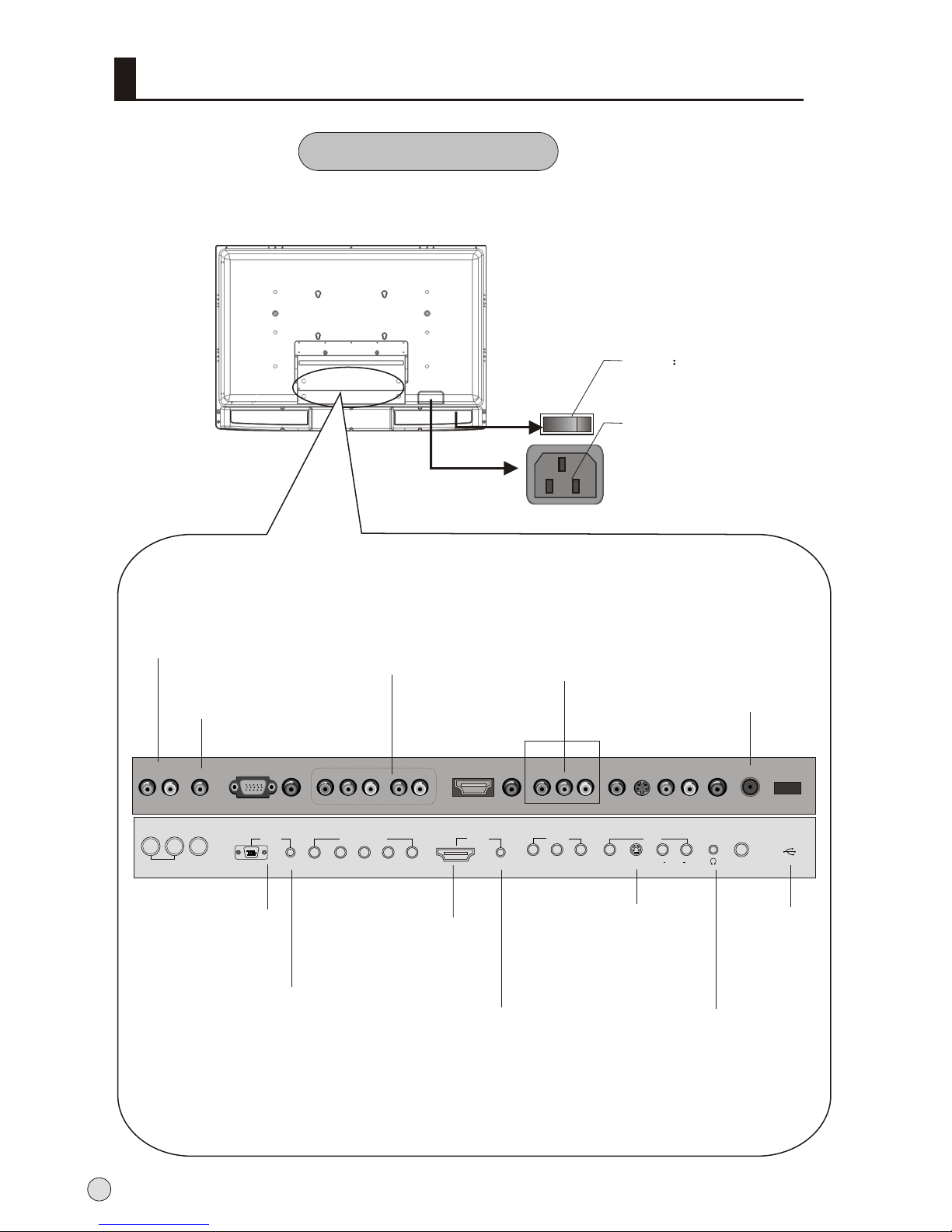

Rear panel Control
EXT Subwoofer:
Subwoofer audio output
terminal.
Audio input
for linking HDMI or
other appliance audio
frequency output terminals.
Video/Audio output
terminal
Connect ordinary video/audio
or other appliance
audio input terminals.
VGA Input
Connect the monitor
output connector from
a PC to the jack
5
VIDEO
L
AUDIO
R
POWER
Power Cord Socket
This TV operates on AC power.
The voltage is indicated on
the specifications page.
Never attempt to operate the
TV on DC power
Switch power on/off
USB Socket
AUDIO Input
connect to hear
stereo sound froman
external device.
VIDEO Input
Connects the videosignal
from a videodevice.
AUDIO
AV IN
AV OUT
AUDIO AUDIO
HDMI IN
COMPONENT IN
AUDIO
VGA IN
ANT IN
VGA S-VIDEO Pr/Cr Pb/Cb Y L R VIDEO L R
AUDIO VIDEO L R
AUDIO OUT
R L
WOOFER
Audio input
for linking PC or
other appliance audio
frequency output terminals.
Earphone jack
Earphone Audio output
terminal
+
L42A9-AK L42A9 -AK L32A9-AK

Rear panel Control
Power Cord Socket
This TV operates on AC power.
The voltage is indicated on
the specifications page.
Never attempt to operate the
TV on DC power
Switch power on/off
Buttons and interface location
L46A9-AK
HDMI Input
Connect the monitor output
connector from a PC to the
appropriate input port.
Antenna Input
Connect cable or
antenna signals to
the TV, either directly
or through your
cable box.
External Speaker
(8 ohm Output)
Connect to optional
external speaker(s).
DVD/DTV Input
(Component )
Connect a component
video/audiodevice to
these jacks.
Audio/Video Input
S-Video Input
Connect audio/video or
S-Video out from an
audio/video or S-Video
device to these jacks.
EXT Subwoofer:
Subwoofer audio output
terminal.
Audio input
for linking HDMI or
other appliance audio
frequency output terminals.
Video/Audio output
terminal
Connect ordinary video/audio
or other appliance
audio input terminals.
VGA Input
Connect the monitor
output connector from
a PC to the jack
AUDIO
AV IN
AV OUT
AUDIO AUDIO
HDMI IN
COMPONENT IN
AUDIO
VGA IN
ANT IN
VGA S-VIDEO Pr/Cr Pb/Cb Y L- -R VIDEO L- -R
AUDIO VIDEO L R
AUDIO OUT
R L
WOOFER
Audio input
for linking PC or
other appliance audio
frequency output terminals.
Earphone jack
Earphone Audio output
terminal
USB jack
6

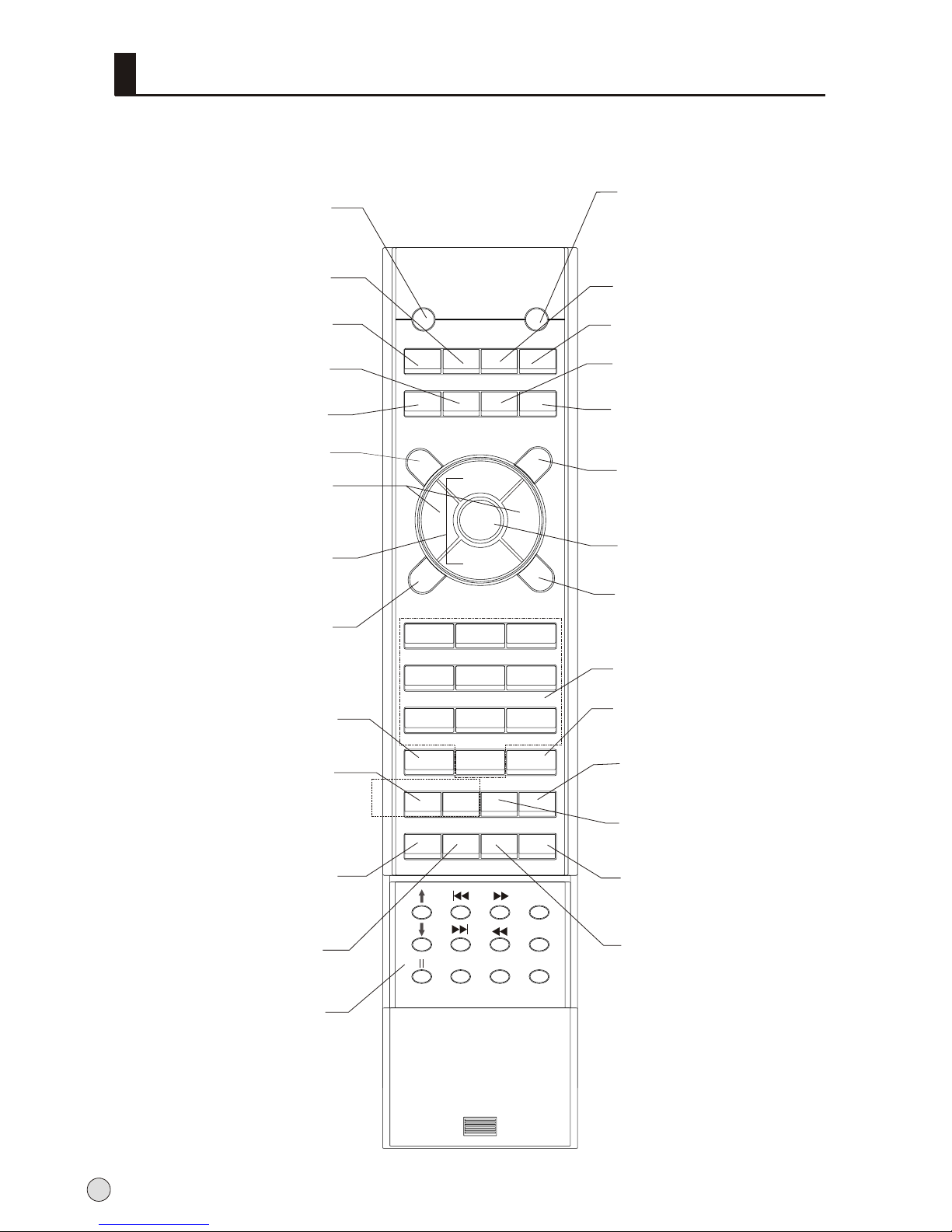

Remote controller
Precautions
Battery loading
1.Slide open the cover of the battery compartment on the back of the remote controller.
2.Load two 7# (AAA)alkaline batteries in the compartment. (plus and minus poles to
respective mark)
3.Replace the cover of the battery compartment.

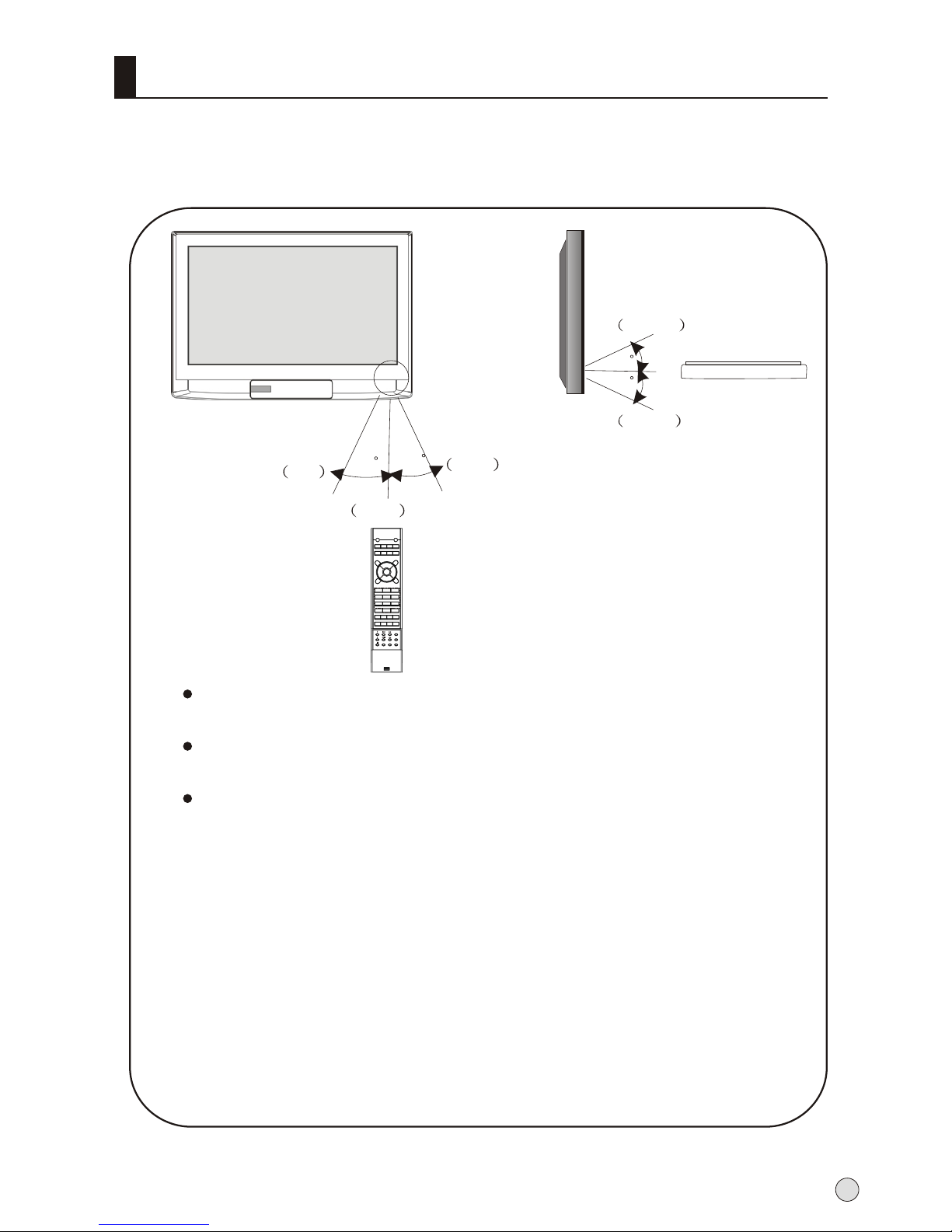

Make sure that there is no obstacle
between the remote controller and
television set.
As strong light may interfere the
signals, change your position to
operate the remote controller if
the television cannot be turned
on or off as you expect.
Keep the remote controller away from
heat source or humid area to ensure
effective performance of the remote
controller.
Make sure that two AA alkaline batteries
are loaded. The batteries must be of the
same type. The batteries must be
located properly. The batteries are not
rechargeable.
7
3
2
