USER'S MANUAL
HD Ready Digital LCD TV and
HD Ready Digital LCD TV/DVD Combi
Please read thismanual carefully before
using your televisionand keep thismanual
for future reference.

CONTENT
Note: DVD isonly available forcertain models, pleaserefer to actualproducts
Safety Notice .........................................................................................
Front Panel Control................................................................................
Connection ...........................................................................................
Remote Control(for TV/DVD Combi).........................................................
Remote Control (for TV/DTV only).............................................................
Installing Batteries..................................................................................
Connection Instructions..........................................................................
Grounding...........................................................................................
External equipment connections...........................................................
Antenna Connection..........................................................................
VGA Input.........................................................................................
YPbPr Input......................................................................................
S-VIDEO Input..................................................................................
SCART Input.....................................................................................
CI Card Input.....................................................................................
HDMI Input.........................................................................................
Basic Operating Instructions....................................................................
Turn on the LCD-TV..............................................................................
Inputs selection...................................................................................
V+/V-..................................................................................................
Mute...................................................................................................
Sound Mode........................................................................................
Select the TV Channel ..........................................................................
Picture Mode.......................................................................................
Program Swap.....................................................................................
Sleep/Scan/Zoom................................................................................
Menu Operations....................................................................................
Picture Menu Options............................................................................
Sound Menu Options..............................................................................
Function Menu Options..........................................................................
Lock Menu Options...............................................................................
Lock Menu Options Continued.................................................................
Tuning Menu Options............................................................................
Tuning Menu Options Continued..............................................................
Time Menu Options...............................................................................
Time Menu Options Continued...............................................................
TELE TEXT............................................................................................
Basic Playback......................................................................................
Advanced Playback...............................................................................
Special Function Playback......................................................................
JPEG DISC PLAYBACK........................................................................
SCREEN SAVER FUNCTION................................................................
DVD System Setup...............................................................................
General Setup Process.........................................................................
General Setup Page.............................................................................
Preferencel Page.................................................................................
Playable Discs.......................................................................................
Disc Protection and DVD Characteristics..................................................
Troubleshooting Guide...........................................................................
Specifications........................................................................................
1
2
3
4
5
6
7
7
7
7
8
8
9
10
10
10
11
11
11
11
11
12
12
12
12
12
13
14
15
16
17
18
20
21
23
24
25
27
28
29
29
29
30
30
31
32
34
35
36
37

Safety Notice
To prevent fire or electric shocks please read the instruction before
installing, using and cleaning the television.
Please read all the instructions before operation;
Please keep themanual for future reference ;
Do not use any accessories that are not recommended by the manufacturer:
Before operation, make sure the operating voltage of this unit is corresponds
with your houseelectrical supply;
Do not placethe unit on unstable or in dusty and humidplaces;
Never put theunit in direct sunlight or near heat sources;
Allow enough space for proper ventilation;
Please keep water away from the LCD-TV . If water comes in to contact with
the LCD-TV, disconnect the power cord from the power source, then wipe the
set with a dry soft cloth;
Do not removethe back cover. If servicing is required, please referto
customer helpline.

Connection
DVD
STOP PLAY/PAUSE OPEN/CLOSE
PREV NEXT
DVD insert
(Please refer to actualproduct
of the DVD slotand buttons)
Just take oneTV with DVDfor example, please see the real)
S-Video Input
SCART
Pr ANT IN
Pb
YPC AUDIO IN
HDMI Common Interface
VGA IN
HDMI
Connect to HDMI
output of other
equipment
VGA Input
Connect to theVGA
15PIN analog output
connector of thePC
display card forPC
display purpose
Component Input
Connect a component
video/audio
device to thesejacks
PC Audio Input
Connect the PC output
connector from aPC to
the audio input port
Earphone port
Antenna Input
Connect cable or
antenna signals to
the TV, either direc-
tly or through your
cable box.
AUDIO
LR
COAXIAL
Component/S-Video
Audio Input
Pr ANT IN
Pb
YPC AUDIO IN
HDMI Common Interface
VGA IN
AUDIO
LR
COAXIAL
connect to the
digital amplifier
for digital audio
output

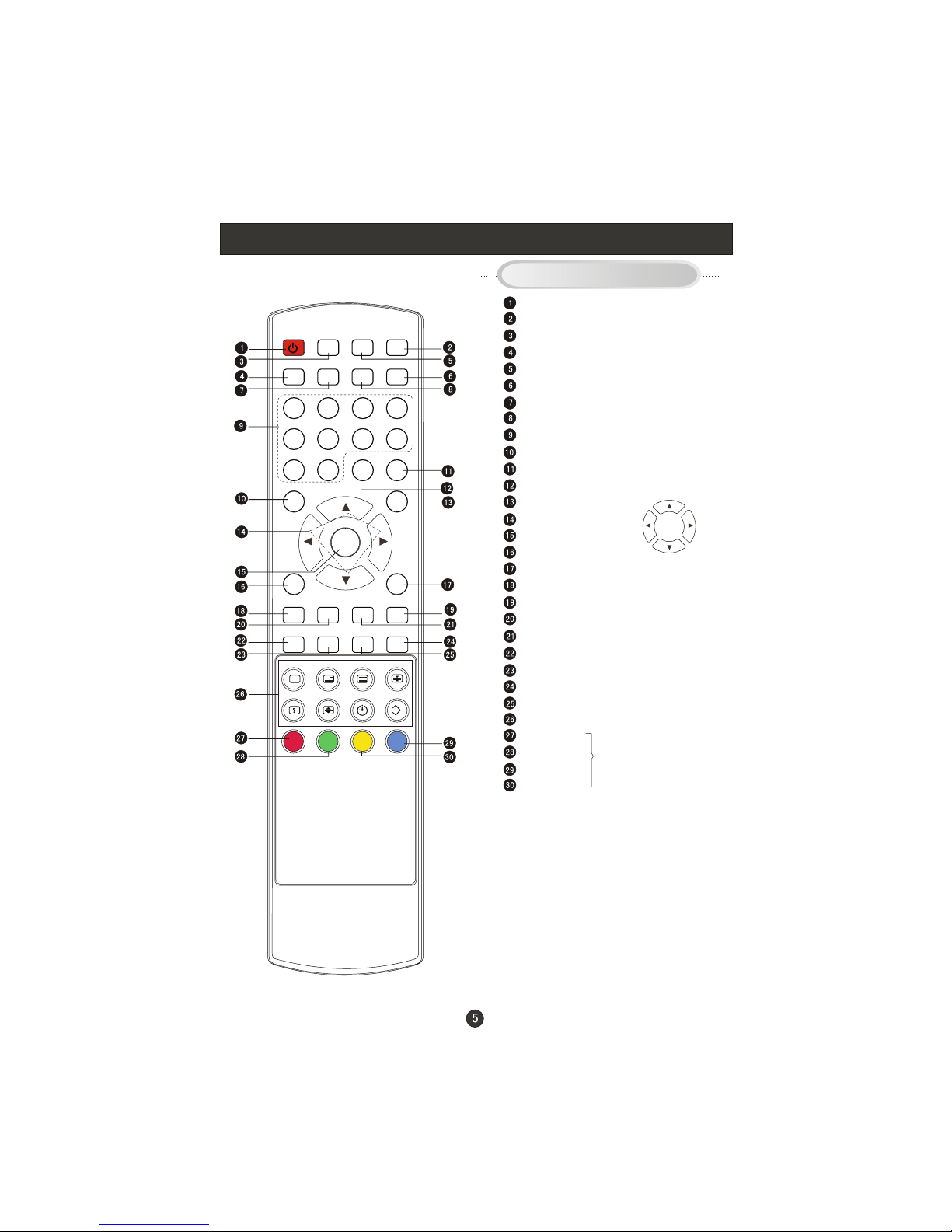

Remote Control (for TV/DVD Combi)
When using the remote control, aim it
towards the remotesensor on the TV
Stand By
DVD Open/close
Picture Mode
Scan
Sound Mode
Mute
Sleep button
Call Screen Display
Program Number
Channel selection
Source Exchange
Call menu
Volume selection
Cursor Move button
DVD play/
Channel selection
Volume selection
Zoom
Exit Screen Display
Swap
Channel list button
DVD PROGRAM/ DVB-T EPG button
DVD ANGLE/ DVB-T favourite
DVD FAST REVERSE/FORWARD
DVD /DVB-T SUBTITLE
DVD/DTV Audio /NICAM
DVD PREVIOUS
DVD SETUP
DVD NEXT
DVD SLOW
DVD STOP
DVD SEARCH
DVD REPEAT
DVD CALL
DVD A-B REPEAT
DVD 10+
DVD TITLE/PBC
Teletext buttons
Teletext index
RED button
Green button
Blue button
Yellow button
Confirm button in menu
Buttons on the remote control
STANDBY OPEN/CLOSE
SCAN SLEEP INFO MUTE
1234
5678
90
SOURCE
V+
PLAY
OK
CH- V-
ZOOM SWAP CH.LIST
PROGRAM ANGLE AUDIO SUBTITLE
REV PREV NEXT
SEARCH A-B REPEAT
10+ TITLE/PBC
D.CALL
EXIT
CH+
P. M O D E
EPG
i
INDEX
SIZE TIME
REVEAL MODE
MIX TEXT
SUBCODE HOLD
(For TV withDVD Models)
Fast text buttonin analog
signal
Function button inDVBT
(just reference theOSD)
S.MODE
F WD
D.MENU SETUP PAUSE/STEP STOP
SLOW
FAV NICAM
MENU UP
DOWN
LEFT RIGHT

Remote Control (for TV/DTV only)
When using the remote control, aim it
towards the remotesensor on the TV Buttons on the remote control
Stand By
NICAM
Mute
Source Exchange
RED button
Green button
Blue button
Yellow button
Picture Mode
Scan
Sound Mode
Sleep button
Call Screen Display
Program Number
Channel selection
Call menu
Volume selection
Cursor Move button
Channel selection
Volume selection
Zoom
Exit Screen Display
Swap
Channel list button
DVB-T EPG button
DVB-T favourite
DVB-T SUBTITLE
Teletext index
Teletext buttons
Confirm button in menu
(For TV withoutDVD Models)
Note: the instructionon this manualis
taking TV/DVD combiremote control as
an example.
STANDBY NICAM
SCAN SLEEP INFO MUTE
1234
5678
90
SOURCE
V+
OK
CH- V-
ZOOM SWAP CH.LIST
SUBTITLE
EXIT
CH+
P. M O D E
EPG INDEX
SIZE TIME
REVEAL MODE
MIX TEXT
SUBCODE HOLD
S.MODE
FAV
MENU
UP
DOWN
LEFT RIGHT
Fast text buttonin analog
signal
Function button inDVBT
(just reference theOSD)

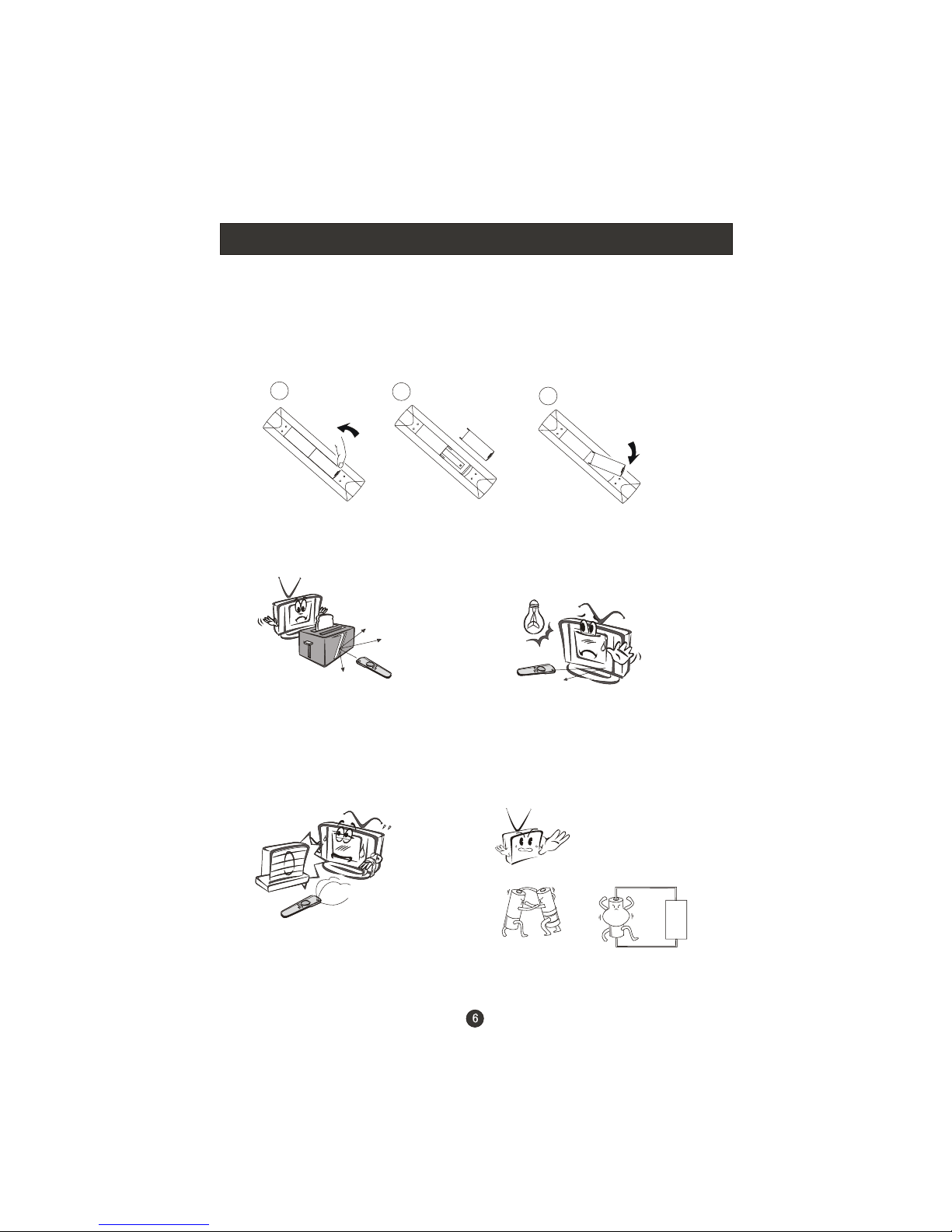

Installing Batteries
Installing Batteries
3
2
1
1.Open the coverof the battery compartment at the back of the remote
control.
2.Insert twoAA alkaline batteries in the compartment. (plus and minus poles to
respective mark)
3.Replace the coverof the battery compartment.
Precautions
Make sure that there is no
obstacle between theremote
controller and televisionset.
As strong light may interfere the
signals, change yourposition to
operate the remote controller if
the television cannot be turned
on or off as youexpect.
Keep the remote controller
away from heat source or
humid area toensure
effective performance of
the remote controller.
Make sure that two AA1.5V alkaline
batteries are loaded. The batteries
must be of the same type. The batteries
must be located properly. The batteries
are not rechargeable. If your TV is to be
stored for a period of time, remove the
batteries from the remote control.

Connection Instructions
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connectingit to telephone wires, lightening rods, or gas pipes.
Grounding
External Equipment Connections
Antenna Connection
- Antenna or Cable Service with a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wallantenna socket)
wall antenna
socket
VHF antenna
UHF antenna
outdoor
antenna
Single-family Dwellings /Houses
(Connect to walljack for outdoorantenna)
Be careful notto bend thebronze
wire when connectingthe antenna.
To improve picture quality in a poor
signal area, purchase and install a
signal amplifier.
If the antenna needs to be split for two
TV s, install a 2-Way Signal Splitter
in the connections.
If the antenna is not installed properly,
contact your dealer for assistance.
NOTE: All cables shown are just for example.
RF coaxial wire(75 ohm)
ANT IN
ANT IN

Connection Instructions
You can use your LCD-TV as a monitor for your personal computer using a VGA
cable (not supplied).

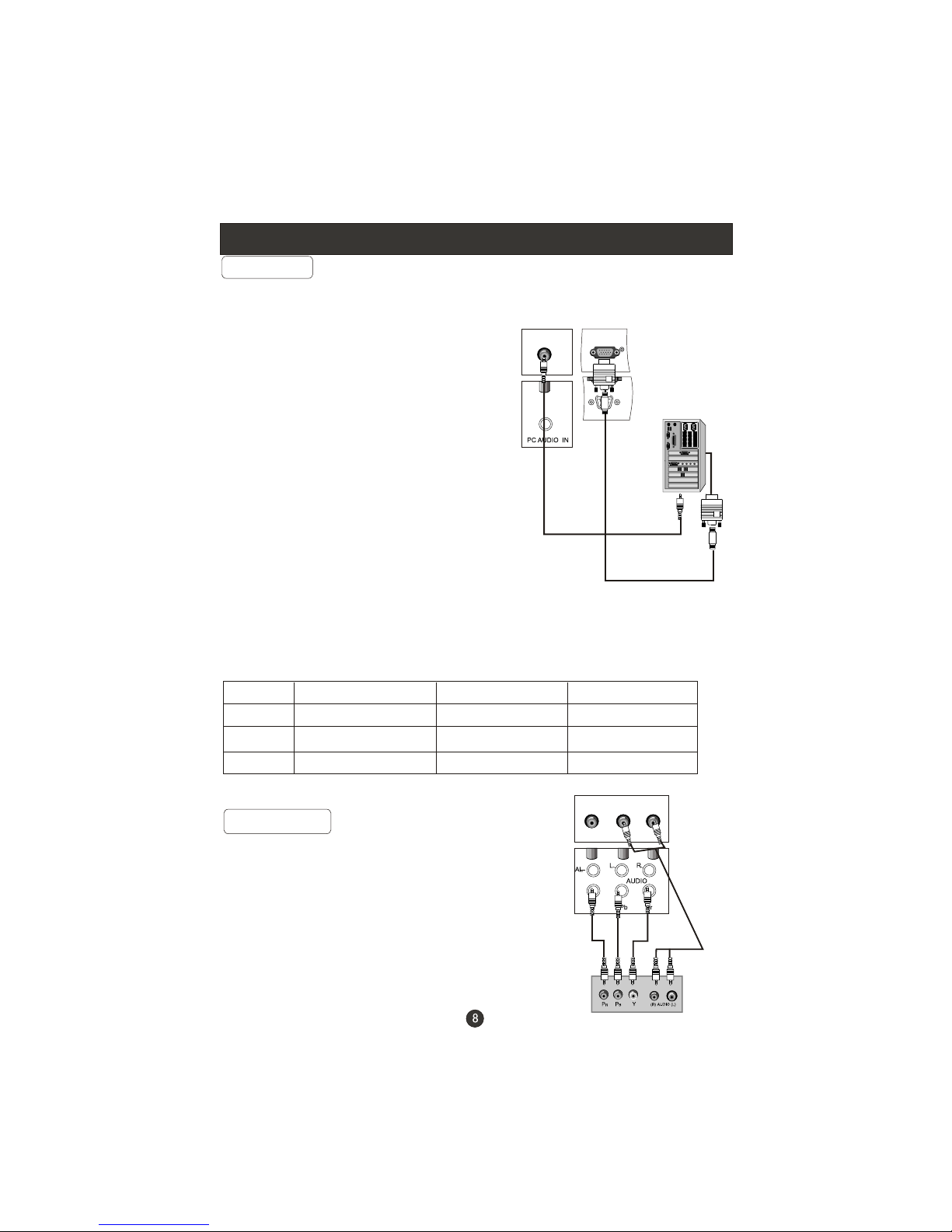

VGA Input
Connection and use steps:
1.Read the userguide supplied with
your computer and ensure that it has
a VGAconnector;
2.Make sure that the power of the LCD
-TV and thePC are off;
3.Connect a Dtype 15-pin VGAinterface
cable ( not supplied ) to the VGAvideo
interface connector on the PC. Then
connect the other end to the PC video
interface connector on the back of the
LCD-TV.Tighten the screws on the VGA
connectors once they are firmly
connected, connect the audio cable(not
supplied)to the audio input on the back of
your LCD-TV;
4.Turn on the power of the LCD-TV first ,
and then turn on the power of the PC;
5.Set the video input mode of the LCD-TV to PC;
6.Check the imageon your TV. There may be noise associatedwith the resolution,
vertical pattern, contrast or brightness in PC mode. If noise is present,change
the PC modeto another resolution, change the refresh rate to another rate or
adjust the brightnessand contrast onthe menu until the picture is clear. Ifthe
refresh rate of the PC graphic card cannot be changed,change the PC graphic
card or consult the manufacturer of the PC graphic card.
Frame frequency (Hz)Line frequency (Khz)
VGA
SVGA
XGA
640*480 31.5KHz 60Hz
800*600 37.9KHz 60Hz
1024*768 48.4KHz 60Hz
Mode Resolution
Note: Allabove listed aresubject to VESACriteria.
YPbPr Input
How to connect
Connect the DVD video outputs (Y, PB, PR)
to the Component(Y, Pb, Pr) in socket on
the TV and connect the DVD audio outputs
to the AUDIO jacks on the TV, as shown
in the figure.
NOTE: If your DVD player doesnot have
component video output, use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Set themode of the LCD-TV to Component.
VGA IN

Connection Instructions
(If connected toS-Video,select the S-Video external input source.)
3. Refer the DVD player's manual for operating instructions.
Component Input ports
To get better picture quality, connect a DVD player to the component
input ports as shown below.
S-VIDEO Input
Connection and use steps:
1.Read the user guide supplied with your AV devices and ensure that it has
S-Video connectors;
2.Make sure that the power of the LCD-TV and the AV device are switched off;
.Turn on the power of the LCD-TV first ;
and then turn on the power of the AV
device;
4.Set the video input mode of the LCD-TV
to S-Video mode .
Connection Option 1
Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
Connection Option 2
1. Connect the audio and S-Video cables
from the VCR's output jacks to the TV
input jacks, as shown in the figure.
2. Insert a video tape into the VCR and
press PLAY on the VCR. (Refer to the
VCR owner s manual.)
3
- To avoid picture noise (interference), leave an adequate distance between the
VCR and TV
.
VCR
1
2

Connection Instructions
SCART Input
1.Connect the scartlead from the external device(DVD
players, settop boxesor game consoles, to the TV SCART
socket.
2.Set the modeof the LCD-TV to SCART.
3. Press Play button on external equipment and it should
appear on the screen.
HDMI
HDMI

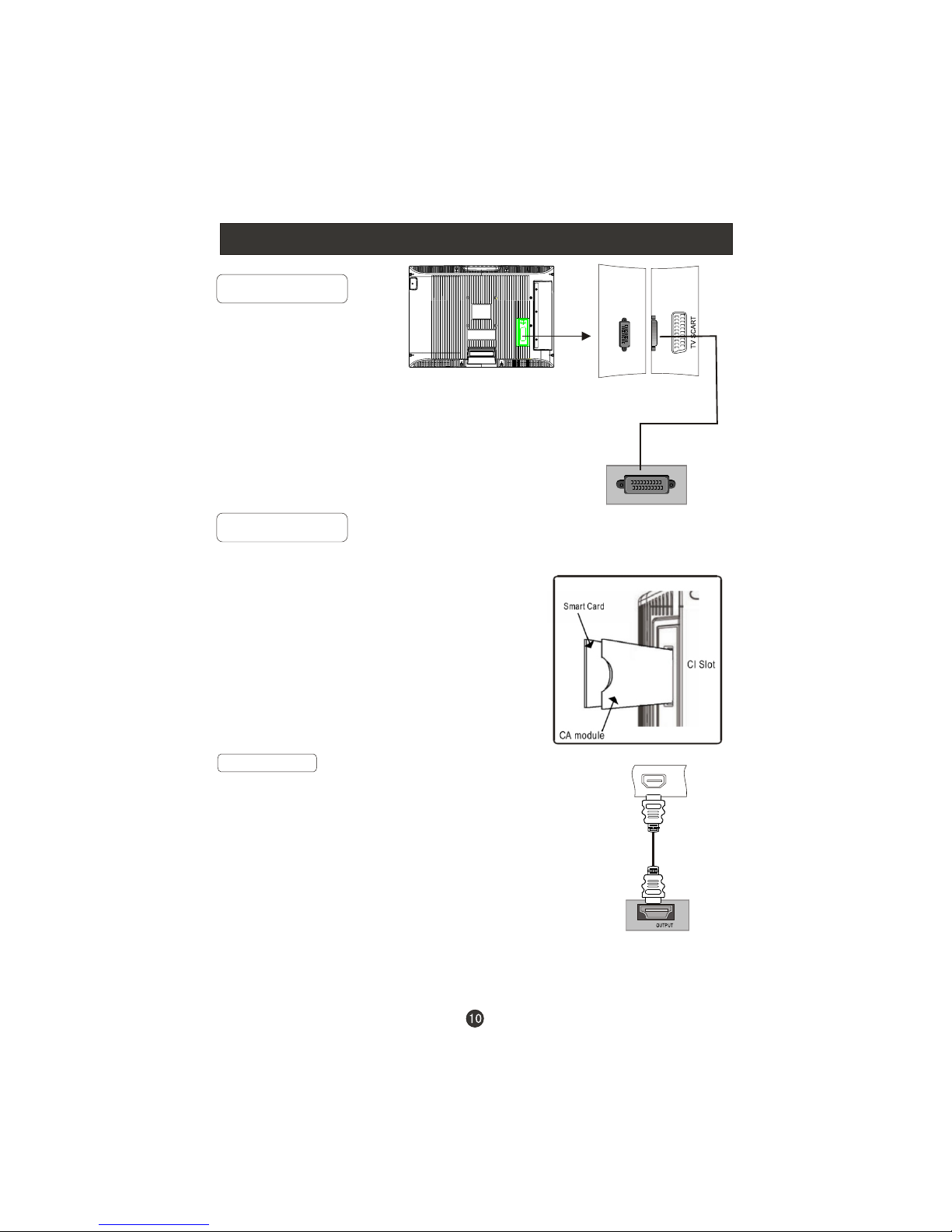

HDMI Input
HDMI Devices
Connect the cablefrom the HDMIdevices
to the TV HDMI, asshown in the figure.
How to use
1. Set themode of theLCD-TV to HDMI.
2. Operate thecorresponding external equipment.
Refer to externalequipment operating guide.
SCART
External equipment
TV
HDMI Devices
CI Card Input
The common interface(CI) slot is designed to accept the Conditional
Access (CA) Moduleand Smart card in order to
view the pay TV programmes and additional
services. Contact yourCommon Interface
service provider to get more information about
the modules and subscription. Please noted that
CA modules and smart cards are neither
supplied nor optionalaccessories from us.
Warning: switch off your TV before any module
is inserted inthe Common Interface slot.
Insert the CAM correctly, then Smart Card to the
CI slot thatis located at the side of the TV.

Basic Operating Instructions
Turn on the LCD-TV
When the POWER(STANDBY) button on the remote control is pressed and the
LCD-TV is turnedon, the indicator light on the front of the LCD-TV changes from
red to green. When the LCD-TV is turned off using the POWER(STANDBY)
button, the LCD-TVwill go into standby mode and the indicator light turns red.
You can also turnon the TV from standby mode by pressing the digits(1-9)or
CH+/CH- .
V+/V-
Press the V+/V- button to increase/decrease the volume and there will be display
on the bottom of the screen.
Mute
1.Press the MUTE button to mute the sound temporarily. A mute icon appears on
the screen.
2.Press the MUTE button again or V+ to restore the sound.
The mute icondisappears.
The display will appear on the screen
when the TV is turned on for the first
time:
Press to select the language you
want, then press to select the
Auto Search and OK to enter the submenu:
press to select the country you are in,
then press to move to the following
item and to select Start , then press
OK to confirm.
All channels will be stored after the
searching.
/
/
/
/
/
Inputs selection
Press SOURCE button to display the Source menu.
Press button to select the inputs you need and
the TV will turn to the source automatically
in 3 secondsor press OK to confirm.
/
DTV
TV
SCART
Component
PC
HDMI
S-Video
DVD
Installation Guide
Language English
Auto Search
Please select countryfirst,
Then select Startto update info.
Country selection UK
Start Cancel
EXIT MENU
OK
Source
EXIT OK

Basic Operating Instructions
Select the TV Channel
You can use thenumber keys on the remote control to directly select TV
channels.
The LCD-TV can store up to 100 channels , and you can press the CH+/CH- keys
on the remote control or on the TV set to make a selection.
Picture Mode
Press P.MODE button on the remote control for menu display . For desired mode as
follows:
Standard Mild Personal Fresh
Program Swap
1 S
2
3
uppose the TV set is in channel 8 just now and in channel 18 now .
If you want to return to the last watched program in channel 8, you can simply press
the SWAP button.
If you want to return to channel 18, press the button again. Through this function, you
can easily change between the channel you are watching and the channel you watched
just now.
Sleep
Press SLEEP button to set the sleep timer among Off/10min/20min/30min/60min/90min
/120min/180min/240min.
If 1 minute left, the 59Sec. TO POWER OFF will appear on the screen. The TV turns
off automatically when the 1Sec. TO POWER OFF is on.
Scan
Press SCAN button to skim the channels . You can press SCAN again stop scanning.
Sound Mode
Press S.MODE button on the remote control for menu display . For desired
mode as follows:
Standard Music Theatre Voice Personal
Zoom
Press to zoom the picture .

Menu Operations
1. Press MENU button to display the main menu, and to select the
main menu .
2. Press to scroll through the options
3. Press buttons to make changes tothe parameters
4. Press MENU to exit the menu step by step
5. Press the EXIT button to exit the menu
/
/
/
PICTURE MENU SOUND MENU
FUNCTION MENU
TUNING MENU
EXIT MENU
OK
Video Mode Personal
Contrast
Brightness
Colour
Sharpness
Tint
50
50
50
50
0
EXIT MENU
OK
SOUND
Audio Language English
Audio Mode Personal
Treble
Bass
Balance
AVL Off
50
50
0
EXIT MENU
OK
FUNCTION
Language English
Subtitle Language English
Display Mode Auto
Blue Screen Off
Reset
EXIT
MENU
OK
TUNING
Auto Search
DTV Manual Search
ATV ManualSearch
Guide
CI Information

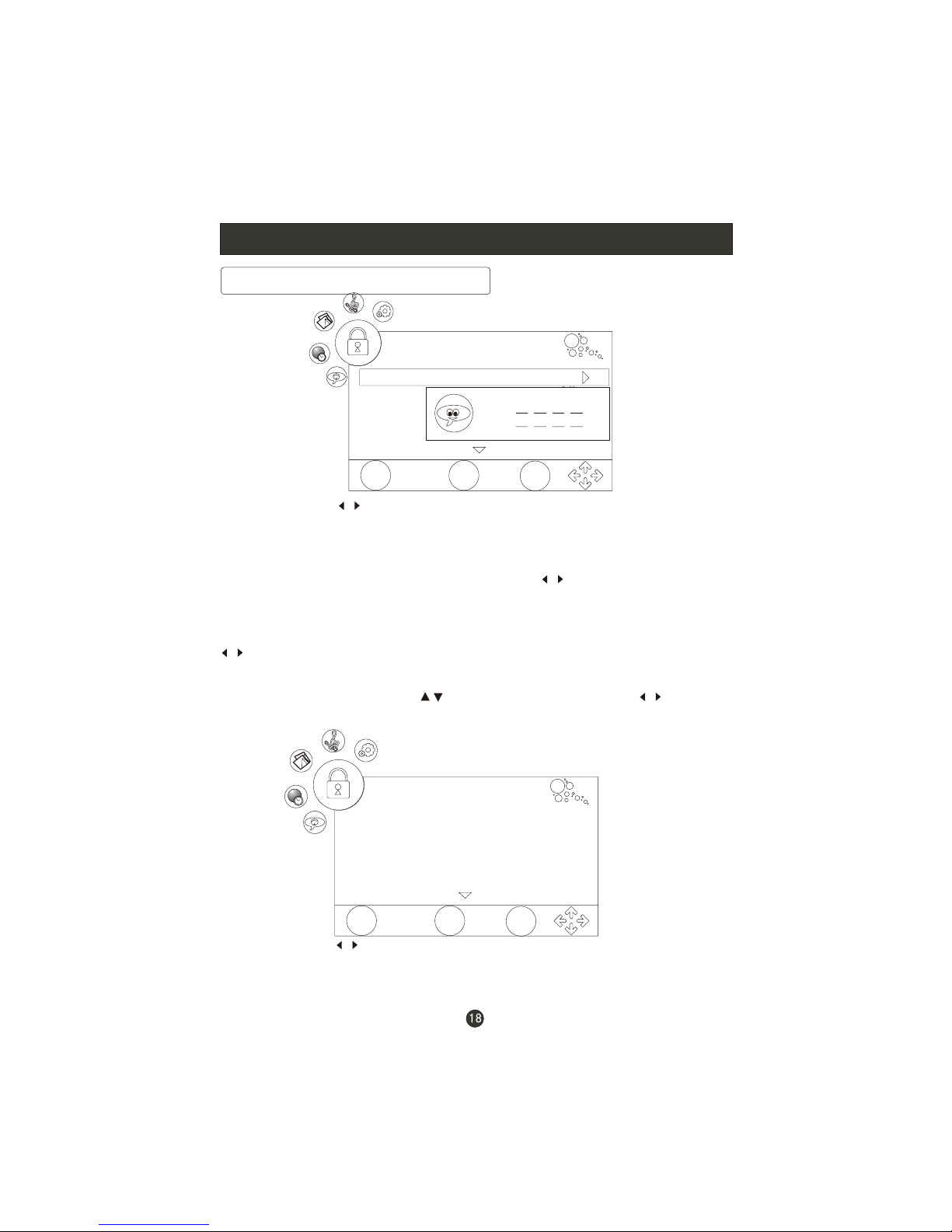

LOCK MENU
LOCK
Change Password
Menu Lock Off
Program Set Off
Program No . 1
Source Lock
Child Lock Off
MENU
OK
EXIT
EXIT MENU
OK
TIME
Clock -- ---- --
Off Time Off
On Time Off
Sleep Off
Time Zone Lisbon GMT
TIME MENU

Menu Operations
3.Press button to increase and decreasethe level to match your preference .
4. Repeat step 2 and step 3 until desired picture quality has been achieved .
/
Functions:
Video Mode: Press to set the picture mode .
Contrast : Used to set the contrast balance of the picture.
Brightness : Used to set the brightness level of the picture.
Colour : Press to adjust thecolour saturation of the picture..
Sharpness : By increasing the level, it will show cleaner and clearer images
and by decreasing the level, it will make picture smoother.
Tint(Only available in NTSC): Set the colour tone of the picture.
Colour Temperature : Pressto select the colour temperature from Normal/Cool/
Warm .
Noise Reduction:Adjust the quality of the picture by selecting Off,Low,
Middle,High.
PC Adjust(can be adjust only in PC mode and thereis PC signal): Press OK button
to enter the submenu. Press to adjust the value.
/
/
/
Picture Menu Options
Picture quality can be adjusted for any input separately .
The picture qualityon the screen can be adjusted as follows:
1. Press MENU button and until the picture menu appears on the screen.
2. Press button to enter the picture menu and go up and downto select
the desired option .
/
/
NOTE: Using your remote control to navigate in the on-screen menus.
The on-screen menusshown in thismanual may bedifferent from those on yourTV.These
are example toillustrate your TVs operation.
EXIT MENU
OK
Auto Sync
H.Position
V.Position
Size
Phase
50
50
50
0

Menu Operations
2. Press button to enter the sound menuand up and down to
select the desired option .
3.Press button to increase and decrease the level to match your preference.
4. Repeat step 2 and step 3 until desired sound quality has been achieved .
//
/
Functions :
Audio Mode :Press to select among Music/Theatre/Voice/Personal/
Standard.
Treble : Increases or decreasesthe level of the treble sounds.
Bass : Increases or decreasesthe level of the bass sounds.
Audio Language(only available in DTV mode) : Press OK to enter the submenu.
Then press to select the Primary and the Secondary item and press
to select the language you need.
/
/
Sound Menu Options
Sound can beadjusted as follows:
1. Press MENU and button until the following menu appears on the screen
/
EXIT MENU
OK
SOUND
Audio Language English
Audio Mode Personal
Treble
Bass
Balance
AVL Off
50
50
0
Auto Sync: Adjust thepicture location frequency and phase parameters
automatically in PC.
H.Position: Picture horizontaladjust.
V.Position: Picture vertical positionadjust.
Phase: Removes any horizontal distortion and clears or sharpness the
displayed characters.
Size: Adjust the size of the LCD to match the PC input source.

Menu Operations

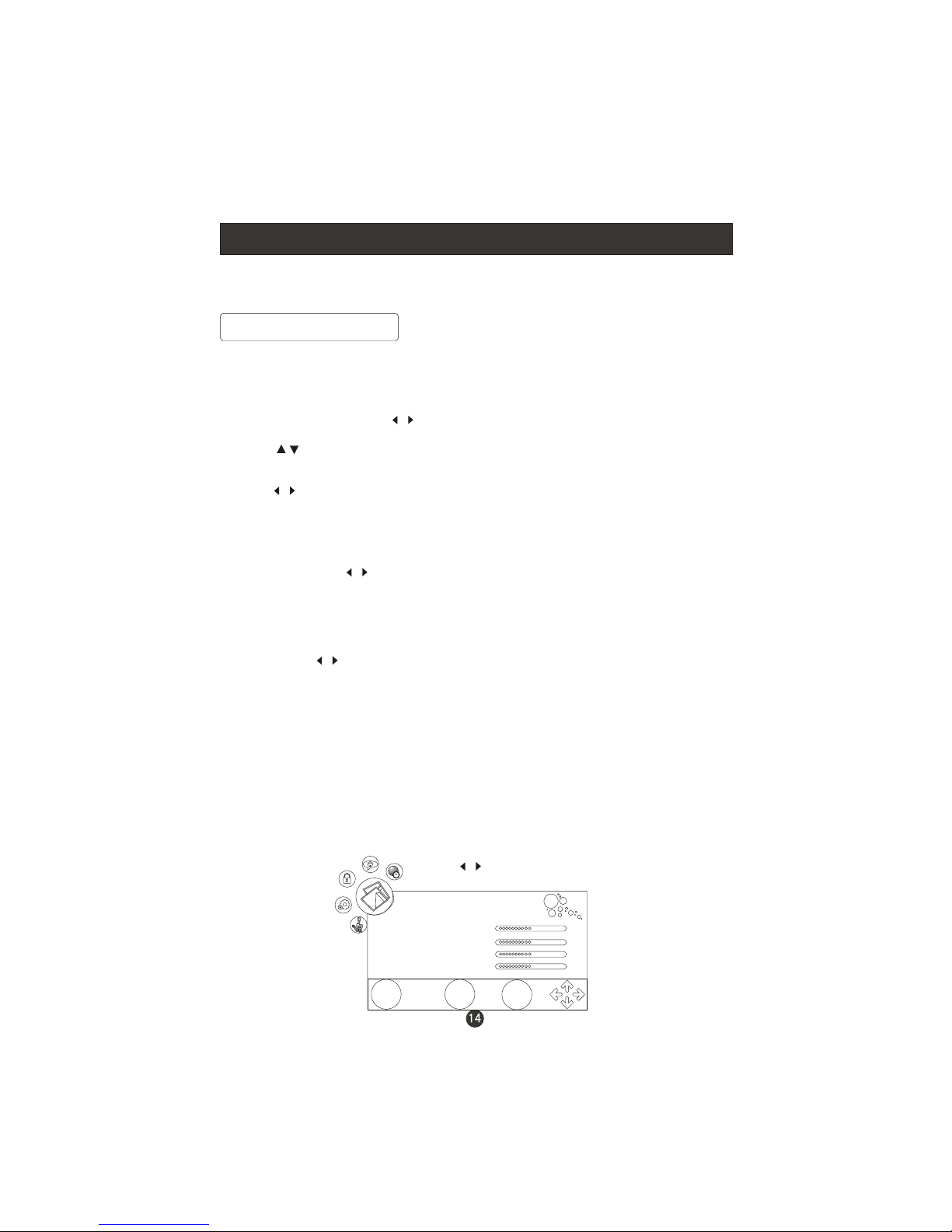

Function Menu Options
1. Press MENU button and until the following menu appears on the screen.
2. Press button to enter the function menu and go up and down to
select the desired option .
3.Press button to increase and decreasethe level to match your preference .
4. Repeat step 2 and step 3 until desired function quality has been achieved .
Functions:
1. Language: Used to set the language of the on-screen display.
2. Subtitle Language (in DTV mode only): To switch the subtitle languages .
3
4.
.Display Mode: Used to set the aspect ratio of the display. Choices include
( Display mode may differ from different
inputs. )
Auto
/Full Screen/Zoom1/Zoom2/4:3/16:9
Blue Screen: Usedto turn the blue screen option On or Off. With theoption on,
your TV screen turns blue after 3 seconds without an input signal.
5. Reset :Press OK button to enter the dialogue Are yousure? And press
to select Yes, then press OK button to reset the TV setting to factory default.
/
/
/
/
EXIT MENU
OK
FUNCTION
Language English
Subtitle Language English
Display Mode Auto
Blue Screen Off
Reset
Note: Bass andTreble can be adjust in any audio mode, and if the numerical
value is changed,the audio mode will be changed to personal automatically.
Balance : Adjust the audio output between left and right speakers.
AVL: Automatic Volume Limit Control . Reduces the differences in volume level
between different broadcasters.

Menu Operations
Lock Menu Options
1. Press MENU button and until the following menu appears on the screen.
2. Press OK button to display the following menu .
Press the numberbuttons (0~9) to enter the password.
3.Press button to go up and down to select the desired option .
4.Press button to increase and decreasethe level to match your preference .
5.Repeat step 3 and step 4 until desired quality has been achieved .
(The initial password is
0000. If you forget your password, you can enter at any time to access the
lock menu), thelock menu opens.
9443
/
/
/
EXIT MENU
OK
LOCK
Change Password
Menu Lock Off
Program Set Off
Program No . 1
Source Lock
Child Lock Off
EXIT MENU
OK
LOCK
Change Password
Menu Lock Off
Program Set Off
Program No . 1
Source Lock
Child Lock Off
Please enter password
Functions:
1. Change Password: The password canbe changed. Press OK to enter the menu
as follows. Enter the password , if the same password is entered correctly twice,
the old password will be changed.

Menu Operations
Lock Menu Options Continued
Menu Lock: Press to select
Program Set: Usedto set up start condition. Press to select among the
inputs signals. The setted mode will be entered if the TV is switched off and on
again. To set Off, the TV will memory the off-mode.
Program No.(it canonly be selected when the Program Set is DTV or TV):
Source Lock: Opted to hinder external input modes, such as PC.Press OK to
display menu asfollows. Press to select the option, andpress
to set on or off. If you want to cancel some source mode, enter lock menu and
set it off or active clear lock.
Off/Tuning/Main Menu.
To set Tuning, the search function will be locked, to set Main Menu, you will need
input the password if you want to operation any menu.And you can resume it by
setting Off or operate Clear Lock.
Press
to select the channel number you want to watch when the TV on again.
/
/
/
//
EXIT MENU
OK
LOCK
Change Password
Menu Lock Off
Program Set Off
Program No . 1
Source Lock
Child Lock Off
Please enter password
New
Confirm
EXIT MENU
OK
LOCK
DTV
TV
SCART
Component
PC
HDMI
Off
Off
Off
Off
Off
Off
Child Lock: Press button to set on or off mode. If lock on mode is set, child
lock is inactivatedautomatically. In such case, buttons onthe television isuseless
and only buttons on remote control can be used
The child lock mode
can be resumedby entering Lock set menu, set child lock off or active Clear Lock .
, if child lock button(button on the
television) is pressed,the screen will display Child Lock.
/
