Haier HMV1640AHB User manual

Microwave Oven
Four à micro-ondes
Horno de microondas
User Manual
Guide de l’utilisateur
Manual del usuario
HMV1640AHB
HMV1640AHW
Part # 0570000219 REV B

1
TABLE OF CONTENTS
MICROWAVE OVEN SAFETY ...............................................................................2
Microwave Energy Safety ............................................................................................. 5
Electrical Requirements ................................................................................................ 6
PARTS AND FEATURES .......................................................................................7
Install Turntable ............................................................................................................. 8
MICROWAVE OVEN USE...................................................................................... 9
Control Panel ................................................................................................................. 9
Clock............................................................................................................................... 9
Options ........................................................................................................................10
Cookware .....................................................................................................................11
Microwave Cooking .....................................................................................................12
MICROWAVE OVEN CARE ................................................................................. 15
General Cleaning ..................................................................................... 15
Removing/Cleaning/Replacing Filters........................................................................16
Light Bulb Replacement ..............................................................................................18
TROUBLESHOOTING........................................................................................ 21
LIMITED WARRANTY ........................................................................................ 22
RECORD KEEPING
Thank you for purchasing this Haier
product. This user manual will help you
get the best performance from your
new microwave.
For future reference, record the model
and serial number located on the inside
frame of the microwave, and the date
of purchase.
Staple your proof of purchase to this
manual to aid in obtaining warranty
service if needed.
___________________________________
Model number
___________________________________
Serial number
___________________________________
Date of purchase

2
MICROWAVE OVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages.
DANGER
WARNING
CAUTION
This is the safety alert symbol.
This symbol alerts you to potential hazards that can
kill or hurt you and others. All safety messages will
follow the safety alert symbol and either the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
An imminently hazardous situation. You
could be killed or seriously injured if you
don’t immediately follow instructions.
A potentially hazardous situation
which, if not avoided, could result in
death or serious bodily injury.
A potentially hazardous situation
which, if not avoided, may result in
moderate or minor injury.
All safety messages will tell you what the potential hazard is, tell you
how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.

3
IMPORTANT SAFETY
INSTRUCTIONS
When using electrical appliances basic safety precautions should be
followed, including the following:
WARNING: To reduce the risk of burns, electric shock, re, injury to
persons, or exposure to excessive microwave energy:
• Read all instructions before
using the microwave oven.
• Read and follow the specic
“PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE
ENERGY” found in this
section.
• The microwave oven must
be grounded. Connect
only to properly grounded
outlet. See “GROUNDING
INSTRUCTIONS” found in the
“Electrical Requirements”
section and in the provided
Installation Instructions.
• Install or locate the
microwave oven only in
accordance with the provided
Installation Instructions.
• Microwave is suitable for use
above both gas and electric
cooking equipment.
• Intended to be used above
ranges with maximum width
of 36" (91.44 cm).
• Some products such as whole
eggs in the shell and sealed
containers - for example,
closed glass jars - can explode
and should not be heated in
the microwave oven.
• Use the microwave oven
only for its intended use as
described in the manual. Do
not use corrosive chemicals
or vapors in the microwave
oven. This type of oven is
specically designed to heat,
cook, or dry food. It is not
designed for industrial or
laboratory use.
• As with any appliance, close
supervision is necessary
when used by children.
• Do not operate the
microwave oven if it has a
damaged cord or plug, if it
is not working properly, or
if it has been damaged or
dropped.
• The microwave oven should
be serviced only by qualied
service personnel. Call an
authorized service company
for examination, repair, or
adjustment.
• Do not cover or block any
openings on the microwave
oven.
• Do not store or use this
microwave oven outdoors. Do
not use the microwave oven
near water - for example,
near a kitchen sink, in a wet
basement, near a swimming
pool, or similar locations.

4
IMPORTANT SAFETY
INSTRUCTIONS
• Do not immerse cord or plug
in water.
• Keep cord away from heated
surfaces.
• Do not let cord hang over
edge of table or counter.
• See door surface cleaning
instructions in the
“Microwave Oven Care”
section.
To reduce the risk of re in the
oven cavity:
• Do not overcook food.
Carefully attend the
microwave oven when paper,
plastic, or other combustible
materials are placed inside
the oven to facilitate cooking.
• Remove wire twist-ties from
paper or plastic bags before
placing bags in oven.
• If materials inside the oven
ignite, keep oven door closed,
turn oven o, and disconnect
the power cord, or shut o
power at the fuse or circuit
breaker panel.
• Do not use the cavity for
storage purposes. Do not
leave paper products, cooking
utensils, or food in the cavity
when not in use.
To reduce the risk of injury to
persons:
• Do not overheat the liquid.
• Liquids, such as water, coee,
or tea can be overheated
beyond the boiling point
without appearing to be
boiling. Visible bubbling or
boiling when the container is
removed from the microwave
oven is not always present.
THIS COULD RESULT IN VERY
HOT LIQUIDS SUDDENLY
BOILING OVER WHEN THE
CONTAINER IS DISTURBED
OR A SPOON OR OTHER
UTENSIL IS INSERTED INTO
THE LIQUID.
• Stir the liquid both before and
halfway through heating it.
• Do not use straight-sided
containers with narrow necks.
• After heating, allow the
container to stand in the
microwave oven for a short
time before removing the
container.
• Use extreme care when
inserting a spoon or other
utensil into the container.
• Do not store anything directly
on top of the microwave oven
when the microwave oven is
in operation.
• Clean Ventilating Hoods
Frequently - Grease should
not be allowed to accumulate
on hood or lter.

5
IMPORTANT SAFETY
INSTRUCTIONS
• Use care when cleaning the
vent-hood lter. Corrosive
cleaning agents, such as lye-
based oven cleaners, may
damage the lter.
• When ambéing foods under
the hood, turn the fan on.
READ AND SAVE THESE
INSTRUCTIONS
MICROWAVE ENERGY SAFETY
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate
this oven with the door open
since open-door operation
can result in harmful exposure
to microwave energy. It is
important not to defeat
or tamper with the safety
interlocks.
(b) Do not place any object
between the oven front face
and the door or allow soil or
cleaner residue to accumulate
on sealing surfaces.
(c) Do not operate the oven if it
is damaged. It is particularly
important that the oven door
close properly and that there is
no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken
or loosened),
(3) Door seals and sealing
surfaces.
(d) The oven should not be adjusted
or repaired by anyone except
properly qualied service
personnel.

6

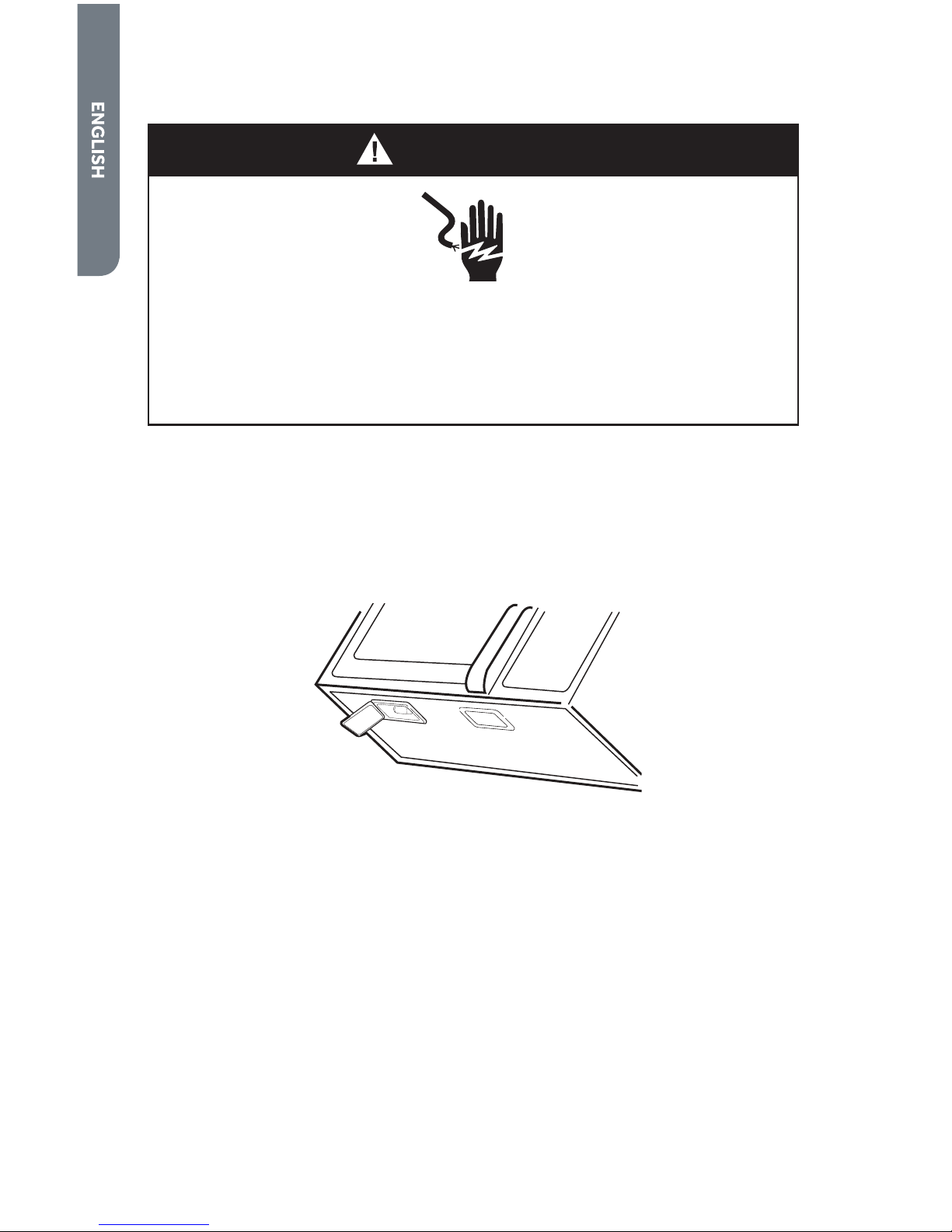

ELECTRICAL REQUIREMENTS
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power cord plug.
Do not use an adapter.
Do not use an extension cord.
Failure to do so can result in death, fire or electrical shock.
Observe all governing codes and ordinances.
Required:
A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply with a fuse or circuit
breaker.
Recommended:
A time-delay fuse or time-delay circuit breaker.
A separate circuit serving only this microwave oven.
GROUNDING INSTRUCTIONS
For all cord connected
appliances:
• The microwave oven must
be grounded. In the event
of an electrical short circuit,
grounding reduces the risk of
electric shock by providing an
escape wire for the electric
current. The microwave
oven is equipped with a cord
having a grounding wire
with a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
WARNING: Improper use of
the grounding plug can result
in a risk of electric shock.
Consult a qualied electrician
or serviceman if the grounding
instructions are not completely
understood, or if doubt exists as
to whether the microwave oven
is properly grounded.
Do not use an extension cord.
If the power supply cord is too
short, have a qualied electrician
or serviceman install an outlet
near the microwave oven.
SAVE THESE INSTRUCTIONS
This device complies with Part 18 of the FCC Rules.

7

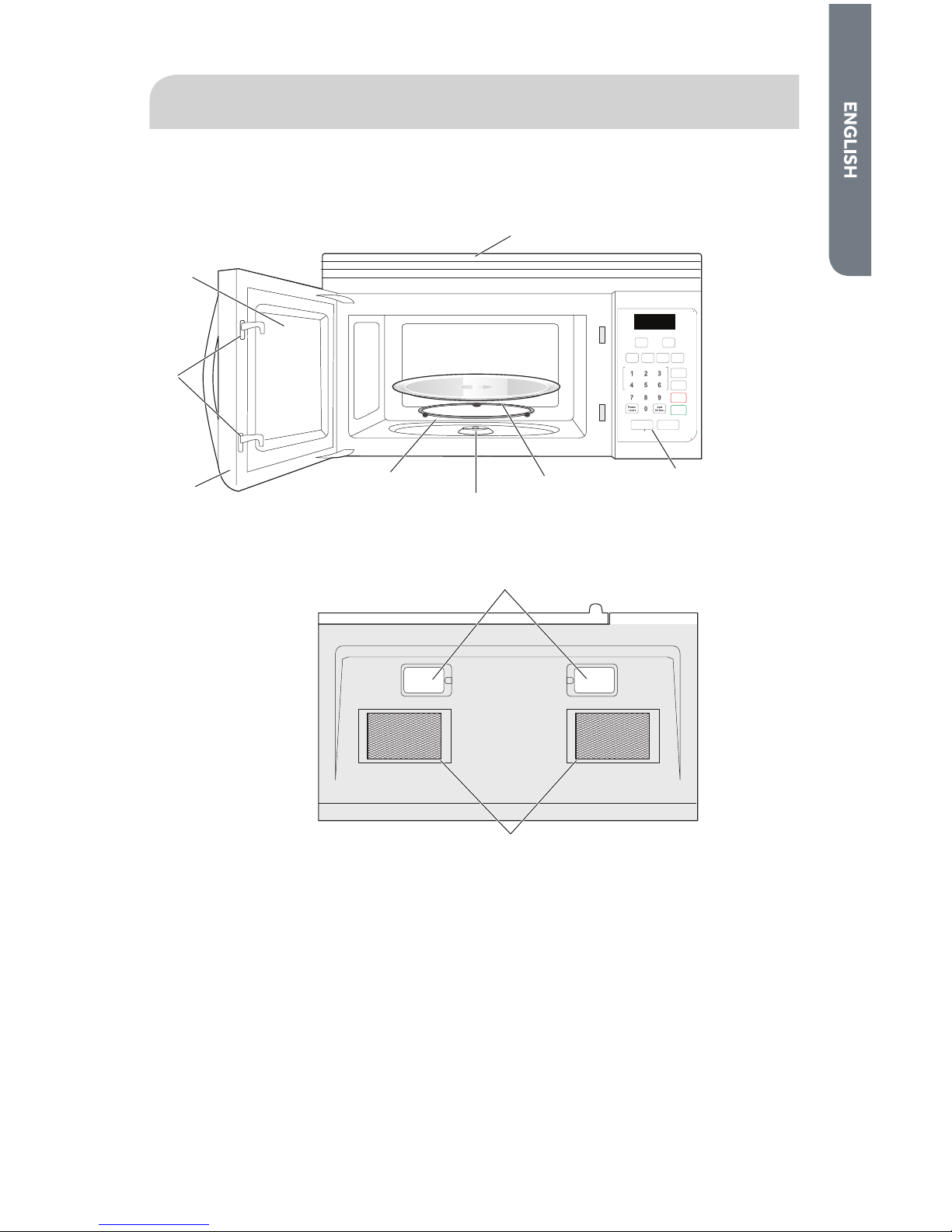

PARTS AND FEATURES
1. Remove the oven from the carton, and all materials from the oven cavity.
2. Properly dispose of/recycle all packing material.
FRONT VIEW
Defrost
T
Coo
ime
k
Reheat
Timer
EXPRESS COOK
Clock
AM/PM
Vent F
Hi/Lo/Off
an Su
On/Off
rface Light
Front
Rear
BOTTOM VIEW
a
b
cdfg
h
e
i
j
a Window
b Interlock System
c Door Assembly
d Turntable Ring Assembly
e Turntable Shaft
f Turntable Glass Tray
g Control Panel
h Ventilation Openings (on top)
i Surface Lights
j Ventilation Filters

8

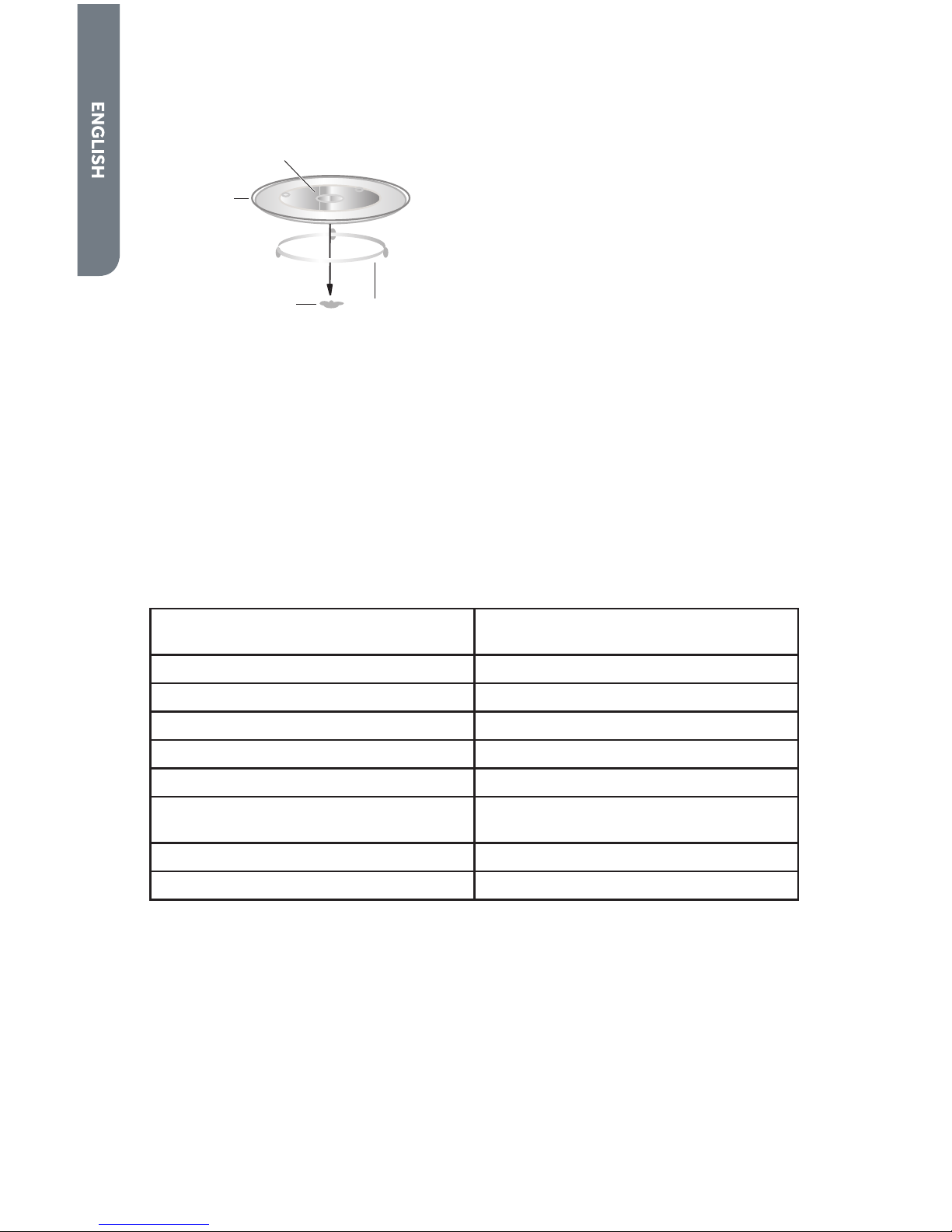

INSTALL TURNTABLE
a
b
c
d
a Hub (underside)
b Glass Tray
c Turntable Shaft
d Turntable Ring Assembly
NOTES:
• Do not place the glass tray upside down.
• The glass tray should never be restricted.
• Both the glass tray and turntable ring assembly must always be used during
cooking.
• Place all food and containers of food on the glass tray for cooking.
• If glass tray or turntable ring assembly cracks or breaks, contact the nearest
authorized service center.
SPECIFICATIONS
Model: HMV1640AHB
HMV1640AHW
Rated Voltage: 120V~60Hz
Rated Input Power (Microwave): 1550 Watt
Rated Output Power (Microwave): 1000 Watt
Oven Capacity: 1.6 cu.ft
Turntable Diameter: 13.60 inches
External Dimensions (L x W x H): 29" x 15" x 15”
(75.9 cm x 40 cm x 38.1 cm)
Net Weight: approx. 55.1 lbs
Incandescent Light Bulbs 30W max. Appliance Bulb

9
MICROWAVE OVEN USE
IMPORTANT: Never operate the oven without food in the oven cavity; this
can damage the magnetron tube or glass tray. You may wish to leave a cup of
standing water inside the oven when it is not in use to avoid damage if the oven is
unintentionally turned on.
CONTROL PANEL
a
b
h
c
d
e
g
i
j
k
l
fm
Start/
Pause
Stop/
Clear
Time
Cook
Popcorn Baked
Potato ReheatBeverage
Timer
EXPRESS COOK
Clock
AM/PM
Vent Fan Surface Light
Defrost
Auto/Time
a Display Screen
b Clock AM/PM: To set
the current time.
c Auto Menu Pads
d Number Pads
e Power Level
f Vent Fan Hi/Lo/O
g Timer
h Time Cook
i Defrost Auto/Time
j Stop/Clear: Clears
all previous settings
when pressed before
cooking starts.
During cooking:
press once to stop
oven; twice to stop
and clear all entries.
k Start/Pause
l Add 30 Sec.
m Surface Light On/O
CLOCK
Your model features a 12-hour clock that displays time from 1:00 to 12:59.
Set Time of Day
1. Press CLOCK/AM/PM to enter the Clock Setting mode. The AM indicator will
illuminate, and “00:00” will ash to remind you to input the time.
2. Press CLOCK/AM/PM again to select AM or PM. The corresponding AM or PM
indicator will light.
3. Press the number pads to enter the correct time. For example, if the time is
10:12, press number pads “1, 0, 1, 2” to enter the time.
4. Press CLOCK/AM/PM to conrm the time.

10
Kitchen Timer
IMPORTANT: When the Kitchen Timer is activated, the vent fan and surface light
can be turned on, but the cooking functions cannot be used.
1. Press TIMER. The timer indicator will illuminate.
2. Press the number pads to input the desired cooking time.
NOTE: The maximum cooking time is 99 minutes and 99 seconds.
3. Press TIMER to begin counting down the time.
NOTE: When the time has expired, an alert tone will sound and “OFF” will display.
4. Press TIMER to exit the timer function.
OPTIONS
Vent Fan
NOTE: The fan speed cannot be adjusted if the control panel is locked.
• Press VENT FAN HI/LOW/OFF to Turn On/O the fan and to regulate the fan
speed.
High Speed - Press once
Low Speed - Press twice
O - Press three times
Surface Lighting
• Press SURFACE LIGHT ON/OFF to Turn On/O the light over the range.
ON - Press once.
OFF - Press twice.
Child Lockout
The Child Lock feature allows you to lock the microwave control panel for easy
cleaning or to avoid unintentionally changing the settings or turning on the
microwave oven.
• To Lock/Unlock the Control Panel: Press STOP/CLEAR for 3 seconds. Two beeps
will sound to indicate the Lock has been activated/deactivated.
Status Recall
The Status Recall feature allows you to check the Time and Power settings during
microwave cooking.
• Press POWER LEVEL to display the set power level.
• Press CLOCK/AM/PM to display the time.

11
COOKWARE
IMPORTANT: Tightly closed containers could explode. Closed containers should be
opened and plastic pouches should be pierced before cooking.
MICROWAVE-SAFE
• Browning dish (Sold separately. Follow manufacturer recommendations.)
• Ceramic glass, Glass
• China, Earthenware (Follow manufacturer recommendations.)
• Melamine (Follow manufacturer recommendations.)
• Paper towels, Paper Plates, Napkins (Use non-recycled paper.)
• Plastic wraps, Bags, Covers, Dinnerware, Containers (Follow manufacturer
recommendations.)
• Pottery and Clay (Follow manufacturer recommendations.)
• Silicone bakeware (Follow manufacturer recommendations.)
• Wax paper
DO NOT USE
• Metal cookware and bakeware
• Straw or Wicker
• Gold, silver or pewter
• Non-approved meat thermometers, skewers
• Twist ties
• Foil liners, such as sandwich wrappers
• Staples
• Objects with gold or silver trim or with metallic glaze
• Wood
To Test Cookware/Dinnerware:
Place dish in microwave oven with 1 cup (250 mL) of water beside it. Program 1
minute of cook time at 100%. If dish becomes hot and the water stays cool, do not
use the dish in the microwave oven.

12
MICROWAVE COOKING
SINGLE-STAGE COOKING
1. Press TIME COOK to select microwave cooking. “00:00” will ash to remind you
to input the cooking time.
2. Press the number pads to set the cooking time. For example, to cook for 10
minutes, press “1,0,0,0” in turn.
NOTES:
• The maximum cooking time is 99 minutes 99 seconds.
• 100% power is the default. If you wish to cook at 100% power, skip steps 3
and 4, and go directly to Step 5.
3. Press POWER LEVEL to activate Power mode.
4. Press the number pads to select the power level.
5. Press START/PAUSE to begin cooking. The time will count down.
NOTE: When cooking is nished, an alert tone sounds 5 times.
Power Levels
Ten power levels are available.
Level 10 9 8 7 6 5 4 3 2 1
Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10%
Display PL 10 PL 9 PL 8 PL 7 PL 6 PL 5 PL 4 PL 3 PL 2 PL 1
MULTI-STAGE COOKING
At most, two stages can be input.
For example: To cook the food with 100% microwave power for 10 minutes and then
cook with 80% microwave power for 15 minutes, see following instructions:
1. Press TIME COOK to select microwave cooking.
2. Press “1”,”0”,”0”,”0” to input the cooking time.
3. Press POWER LEVEL to choose 100% microwave power.
4. Press TIME COOK to choose microwave cooking.
5. Press “1”,”5”,”0”,”0” to input cooking time.
6. Press POWER LEVEL to select the microwave power.
7. Press the 8 number pad to select 80% microwave power.
8. Press START/PAUSE to begin cooking.
NOTES:
• Only Microwave cooking can be programmed for multi-stage cooking. Defrost
and Auto programs cannot be set for multi-stage cooking.
• When the rst stage is completed an alert tone will sound once, and then the
second stage begins.
• During cooking, press ADD 30 SEC. to add cooking time in increments of
30 seconds for a maximum of 99 minutes and 99 seconds.

13
CONVENIENCE COOKING
• Press ADD 30 SEC. to begin cooking at 100% microwave power for 30 seconds.
• Press ADD 30 SEC. during microwave cooking, to increase the cooking time in
30-second increments.
NOTE: The maximum cooking time is 99 minutes and 99 seconds.
• Press number pads from 1 to 6 to start cooking with 100% microwave power for
1-6 minutes.
NOTE: During Convenience cooking, the microwave power level can be viewed
and adjusted.
• Press POWER LEVEL, to display the current power level.
• Press a number pad to adjust the power level, if desired.
DEFROSTING
Defrost By Weight
1. Press DEFROST AUTO/TIME once to select defrost by weight function. The
Defrost indicator will illuminate, and “lb” and “0.0” will ash.
2. Press the number pads from 0 to 9 to input the defrost weight. For example: if
the food weight is 1.2 lbs, then press “1”,”2” to input the weight.
NOTE: The maximum weight is 6.0 Lbs.
3. Press START/PAUSE to begin defrosting. Indicator “lb” will not be lit.
Defrost By Time
1. Press DEFROST AUTO/TIME twice to select defrost by time function. Defrost
indicator will illuminate, and “00:00” will ash.
2. Press number pads from 0 to 9 to input the defrost time.
NOTE: The maximum time can be input is 99 minutes and 99 seconds.
3. Press START/PAUSE to begin defrosting.
NOTE: When half of the total defrost time has passed, an alert tone will sound
twice to remind you to turn the food over.

14
AUTO MENU COOKING
The Auto Menu cooking programs are based on the weight of the food/beverage
being heated.
Press the Auto Menu button until the desired cook setting appears in the display.
POPCORN MENU
1. Press the Popcorn pad repeatedly until the desired number for the amount of
popcorn appears in the display.
• Press 1 Time: approximately 1.75 ounces
For example, press the Popcorn pad once, “1.75” appears in the display window.
• Press 2 Times: approximately 3.0 ounces
• Press 3 Times: approximately 3.5 ounces
2. Press START/PAUSE to cook.
BAKED POTATO MENU
1. Press BAKED POTATO repeatedly until the desired setting appears in the display.
For example, press BAKED POTATO once, “1” appears in the LED display.
• Press 1 time: for approximately 7.1 ounces
• Press 2 times: for approximately 14.2 ounces
• Press 3 times: for approximately 21.3 ounces
2. Press “START/PAUSE” to cook.
BEVERAGE MENU
1. Press BEVERAGE repeatedly until the number you wish appears in the display.
For example, press BEVERAGE once , “1” appears in the LED display.
• Press 1 time: for approximately 8.8 ounces
• Press 2 times: for approximately 17.6 ounces
• Press 3 times: for approximately 26.4 ounces
2. Press “START/PAUSE” to cook.
REHEAT MENU
1. Press REHEAT repeatedly until the number of ounces appears in the LED display.
For example, press REHEAT once, “8.0” ounces appears in the LED display.
• Press 1 time: for approximately 8 ounces.
• Press 2 times: for approximately 16 ounces. “16.0” ounces appears in the
LED display.
• Press 3 times: for approximately 24 ounces. “24.0” ounces appears in the
LED display.
2. Press START/PAUSE” to cook.

15
MICROWAVE OVEN CARE
GENERAL CLEANING
WARNING
Electrical Shock Hazard
Disconnect power before cleaning.
Failure to do so can result in death or electrical shock.
IMPORTANT:
• Before cleaning, make sure all controls are o and the microwave oven is cool.
Always follow label instructions on cleaning products.
• To avoid damage to the microwave oven caused by arcing due to soil buildup,
keep cavity, microwave inlet cover and area where the door touches the frame
clean.
• Clean with mild soap, water and a soft cloth or sponge, or as instructed
following:
NOTE: Never use rough scouring powder or pads on the microwave.
• Door and exterior: mild soap and water, or glass cleaner applied to paper
towel.
• Stainless steel (on some models): mild soap and water, then rinse with clean
water and dry with soft cloth, or use stainless steel cleaner.
• Grease lters: mild soap and water or dishwasher.
• Turntable: mild soap and water or dishwasher.
• Control panel: sponge or soft cloth and water.

16
REMOVING/CLEANING/REPLACING FILTERS
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Exhaust Filters
The oven ventilation exhaust lters should be removed and cleaned often; generally
at least once every month.
1. To remove the exhaust ventilation lters, slide the lter to the rear. Then pull
lter downward and push to the other side. The lter will drop out. Repeat for the
second lter.
Front
Rear
a
b
a Surface lights
b Ventilation lters
2. Soak the ventilation lters in hot water using a mild detergent. Rinse well and
shake to dry.
NOTE: Do not use ammonia or wash in a dishwasher. The aluminum on the lter
will corrode and darken.

17
3. To reinstall the exhaust ventilation lter, slide it into the side slot, and then
push up and toward the oven to lock. Reinstall the second lter using the same
procedure.
Charcoal Filter
A charcoal lter should be installed in your microwave oven when set for non-vented
or recirculated installation. The charcoal lter cannot be cleaned, so it should be
replaced every 6 to 12 months depending on use.
1. Unplug or disconnect power to the microwave.
2. Remove the vent grille mounting screws.
3. Pull the vent grille away from the unit.
4. Remove the charcoal lter by pushing it inward, and then turn and pull it away
from the unit.

18
LIGHT BULB REPLACEMENT
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Surface Light
The cooktop light bulb is located on the underside of the microwave oven, and is
replaceable.
1. Unplug or disconnect power to the microwave.
2. Remove the bulb cover mounting screws at both light positions under the
microwave, and open the cover.
3. Replace bulb with 30 watt appliance bulb.
NOTE: DO NOT USE BULBS LARGER THAN 30 WATTS.
4. Reinstall bulb cover and mounting screw.
5. Plug the microwave back into the power supply or turn the power back on at the
main circuit breaker.
