Haier HMD440X User manual

GB
HMD440X
GB Refrigerator - Freezer
User Guide
The series of the refrigerators comply with the national standards:
GB/T8059.4 Frostless Refrigeration Cabin, Frostless Refrigeration Freezing Cabin, Frostless Frozen-Food Storage
Cabin and Frostless Food Freezing Cabin of Domestic Refrigeration Appliance
Gb12021.2 Limited Value of Energy Consumption and Energy Efficiency Grade of Domestic Refrigerator
Holiday
Fuzzy
S-Cool S-Frz

2
Multiple
chambers
with various
temperature
zones

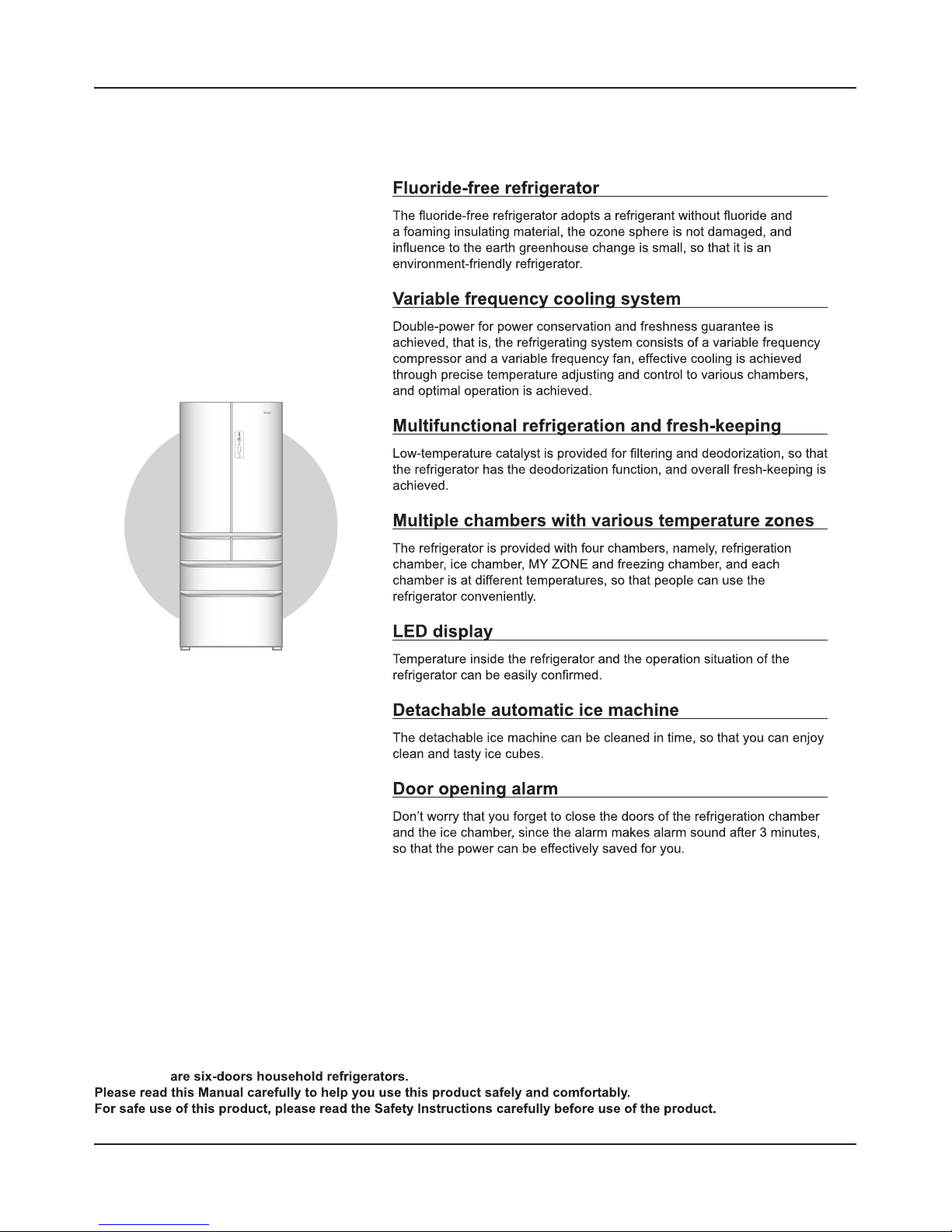

Fluoride-free
refrigerator
LED display
Door opening
alarm
Variable
frequency
cooling
system
Multifunctional
refrigeration and
fresh-keeping
Detachable
automatic ice
machine
Household Refrigerator Manual
HMD440X
 Please read the Manual carefully before use.
 Please properly save this Manual for future reference.

3
The utmost in storing freshness from all the corners of the world
– taste the varied sensations of different latitudes
TASTE FRESHNESS
In order to precisely realize your style of living, Haier has bestowed each of its product categories for households with
exclusive state of the mind concepts. What this product brings to you is taste freshness.
Product characteristics
HMD440X

4
Contents
 
 
 
 
 
 
  
 
 
  
  
  
 
 
  
  
  
 
 
 
 
 
 
 
 
 
 

 

 
 
 
 

5
Security caution
Dear Haier user:
Thanks for using Haier product. For your better reading of this Manual and use of this product,
please read carefully and comply with the contents with the following marks in this Manual.
Security marks
Prohibition: Acts with the mark are prohibited, or else damage to the product or the user
may be caused.
Warning:
Content with the mark is related to the safety of the product and the user, the
content shall be operated complying with the requirement, or else damage to
the product or the user may be caused.
Attention: Content with the mark shall be paid attention to, or else damage to the
product or other damages can be caused because of maloperation.
Security caution
 Before the refrigerator is used, please carefully read the security caution and use the
refrigerator correctly.

This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
he appliance enclosure or in the built-in structure,
clear of obstruction
 or other means to accelerate the defrosting
process, other than those recommended by the manufacturer

lopentane foam materials are combustiblematerials
and discarded refrigerators should be isolated from fire sources and can not be burned.
Please transfer the refrigerator to qualified professional recycling companies for processing to
avoid damages to the environment or other hazards.
Please remove the door of the refrigerator and shelves which shall be properly placed to avoid
accidents of children entering and playing in the refrigerator.
The security caution helps you to use the refrigerator safely, and prevents damage to
you and others and property caused by maloperation. Dangers which can be caused by
the content related to security.

6
Checking on power supply socket and power supply wire
The power supply of the refrigerator is provided with a three-wire (earthing) plug which
is accordant with three-wire (earthing) socket. Do not disassemble or cut off the third
pin (earthing) of the power supply wire in any case. The plug shall be available and
convenient to plug in or out.
The refrigerator should be connected to a socket which is dedicated for the fridge and be rated
at 10A. The refrigerator should not be plugged into a multibox as overloading may occur.
If the refrigerator shares a multifunctional socket with other electric appliances,
fire may be resulted if the wire heats up.
The refrigerator shall not be pushed hard against the plug top, this is to avoid damage
to the plug top.
Do not use the refrigerator if the wire or the plug is damaged and the plug is loosened, or
When being plugged or pulled out, the plug shall be held by hand, damage can be caused
can be caused.
Installation place
Avoid places with large humidity, since wire insulation can be aged and electricity leakage
can be caused.
When the refrigerator is installed, space shall be preserved around. Please see
installation requirement in “use preparation.”
Refrigerant (R600a)
Do not damage the refrigeration system of the refrigerator since the refrigerant is
Fire explosion may be resulted from spark at connection points of electric appliance if
refrigerant is leaked.
If pipeline of the refrigeration system is damaged or combustion gas leaks out, do not
Fire explosion can be resulted from spark when the plug is pulled out or plugged in, and
It is hazardous for anyone other than an Authorised Service Person to service this appliance.
In Queensland – the authorized Service Person MUST hold a Gas Work Authorisation for
hydrocarbon refrigerants, to carry out Servicing or repairs which involve the removal of covers.

7






































8

























9
Preparation for use
 
 
 

 
 


 
 

 


 
 
 
 




 
 

Adjustable
adjustable foot
More than 5cm
from above
More than 10cm
from behind
More than 5cm at
the left and right
More than 5cm at
the left and right
 
 

 

Left refrigeration door
body sunk
Adjust the leftadjustable
foot according to the arrow
indication
Right refrigeration door
body sunk
Adjust the right adjustable
foot according to the arrow
indication
 
 






10
 

 




 




 



 




 



 



 
 








 









11

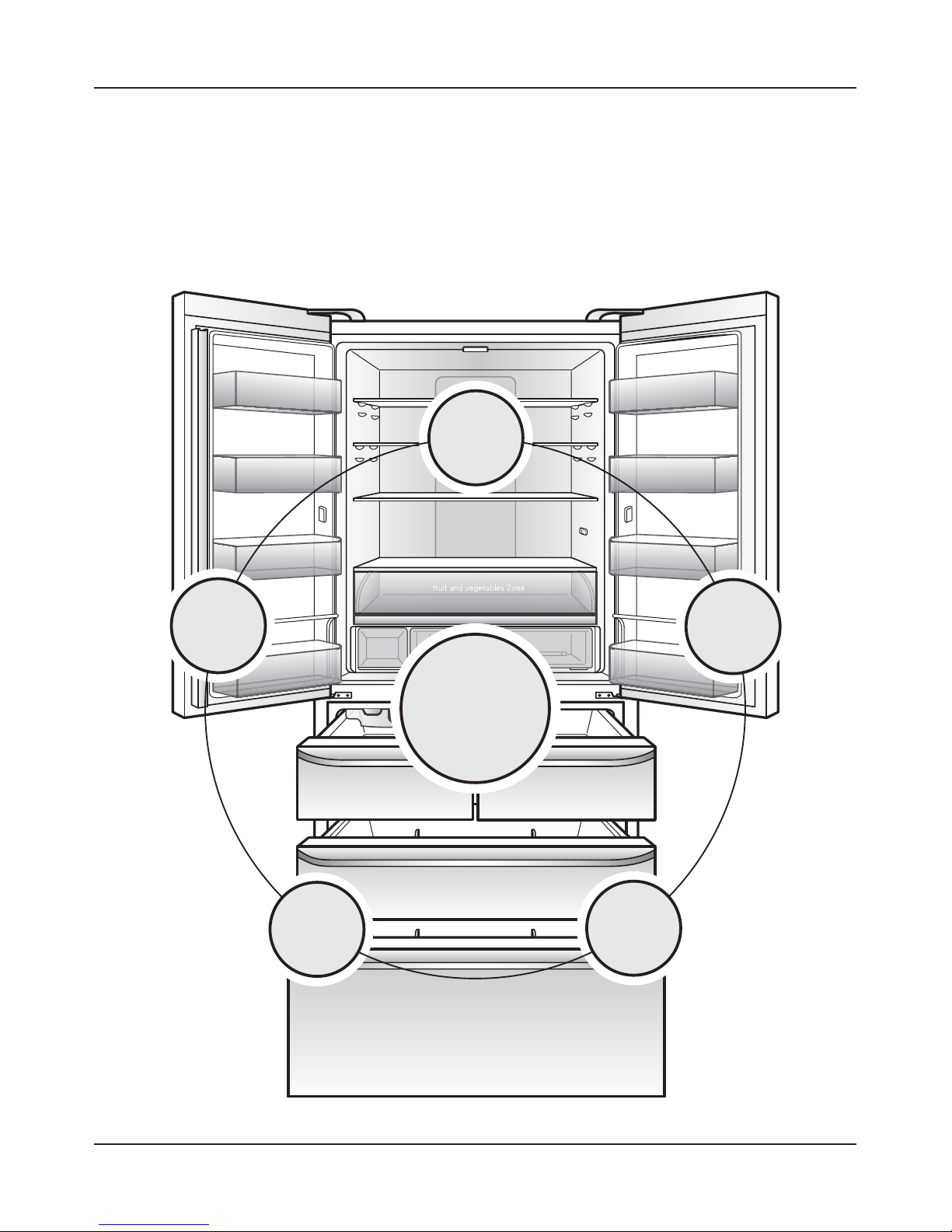

Names of members
Lower
freezing
drawer
Upper
freezing
drawer
Storage box
Folded rack
Refrigerating
rack
Refrigerating
rack
Bottle holder
Water
feed box
Fruit &
vegetable
drawer
Ice drawer MY ZONE
Bottle holder
LED lamp

12
Function introduction

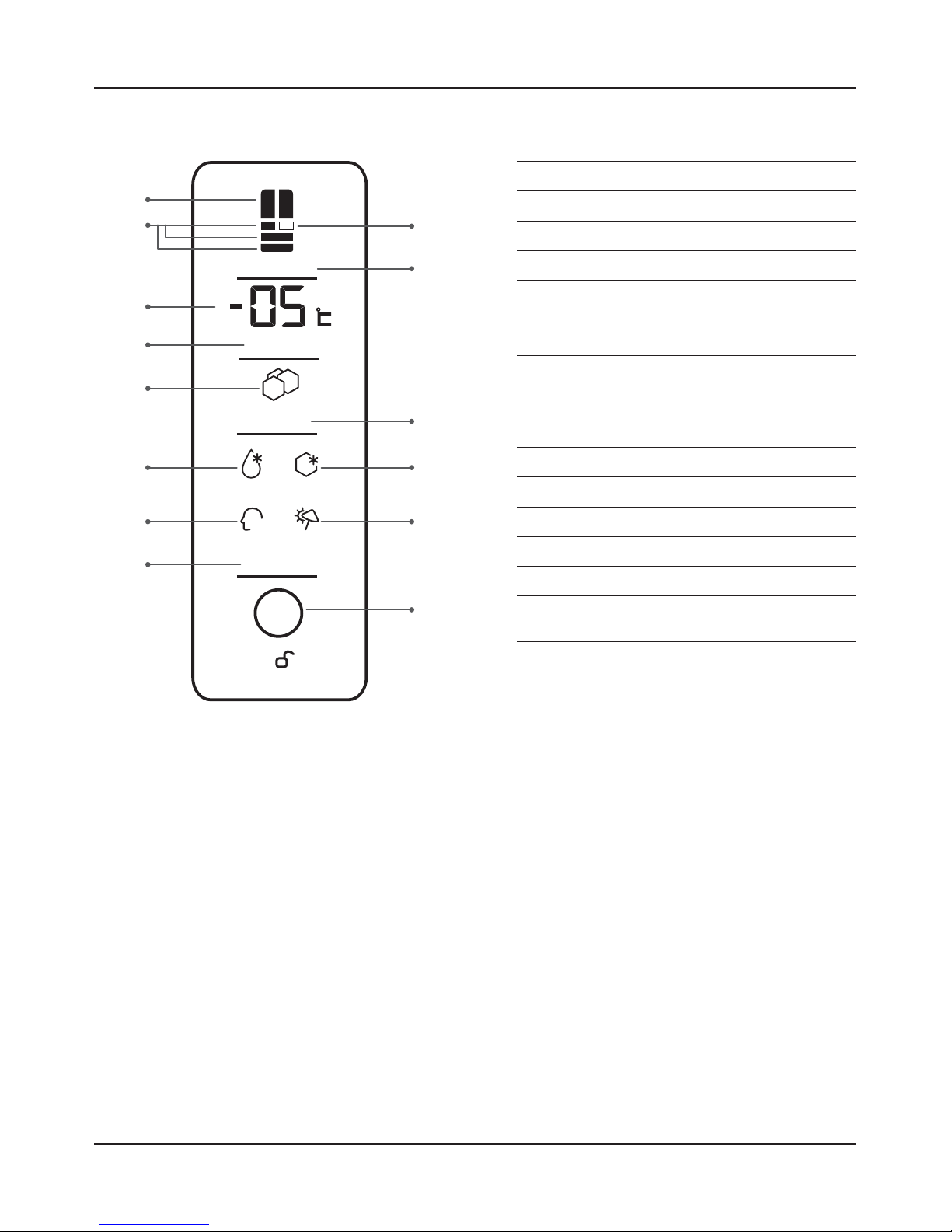

1. Control panel
A1 Refrigerating temperature zone
A2 My zone
A3 Freezing temperature zone
BSelection button of temperature zone
CAverage temperature display of temperature
zone
DTemperature adjusting button
EIce display icon
F
Ice on-off button
(continuously pressing for 3s to open or close
the ice function)
GQuick cool function icon
HQuick-freezing function icon
IIntelligence icon
JHoliday function icon
KFunction select button
LSetting button
(continuously press for 3s to lock or unlock)
Temp．zone
Temp.Set
Ice on/off
Func. Set
S-cool
Fuzzy Holiday
OK / 3s
S-Frz
A1
D
K
E
G
I
C
A3
B
A2
F
H
J
L

13
 
 
 


 
 



 
 



 
 
 


 



 


 

 

 he  e     h he    he ee eee e    h e e D
  h he   e ee  he e e  eee  ee he  e he eee
e  e ee 1ć e D  ee e   eh he hhe e eee  8ć  he
e   e   e  e h   e 2ć  e e h   e   e 
h 5 e e he e e  eee   e  eee   ee  he ee
eee  ee he
The ee eee  ee he  eee 0ć 10ć  h   hee ĀLāh
e 0ć  Āāh e 10ć
Whe he ee  e  Āāe   ee he    h   h e he ee
he e  eee   ee  e ee he  e  ee he

14
 
 he  e     h he         h e e D   h  
e ee  he eee e e     e he eee e  e e  20ć
18ć 15ć 8ć 7ć 6ć 4ć 2ć 0ć 1ć 2ć 3ć 4ć 5ć 20ć e D  ee e  e
  e  e 5 he e e  eee  eee   e   ee 
he ee eee   
 

 he  e     h he    he ee eee e    h e e D
  h he   e ee  he e e  eee  ee he  e he eee
e  e ee 1ć e D  ee e   16ć  he e   e  24ć  e
eee 16ć 24će h   e   e  h 5 e e he e e  eee
  e  eee   ee  he ee eee  ee he
The ee eee  ee he  eee 10ć 35ć  h   hee Āāh
e 10ć
 
  he  e  e    3  h he    hhh  he e   ee
 e  e h he    hhh e  e    3   h he   e  he
e  
 e  e he   e he  e he    e he he e he   
e e
 e h he e he Whe he    hhh   e he e he  hee   e
   e e

 he  e     ee  Ā ā  h he G   e  h e e
L   h G     e h h he     e      he 
 e     ee  Ā ā  he  e  h he G   e  h
e e L   h G  e h h he     e
 e     he    he ee   he     e 3h
 he    e he        e  e eee  h 
 G  e  he    e   e he   ee eee  
e he eee   ee     e  e he   ee eee
he G       e     e h e

 he  e     ee  Āeeā  h    e  h e
e    h      e h he ee   e     
he ee e     ee  Āeeā  he  e  h   
e  h e e L   h   e h he ee   e
 e     he ee  he ee   he ee  
e 56h
 he ee  e he ee      e  e eee   
e  he ee  e   e he   ee eee   e he
eee   ee     e  e he   ee eee he   
ee   e     e h e

15

 he  e     ee  Āhā  h J   e  h e e L 
 h J     e h he h   e  he eee  ee he
e  17ć The e eee  ee eee e  h h      
he h e     ee  Āhā  he  e  h J   e  h
e e L   h J  e h he h   e
 he h  e he h      e  e eee    
 J  e  he h  e he e   e     e he  
ee eee   e he eee   ee     e  e he
  ee eee he J   h   e     e h e

 he ee   e e  ee  e h 3   e Āeeā

Whe he e  e ee e  e he ee     he e e ee
e e e 

16
Food storage space
Refrigerating chamber (about 2-8ć)
Refrigerating chamber door (about 2-8ć)
Fruits and vegetables drawer (about 2-8ć)
Storage box (about 2-8ć)
MY ZONE (about 5 to -20ć)
The food seasoned, refrigerated foods,
seasoning, milk, beer, juice and the like
(of which the upper section shall be 1-2ć
higher respectively).
Vegetables, fruits, bottled, beverages,
seasoning and the like.
Vegetables, fruits, bottled, beverages,
seasoning and the like.
The ice chamber is designed separately,
to guarantee the purity of ice.
Store the food required according to the setting temperature.
Freezing chamber (about -16 to -24ć)
Food, ice cream, homemade frozen foods and the like.
Ice chamber (about -16 to -24ć)
 
 
 
 

 
 

 
 

17
Use of refrigerating chamber
 
 
 
 
 

 

 
 

Storage box
Refrigerating rack
Folding rack
Folding rack
Bottle base
Vertical beam
Water feed box
Fruits and
vegetables drawer
Bottle base
LED light

18
 
 ć

 
 

 
 


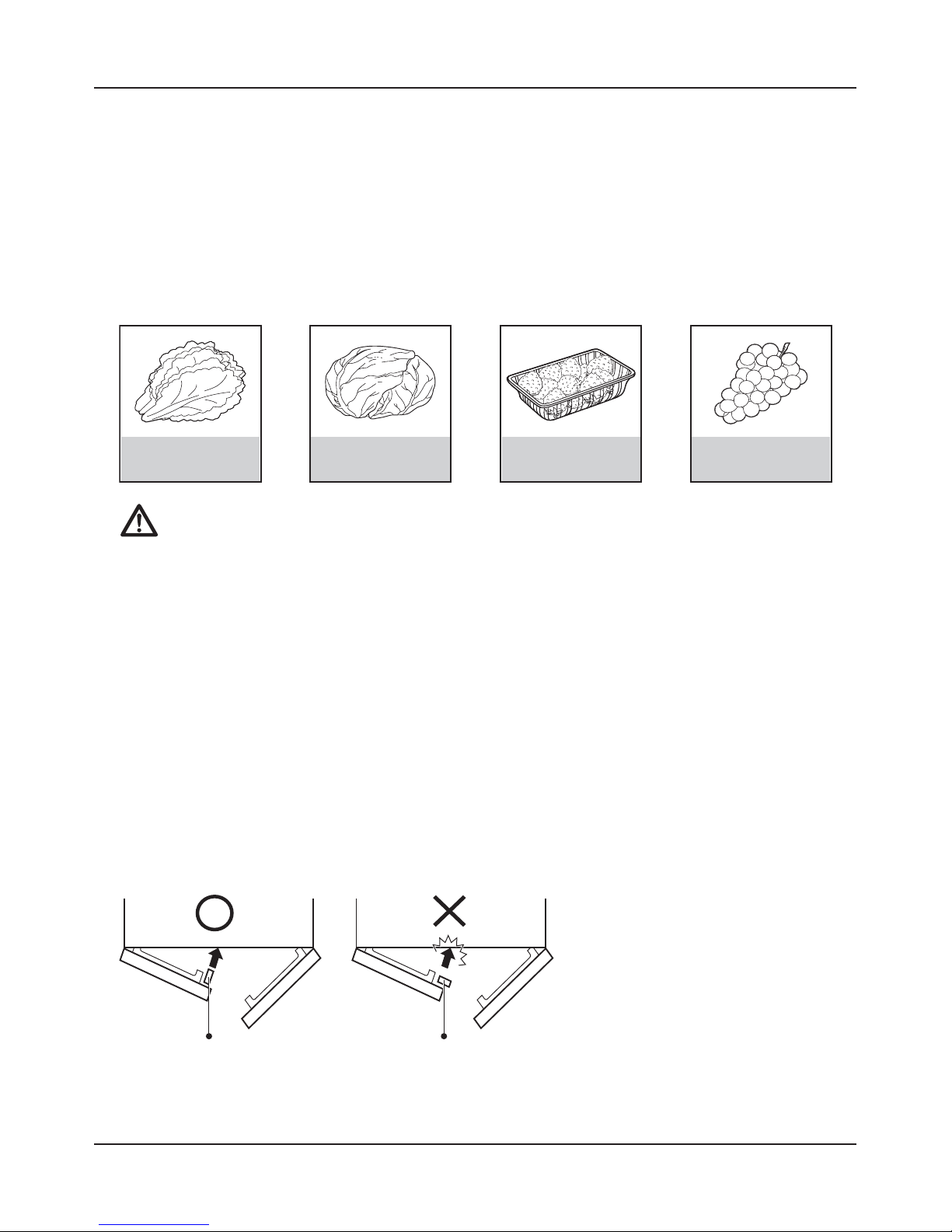

Brown lettuce
About 7 days
Cabbage
About 10 days
Strawberry
About 3 days
Grape
About 7 days
 
 
 


 

 

 
 
 

 
 

WrongRight

19
 
 

 
 
 
 
 
 
 

20
 
ƽ 
 

 

 

 

 

 
 

 
ćć

 

 
 

ƽ 
 


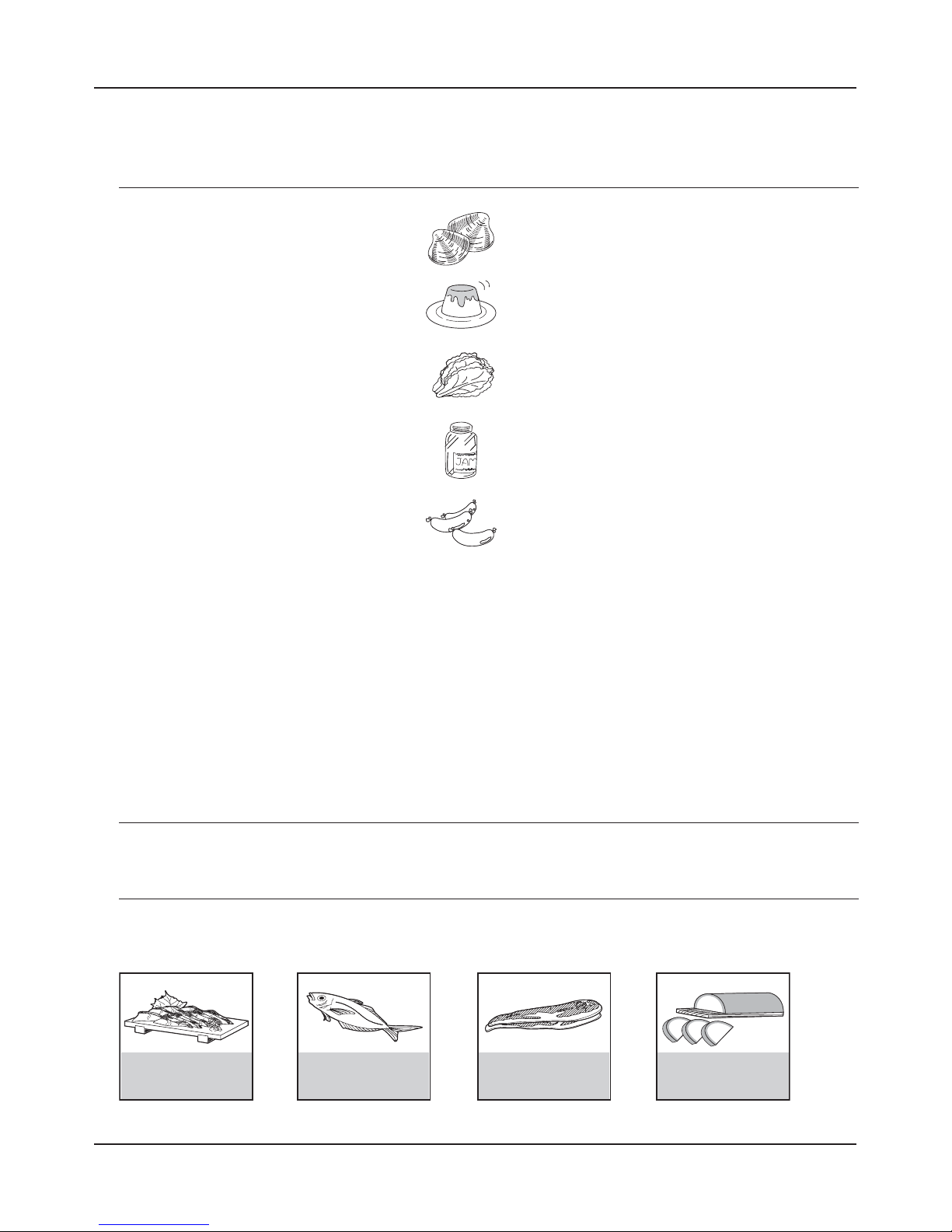

Raw fish
About 1-2 days
Fish
About 3 days
Beef (slices)
About 4 days
Man-made crab stick
About 1 week
